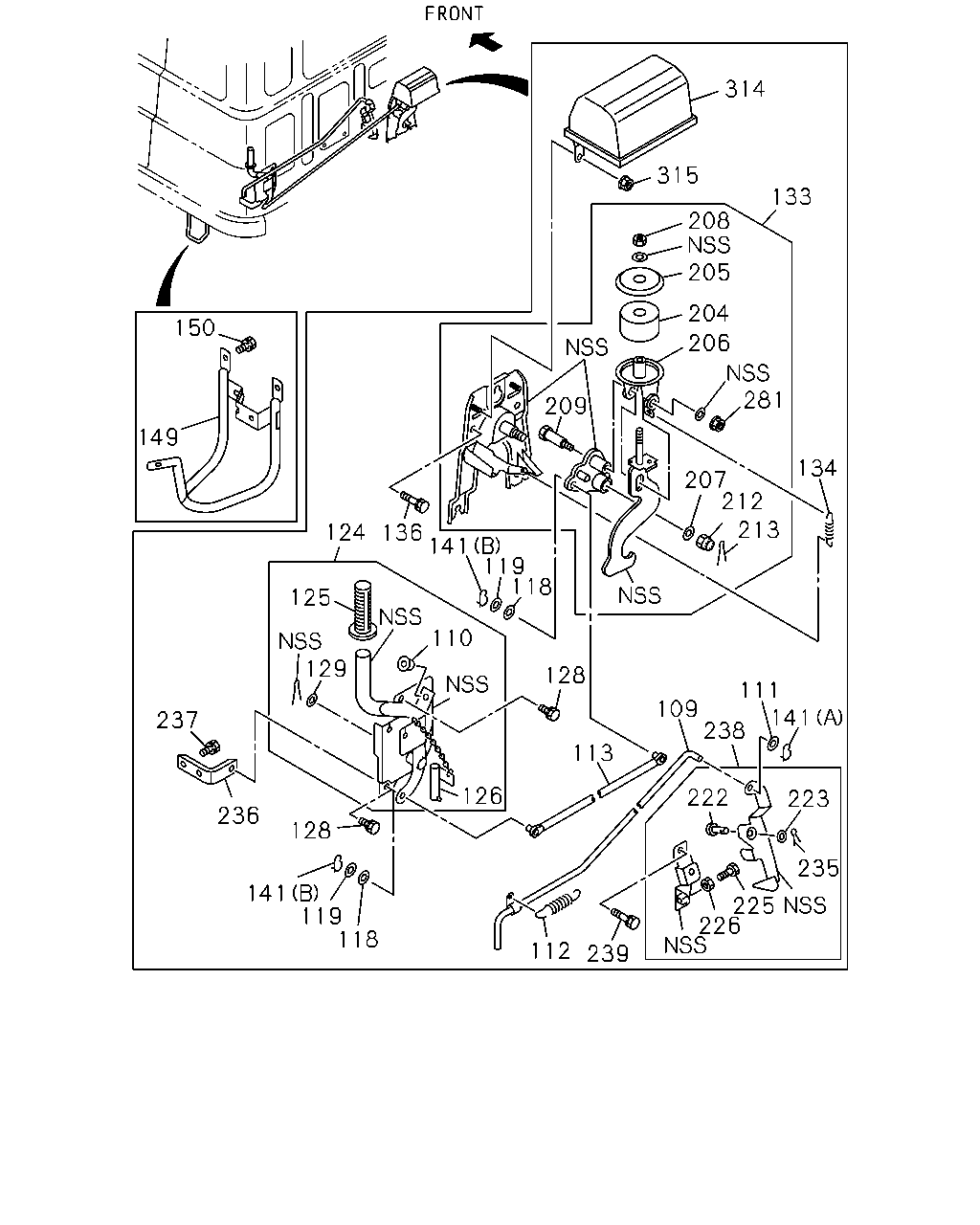

5-15 — CAB MOUNTING; CAB SIDE (#26044) — 67 parça
çizim 24254
314 315 133 208 205 204 150 206 281 209 149 134 207 212 213 124 136 141 119 118 125 110 129 128 111 141 109 238 237 113 222 126 223 236 128 235 141 119 118 226 112 239 225
BalonParca AdiParca NoAdetTipApplied Date A B
109 ROD; SAFETY,CAB LK 1-79718-642-1 01 1 0407- ● ●
110 BUSHING; SAFETY ROD,CAB LOCK 1-79718-319-1 01 1 0407- ● ●
111 WASHER; PL,SAFETY ROD 1-09985-137-0 01 1 0407- ● ●
112 SPRING; RETURN,SAFETY ROD 1-79718-655-0 01 1 0407- ● ●
113 ROD; CONN,CAB LK 1-79718-583-0 01 1 0407- ● ●
118 WASHER; PL,CONNROD
ID=10.5 		1-09985-107-0 02 1 0407- ● ●
119 WASHER; WAVE,CAB LOCK ROD 1-09985-045-0 02 1 0407- ● ●
124 LEVER ASM; HAND,CAB LK 1-79718-635-3 01 1 0407- ● ●
125 GRIP; HAND LEVER,CAB LOCK 1-79718-303-2 01 1 0407- ● ●
126 PIN; LK,HAND LEVER 1-79718-640-2 01 1 0407- ● ●
128 BOLT; BRKT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0407- ● ●
129 WASHER; PL,BRKT
ID=17 		1-09985-109-0 01 1 0407- ● ●
133 LOCK ASM; CAB
THA 		1-79718-656-0 01 1 0407- ● ●
134 SPRING; CAB LK LEVER 1-79718-538-1 01 1 0407- ● ●
136 BOLT; CAB LK
M10X25 W/LK&PL WASHER 		1-09980-488-0 05 1 0407- ● ●
141 PIN; SNAP,CAB LOCK ROD
(A) L=27.7 		1-09987-141-0 01 1 0407- ● ●
141 PIN; SNAP,CAB LOCK ROD
(B) L=32.6 		1-09987-142-0 02 1 0407- ● ●
149 HANDLE; TILT 1-71996-146-1 01 1 0407- ● ●
150 BOLT; TILT HANDLE
M6X20 W/LK&PL WASHER 		8-94279-203-0 02 1 0407- ● ●
204 RUBBER; REBOUND,CAB LK
THA 		1-79718-429-1 01 1 0407- ● ●
205 PLATE; SUPPORT,REBOUND RUBBER
THA 		1-79718-129-1 01 1 0407- ● ●
206 SUPPORT; REBOUND RUBBER
THA 		1-79718-434-0 01 1 0407- ● ●
207 WASHER; PL,SUPPORT PLATE
ID=19 OD=44 THA 		1-09985-113-0 01 1 0407- ● ●
208 NUT; SUPPORT PLATE
M14 LOCK NUT W/FLANGE THA 		1-79718-526-0 01 1 0407- ● ●
209 PIN; JOINT,SUPPORT
THA 		1-79718-523-0 01 1 0407- ● ●
212 NUT; BRKT,CAB LOCK
M18 SLOTTED THA 		1-09984-079-0 01 1 0407- ● ●
213 PIN; SPLIT,BRKT,CAB LK
OD=3.7 L=30 		9-08114-030-0 01 1 0407- ● ●
222 PIN; JOINT,SAFETY LK 1-09987-159-0 01 1 0407- ● ●
223 WASHER; PL,SAFETY LK
ID=12.5 OD=22 T=1.6 		1-09985-108-0 01 1 0407- ● ●
225 BOLT; SAFETY LK
M8X30 		1-09980-277-0 01 1 0407- ● ●
226 NUT; SAFETY LK
M8 		1-09984-065-0 01 1 0407- ● ●
235 PIN; SNAP 1-09987-158-1 01 1 0407- ● ●
236 SUPPORT ASM; HAND LEVER,CAB LOCK 1-79718-493-0 01 1 0407- ● ●
237 BOLT; HAND LEVER SUPPORT,CAB LOCK
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 0407- ● ●
238 LOCK ASM; SAFETY,CAB TILT 1-79718-612-1 01 1 0407- ● ●
239 BOLT; SAFETY LK
M8X25 W/LK&PL WASHER 		1-09980-526-0 02 1 0407- ● ●
281 NUT; SUPPORT
M12 LOCK NUT W/FLANGE THA 		1-79718-524-1 01 1 0407- ● ●
314 COVER; CAB LOCK 1-79718-575-1 01 1 0407- ● ●
315 NUT; COVER
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 02 1 0407- ● ●

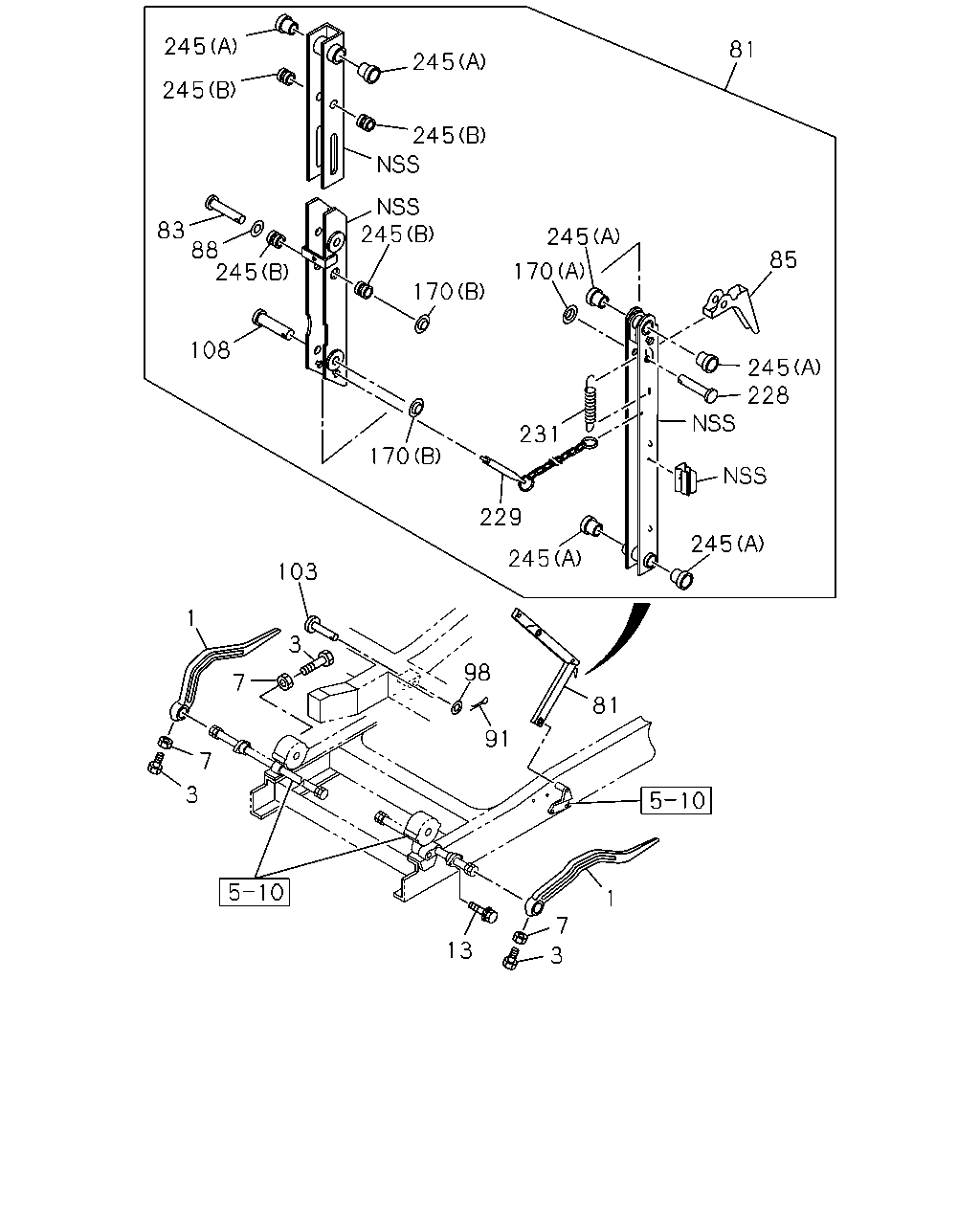

çizim 25085
245 81 245 245 245 245 83 88 245 245 85 170 170 108 245 228 231 170 229 245 245 103 1 3 98 7 81 91 7 3 1 7 13 3
BalonParca AdiParca NoAdetTipApplied Date A B
1 LEVER; TORSION BAR 1-53458-283-0 01 1 0407- ● ●
1 LEVER; TORSION BAR 1-53458-284-0 01 1 0407- ● ●
3 BOLT; LEVER
M10X32 		1-09000-435-0 04 1 0407- ● ●
7 NUT; LK,LEVER
M10 		9-09110-510-0 04 1 0407-0512 ● ●
7 NUT; LK,LEVER
M10 THA 		0-91110-510-0 04 1 0601- ● ●
13 BOLT; BUSHING,TORSION BAR
M6X16 W/LK&PL WASHER 		0-50140-616-0 02 1 0407-0701 ● ●
13 BOLT; BUSHING,TORSION BAR
M6X16 W/LK&PL WASHER 		0-50640-616-0 02 1 0702- ● ●
81 STAY ASM; CAB TILT 1-62500-761-0 01 1 0407- ● ●
83 PIN; JOINT,CAB STAY
OD=10 L=42 		1-09744-106-0 01 1 0407- ● ●
85 LEVER; LOCK,CAB STAY 1-62500-503-0 01 1 0407- ● ●
88 WASHER; PL,CAB STAY PIN
ID=10.5 T=2.0 		1-09985-183-0 01 1 0407- ● ●
91 PIN; SPLIT,CAB STAY 1-09746-021-0 01 1 0407- ● ●
98 WASHER; CAB STAY
ID=10.5 T=2.0 		1-09985-183-0 01 1 0407- ● ●
103 PIN; JOINT,CAB STAY 1-09744-108-1 01 1 0407- ● ●
108 PIN; ADJ,CAB STAY
OD=10 L=42 		1-09744-106-0 01 1 0407- ● ●
170 NUT
(A) ID=7.9 PUSH NUT 		8-97022-565-0 01 1 0407- ● ●
170 NUT
(B) ID=9.9 PUSH NUT 		8-97022-566-0 02 1 0407- ● ●
228 PIN; SAFETY LOCK SPRING,CAB STAY 1-09744-086-2 01 1 0407- ● ●
229 PIN ASM; SAFETY 1-62500-517-1 01 1 0407- ● ●
231 SPRING; RETURN,LOCK LEVER,CAB STAY 1-09583-244-0 01 1 0407- ● ●
245 BUSHING; CAB STAY
(A) 		1-62500-587-0 06 1 0407- ● ●
245 BUSHING; CAB STAY
(B) 		1-62500-588-0 04 1 0407- ● ●

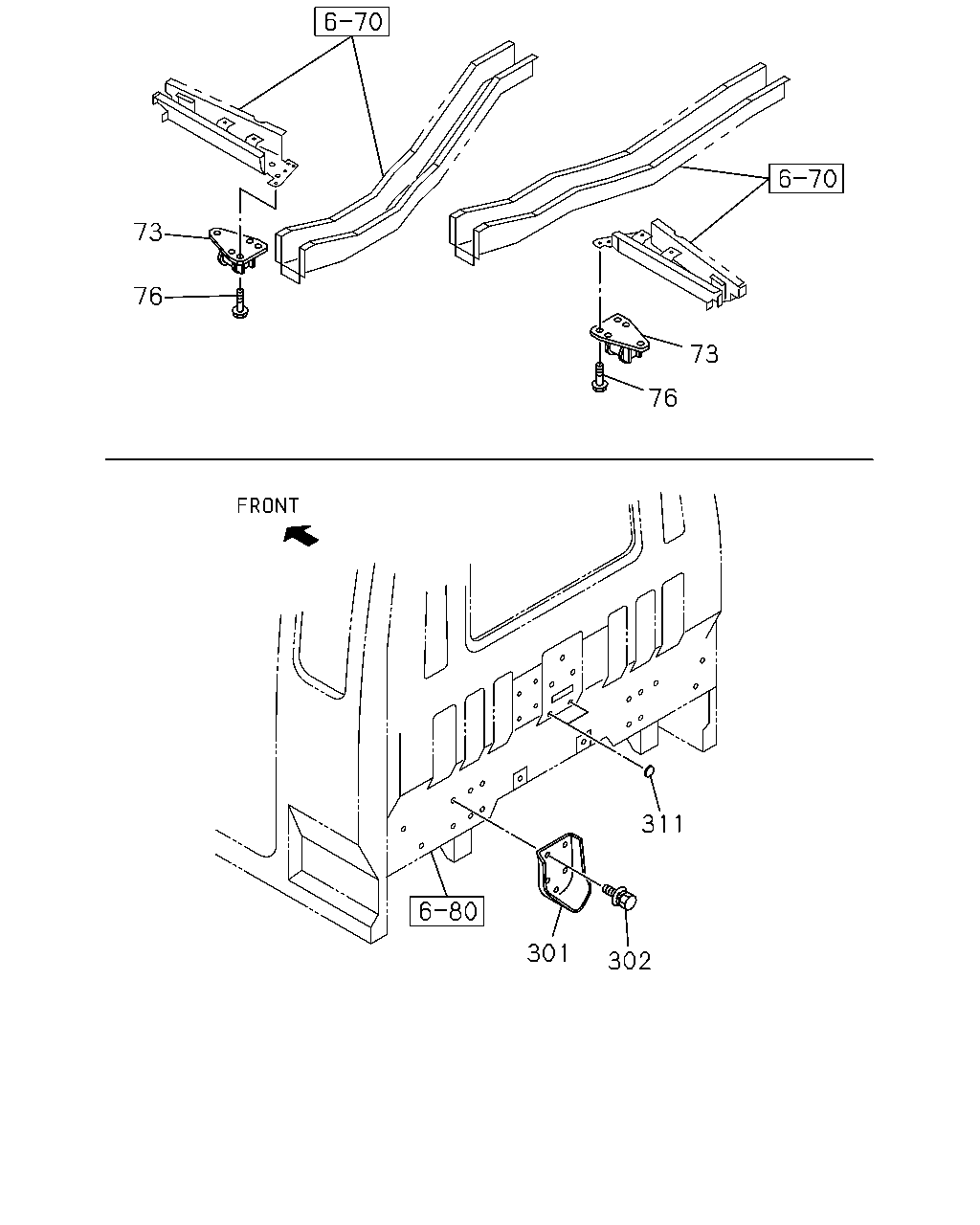

çizim 82150
73 76 73 76 311 301 302
BalonParca AdiParca NoAdetTipApplied Date A B
73 PAD; TORSION BAR 1-53459-790-1 02 1 0407- ● ●
76 BOLT; PAD
M10X30 W/LK&PL WASHER 		8-94279-213-0 06 1 0407- ● ●
301 BRACKET; RR MTG,CAB
THA 		8-97515-003-0 01 1 0407- ● ●
301 BRACKET; RR MTG,CAB
THA 		8-97515-004-0 01 1 0407- ● ●
302 BOLT; BRKT,CAB
M8X25 W/LK&PL WASHER 		1-09980-526-0 12 1 0407- ● ●
311 SEAL; CAB LOCK
OD=30 BLACK 		1-76798-035-0 02 1 0407- ● ●
