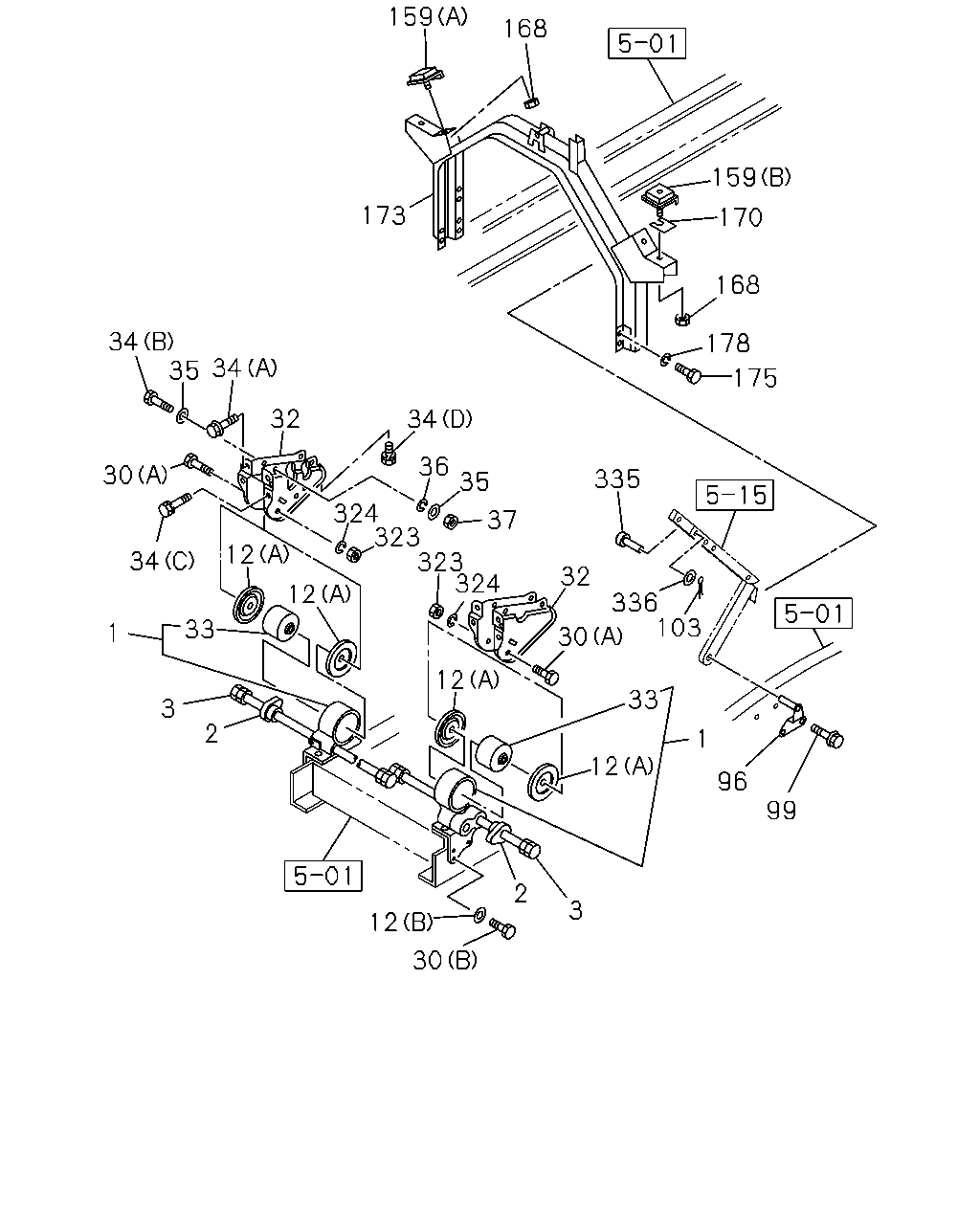

1 |
BRACKET; CAB MTG
|
1-53453-278-0 |
01 |
1 |
0407- |
● |
● |
| |
1 |
BRACKET; CAB MTG
|
1-53453-279-0 |
01 |
1 |
0407- |
● |
● |
| |
2 |
BUSHING; TORSION BAR
THA
|
1-53458-282-0 |
02 |
1 |
0407- |
● |
● |
| |
3 |
TORSION BAR
|
1-09585-129-0 |
01 |
1 |
0407- |
● |
● |
| |
3 |
TORSION BAR
|
1-09585-130-0 |
01 |
1 |
0407- |
● |
● |
| |
12 |
WASHER; LK,BRKT
(A)
ID=34.5
|
1-53458-281-1 |
04 |
1 |
0407- |
● |
● |
| |
12 |
WASHER; LK,BRKT
(B)
ID=15
THA
|
9-09651-069-0 |
10 |
1 |
0407- |
● |
● |
| |
30 |
BOLT; CAB FRT FOOT
(A)
M16X115
|
5-51361-002-1 |
02 |
1 |
0407- |
● |
● |
| |
30 |
BOLT; CAB FRT FOOT
(B)
M14X40
THA
|
9-92061-440-0 |
10 |
1 |
0407-0512 |
● |
● |
| |
30 |
BOLT; CAB FRT FOOT
(B)
M14X40
|
0-20951-440-0 |
10 |
1 |
0601- |
● |
● |
| |
32 |
BRACKET; CAB FRT MTG,CAB SIDE
THA
|
8-97515-005-0 |
01 |
1 |
0407- |
● |
● |
| |
32 |
BRACKET; CAB FRT MTG,CAB SIDE
THA
|
8-97515-006-0 |
01 |
1 |
0407- |
● |
● |
| |
33 |
BUSHING; RUBBER,CAB MTG BRKT,FRT
|
1-53458-636-1 |
02 |
1 |
0407- |
● |
● |
| |
34 |
BOLT; CAB MTG BRKT,CAB SIDE
(A)
M12X25 FLANGE
|
0-28081-225-0 |
04 |
1 |
0407-0512 |
● |
● |
| |
34 |
BOLT; CAB MTG BRKT,CAB SIDE
(A)
M12X25 FLANGE
THA
|
0-28051-225-0 |
04 |
1 |
0601- |
● |
● |
| |
34 |
BOLT; CAB MTG BRKT,CAB SIDE
(B)
M10X105
|
1-79198-008-1 |
04 |
1 |
0407- |
● |
● |
| |
34 |
BOLT; CAB MTG BRKT,CAB SIDE
(C)
M8X24.5 W/LK&PL WASHER
|
8-94279-208-0 |
03 |
1 |
0407- |
● |
● |
| |
34 |
BOLT; CAB MTG BRKT,CAB SIDE
(D)
M10X20 W/LK&PL WASHER
|
8-94279-219-0 |
04 |
1 |
0407- |
● |
● |
| |
35 |
WASHER; PL,CAB MTG BRKT
ID=10.5 OD=26 T=2.6
|
1-09985-184-0 |
08 |
1 |
0407- |
● |
● |
| |
36 |
WASHER; LK,CAB MTG BRKT
ID=10
|
1-09985-185-0 |
04 |
1 |
0407- |
● |
● |
| |
37 |
NUT; CAB MTG BRKT,CAB SIDE
M10
|
1-09984-142-0 |
04 |
1 |
0407- |
● |
● |
| |
96 |
BRACKET; CAB STAY
THA
|
1-62500-628-0 |
01 |
1 |
0407- |
● |
● |
| |
99 |
BOLT; BRKT
M10X30 FLANGE
|
0-28691-030-0 |
02 |
1 |
0407-0611 |
● |
● |
| |
99 |
BOLT; BRKT
M10X30 FLANGE
THA
|
0-28661-030-0 |
02 |
1 |
0612- |
● |
● |
| |
103 |
PIN; SPLIT,CAB STAY
|
1-09746-021-0 |
01 |
1 |
0407- |
● |
● |
| |
159 |
RUBBER; CUSHION,CAB MTG
(A)
THA
|
8-97916-019-0 |
02 |
1 |
0407- |
● |
● |
| |
159 |
RUBBER; CUSHION,CAB MTG
(B)
THA
|
8-97916-020-0 |
02 |
1 |
0407- |
● |
● |
| |
168 |
NUT; CUSHION RUBBER,BODY MTG
M12 FLANGE
|
0-91150-212-0 |
04 |
1 |
0407-0605 |
● |
● |
| |
168 |
NUT; CUSHION RUBBER,BODY MTG
M12 FLANGE
THA
|
0-91180-212-0 |
04 |
1 |
0606- |
● |
● |
| |
170 |
SHIM; CUSHION RUBBER
T=1.6
|
1-53459-621-0 |
AR |
1 |
0407- |
● |
● |
| |
173 |
MEMBER; CAB MTG RR
THA
|
8-97911-079-1 |
01 |
1 |
0407- |
● |
● |
| |
175 |
BOLT; MEMBER TO FRAME
M12X35
|
9-92061-235-0 |
08 |
1 |
0407-0512 |
● |
● |
| |
175 |
BOLT; MEMBER TO FRAME
M12X35
|
0-20951-235-0 |
08 |
1 |
0601- |
● |
● |
| |
178 |
WASHER; LK,MEMBER
ID=12.2
|
9-09150-612-0 |
08 |
1 |
0407-0603 |
● |
● |
| |
178 |
WASHER; LK,MEMBER
ID=12.2
|
0-91510-612-0 |
08 |
1 |
0604- |
● |
● |
| |
323 |
NUT; CAB FRT FOOT
M16
|
9-99110-516-0 |
02 |
1 |
0407-0512 |
● |
● |
| |
323 |
NUT; CAB FRT FOOT
M16
THA
|
0-91110-516-0 |
02 |
1 |
0601- |
● |
● |
| |
324 |
WASHER; LK
ID=16.2
|
9-09150-816-0 |
02 |
1 |
0407-0603 |
● |
● |
| |
324 |
WASHER; LK
ID=16.2
|
0-91510-816-0 |
02 |
1 |
0604- |
● |
● |
| |
335 |
PIN; ADJ,STAY LOCK
OD=10 L=48
|
1-09744-107-0 |
01 |
1 |
0407- |
● |
● |
| |
336 |
WASHER; PL,STAY LOCK
ID=10.5 T=2.0
|
1-09985-183-0 |
01 |
1 |
0407- |
● |
● |
