◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10942 - FTR(THAI)EURO2 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-36 - POWER STEERING CONTROL; ENGINE SIDE ▶
4-36 — POWER STEERING CONTROL; ENGINE SIDE (#26034) — 12 parça

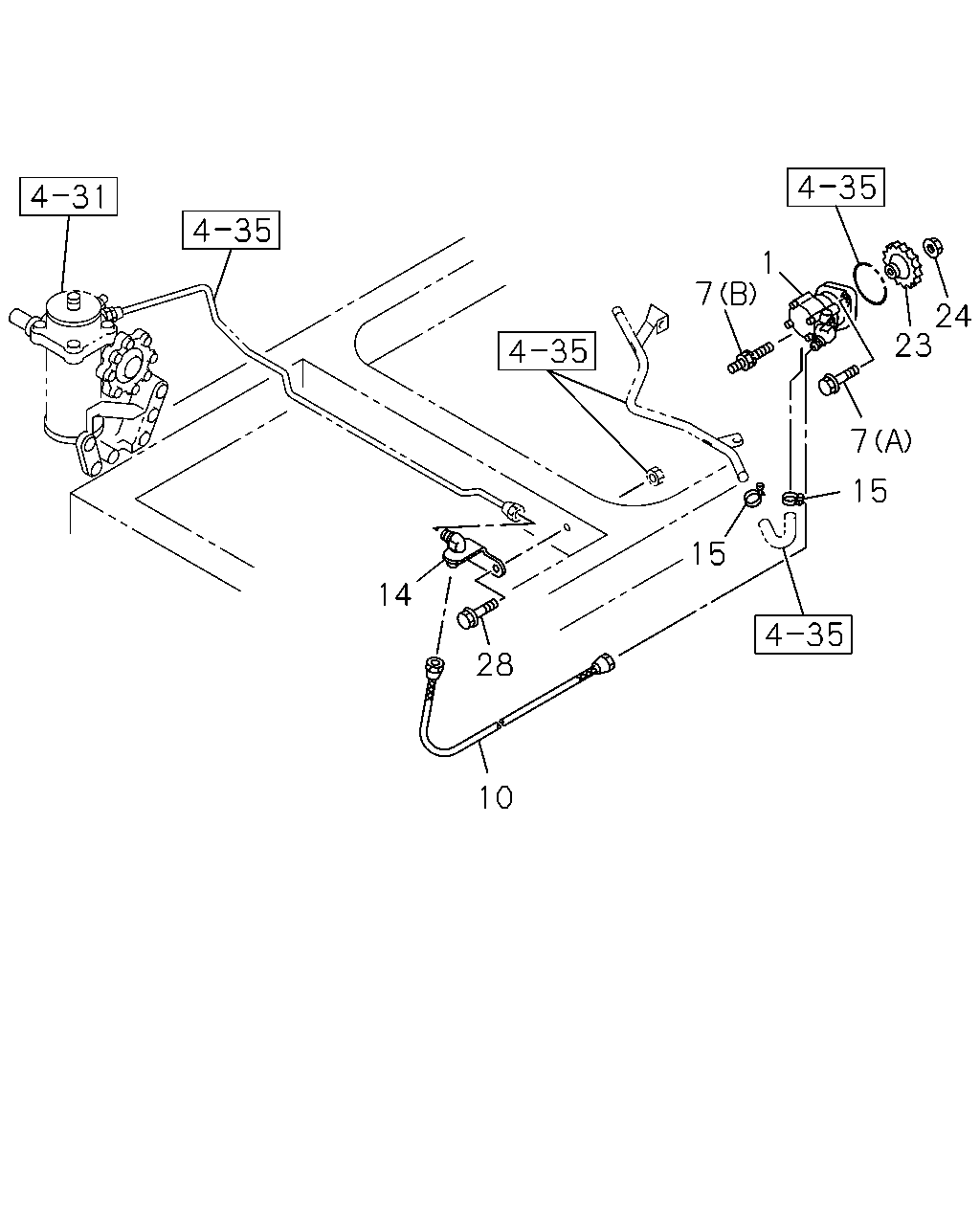

çizim 84179
1 7 24 23 7 15 15 14 28 10
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-548-1 01 1 0407- ● ●
7 BOLT; OIL PUMP,P/S
(B) M10X18,M10X58 L=83 W/LK WASHER 		1-09302-136-1 01 1 0407- ● ●
7 BOLT; OIL PUMP,P/S
(A) M10X55 FLANGE THA 		8-94399-863-1 01 1 0407-0805 ● ●
7 BOLT; OIL PUMP,P/S
(A) M10X55 FLANGE 		8-97365-449-0 01 1 0806- ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
L=770 		1-09364-987-1 01 1 0407- ● ●
14 UNION; FLEX HOSE,P/S 1-47470-463-1 01 1 0407- ● ●
15 CLIP; OIL PIPE SUCTION
ID=32 THA 		1-09704-085-0 02 1 0407- ● ●
23 GEAR; OIL PUMP
Z=30 		8-94396-957-3 01 1 0407- ● ●
24 NUT; GEAR,P/S PUMP
M14 FLANGE 		0-91150-114-0 01 1 0407-0712 ● ●
24 NUT; GEAR,P/S PUMP
M14 FLANGE THA 		0-91180-114-0 01 1 0801- ● ●
28 BOLT; BRKT,FLEX HOSE,P/S
M8X25 FLANGE 		0-28680-825-0 02 1 0407-0611 ● ●
28 BOLT; BRKT,FLEX HOSE,P/S
M8X25 FLANGE THA 		0-28650-825-0 02 1 0612- ● ●
