4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#26033) — 45 parça

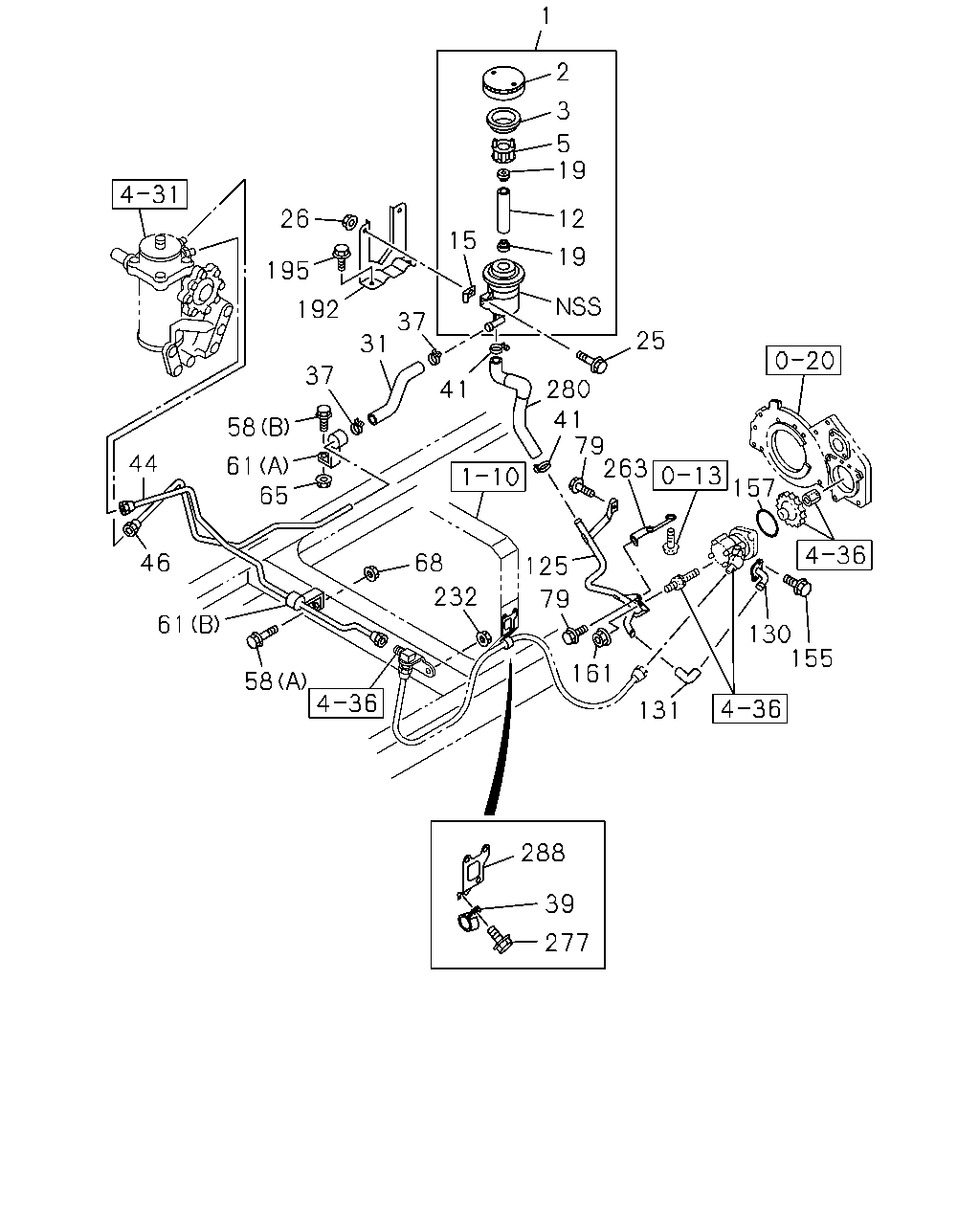

çizim 25152
1 2 3 5 19 12 26 15 19 195 192 37 25 31 37 280 41 41 79 263 157 58 44 61 65 46 68 125 232 79 61 130 155 161 58 131 288 39 277
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK ASM; OIL,P/S 1-21210-205-0 01 1 0407-0508 ● ●
1 TANK ASM; OIL,P/S 1-21210-238-1 01 1 0509- ● ●
2 CAP; OIL TANK,P/S 1-21241-004-4 01 1 0407- ● ●
3 GASKET; OIL TANK,P/S 1-21249-003-1 01 1 0407- ● ●
5 STRAINER; OIL TANK,P/S 1-21235-007-1 01 1 0407- ● ●
12 FILTER; MICROBON,OIL TANK,P/S 1-21235-011-0 01 1 0407- ● ●
15 PLATE; FILTER,OIL TANK 1-21249-007-1 02 1 0407-0508 ● ●
15 PLATE; FILTER,OIL TANK 1-21249-016-0 02 1 0509- ● ●
19 SEAT; OIL TANK 1-21249-004-0 02 1 0407- ● ●
25 BOLT; OIL TANK BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0407-0611 ● ●
25 BOLT; OIL TANK BRKT
M8X25 FLANGE THA 		0-28650-825-0 02 1 0612- ● ●
26 NUT; OIL TANK TO BRKT
M8 FLANGE 		0-91150-108-0 02 1 0407- ● ●
31 HOSE; P/S OIL TANK,INL 1-21113-591-1 01 1 0407- ● ●
37 CLIP; HOSE,P/S
ID=26 THA 		1-09704-082-0 02 1 0407- ● ●
39 CLIP; FLEX HOSE
ID=40 THA 		8-94226-553-0 01 1 0407- ● ●
41 CLIP; HOSE,P/S
ID=32 THA 		1-09704-085-0 02 1 0407- ● ●
44 PIPE; OIL,P/S UNIT TO NIPPLE 1-21115-949-0 01 1 0407- ● ●
46 PIPE; OIL,P/S UNIT TO OIL TANK
L=743 		1-21115-891-0 01 1 0407- ● ●
58 BOLT; CLIP
(B) M8X30 FLANGE 		0-28680-830-0 01 1 0407-0611 ● ●
58 BOLT; CLIP
(B) M8X30 FLANGE THA 		0-28650-830-0 01 1 0612- ● ●
58 BOLT; CLIP
(A) M8X20 FLANGE 		0-28080-820-0 01 1 0407-0611 ● ●
58 BOLT; CLIP
(A) M8X20 FLANGE THA 		0-28050-820-0 01 1 0612- ● ●
61 CLIP; OIL PIPE
(B) ID=12 H=24 L=20 		1-09700-605-0 01 1 0407- ● ●
61 CLIP; OIL PIPE
(A) ID=15 H=24 L=20 THA 		1-09700-606-0 01 1 0407- ● ●
65 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0407- ● ●
68 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91150-108-0 01 1 0407- ● ●
79 BOLT; BRKT
M8X12 FLANGE 		0-28080-812-0 02 1 0407-0512 ● ●
79 BOLT; BRKT
M8X12 FLANGE THA 		0-28050-812-0 02 1 0601- ● ●
125 CONNECTOR; P/S PUMP 8-94390-584-1 01 1 0407- ● ●
130 ADAPTER; P/S PUMP 8-94390-583-0 01 1 0407- ● ●
131 HOSE; RUBBER,P/S 8-94396-331-1 01 1 0407- ● ●
155 BOLT; CONNECTOR
M8X16 FLANGE 		0-28080-816-0 02 1 0407-0512 ● ●
155 BOLT; CONNECTOR
M8X16 FLANGE THA 		0-28050-816-0 02 1 0601- ● ●
157 GASKET; P/S PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4 		1-09623-178-0 01 1 0407- ● ●
161 NUT; P/S PIPE
M10 FLANGE 		0-91150-110-0 01 1 0407-0602 ● ●
161 NUT; P/S PIPE
M10 FLANGE THA 		0-91180-110-0 01 1 0603- ● ●
192 BRACKET; P/S OIL TANK 1-21119-129-0 01 1 0407- ● ●
195 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 02 1 0407-0611 ● ●
195 BOLT; BRKT
M10X30 FLANGE THA 		0-28651-030-0 02 1 0612- ● ●
232 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0407- ● ●
263 BRACKET; P/S PIPE 8-97600-117-0 01 1 0407- ● ●
277 BOLT; HOSE CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 0407-0611 ● ●
277 BOLT; HOSE CLIP
M8X16 FLANGE THA 		0-28050-816-0 01 1 0612- ● ●
280 HOSE; P/S OIL PUMP,INL 1-21115-230-1 01 1 0407- ● ●
288 BRACKET; CLIP,P/S
THA 		1-82659-149-0 01 1 0407- ● ●
