◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10942 - FTR(THAI)EURO2 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#26024) — 194 parça

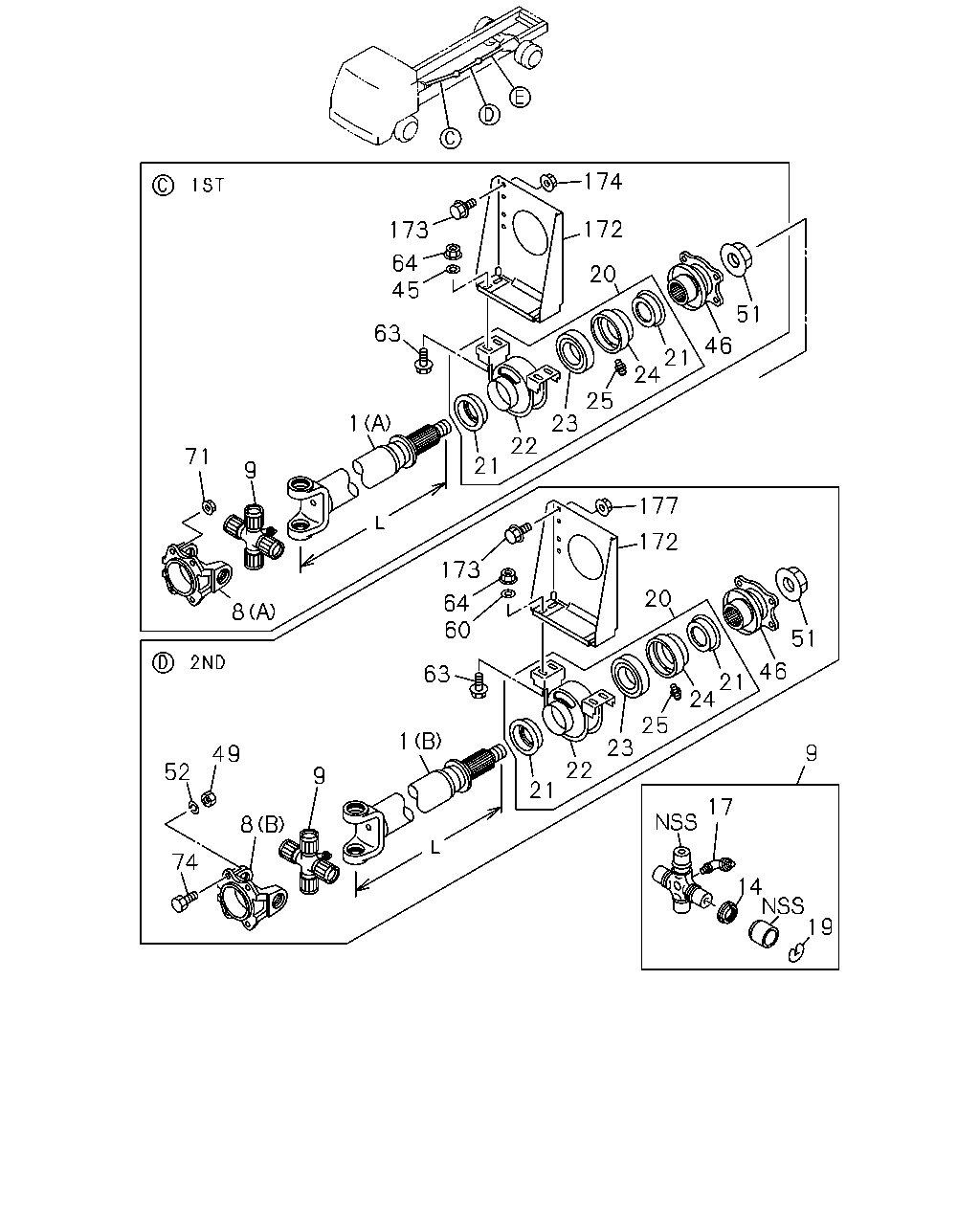

çizim 25150
174 172 173 64 45 20 51 63 46 21 24 25 23 1 22 71 21 9 177 172 173 20 64 60 8 51 46 63 21 24 25 23 1 9 49 22 52 9 21 17 8 74 14 19
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
(C) L=786 		1-37124-064-1 01 1 0407- ●
1 SHAFT; PROP
(A) L=616 		1-37151-935-1 01 1 0407- ●
1 SHAFT; PROP
(A) L=701 		1-37151-939-1 01 1 0407- ●
1 SHAFT; PROP
(C) L=1296 		1-37124-065-1 01 1 0407- ● ●
1 SHAFT; PROP
(A) L=1501 		1-37152-231-1 01 1 0407- ●
1 SHAFT; PROP
(C) L=1286 		1-37124-066-1 01 1 0407- ●
1 SHAFT; PROP
(B) L=1081 		1-37151-641-1 01 1 0407- ●
1 SHAFT; PROP
(A) L=861 		1-37151-943-1 01 1 0407- ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-3 02 1 0407- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-054-0 01 1 0407- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-3 03 1 0407- ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-1 AR 1 0407- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-1 AR 1 0407- ● ● ● ●
14 COVER; DUST,SPIDER 1-37319-012-0 08 1 0407- ● ● ●
14 COVER; DUST,SPIDER 1-37319-012-0 04 1 0407- ● ● ● ●
14 COVER; DUST,SPIDER 1-37319-012-0 12 1 0407- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 02 1 0407-0512 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 0601- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 01 1 0407-0512 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 0601- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 03 1 0407-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 03 1 0601- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 0407- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 0407- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 0407- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0407- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0407- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0407- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 12 1 0407- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 12 1 0407- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 12 1 0407- ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 0407- ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 0407- ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0407- ● ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0407- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0407- ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0407- ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0407- ● ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0407- ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 0407- ● ● ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 0407- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0407- ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0407- ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		9-09164-610-0 04 1 0407-0605 ● ● ● ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 0606- ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 0407- ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 0407- ●
49 NUT; YOKE
M14 		9-99110-514-0 04 1 0407-0512 ●
49 NUT; YOKE
M14 THA 		0-91110-514-0 04 1 0601- ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0407- ● ● ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0407- ●
52 WASHER; LK,YOKE
ID=14.2 		9-09150-614-0 04 1 0407-0603 ●
52 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 0604- ●
60 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		9-09164-610-0 04 1 0407-0605 ●
60 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 0606- ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 0407-0611 ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 0407-0611 ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 0612- ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 0612- ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 0407- ● ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 0407- ●
71 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 0407- ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0407- ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0407- ●
172 BRACKET; CENTER BRG
1ST 		1-37515-102-0 01 1 0407- ● ●
172 BRACKET; CENTER BRG
1ST 		1-37515-136-0 01 1 0407- ●
172 BRACKET; CENTER BRG
2ND 		1-37515-101-0 01 1 0407- ●
173 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 04 1 0407-0611 ● ● ●
173 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 04 1 0407-0611 ●
173 BOLT; BRKT
M10X30 FLANGE THA 		0-28651-030-0 04 1 0612- ● ● ●
173 BOLT; BRKT
M10X30 FLANGE THA 		0-28651-030-0 04 1 0612- ●
174 NUT; BRKT
M10 FLANGE 		0-91150-210-0 04 1 0407- ● ● ●
177 NUT
M10 FLANGE 		0-91150-210-0 04 1 0407- ●

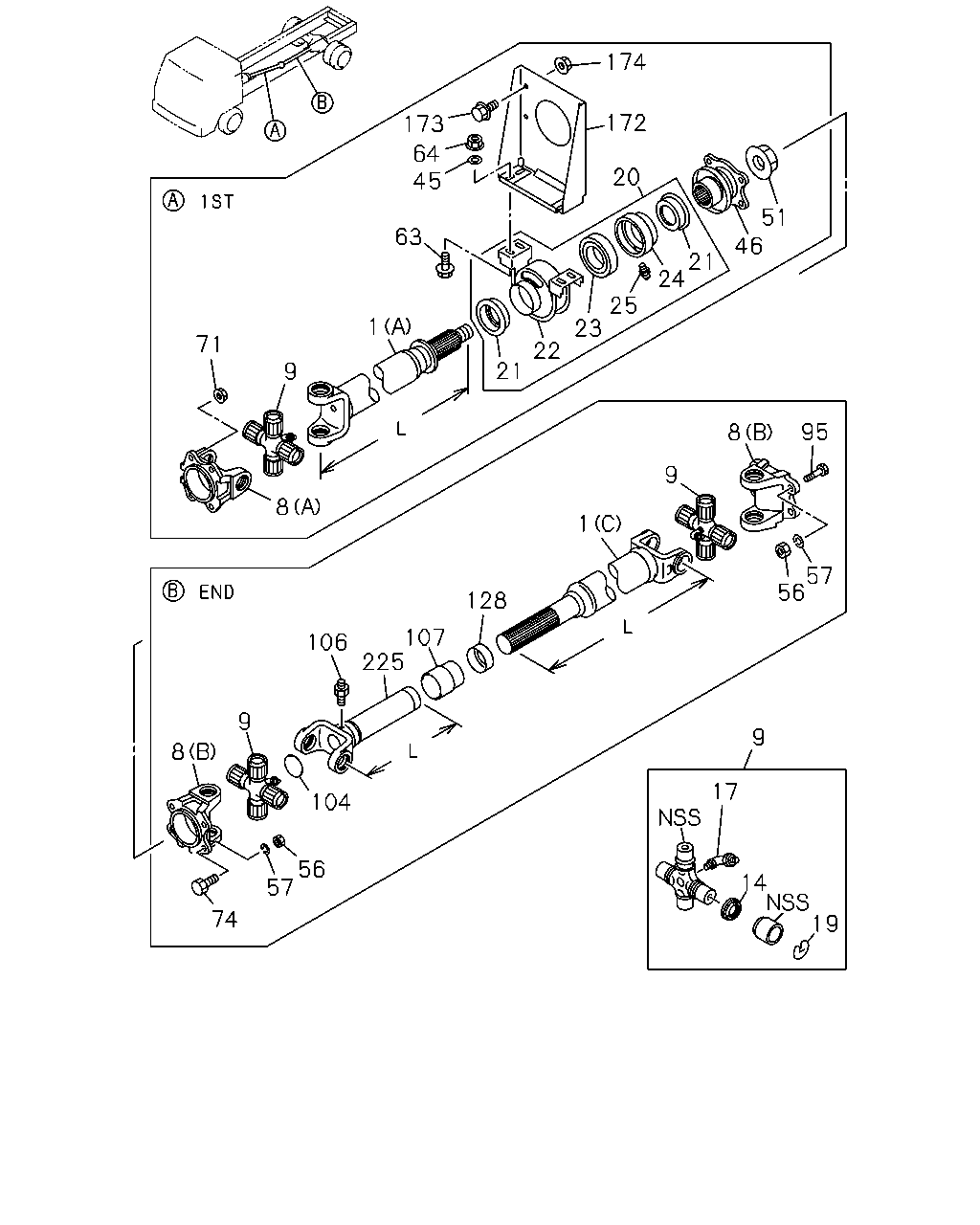

çizim 25373
174 172 173 64 45 20 51 46 63 21 24 25 23 1 71 22 21 9 95 8 9 8 1 57 56 128 107 225 106 9 9 8 17 104 56 57 14 19 74
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
(C) L=786 		1-37124-064-1 01 1 0407- ●
1 SHAFT; PROP
(A) L=616 		1-37151-935-1 01 1 0407- ●
1 SHAFT; PROP
(A) L=701 		1-37151-939-1 01 1 0407- ●
1 SHAFT; PROP
(C) L=1296 		1-37124-065-1 01 1 0407- ● ●
1 SHAFT; PROP
(A) L=1501 		1-37152-231-1 01 1 0407- ●
1 SHAFT; PROP
(C) L=1286 		1-37124-066-1 01 1 0407- ●
1 SHAFT; PROP
(B) L=1081 		1-37151-641-1 01 1 0407- ●
1 SHAFT; PROP
(A) L=861 		1-37151-943-1 01 1 0407- ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-3 02 1 0407- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-054-0 01 1 0407- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-3 03 1 0407- ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-1 AR 1 0407- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-1 AR 1 0407- ● ● ● ●
14 COVER; DUST,SPIDER 1-37319-012-0 08 1 0407- ● ● ●
14 COVER; DUST,SPIDER 1-37319-012-0 04 1 0407- ● ● ● ●
14 COVER; DUST,SPIDER 1-37319-012-0 12 1 0407- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 02 1 0407-0512 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 0601- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 01 1 0407-0512 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 0601- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 03 1 0407-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 03 1 0601- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 0407- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 0407- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 0407- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0407- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0407- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0407- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 12 1 0407- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 12 1 0407- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 12 1 0407- ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 0407- ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 0407- ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0407- ● ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0407- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0407- ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0407- ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0407- ● ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0407- ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 0407- ● ● ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 0407- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0407- ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0407- ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		9-09164-610-0 04 1 0407-0605 ● ● ● ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 0606- ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 0407- ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 0407- ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0407- ● ● ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0407- ●
56 NUT; YOKE
M14 		9-99110-514-0 08 1 0407-0512 ● ● ● ●
56 NUT; YOKE
M14 THA 		0-91110-514-0 08 1 0601- ● ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		9-09150-614-0 08 1 0407-0603 ● ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 08 1 0604- ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 0407-0611 ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 0407-0611 ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 0612- ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 0612- ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 0407- ● ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 0407- ●
71 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 0407- ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0407- ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0407- ●
95 BOLT; YOKE,FINAL
M14X37 		1-09000-121-0 04 1 0407- ● ● ● ●
104 PLUG; SLEEVE YOKE 1-09600-064-0 01 1 0407- ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0407-0512 ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ● ● ● ●
107 COVER; RET,SLEEVE 1-37249-060-1 01 1 0407- ● ● ● ●
128 SEAL; SLEEVE 1-37247-024-0 01 1 0407- ● ● ● ●
172 BRACKET; CENTER BRG
1ST 		1-37515-102-0 01 1 0407- ● ●
172 BRACKET; CENTER BRG
1ST 		1-37515-136-0 01 1 0407- ●
172 BRACKET; CENTER BRG
2ND 		1-37515-101-0 01 1 0407- ●
173 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 04 1 0407-0611 ● ● ●
173 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 04 1 0407-0611 ●
173 BOLT; BRKT
M10X30 FLANGE THA 		0-28651-030-0 04 1 0612- ● ● ●
173 BOLT; BRKT
M10X30 FLANGE THA 		0-28651-030-0 04 1 0612- ●
174 NUT; BRKT
M10 FLANGE 		0-91150-210-0 04 1 0407- ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=271 		1-37241-099-2 01 1 0407- ● ● ● ●

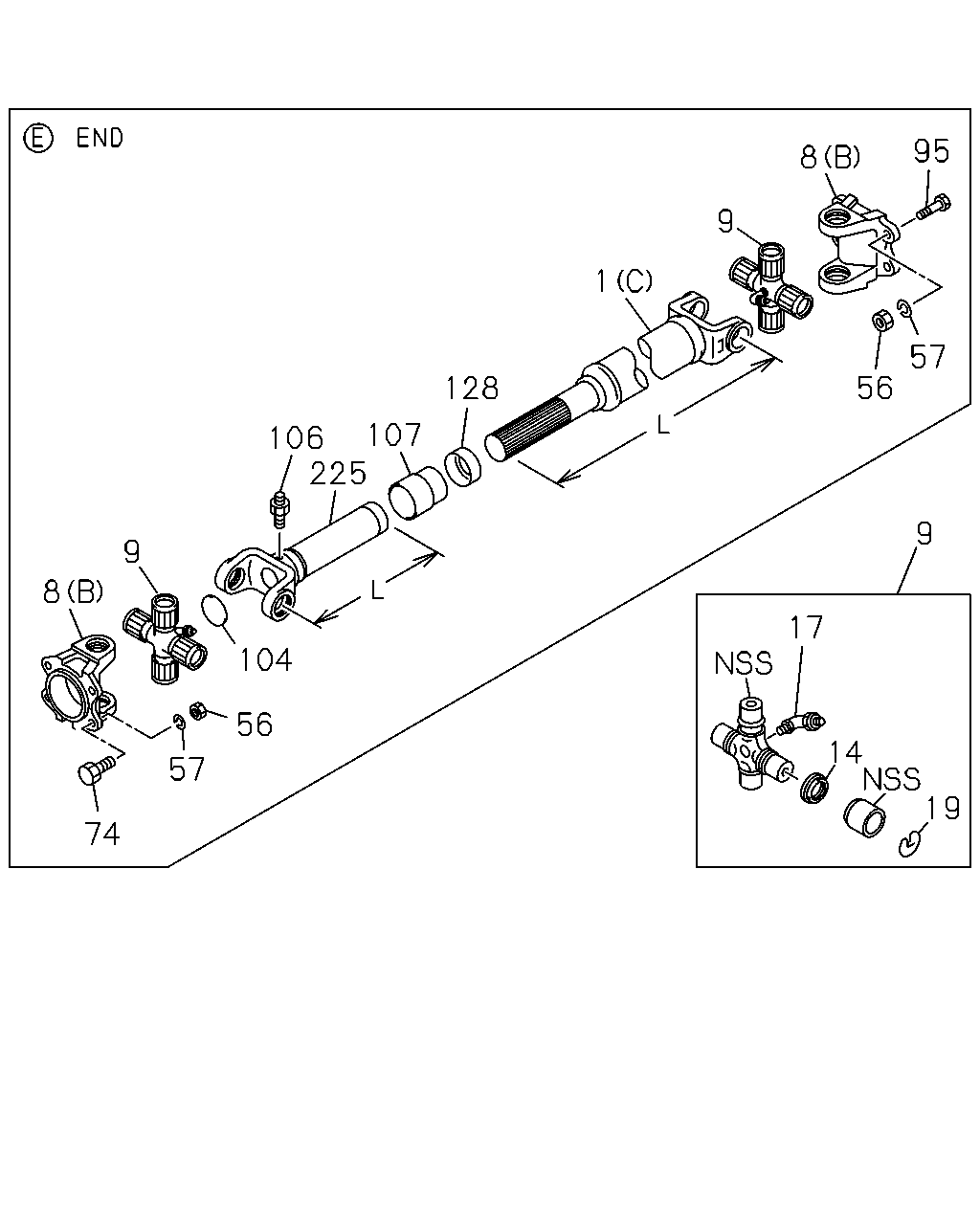

çizim 79502
95 8 9 1 57 56 128 106 107 225 9 9 8 17 104 56 14 19 57 74
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
(C) L=786 		1-37124-064-1 01 1 0407- ●
1 SHAFT; PROP
(A) L=616 		1-37151-935-1 01 1 0407- ●
1 SHAFT; PROP
(A) L=701 		1-37151-939-1 01 1 0407- ●
1 SHAFT; PROP
(C) L=1296 		1-37124-065-1 01 1 0407- ● ●
1 SHAFT; PROP
(A) L=1501 		1-37152-231-1 01 1 0407- ●
1 SHAFT; PROP
(C) L=1286 		1-37124-066-1 01 1 0407- ●
1 SHAFT; PROP
(B) L=1081 		1-37151-641-1 01 1 0407- ●
1 SHAFT; PROP
(A) L=861 		1-37151-943-1 01 1 0407- ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-3 02 1 0407- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-054-0 01 1 0407- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-3 03 1 0407- ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-1 AR 1 0407- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-1 AR 1 0407- ● ● ● ●
14 COVER; DUST,SPIDER 1-37319-012-0 08 1 0407- ● ● ●
14 COVER; DUST,SPIDER 1-37319-012-0 04 1 0407- ● ● ● ●
14 COVER; DUST,SPIDER 1-37319-012-0 12 1 0407- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 02 1 0407-0512 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 0601- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 01 1 0407-0512 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 0601- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 03 1 0407-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 03 1 0601- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 0407- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 0407- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 0407- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0407- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0407- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0407- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 12 1 0407- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 12 1 0407- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 12 1 0407- ●
56 NUT; YOKE
M14 		9-99110-514-0 08 1 0407-0512 ● ● ● ●
56 NUT; YOKE
M14 THA 		0-91110-514-0 08 1 0601- ● ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		9-09150-614-0 08 1 0407-0603 ● ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 08 1 0604- ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0407- ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0407- ●
95 BOLT; YOKE,FINAL
M14X37 		1-09000-121-0 04 1 0407- ● ● ● ●
104 PLUG; SLEEVE YOKE 1-09600-064-0 01 1 0407- ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0407-0512 ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ● ● ● ●
107 COVER; RET,SLEEVE 1-37249-060-1 01 1 0407- ● ● ● ●
128 SEAL; SLEEVE 1-37247-024-0 01 1 0407- ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=271 		1-37241-099-2 01 1 0407- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
