3-78 — FIXING PARTS; AIR PIPING (#26023) — 95 parça

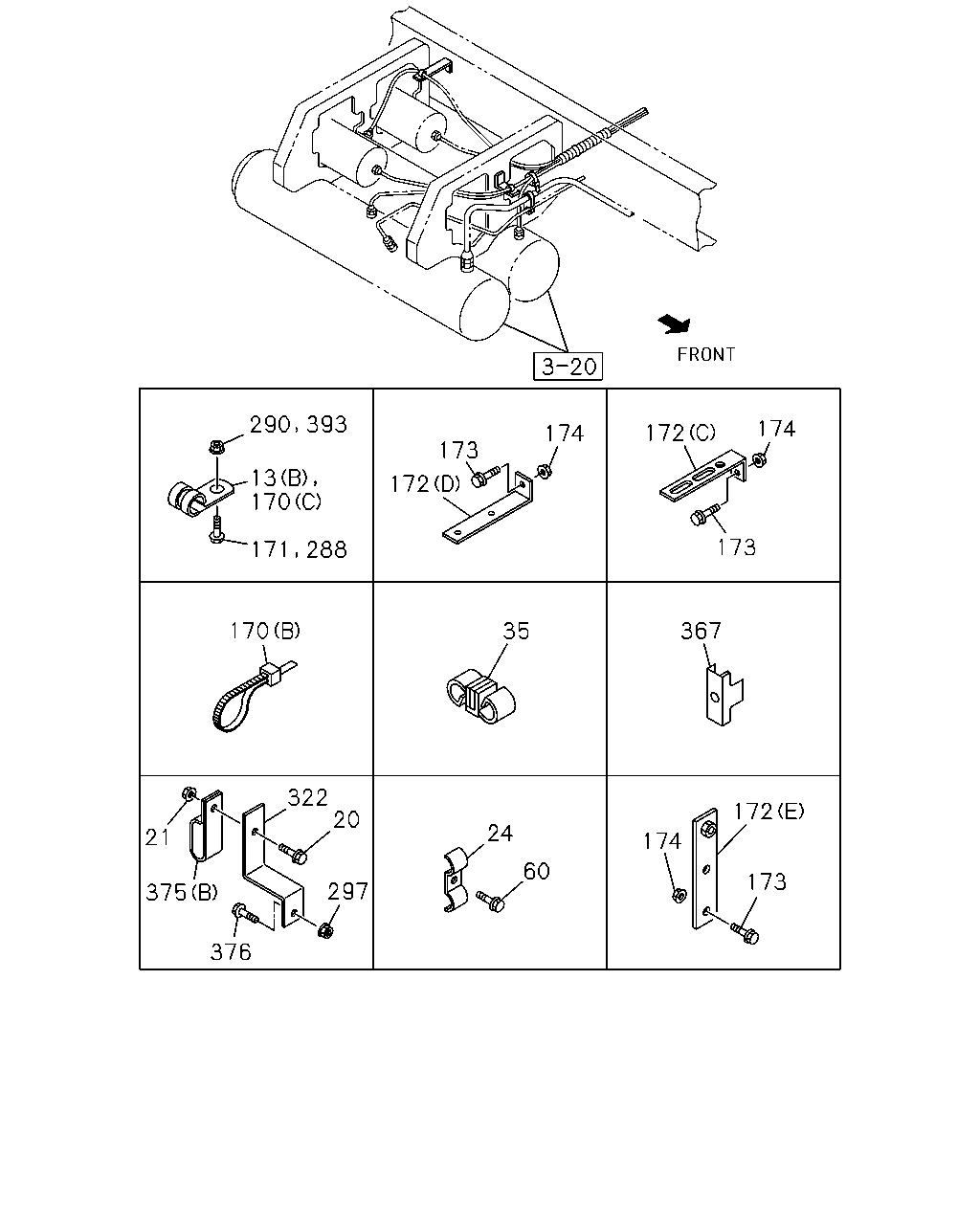

çizim 82626
174 172 174 173 13 170 172 173 35 367 170 322 20 172 24 21 174 60 173 297 375 376 290 393 171 288
BalonParca AdiParca NoAdetTipApplied Date A B
13 CLIP; AIR PIPE
(A) ID=7 L=38 H=21 THA 		1-09700-916-0 01 1 0407- ● ●
13 CLIP; AIR PIPE
(B) ID=7 L=40 		9-09524-675-0 01 1 0407-0606 ● ●
13 CLIP; AIR PIPE
(B) ID=7 L=40 		0-95234-675-0 01 1 0607- ● ●
20 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 0407-0611 ● ●
20 BOLT; CLIP
M8X20 FLANGE THA 		0-28650-820-0 01 1 0612- ● ●
21 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0407- ● ●
24 CLIP; PIPE
ID=16 & 7 L=21 & 17 THA 		1-09700-675-0 01 1 0407- ● ●
35 CLIP; AIR PIPE
ID=6.35 & 15 		1-09709-276-1 01 1 0407- ● ●
60 BOLT; CLIP FIX
M8X45 FLANGE 		0-28080-845-0 01 1 0407-0512 ● ●
60 BOLT; CLIP FIX
M8X45 FLANGE THA 		0-28050-845-0 01 1 0601- ● ●
170 CLIP; NYLON TUBE
(A) ID=35 H=45 L=33 		1-09700-947-0 02 1 0407- ● ●
170 CLIP; NYLON TUBE
(B) L=250 		1-09707-126-0 20 1 0407- ● ●
170 CLIP; NYLON TUBE
(C) ID=11 L=50 		9-09525-085-0 01 1 0407-0606 ● ●
170 CLIP; NYLON TUBE
(C) ID=11 L=50 		0-95235-085-0 01 1 0607- ● ●
171 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 0407-0611 ● ●
171 BOLT; TUBE CLIP
M8X20 FLANGE THA 		0-28650-820-0 01 1 0612- ● ●
172 BRACKET; TUBE CLIP
(A) 		1-47477-256-1 01 1 0407- ● ●
172 BRACKET; TUBE CLIP
(B) 		1-47477-514-3 01 1 0407- ● ●
172 BRACKET; TUBE CLIP
(B) 		1-47477-514-3 02 1 0407- ● ●
172 BRACKET; TUBE CLIP
(C) L=100 H=30 		1-47477-645-2 01 1 0407- ● ●
172 BRACKET; TUBE CLIP
(D) L=225 		1-47477-646-3 01 1 0407- ● ●
172 BRACKET; TUBE CLIP
(D) L=100 		1-47477-715-3 01 1 0407- ● ●
172 BRACKET; TUBE CLIP
(E) L=117 		1-47478-116-0 01 1 0407- ● ●
173 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28680-830-0 01 1 0407-0611 ● ●
173 BOLT; CLIP BRKT
M8X30 FLANGE THA 		0-28650-830-0 01 1 0612- ● ●
173 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28680-830-0 05 1 0407-0611 ● ●
173 BOLT; CLIP BRKT
M8X30 FLANGE THA 		0-28650-830-0 05 1 0612- ● ●
173 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0407-0611 ● ●
173 BOLT; CLIP BRKT
M8X25 FLANGE THA 		0-28650-825-0 02 1 0612- ● ●
173 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28680-825-0 03 1 0407-0611 ● ●
173 BOLT; CLIP BRKT
M8X25 FLANGE THA 		0-28650-825-0 03 1 0612- ● ●
174 NUT; CLIP BRKT
M8 FLANGE 		0-91150-108-0 03 1 0407-0602 ● ●
174 NUT; CLIP BRKT
M8 FLANGE 		0-91150-108-0 03 1 0407-0602 ● ●
174 NUT; CLIP BRKT
M8 FLANGE 		0-91150-108-0 01 1 0407-0602 ● ●
174 NUT; CLIP BRKT
M8 FLANGE 		0-91150-108-0 02 1 0407-0602 ● ●
174 NUT; CLIP BRKT
M8 FLANGE THA 		0-91180-108-0 03 1 0603- ● ●
174 NUT; CLIP BRKT
M8 FLANGE THA 		0-91180-108-0 03 1 0603- ● ●
174 NUT; CLIP BRKT
M8 FLANGE THA 		0-91180-108-0 01 1 0603- ● ●
174 NUT; CLIP BRKT
M8 FLANGE THA 		0-91180-108-0 02 1 0603- ● ●
288 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28680-825-0 02 1 0407-0611 ● ●
288 BOLT; CLIP,AIR PIPE
M8X25 FLANGE THA 		0-28650-825-0 02 1 0612- ● ●
290 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91150-108-0 02 1 0407- ● ●
297 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0407- ● ●
322 BRACKET; CLIP 1-47479-248-0 01 1 0407- ● ●
367 BRACKET ASM 1-47475-427-1 01 1 0407- ● ●
375 CLIP; AIR PIPE
(A) L=250 		1-09707-126-0 01 1 0407- ● ●
375 CLIP; AIR PIPE
(B) ID=9 		9-09524-825-0 01 1 0407-0606 ● ●
375 CLIP; AIR PIPE
(B) ID=9 L=16 		0-95234-825-0 01 1 0607- ● ●
376 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 01 1 0407-0611 ● ●
376 BOLT; BRKT
M8X30 FLANGE THA 		0-28650-830-0 01 1 0612- ● ●
393 NUT; UNION
M8 FLANGE 		0-91150-108-0 01 1 0407- ● ●
çizim 84514
356 300 333
BalonParca AdiParca NoAdetTipApplied Date A B
300 BOLT; TUBE CLIP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0407- ● ●
333 BRACKET; BRK AIR PIPE 1-79738-815-2 01 1 0407- ● ●
356 CLIP; AIR PIPE
ID=4.8 		8-94128-483-0 01 1 0407- ● ●

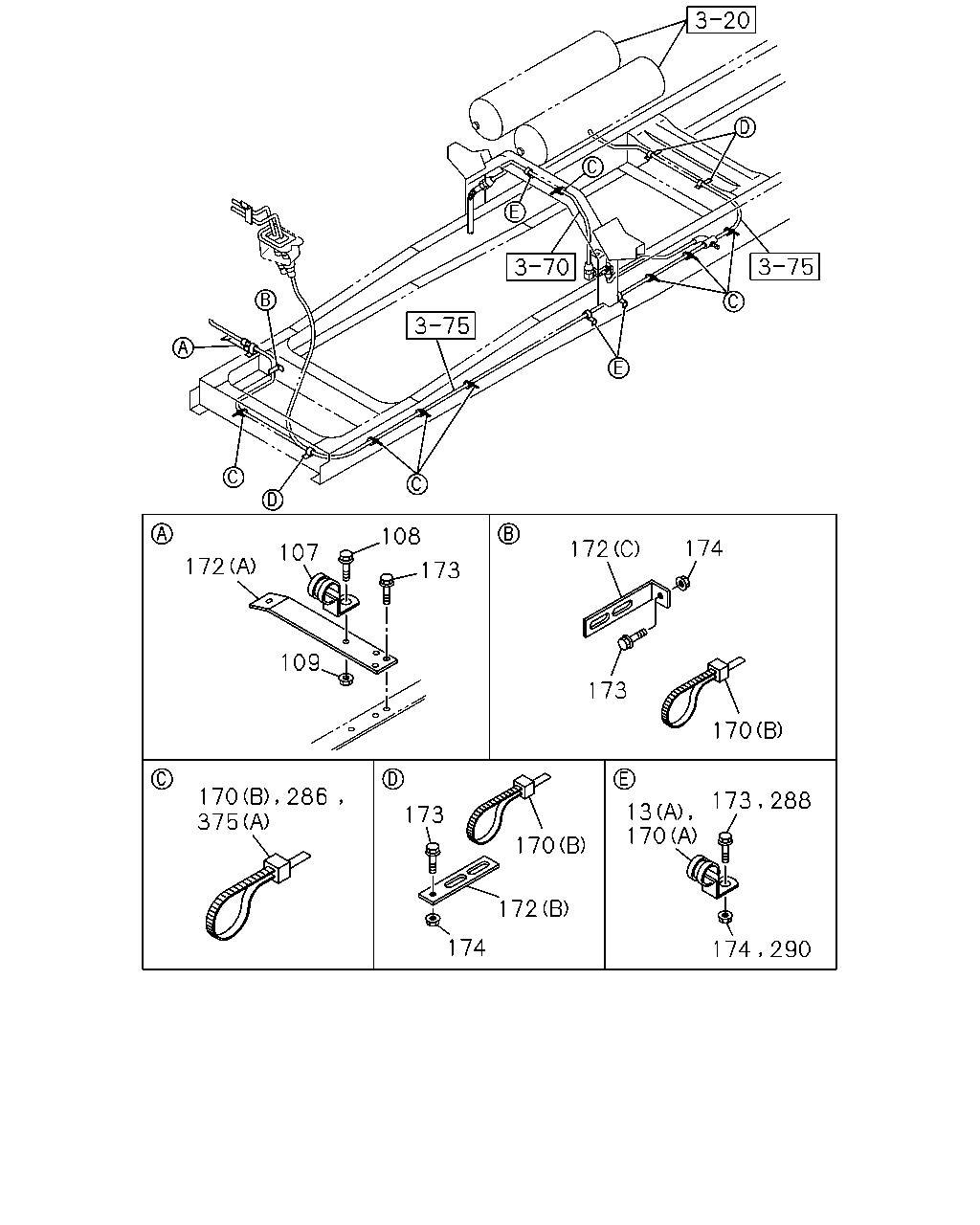

çizim 84949
108 174 172 107 172 173 109 173 170 375 13 170 173 170 172 174 170 286 173 288 174 290
BalonParca AdiParca NoAdetTipApplied Date A B
13 CLIP; AIR PIPE
(A) ID=7 L=38 H=21 THA 		1-09700-916-0 01 1 0407- ● ●
13 CLIP; AIR PIPE
(B) ID=7 L=40 		9-09524-675-0 01 1 0407-0606 ● ●
13 CLIP; AIR PIPE
(B) ID=7 L=40 		0-95234-675-0 01 1 0607- ● ●
107 CLIP; NYLON TUBE
ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0407- ● ●
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 0407-0611 ● ●
108 BOLT; TUBE CLIP
M8X25 FLANGE THA 		0-28650-825-0 01 1 0612- ● ●
109 NUT; TUBE CLIP
M8 FLANGE 		0-91150-108-0 01 1 0407- ● ●
170 CLIP; NYLON TUBE
(A) ID=35 H=45 L=33 		1-09700-947-0 02 1 0407- ● ●
170 CLIP; NYLON TUBE
(B) L=250 		1-09707-126-0 20 1 0407- ● ●
170 CLIP; NYLON TUBE
(C) ID=11 L=50 		9-09525-085-0 01 1 0407-0606 ● ●
170 CLIP; NYLON TUBE
(C) ID=11 L=50 		0-95235-085-0 01 1 0607- ● ●
172 BRACKET; TUBE CLIP
(A) 		1-47477-256-1 01 1 0407- ● ●
172 BRACKET; TUBE CLIP
(B) 		1-47477-514-3 01 1 0407- ● ●
172 BRACKET; TUBE CLIP
(B) 		1-47477-514-3 02 1 0407- ● ●
172 BRACKET; TUBE CLIP
(C) L=100 H=30 		1-47477-645-2 01 1 0407- ● ●
172 BRACKET; TUBE CLIP
(D) L=225 		1-47477-646-3 01 1 0407- ● ●
172 BRACKET; TUBE CLIP
(D) L=100 		1-47477-715-3 01 1 0407- ● ●
172 BRACKET; TUBE CLIP
(E) L=117 		1-47478-116-0 01 1 0407- ● ●
173 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28680-830-0 01 1 0407-0611 ● ●
173 BOLT; CLIP BRKT
M8X30 FLANGE THA 		0-28650-830-0 01 1 0612- ● ●
173 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28680-830-0 05 1 0407-0611 ● ●
173 BOLT; CLIP BRKT
M8X30 FLANGE THA 		0-28650-830-0 05 1 0612- ● ●
173 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0407-0611 ● ●
173 BOLT; CLIP BRKT
M8X25 FLANGE THA 		0-28650-825-0 02 1 0612- ● ●
173 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28680-825-0 03 1 0407-0611 ● ●
173 BOLT; CLIP BRKT
M8X25 FLANGE THA 		0-28650-825-0 03 1 0612- ● ●
174 NUT; CLIP BRKT
M8 FLANGE 		0-91150-108-0 03 1 0407-0602 ● ●
174 NUT; CLIP BRKT
M8 FLANGE 		0-91150-108-0 03 1 0407-0602 ● ●
174 NUT; CLIP BRKT
M8 FLANGE 		0-91150-108-0 01 1 0407-0602 ● ●
174 NUT; CLIP BRKT
M8 FLANGE 		0-91150-108-0 02 1 0407-0602 ● ●
174 NUT; CLIP BRKT
M8 FLANGE THA 		0-91180-108-0 03 1 0603- ● ●
174 NUT; CLIP BRKT
M8 FLANGE THA 		0-91180-108-0 03 1 0603- ● ●
174 NUT; CLIP BRKT
M8 FLANGE THA 		0-91180-108-0 01 1 0603- ● ●
174 NUT; CLIP BRKT
M8 FLANGE THA 		0-91180-108-0 02 1 0603- ● ●
286 CLIP; NYLON TUBE
L=250 		1-09707-126-0 01 1 0407- ● ●
288 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28680-825-0 02 1 0407-0611 ● ●
288 BOLT; CLIP,AIR PIPE
M8X25 FLANGE THA 		0-28650-825-0 02 1 0612- ● ●
290 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91150-108-0 02 1 0407- ● ●
375 CLIP; AIR PIPE
(A) L=250 		1-09707-126-0 01 1 0407- ● ●
375 CLIP; AIR PIPE
(B) ID=9 		9-09524-825-0 01 1 0407-0606 ● ●
375 CLIP; AIR PIPE
(B) ID=9 L=16 		0-95234-825-0 01 1 0607- ● ●
