Sayfa 3-70 - Isuzu EPC

3-70 — BRAKE PIPING; AIR,AIR MASTER (#26020) — 42 parça

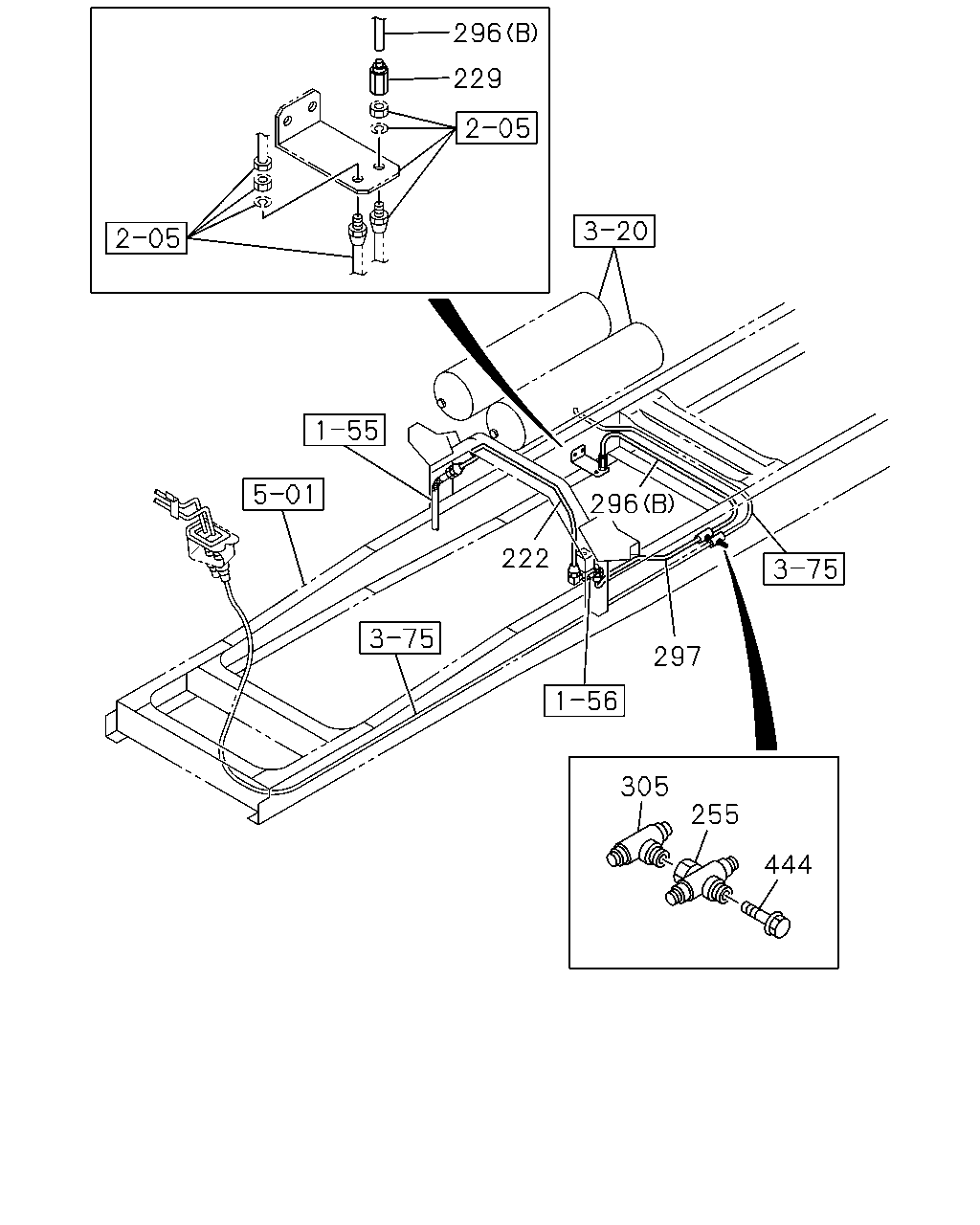

296 229 296 222 297 305 255 444

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
222	PIPE; AIR,MAG VLV TO FLEX HOSE L=1078 SERVICED BY L=1100 THA	1-47434-387-0	01	1	0407-	●	●
229	ADAPTER; NYLON TUBE DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0407-	●	●
255	UNION; NYLON TUBE DIN8 RC1/4 & M8	1-09660-735-1	01	1	0407-	●	●
296	TUBE; NYLON AIR SUSP DRIVER SEAT<A56> (A) L=1200 OD=6	1-09366-256-1	01	1	0407-	●	●
296	TUBE; NYLON (B) SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0407-	●	●
297	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0407-	●	●
305	UNION ASM; NYLON TUBE DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	0407-	●	●
444	BOLT; UNION M8X20 FLANGE	0-28080-820-0	01	1	0407-0611	●	●
444	BOLT; UNION M8X20 FLANGE THA	0-28050-820-0	01	1	0612-	●	●

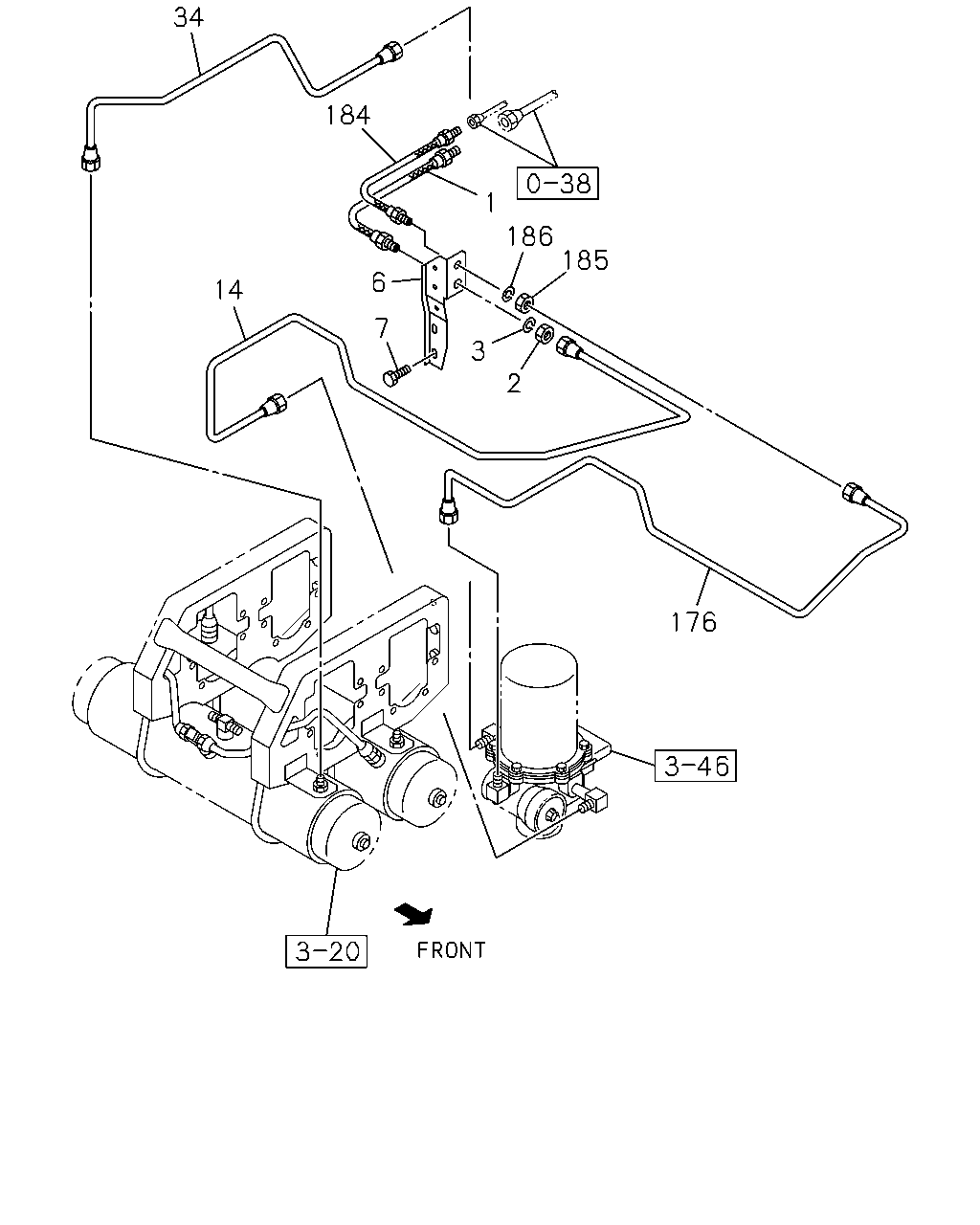

34 184 1 186 185 6 14 7 3 2 176

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,AIR TANK L=360	1-09363-530-0	01	1	0407-	●	●
2	NUT; FLEX HOSE,AIR TANK M22	9-09111-422-0	01	1	0407-0512	●	●
2	NUT; FLEX HOSE,AIR TANK M22	0-91111-522-0	01	1	0601-	●	●
3	WASHER; LK,FLEX HOSE,AIR TANK ID=22.5	9-09150-522-0	01	1	0407-0603	●	●
3	WASHER; LK,FLEX HOSE,AIR TANK ID=22.5	0-91510-522-0	01	1	0604-	●	●
6	BRACKET; FLEX HOSE,AIR TANK	1-47478-864-0	01	1	0407-	●	●
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28680-830-0	02	1	0407-0611	●	●
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE THA	0-28650-830-0	02	1	0612-	●	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK L=1264	1-49124-331-0	01	1	0407-	●	●
34	PIPE; AIR L=558	1-49124-332-0	01	1	0407-	●	●
176	PIPE; AIR,AIR DRYER TO UNION L=1193 SERVICED BY L=1200 THA	1-47428-816-0	01	1	0407-	●	●
184	HOSE; FLEX,AIR GOV L=370	1-09363-586-0	01	1	0407-	●	●
185	NUT; FLEX HOSE,AIR GOV M12	9-09840-280-0	01	1	0407-	●	●
186	WASHER; LK,FLEX HOSE,AIR GOV ID=12.2	9-09150-512-0	01	1	0407-0603	●	●
186	WASHER; LK,FLEX HOSE,AIR GOV ID=12.2	0-91510-512-0	01	1	0604-	●	●

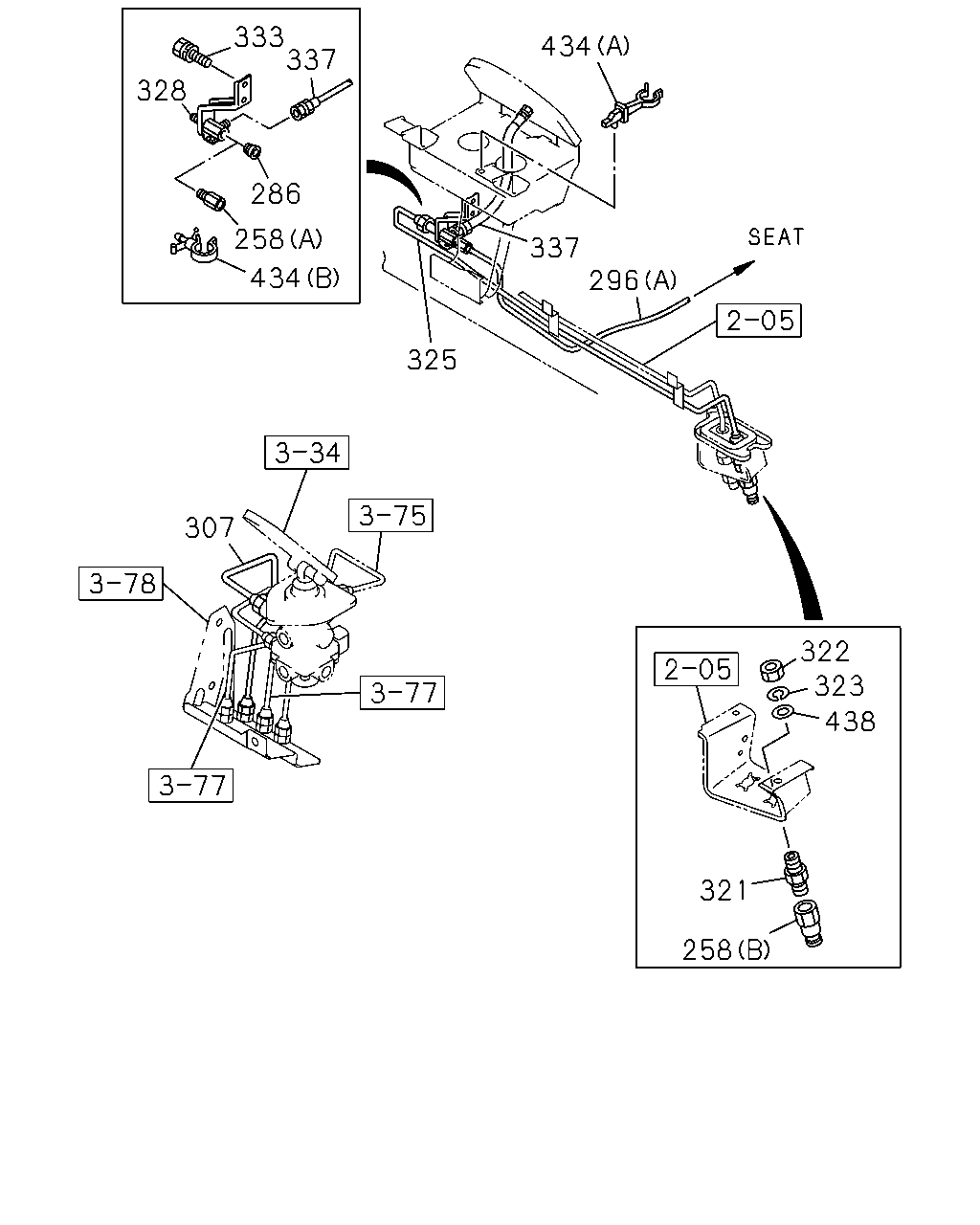

333 337 434 328 286 258 337 296 434 325 307 322 323 438 321 258

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
258	CONNECTOR; NYLON TUBE AIR SUSP DRIVER SEAT<A56> (A) DIN6 R1/8 STRAIGHT	1-09660-759-1	01	1	0407-	●	●
258	CONNECTOR; NYLON TUBE (B) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0407-	●	●
286	PLUG; AIR PIPE EXC. AIR SUSP DRIVER SEAT<A56>	9-09204-510-0	01	1	0407-	●	●
296	TUBE; NYLON AIR SUSP DRIVER SEAT<A56> (A) L=1200 OD=6	1-09366-256-1	01	1	0407-	●	●
296	TUBE; NYLON (B) SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0407-	●	●
307	PIPE; AIR,FLEX HOSE TO BRK VLV L=421	1-49121-486-0	01	1	0407-	●	●
321	JOINT; FLEX HOSE	1-09656-738-0	01	1	0407-	●	●
322	NUT; JOINT,FLEX HOSE M10 H=8	1-09400-029-0	01	1	0407-	●	●
323	WASHER; LK,JOINT ID=10.2	0-91510-510-0	01	1	0604-	●	●
323	WASHER; LK,JOINT ID=10.2	9-09150-510-0	01	1	0407-0603	●	●
325	PIPE; AIR,FLEX HOSE TO UNION	1-47492-452-2	01	1	0407-	●	●
328	UNION; AIR PIPE	1-47470-362-2	01	1	0407-	●	●
333	BOLT; PIPE UNION M6X19.5 W/LK&PL WASHER THA	8-94279-201-0	02	1	0407-	●	●
337	HOSE; FLEX,UNION TO AIR PRESS GAGE L=810	0-07210-810-0	01	1	0407-0605	●	●
337	HOSE; FLEX,UNION TO AIR PRESS GAGE L=810	0-57210-810-0	01	1	0606-	●	●
434	CLIP (A) ID=17 THA	1-09987-105-1	01	1	0407-	●	●
434	CLIP (B) THA	8-94297-486-0	02	1	0407-	●	●
438	WASHER; PL,JOINT ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	0407-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
