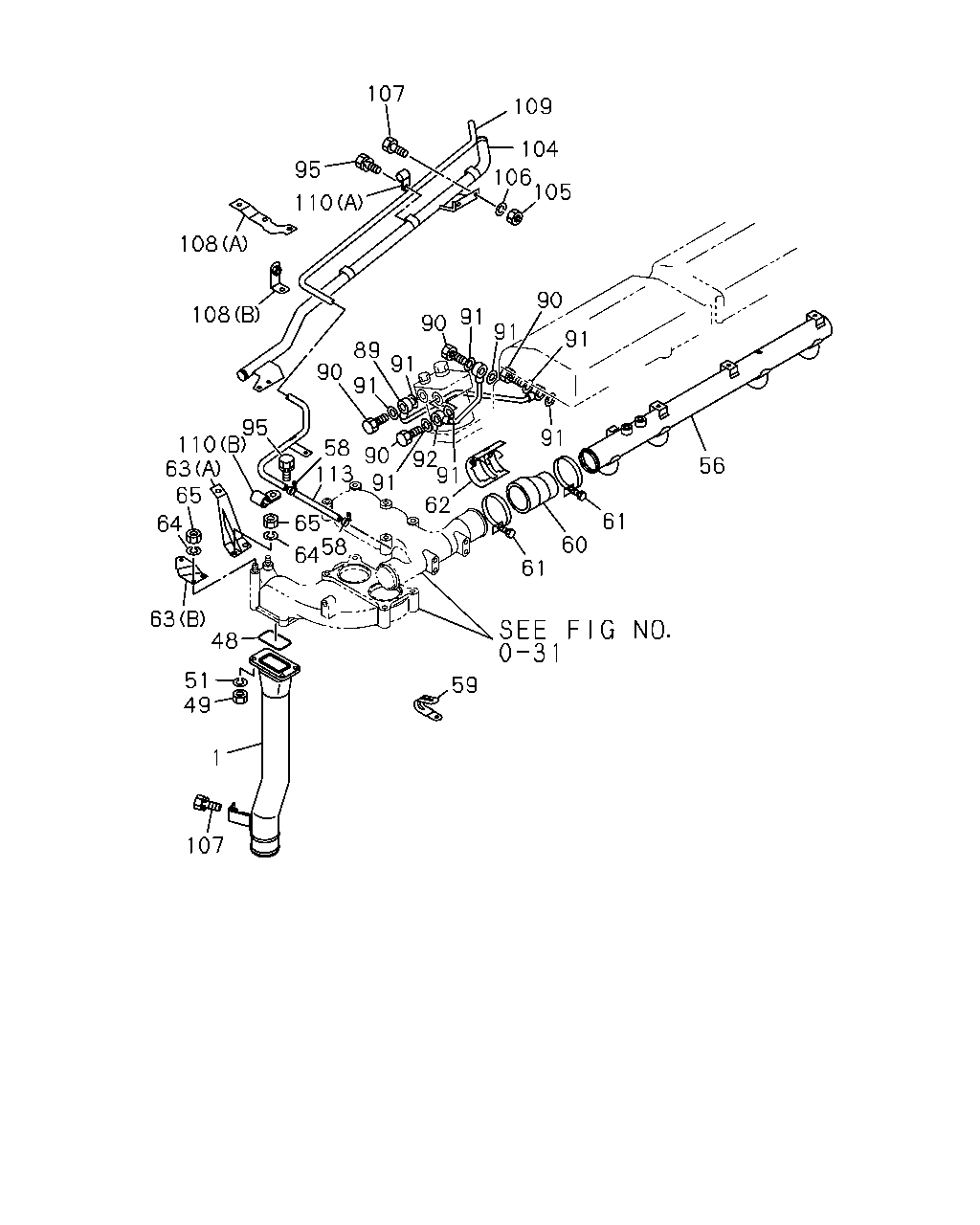

0-32A — WATER PIPING; ENGINE (#2602) — 64 parça

109 104 106 105 107 95 110 108 108 90 91 89 91 90 91 91 90 91 91 95 110 63 65 64 63 48 51 49 1 107 64 58 65 113 91 58 90 92 91 62 61 60 61 56 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PIPE; WATER PUMP,INL	1-13711-387-1	01	1	9002-	●	●	●
48	GASKET; PIPE TO PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-217-0	01	1	9002-	●	●	●
49	NUT; WATER PIPE M8	9-09110-508-0	04	1	9002-	●	●	●
51	WASHER; LK,PIPE ID=8.2	9-09150-508-0	04	1	9002-	●	●	●
56	PIPE; WATER OUTLET	1-13711-304-2	01	1	9002-9005		●
56	PIPE; WATER OUTLET	1-13711-421-0	01	1	9002-9005	●		●
56	PIPE; WATER OUTLET	1-13711-421-0	01	1	9006-	●	●	●
58	CLIP; RUBBER HOSE	5-09704-056-0	02	1	9002-	●	●
59	CLIP; HARNESS,WATER OUTLET PIPE L=36	8-94224-891-1	01	1	9002-	●		●
60	HOSE; OUTLET PIPE TO HSG	1-09360-446-0	01	1	9002-9008	●	●	●
60	HOSE; OUTLET PIPE TO HSG	1-09360-895-0	01	1	9009-	●	●	●
61	CLIP; HOSE,OUTLET PIPE TO HSG ID=63	1-09704-067-0	01	1	9002-	●	●	●
61	CLIP; HOSE,OUTLET PIPE TO HSG ID=70	1-09704-078-0	01	1	9002-	●	●	●
62	PROTECTOR; HEAT,RUB HOSE,OUTLET PIPE	1-14181-156-1	01	1	9002-	●	●	●
63	BRACKET; WATER PIPE (B)	1-13719-042-3	01	1	9002-9101		●
63	BRACKET; WATER PIPE (B)	1-13719-042-3	01	1	9102-9106		●	●
63	BRACKET; WATER PIPE (B)	1-13719-042-3	01	1	9107-9306		●
63	BRACKET; WATER PIPE (A)	1-13719-056-0	01	1	9002-9101			●
63	BRACKET; WATER PIPE (A)	1-13719-056-0	01	1	9107-			●
64	WASHER; LK ID=8.2	9-09150-508-0	02	1	9002-		●	●
65	NUT M8	9-09110-408-0	02	1	9002-		●	●
89	PIPE; WATER,AIR CMPR,IN	1-13721-256-0	01	1	9002-		●	●
89	PIPE; WATER,AIR CMPR,IN AIR COMPRESSOR HEAVY DUTY(E1Q)	1-13721-256-0	01	1	9002-	●
89	PIPE; WATER,AIR CMPR,IN EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-13721-156-1	01	1	9002-	●
90	BOLT; EYE,WATER PIPE,AIR CMPR M14X27 FLANGE	1-09675-086-0	04	1	9002-	●	●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	08	1	9002-9306	●		●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	08	1	9307-	●		●
92	PIPE; WATER,AIR CMPR,OUT	1-13721-359-0	01	1	9002-		●	●
92	PIPE; WATER,AIR CMPR,OUT AIR COMPRESSOR HEAVY DUTY(E1Q)	1-13721-359-0	01	1	9002-	●
92	PIPE; WATER,AIR CMPR,OUT EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-13721-127-0	01	1	9002-	●
95	BOLT; CLIP M10X20 W/LK WASHER	0-50041-020-0	01	1	9002-9306		●
95	BOLT; CLIP M6X12 W/LK WASHER	9-01910-612-0	01	1	9002-9005		●
95	BOLT; CLIP M6X12 W/LK WASHER	0-50040-612-0	01	1	9006-9101		●
95	BOLT; CLIP M6X12 W/LK WASHER	0-50040-612-0	01	1	9102-9306		●	●
95	BOLT; CLIP M6X14	9-01910-614-0	03	1	9002-9005	●		●
95	BOLT; CLIP M6X14 W/LK WASHER	0-50040-614-0	03	1	9006-	●		●
104	PIPE; WATER CHARGE	1-13721-331-0	01	1	9002-9101		●
104	PIPE; WATER CHARGE	1-13721-331-0	01	1	9102-9106		●	●
104	PIPE; WATER CHARGE	1-13721-331-0	01	1	9107-9306		●
104	PIPE; WATER CHARGE	1-13721-241-2	01	1	9002-	●
104	PIPE; WATER CHARGE	1-13721-301-1	01	1	9002-9101			●
104	PIPE; WATER CHARGE	1-13721-301-1	01	1	9107-			●
105	NUT; PIPE M10	9-09110-410-0	03	1	9002-		●	●
105	NUT; PIPE M8	9-09110-408-0	02	1	9002-	●
105	NUT; PIPE M10	9-09110-410-0	02	1	9002-	●
106	WASHER; LK ID=10.2	9-09150-510-0	03	1	9002-		●	●
106	WASHER; LK ID=8.2	9-09150-508-0	02	1	9002-	●
106	WASHER; LK ID=10.2	9-09150-510-0	02	1	9002-	●
107	BOLT; WATER PIPE M10X20 W/LK WASHER	9-01911-020-0	02	1	9002-9002		●	●
107	BOLT; WATER PIPE M10X20 W/LK WASHER	0-50041-020-0	02	1	9003-		●	●
107	BOLT; WATER PIPE M8X20 W/LK WASHER	9-01910-820-0	01	1	9002-9005	●
107	BOLT; WATER PIPE M8X20 W/LK WASHER	0-50040-820-0	01	1	9006-	●
108	BRACKET; WATER CHARGE (A)	1-13729-002-0	01	1	9002-	●
108	BRACKET; WATER CHARGE (B)	1-13729-003-0	01	1	9002-			●
109	PIPE; AIR,LEAK,THERMOSTAT HSG	1-13721-351-0	01	1	9002-9101		●
109	PIPE; AIR,LEAK,THERMOSTAT HSG	1-13721-351-0	01	1	9102-9106		●	●
109	PIPE; AIR,LEAK,THERMOSTAT HSG	1-13721-351-0	01	1	9107-9306		●
109	PIPE; AIR,LEAK,THERMOSTAT HSG	1-13721-204-2	01	1	9002-	●
109	PIPE; AIR,LEAK,THERMOSTAT HSG	1-13721-302-0	01	1	9002-9101			●
109	PIPE; AIR,LEAK,THERMOSTAT HSG	1-13721-302-0	01	1	9107-			●
110	CLIP; AIR PIPE (A) ID=11 L=20	9-09525-033-0	03	1	9002-	●	●	●
110	CLIP; AIR PIPE (B) ID=11 L=28	9-09917-544-0	01	1	9002-	●	●	●
110	CLIP; AIR PIPE (A) ID=11 L=16	9-09525-023-0	01	1	9002-9306		●	●
113	HOSE; RUBBER,AIR LEAK L=180 SERVICED BY L=3000	0-03259-300-0	01	1	9002-	●	●
