3-46 — AIR DRYER
(#26016) — 32 parça
Tümü
A - FTR5MC
B - FTR5MF
◀

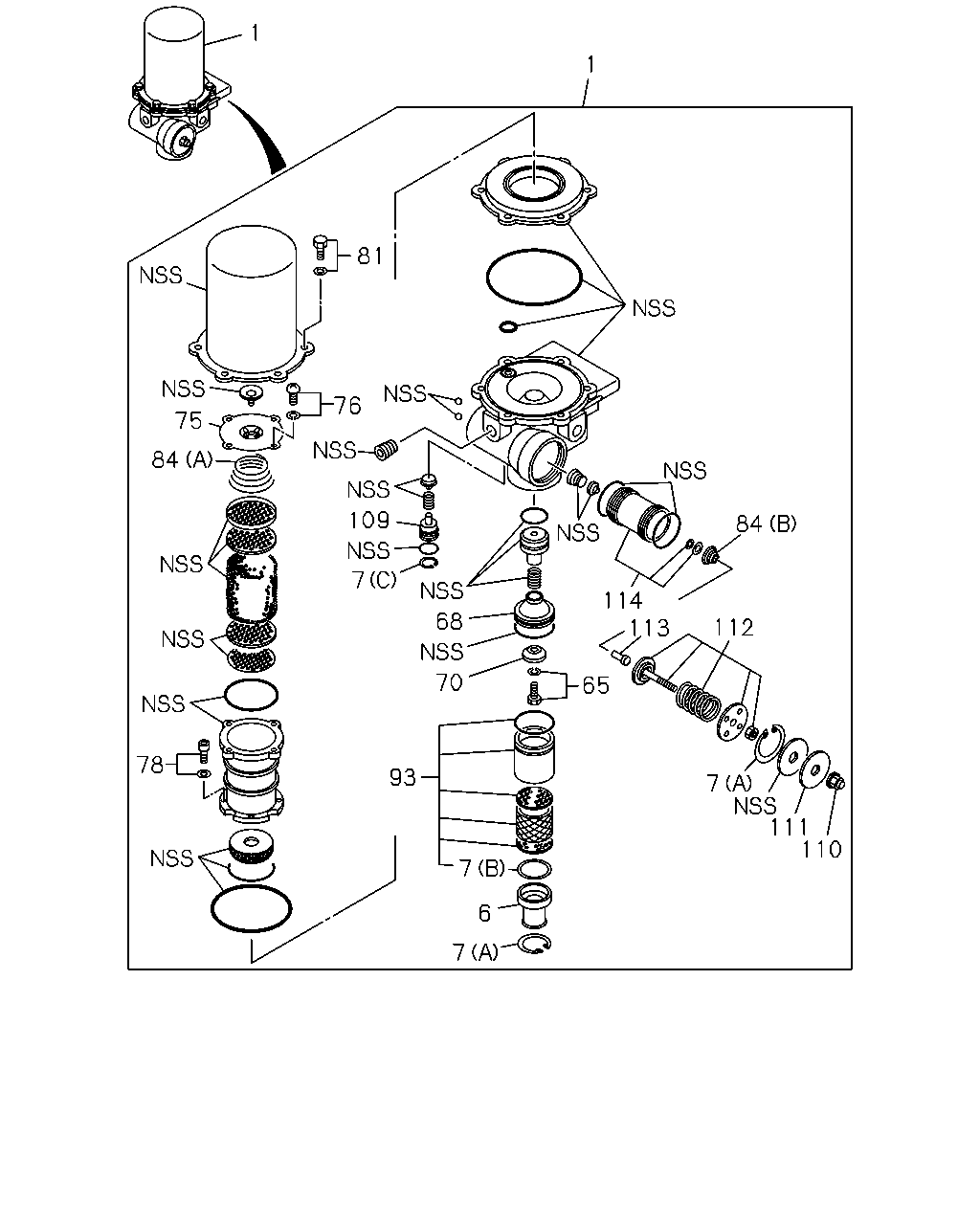

[346A] COMPONENT (21 parça)

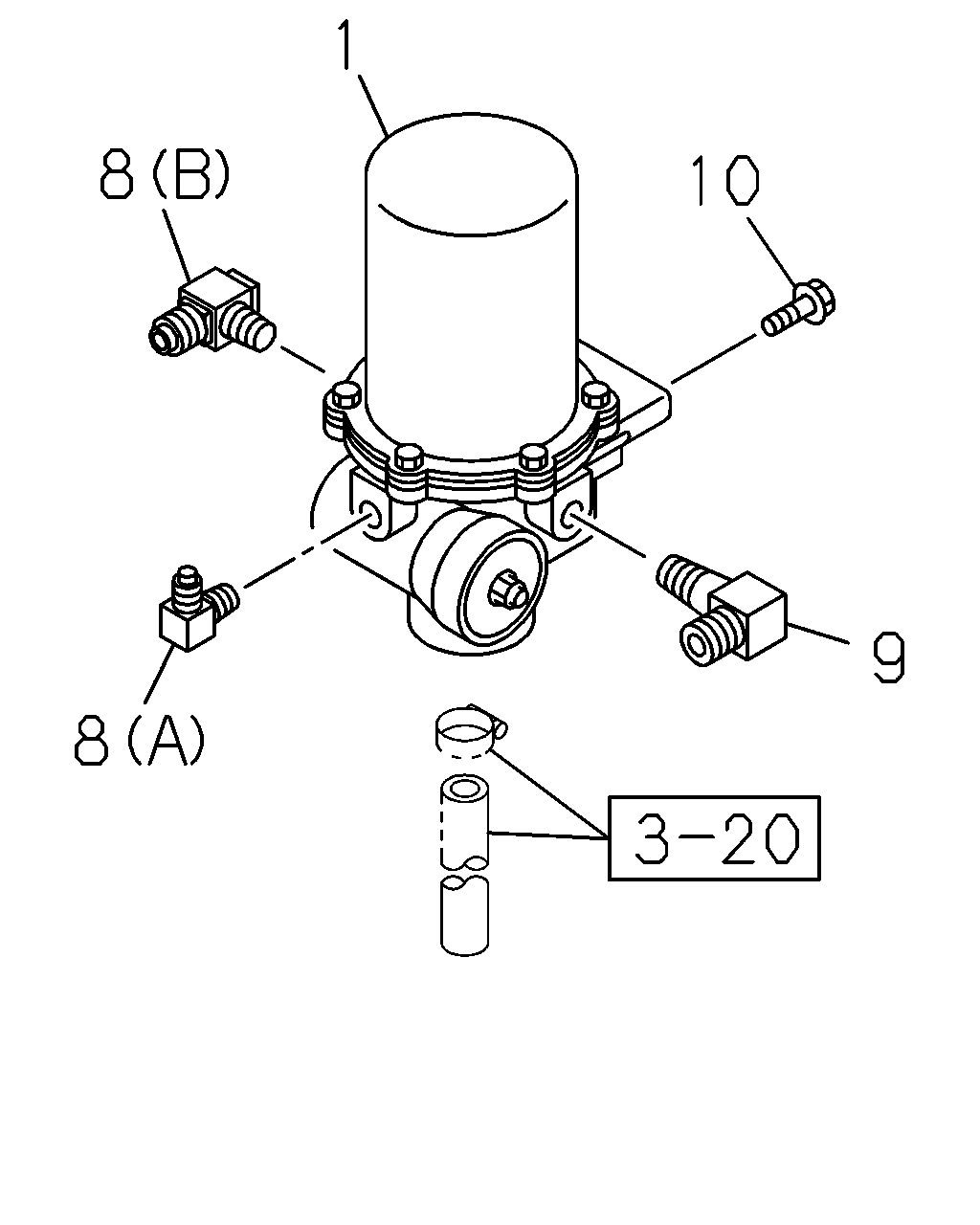

[346A] FIXING (6 parça)

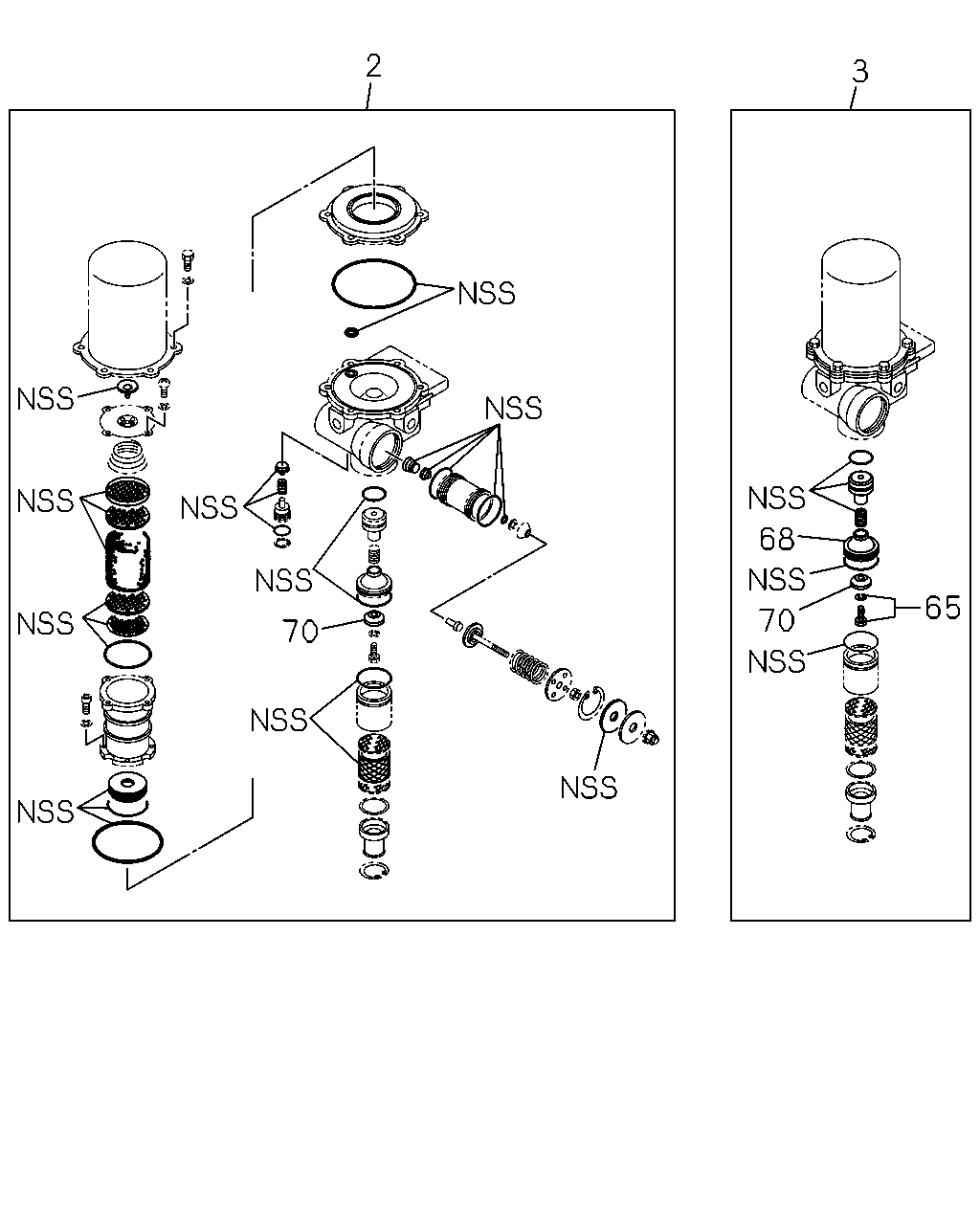

[346A] REPAIR KIT AND PISTON KIT (5 parça)
▶
1
1
81
76
75
84
109
84
7
114
113
68
112
70
65
78
93
7
111
110
7
6
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
DRYER; AIR
THA
8-97922-759-0
01
1
0407-
●
●
6
COVER; EXH,AIR DRYER
1-48199-519-0
01
1
0411-
●
●
7
RING; SNAP,AIR DRYER
(B)
1-48199-154-0
01
1
0411-
●
●
7
RING; SNAP,AIR DRYER
(A)
1-48199-520-0
02
1
0411-
●
●
7
RING; SNAP,AIR DRYER
(C)
1-48199-529-0
01
1
0411-
●
●
65
BOLT; PURGE VLV
1-48199-517-0
01
1
0411-
●
●
68
BODY; VALVE
1-48199-515-0
01
1
0411-
●
●
70
VALVE; AIR DRYER
1-48199-504-0
01
1
0411-
●
●
75
COVER; CASE,AIR DRYER
1-48199-427-0
01
1
0411-
●
●
76
BOLT; COVER,AIR DRYER
THA
1-48199-412-0
04
1
0411-
●
●
78
BOLT; OIL FILTER,AIR DRYER
THA
1-48199-417-0
04
1
0411-
●
●
81
BOLT; CASE,AIR DRYER
1-48199-436-0
06
1
0411-
●
●
84
SPRING; AIR DRYER
(A)
1-48199-425-0
01
1
0411-
●
●
84
SPRING; AIR DRYER
(B)
1-48199-523-0
01
1
0411-
●
●
93
SILENCER; AIR DRYER
1-48199-518-0
01
1
0411-
●
●
109
STOPPER; CHECK VALVE
1-48199-528-0
01
1
0411-
●
●
110
NUT; CAP
1-48199-527-0
01
1
0411-
●
●
111
PLATE; GOVERNOR
1-48199-526-0
01
1
0411-
●
●
112
SCREW & SPRING ASM; AIR DRYER
1-48199-524-0
01
1
0411-
●
●
113
STEM; EXHAUST
1-48199-522-0
01
1
0411-
●
●
114
PISTON ASM; GOVERNOR
1-48199-521-0
01
1
0411-
●
●
1
8
10
9
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
DRYER; AIR
THA
8-97922-759-0
01
1
0407-
●
●
8
CONNECTOR; OUT,AIR DRYER
(A) M12 & PT1/4 ELBOW THA
1-09650-430-0
01
1
0407-
●
●
8
CONNECTOR; OUT,AIR DRYER
(B) M22 & PT1/2 ELBOW
1-09650-444-0
01
1
0407-
●
●
9
CONNECTOR; PIPE,AIR DRYER
1-48320-026-2
01
1
0407-
●
●
10
BOLT; AIR DRYER
M10X30 FLANGE
0-28081-030-0
03
1
0407-0512
●
●
10
BOLT; AIR DRYER
M10X30 FLANGE
0-28051-030-0
03
1
0601-
●
●
2
3
68
65
70
70
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
REPAIR KIT; AIR DRYER
1-85576-382-0
01
1
0411-
●
●
3
PISTON KIT; AIR DRYER
1-85576-383-0
01
1
0411-
●
●
65
BOLT; PURGE VLV
1-48199-517-0
01
1
0411-
●
●
68
BODY; VALVE
1-48199-515-0
01
1
0411-
●
●
70
VALVE; AIR DRYER
1-48199-504-0
01
1
0411-
●
●
Seçili parçaları sepete ekle
