Isuzu WW
▶
TRUCKS
▶
FTR
▶
10942 - FTR(THAI)EURO2
▶
3 - Brakes, Brake System
▶
3-11 - PARKING BRAKE CONTROL
▶
3-11 — PARKING BRAKE CONTROL
(#26012) — 32 parça
Tümü
A - FTR5MC
B - FTR5MF
◀
[311A] NO.2 (6 parça)
[311A] NO.1 (26 parça)
▶
61
324
218
46
45
46
45
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
45
BOLT; CABLE TO FLOOR
M8X20.5 W/LK&PL WASHER
8-94279-207-0
03
1
0407-
●
●
46
CLIP; FRT CABLE TO FLOOR
ID=16 L=20
9-09525-535-0
03
1
0407-0606
●
●
46
CLIP; FRT CABLE TO FLOOR
ID=16 L=20
0-95235-535-0
03
1
0607-
●
●
61
CABLE; PARKING BRK
L=4394 THA
8-97920-528-0
01
1
0407-
●
●
218
NUT; BRKT,PARKING BRK CABLE
M8 CUTTING NUT W/FLANGE
1-09985-340-0
02
1
0407-
●
●
324
BRACKET
1-79998-750-3
01
1
0407-
●
●

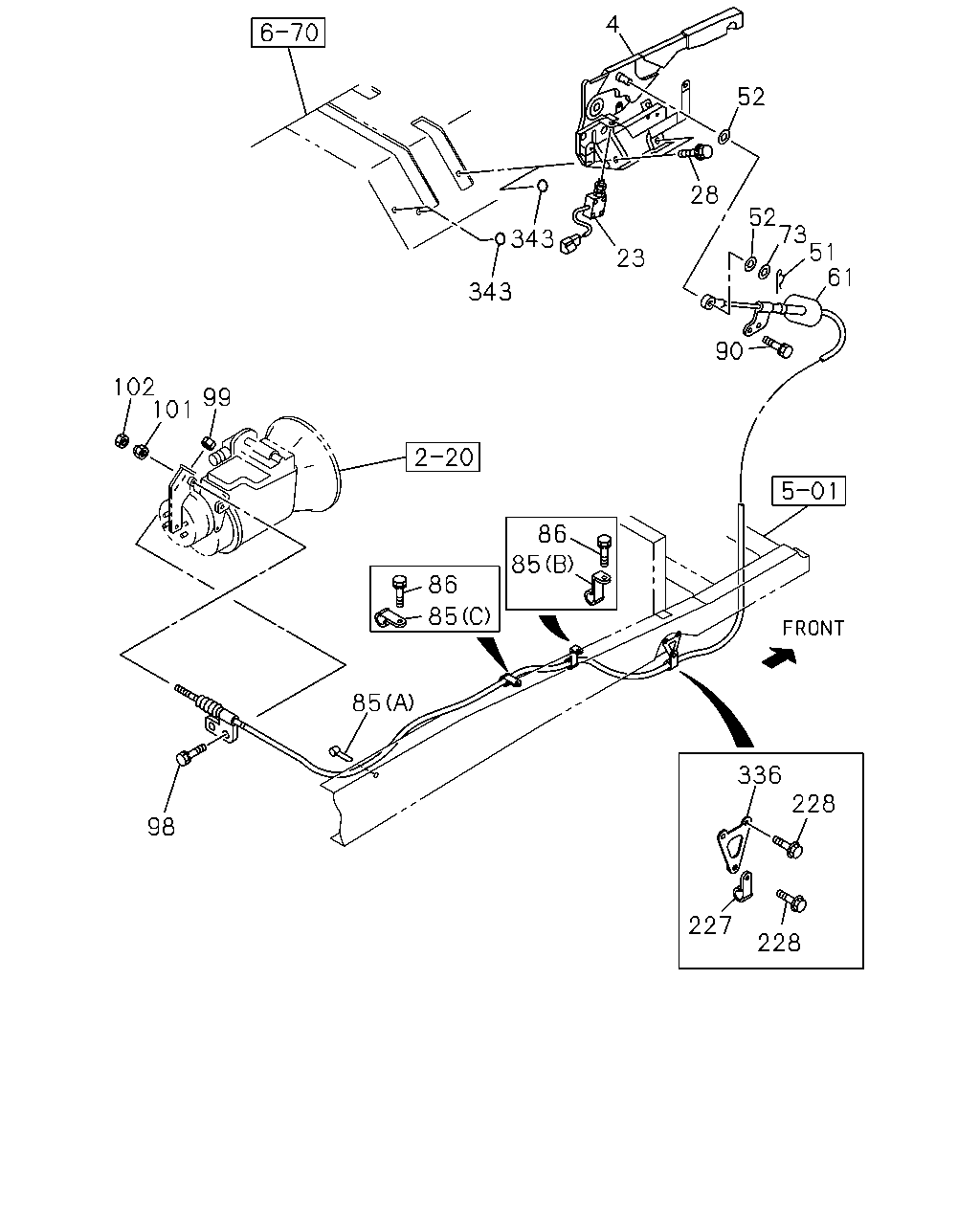

4
52
28
52
73
51
61
343
23
343
90
102
101
99
86
85
86
85
85
336
228
98
227
228
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
4
STEM; PARKING BRK
1-79996-548-0
02
1
0407-
●
●
23
SWITCH; PARKING BRK
1-82440-100-0
02
1
0407-
●
●
28
BOLT; HAND BRK LEVER
M8X24.5 W/LK&PL WASHER
8-94279-208-0
03
1
0407-
●
●
51
PIN; JOINT,RELAY LEVER
1-09987-243-1
01
1
0407-
●
●
52
WASHER; CURVED RELAY LEVER
ID=19
8-94206-429-1
02
1
0407-
●
●
61
CABLE; PARKING BRK
L=4394 THA
8-97920-528-0
01
1
0407-
●
●
73
WASHER; PL,CABLE
ID=17
9-09160-516-0
01
1
0407-0605
●
●
73
WASHER; PL,CABLE
ID=17 OD=30
0-91610-516-0
01
1
0606-
●
●
85
CLIP; BRKT
(A) ID=15 L=65 THA
1-09700-466-0
02
1
0407-
●
●
85
CLIP; BRKT
(B) ID=16 H=30 L=30
1-09701-080-0
01
1
0407-
●
●
85
CLIP; BRKT
(C) ID=24 L=40
1-09701-139-0
01
1
0407-
●
●
86
BOLT
M8X25 FLANGE
0-28680-825-0
02
1
0407-0611
●
●
86
BOLT
M8X25 FLANGE THA
0-28650-825-0
02
1
0612-
●
●
90
BOLT; CABLE TO BRKT
M8X24.5 W/LK&PL WASHER
8-94279-208-0
02
1
0407-
●
●
98
BOLT; RR COVER
M10X30 FLANGE
0-28681-030-0
02
1
0407-0611
●
●
98
BOLT; RR COVER
M10X30 FLANGE THA
0-28651-030-0
02
1
0612-
●
●
99
NUT; CONT CABLE
M10 FLANGE
0-91150-210-0
02
1
0407-
●
●
101
NUT; CABLE TO LEVER
1-46259-007-0
01
1
0407-
●
●
102
NUT; LK,CABLE TO LEVER
M8 FLANGE
0-91150-108-0
01
1
0407-
●
●
227
CLIP; RAD
ID=13 L=20
9-09525-235-0
01
1
0407-0606
●
●
227
CLIP; RAD
ID=13 L=20
0-95235-235-0
01
1
0607-
●
●
228
BOLT; CLIP RAD MTG
M8X16 W/LK&PL WASHER
1-09980-498-0
02
1
0407-
●
●
228
BOLT; CLIP RAD MTG
M8X16 FLANGE
0-28080-816-0
01
1
0407-0611
●
●
228
BOLT; CLIP RAD MTG
M8X16 FLANGE THA
0-28050-816-0
01
1
0612-
●
●
336
BRACKET; RADIATOR
THA
1-36183-162-1
01
1
0407-
●
●
343
SEAL
OD=25 BLACK THA
1-76798-019-0
02
1
0407-
●
●
