◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 10624 - FSR-RHD ▶ 3 - Brakes, Brake System ▶ 3-11 - PARKING BRAKE CONTROL ▶
3-11 — PARKING BRAKE CONTROL (#26) — 59 parça

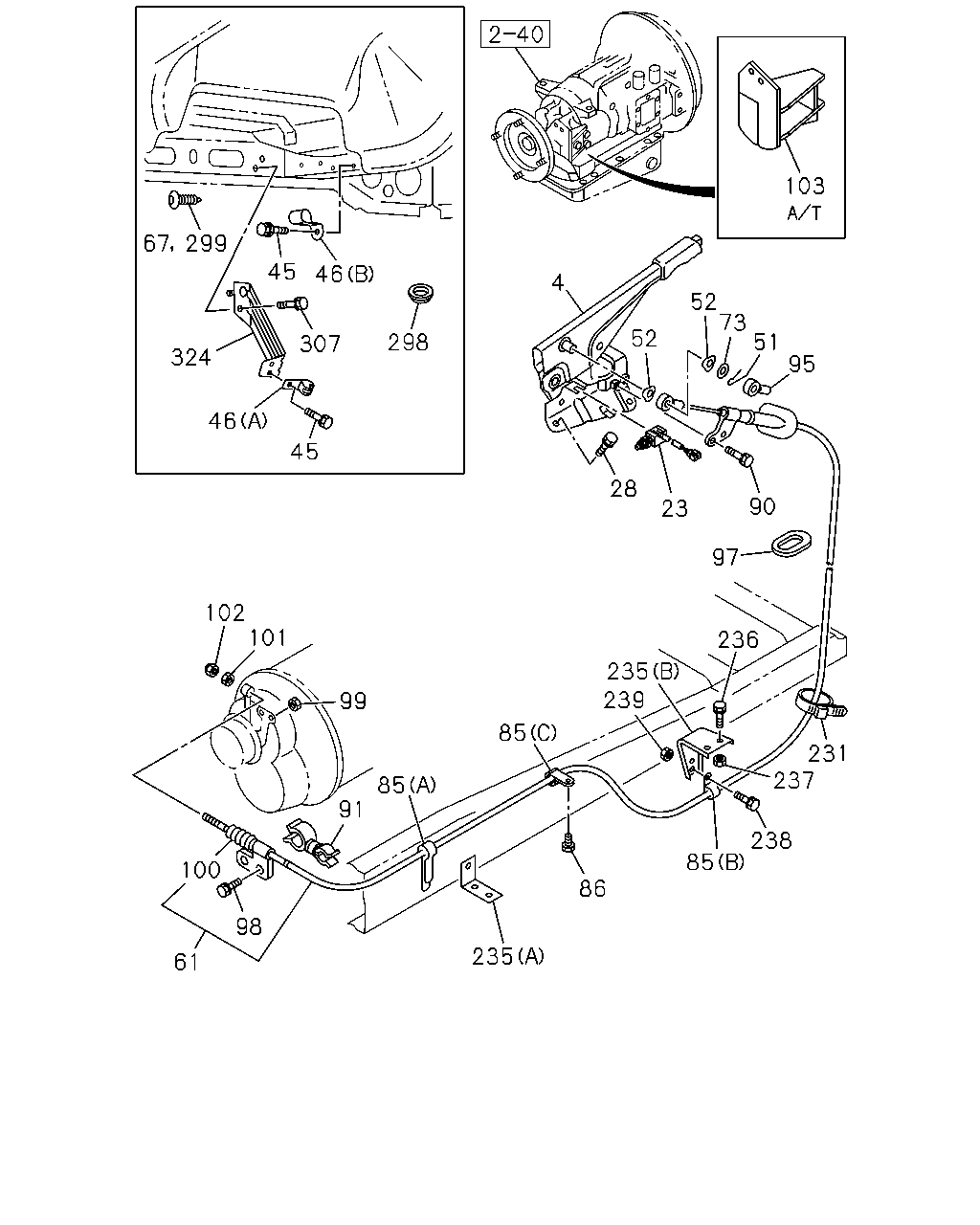

çizim 27770
103 67 299 45 46 4 52 73 51 52 298 307 324 95 46 45 28 90 23 97 102 101 236 235 239 99 85 231 237 85 91 238 85 100 86 98 235 61
BalonParca AdiParca NoAdetTipApplied Date A B
4 STEM; PARKING BRK
AUSTRALIA EQUIPMENT(RR3) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-79998-717-1 01 1 9202-9305 ● ●
4 STEM; PARKING BRK
AUSTRALIA EQUIPMENT(RR3) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-46120-068-5 01 1 9306- ● ●
4 STEM; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), AUSTRALIA EQUIPMENT(RR3) 		1-79998-716-1 01 1 9202-9305 ● ●
4 STEM; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), AUSTRALIA EQUIPMENT(RR3) 		1-46120-061-5 01 1 9306- ● ●
23 SWITCH; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CONNECTOR 6PIN 		1-82440-028-0 01 1 9202- ● ●
28 BOLT; HAND BRK LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 W/LK&PL WASHER 		9-01960-825-0 03 1 9202-9204 ● ●
28 BOLT; HAND BRK LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 W/LK&PL WASHER 		0-50140-825-0 03 1 9205- ● ●
45 BOLT; CABLE TO FLOOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6X16 W/LK&PL WASHER 		1-09980-492-0 01 1 9202- ● ●
45 BOLT; CABLE TO FLOOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X16 W/LK&PL WASHER 		1-09980-498-0 01 1 9202- ● ●
46 CLIP; FRT CABLE TO FLOOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=13 L=40 		9-09525-276-0 01 1 9202- ● ●
46 CLIP; FRT CABLE TO FLOOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=15.5 		9-09916-962-0 01 1 9202-9302 ● ●
46 CLIP; FRT CABLE TO FLOOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=16 H=24 L=20 		9-09527-015-0 01 1 9303- ● ●
51 PIN; JOINT,RELAY LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=3.7 L=28 		9-08114-028-0 01 1 9202- ● ●
52 WASHER; CURVED RELAY LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=19 		8-94206-429-1 02 1 9202- ● ●
61 CABLE; PARKING BRK
A/T<X9D> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4375 		1-46151-588-3 01 1 9202-9412 ●
61 CABLE; PARKING BRK
A/T<X9D> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4385 		1-79998-999-0 01 1 9501- ●
61 CABLE; PARKING BRK
MBG5 M/T<X9W> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4200 		1-46151-583-3 01 1 9202-9412 ● ●
61 CABLE; PARKING BRK
MBG5 M/T<X9W> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4210 		1-79998-994-0 01 1 9501- ● ●
61 CABLE; PARKING BRK
MBG6 M/T<X9X>,MLD6 M/T<X9Y> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4300 		1-46151-585-3 01 1 9202-9412 ● ●
61 CABLE; PARKING BRK
MBG6 M/T<X9X>,MLD6 M/T<X9Y> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4310 		1-79998-996-0 01 1 9501- ● ●
67 PLUG; UNDER FRAME
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) D4.7X11 		1-76378-154-0 02 1 9202- ● ●
67 PLUG; UNDER FRAME
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) D4.7X11 		1-76378-154-0 04 1 9202- ● ●
73 WASHER; PL,CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=17 		9-09160-516-0 01 1 9202- ● ●
85 CLIP; BRKT
A/T<X9D> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=14.5 L=28 		1-09701-013-0 01 1 9202- ●
85 CLIP; BRKT
ISUZU M/T<X9A> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=15 L=65 		1-09700-466-0 01 1 9202- ● ●
85 CLIP; BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=14.5 L=20 		1-09701-012-0 01 1 9202- ● ●
85 CLIP; BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) ID=24 L=40 		1-09701-139-0 02 1 9202- ● ●
86 BOLT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28010-825-0 02 1 9202-9204 ● ●
86 BOLT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28080-825-0 02 1 9205- ● ●
90 BOLT; CABLE TO BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 W/LK&PL WASHER 		9-01960-825-0 02 1 9202-9204 ● ●
90 BOLT; CABLE TO BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 W/LK&PL WASHER 		0-50140-825-0 02 1 9205- ● ●
91 CLIP; PARKING BRK CABLE
A/T<X9D> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=6 & 13 		8-94459-564-0 01 1 9202- ●
95 CAP; CABLE,PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-79997-140-2 01 1 9202- ● ●
97 GROMMET; PARKING BRK CABLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-09983-078-0 01 1 9202- ● ●
98 BOLT; RR COVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 W/LK WASHER 		0-50041-030-0 02 1 9202- ● ●
99 NUT; CONT CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 		9-09110-510-0 02 1 9202- ● ●
100 BELLOWS; CONT WIRE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-46159-004-0 01 1 9202- ● ●
101 NUT; CABLE TO LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		9-46259-016-0 01 1 9202- ● ●
102 NUT; LK,CABLE TO LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 		9-09110-408-0 01 1 9202- ● ●
103 BRACKET; PARKING BRK CONT
A/T<X9D> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-46276-016-1 01 1 9202- ●
231 CLIP; BAND,BRK CABLE
A/T<X9D> L=140 		5-09707-031-0 02 1 9202- ●
235 BRACKET; CONT CABLE TO FRAME
A/T<X9D> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=50 		1-47475-663-1 01 1 9202- ●
235 BRACKET; CONT CABLE TO FRAME
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-46147-049-1 01 1 9202-9206 ● ●
235 BRACKET; CONT CABLE TO FRAME
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-46147-135-1 01 1 9207- ● ●
236 BOLT; BRKT TO FRAME
A/T<X9D> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28010-825-0 01 1 9202-9204 ●
236 BOLT; BRKT TO FRAME
A/T<X9D> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28080-825-0 01 1 9205- ●
236 BOLT; BRKT TO FRAME
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28010-825-0 02 1 9202-9204 ● ●
236 BOLT; BRKT TO FRAME
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28080-825-0 02 1 9205- ● ●
237 NUT; BRKT TO FRAME
A/T<X9D> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 		9-09110-408-0 01 1 9202- ●
237 NUT; BRKT TO FRAME
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 		9-09110-408-0 02 1 9202- ● ●
238 BOLT; CLIP TO BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X16 FLANGE 		0-28010-816-0 01 1 9202-9204 ● ●
238 BOLT; CLIP TO BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X16 FLANGE 		0-28080-816-0 01 1 9205- ● ●
239 NUT; CLIP TO BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 		9-09110-408-0 01 1 9202- ● ●
298 GROMMET; RR,AIR PIPE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=32 T=5 		5-09983-018-0 01 1 9202- ● ●
299 PLUG; RR PARTS
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) D4.7X11 		1-76378-154-0 05 1 9202- ● ●
307 BOLT; BRKT,PARKING BRK CABLE
M8X16 W/LK&PL WASHER 		1-09980-498-0 01 1 9202- ● ●
324 BRACKET
A/T<X9D> 		1-79998-197-3 01 1 9202- ●
324 BRACKET
ISUZU M/T<X9A> 		1-79998-367-2 01 1 9202- ●
324 BRACKET 1-79998-367-2 01 1 9202- ●
