2-07 — CLUTCH BOOSTER; MINIPACK (#25997) — 52 parça

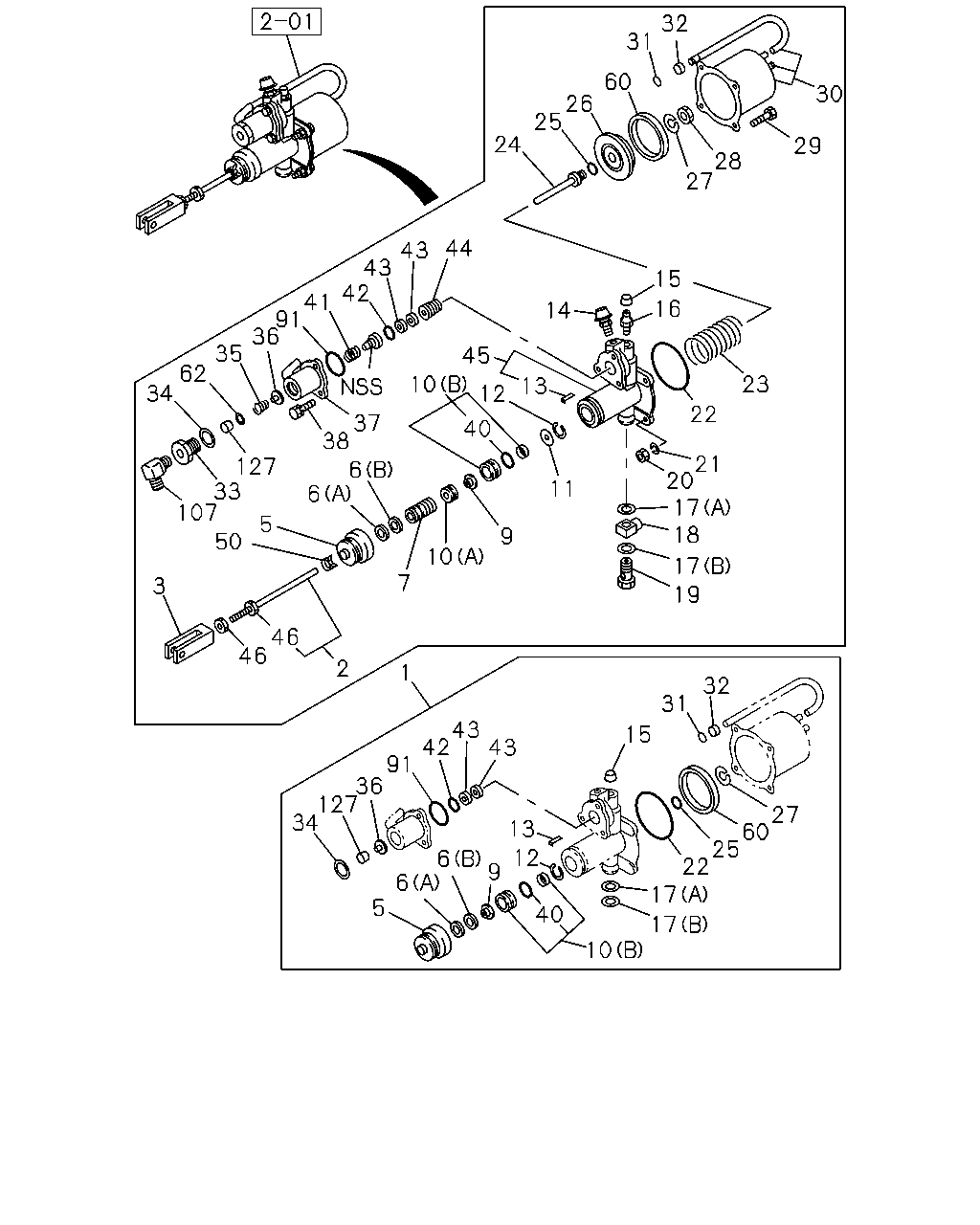

çizim 25762
32 31 60 30 26 25 24 29 28 27 44 43 43 42 15 41 91 36 16 14 35 62 34 45 10 23 13 12 22 37 38 40 21 20 17 18 127 33 107 6 11 6 5 9 50 10 17 7 3 19 46 46 2 1 32 31 43 15 91 36 127 34 27 60 25 22 17 13 12 6 9 6 5 40 17 10 42 43
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; CLU BOOSTER 1-31829-550-0 01 1 0407-
2 ROD; PUSH,CLU BOOSTER 1-31824-156-0 01 1 0407-
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-186-0 01 1 0407-
5 GUARD; PISTON,CLU BOOSTER 1-31829-174-0 01 1 0407-
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-055-0 01 1 0407-
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-056-0 01 1 0407-
7 PISTON; CLU BOOSTER 1-31821-048-0 01 1 0407-
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-251-0 01 1 0407-
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-285-0 01 1 0407-
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-428-0 01 1 0407-
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 0407-
12 RING; RET,CLU BOOSTER 9-83315-315-0 01 1 0407-
13 PIN; SPR 1-31829-109-0 01 1 0407-
14 COVER; EXH,CLU BOOSTER 1-31829-564-0 01 1 0407-
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 0407-
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 0407-
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 0407-
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 0407-
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 0407-
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 0407-
20 NUT; END PLATE TO SHELL,CLU BOOSTER 9-83315-085-0 04 1 0407-
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=8.2 		9-09150-508-0 04 1 0407-
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-09623-327-0 01 1 0407-
23 SPRING; SHELL,CLU BOOSTER 1-31829-358-0 01 1 0407-
24 ROD; PUSH,CLU BOOSTER 1-31829-340-0 01 1 0407-
25 GASKET; PUSH ROD,CLU BOOSTER 1-09623-321-0 01 1 0407-
26 PISTON; SHELL,CLU BOOSTER 1-31821-083-0 01 1 0407-
27 SPRING; CLU BOOSTER 1-31829-111-0 01 1 0407-
28 NUT; PUSH ROD,CLU BOOSTER 9-88510-365-0 01 1 0407-
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 1-31829-015-0 04 1 0407-
30 SHELL; CYL,CLU BOOSTER 1-31811-123-0 01 1 0407-
31 GASKET; SHELL,CLU BOOSTER 1-31829-113-0 01 1 0407-
32 BUSHING; SHELL,CLU BOOSTER 1-31829-114-0 01 1 0407-
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-212-0 01 1 0407-
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 0407-
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-537-0 01 1 0407-
36 VALVE; POPPET,CLU BOOSTER 1-31829-536-0 01 1 0407-
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-138-0 01 1 0407-
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 0407-
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 0407-
41 SPRING; DIAPH,CLU BOOSTER 1-31829-420-0 01 1 0407-
42 GASKET; FITTING,CLU BOOSTER 1-31829-123-0 01 1 0407-
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 0407-
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-089-0 01 1 0407-
45 PLATE; END,CLU BOOSTER 1-31811-062-0 01 1 0407-
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 0407-
50 CLAMP; PISTON GUARD,CLU BOOSTER 1-31829-168-0 01 1 0407-
60 GASKET; SHELL,CLU BOOSTER 1-31829-535-0 01 1 0407-
62 RETAINER; POPPET 1-31829-489-0 01 1 0407-
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 0407-
107 CONNECTOR; ELBOW 1-09650-358-1 01 1 0407-
127 FILTER; POPPET 1-31829-495-0 01 1 0407-
