Sayfa 1-50 - Isuzu EPC

1-50 — EXHAUST PIPE AND SILENCER (#25991) — 245 parça

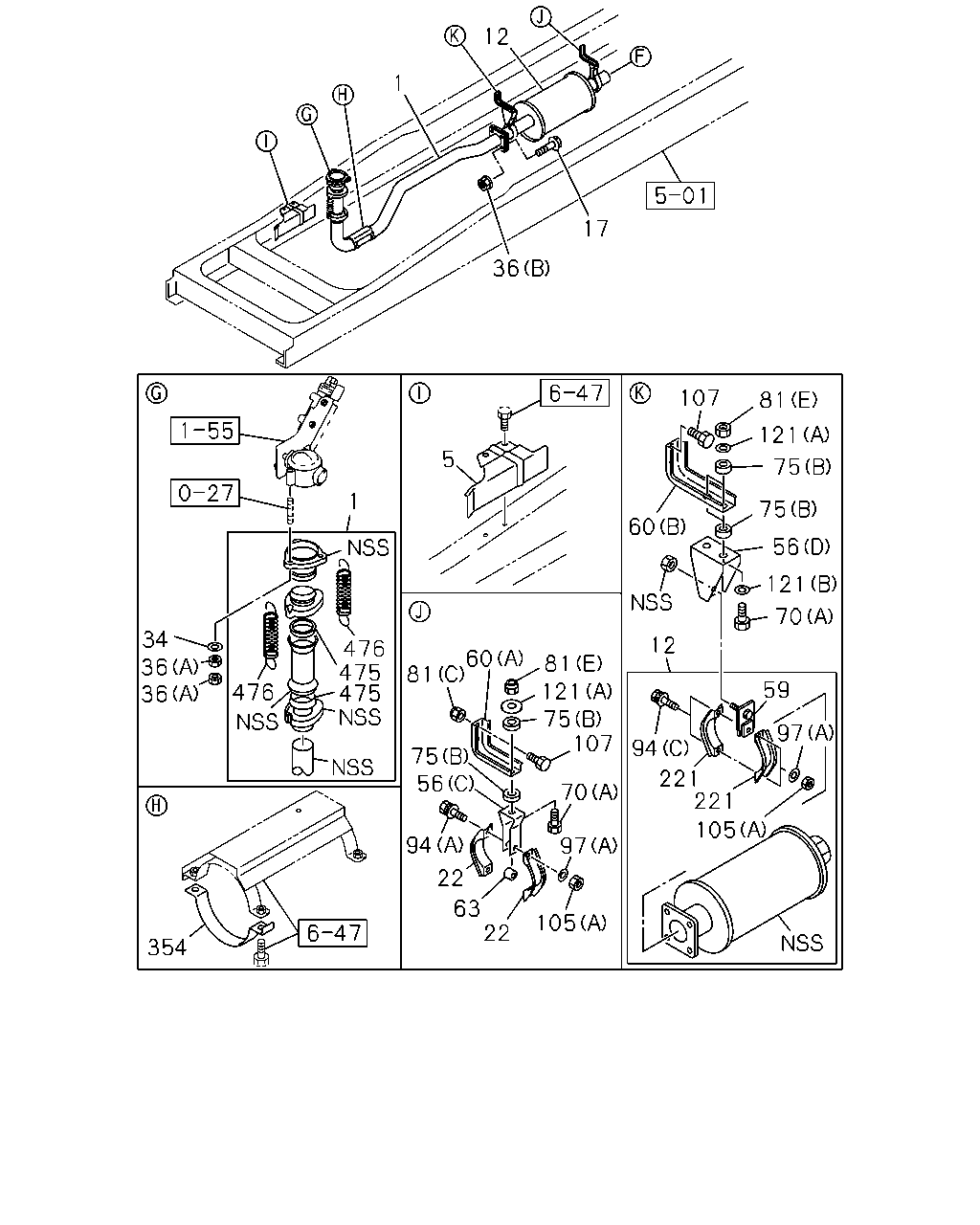

12 1 17 36 5 1 354 81 121 107 75 60 56 81 75 75 34 36 36 81 476 475 475 60 81 62 75 476 56 70 94 70 107 94 105 22 22 105 22 97 63 97 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH THA	8-97917-924-1	01	1	0407-
5	PROTECTOR; HEAT THA	1-33659-182-1	01	1	0407-
12	SILENCER ASM; EXH SHORT CHASSIS<FT***C> THA	8-97915-016-1	01	1	0407-
12	SILENCER ASM; EXH MIDDLE CHASSIS<FT***F> THA	8-97917-926-1	01	1	0407-
17	BOLT; EXH PIPE M12X25 FLANGE	1-09000-604-0	04	1	0407-
22	CLAMP; EXH PIPE SHORT CHASSIS<FT***C> ID=80-84 THA	8-97915-977-0	04	1	0407-
22	CLAMP; EXH PIPE MIDDLE CHASSIS<FT***F> WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> ID=80-84 THA	8-97915-977-0	04	1	0407-
22	CLAMP; EXH PIPE MIDDLE CHASSIS<FT***F> ID=80-84 THA	8-97915-977-1	02	1	0407-
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09500-030-0	03	1	0407-
36	NUT; EXH PIPE (A) M12	1-09400-010-0	06	1	0407-
36	NUT; EXH PIPE (B) M12	9-99110-512-0	04	1	0407-0512
36	NUT; EXH PIPE (B) M12	0-91110-512-0	04	1	0601-
56	BRACKET; CLAMP,EXH PIPE SHORT CHASSIS<FT***C> (E) THA	8-97916-046-1	01	1	0407-
56	BRACKET; CLAMP,EXH PIPE SHORT CHASSIS<FT***C> (A) THA	8-97917-961-0	01	1	0407-
56	BRACKET; CLAMP,EXH PIPE (B) THA	8-97915-971-1	01	1	0407-
56	BRACKET; CLAMP,EXH PIPE MIDDLE CHASSIS<FT***F> (C) THA	8-97916-049-1	01	1	0407-
56	BRACKET; CLAMP,EXH PIPE MIDDLE CHASSIS<FT***F> (D) THA	8-97917-723-2	01	1	0407-
56	BRACKET; CLAMP,EXH PIPE MIDDLE CHASSIS<FT***F> WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> (C) THA	8-97916-049-0	02	1	0407-
60	BRACKET; FRAME TO BRKT SHORT CHASSIS<FT***C> (A) THA	8-97917-952-0	01	1	0407-
60	BRACKET; FRAME TO BRKT SHORT CHASSIS<FT***C> (B) THA	8-97917-959-0	01	1	0407-
60	BRACKET; FRAME TO BRKT MIDDLE CHASSIS<FT***F> (A) THA	8-97915-987-1	01	1	0407-
60	BRACKET; FRAME TO BRKT MIDDLE CHASSIS<FT***F> (B) THA	8-97917-722-2	01	1	0407-
60	BRACKET; FRAME TO BRKT MIDDLE CHASSIS<FT***F> WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> (A) THA	8-97915-987-0	02	1	0407-
62	TUBE; DIST,BRKT SHORT CHASSIS<FT***C> THA	8-97917-668-2	01	1	0407-
63	TUBE; DIST,BRKT SHORT CHASSIS<FT***C> THA	8-97917-953-2	01	1	0407-
63	TUBE; DIST,BRKT MIDDLE CHASSIS<FT***F> THA	8-97915-989-0	01	1	0407-
63	TUBE; DIST,BRKT MIDDLE CHASSIS<FT***F> WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> THA	8-97915-989-0	01	1	0407-
70	BOLT; BRKT SHORT CHASSIS<FT***C> (A) M10X50	0-10806-050-0	02	1	0407-0512
70	BOLT; BRKT SHORT CHASSIS<FT***C> (A) M10X50	0-10856-050-0	02	1	0601-
70	BOLT; BRKT (C) M8X25 FLANGE	0-28680-825-0	02	1	0407-0611
70	BOLT; BRKT (C) M8X25 FLANGE THA	0-28650-825-0	02	1	0612-
70	BOLT; BRKT MIDDLE CHASSIS<FT***F> (A) M10X50	0-10806-050-0	03	1	0407-0512
70	BOLT; BRKT MIDDLE CHASSIS<FT***F> (A) M10X50	0-10856-050-0	03	1	0601-
70	BOLT; BRKT MIDDLE CHASSIS<FT***F> WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> (B) THA	8-97916-893-0	02	1	0407-
70	BOLT; BRKT MIDDLE CHASSIS<FT***F> WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> (D) THA	8-97916-895-0	01	1	0407-
75	RUBBER; SUPPORT,BRKT SHORT CHASSIS<FT***C> (A) OD=40 THA	1-22159-193-0	02	1	0407-
75	RUBBER; SUPPORT,BRKT SHORT CHASSIS<FT***C> (B) THA	8-97916-904-0	02	1	0407-
75	RUBBER; SUPPORT,BRKT MIDDLE CHASSIS<FT***F> WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> (B) THA	8-97916-904-0	02	1	0407-
75	RUBBER; SUPPORT,BRKT MIDDLE CHASSIS<FT***F> (B) THA	8-97916-904-0	06	1	0407-
81	NUT; BRKT SHORT CHASSIS<FT***C> (A) M10 FLANGE THA	0-91180-210-0	01	1	0603-
81	NUT; BRKT SHORT CHASSIS<FT***C> (A) M10 FLANGE	0-91150-210-0	03	1	0407-
81	NUT; BRKT SHORT CHASSIS<FT***C> (B) M10 LOCK NUT	9-09131-510-0	01	1	0407-0601
81	NUT; BRKT SHORT CHASSIS<FT***C> (B) M10 LOCK NUT	0-91370-010-0	01	1	0602-
81	NUT; BRKT (A) M10 FLANGE	0-91150-210-0	01	1	0407-0602
81	NUT; BRKT SHORT CHASSIS<FT***C> (A) M10 FLANGE	0-91150-210-0	01	1	0407-0602
81	NUT; BRKT (A) M10 FLANGE	0-91150-210-0	01	1	0603-
81	NUT; BRKT (A) M10 FLANGE	0-91150-210-0	02	1	0407-
81	NUT; BRKT (D) M8	9-09110-408-0	02	1	0407-
81	NUT; BRKT MIDDLE CHASSIS<FT***F> (E) M10 LOCK NUT	9-09131-510-0	03	1	0407-0601
81	NUT; BRKT MIDDLE CHASSIS<FT***F> (E) M10 LOCK NUT	0-91370-010-0	03	1	0602-
81	NUT; BRKT MIDDLE CHASSIS<FT***F> WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> (C) THA	8-97916-605-0	03	1	0407-
81	NUT; BRKT MIDDLE CHASSIS<FT***F> (C) THA	8-97916-605-0	02	1	0407-
94	BOLT; CLAMP SHORT CHASSIS<FT***C> (A) THA	8-97916-896-0	04	1	0407-
94	BOLT; CLAMP MIDDLE CHASSIS<FT***F> (B) THA	8-97916-896-0	02	1	0407-
94	BOLT; CLAMP MIDDLE CHASSIS<FT***F> WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> (B) THA	8-97916-896-0	02	1	0407-
94	BOLT; CLAMP MIDDLE CHASSIS<FT***F> (C) M10X40 FLANGE	0-28081-040-0	02	1	0407-0512
94	BOLT; CLAMP MIDDLE CHASSIS<FT***F> (C) M10X40 FLANGE THA	0-28051-040-0	02	1	0601-
97	WASHER; PL,CLAMP SHORT CHASSIS<FT***C> (A) ID=10.5	9-09164-510-0	02	1	0407-
97	WASHER; PL,CLAMP (A) ID=10.5 OD=18	9-09160-510-0	02	1	0407-0605
97	WASHER; PL,CLAMP MIDDLE CHASSIS<FT***F> WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> (A) ID=10.5 OD=18	9-09160-510-0	02	1	0407-0605
97	WASHER; PL,CLAMP (B) ID=10.5	0-91610-510-0	02	1	0606-
97	WASHER; PL,CLAMP MIDDLE CHASSIS<FT***F> WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> (B) ID=10.5	0-91610-510-0	02	1	0606-
105	NUT; CLAMP SHORT CHASSIS<FT***C> (A) THA	8-97916-605-0	04	1	0407-
105	NUT; CLAMP MIDDLE CHASSIS<FT***F> (A) THA	8-97916-605-0	02	1	0407-
105	NUT; CLAMP MIDDLE CHASSIS<FT***F> WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> (A) THA	8-97916-605-0	02	1	0407-
105	NUT; CLAMP MIDDLE CHASSIS<FT***F> (B) M10 FLANGE	0-91150-210-0	02	1	0407-0602
105	NUT; CLAMP MIDDLE CHASSIS<FT***F> (B) M10 FLANGE THA	0-91180-210-0	02	1	0603-
107	BOLT; BRKT SHORT CHASSIS<FT***C> M10X30 FLANGE	0-28681-030-0	03	1	0407-0611
107	BOLT; BRKT SHORT CHASSIS<FT***C> M10X30 FLANGE THA	0-28651-030-0	03	1	0612-
107	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	02	1	0407-0611
107	BOLT; BRKT MIDDLE CHASSIS<FT***F> M10X30 FLANGE	0-28681-030-0	02	1	0407-0611
107	BOLT; BRKT M10X30 FLANGE THA	0-28651-030-0	02	1	0612-
107	BOLT; BRKT MIDDLE CHASSIS<FT***F> M10X30 FLANGE THA	0-28651-030-0	02	1	0612-
121	WASHER; PL,BRKT SHORT CHASSIS<FT***C> (C) ID=10.5 OD=32	9-09164-810-0	01	1	0407-0605
121	WASHER; PL,BRKT SHORT CHASSIS<FT***C> (C) ID=10.5 OD=32	0-91614-810-0	01	1	0606-
121	WASHER; PL,BRKT MIDDLE CHASSIS<FT***F> (B) ID=10.5 OD=18	9-09160-510-0	02	1	0407-0605
121	WASHER; PL,BRKT MIDDLE CHASSIS<FT***F> (B) ID=10.5	0-91610-510-0	02	1	0606-
121	WASHER; PL,BRKT MIDDLE CHASSIS<FT***F> (A) ID=10.5 OD=32	9-09164-810-0	03	1	0407-0605
121	WASHER; PL,BRKT MIDDLE CHASSIS<FT***F> (A) ID=10.5 OD=32	0-91614-810-0	03	1	0606-
121	WASHER; PL,BRKT MIDDLE CHASSIS<FT***F> WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> (C) THA	8-97916-892-0	01	1	0407-
354	CLAMP; HEAT PROTECTOR THA	8-97917-224-0	02	1	0407-
475	BEARING; SEAL,VIBNON,EXH PIPE OD=100.4 THA	1-22119-374-0	02	1	0407-
476	SPRING; VIBNON,EXH PIPE THA	1-09583-298-0	02	1	0407-

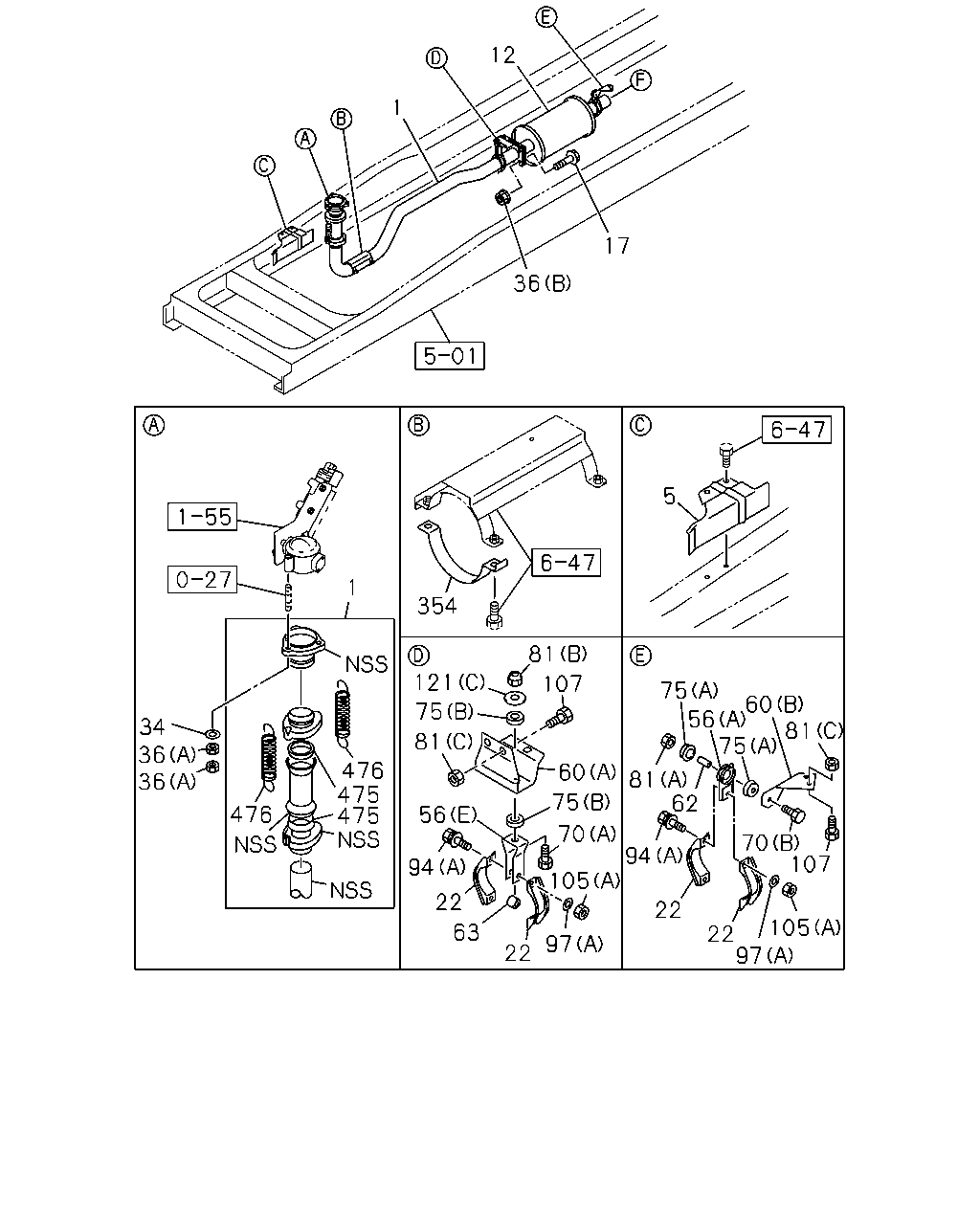

12 1 17 36 107 81 121 5 75 1 75 60 56 121 70 34 36 36 12 476 475 475 60 81 81 121 75 107 59 476 97 94 75 56 221 221 70 105 94 97 22 63 22 105 354

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH THA	8-97917-924-1	01	1	0407-
5	PROTECTOR; HEAT THA	1-33659-182-1	01	1	0407-
12	SILENCER ASM; EXH SHORT CHASSIS<FT***C> THA	8-97915-016-1	01	1	0407-
12	SILENCER ASM; EXH MIDDLE CHASSIS<FT***F> THA	8-97917-926-1	01	1	0407-
17	BOLT; EXH PIPE M12X25 FLANGE	1-09000-604-0	04	1	0407-
22	CLAMP; EXH PIPE SHORT CHASSIS<FT***C> ID=80-84 THA	8-97915-977-0	04	1	0407-
22	CLAMP; EXH PIPE MIDDLE CHASSIS<FT***F> WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> ID=80-84 THA	8-97915-977-0	04	1	0407-
22	CLAMP; EXH PIPE MIDDLE CHASSIS<FT***F> ID=80-84 THA	8-97915-977-1	02	1	0407-
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09500-030-0	03	1	0407-
36	NUT; EXH PIPE (A) M12	1-09400-010-0	06	1	0407-
36	NUT; EXH PIPE (B) M12	9-99110-512-0	04	1	0407-0512
36	NUT; EXH PIPE (B) M12	0-91110-512-0	04	1	0601-
56	BRACKET; CLAMP,EXH PIPE SHORT CHASSIS<FT***C> (E) THA	8-97916-046-1	01	1	0407-
56	BRACKET; CLAMP,EXH PIPE SHORT CHASSIS<FT***C> (A) THA	8-97917-961-0	01	1	0407-
56	BRACKET; CLAMP,EXH PIPE (B) THA	8-97915-971-1	01	1	0407-
56	BRACKET; CLAMP,EXH PIPE MIDDLE CHASSIS<FT***F> (C) THA	8-97916-049-1	01	1	0407-
56	BRACKET; CLAMP,EXH PIPE MIDDLE CHASSIS<FT***F> (D) THA	8-97917-723-2	01	1	0407-
56	BRACKET; CLAMP,EXH PIPE MIDDLE CHASSIS<FT***F> WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> (C) THA	8-97916-049-0	02	1	0407-
59	BRACKET; EXH SILENCER,FRT MIDDLE CHASSIS<FT***F> THA	8-97917-954-1	01	1	0407-
60	BRACKET; FRAME TO BRKT SHORT CHASSIS<FT***C> (A) THA	8-97917-952-0	01	1	0407-
60	BRACKET; FRAME TO BRKT SHORT CHASSIS<FT***C> (B) THA	8-97917-959-0	01	1	0407-
60	BRACKET; FRAME TO BRKT MIDDLE CHASSIS<FT***F> (A) THA	8-97915-987-1	01	1	0407-
60	BRACKET; FRAME TO BRKT MIDDLE CHASSIS<FT***F> (B) THA	8-97917-722-2	01	1	0407-
60	BRACKET; FRAME TO BRKT MIDDLE CHASSIS<FT***F> WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> (A) THA	8-97915-987-0	02	1	0407-
63	TUBE; DIST,BRKT SHORT CHASSIS<FT***C> THA	8-97917-953-2	01	1	0407-
63	TUBE; DIST,BRKT MIDDLE CHASSIS<FT***F> THA	8-97915-989-0	01	1	0407-
63	TUBE; DIST,BRKT MIDDLE CHASSIS<FT***F> WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> THA	8-97915-989-0	01	1	0407-
70	BOLT; BRKT SHORT CHASSIS<FT***C> (A) M10X50	0-10806-050-0	02	1	0407-0512
70	BOLT; BRKT SHORT CHASSIS<FT***C> (A) M10X50	0-10856-050-0	02	1	0601-
70	BOLT; BRKT (C) M8X25 FLANGE	0-28680-825-0	02	1	0407-0611
70	BOLT; BRKT (C) M8X25 FLANGE THA	0-28650-825-0	02	1	0612-
70	BOLT; BRKT MIDDLE CHASSIS<FT***F> (A) M10X50	0-10806-050-0	03	1	0407-0512
70	BOLT; BRKT MIDDLE CHASSIS<FT***F> (A) M10X50	0-10856-050-0	03	1	0601-
70	BOLT; BRKT MIDDLE CHASSIS<FT***F> WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> (B) THA	8-97916-893-0	02	1	0407-
70	BOLT; BRKT MIDDLE CHASSIS<FT***F> WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> (D) THA	8-97916-895-0	01	1	0407-
75	RUBBER; SUPPORT,BRKT SHORT CHASSIS<FT***C> (A) OD=40 THA	1-22159-193-0	02	1	0407-
75	RUBBER; SUPPORT,BRKT SHORT CHASSIS<FT***C> (B) THA	8-97916-904-0	02	1	0407-
75	RUBBER; SUPPORT,BRKT MIDDLE CHASSIS<FT***F> WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> (B) THA	8-97916-904-0	02	1	0407-
75	RUBBER; SUPPORT,BRKT MIDDLE CHASSIS<FT***F> (B) THA	8-97916-904-0	06	1	0407-
81	NUT; BRKT SHORT CHASSIS<FT***C> (A) M10 FLANGE THA	0-91180-210-0	01	1	0603-
81	NUT; BRKT SHORT CHASSIS<FT***C> (A) M10 FLANGE	0-91150-210-0	03	1	0407-
81	NUT; BRKT SHORT CHASSIS<FT***C> (B) M10 LOCK NUT	9-09131-510-0	01	1	0407-0601
81	NUT; BRKT SHORT CHASSIS<FT***C> (B) M10 LOCK NUT	0-91370-010-0	01	1	0602-
81	NUT; BRKT (A) M10 FLANGE	0-91150-210-0	01	1	0407-0602
81	NUT; BRKT SHORT CHASSIS<FT***C> (A) M10 FLANGE	0-91150-210-0	01	1	0407-0602
81	NUT; BRKT (A) M10 FLANGE	0-91150-210-0	01	1	0603-
81	NUT; BRKT (A) M10 FLANGE	0-91150-210-0	02	1	0407-
81	NUT; BRKT (D) M8	9-09110-408-0	02	1	0407-
81	NUT; BRKT MIDDLE CHASSIS<FT***F> (E) M10 LOCK NUT	9-09131-510-0	03	1	0407-0601
81	NUT; BRKT MIDDLE CHASSIS<FT***F> (E) M10 LOCK NUT	0-91370-010-0	03	1	0602-
81	NUT; BRKT MIDDLE CHASSIS<FT***F> WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> (C) THA	8-97916-605-0	03	1	0407-
81	NUT; BRKT MIDDLE CHASSIS<FT***F> (C) THA	8-97916-605-0	02	1	0407-
94	BOLT; CLAMP SHORT CHASSIS<FT***C> (A) THA	8-97916-896-0	04	1	0407-
94	BOLT; CLAMP MIDDLE CHASSIS<FT***F> (B) THA	8-97916-896-0	02	1	0407-
94	BOLT; CLAMP MIDDLE CHASSIS<FT***F> WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> (B) THA	8-97916-896-0	02	1	0407-
94	BOLT; CLAMP MIDDLE CHASSIS<FT***F> (C) M10X40 FLANGE	0-28081-040-0	02	1	0407-0512
94	BOLT; CLAMP MIDDLE CHASSIS<FT***F> (C) M10X40 FLANGE THA	0-28051-040-0	02	1	0601-
97	WASHER; PL,CLAMP SHORT CHASSIS<FT***C> (A) ID=10.5	9-09164-510-0	02	1	0407-
97	WASHER; PL,CLAMP (A) ID=10.5 OD=18	9-09160-510-0	02	1	0407-0605
97	WASHER; PL,CLAMP MIDDLE CHASSIS<FT***F> WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> (A) ID=10.5 OD=18	9-09160-510-0	02	1	0407-0605
97	WASHER; PL,CLAMP (B) ID=10.5	0-91610-510-0	02	1	0606-
97	WASHER; PL,CLAMP MIDDLE CHASSIS<FT***F> WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> (B) ID=10.5	0-91610-510-0	02	1	0606-
105	NUT; CLAMP SHORT CHASSIS<FT***C> (A) THA	8-97916-605-0	04	1	0407-
105	NUT; CLAMP MIDDLE CHASSIS<FT***F> (A) THA	8-97916-605-0	02	1	0407-
105	NUT; CLAMP MIDDLE CHASSIS<FT***F> WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> (A) THA	8-97916-605-0	02	1	0407-
105	NUT; CLAMP MIDDLE CHASSIS<FT***F> (B) M10 FLANGE	0-91150-210-0	02	1	0407-0602
105	NUT; CLAMP MIDDLE CHASSIS<FT***F> (B) M10 FLANGE THA	0-91180-210-0	02	1	0603-
107	BOLT; BRKT SHORT CHASSIS<FT***C> M10X30 FLANGE	0-28681-030-0	03	1	0407-0611
107	BOLT; BRKT SHORT CHASSIS<FT***C> M10X30 FLANGE THA	0-28651-030-0	03	1	0612-
107	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	02	1	0407-0611
107	BOLT; BRKT MIDDLE CHASSIS<FT***F> M10X30 FLANGE	0-28681-030-0	02	1	0407-0611
107	BOLT; BRKT M10X30 FLANGE THA	0-28651-030-0	02	1	0612-
107	BOLT; BRKT MIDDLE CHASSIS<FT***F> M10X30 FLANGE THA	0-28651-030-0	02	1	0612-
121	WASHER; PL,BRKT SHORT CHASSIS<FT***C> (C) ID=10.5 OD=32	9-09164-810-0	01	1	0407-0605
121	WASHER; PL,BRKT SHORT CHASSIS<FT***C> (C) ID=10.5 OD=32	0-91614-810-0	01	1	0606-
121	WASHER; PL,BRKT MIDDLE CHASSIS<FT***F> (B) ID=10.5 OD=18	9-09160-510-0	02	1	0407-0605
121	WASHER; PL,BRKT MIDDLE CHASSIS<FT***F> (B) ID=10.5	0-91610-510-0	02	1	0606-
121	WASHER; PL,BRKT MIDDLE CHASSIS<FT***F> (A) ID=10.5 OD=32	9-09164-810-0	03	1	0407-0605
121	WASHER; PL,BRKT MIDDLE CHASSIS<FT***F> (A) ID=10.5 OD=32	0-91614-810-0	03	1	0606-
121	WASHER; PL,BRKT MIDDLE CHASSIS<FT***F> WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> (C) THA	8-97916-892-0	01	1	0407-
221	CLAMP; EXH SILENCER MIDDLE CHASSIS<FT***F> ID=80-84 THA	8-97915-977-1	02	1	0407-
354	CLAMP; HEAT PROTECTOR THA	8-97917-224-0	02	1	0407-
475	BEARING; SEAL,VIBNON,EXH PIPE OD=100.4 THA	1-22119-374-0	02	1	0407-
476	SPRING; VIBNON,EXH PIPE THA	1-09583-298-0	02	1	0407-

81 60 121 75 81 70 75 56 68 66 70 70 56 94 97 22 360 63 105 22 64 81 128 45 52 68 66 58 126 64

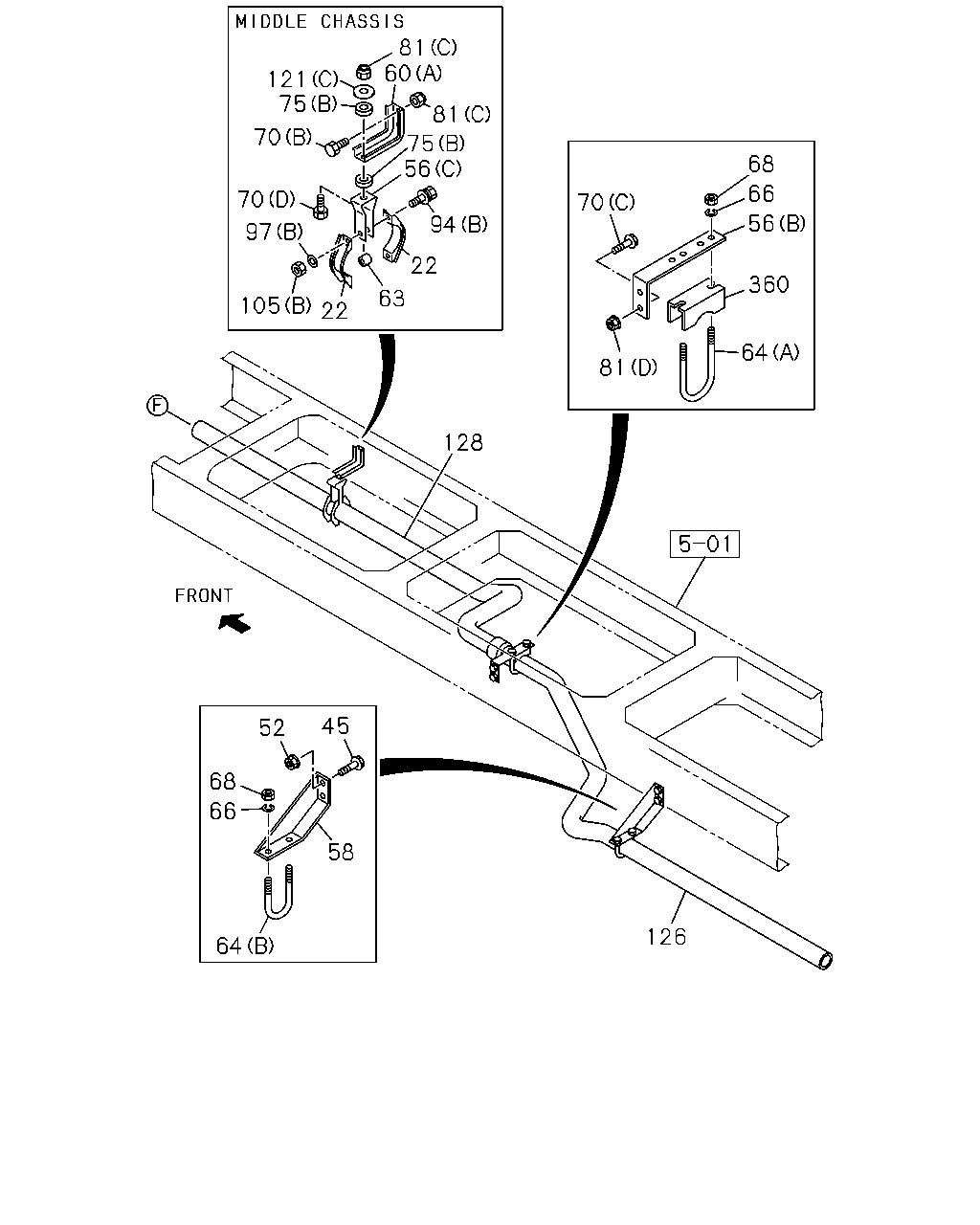

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	CLAMP; EXH PIPE SHORT CHASSIS<FT***C> ID=80-84 THA	8-97915-977-0	04	1	0407-
22	CLAMP; EXH PIPE MIDDLE CHASSIS<FT***F> WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> ID=80-84 THA	8-97915-977-0	04	1	0407-
22	CLAMP; EXH PIPE MIDDLE CHASSIS<FT***F> ID=80-84 THA	8-97915-977-1	02	1	0407-
45	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0407-0611
45	BOLT; BRKT M8X25 FLANGE THA	0-28650-825-0	02	1	0612-
52	NUT; BRKT M8	9-09110-408-0	02	1	0407-
56	BRACKET; CLAMP,EXH PIPE SHORT CHASSIS<FT***C> (E) THA	8-97916-046-1	01	1	0407-
56	BRACKET; CLAMP,EXH PIPE SHORT CHASSIS<FT***C> (A) THA	8-97917-961-0	01	1	0407-
56	BRACKET; CLAMP,EXH PIPE (B) THA	8-97915-971-1	01	1	0407-
56	BRACKET; CLAMP,EXH PIPE MIDDLE CHASSIS<FT***F> (C) THA	8-97916-049-1	01	1	0407-
56	BRACKET; CLAMP,EXH PIPE MIDDLE CHASSIS<FT***F> (D) THA	8-97917-723-2	01	1	0407-
56	BRACKET; CLAMP,EXH PIPE MIDDLE CHASSIS<FT***F> WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> (C) THA	8-97916-049-0	02	1	0407-
58	BRACKET; EXH PIPE,RR THA	8-97915-698-0	01	1	0407-
60	BRACKET; FRAME TO BRKT SHORT CHASSIS<FT***C> (A) THA	8-97917-952-0	01	1	0407-
60	BRACKET; FRAME TO BRKT SHORT CHASSIS<FT***C> (B) THA	8-97917-959-0	01	1	0407-
60	BRACKET; FRAME TO BRKT MIDDLE CHASSIS<FT***F> (A) THA	8-97915-987-1	01	1	0407-
60	BRACKET; FRAME TO BRKT MIDDLE CHASSIS<FT***F> (B) THA	8-97917-722-2	01	1	0407-
60	BRACKET; FRAME TO BRKT MIDDLE CHASSIS<FT***F> WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> (A) THA	8-97915-987-0	02	1	0407-
63	TUBE; DIST,BRKT SHORT CHASSIS<FT***C> THA	8-97917-953-2	01	1	0407-
63	TUBE; DIST,BRKT MIDDLE CHASSIS<FT***F> THA	8-97915-989-0	01	1	0407-
63	TUBE; DIST,BRKT MIDDLE CHASSIS<FT***F> WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> THA	8-97915-989-0	01	1	0407-
64	U-BOLT; EXH PIPE,RR (A) THA	8-97915-981-0	01	1	0407-
64	U-BOLT; EXH PIPE,RR (B) THA	8-97916-891-0	01	1	0407-
66	WASHER; LK,U BOLT ID=8.2	9-09150-508-0	04	1	0407-
68	NUT; U BOLT M8	9-09110-408-0	04	1	0407-
70	BOLT; BRKT SHORT CHASSIS<FT***C> (A) M10X50	0-10806-050-0	02	1	0407-0512
70	BOLT; BRKT SHORT CHASSIS<FT***C> (A) M10X50	0-10856-050-0	02	1	0601-
70	BOLT; BRKT (C) M8X25 FLANGE	0-28680-825-0	02	1	0407-0611
70	BOLT; BRKT (C) M8X25 FLANGE THA	0-28650-825-0	02	1	0612-
70	BOLT; BRKT MIDDLE CHASSIS<FT***F> (A) M10X50	0-10806-050-0	03	1	0407-0512
70	BOLT; BRKT MIDDLE CHASSIS<FT***F> (A) M10X50	0-10856-050-0	03	1	0601-
70	BOLT; BRKT MIDDLE CHASSIS<FT***F> WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> (B) THA	8-97916-893-0	02	1	0407-
70	BOLT; BRKT MIDDLE CHASSIS<FT***F> WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> (D) THA	8-97916-895-0	01	1	0407-
75	RUBBER; SUPPORT,BRKT SHORT CHASSIS<FT***C> (A) OD=40 THA	1-22159-193-0	02	1	0407-
75	RUBBER; SUPPORT,BRKT SHORT CHASSIS<FT***C> (B) THA	8-97916-904-0	02	1	0407-
75	RUBBER; SUPPORT,BRKT MIDDLE CHASSIS<FT***F> WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> (B) THA	8-97916-904-0	02	1	0407-
75	RUBBER; SUPPORT,BRKT MIDDLE CHASSIS<FT***F> (B) THA	8-97916-904-0	06	1	0407-
81	NUT; BRKT SHORT CHASSIS<FT***C> (A) M10 FLANGE THA	0-91180-210-0	01	1	0603-
81	NUT; BRKT SHORT CHASSIS<FT***C> (A) M10 FLANGE	0-91150-210-0	03	1	0407-
81	NUT; BRKT SHORT CHASSIS<FT***C> (B) M10 LOCK NUT	9-09131-510-0	01	1	0407-0601
81	NUT; BRKT SHORT CHASSIS<FT***C> (B) M10 LOCK NUT	0-91370-010-0	01	1	0602-
81	NUT; BRKT (A) M10 FLANGE	0-91150-210-0	01	1	0407-0602
81	NUT; BRKT SHORT CHASSIS<FT***C> (A) M10 FLANGE	0-91150-210-0	01	1	0407-0602
81	NUT; BRKT (A) M10 FLANGE	0-91150-210-0	01	1	0603-
81	NUT; BRKT (A) M10 FLANGE	0-91150-210-0	02	1	0407-
81	NUT; BRKT (D) M8	9-09110-408-0	02	1	0407-
81	NUT; BRKT MIDDLE CHASSIS<FT***F> (E) M10 LOCK NUT	9-09131-510-0	03	1	0407-0601
81	NUT; BRKT MIDDLE CHASSIS<FT***F> (E) M10 LOCK NUT	0-91370-010-0	03	1	0602-
81	NUT; BRKT MIDDLE CHASSIS<FT***F> WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> (C) THA	8-97916-605-0	03	1	0407-
81	NUT; BRKT MIDDLE CHASSIS<FT***F> (C) THA	8-97916-605-0	02	1	0407-
94	BOLT; CLAMP SHORT CHASSIS<FT***C> (A) THA	8-97916-896-0	04	1	0407-
94	BOLT; CLAMP MIDDLE CHASSIS<FT***F> (B) THA	8-97916-896-0	02	1	0407-
94	BOLT; CLAMP MIDDLE CHASSIS<FT***F> WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> (B) THA	8-97916-896-0	02	1	0407-
94	BOLT; CLAMP MIDDLE CHASSIS<FT***F> (C) M10X40 FLANGE	0-28081-040-0	02	1	0407-0512
94	BOLT; CLAMP MIDDLE CHASSIS<FT***F> (C) M10X40 FLANGE THA	0-28051-040-0	02	1	0601-
97	WASHER; PL,CLAMP SHORT CHASSIS<FT***C> (A) ID=10.5	9-09164-510-0	02	1	0407-
97	WASHER; PL,CLAMP (A) ID=10.5 OD=18	9-09160-510-0	02	1	0407-0605
97	WASHER; PL,CLAMP MIDDLE CHASSIS<FT***F> WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> (A) ID=10.5 OD=18	9-09160-510-0	02	1	0407-0605
97	WASHER; PL,CLAMP (B) ID=10.5	0-91610-510-0	02	1	0606-
97	WASHER; PL,CLAMP MIDDLE CHASSIS<FT***F> WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> (B) ID=10.5	0-91610-510-0	02	1	0606-
105	NUT; CLAMP SHORT CHASSIS<FT***C> (A) THA	8-97916-605-0	04	1	0407-
105	NUT; CLAMP MIDDLE CHASSIS<FT***F> (A) THA	8-97916-605-0	02	1	0407-
105	NUT; CLAMP MIDDLE CHASSIS<FT***F> WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> (A) THA	8-97916-605-0	02	1	0407-
105	NUT; CLAMP MIDDLE CHASSIS<FT***F> (B) M10 FLANGE	0-91150-210-0	02	1	0407-0602
105	NUT; CLAMP MIDDLE CHASSIS<FT***F> (B) M10 FLANGE THA	0-91180-210-0	02	1	0603-
121	WASHER; PL,BRKT SHORT CHASSIS<FT***C> (C) ID=10.5 OD=32	9-09164-810-0	01	1	0407-0605
121	WASHER; PL,BRKT SHORT CHASSIS<FT***C> (C) ID=10.5 OD=32	0-91614-810-0	01	1	0606-
121	WASHER; PL,BRKT MIDDLE CHASSIS<FT***F> (B) ID=10.5 OD=18	9-09160-510-0	02	1	0407-0605
121	WASHER; PL,BRKT MIDDLE CHASSIS<FT***F> (B) ID=10.5	0-91610-510-0	02	1	0606-
121	WASHER; PL,BRKT MIDDLE CHASSIS<FT***F> (A) ID=10.5 OD=32	9-09164-810-0	03	1	0407-0605
121	WASHER; PL,BRKT MIDDLE CHASSIS<FT***F> (A) ID=10.5 OD=32	0-91614-810-0	03	1	0606-
121	WASHER; PL,BRKT MIDDLE CHASSIS<FT***F> WHEEL BASE 5000MM<50W>,WHEEL BASE 5500MM<55W> (C) THA	8-97916-892-0	01	1	0407-
126	PIPE; EXH,RR THA	8-97915-699-1	01	1	0407-
128	PIPE; EXH,RR SHORT CHASSIS<FT***C> THA	8-97910-536-0	01	1	0407-
128	PIPE; EXH,RR MIDDLE CHASSIS<FT***F> WHEEL BASE 4200MM<42W> THA	8-97910-537-0	01	1	0407-
128	PIPE; EXH,RR MIDDLE CHASSIS<FT***F> WHEEL BASE 5000MM<50W> THA	8-97910-538-0	01	1	0407-
128	PIPE; EXH,RR WHEEL BASE 5500MM<55W> THA	8-97910-539-0	01	1	0407-
360	PIECE; DIST,EXH PIPE THA	8-97916-890-1	01	1	0407-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
