Isuzu WW
▶
TRUCKS
▶
FTR
▶
10942 - FTR(THAI)EURO2
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-40 - FUEL TANK
▶

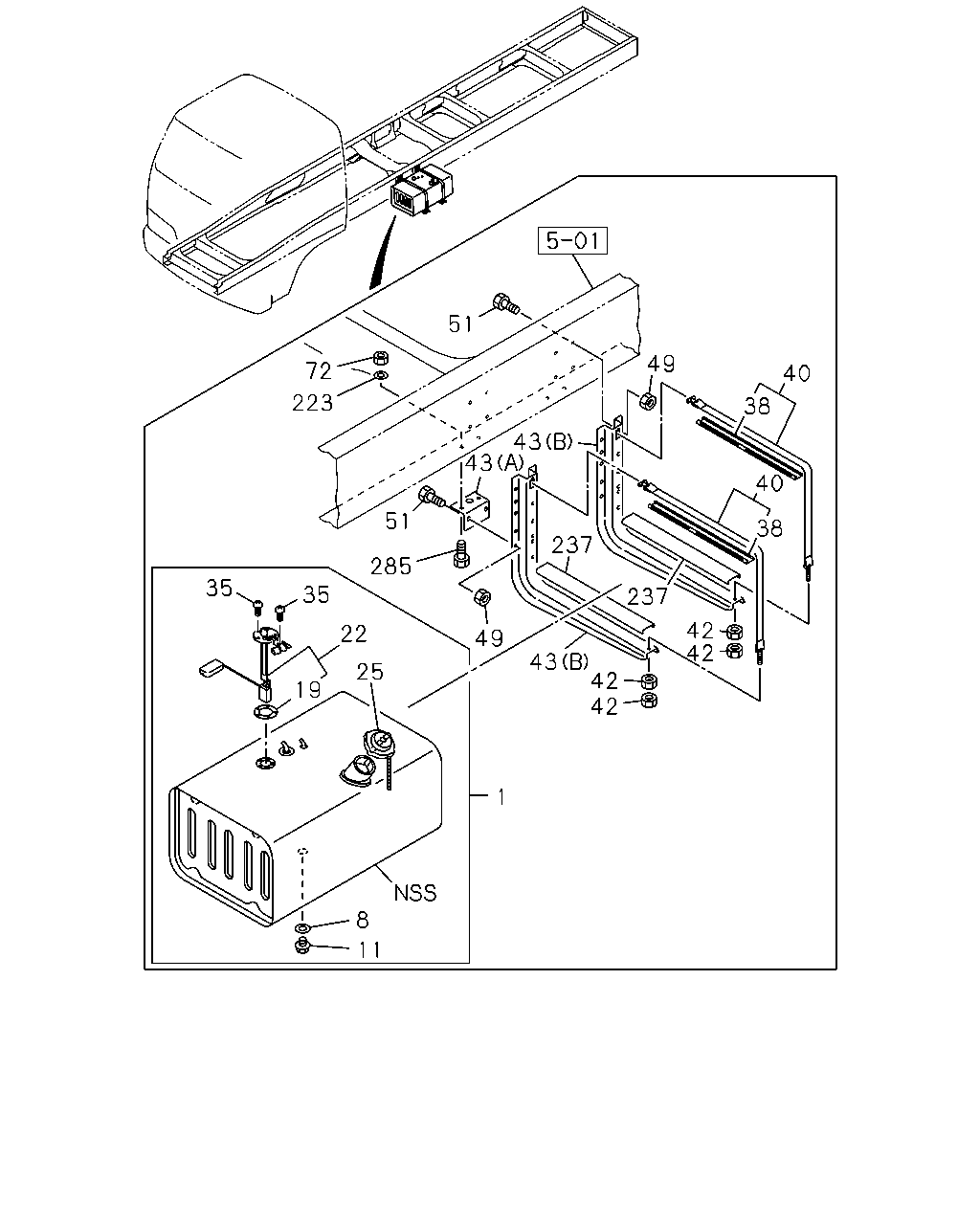

1-40 — FUEL TANK
(#25988) — 26 parça
51
43
43
49
72
40
223
38
40
51
38
237
285
35
35
237
42
42
22
49
43
42
42
25
19
1
8
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK; FUEL
1100X633X333 200L THA
8-97917-933-2
01
1
0407-
8
GASKET; DRAIN PLUG,FUEL TANK
THA
8-97917-956-0
01
1
0407-
11
PLUG; DRAIN,FUEL TANK
THA
8-97917-955-0
01
1
0407-
19
GASKET; FUEL TANK UNIT
5-83148-001-0
01
1
0407-
22
UNIT; FUEL TANK
THA
8-97915-996-0
01
1
0407-
25
CAP; FILLER,FUEL TANK
THA
8-97917-957-0
01
1
0407-
35
SCREW; FUEL TANK UNIT
M5X10 W/LK WASHER
9-03910-510-0
05
1
0407-0604
35
SCREW; FUEL TANK UNIT
M5X10 W/LK WASHER
0-36220-510-0
05
1
0605-
38
INSULATION; SUPPORT BELT
THA
8-97916-866-0
02
1
0407-0409
38
INSULATION; SUPPORT BELT
THA
8-97922-749-0
02
1
0410-
40
BELT; SUPPORT,FUEL TANK
THA
8-97917-657-0
02
1
0407-0409
40
BELT; SUPPORT,FUEL TANK
THA
8-97922-752-0
02
1
0410-
42
NUT; SUPPORT BELT
M10
9-09110-510-0
04
1
0407-0512
42
NUT; SUPPORT BELT
M10 THA
0-91110-510-0
04
1
0601-
43
BRACKET; FUEL TANK
(A) THA
1-53461-283-2
02
1
0407-
43
BRACKET; FUEL TANK
(B) THA
8-97910-388-2
02
1
0407-
49
NUT; BRKT
M12 THA
8-97916-080-0
12
1
0407-
51
BOLT; BRKT TO FRAME
M12X40 FLANGE
0-28081-240-0
12
1
0407-0512
51
BOLT; BRKT TO FRAME
M12X40 FLANGE THA
0-28051-240-0
12
1
0601-
72
NUT; BRKT
M12
9-99110-512-0
04
1
0407-0512
72
NUT; BRKT
M12
0-91110-512-0
04
1
0601-
223
WASHER; PL,LWR BRKT FIX
ID=12.5 OD=26
9-09160-612-0
04
1
0407-0605
223
WASHER; PL,LWR BRKT FIX
ID=12.5 OD=26
0-91610-612-0
04
1
0606-
237
GASKET; BRKT TO FUEL TANK
THA
8-97916-877-0
02
1
0407-
285
BOLT; BRKT
M12X40 FLANGE
0-28081-240-0
04
1
0407-0512
285
BOLT; BRKT
M12X40 FLANGE THA
0-28051-240-0
04
1
0601-
