◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10929 - CXZ RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-01 - LAMP; FRONT AND FRONT SIDE ▶
8-01 — LAMP; FRONT AND FRONT SIDE (#25985) — 128 parça

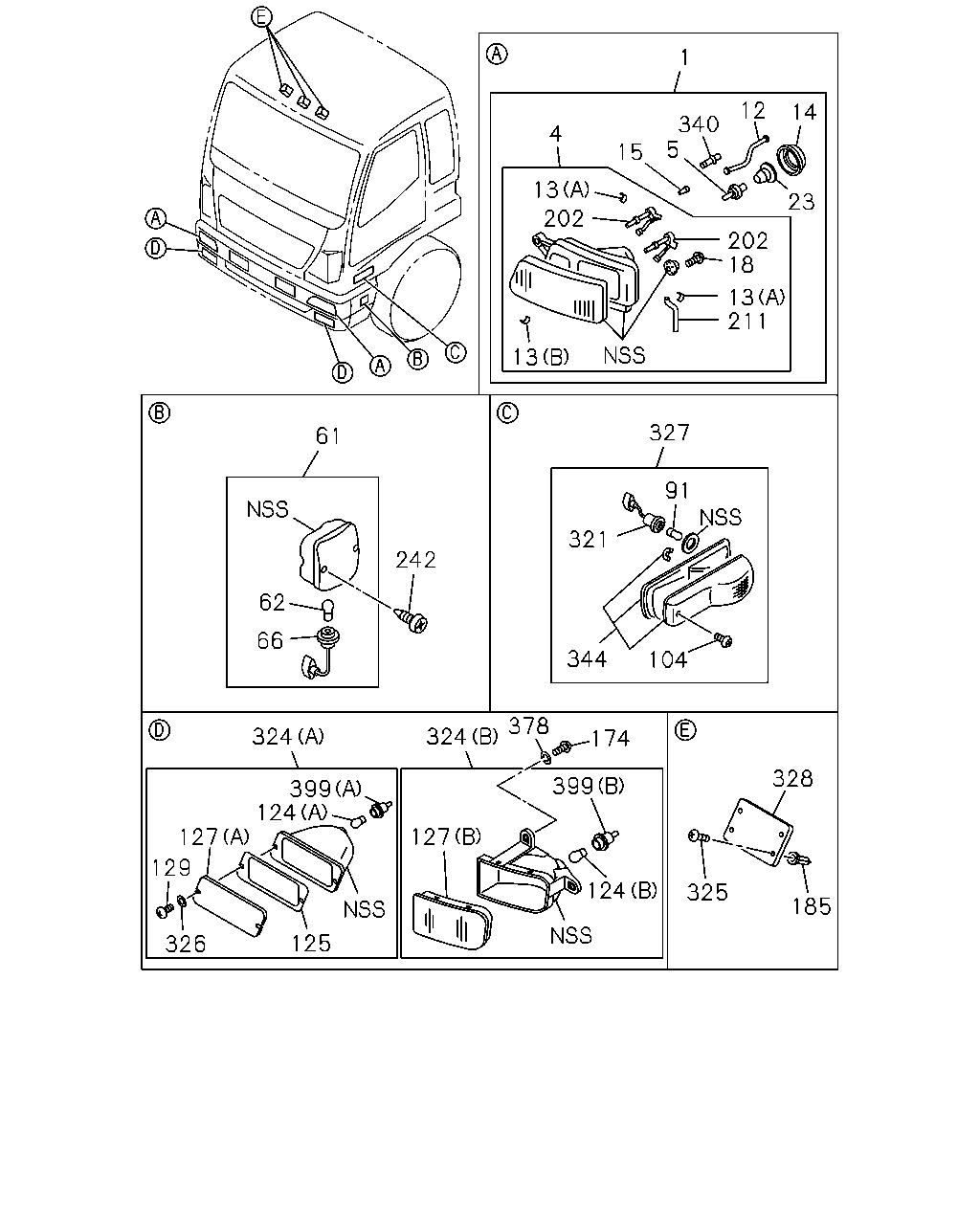

çizim 25887
1 12 14 340 5 4 15 13 23 202 202 18 13 211 13 327 61 91 321 242 62 66 344 104 378 324 324 174 328 399 399 124 127 127 129 124 325 185 125 326
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82110-449-1 01 1 0308- ● ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82110-450-1 01 1 0308- ● ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82119-206-0 01 1 0308- ● ●
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82119-207-0 01 1 0308- ● ●
5 BULB; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 75/70W 		1-82194-063-0 02 1 0308- ● ●
12 HARNESS; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82118-012-0 02 1 0308- ● ●
13 CLIP; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 		1-82119-084-0 02 1 0308- ● ●
13 CLIP; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 		8-94381-588-0 14 1 0308- ● ●
14 CAP; BULB,LAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-148-0 02 1 0308- ● ●
15 BULB; FOG LAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 55W 		1-82194-079-0 02 1 0308- ● ●
18 SCREW; GEAR CASE
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> M4X16 TAPPING 		1-82119-067-0 08 1 0308- ● ●
23 COVER; BULB,HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-147-0 02 1 0308- ● ●
61 LAMP ASM; CORNERING
CORNERING LAMP<TDS> 24V 30W 		1-86830-188-2 01 1 0308- ● ●
61 LAMP ASM; CORNERING
CORNERING LAMP<TDS> 24V 30W 		1-86830-187-2 01 1 0308- ● ●
62 BULB; CORNERING LAMP
CORNERING LAMP<TDS> 24V 30W 		8-97010-179-0 01 1 0308- ● ●
62 BULB; CORNERING LAMP
CORNERING LAMP<TDS> 24V 30W 		8-97010-179-0 01 1 0308- ● ●
66 HARNESS; CORNERING LAMP
CORNERING LAMP<TDS> 		1-86830-146-0 01 1 0308- ● ●
66 HARNESS; CORNERING LAMP
CORNERING LAMP<TDS> 		1-86830-146-0 01 1 0308- ● ●
91 BULB; SIDE TURN SIGNAL
24V 12W 		1-82194-030-0 02 1 0308- ● ●
104 SCREW; SIDE TURN SIGNAL 1-86830-149-0 02 1 0308- ● ●
124 BULB; FRT TURN SIGNAL
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) 24V 21W 		1-82194-105-0 02 1 0401- ● ●
124 BULB; FRT TURN SIGNAL
(A) 24V 21W 		1-82194-036-0 02 1 0308-0312 ● ●
124 BULB; FRT TURN SIGNAL
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) 24V 21W 		1-82194-036-0 02 1 0401- ● ●
125 GASKET; FRT TURN SIGNAL 1-82216-033-0 02 1 0308-0312 ● ●
125 GASKET; FRT TURN SIGNAL
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) 		1-82216-033-0 02 1 0401- ● ●
127 LENS; FRT TURN SIGNAL
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) ORANGE 		1-82215-073-0 01 1 0401- ● ●
127 LENS; FRT TURN SIGNAL
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) ORANGE 		1-82215-074-0 01 1 0401- ● ●
127 LENS; FRT TURN SIGNAL
(A) ORANGE 		1-82215-065-0 01 1 0308-0312 ● ●
127 LENS; FRT TURN SIGNAL
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) ORANGE 		1-82215-065-0 01 1 0401- ● ●
127 LENS; FRT TURN SIGNAL
(A) ORANGE 		1-82215-064-0 01 1 0308-0312 ● ●
127 LENS; FRT TURN SIGNAL
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) ORANGE 		1-82215-064-0 01 1 0401- ● ●
129 SCREW; FRT TURN SIGNAL 1-82219-026-0 04 1 0308-0312 ● ●
129 SCREW; FRT TURN SIGNAL
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) 		1-82219-026-0 04 1 0401- ● ●
174 BOLT
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M6X20 W/LK&PL WASHER 		0-50140-620-0 04 1 0404-0512 ● ●
174 BOLT
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M6X20 W/LK&PL WASHER 		0-50640-620-0 04 1 0601-0601 ● ●
174 BOLT
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M6X20 FLANGE 		0-28650-620-0 04 1 0602- ● ●
185 GROMMET; SCREW
M5 SCREW GROMMET 		1-09983-131-0 12 1 0308- ● ●
185 GROMMET; SCREW
D=9.7X9.7 L=8 		8-94222-314-0 04 1 0308-0403 ● ●
185 GROMMET; SCREW
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) D=9.7X9.7 L=8 		8-94222-314-0 04 1 0404- ● ●
202 GEAR UNIT; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-139-0 04 1 0308- ● ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-330-0 01 1 0308- ● ●
211 TUBE; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-331-0 01 1 0308- ● ●
242 SCREW; CORNERING LAMP
CORNERING LAMP<TDS> M4X20 TAPPING STAINLESS 		0-71090-420-0 04 1 0308- ● ●
321 HARNESS; SIDE FLASHER LAMP 1-86830-253-0 02 1 0308- ● ●
324 LAMP; FRT FLASHER
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) 		1-82210-259-1 01 1 0401- ● ●
324 LAMP; FRT FLASHER
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) 		1-82210-260-1 01 1 0401- ● ●
324 LAMP; FRT FLASHER
(A) 		1-82210-203-1 01 1 0308-0312 ● ●
324 LAMP; FRT FLASHER
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) 		1-82210-203-1 01 1 0401- ● ●
324 LAMP; FRT FLASHER
(A) 		1-82210-202-1 01 1 0308-0312 ● ●
324 LAMP; FRT FLASHER
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) 		1-82210-202-1 01 1 0401- ● ●
325 SCREW; SPD INDICATOR LAMP
M5X14 TAPPING 		9-07066-514-0 12 1 0308-0603 ● ●
325 SCREW; SPD INDICATOR LAMP
M5X14 TAPPING 		0-71040-514-0 12 1 0604- ● ●
326 WASHER; PL,FRT TURN SIGNAL 1-82216-032-0 04 1 0308-0312 ● ●
326 WASHER; PL,FRT TURN SIGNAL
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) 		1-82216-032-0 04 1 0401- ● ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-011-6 01 1 0308- ● ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-007-6 01 1 0308- ● ●
328 COVER; LAMP 1-76217-122-1 03 1 0308- ● ●
340 BULB; POSITION
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 5W 		1-82194-042-0 02 1 0308- ● ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-241-1 01 1 0308- ● ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-240-1 01 1 0308- ● ●
378 WASHER; PL
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) ID=6.4 OD=14 		9-09160-606-0 04 1 0602-0605 ● ●
378 WASHER; PL
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) ID=6.4 		0-91610-606-0 04 1 0606- ● ●
399 SOCKET; TURN SIGNAL
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) 		1-82219-038-0 02 1 0401- ● ●
399 SOCKET; TURN SIGNAL
(A) 		1-82219-034-0 02 1 0308-0312 ● ●
399 SOCKET; TURN SIGNAL
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) 		1-82219-034-0 02 1 0401- ● ●
çizim 82868
206 19 28 28 206 266 30 28 343 140 16 171 267 28 10 199 175 199 183 1 49 273 342 49 273 1 162 257 162 257 175
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82110-449-1 01 1 0308- ● ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82110-450-1 01 1 0308- ● ●
10 WASHER; PL,HEADLAMP RIM
BUMPER W/HEADLAMPS<SLB> ID=8.4 		9-09160-508-0 02 1 0308-0605 ● ●
10 WASHER; PL,HEADLAMP RIM
BUMPER W/HEADLAMPS<SLB> ID=8.4 OD=16 		0-91610-508-0 02 1 0606- ● ●
16 BRACKET; HEADLAMP
BUMPER W/HEADLAMPS<SLB> 		1-82117-155-2 02 1 0308- ● ●
19 NUT; HEADLAMP
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 04 1 0308- ● ●
28 BOLT; HEADLAMP
(D) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 0308- ● ●
28 BOLT; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (C) M10X30 FLANGE 		0-28681-030-0 06 1 0308-0512 ● ●
28 BOLT; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (C) M10X30 FLANGE 		0-28651-030-0 06 1 0601- ● ●
28 BOLT; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (B) M10X28,M10X15 L=50 		5-09300-050-0 02 1 0308- ● ●
28 BOLT; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 0308- ● ●
28 BOLT; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 14 1 0308- ● ●
30 BOLT; STAY
CAB UP +110MM<TGG> M10X25 FLANGE 		0-28681-025-0 04 1 0308-0512 ● ●
30 BOLT; STAY
CAB UP +110MM<TGG> M10X25 FLANGE 		0-28651-025-0 04 1 0601- ● ●
49 BRACKET; LAMP
BUMPER W/HEADLAMPS<SLB> (A) 		1-82117-100-0 02 1 0308- ● ●
49 BRACKET; LAMP
BUMPER W/HEADLAMPS<SLB> (B) 		1-82117-101-0 01 1 0308- ● ●
49 BRACKET; LAMP
BUMPER W/HEADLAMPS<SLB> (B) 		1-82117-102-0 01 1 0308- ● ●
140 NUT
BUMPER W/HEADLAMPS<SLB> M10 FLANGE 		0-91150-210-0 02 1 0308-0602 ● ●
140 NUT
BUMPER W/HEADLAMPS<SLB> M10 FLANGE 		0-91180-210-0 02 1 0603- ● ●
162 RUBBER; CUSHION UPR
BUMPER W/HEADLAMPS<SLB> 		1-82117-086-0 08 1 0308- ● ●
171 NUT
BUMPER W/HEADLAMPS<SLB> M6 FLANGE 		0-91150-106-0 02 1 0308-0602 ● ●
171 NUT
BUMPER W/HEADLAMPS<SLB> M6 FLANGE 		0-91180-106-0 02 1 0603- ● ●
175 NUT; BRKT CUSHION RUBBER
BUMPER W/HEADLAMPS<SLB> M8 FLANGE 		0-91150-108-0 16 1 0308-0602 ● ●
175 NUT; BRKT CUSHION RUBBER
BUMPER W/HEADLAMPS<SLB> M8 FLANGE 		0-91180-108-0 16 1 0603- ● ●
183 WASHER; HEADLAMP
BUMPER W/HEADLAMPS<SLB> ID=8.5 		9-09855-333-0 02 1 0308- ● ●
199 BUSHING
BUMPER W/HEADLAMPS<SLB> 		5-15549-001-1 04 1 0308- ● ●
206 HOLDER; HEADLAMP
(A) 		1-65671-570-6 01 1 0308- ● ●
206 HOLDER; HEADLAMP
(A) 		1-65671-569-5 01 1 0308- ● ●
206 HOLDER; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (C) 		1-65671-762-3 01 1 0308- ● ●
206 HOLDER; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (C) 		1-65671-761-3 01 1 0308- ● ●
206 HOLDER; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB> (B) 		1-65671-574-3 01 1 0308- ● ●
206 HOLDER; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB> (B) 		1-65671-573-3 01 1 0308- ● ●
257 BOLT; BRKT HD LAMP
BUMPER W/HEADLAMPS<SLB> M8X20 FLANGE 		0-28080-820-0 04 1 0308-0512 ● ●
257 BOLT; BRKT HD LAMP
BUMPER W/HEADLAMPS<SLB> M8X20 FLANGE 		0-28050-820-0 04 1 0601- ● ●
266 STAY; BRKT,HEADLAMP
CAB UP +110MM<TGG> 		1-82117-154-2 01 1 0308-0510 ● ●
266 STAY; BRKT,HEADLAMP
CAB UP +110MM<TGG> 		1-82117-182-0 01 1 0511- ● ●
267 WASHER; PL,STAY
BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> ID=10.5 OD=22 		9-09164-610-0 04 1 0308-0605 ● ●
267 WASHER; PL,STAY
BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> ID=10.5 OD=22 		0-91614-610-0 04 1 0606- ● ●
273 BOLT; BRKT
BUMPER W/HEADLAMPS<SLB> M6X16 FLANGE 		0-28680-616-0 08 1 0308-0512 ● ●
273 BOLT; BRKT
BUMPER W/HEADLAMPS<SLB> M6X16 FLANGE 		0-28650-616-0 08 1 0601- ● ●
342 HINGE; LAMP
BUMPER W/HEADLAMPS<SLB> 		1-82117-087-2 01 1 0308- ● ●
342 HINGE; LAMP
BUMPER W/HEADLAMPS<SLB> 		1-82117-088-2 01 1 0308- ● ●
343 SHAFT; HINGE
BUMPER W/HEADLAMPS<SLB> 		1-82119-096-1 02 1 0308- ● ●
çizim 82896
206 28 19 28 206 1 28 1 110 26 6 28
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82110-449-1 01 1 0308- ● ●
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82110-450-1 01 1 0308- ● ●
6 RIM; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB> 		1-71107-024-0 01 1 0308- ● ●
6 RIM; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB> 		1-71107-023-0 01 1 0308- ● ●
19 NUT; HEADLAMP
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 04 1 0308- ● ●
26 BRACKET ASM; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB> 		1-86830-085-0 01 1 0308- ● ●
26 BRACKET ASM; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB> 		1-86830-084-0 01 1 0308- ● ●
28 BOLT; HEADLAMP
(D) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 0308- ● ●
28 BOLT; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (C) M10X30 FLANGE 		0-28681-030-0 06 1 0308-0512 ● ●
28 BOLT; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (C) M10X30 FLANGE 		0-28651-030-0 06 1 0601- ● ●
28 BOLT; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (B) M10X28,M10X15 L=50 		5-09300-050-0 02 1 0308- ● ●
28 BOLT; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 0308- ● ●
28 BOLT; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 14 1 0308- ● ●
110 CLIP; RIM,HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB> 		1-86830-213-1 04 1 0308- ● ●
206 HOLDER; HEADLAMP
(A) 		1-65671-570-6 01 1 0308- ● ●
206 HOLDER; HEADLAMP
(A) 		1-65671-569-5 01 1 0308- ● ●
206 HOLDER; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (C) 		1-65671-762-3 01 1 0308- ● ●
206 HOLDER; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (C) 		1-65671-761-3 01 1 0308- ● ●
206 HOLDER; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB> (B) 		1-65671-574-3 01 1 0308- ● ●
206 HOLDER; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB> (B) 		1-65671-573-3 01 1 0308- ● ●
