7-70 — SEPARATER AND BED (#25984) — 76 parça

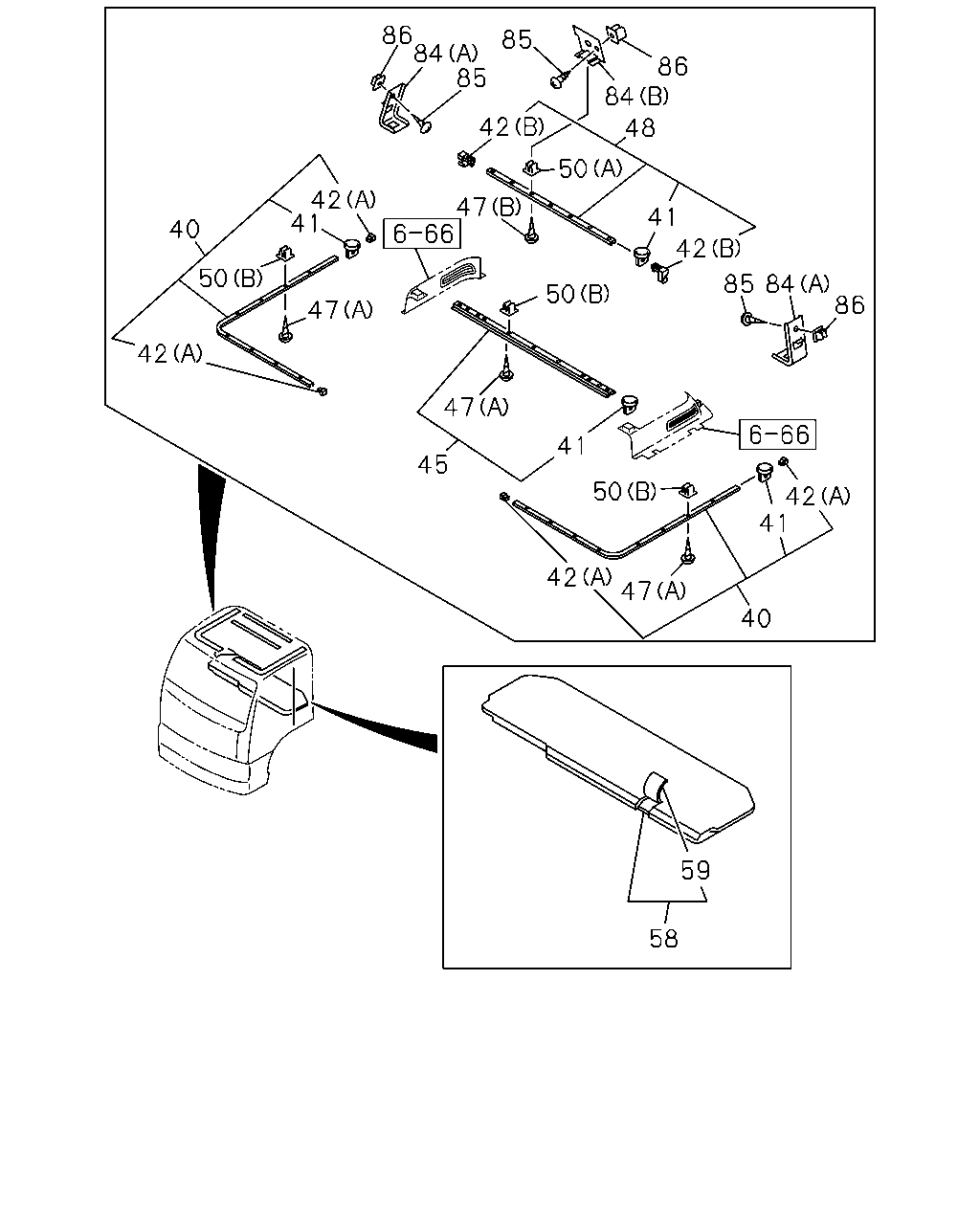

86 84 85 85 86 84 42 48 50 42 41 47 41 40 42 50 47 85 84 86 50 42 47 41 45 50 42 41 42 47 40 59 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-538-1	01	1	0308-	●	●
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-537-1	01	1	0308-	●	●
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-536-1	01	1	0308-	●	●
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-535-1	01	1	0308-	●	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> H=14.5 WHITE	1-73996-398-0	42	1	0308-	●	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 WHITE	1-73996-398-0	14	1	0308-	●	●
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (A)	1-73996-393-0	04	1	0308-	●	●
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	02	1	0308-	●	●
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (A)	1-73996-393-0	02	1	0308-0312	●	●
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (A)	1-73996-393-0	01	1	0401-	●	●
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (A)	1-73996-393-0	01	1	0401-	●	●
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	01	1	0308-	●	●
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-546-3	01	1	0308-	●	●
45	RAIL; CURTAIN,FRT EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-545-2	01	1	0308-	●	●
47	SCREW; CURTAIN RAIL (A) M5X20	5-09981-059-0	16	1	0404-	●	●
47	SCREW; CURTAIN RAIL (A) M5X20	5-09981-059-0	27	1	0308-0312	●	●
47	SCREW; CURTAIN RAIL (B) M5X20	5-09981-059-0	07	1	0401-0403	●	●
47	SCREW; CURTAIN RAIL (A) M5X20	5-09981-059-0	11	1	0404-	●	●
47	SCREW; CURTAIN RAIL (B) M5X25	5-09981-093-0	07	1	0308-0312	●	●
47	SCREW; CURTAIN RAIL (A) M5X25	5-09981-093-0	27	1	0401-0403	●	●
47	SCREW; CURTAIN RAIL (B) M5X25	5-09981-093-0	07	1	0404-	●	●
48	RAIL; CURTAIN,BACK WINDOW CURTAIN ROUND<BW4>	1-73996-386-1	01	1	0308-	●	●
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4>	1-73996-385-1	01	1	0308-	●	●
50	GROMMET; SCREW,CURTAIN RAIL (B) D=8.6X7.7 L=7.5	8-94279-078-0	16	1	0404-	●	●
50	GROMMET; SCREW,CURTAIN RAIL (A) D=8X8 L=13 M5	1-09983-159-0	07	1	0308-	●	●
50	GROMMET; SCREW,CURTAIN RAIL (B) D=8.6X7.7 L=7.5	8-94279-078-0	27	1	0308-0403	●	●
50	GROMMET; SCREW,CURTAIN RAIL (B) D=8.6X7.7 L=7.5	8-94279-078-0	11	1	0404-	●	●
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75127-112-2	01	1	0308-	●	●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75127-130-1	01	1	0308-	●	●
84	BRACKET; CURTAIN RAIL (A)	1-73998-986-2	02	1	0308-	●	●
84	BRACKET; CURTAIN RAIL (B)	1-73998-987-4	07	1	0308-	●	●
85	SCREW; BRKT M5X20	5-09981-059-0	09	1	0308-	●	●
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	09	1	0308-	●	●

64 51 44 51 92 44 92 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
44	CURTAIN ASM; CABIN CENTER WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> (A)	1-73907-480-1	01	1	0401-	●	●
44	CURTAIN ASM; CABIN CENTER WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> (B)	1-73907-481-1	01	1	0401-	●	●
46	CURTAIN ASM; DOOR WINDOW CURTAIN ROUND<BW4> DOOR WITH UNDER VIEW WINDOW<YD8>	1-73907-494-0	01	1	0403-	●	●
46	CURTAIN ASM; DOOR WINDOW CURTAIN ROUND<BW4>	1-73907-426-0	01	1	0401-0402	●	●
46	CURTAIN ASM; DOOR WINDOW CURTAIN ROUND<BW4> EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-73907-426-0	01	1	0403-	●	●
51	CURTAIN; BACK WINDOW CURTAIN ROUND<BW4> (A)	1-73907-482-1	01	1	0401-	●	●
51	CURTAIN; BACK WINDOW CURTAIN ROUND<BW4> (B)	1-73907-483-1	01	1	0401-	●	●
64	CURTAIN KIT WINDOW CURTAIN ROUND<BW4> DOOR WITH UNDER VIEW WINDOW<YD8>	1-73907-492-1	01	1	0403-	●	●
64	CURTAIN KIT WINDOW CURTAIN ROUND<BW4>	1-73907-479-0	01	1	0401-0402	●	●
64	CURTAIN KIT WINDOW CURTAIN ROUND<BW4> EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-73907-479-1	01	1	0403-	●	●
92	CURTAIN ASM; ROUND WINDOW CURTAIN ROUND<BW4> (A)	1-73907-484-1	01	1	0401-	●	●
92	CURTAIN ASM; ROUND WINDOW CURTAIN ROUND<BW4> (B)	1-73907-485-1	01	1	0401-	●	●

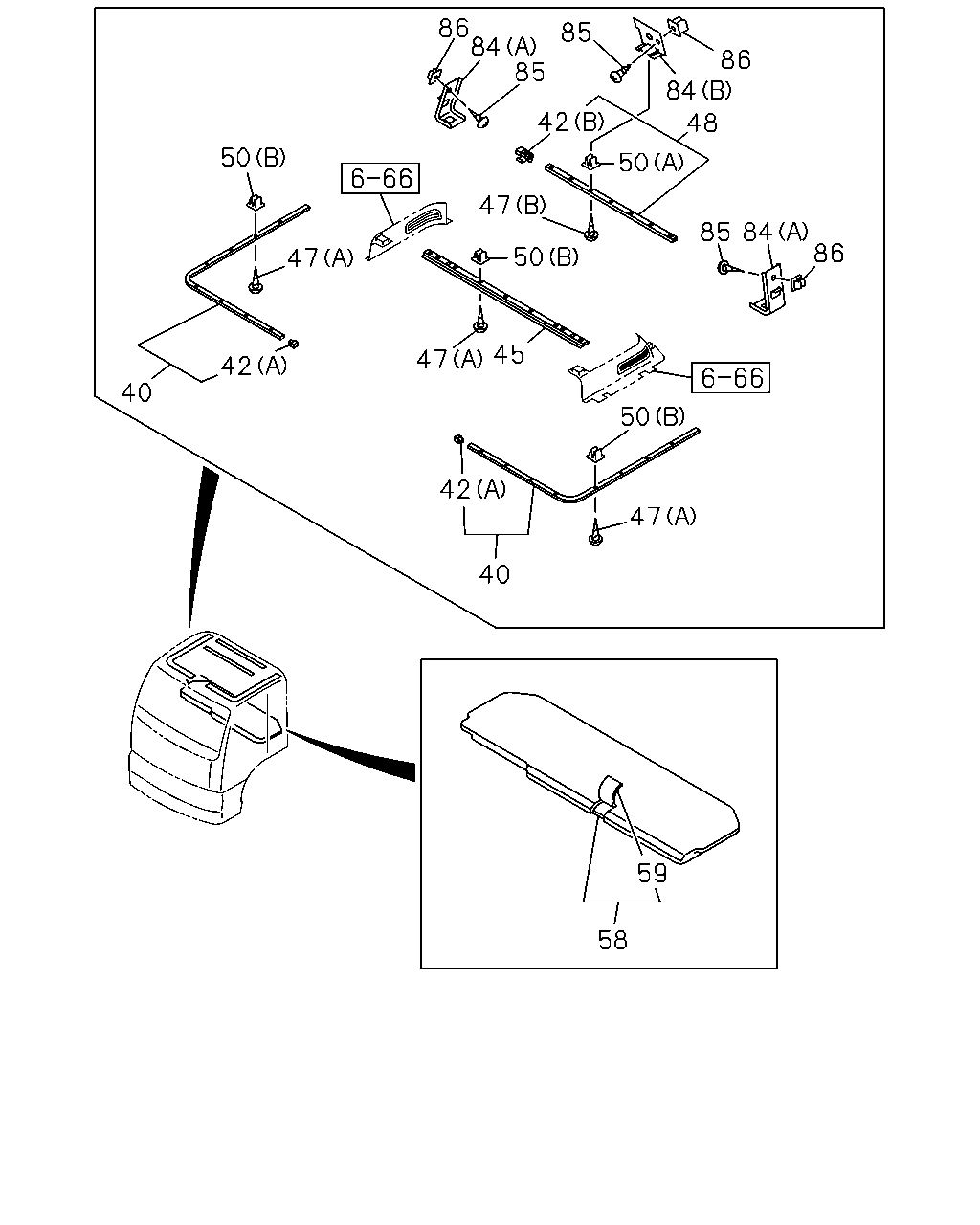

86 84 85 85 86 84 42 48 50 50 47 85 84 86 50 47 45 47 42 40 50 42 47 40 59 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-538-1	01	1	0308-	●	●
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-537-1	01	1	0308-	●	●
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-536-1	01	1	0308-	●	●
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-535-1	01	1	0308-	●	●
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (A)	1-73996-393-0	04	1	0308-	●	●
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	02	1	0308-	●	●
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (A)	1-73996-393-0	02	1	0308-0312	●	●
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (A)	1-73996-393-0	01	1	0401-	●	●
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (A)	1-73996-393-0	01	1	0401-	●	●
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	01	1	0308-	●	●
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-546-3	01	1	0308-	●	●
45	RAIL; CURTAIN,FRT EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-545-2	01	1	0308-	●	●
47	SCREW; CURTAIN RAIL (A) M5X20	5-09981-059-0	16	1	0404-	●	●
47	SCREW; CURTAIN RAIL (A) M5X20	5-09981-059-0	27	1	0308-0312	●	●
47	SCREW; CURTAIN RAIL (B) M5X20	5-09981-059-0	07	1	0401-0403	●	●
47	SCREW; CURTAIN RAIL (A) M5X20	5-09981-059-0	11	1	0404-	●	●
47	SCREW; CURTAIN RAIL (B) M5X25	5-09981-093-0	07	1	0308-0312	●	●
47	SCREW; CURTAIN RAIL (A) M5X25	5-09981-093-0	27	1	0401-0403	●	●
47	SCREW; CURTAIN RAIL (B) M5X25	5-09981-093-0	07	1	0404-	●	●
48	RAIL; CURTAIN,BACK WINDOW CURTAIN ROUND<BW4>	1-73996-386-1	01	1	0308-	●	●
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4>	1-73996-385-1	01	1	0308-	●	●
50	GROMMET; SCREW,CURTAIN RAIL (B) D=8.6X7.7 L=7.5	8-94279-078-0	16	1	0404-	●	●
50	GROMMET; SCREW,CURTAIN RAIL (A) D=8X8 L=13 M5	1-09983-159-0	07	1	0308-	●	●
50	GROMMET; SCREW,CURTAIN RAIL (B) D=8.6X7.7 L=7.5	8-94279-078-0	27	1	0308-0403	●	●
50	GROMMET; SCREW,CURTAIN RAIL (B) D=8.6X7.7 L=7.5	8-94279-078-0	11	1	0404-	●	●
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75127-112-2	01	1	0308-	●	●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75127-130-1	01	1	0308-	●	●
84	BRACKET; CURTAIN RAIL (A)	1-73998-986-2	02	1	0308-	●	●
84	BRACKET; CURTAIN RAIL (B)	1-73998-987-4	07	1	0308-	●	●
85	SCREW; BRKT M5X20	5-09981-059-0	09	1	0308-	●	●
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	09	1	0308-	●	●
