◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10929 - CXZ RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#25983) — 20 parça

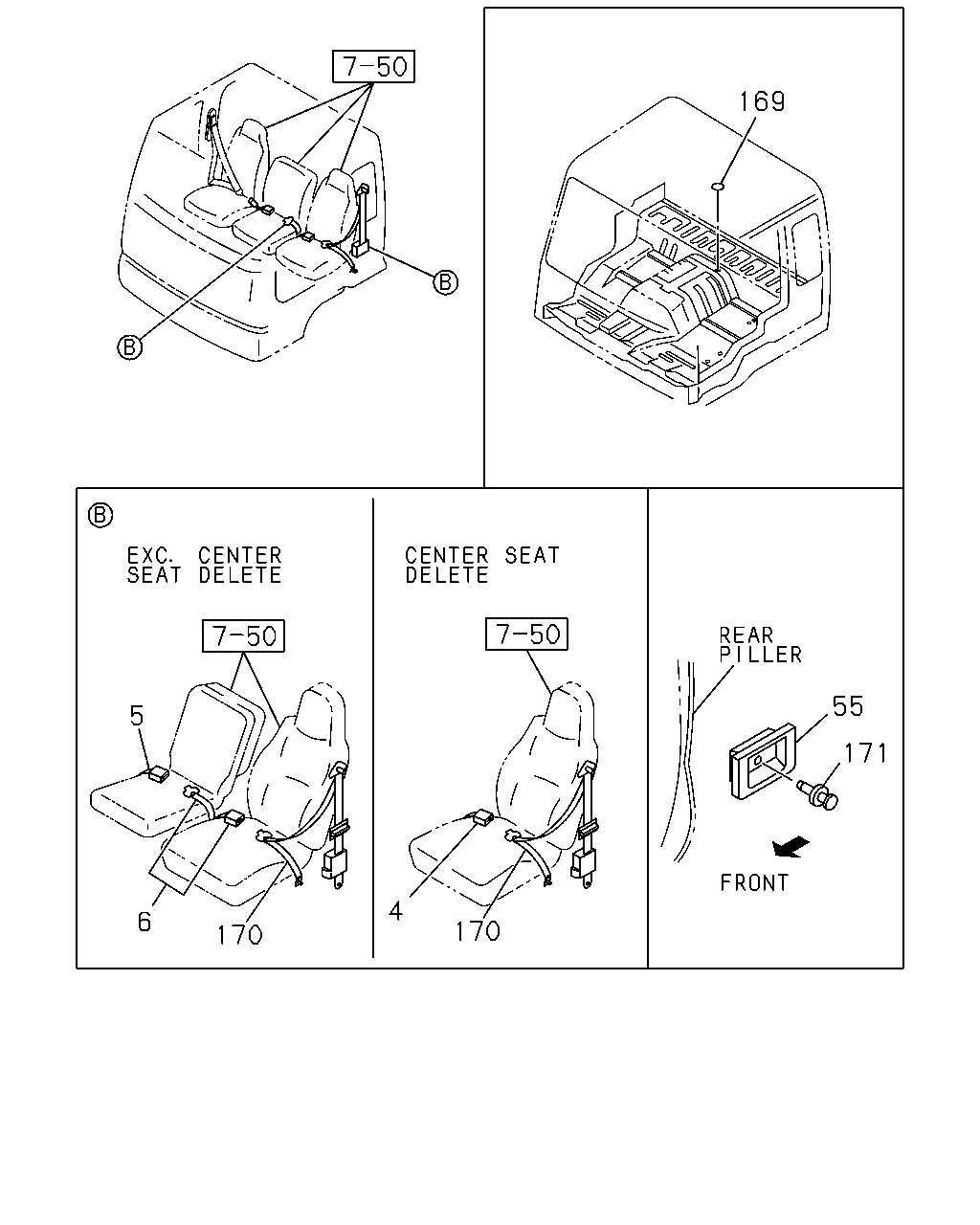

çizim 23297
169 55 5 171 4 6 170 170
BalonParca AdiParca NoAdetTipApplied Date A B
4 BELT; PASSENGER SEAT,BUCKLE SIDE
CENTER SEAT DELETE(SP9) 		1-75617-546-1 01 1 0308- ● ●
5 BELT; CENTER SEAT,BUCKLE SIDE
EXC. CENTER SEAT DELETE(SP9) 		1-75617-553-1 01 1 0308- ● ●
6 BELT; CENTER SEAT,TONGUE SIDE
EXC. CENTER SEAT DELETE(SP9) 		1-75618-926-3 01 1 0308- ● ●
55 GUIDE; SEAT BELT 1-75617-556-0 02 1 0308-0312 ● ●
55 GUIDE; SEAT BELT
DRIVER ISRINGHAUSEN SEAT(SJA) 		1-75617-556-0 01 1 0308- ● ●
169 SEAL
OD=25 BLACK 		1-76798-019-0 04 1 0308-0312 ● ●
169 SEAL
CENTER SEAT DELETE(SP9) OD=25 BLACK 		1-76798-019-0 01 1 0308- ● ●
169 SEAL
DRIVER ISRINGHAUSEN SEAT(SJA) OD=25 BLACK 		1-76798-019-0 02 1 0308- ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
DRIVER ISRINGHAUSEN SEAT(SJA) 		1-75617-605-1 01 1 0308- ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
EXC. DRIVER ISRINGHAUSEN SEAT(SJA) 		1-75617-588-3 01 1 0308- ● ●
171 CLIP; SEAT BELT GUIDE 1-09987-239-0 02 1 0308- ● ●

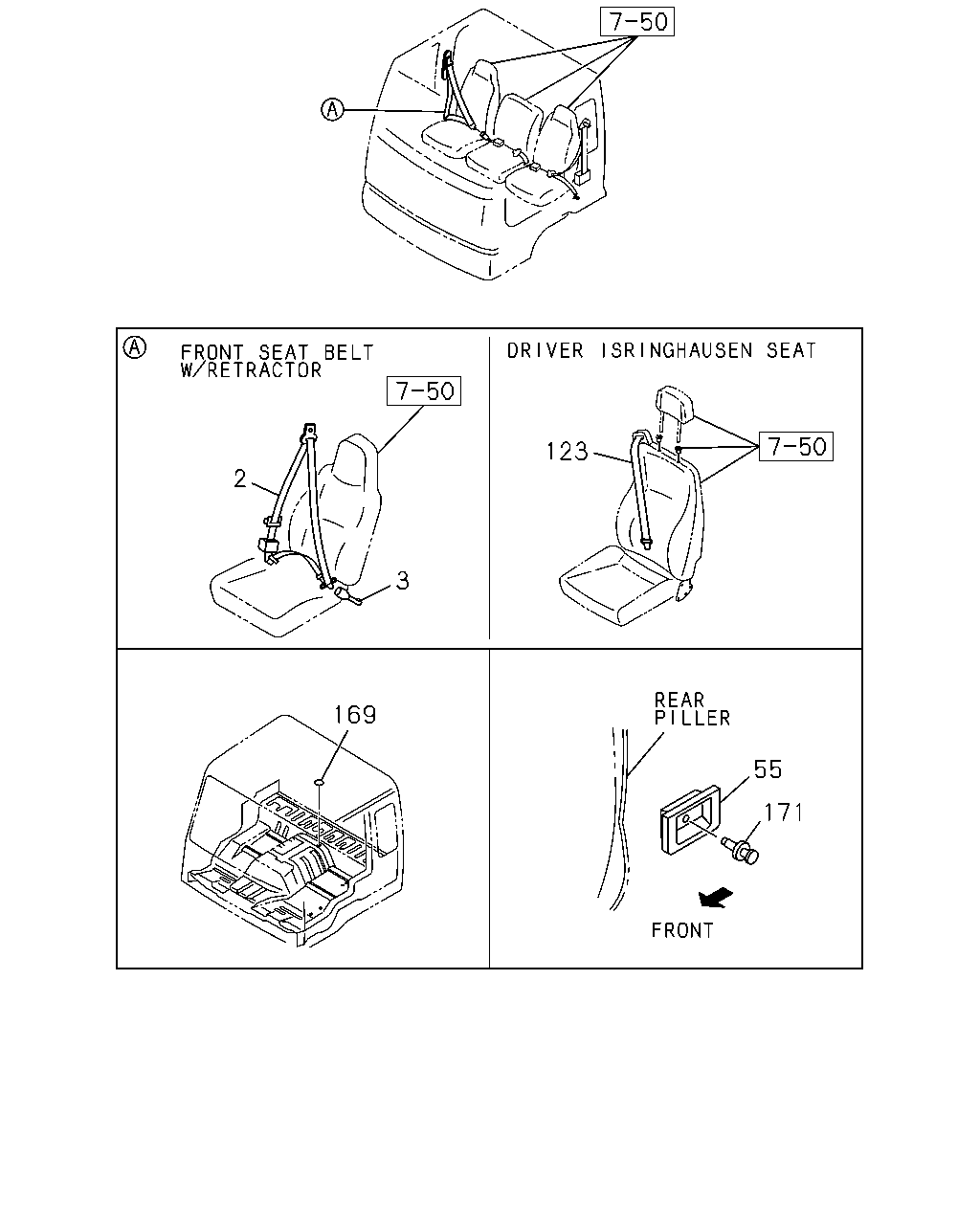

çizim 24276
123 2 3 169 55 171
BalonParca AdiParca NoAdetTipApplied Date A B
2 BELT; SEAT,TONGUE SIDE
EXC. DRIVER ISRINGHAUSEN SEAT(SJA) 		1-75616-096-2 01 1 0308- ● ●
3 BELT; SEAT,BUCKLE SIDE
EXC. DRIVER ISRINGHAUSEN SEAT(SJA) 		1-75618-914-0 01 1 0308- ● ●
55 GUIDE; SEAT BELT 1-75617-556-0 02 1 0308-0312 ● ●
55 GUIDE; SEAT BELT
DRIVER ISRINGHAUSEN SEAT(SJA) 		1-75617-556-0 01 1 0308- ● ●
123 BELT ASM; SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) 		1-75617-570-0 01 1 0308- ● ●
169 SEAL
OD=25 BLACK 		1-76798-019-0 04 1 0308-0312 ● ●
169 SEAL
CENTER SEAT DELETE(SP9) OD=25 BLACK 		1-76798-019-0 01 1 0308- ● ●
169 SEAL
DRIVER ISRINGHAUSEN SEAT(SJA) OD=25 BLACK 		1-76798-019-0 02 1 0308- ● ●
171 CLIP; SEAT BELT GUIDE 1-09987-239-0 02 1 0308- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
