Sayfa 7-50 - Isuzu EPC

7-50 — FRONT SEAT (#25982) — 251 parça

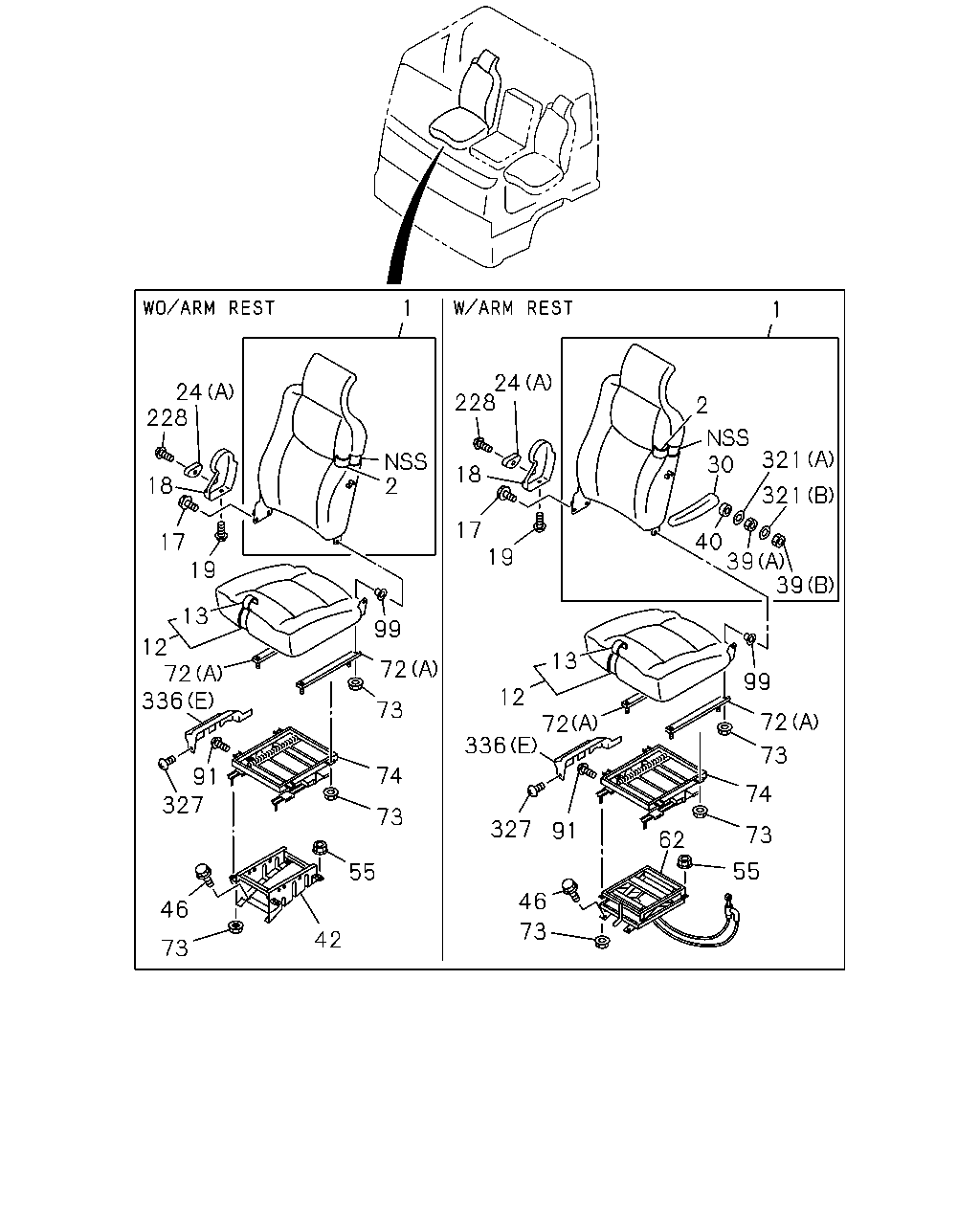

1 1 24 228 24 228 2 30 321 2 18 18 321 39 17 19 40 39 17 19 13 99 12 72 336 13 72 99 12 73 72 336 73 74 91 327 74 73 327 91 73 62 55 55 46 46 73 42 73 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BACK ASM; SEAT DRIVER ISRINGHAUSEN SEAT(SJA)	1-75027-941-0	01	1	0308-	●	●
1	BACK ASM; SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9)	1-75207-646-2	01	1	0308-	●	●
1	BACK ASM; SEAT FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVERLEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-647-3	01	1	0308-	●	●
1	BACK ASM; SEAT FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-645-3	01	1	0308-	●	●
2	COVER; TRIM,FRT SEAT,BACK DRIVER ISRINGHAUSEN SEAT(SJA)	1-75117-965-0	01	1	0308-	●	●
2	COVER; TRIM,FRT SEAT,BACK EXC. FABRIC SEAT W/RECLINING(SFQ),DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9)	1-75127-165-1	01	1	0308-	●	●
2	COVER; TRIM,FRT SEAT,BACK FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVERLEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-166-2	01	1	0308-	●	●
2	COVER; TRIM,FRT SEAT,BACK FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-145-2	01	1	0308-	●	●
12	CUSHION; SEAT,FRT DRIVER ISRINGHAUSEN SEAT(SJA)	1-75027-939-0	01	1	0308-	●	●
12	CUSHION; SEAT,FRT EXC. FABRIC SEAT W/RECLINING(SFQ),DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9)	1-75207-603-1	01	1	0308-	●	●
12	CUSHION; SEAT,FRT FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	1-75207-584-4	01	1	0308-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION DRIVER ISRINGHAUSEN SEAT(SJA)	1-75117-964-0	01	1	0308-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION EXC. FABRIC SEAT W/RECLINING(SFQ),DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9)	1-75127-102-1	01	1	0308-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	1-75127-143-3	01	1	0308-	●	●
17	BOLT; RECLINING EXC. DRIVER ISRINGHAUSEN SEAT(SJA) M8X20	8-97255-906-0	02	1	0308-	●	●
18	COVER; RECLINING EXC. DRIVER ISRINGHAUSEN SEAT(SJA) DARK GRAY	8-97867-020-0	01	1	0308-	●	●
19	SCREW; COVER DRIVING POSITION WIDE LEG SPACE<PR2> EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVERLEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER	0-74310-516-0	03	1	0308-	●	●
19	SCREW; COVER FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0308-	●	●
19	SCREW; COVER EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0308-	●	●
24	KNOB; RECLINING,FRT,SEAT DRIVER ISRINGHAUSEN SEAT(SJA) (B) DARK GRAY	8-97859-019-0	01	1	0308-	●	●
24	KNOB; RECLINING,FRT,SEAT EXC. DRIVER ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) (B) DARK GRAY	8-97859-019-0	01	1	0308-	●	●
24	KNOB; RECLINING,FRT,SEAT FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DARK GRAY	8-97867-021-0	01	1	0308-	●	●
24	KNOB; RECLINING,FRT,SEAT EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVERLEVEL AUTOMATIC W/ARM REST(SLL) (A) DARK GRAY	8-97867-021-0	01	1	0308-	●	●
30	REST ASM; ARM,FRT SEAT FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-174-1	01	1	0308-	●	●
39	NUT; ARM REST FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8	1-75147-657-0	01	1	0308-	●	●
39	NUT; ARM REST FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M10	9-09110-410-0	01	1	0308-	●	●
40	SPACER; ARM REST FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-94285-921-0	02	1	0308-	●	●
42	STAND; DRIVER SEAT EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVERLEVEL AUTOMATIC W/ARM REST(SLL)	1-75558-604-1	01	1	0308-	●	●
46	BOLT; STAND TO FLOOR M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	0308-	●	●
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M10 FLANGE	1-09984-153-0	02	1	0308-	●	●
62	DAMPER ASM; SEAT SUSP FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75537-262-7	01	1	0308-	●	●
72	SPACER; SEAT ADJ DRIVING POSITION WIDE LEG SPACE<PR2> (A)	1-75517-911-0	02	1	0308-	●	●
72	SPACER; SEAT ADJ EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (B)	1-75518-334-1	02	1	0308-	●	●
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	04	1	0308-	●	●
73	NUT; ADJ,HEIGHT CONT DRIVING POSITION WIDE LEG SPACE<PR2> FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE	1-75538-207-0	12	1	0308-	●	●
73	NUT; ADJ,HEIGHT CONT FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M8 FLANGE	1-75538-207-0	08	1	0308-	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT DRIVING POSITION WIDE LEG SPACE<PR2>	1-75517-959-2	01	1	0308-	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT EXC. DRIVING POSITION WIDE LEG SPACE<PR2>	1-75518-330-2	01	1	0308-	●	●
91	SCREW; SEAT ADJ COVER DRIVING POSITION WIDE LEG SPACE<PR2> FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	0308-	●	●
99	BUSHING; SEAT BACK EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	8-97854-087-0	01	1	0308-	●	●
228	SCREW; KNOB FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6	8-97042-273-0	01	1	0308-	●	●
228	SCREW; KNOB EXC. DRIVER ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) M4X6	8-97042-273-0	01	1	0308-	●	●
228	SCREW; KNOB EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6	8-97042-273-0	01	1	0308-	●	●
321	WASHER; PL,ARM REST FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=10.5 OD=22	9-09160-610-0	01	1	0308-	●	●
321	WASHER; PL,ARM REST FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=8.4 OD=22	9-09164-708-0	01	1	0308-	●	●
327	CLIP; COVER DRIVING POSITION WIDE LEG SPACE<PR2>	1-09987-273-0	01	1	0308-	●	●
327	CLIP; COVER EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,FABRIC SEAT W/RECLINING(SFQ),DRIVER ISRINGHAUSEN SEAT(SJA) ,SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL), PASSENGER SEAT MULTI USED(WX9)	1-09987-273-0	02	1	0308-	●	●
327	CLIP; COVER FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,DRIVER ISRINGHAUSEN SEAT(SJA)	1-09987-273-0	02	1	0308-	●	●
327	CLIP; COVER	1-09987-273-0	02	1	0308-	●	●
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT(SJA) (A)	1-72537-208-0	01	1	0308-	●	●
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT(SJA) (B)	1-72537-210-0	01	1	0308-	●	●
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT(SJA) (C)	1-72537-212-0	01	1	0308-	●	●
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT(SJA) (D)	1-72537-213-0	01	1	0308-	●	●
336	COVER; DRIVER SEAT DRIVING POSITION WIDE LEG SPACE<PR2> (E)	1-75518-316-0	01	1	0308-	●	●
336	COVER; DRIVER SEAT EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (E)	1-75518-303-0	01	1	0308-	●	●

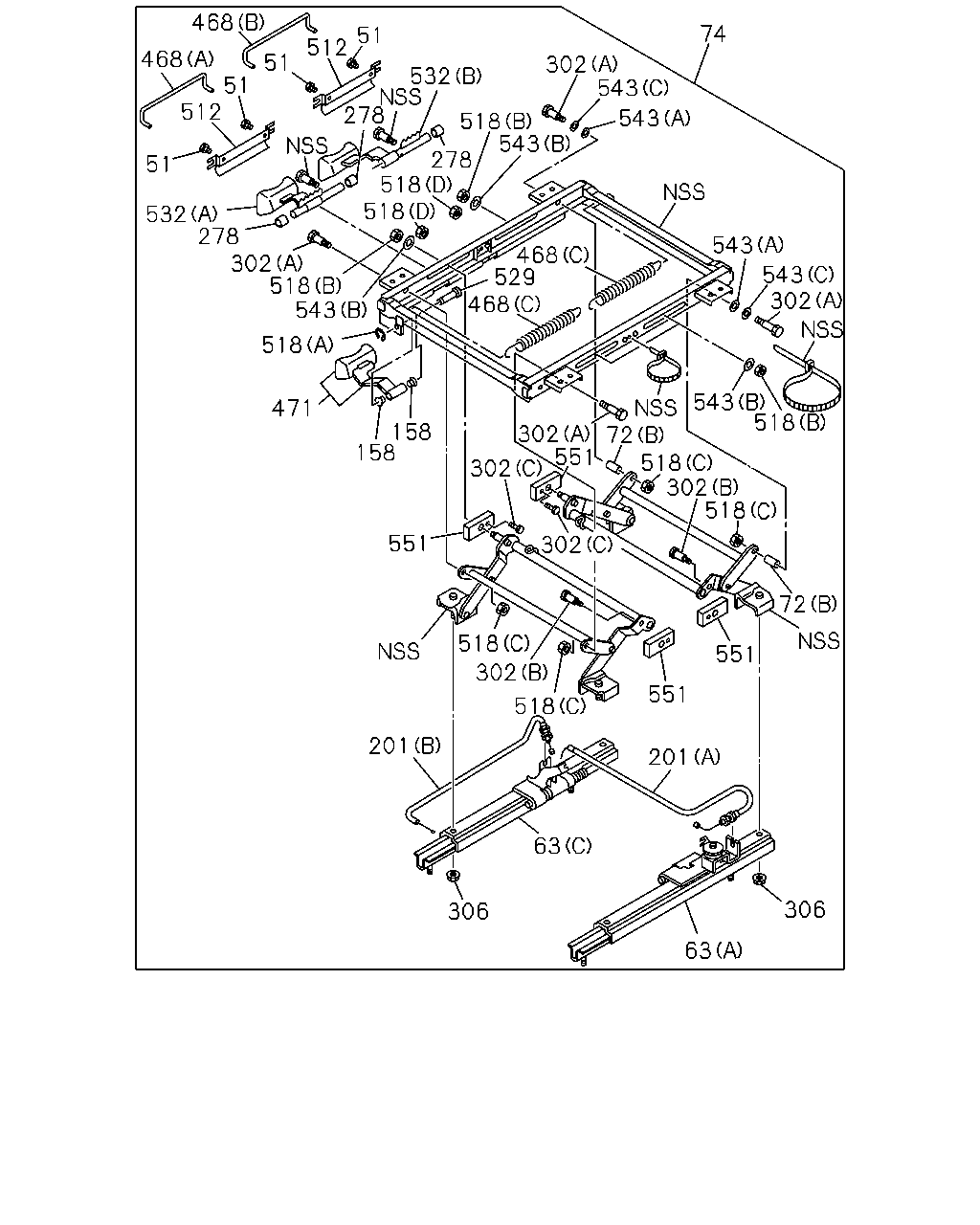

468 74 51 512 468 51 302 543 532 278 51 512 543 518 543 278 518 518 51 532 278 302 518 543 543 468 529 468 543 302 518 543 518 471 551 518 302 158 158 302 551 302 72 518 551 302 551 518 201 201 63 306 306 63 302

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
51	SCREW; COVER EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	1-75518-325-1	04	1	0308-	●	●
63	ADJUSTER; SEAT SLIDE DRIVER ISRINGHAUSEN SEAT(SJA) (B)	1-75517-953-0	01	1	0308-	●	●
63	ADJUSTER; SEAT SLIDE EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (A)	1-75518-199-1	01	1	0308-	●	●
63	ADJUSTER; SEAT SLIDE EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (C)	1-75518-323-0	01	1	0308-	●	●
72	SPACER; SEAT ADJ DRIVING POSITION WIDE LEG SPACE<PR2> (A)	1-75517-911-0	02	1	0308-	●	●
72	SPACER; SEAT ADJ EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (B)	1-75518-334-1	02	1	0308-	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT DRIVING POSITION WIDE LEG SPACE<PR2>	1-75517-959-2	01	1	0308-	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT EXC. DRIVING POSITION WIDE LEG SPACE<PR2>	1-75518-330-2	01	1	0308-	●	●
158	BUSHING; LINK ARM EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	1-75518-209-0	02	1	0308-	●	●
201	CABLE; ADJ EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (A) L=667	1-75518-288-0	01	1	0308-	●	●
201	CABLE; ADJ EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (B) L=605	1-75518-289-1	01	1	0308-	●	●
278	COLLAR; FRT SEAT EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	1-75518-244-0	03	1	0308-	●	●
302	BOLT; ADJ,HEIGHT CONT EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (C)	1-75518-266-2	02	1	0308-	●	●
302	BOLT; ADJ,HEIGHT CONT EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (A)	1-75518-270-1	04	1	0308-	●	●
302	BOLT; ADJ,HEIGHT CONT EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (B)	1-75518-336-1	02	1	0308-	●	●
306	NUT; SEAT ADJ DRIVING POSITION WIDE LEG SPACE<PR2> EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVERLEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE	1-75538-207-0	18	1	0308-	●	●
306	NUT; SEAT ADJ EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE	1-75538-207-0	14	1	0308-	●	●
306	NUT; SEAT ADJ FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE	1-75538-207-0	06	1	0308-	●	●
468	SPRING; RETURN EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (A)	1-75518-206-0	01	1	0308-	●	●
468	SPRING; RETURN EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (B)	1-75518-207-0	01	1	0308-	●	●
468	SPRING; RETURN EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (C)	1-75518-208-0	02	1	0308-	●	●
468	SPRING; RETURN FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D)	1-75538-132-0	01	1	0308-	●	●
471	LEVER; SEAT ADJ FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-291-0	01	1	0308-	●	●
471	LEVER; SEAT ADJ EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVERLEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-291-0	01	1	0308-	●	●
512	COVER; LEVER EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	1-75518-243-1	02	1	0308-	●	●
518	NUT; TILT ADJ EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (A)	1-75518-263-0	01	1	0308-	●	●
518	NUT; TILT ADJ EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (C) M8	1-75518-264-0	04	1	0308-	●	●
518	NUT; TILT ADJ EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (D) M6 LOCK NUT	5-09984-020-0	02	1	0308-	●	●
518	NUT; TILT ADJ EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (B) M8 FLANGE	8-94152-886-0	04	1	0308-	●	●
529	PIN; LINK EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	1-75518-262-0	01	1	0308-	●	●
532	LEVER ASM; TILT EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (A)	1-75518-203-0	01	1	0308-	●	●
532	LEVER ASM; TILT EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (B)	1-75518-204-1	01	1	0308-	●	●
543	WASHER; HEIGHT ADJUSTER EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (B) ID=8.4	9-09160-508-0	04	1	0308-	●	●
543	WASHER; HEIGHT ADJUSTER EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (C)	1-75518-335-0	02	1	0308-	●	●
543	WASHER; HEIGHT ADJUSTER FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-337-0	02	1	0308-0406	●	●
543	WASHER; HEIGHT ADJUSTER EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVERLEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-337-0	02	1	0308-0406	●	●
551	SLIDER; HEIGHT ADJ EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	1-75518-265-0	04	1	0308-	●	●

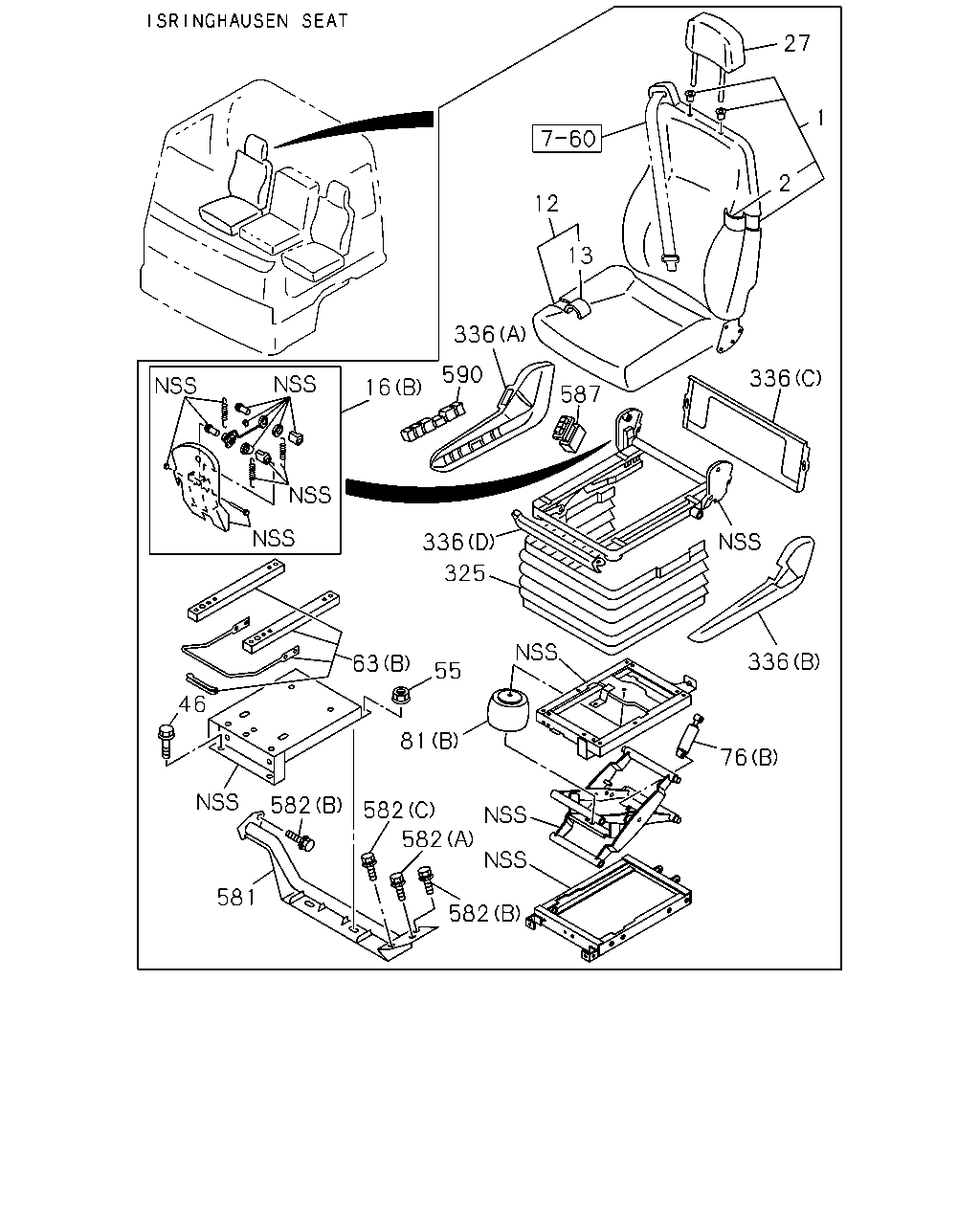

27 1 2 12 13 336 590 336 16 587 336 325 336 63 55 46 81 76 582 582 582 581 582

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BACK ASM; SEAT DRIVER ISRINGHAUSEN SEAT(SJA)	1-75027-941-0	01	1	0308-	●	●
1	BACK ASM; SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9)	1-75207-646-2	01	1	0308-	●	●
1	BACK ASM; SEAT FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVERLEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-647-3	01	1	0308-	●	●
1	BACK ASM; SEAT FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-645-3	01	1	0308-	●	●
2	COVER; TRIM,FRT SEAT,BACK DRIVER ISRINGHAUSEN SEAT(SJA)	1-75117-965-0	01	1	0308-	●	●
2	COVER; TRIM,FRT SEAT,BACK EXC. FABRIC SEAT W/RECLINING(SFQ),DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9)	1-75127-165-1	01	1	0308-	●	●
2	COVER; TRIM,FRT SEAT,BACK FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVERLEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-166-2	01	1	0308-	●	●
2	COVER; TRIM,FRT SEAT,BACK FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-145-2	01	1	0308-	●	●
12	CUSHION; SEAT,FRT DRIVER ISRINGHAUSEN SEAT(SJA)	1-75027-939-0	01	1	0308-	●	●
12	CUSHION; SEAT,FRT EXC. FABRIC SEAT W/RECLINING(SFQ),DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9)	1-75207-603-1	01	1	0308-	●	●
12	CUSHION; SEAT,FRT FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	1-75207-584-4	01	1	0308-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION DRIVER ISRINGHAUSEN SEAT(SJA)	1-75117-964-0	01	1	0308-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION EXC. FABRIC SEAT W/RECLINING(SFQ),DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9)	1-75127-102-1	01	1	0308-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	1-75127-143-3	01	1	0308-	●	●
16	ADJUSTER ASM; RECLINING EXC. CENTER SEAT DELETE(SP9) (A)	1-75418-062-1	01	1	0308-	●	●
16	ADJUSTER ASM; RECLINING DRIVER ISRINGHAUSEN SEAT(SJA) (B)	1-75417-602-0	01	1	0308-	●	●
27	REST; HD,FRT SEAT DRIVER ISRINGHAUSEN SEAT(SJA)	1-75657-029-0	01	1	0308-	●	●
46	BOLT; STAND TO FLOOR M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	0308-	●	●
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M10 FLANGE	1-09984-153-0	02	1	0308-	●	●
63	ADJUSTER; SEAT SLIDE DRIVER ISRINGHAUSEN SEAT(SJA) (B)	1-75517-953-0	01	1	0308-	●	●
63	ADJUSTER; SEAT SLIDE EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (A)	1-75518-199-1	01	1	0308-	●	●
63	ADJUSTER; SEAT SLIDE EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (C)	1-75518-323-0	01	1	0308-	●	●
76	DAMPER; AIR SUSP DRIVER ISRINGHAUSEN SEAT(SJA) (B)	1-75537-276-0	01	1	0308-	●	●
76	DAMPER; AIR SUSP FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75537-230-2	01	1	0308-	●	●
81	SPRING; AIR DRIVER ISRINGHAUSEN SEAT(SJA) (B)	1-75537-275-0	01	1	0308-	●	●
81	SPRING; AIR FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75538-151-2	01	1	0308-	●	●
325	COVER; SUSPENSION DEVICE DRIVER ISRINGHAUSEN SEAT(SJA)	1-75537-274-0	01	1	0308-	●	●
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT(SJA) (A)	1-72537-208-0	01	1	0308-	●	●
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT(SJA) (B)	1-72537-210-0	01	1	0308-	●	●
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT(SJA) (C)	1-72537-212-0	01	1	0308-	●	●
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT(SJA) (D)	1-72537-213-0	01	1	0308-	●	●
336	COVER; DRIVER SEAT DRIVING POSITION WIDE LEG SPACE<PR2> (E)	1-75518-316-0	01	1	0308-	●	●
336	COVER; DRIVER SEAT EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (E)	1-75518-303-0	01	1	0308-	●	●
581	PIPE; SEAT DRIVER ISRINGHAUSEN SEAT(SJA)	1-73907-605-2	01	1	0308-	●	●
582	BOLT; PIPE,SEAT DRIVER ISRINGHAUSEN SEAT(SJA) (B)	1-09980-619-1	02	1	0308-	●	●
582	BOLT; PIPE,SEAT DRIVER ISRINGHAUSEN SEAT(SJA) (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0308-	●	●
582	BOLT; PIPE,SEAT DRIVER ISRINGHAUSEN SEAT(SJA) (C) M8X30 W/LK&PL WASHER	8-94279-210-0	01	1	0308-	●	●
587	VALVE; LUMBAR SUPPORT DRIVER ISRINGHAUSEN SEAT(SJA)	1-75197-007-0	01	1	0308-	●	●
590	KNOB KIT; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT(SJA)	1-75417-600-0	01	1	0308-	●	●

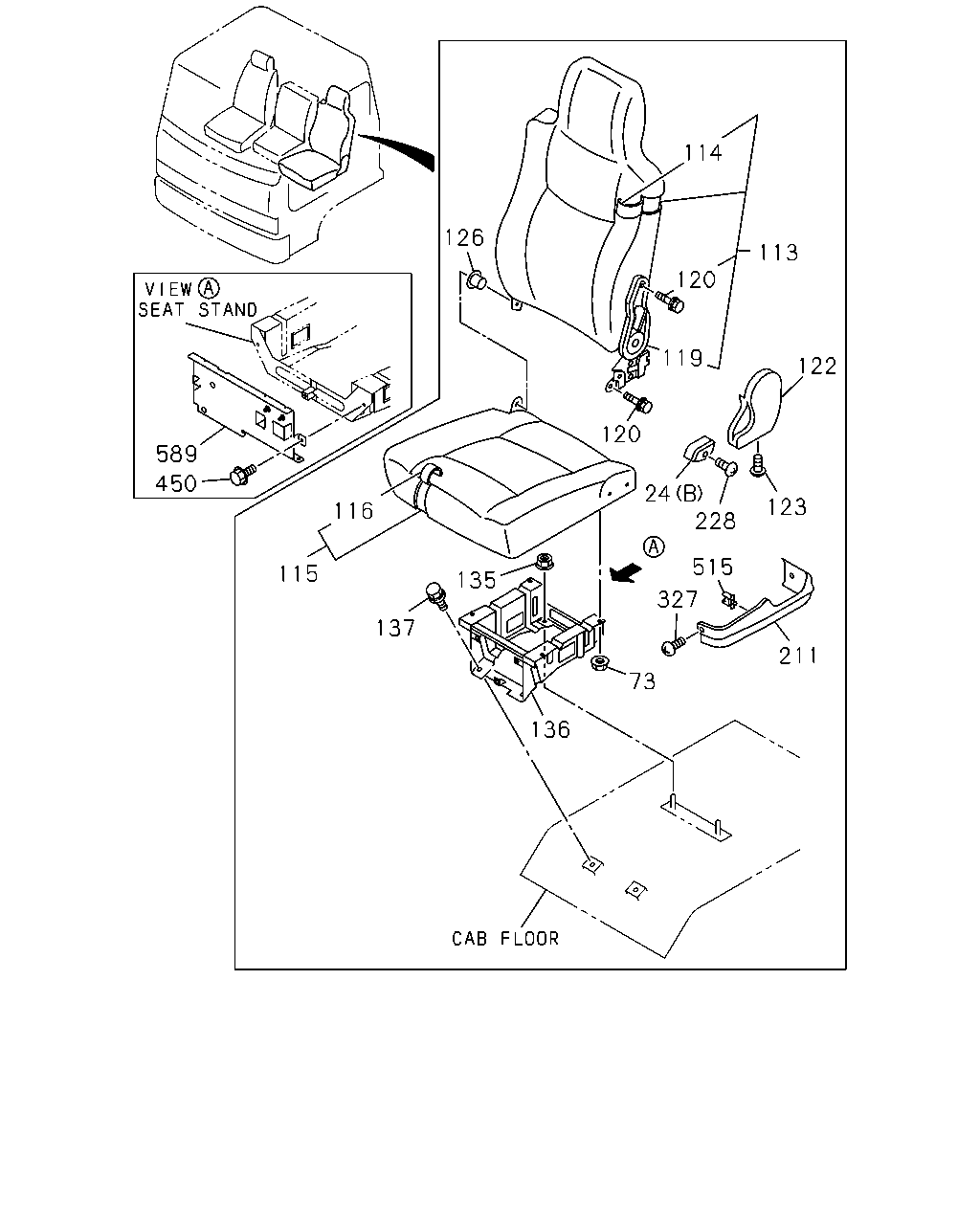

114 126 113 120 119 122 120 589 450 24 228 123 116 515 115 135 327 137 211 73 136

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	KNOB; RECLINING,FRT,SEAT DRIVER ISRINGHAUSEN SEAT(SJA) (B) DARK GRAY	8-97859-019-0	01	1	0308-	●	●
24	KNOB; RECLINING,FRT,SEAT EXC. DRIVER ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) (B) DARK GRAY	8-97859-019-0	01	1	0308-	●	●
24	KNOB; RECLINING,FRT,SEAT FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DARK GRAY	8-97867-021-0	01	1	0308-	●	●
24	KNOB; RECLINING,FRT,SEAT EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVERLEVEL AUTOMATIC W/ARM REST(SLL) (A) DARK GRAY	8-97867-021-0	01	1	0308-	●	●
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	04	1	0308-	●	●
73	NUT; ADJ,HEIGHT CONT DRIVING POSITION WIDE LEG SPACE<PR2> FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE	1-75538-207-0	12	1	0308-	●	●
73	NUT; ADJ,HEIGHT CONT FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M8 FLANGE	1-75538-207-0	08	1	0308-	●	●
113	BACK ASM; SEAT DRIVER ISRINGHAUSEN SEAT(SJA)	1-75208-191-4	01	1	0308-	●	●
113	BACK ASM; SEAT FABRIC SEAT W/RECLINING(SFQ) EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	1-75207-651-3	01	1	0308-	●	●
113	BACK ASM; SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),DRIVER ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9)	1-75207-652-2	01	1	0308-	●	●
113	BACK ASM; SEAT PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	1-75207-597-2	01	1	0308-	●	●
114	COVER; TRIM,PASSENGER SEAT,BACK DRIVER ISRINGHAUSEN SEAT(SJA)	1-75116-709-2	01	1	0308-	●	●
114	COVER; TRIM,PASSENGER SEAT,BACK FABRIC SEAT W/RECLINING(SFQ) EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	1-75127-170-2	01	1	0308-	●	●
114	COVER; TRIM,PASSENGER SEAT,BACK EXC. FABRIC SEAT W/RECLINING(SFQ),DRIVER ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9)	1-75127-171-1	01	1	0308-	●	●
114	COVER; TRIM,PASSENGER SEAT,BACK PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	1-75127-152-2	01	1	0308-	●	●
115	CUSHION ASM; PASSENGER SEAT DRIVER ISRINGHAUSEN SEAT(SJA)	1-75026-784-2	01	1	0308-	●	●
115	CUSHION ASM; PASSENGER SEAT FABRIC SEAT W/RECLINING(SFQ) EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	1-75207-641-2	01	1	0308-	●	●
115	CUSHION ASM; PASSENGER SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),DRIVER ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9)	1-75207-300-0	01	1	0308-	●	●
115	CUSHION ASM; PASSENGER SEAT PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	1-75207-596-2	01	1	0308-	●	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION DRIVER ISRINGHAUSEN SEAT(SJA)	1-75116-691-2	01	1	0308-	●	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION FABRIC SEAT W/RECLINING(SFQ) EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	1-75157-161-2	01	1	0308-	●	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION EXC. FABRIC SEAT W/RECLINING(SFQ),DRIVER ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9)	1-75127-124-0	01	1	0308-	●	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	1-75127-151-2	01	1	0308-	●	●
119	ADJ; SEAT RECLINING,ASSIST SIDE PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	1-75417-597-0	01	1	0308-	●	●
120	BOLT; RECLINING ADJ DRIVER ISRINGHAUSEN SEAT(SJA) M8X20	8-97255-906-0	02	1	0308-	●	●
120	BOLT; RECLINING ADJ EXC. DRIVER ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) M8X20	8-97255-906-0	02	1	0308-	●	●
120	BOLT; RECLINING ADJ PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA) M8X20	8-97255-906-0	04	1	0308-	●	●
122	COVER; ADJ,RECLINING DRIVER ISRINGHAUSEN SEAT(SJA) DARK GRAY	8-97859-018-0	01	1	0308-	●	●
122	COVER; ADJ,RECLINING EXC. DRIVER ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) DARK GRAY	8-97859-018-0	01	1	0308-	●	●
122	COVER; ADJ,RECLINING PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA)	1-75417-598-0	01	1	0308-	●	●
123	SCREW; COVER,RECLINING DRIVER ISRINGHAUSEN SEAT(SJA) M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0308-	●	●
123	SCREW; COVER,RECLINING EXC. DRIVER ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0308-	●	●
123	SCREW; COVER,RECLINING PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA) M6X12	9-03490-612-0	01	1	0308-	●	●
126	BUSHING; HINGE,RECLINING	8-97854-087-0	01	1	0308-	●	●
135	NUT; SEAT STAND M10 FLANGE	1-09984-153-0	02	1	0308-	●	●
136	STAND; PASSENGER SEAT	1-75558-602-3	01	1	0308-	●	●
137	BOLT; STAND M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	0308-	●	●
211	COVER; FRT SEAT	1-72538-274-0	01	1	0308-	●	●
228	SCREW; KNOB FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6	8-97042-273-0	01	1	0308-	●	●
228	SCREW; KNOB EXC. DRIVER ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) M4X6	8-97042-273-0	01	1	0308-	●	●
228	SCREW; KNOB EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6	8-97042-273-0	01	1	0308-	●	●
327	CLIP; COVER DRIVING POSITION WIDE LEG SPACE<PR2>	1-09987-273-0	01	1	0308-	●	●
327	CLIP; COVER EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,FABRIC SEAT W/RECLINING(SFQ),DRIVER ISRINGHAUSEN SEAT(SJA) ,SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL), PASSENGER SEAT MULTI USED(WX9)	1-09987-273-0	02	1	0308-	●	●
327	CLIP; COVER FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,DRIVER ISRINGHAUSEN SEAT(SJA)	1-09987-273-0	02	1	0308-	●	●
327	CLIP; COVER	1-09987-273-0	02	1	0308-	●	●
450	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	0308-	●	●
515	CLIP; PIPE BLACK	8-94227-248-1	01	1	0308-	●	●
589	BRACKET; SEAT STAND	1-75557-469-3	01	1	0308-	●	●

506 360 175 176 16 188 189 359 188 403 179 182 403

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	ADJUSTER ASM; RECLINING EXC. CENTER SEAT DELETE(SP9) (A)	1-75418-062-1	01	1	0308-	●	●
16	ADJUSTER ASM; RECLINING DRIVER ISRINGHAUSEN SEAT(SJA) (B)	1-75417-602-0	01	1	0308-	●	●
175	BACK ASM; PASSENGER CENTER SEAT DRIVER ISRINGHAUSEN SEAT(SJA) EXC. CENTER SEAT DELETE(SP9)	1-75026-857-3	01	1	0308-	●	●
175	BACK ASM; PASSENGER CENTER SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),DRIVER ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9),PASSENGER SEAT MULTI USED(WX9)	1-75026-855-0	01	1	0308-0406	●	●
175	BACK ASM; PASSENGER CENTER SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),DRIVER ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9),PASSENGER SEAT MULTI USED(WX9)	1-75026-856-2	01	1	0407-	●	●
175	BACK ASM; PASSENGER CENTER SEAT FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9)	1-75207-602-3	01	1	0308-	●	●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK DRIVER ISRINGHAUSEN SEAT(SJA) EXC. CENTER SEAT DELETE(SP9)	1-75116-711-2	01	1	0308-	●	●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK EXC. FABRIC SEAT W/RECLINING(SFQ),DRIVER ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9),PASSENGER SEAT MULTI USED(WX9)	1-75116-651-0	01	1	0308-0406	●	●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK EXC. FABRIC SEAT W/RECLINING(SFQ),DRIVER ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9),PASSENGER SEAT MULTI USED(WX9)	1-75116-710-1	01	1	0407-	●	●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9)	1-75127-156-2	01	1	0308-	●	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH DRIVER ISRINGHAUSEN SEAT(SJA) EXC. CENTER SEAT DELETE(SP9)	1-75116-694-2	01	1	0308-	●	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH EXC. FABRIC SEAT W/RECLINING(SFQ),DRIVER ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9),PASSENGER SEAT MULTI USED(WX9)	1-75116-696-1	01	1	0308-	●	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9)	1-75127-155-2	01	1	0308-	●	●
182	CUSHION ASM; CENTER SEAT DRIVER ISRINGHAUSEN SEAT(SJA) EXC. CENTER SEAT DELETE(SP9)	1-75026-843-3	01	1	0308-	●	●
182	CUSHION ASM; CENTER SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),DRIVER ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9),PASSENGER SEAT MULTI USED(WX9)	1-75026-845-2	01	1	0308-	●	●
182	CUSHION ASM; CENTER SEAT FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9)	1-75207-601-2	01	1	0308-	●	●
188	BOLT; BACK TO CUSHION EXC. CENTER SEAT DELETE(SP9) M10X16 FLANGE	1-75198-053-0	04	1	0308-	●	●
189	BUSHING; HINGE,CENTER SEAT BACK EXC. CENTER SEAT DELETE(SP9)	8-97854-900-0	01	1	0308-	●	●
359	BOX; PARCEL EXC. CENTER SEAT DELETE(SP9)	1-72538-275-4	01	1	0308-	●	●
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (A) M3X10 TAPPING CK-HEAD	0-70080-310-0	04	1	0308-	●	●
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (B) M4X16	0-70080-416-0	06	1	0308-	●	●
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (D)	1-09983-165-0	02	1	0308-0310	●	●
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0311-	●	●
360	SCREW; PARCEL DRIVER ISRINGHAUSEN SEAT(SJA) EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0308-0310	●	●
360	SCREW; PARCEL EXC. FABRIC SEAT W/RECLINING(SFQ),DRIVER ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9),PASSENGER SEAT MULTI USED(WX9) (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0308-0310	●	●
360	SCREW; PARCEL FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	10	1	0308-0310	●	●
403	NUT; CENTER SEAT EXC. CENTER SEAT DELETE(SP9) M8 FLANGE	8-94279-518-0	04	1	0308-0312	●	●
403	NUT; CENTER SEAT EXC. CENTER SEAT DELETE(SP9) M8 FLANGE	1-75538-207-0	04	1	0401-	●	●
506	CAP; PARCEL BOX EXC. CENTER SEAT DELETE(SP9)	1-09983-180-3	04	1	0308-	●	●

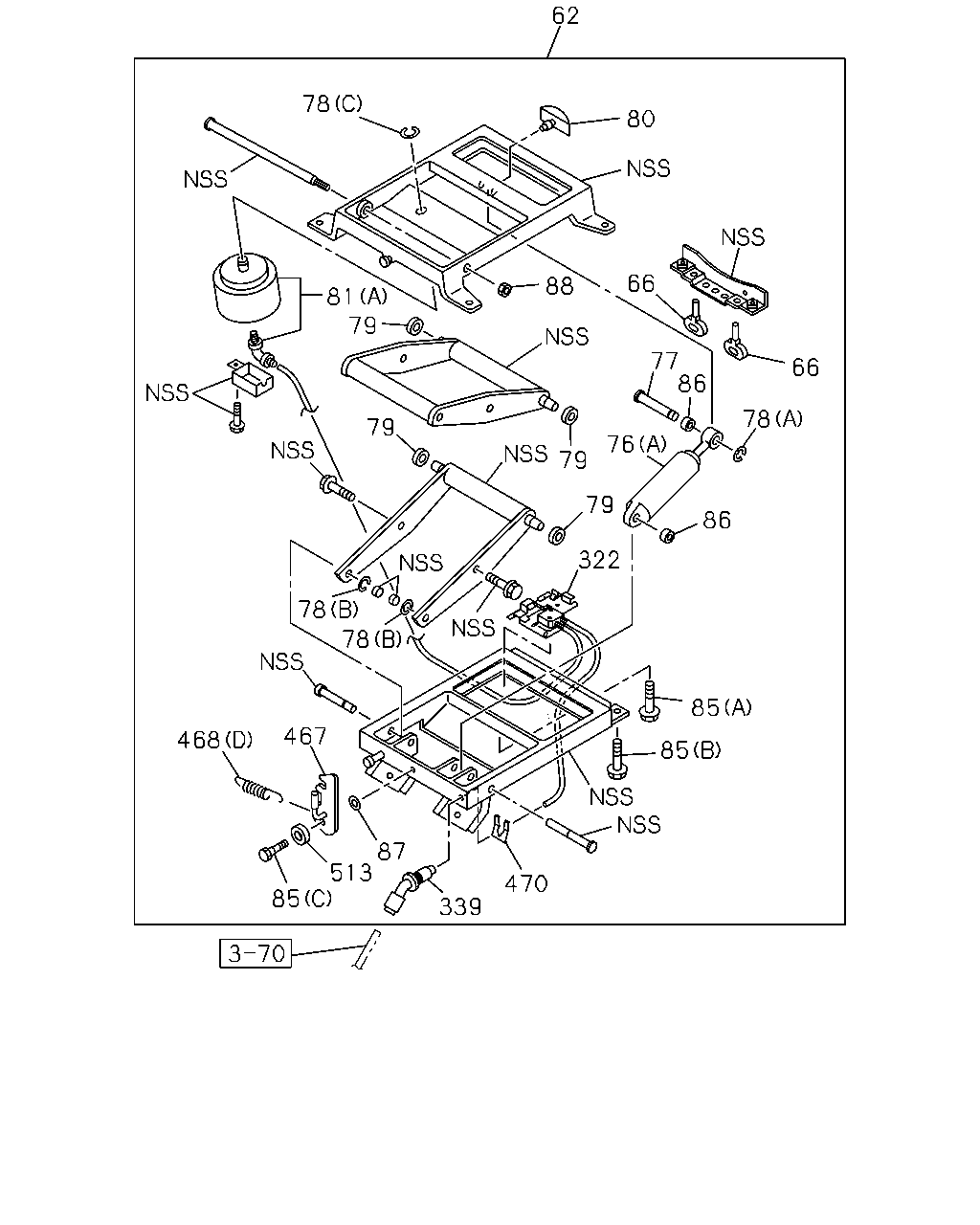

62 78 80 66 88 81 79 77 86 66 78 79 76 79 79 86 322 78 78 85 467 468 85 87 513 85 470 339

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
62	DAMPER ASM; SEAT SUSP FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75537-262-7	01	1	0308-	●	●
66	RUBBER; LWR STOPPER FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-145-0	02	1	0308-	●	●
76	DAMPER; AIR SUSP DRIVER ISRINGHAUSEN SEAT(SJA) (B)	1-75537-276-0	01	1	0308-	●	●
76	DAMPER; AIR SUSP FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75537-230-2	01	1	0308-	●	●
77	PIN; DAMPER FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-138-2	01	1	0308-	●	●
78	RING; SNAP FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=8	9-09185-408-0	01	1	0308-	●	●
78	RING; SNAP FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=10	9-09185-410-0	02	1	0308-0406	●	●
78	RING; SNAP FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=15	9-09185-415-0	01	1	0308-	●	●
79	ROLLER ASM; AIR SUSP FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-159-0	04	1	0308-	●	●
80	RUBBER; STOPPER FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-09987-123-0	01	1	0308-	●	●
81	SPRING; AIR DRIVER ISRINGHAUSEN SEAT(SJA) (B)	1-75537-275-0	01	1	0308-	●	●
81	SPRING; AIR FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75538-151-2	01	1	0308-	●	●
85	BOLT; AIR SUSP FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C)	1-09980-577-0	01	1	0308-	●	●
85	BOLT; AIR SUSP FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M6X12	1-75538-208-0	02	1	0308-	●	●
85	BOLT; AIR SUSP FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8X22 W/LK&PL WASHER	1-75538-209-0	03	1	0308-	●	●
86	BUSHING; GUIDE FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	0308-	●	●
87	WASHER; AIR SUSP FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.2	9-09150-508-0	01	1	0308-	●	●
88	NUT; AIR SUSP FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10	1-75537-273-1	01	1	0308-	●	●
322	VALVE; AIR SPRING FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-186-2	01	1	0308-	●	●
339	UNION; DRIVER SEAT FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-131-3	01	1	0308-	●	●
467	LEVER; LOCK FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-134-0	01	1	0308-	●	●
468	SPRING; RETURN EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (A)	1-75518-206-0	01	1	0308-	●	●
468	SPRING; RETURN EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (B)	1-75518-207-0	01	1	0308-	●	●
468	SPRING; RETURN EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (C)	1-75518-208-0	02	1	0308-	●	●
468	SPRING; RETURN FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D)	1-75538-132-0	01	1	0308-	●	●
470	CLIP; HOSE FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-137-0	01	1	0308-	●	●
513	SPACER; LEVER FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-133-0	01	1	0308-	●	●

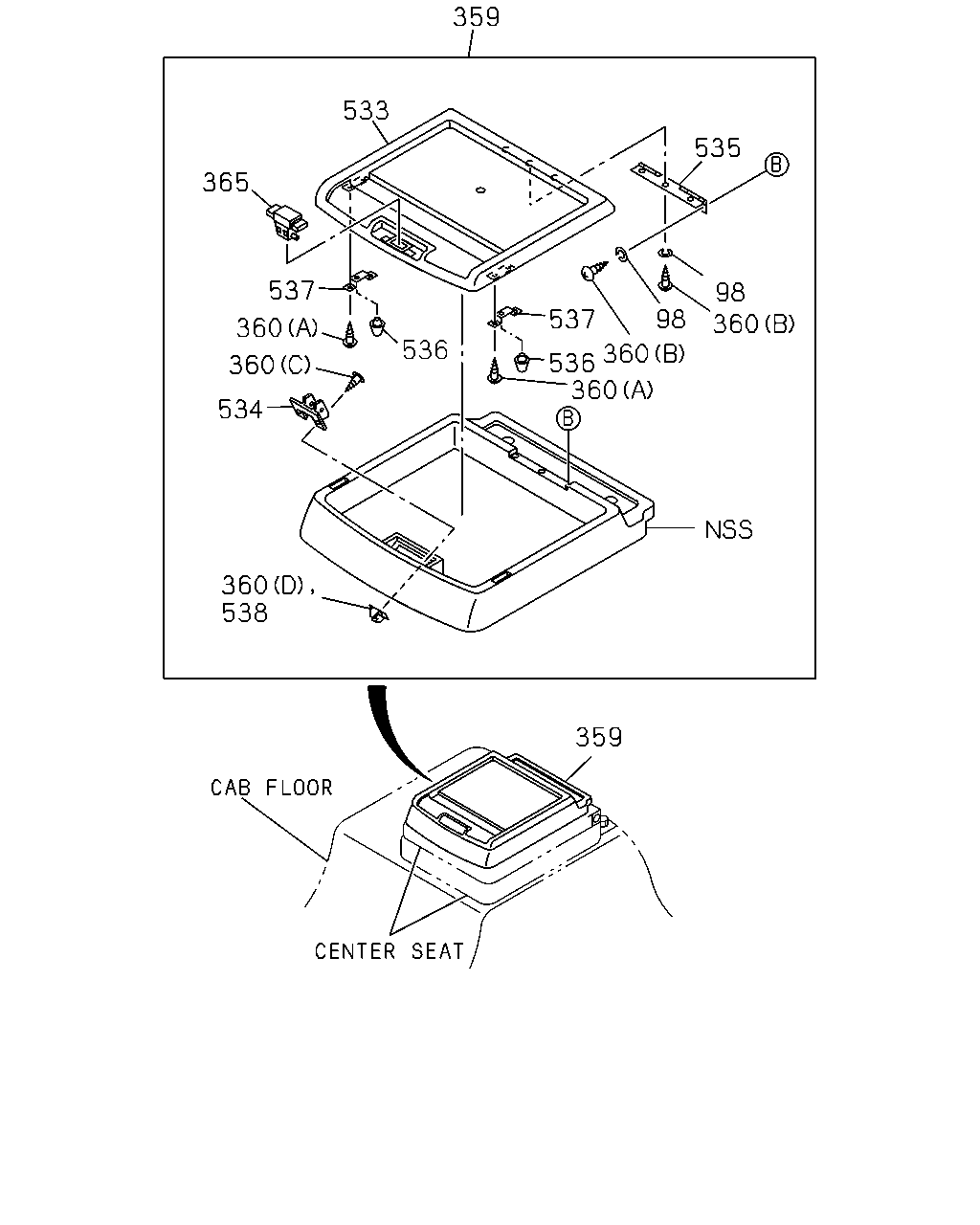

359 533 535 365 537 98 360 98 537 360 536 360 536 360 360 534 360 538 359

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
98	WASHER; HINGE EXC. CENTER SEAT DELETE(SP9) ID=4.3 TOOTH LK COUNTERSUNK	9-09152-704-0	06	1	0308-	●	●
359	BOX; PARCEL EXC. CENTER SEAT DELETE(SP9)	1-72538-275-4	01	1	0308-	●	●
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (A) M3X10 TAPPING CK-HEAD	0-70080-310-0	04	1	0308-	●	●
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (B) M4X16	0-70080-416-0	06	1	0308-	●	●
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (D)	1-09983-165-0	02	1	0308-0310	●	●
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0311-	●	●
360	SCREW; PARCEL DRIVER ISRINGHAUSEN SEAT(SJA) EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0308-0310	●	●
360	SCREW; PARCEL EXC. FABRIC SEAT W/RECLINING(SFQ),DRIVER ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9),PASSENGER SEAT MULTI USED(WX9) (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0308-0310	●	●
360	SCREW; PARCEL FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	10	1	0308-0310	●	●
365	LOCK ASM; SEAT EXC. CENTER SEAT DELETE(SP9)	1-72538-180-0	01	1	0308-	●	●
533	LID; PARCEL BOX EXC. CENTER SEAT DELETE(SP9)	1-72538-277-1	01	1	0308-	●	●
534	STRIKER; PARCEL BOX EXC. CENTER SEAT DELETE(SP9)	1-72538-181-0	01	1	0308-	●	●
535	HINGE; PARCEL BOX EXC. CENTER SEAT DELETE(SP9)	1-72447-391-1	01	1	0308-	●	●
536	RUBBER; CUSHION EXC. CENTER SEAT DELETE(SP9)	5-09983-002-1	02	1	0308-	●	●
537	BRACKET; RUBBER EXC. CENTER SEAT DELETE(SP9)	1-72548-057-1	02	1	0308-	●	●
538	GROMMET; SCREW EXC. CENTER SEAT DELETE(SP9)	1-09983-165-0	02	1	0311-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
