7-45 — CONSOLE BOX (#25981) — 60 parça

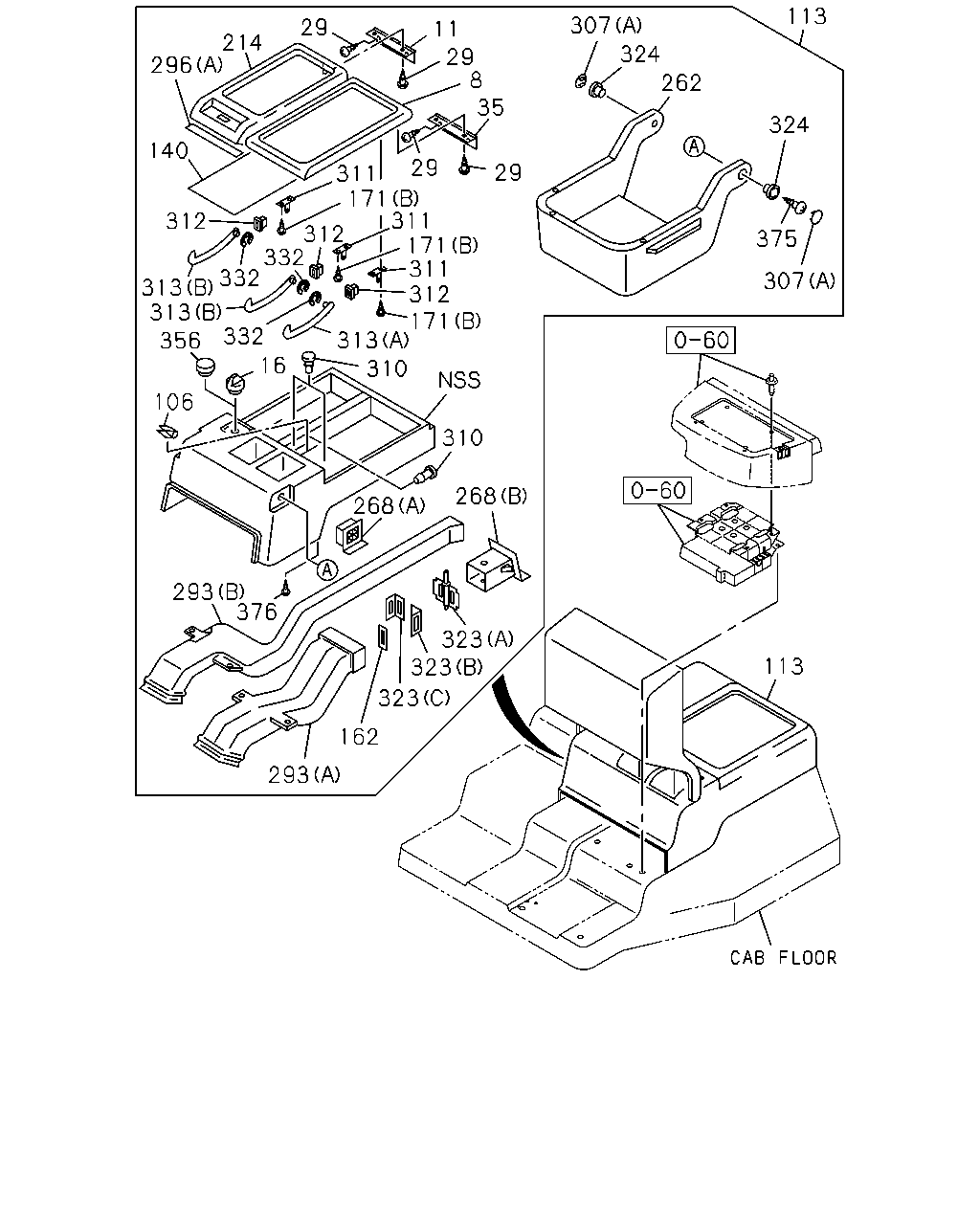

çizim 23349
113 307 29 11 214 324 29 8 35 296 262 324 140 29 29 311 171 311 171 311 312 171 312 312 332 332 313 313 332 375 307 313 310 356 16 106 310 268 268 293 376 323 323 113 323 162 293
BalonParca AdiParca NoAdetTipApplied Date A B
8 LID; CENTER CONSOLE
CENTER SEAT DELETE(SP9) 		1-72537-185-0 01 1 0308- ● ●
11 HINGE; CONSOLE LID
CENTER SEAT DELETE(SP9) 		1-72537-070-2 01 1 0308- ● ●
16 KNOB ASM
CENTER SEAT DELETE(SP9) COOL & HOT BOX<TMU> 		1-72537-189-0 01 1 0308- ● ●
29 SCREW; HINGE
CENTER SEAT DELETE(SP9) M5X14 BINDING HEAD 		1-72537-168-0 08 1 0308- ● ●
35 HINGE; CENTER CONSOLE
CENTER SEAT DELETE(SP9) 		1-72538-182-1 01 1 0308- ● ●
106 LOCK; CONSOLE LID
CENTER SEAT DELETE(SP9) 		1-72537-079-0 02 1 0308- ● ●
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) COOL & HOT BOX<TMU> 		1-72537-180-0 01 1 0308-0404 ● ●
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) COOL & HOT BOX<TMU> 		1-72537-240-3 01 1 0405-0507 ● ●
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) COOL & HOT BOX<TMU> 		1-72537-285-3 01 1 0508- ● ●
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) EXC. COOL & HOT BOX<TMU> 		1-72537-220-0 01 1 0308-0404 ● ●
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) EXC. COOL & HOT BOX<TMU> 		1-72537-252-2 01 1 0405-0507 ● ●
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) EXC. COOL & HOT BOX<TMU> 		1-72537-291-3 01 1 0508- ● ●
140 SHEET
CENTER SEAT DELETE(SP9) 		1-72537-093-1 01 1 0308- ● ●
162 CUSHION; PARCEL BOX
CENTER SEAT DELETE(SP9) COOL & HOT BOX<TMU> 		1-72537-128-0 03 1 0308- ● ●
171 SCREW; CONSOLE BOX
CENTER SEAT DELETE(SP9) (B) M5X14 FLAT HEAD 		1-72537-169-0 06 1 0308- ● ●
171 SCREW; CONSOLE BOX
CENTER SEAT DELETE(SP9) (A) M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 0308- ● ●
214 LID; CONSOLE
CENTER SEAT DELETE(SP9) 		1-72537-186-0 01 1 0308- ● ●
262 TABLE ASM
CENTER SEAT DELETE(SP9) 		1-72537-187-1 01 1 0308- ● ●
268 COVER; DUCT
CENTER SEAT DELETE(SP9) (B) 		1-72537-183-0 01 1 0308- ● ●
268 COVER; DUCT
CENTER SEAT DELETE(SP9) (A) 		1-72537-184-0 01 1 0308- ● ●
293 DUCT
CENTER SEAT DELETE(SP9) COOL & HOT BOX<TMU> (A) 		1-72537-081-3 01 1 0308- ● ●
293 DUCT
CENTER SEAT DELETE(SP9) COOL & HOT BOX<TMU> (B) 		1-72537-083-2 01 1 0308- ● ●
296 SEAL
(B) OD=25 BLACK 		1-76798-019-0 02 1 0308-0312 ● ●
296 SEAL
(B) OD=25 BLACK 		1-76798-019-0 01 1 0401- ● ●
296 SEAL
CENTER SEAT DELETE(SP9) (A) 		1-72537-094-1 01 1 0308- ● ●
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) (A) 		1-72537-188-0 02 1 0308- ● ●
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) (B) 		1-76337-461-0 04 1 0308- ● ●
310 CUSHION; CTR CONSOLE
CENTER SEAT DELETE(SP9) 		1-72538-187-0 02 1 0308- ● ●
311 HOLDER; CONSOLE
CENTER SEAT DELETE(SP9) 		1-72538-188-2 03 1 0308- ● ●
312 STOPPER; CONSOLE
CENTER SEAT DELETE(SP9) 		1-72538-186-1 03 1 0308- ● ●
313 ARM; CTR CONSOLE
CENTER SEAT DELETE(SP9) (A) 		1-72538-184-3 01 1 0308- ● ●
313 ARM; CTR CONSOLE
CENTER SEAT DELETE(SP9) (B) 		1-72538-185-3 02 1 0308- ● ●
323 SHUTTER
CENTER SEAT DELETE(SP9) (B) 		1-72537-126-0 01 1 0308- ● ●
323 SHUTTER
CENTER SEAT DELETE(SP9) COOL & HOT BOX<TMU> (A) 		1-72537-084-1 01 1 0308- ● ●
323 SHUTTER
CENTER SEAT DELETE(SP9) COOL & HOT BOX<TMU> (C) 		1-72537-127-0 01 1 0308- ● ●
324 BUSHING
CENTER SEAT DELETE(SP9) 		1-72537-116-0 02 1 0308- ● ●
332 RING; SNAP,CONSOLE BOX
CENTER SEAT DELETE(SP9) 		1-72537-170-0 03 1 0308- ● ●
356 COVER; KNOB
CENTER SEAT DELETE(SP9) EXC. COOL & HOT BOX<TMU> 		1-72537-155-0 01 1 0308- ● ●
375 SCREW; TAP BUSHING
CENTER SEAT DELETE(SP9) M6X20 		1-72537-319-0 02 1 0308- ● ●
376 SCREW; TAP DUCT
CENTER SEAT DELETE(SP9) COOL & HOT BOX<TMU> M4X14 		1-72537-320-0 03 1 0308- ● ●

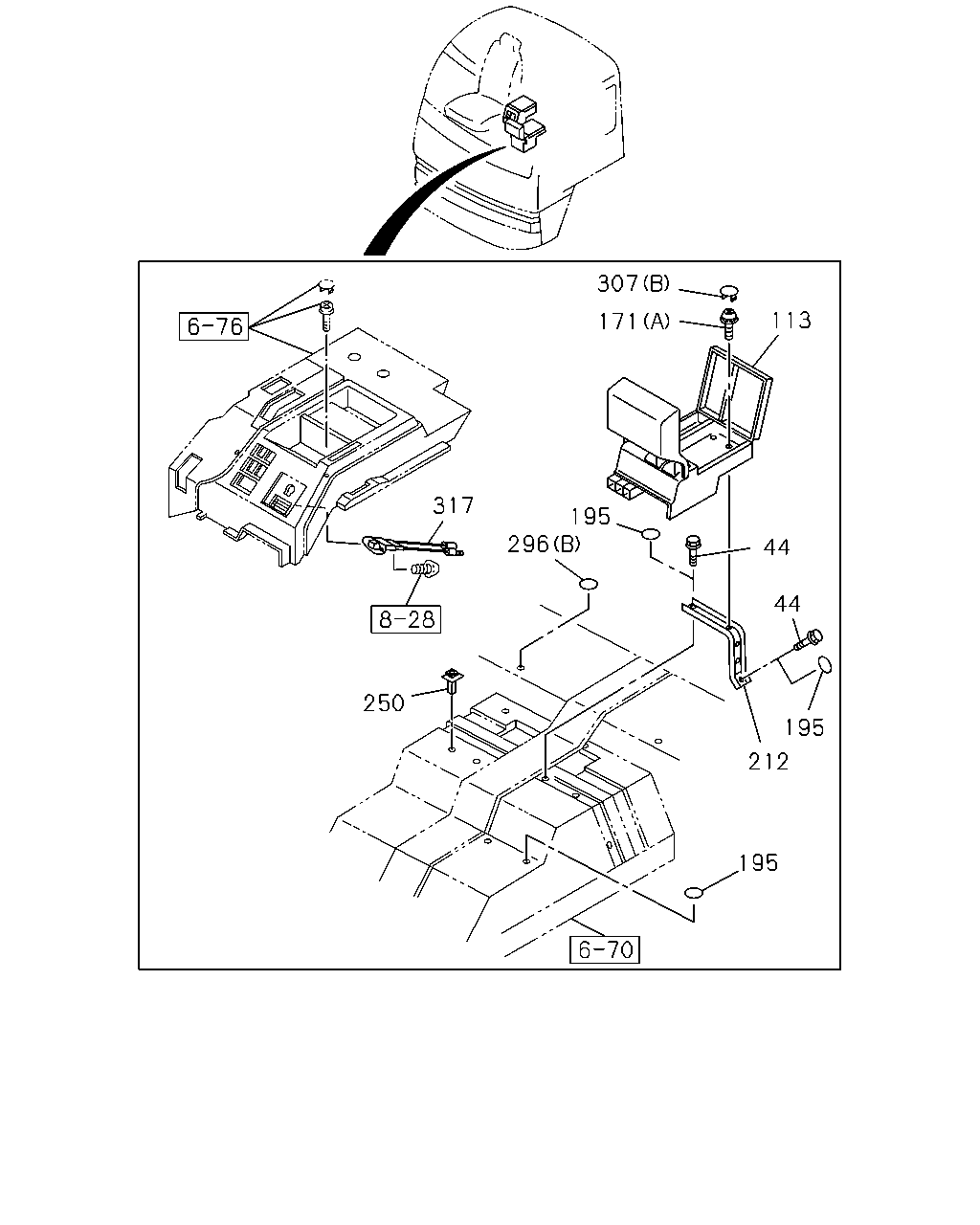

çizim 81871
307 113 171 317 195 296 44 44 250 195 212 195
BalonParca AdiParca NoAdetTipApplied Date A B
44 BOLT; SUPPORT,CTR CONSOLE
CENTER SEAT DELETE(SP9) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0308- ● ●
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) COOL & HOT BOX<TMU> 		1-72537-180-0 01 1 0308-0404 ● ●
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) COOL & HOT BOX<TMU> 		1-72537-240-3 01 1 0405-0507 ● ●
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) COOL & HOT BOX<TMU> 		1-72537-285-3 01 1 0508- ● ●
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) EXC. COOL & HOT BOX<TMU> 		1-72537-220-0 01 1 0308-0404 ● ●
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) EXC. COOL & HOT BOX<TMU> 		1-72537-252-2 01 1 0405-0507 ● ●
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) EXC. COOL & HOT BOX<TMU> 		1-72537-291-3 01 1 0508- ● ●
171 SCREW; CONSOLE BOX
CENTER SEAT DELETE(SP9) (B) M5X14 FLAT HEAD 		1-72537-169-0 06 1 0308- ● ●
171 SCREW; CONSOLE BOX
CENTER SEAT DELETE(SP9) (A) M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 0308- ● ●
195 SEAL; CENTER CONSOLE
EXC. CENTER SEAT DELETE(SP9) OD=25 BLACK 		1-76798-019-0 05 1 0308- ● ●
212 SUPPORT; CONSOLE TO COMPT
CENTER SEAT DELETE(SP9) 		1-72537-095-1 01 1 0308- ● ●
250 GROMMET; CONSOLE BOX
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 03 1 0308- ● ●
296 SEAL
(B) OD=25 BLACK 		1-76798-019-0 02 1 0308-0312 ● ●
296 SEAL
(B) OD=25 BLACK 		1-76798-019-0 01 1 0401- ● ●
296 SEAL
CENTER SEAT DELETE(SP9) (A) 		1-72537-094-1 01 1 0308- ● ●
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) (A) 		1-72537-188-0 02 1 0308- ● ●
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) (B) 		1-76337-461-0 04 1 0308- ● ●
317 CONSENT 1-82523-020-2 01 1 0308- ● ●

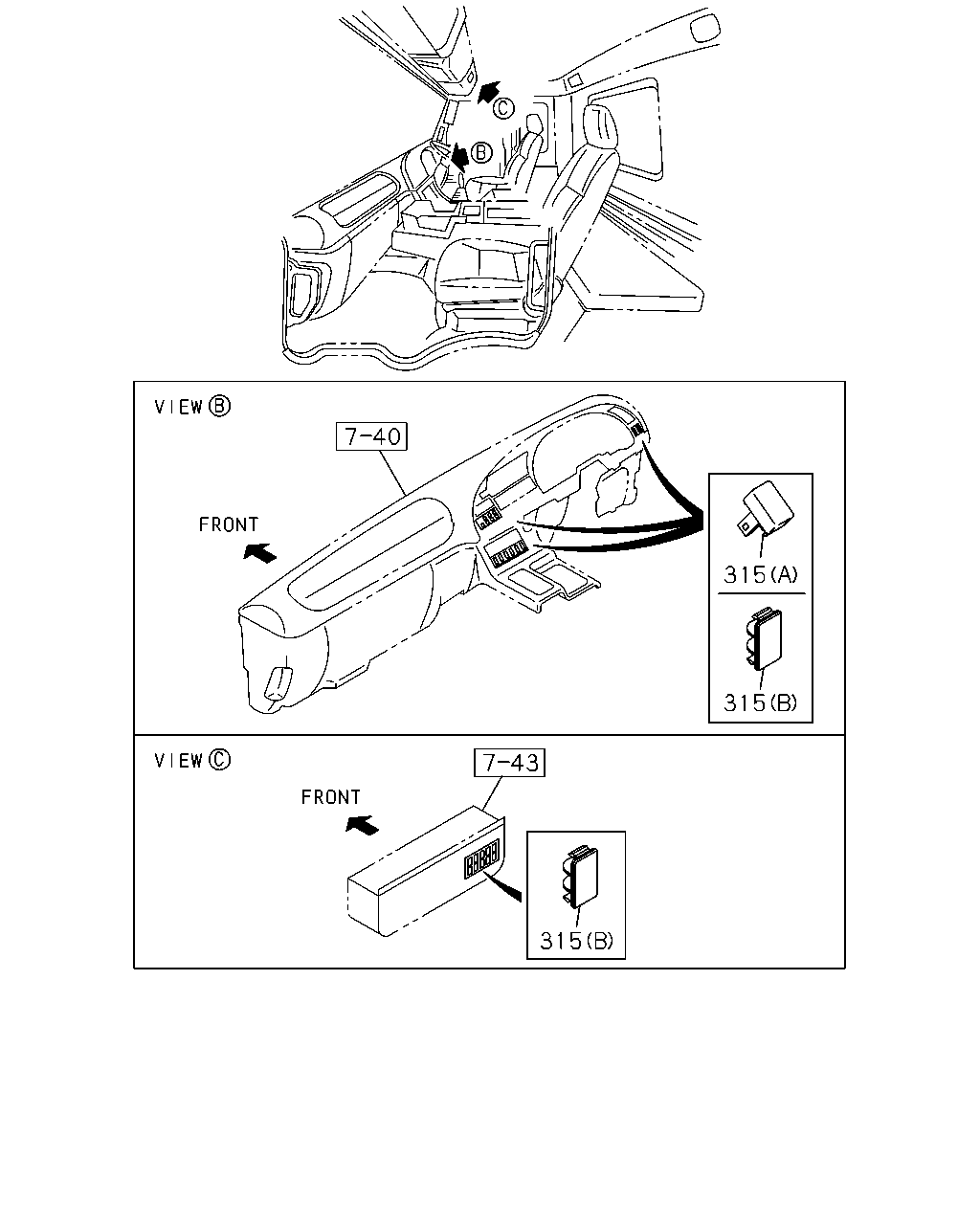

çizim 84763
315 315 315
BalonParca AdiParca NoAdetTipApplied Date A B
315 COVER; HOLE,SW
(A) 		1-82359-069-2 AR 1 0308- ● ●
315 COVER; HOLE,SW
(B) 		8-97043-732-1 AR 1 0308- ● ●
