◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10929 - CXZ RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#25978) — 103 parça

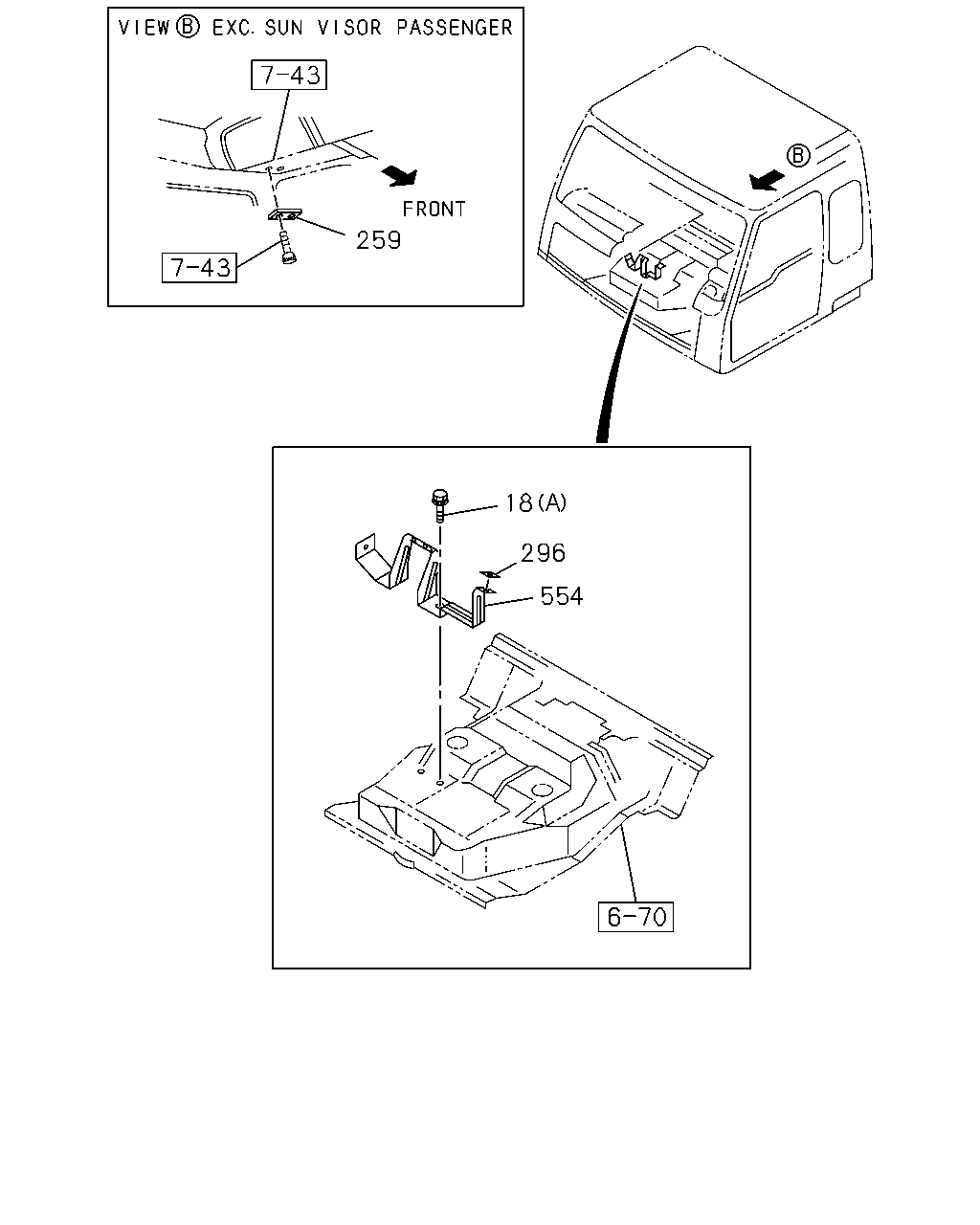

çizim 23992
259 18 296 554
BalonParca AdiParca NoAdetTipApplied Date A B
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0308- ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0308- ● ●
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0308- ● ●
259 PLATE; STUFF,SUN VISOR
EXC. SUN VISOR PASSENGER<D20> 		1-73317-410-0 01 1 0308- ● ●
296 SEAL; INST CENTER BEZEL
EXC. CENTER SEAT DELETE(SP9) 		8-97856-616-0 01 1 0308- ● ●
554 BRACKET; CENTER BEZEL 1-65671-535-2 01 1 0308- ● ●

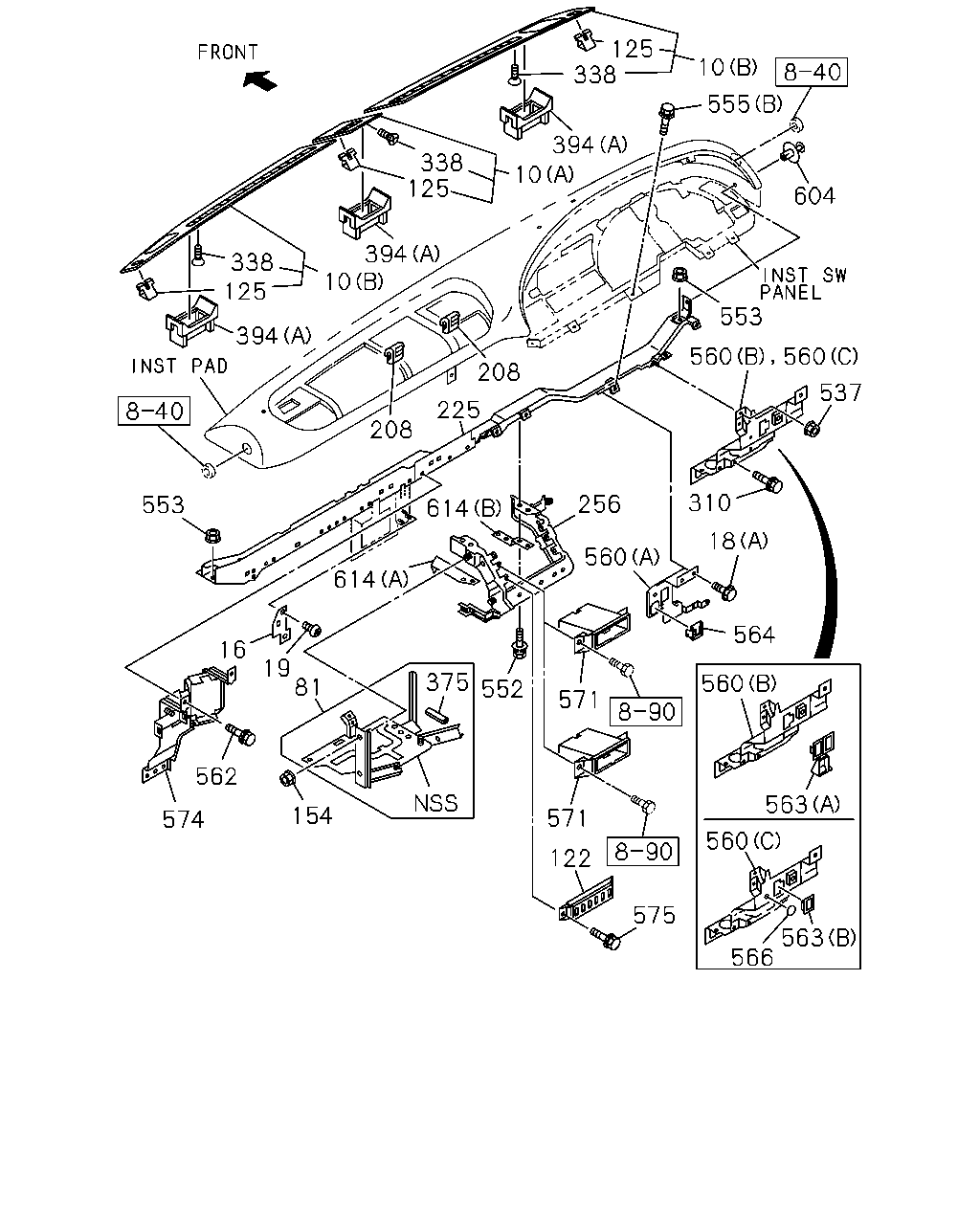

çizim 24148
125 338 10 555 394 338 125 10 604 394 10 338 125 553 394 208 537 225 208 310 256 553 614 18 560 614 564 16 19 81 375 560 552 571 562 563 154 571 574 560 122 575 563 566
BalonParca AdiParca NoAdetTipApplied Date A B
10 PANEL ASM; GARNISH
(A) CENTER 		1-72437-540-6 01 1 0308- ● ●
10 PANEL ASM; GARNISH
(B) W/SPEAKER NET 		1-72437-601-6 01 1 0308- ● ●
10 PANEL ASM; GARNISH
(B) W/SPEAKER NET 		1-72437-600-7 01 1 0308- ● ●
16 BRACKET; INST PNL 1-73908-023-2 01 1 0308- ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0308- ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0308- ● ●
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0308- ● ●
19 SCREW; BRKT
M5X14 		8-94279-325-0 02 1 0308- ● ●
81 BRACKET; ELEC CONT UNIT 1-73907-548-7 01 1 0308- ● ●
122 PANEL; CENTER CLUSTER 1-65671-550-5 01 1 0308- ● ●
125 CLIP; INST PANEL 8-97217-066-0 01 1 0308- ● ●
125 CLIP; INST PANEL 8-97217-066-0 10 1 0308-0403 ● ●
125 CLIP; INST PANEL 8-97217-066-0 10 1 0404- ● ●
154 NUT
M6 FLANGE 		0-91150-106-0 04 1 0308-0602 ● ●
154 NUT
M6 FLANGE 		0-91180-106-0 04 1 0603- ● ●
208 HOLDER; BOX,DASH SIDE 1-72558-027-2 02 1 0308- ● ●
225 FRAME; FACIA 1-65671-725-8 01 1 0308- ● ●
256 BEZEL ASM; CENTER 1-65671-523-9 01 1 0308- ● ●
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0308- ● ●
338 SCREW; COVER
M5X14 		8-94148-576-1 12 1 0308-0309 ● ●
338 SCREW; COVER
M5X14 		8-94279-325-0 12 1 0310- ● ●
375 FINISHER; BRKT,CONT UNIT
L=80 		5-71997-133-0 01 1 0403- ● ●
394 HOLDER; PANEL
(A) 		1-72438-066-0 08 1 0308- ● ●
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 0308- ● ●
537 NUT; BRKT
M6 FLANGE 		0-91150-106-0 01 1 0308-0602 ● ●
537 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 0603- ● ●
552 BOLT; FRAME
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 0308- ● ●
553 NUT; FRAME
M8 FLANGE 		0-91150-108-0 04 1 0308-0602 ● ●
553 NUT; FRAME
M8 FLANGE 		0-91180-108-0 04 1 0603- ● ●
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28281-025-0 08 1 0308-0512 ● ●
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28251-025-0 08 1 0601-0604 ● ●
555 BOLT; PAD
(A) M10X25 FLANGE 		8-98041-453-0 08 1 0605- ● ●
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0308- ● ●
560 BRACKET
(A) 		1-65680-976-3 01 1 0308- ● ●
560 BRACKET
HONG KONG EQUIPMENT(PQ1) (B) 		1-65671-757-4 01 1 0308- ● ●
560 BRACKET
SINGAPORE EQUIPMENT(WQ3) (C) 		1-65671-760-4 01 1 0308- ● ●
562 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0308- ● ●
563 BEZEL; BRKT
HONG KONG EQUIPMENT(PQ1) (A) 		1-72447-628-5 01 1 0308- ● ●
563 BEZEL; BRKT
SINGAPORE EQUIPMENT(WQ3) (B) 		1-72448-410-3 01 1 0308- ● ●
564 COVER; SW
BRAKE SYSTEM HSA<SLD> 		8-97856-401-3 01 1 0308- ● ●
566 PLUG; HOLE
SINGAPORE EQUIPMENT(WQ3) OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0308- ● ●
571 BEZEL; POCKET 1-72438-151-3 01 1 0308- ● ●
571 BEZEL; POCKET
EXC. RADIO AM/FM STEREO & TAPE PLAYER(UN3) 		1-72438-151-3 01 1 0308- ● ●
574 PANEL; RELAY BOX 1-73907-365-9 01 1 0308- ● ●
575 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0308- ● ●
604 CLIP; INST PAD 1-09983-123-0 01 1 0308- ● ●
614 BRACKET; HARNESS
(A) 		1-65671-745-1 01 1 0308- ● ●
614 BRACKET; HARNESS
(B) 		1-65671-746-1 01 1 0308- ● ●

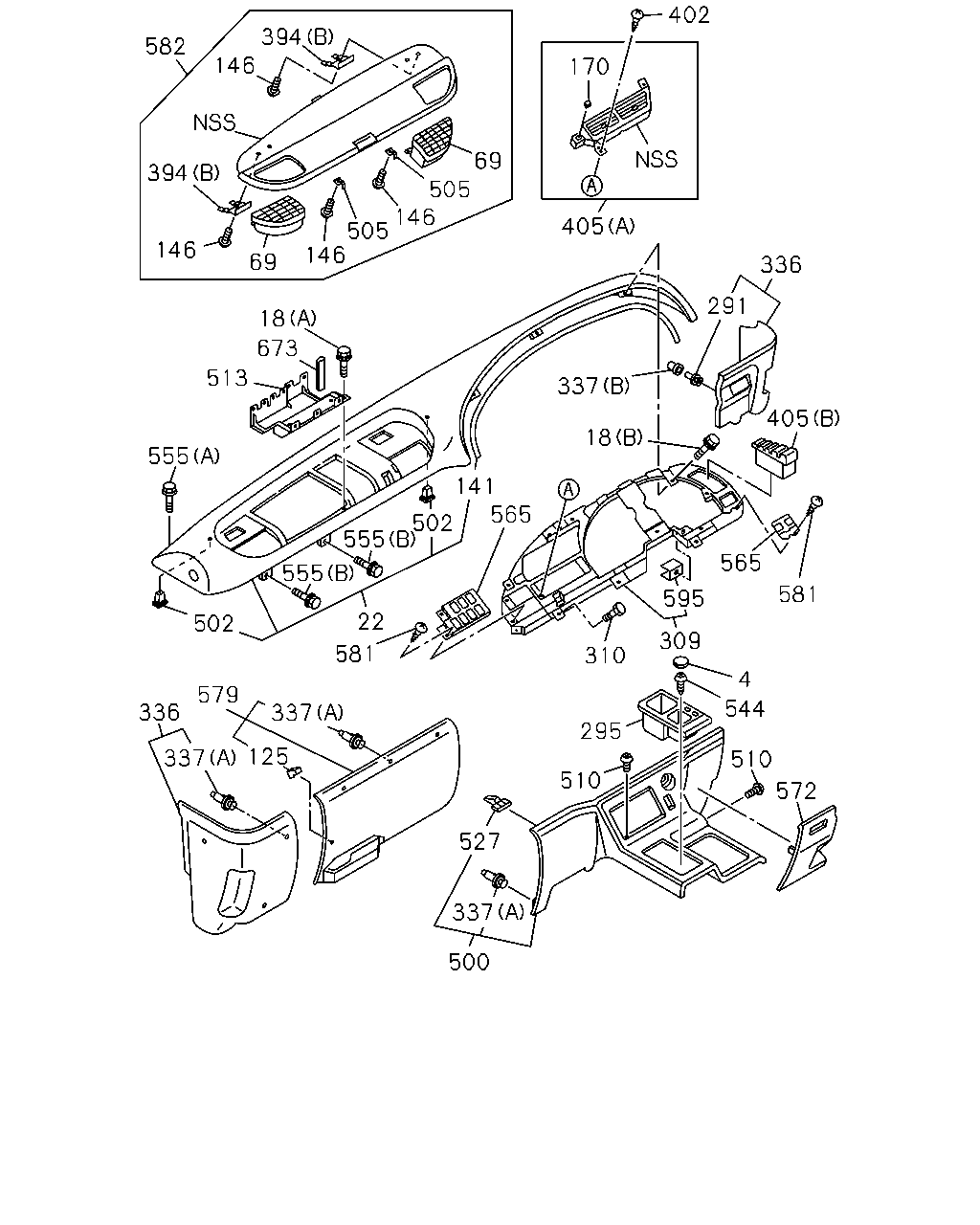

çizim 24248
402 394 582 146 170 69 394 505 146 505 146 405 146 69 336 291 18 673 513 337 405 18 555 141 565 502 555 565 555 581 595 22 502 309 581 310 4 579 544 336 337 295 125 337 510 510 572 527 337 500
BalonParca AdiParca NoAdetTipApplied Date A B
4 COVER; INST PNL 1-72537-106-0 01 1 0308- ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0308- ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0308- ● ●
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0308- ● ●
22 PAD; INST 1-72317-347-2 01 1 0308- ● ●
69 GRILLE; SIDE,AIR OUTLET 1-76367-069-0 01 1 0308- ● ●
69 GRILLE; SIDE,AIR OUTLET 1-76367-070-0 01 1 0308- ● ●
125 CLIP; INST PANEL 8-97217-066-0 01 1 0308- ● ●
125 CLIP; INST PANEL 8-97217-066-0 10 1 0308-0403 ● ●
125 CLIP; INST PANEL 8-97217-066-0 10 1 0404- ● ●
141 PROTECTOR; EDGE 1-72318-430-0 01 1 0308- ● ●
146 SCREW; TAP
M5X14 		8-94279-325-0 10 1 0308- ● ●
170 COVER; HOLE 1-76367-068-0 01 1 0308- ● ●
291 FASTENER; INST CLUSTER 1-72438-137-0 03 1 0308- ● ●
295 TRAY; CTR CLUSTER 1-72437-543-1 01 1 0308- ● ●
309 PANEL; SW,INST 1-72418-009-6 01 1 0308- ● ●
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0308- ● ●
336 COVER; INST PANEL SIDE 1-72437-624-0 01 1 0308- ● ●
336 COVER; INST PANEL SIDE 1-72437-622-0 01 1 0308- ● ●
337 FASTENER; COVER
(A) 		1-72438-124-2 12 1 0308- ● ●
337 FASTENER; COVER
(A) 		1-72438-124-2 02 1 0308- ● ●
337 FASTENER; COVER
(B) 		1-72438-138-0 03 1 0308- ● ●
394 HOLDER; PANEL
(A) 		1-72438-066-0 08 1 0308- ● ●
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 0308- ● ●
402 SCREW; VENT GRILLE,INST
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 0308-0604 ● ●
402 SCREW; VENT GRILLE,INST
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 02 1 0605- ● ●
405 GRILLE ASM; METER VENT
(A) 		1-76367-062-2 01 1 0308- ● ●
405 GRILLE ASM; METER VENT
(B) 		1-76367-059-3 01 1 0308- ● ●
500 CLUSTER; INST CENTER
CENTER SEAT DELETE(SP9) 		1-72437-619-0 01 1 0308- ● ●
500 CLUSTER; INST CENTER
EXC. CENTER SEAT DELETE(SP9) 		1-72437-648-0 01 1 0308- ● ●
502 GROMMET; SCREW,CENTER,CLUSTER
D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 0308- ● ●
505 LOCK; LID 1-72558-024-2 02 1 0308- ● ●
510 SCREW; CENTER CLUSTER
M6X16 		8-94479-534-0 02 1 0308- ● ●
513 BRACKET; RELAY 1-73908-425-0 01 1 0308- ● ●
527 CLIP; INST CLUSTER 8-97217-066-0 04 1 0308- ● ●
544 SCREW; TRAY
M6X16 		8-94479-534-0 01 1 0308- ● ●
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28281-025-0 08 1 0308-0512 ● ●
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28251-025-0 08 1 0601-0604 ● ●
555 BOLT; PAD
(A) M10X25 FLANGE 		8-98041-453-0 08 1 0605- ● ●
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0308- ● ●
565 BEZEL; SW PANEL 1-72418-010-2 01 1 0308- ● ●
565 BEZEL; SW PANEL 1-72418-011-3 01 1 0308- ● ●
572 COVER; INSPECTION 1-72437-634-0 01 1 0308- ● ●
579 COVER; INST PNL 1-72437-626-0 01 1 0308- ● ●
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 0308-0604 ● ●
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 02 1 0605- ● ●
582 LID; FUSE & RELAY 1-72547-124-0 01 1 0308- ● ●
595 NUT; HOOK 1-72418-013-0 11 1 0308- ● ●
673 FINISHER; BRKT,RELAY
L=50 		8-94270-377-1 01 1 0308- ● ●
