◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10929 - CXZ RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-20 - MIRROR AND MIRROR STAY ▶
7-20 — MIRROR AND MIRROR STAY (#25976) — 140 parça
çizim 25167
1 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 MIRROR; ROOM 1-73117-033-1 01 1 0308- ● ●
2 SCREW; MIRROR TO BODY
M6X20 		1-09981-310-0 02 1 0308- ● ●

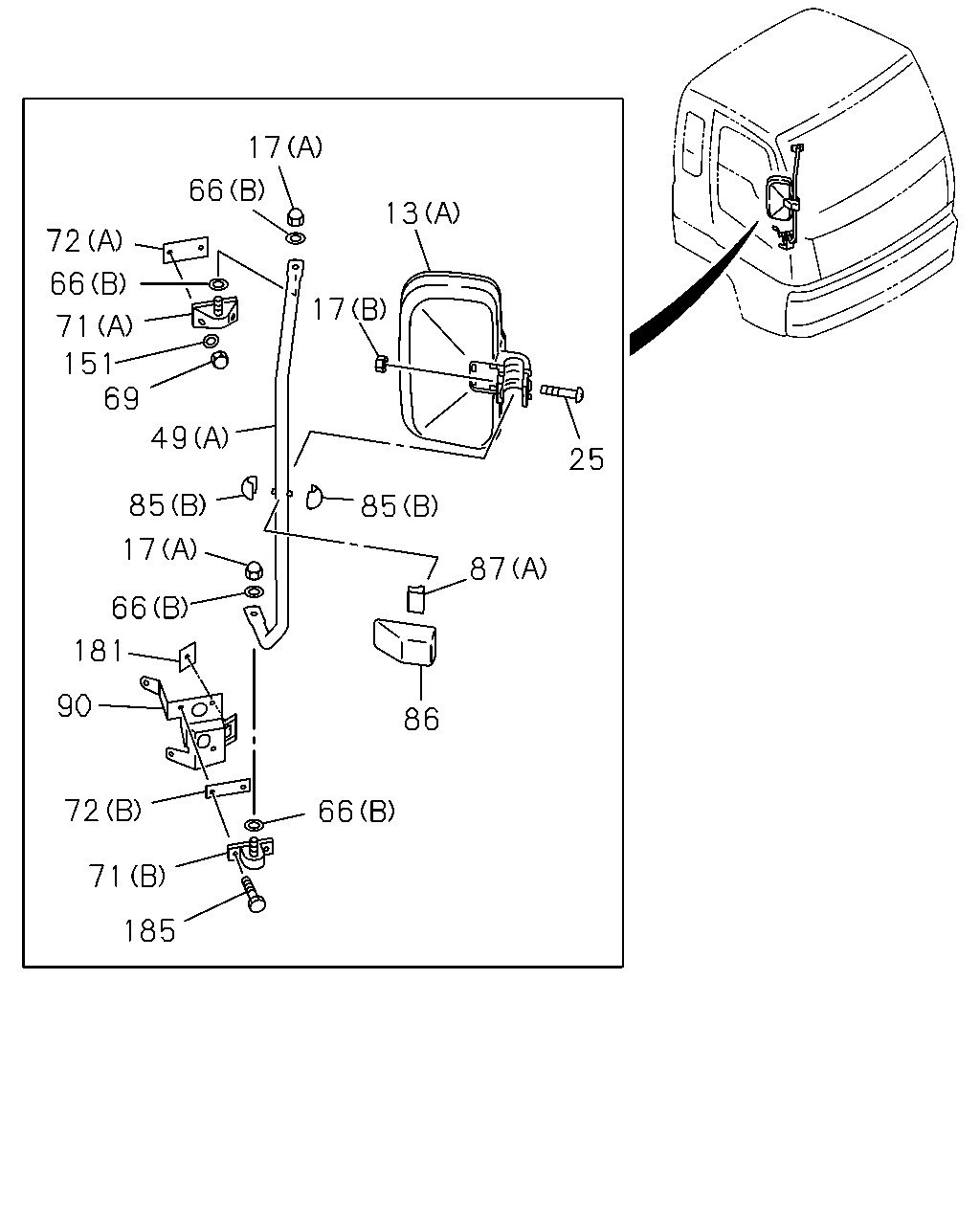

çizim 79790
17 66 13 72 66 17 71 151 69 49 25 85 85 17 87 66 181 90 86 72 66 71 185
BalonParca AdiParca NoAdetTipApplied Date A B
13 MIRROR ASM; OUTSIDE RR VIEW
(A) 		1-71737-918-3 01 1 0308- ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
MIRROR O/S UNDER VIEW<RR9> (A) 		1-71737-918-3 01 1 0308- ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) 		1-71737-917-3 01 1 0308- ● ●
17 NUT; CAP,MIRROR STAY
(A) M10 CAP NUT 		1-09984-134-0 02 1 0308- ● ●
17 NUT; CAP,MIRROR STAY
(B) M5 		1-09984-124-0 02 1 0308- ● ●
17 NUT; CAP,MIRROR STAY
MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) M5 		1-09984-124-0 06 1 0308- ● ●
17 NUT; CAP,MIRROR STAY
MIRROR O/S UNDER VIEW<RR9> (B) M5 		1-09984-124-0 04 1 0308- ● ●
25 SCREW; OUTSIDE MIRROR
M5X50 		1-09981-444-0 02 1 0308-0404 ● ●
25 SCREW; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> M5X50 		1-09981-444-0 02 1 0308-0404 ● ●
25 SCREW; OUTSIDE MIRROR 1-09981-541-0 02 1 0405- ● ●
25 SCREW; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> 		1-09981-541-0 02 1 0405- ● ●
49 STAY; MIRROR SIDE
(A) 		1-71798-490-3 01 1 0308- ● ●
49 STAY; MIRROR SIDE
MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C) 		1-71797-896-2 01 1 0308- ● ●
49 STAY; MIRROR SIDE
MIRROR O/S UNDER VIEW<RR9> (B) 		1-71797-856-2 01 1 0308- ● ●
66 WASHER; PL
(B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 04 1 0308- ● ●
66 WASHER; PL
(B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 04 1 0308- ● ●
66 WASHER; PL
(A) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 03 1 0308- ● ●
69 NUT; CAP
M8 		1-09984-187-0 02 1 0308- ● ●
71 BRACKET; OUTSIDE MIRROR
(C) 		1-71798-581-3 01 1 0308- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) UPPER 		1-71798-484-1 01 1 0308- ● ●
71 BRACKET; OUTSIDE MIRROR
(B) LOWER 		1-71798-486-2 01 1 0308- ● ●
72 SHEET
(A) UPPER 		1-71798-487-3 01 1 0308- ● ●
72 SHEET
(B) LOWER 		1-71798-488-1 01 1 0308- ● ●
85 PIVOT; MAIN MIRROR
(B) ID=19.1 		1-71737-633-2 02 1 0308- ● ●
85 PIVOT; MAIN MIRROR
MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) ID=22.2 		1-71736-489-2 02 1 0308- ● ●
86 COVER; STAY,OUTSIDE MIRROR
BLACK 		1-71737-760-1 01 1 0308- ● ●
86 COVER; STAY,OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> BLACK 		1-71737-760-1 01 1 0308- ● ●
87 SPACER
(A) 		1-71737-704-0 01 1 0308- ● ●
87 SPACER
MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) 		1-71737-704-0 01 1 0308- ● ●
87 SPACER
MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) 		1-71737-646-2 02 1 0308- ● ●
87 SPACER
MIRROR O/S UNDER VIEW<RR9> (B) 		1-71737-646-2 01 1 0308- ● ●
90 BRACKET; MIRROR STAY 1-71798-829-1 01 1 0308- ● ●
90 BRACKET; MIRROR STAY 1-71798-828-1 01 1 0308- ● ●
151 WASHER; PL,MIRROR
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 02 1 0308- ● ●
181 SEAL; BRKT
25X25 		8-94272-533-0 02 1 0308- ● ●
185 BOLT; BRKT
M8X35 FLANGE 		0-28690-835-0 02 1 0308-0512 ● ●
185 BOLT; BRKT
M8X35 FLANGE 		0-28660-835-0 02 1 0601-0605 ● ●
185 BOLT; BRKT
M8X35 FLANGE 		8-98046-876-0 02 1 0606- ● ●

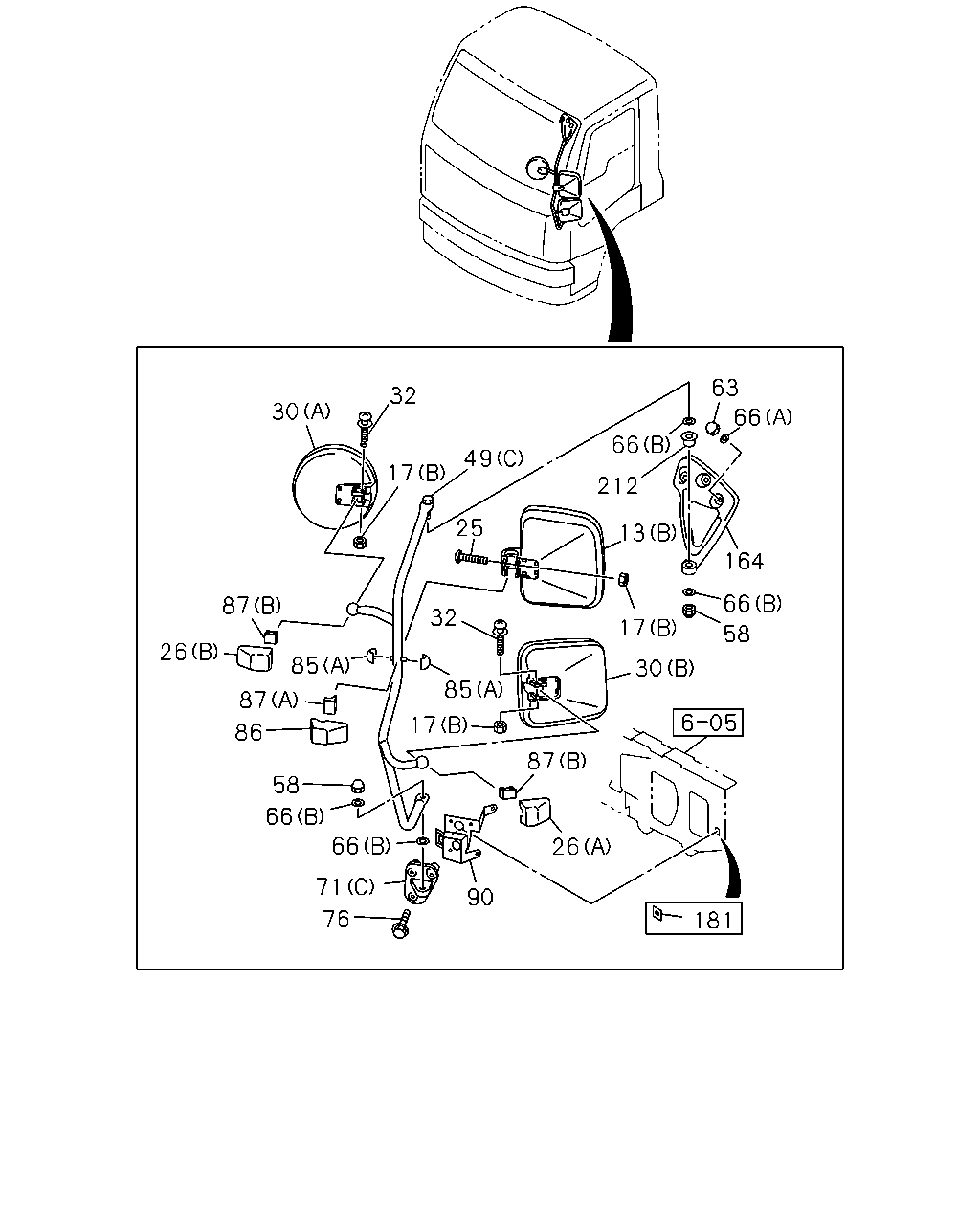

çizim 80716
63 32 30 66 66 49 17 212 25 13 164 17 66 87 32 58 26 85 30 85 87 17 86 87 58 66 66 26 71 90 76 181
BalonParca AdiParca NoAdetTipApplied Date A B
13 MIRROR ASM; OUTSIDE RR VIEW
(A) 		1-71737-918-3 01 1 0308- ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
MIRROR O/S UNDER VIEW<RR9> (A) 		1-71737-918-3 01 1 0308- ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) 		1-71737-917-3 01 1 0308- ● ●
17 NUT; CAP,MIRROR STAY
(A) M10 CAP NUT 		1-09984-134-0 02 1 0308- ● ●
17 NUT; CAP,MIRROR STAY
(B) M5 		1-09984-124-0 02 1 0308- ● ●
17 NUT; CAP,MIRROR STAY
MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) M5 		1-09984-124-0 06 1 0308- ● ●
17 NUT; CAP,MIRROR STAY
MIRROR O/S UNDER VIEW<RR9> (B) M5 		1-09984-124-0 04 1 0308- ● ●
25 SCREW; OUTSIDE MIRROR
M5X50 		1-09981-444-0 02 1 0308-0404 ● ●
25 SCREW; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> M5X50 		1-09981-444-0 02 1 0308-0404 ● ●
25 SCREW; OUTSIDE MIRROR 1-09981-541-0 02 1 0405- ● ●
25 SCREW; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> 		1-09981-541-0 02 1 0405- ● ●
26 COVER; OUTSIDE MIRROR
MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) BLACK 		1-71737-652-1 01 1 0308- ● ●
26 COVER; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) BLACK 		1-71737-649-1 01 1 0308- ● ●
30 MIRROR; UNDER
MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) 		1-71798-592-1 01 1 0308- ● ●
30 MIRROR; UNDER
MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) 		1-71798-591-1 01 1 0308- ● ●
32 SCREW; UNDER MIRROR
MIR O/S UNDER & SIDE UNDER VIEW<TAF> M5X40 W/PL WASHER 		1-71737-797-0 04 1 0308- ● ●
32 SCREW; UNDER MIRROR
MIRROR O/S UNDER VIEW<RR9> M5X40 W/PL WASHER 		1-71737-797-0 02 1 0308- ● ●
49 STAY; MIRROR SIDE
(A) 		1-71798-490-3 01 1 0308- ● ●
49 STAY; MIRROR SIDE
MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C) 		1-71797-896-2 01 1 0308- ● ●
49 STAY; MIRROR SIDE
MIRROR O/S UNDER VIEW<RR9> (B) 		1-71797-856-2 01 1 0308- ● ●
58 NUT; MIRROR STAY
M10 		1-09985-342-0 02 1 0308- ● ●
63 NUT; STAY
M8 		1-09984-187-0 03 1 0308- ● ●
66 WASHER; PL
(B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 04 1 0308- ● ●
66 WASHER; PL
(B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 04 1 0308- ● ●
66 WASHER; PL
(A) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 03 1 0308- ● ●
71 BRACKET; OUTSIDE MIRROR
(C) 		1-71798-581-3 01 1 0308- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) UPPER 		1-71798-484-1 01 1 0308- ● ●
71 BRACKET; OUTSIDE MIRROR
(B) LOWER 		1-71798-486-2 01 1 0308- ● ●
76 BOLT; STAY BRKT
M8X30 W/LK WASHER 		8-94279-183-1 03 1 0308- ● ●
85 PIVOT; MAIN MIRROR
(B) ID=19.1 		1-71737-633-2 02 1 0308- ● ●
85 PIVOT; MAIN MIRROR
MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) ID=22.2 		1-71736-489-2 02 1 0308- ● ●
86 COVER; STAY,OUTSIDE MIRROR
BLACK 		1-71737-760-1 01 1 0308- ● ●
86 COVER; STAY,OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> BLACK 		1-71737-760-1 01 1 0308- ● ●
87 SPACER
(A) 		1-71737-704-0 01 1 0308- ● ●
87 SPACER
MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) 		1-71737-704-0 01 1 0308- ● ●
87 SPACER
MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) 		1-71737-646-2 02 1 0308- ● ●
87 SPACER
MIRROR O/S UNDER VIEW<RR9> (B) 		1-71737-646-2 01 1 0308- ● ●
90 BRACKET; MIRROR STAY 1-71798-829-1 01 1 0308- ● ●
90 BRACKET; MIRROR STAY 1-71798-828-1 01 1 0308- ● ●
164 STAY; ROOF 1-71798-299-4 01 1 0308- ● ●
181 SEAL; BRKT
25X25 		8-94272-533-0 02 1 0308- ● ●
212 BUSHING; MIRROR 1-09983-175-1 01 1 0308- ● ●

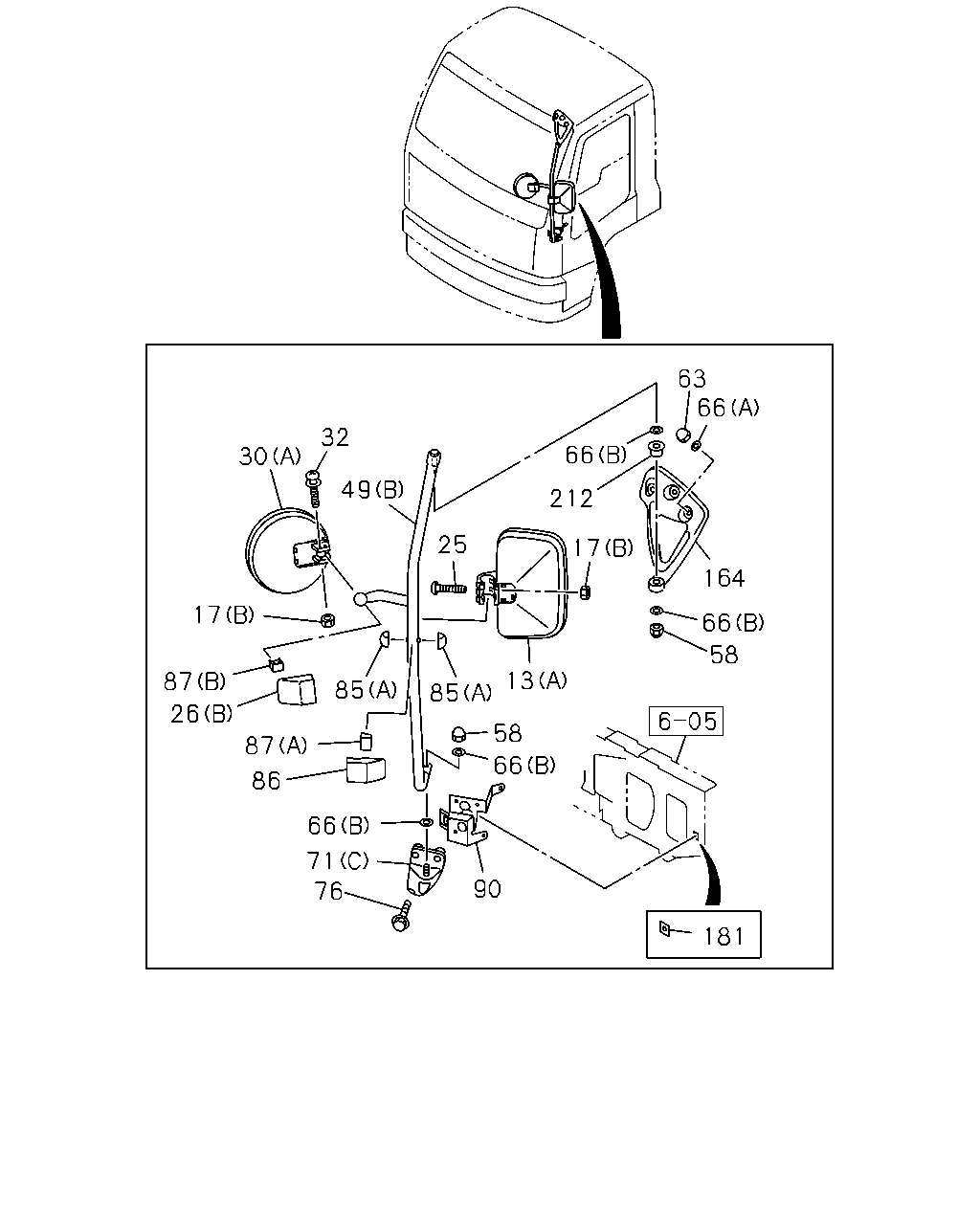

çizim 81870
63 66 32 66 30 49 212 25 17 164 17 66 58 13 87 85 85 26 58 87 66 86 66 71 90 76 181
BalonParca AdiParca NoAdetTipApplied Date A B
13 MIRROR ASM; OUTSIDE RR VIEW
(A) 		1-71737-918-3 01 1 0308- ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
MIRROR O/S UNDER VIEW<RR9> (A) 		1-71737-918-3 01 1 0308- ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) 		1-71737-917-3 01 1 0308- ● ●
17 NUT; CAP,MIRROR STAY
(A) M10 CAP NUT 		1-09984-134-0 02 1 0308- ● ●
17 NUT; CAP,MIRROR STAY
(B) M5 		1-09984-124-0 02 1 0308- ● ●
17 NUT; CAP,MIRROR STAY
MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) M5 		1-09984-124-0 06 1 0308- ● ●
17 NUT; CAP,MIRROR STAY
MIRROR O/S UNDER VIEW<RR9> (B) M5 		1-09984-124-0 04 1 0308- ● ●
25 SCREW; OUTSIDE MIRROR
M5X50 		1-09981-444-0 02 1 0308-0404 ● ●
25 SCREW; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> M5X50 		1-09981-444-0 02 1 0308-0404 ● ●
25 SCREW; OUTSIDE MIRROR 1-09981-541-0 02 1 0405- ● ●
25 SCREW; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> 		1-09981-541-0 02 1 0405- ● ●
26 COVER; OUTSIDE MIRROR
MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) BLACK 		1-71737-652-1 01 1 0308- ● ●
26 COVER; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) BLACK 		1-71737-649-1 01 1 0308- ● ●
30 MIRROR; UNDER
MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) 		1-71798-592-1 01 1 0308- ● ●
30 MIRROR; UNDER
MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) 		1-71798-591-1 01 1 0308- ● ●
32 SCREW; UNDER MIRROR
MIR O/S UNDER & SIDE UNDER VIEW<TAF> M5X40 W/PL WASHER 		1-71737-797-0 04 1 0308- ● ●
32 SCREW; UNDER MIRROR
MIRROR O/S UNDER VIEW<RR9> M5X40 W/PL WASHER 		1-71737-797-0 02 1 0308- ● ●
49 STAY; MIRROR SIDE
(A) 		1-71798-490-3 01 1 0308- ● ●
49 STAY; MIRROR SIDE
MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C) 		1-71797-896-2 01 1 0308- ● ●
49 STAY; MIRROR SIDE
MIRROR O/S UNDER VIEW<RR9> (B) 		1-71797-856-2 01 1 0308- ● ●
58 NUT; MIRROR STAY
M10 		1-09985-342-0 02 1 0308- ● ●
63 NUT; STAY
M8 		1-09984-187-0 03 1 0308- ● ●
66 WASHER; PL
(B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 04 1 0308- ● ●
66 WASHER; PL
(B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 04 1 0308- ● ●
66 WASHER; PL
(A) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 03 1 0308- ● ●
71 BRACKET; OUTSIDE MIRROR
(C) 		1-71798-581-3 01 1 0308- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) UPPER 		1-71798-484-1 01 1 0308- ● ●
71 BRACKET; OUTSIDE MIRROR
(B) LOWER 		1-71798-486-2 01 1 0308- ● ●
76 BOLT; STAY BRKT
M8X30 W/LK WASHER 		8-94279-183-1 03 1 0308- ● ●
85 PIVOT; MAIN MIRROR
(B) ID=19.1 		1-71737-633-2 02 1 0308- ● ●
85 PIVOT; MAIN MIRROR
MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) ID=22.2 		1-71736-489-2 02 1 0308- ● ●
86 COVER; STAY,OUTSIDE MIRROR
BLACK 		1-71737-760-1 01 1 0308- ● ●
86 COVER; STAY,OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> BLACK 		1-71737-760-1 01 1 0308- ● ●
87 SPACER
(A) 		1-71737-704-0 01 1 0308- ● ●
87 SPACER
MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) 		1-71737-704-0 01 1 0308- ● ●
87 SPACER
MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) 		1-71737-646-2 02 1 0308- ● ●
87 SPACER
MIRROR O/S UNDER VIEW<RR9> (B) 		1-71737-646-2 01 1 0308- ● ●
90 BRACKET; MIRROR STAY 1-71798-829-1 01 1 0308- ● ●
90 BRACKET; MIRROR STAY 1-71798-828-1 01 1 0308- ● ●
164 STAY; ROOF 1-71798-299-4 01 1 0308- ● ●
181 SEAL; BRKT
25X25 		8-94272-533-0 02 1 0308- ● ●
212 BUSHING; MIRROR 1-09983-175-1 01 1 0308- ● ●
çizim 84771
13 133 132 134 13 133 134 132 30 135 134 132
BalonParca AdiParca NoAdetTipApplied Date A B
13 MIRROR ASM; OUTSIDE RR VIEW
(A) 		1-71737-918-3 01 1 0308- ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
MIRROR O/S UNDER VIEW<RR9> (A) 		1-71737-918-3 01 1 0308- ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) 		1-71737-917-3 01 1 0308- ● ●
30 MIRROR; UNDER
MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) 		1-71798-592-1 01 1 0308- ● ●
30 MIRROR; UNDER
MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) 		1-71798-591-1 01 1 0308- ● ●
132 RING; MIRROR
(C) 		1-71737-934-0 01 1 0308- ● ●
132 RING; MIRROR
MIRROR O/S UNDER VIEW<RR9> (C) 		1-71737-934-0 01 1 0308- ● ●
132 RING; MIRROR
MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) 		1-71737-933-0 01 1 0308- ● ●
132 RING; MIRROR
MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) 		1-71737-935-0 01 1 0308- ● ●
133 LENS; MIRROR,OUTSIDE
(A) 		1-71737-927-0 01 1 0308- ● ●
133 LENS; MIRROR,OUTSIDE
MIRROR O/S UNDER VIEW<RR9> (A) 		1-71737-927-0 01 1 0308- ● ●
133 LENS; MIRROR,OUTSIDE
MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) 		1-71737-926-0 01 1 0308- ● ●
134 CLIP; MIRROR LENS 1-71737-936-0 01 1 0308- ● ●
134 CLIP; MIRROR LENS
MIRROR O/S UNDER VIEW<RR9> 		1-71737-936-0 01 1 0308- ● ●
134 CLIP; MIRROR LENS
MIR O/S UNDER & SIDE UNDER VIEW<TAF> 		1-71737-936-0 02 1 0308- ● ●
135 LENS; MIRROR,SIDE UNDER
MIR O/S UNDER & SIDE UNDER VIEW<TAF> 		1-71737-929-0 01 1 0308- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
