◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10929 - CXZ RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#25975) — 51 parça

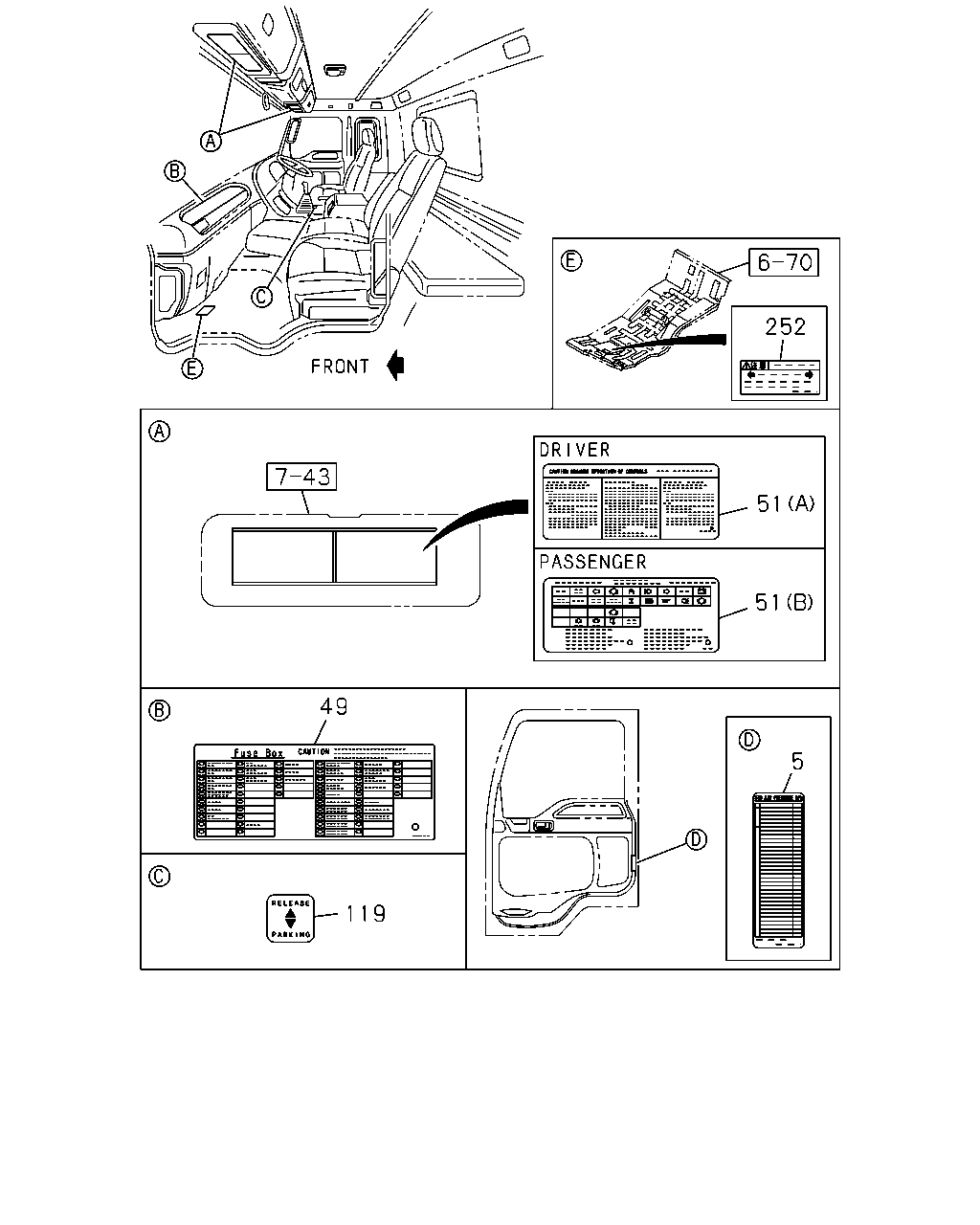

çizim 24144
252 51 51 49 5 119
BalonParca AdiParca NoAdetTipApplied Date A B
5 LABEL; TIRE AIR PRESSURE 1-85880-778-0 01 1 0308-0405 ● ●
5 LABEL; TIRE AIR PRESSURE 1-85880-780-0 01 1 0406-0410 ● ●
5 LABEL; TIRE AIR PRESSURE 1-85880-778-0 01 1 0411- ● ●
49 PLATE; CAUTION,FUSE BOX
CAUTIONS ARABIAN<WJ7> 		1-85878-331-0 01 1 0308- ● ●
49 PLATE; CAUTION,FUSE BOX
CAUTIONS CHINESE<SL7> 		1-85878-431-0 01 1 0308- ● ●
49 PLATE; CAUTION,FUSE BOX
CAUTIONS FRENCH<WJ8> 		1-85878-330-0 01 1 0308-0512 ● ●
49 PLATE; CAUTION,FUSE BOX
CAUTIONS FRENCH<WJ8> 		1-85878-556-0 01 1 0601- ● ●
49 PLATE; CAUTION,FUSE BOX
CAUTIONS PORTUGUESE<NAT> 		1-85878-332-0 01 1 0308- ● ●
49 PLATE; CAUTION,FUSE BOX
EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1> 		1-85878-393-0 01 1 0308-0512 ● ●
49 PLATE; CAUTION,FUSE BOX
CAUTIONS ENGLISH<RR8> 		1-85878-393-0 01 1 0601- ● ●
49 PLATE; CAUTION,FUSE BOX
CAUTIONS SPANISH<YN1> 		1-85878-328-0 01 1 0308-0512 ● ●
49 PLATE; CAUTION,FUSE BOX
CAUTIONS SPANISH<YN1> 		1-85878-555-0 01 1 0601- ● ●
51 PLATE; CAUTION,WARNING
CAUTIONS ARABIAN<WJ7> (A) 		1-85880-758-0 01 1 0308- ● ●
51 PLATE; CAUTION,WARNING
CAUTIONS CHINESE<SL7>,CAUTIONS FRENCH<WJ8> (B) 		1-85878-432-0 01 1 0308- ● ●
51 PLATE; CAUTION,WARNING
CAUTIONS ENGLISH<RR8>,CAUTIONS CHINESE<SL7> (A) 		1-85880-777-0 01 1 0308- ● ●
51 PLATE; CAUTION,WARNING
CAUTIONS FRENCH<WJ8> (A) 		1-85880-726-0 01 1 0308- ● ●
51 PLATE; CAUTION,WARNING
CAUTIONS PORTUGUESE<NAT> (A) 		1-85880-759-0 01 1 0308- ● ●
51 PLATE; CAUTION,WARNING
CAUTIONS PORTUGUESE<NAT>,CAUTIONS ARABIAN<WJ7> (B) 		1-85878-434-0 01 1 0308- ● ●
51 PLATE; CAUTION,WARNING
EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> (B) 		1-85878-433-0 01 1 0308-0512 ● ●
51 PLATE; CAUTION,WARNING
CAUTIONS ENGLISH<RR8>,CAUTIONS SPANISH<YN1> (B) 		1-85878-433-0 01 1 0601- ● ●
51 PLATE; CAUTION,WARNING
CAUTIONS SPANISH<YN1> (A) 		1-85880-725-0 01 1 0308- ● ●
119 PLATE; CAUTION,HAND BRK LEVER 1-85881-759-0 01 1 0308-0512 ● ●
119 PLATE; CAUTION,HAND BRK LEVER
EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1> 		1-85881-759-0 01 1 0601-0601 ● ●
119 PLATE; CAUTION,HAND BRK LEVER 1-85881-759-0 01 1 0602- ● ●
252 PLATE; CAUTION,HARNESS
CAUTIONS ENGLISH<RR8> EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) 		1-85878-488-1 01 1 0601- ● ●
252 PLATE; CAUTION,HARNESS
CAUTIONS CHINESE<SL7> EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) 		1-85878-515-0 01 1 0601- ● ●
252 PLATE; CAUTION,HARNESS
CAUTIONS FRENCH<WJ8> EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) 		1-85878-560-0 01 1 0601- ● ●
252 PLATE; CAUTION,HARNESS
CAUTIONS SPANISH<YN1> EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) 		1-85878-559-0 01 1 0601- ● ●
çizim 24147
181 181
BalonParca AdiParca NoAdetTipApplied Date A B
181 PLATE; CAUTION,AIR CLEANER
CAUTIONS PORTUGUESE<NAT> (B) 		1-85886-884-0 01 1 0308- ● ●
181 PLATE; CAUTION,AIR CLEANER
EXC. CAUTIONS PORTUGUESE<NAT> (A) 		1-85886-796-1 01 1 0308- ● ●

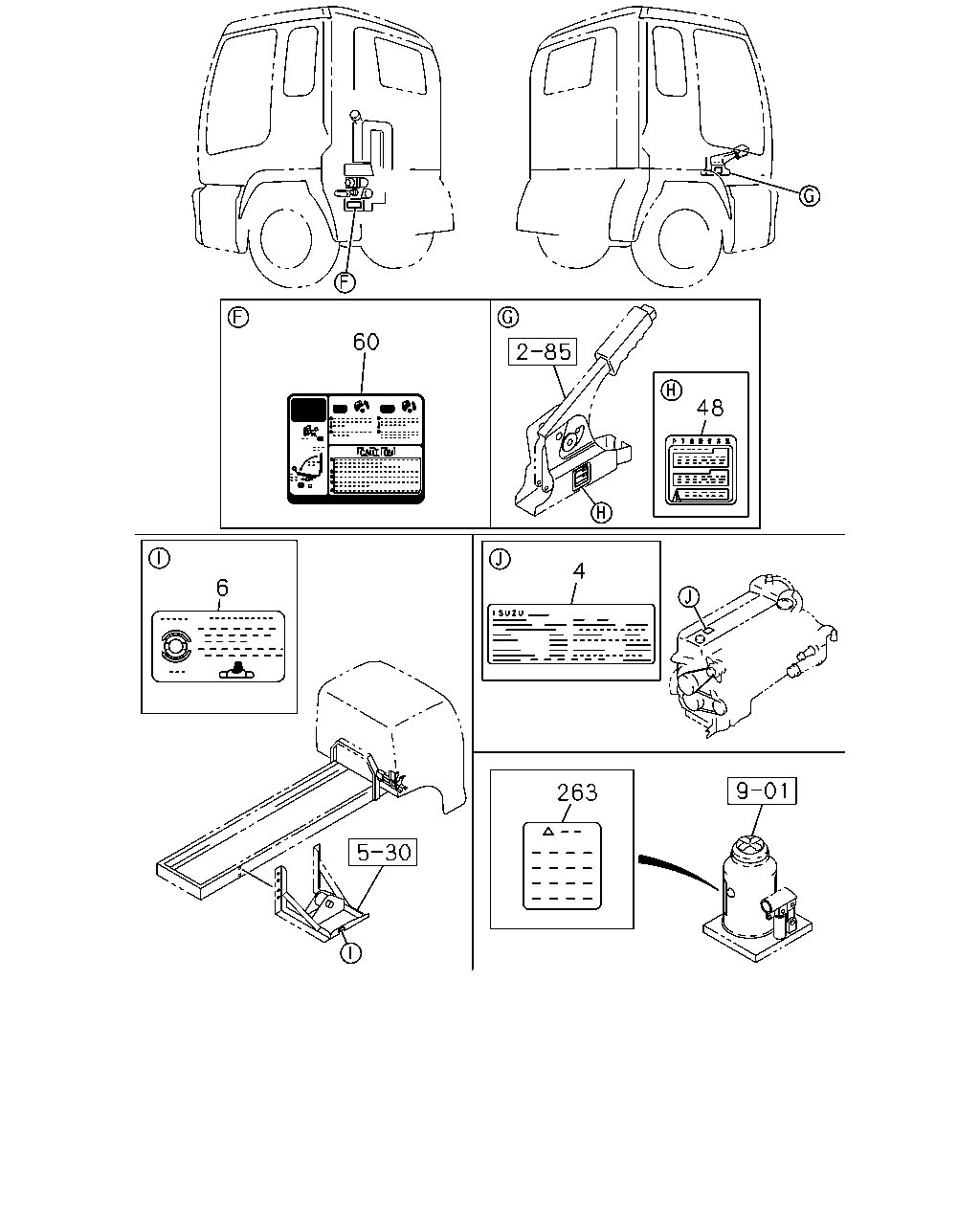

çizim 83997
60 48 4 6 263
BalonParca AdiParca NoAdetTipApplied Date A B
4 LABEL; ENG MAINTENANCE 1-85875-174-0 01 1 0308- ● ●
6 PLATE; CAUTION,SPARE TIRE
CAUTIONS PORTUGUESE<NAT> SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. WHEEL 10STUD 9.00X22.5 168-14(NJT) 		1-53639-045-0 01 1 0308- ● ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS ARABIAN<WJ7> EXC. WHEEL 10STUD 9.00X22.5 168-14(NJT) 		1-85883-114-0 01 1 0308- ● ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS CHINESE<SL7> EXC. WHEEL 10STUD 9.00X22.5 168-14(NJT) 		1-85883-113-0 01 1 0308- ● ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS FRENCH<WJ8> EXC. WHEEL 10STUD 9.00X22.5 168-14(NJT) 		1-85883-108-0 01 1 0308- ● ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. CAUTIONS PORTUGUESE<NAT>,WHEEL 10STUD 9.00X22.5 168-14(NJT),CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1> 		1-53639-004-0 01 1 0308- ● ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS SPANISH<YN1> EXC. WHEEL 10STUD 9.00X22.5 168-14(NJT) 		1-53639-005-0 01 1 0308- ● ●
6 PLATE; CAUTION,SPARE TIRE
TIRE FRT 315/80R RR 295/80R RIB(5A2) CAUTIONS PORTUGUESE<NAT> SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> 		1-53639-045-0 02 1 0308- ● ●
6 PLATE; CAUTION,SPARE TIRE
TIRE FRT 315/80R RR 295/80R RIB(5A2) SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>,CAUTI ONS SPANISH<YN1> 		1-53639-004-0 02 1 0308- ● ●
6 PLATE; CAUTION,SPARE TIRE
TIRE FRT 315/80R RR 295/80R RIB(5A2) SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS SPANISH<YN1> 		1-53639-005-0 02 1 0308- ● ●
6 PLATE; CAUTION,SPARE TIRE
TIRE FRT 315/80R RR 295/80R RIB(5A2) SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS FRENCH<WJ8> 		1-85883-108-0 02 1 0308- ● ●
6 PLATE; CAUTION,SPARE TIRE
TIRE FRT 315/80R RR 295/80R RIB(5A2) SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS CHINESE<SL7> 		1-85883-113-0 02 1 0308- ● ●
6 PLATE; CAUTION,SPARE TIRE
TIRE FRT 315/80R RR 295/80R RIB(5A2) SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS ARABIAN<WJ7> 		1-85883-114-0 02 1 0308- ● ●
48 PLATE; CAUTION,PTO
DUMP CONTROL LEVER<RC4> 		1-85881-254-0 01 1 0308-0404 ● ●
60 PLATE; CAUTION,CAB TILT
CAUTIONS ARABIAN<WJ7> 		1-85883-181-0 01 1 0308- ● ●
60 PLATE; CAUTION,CAB TILT
CAUTIONS CHINESE<SL7> 		1-85883-175-0 01 1 0308- ● ●
60 PLATE; CAUTION,CAB TILT
CAUTIONS FRENCH<WJ8> 		1-85883-176-0 01 1 0308- ● ●
60 PLATE; CAUTION,CAB TILT
CAUTIONS PORTUGUESE<NAT> 		1-85883-182-0 01 1 0308- ● ●
60 PLATE; CAUTION,CAB TILT
EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1> 		1-85883-174-0 01 1 0308- ● ●
60 PLATE; CAUTION,CAB TILT
CAUTIONS SPANISH<YN1> 		1-85883-177-0 01 1 0308- ● ●
263 PLATE; CAUTION,JACK
TOOL B KIT<SL1> 		1-85881-878-0 01 1 0411- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
