0-28B — VENTILATION SYSTEM (#2597) — 19 parça

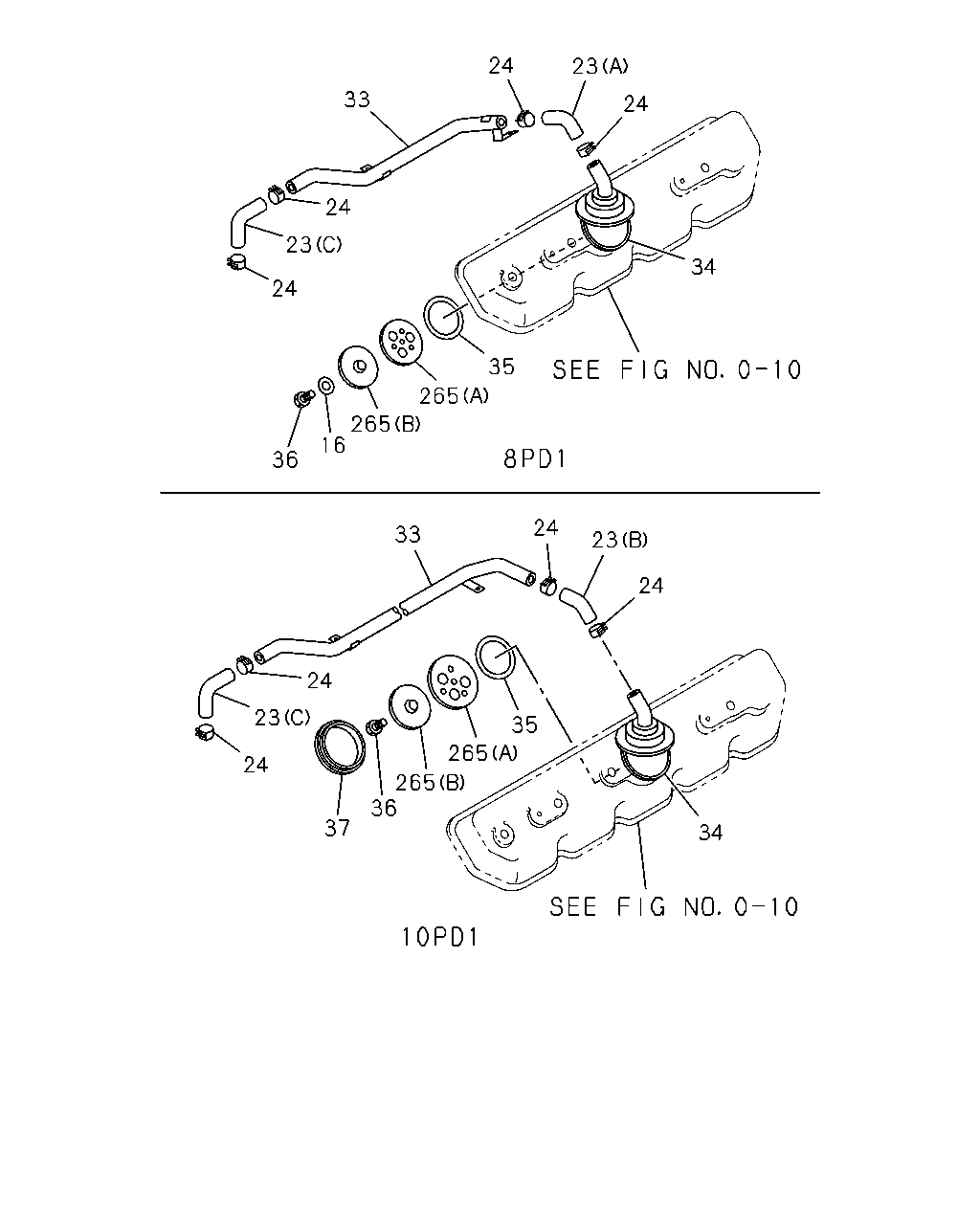

çizim 93939
23 24 24 33 24 23 24 34 35 265 265 16 36 24 23 24 33 24 23 24 37 36 265 265 35 34
BalonParca AdiParca NoAdetTipApplied Date A B
16 WASHER; LK,BREATHER
ID=6.1 		9-09150-506-0 04 1 9307- ●
23 HOSE; RUBBER,VENTILATOR PIPE
(B) 		1-09360-775-1 01 1 9002- ●
23 HOSE; RUBBER,VENTILATOR PIPE
(C) 		1-09360-831-0 01 1 9002- ● ●
23 HOSE; RUBBER,VENTILATOR PIPE
(A) 		1-09360-810-1 01 1 9307- ●
24 CLIP; RUBBER HOSE,VENTILATOR
ID=20 		1-09707-084-1 04 1 9002- ●
24 CLIP; RUBBER HOSE,VENTILATOR
ID=26 		1-09707-091-0 04 1 9307- ●
33 PIPE; VENTILATOR 1-14236-084-4 01 1 9002- ●
33 PIPE; VENTILATOR 1-14236-085-4 01 1 9307- ●
34 VENTILATOR 1-14360-043-2 01 1 9002-9602 ● ●
34 VENTILATOR 1-14360-052-0 01 1 9603- ● ●
35 GASKET; VENTILATOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-09623-418-0 01 1 9002- ● ●
36 BOLT; VENTILATOR
M6X12 		9-02050-612-0 04 1 9002-9005 ●
36 BOLT; VENTILATOR
M6X12 		0-20800-612-0 04 1 9006-9504 ● ●
36 BOLT; VENTILATOR
EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> M6X12 		0-20800-612-0 04 1 9505- ●
36 BOLT; VENTILATOR
M6X12 		0-20800-612-0 04 1 9505- ●
36 BOLT; VENTILATOR
EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> M6X12 FLANGE 		0-28080-612-0 04 1 9505- ●
37 GROMMET; BREATHER,HD COVER
EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> 		1-09333-132-0 01 1 9411- ●
265 PLATE; BAFFLE HD COVER
(A) OD=75 		1-14369-051-0 01 1 9002- ● ●
265 PLATE; BAFFLE HD COVER
(B) OD=92 		1-14369-052-0 01 1 9002- ● ●
