◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10929 - CXZ RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-78 - FLOOR HOLE PLUG ▶
6-78 — FLOOR HOLE PLUG (#25968) — 13 parça

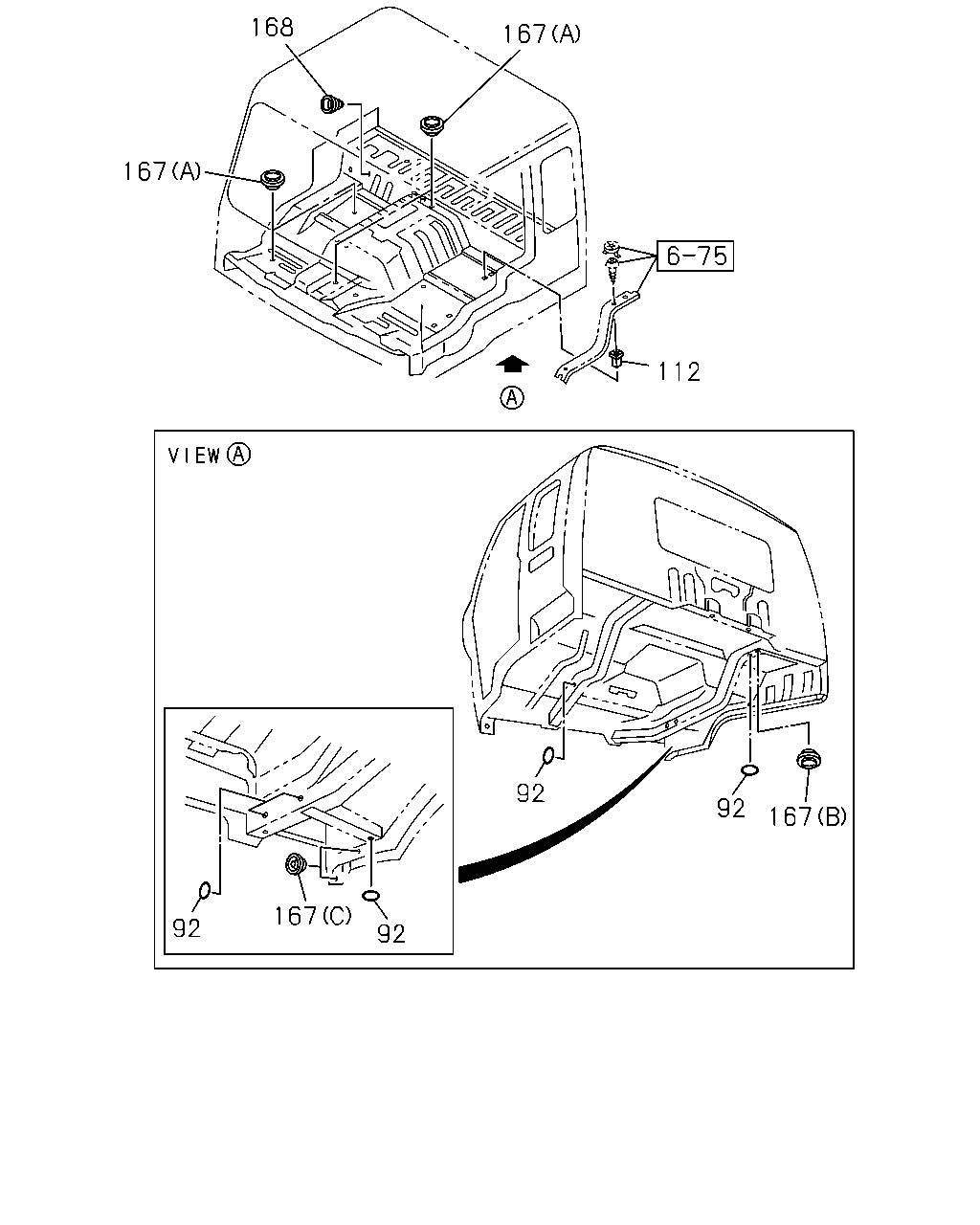

çizim 82986
168 167 167 112 92 92 167 167 92 92
BalonParca AdiParca NoAdetTipApplied Date A B
92 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 03 1 0308- ● ●
92 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 07 1 0308- ● ●
92 SEAL; LOCATION HOLE
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 02 1 0308- ● ●
92 SEAL; LOCATION HOLE
EXC. BAGGAGE BOX CAB RR SIDE<TBM> OD=25 BLACK 		1-76798-019-0 01 1 0308- ● ●
112 GROMMET; SCREW,TRIM COVER
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 08 1 0308- ● ●
167 GROMMET; LOCATION HOLE
(A) OD=23.5 		1-09983-101-0 04 1 0401- ● ●
167 GROMMET; LOCATION HOLE
(A) OD=23.5 		1-09983-101-0 02 1 0308-0312 ● ●
167 GROMMET; LOCATION HOLE
(A) OD=23.5 		1-09983-101-0 06 1 0401-0401 ● ●
167 GROMMET; LOCATION HOLE
(A) OD=23.5 		1-09983-101-0 02 1 0401- ● ●
167 GROMMET; LOCATION HOLE
(A) OD=23.5 		1-09983-101-0 04 1 0308-0312 ● ●
167 GROMMET; LOCATION HOLE
(B) OD=35 		8-94122-971-0 06 1 0308- ● ●
167 GROMMET; LOCATION HOLE
(C) OD=15.0 		8-94279-040-0 02 1 0308- ● ●
168 COVER; HOLE,ANNTENA CABLE 1-79998-891-1 01 1 0308- ● ●
