◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10929 - CXZ RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-60 - ROOF PANEL ▶
6-60 — ROOF PANEL (#25963) — 27 parça

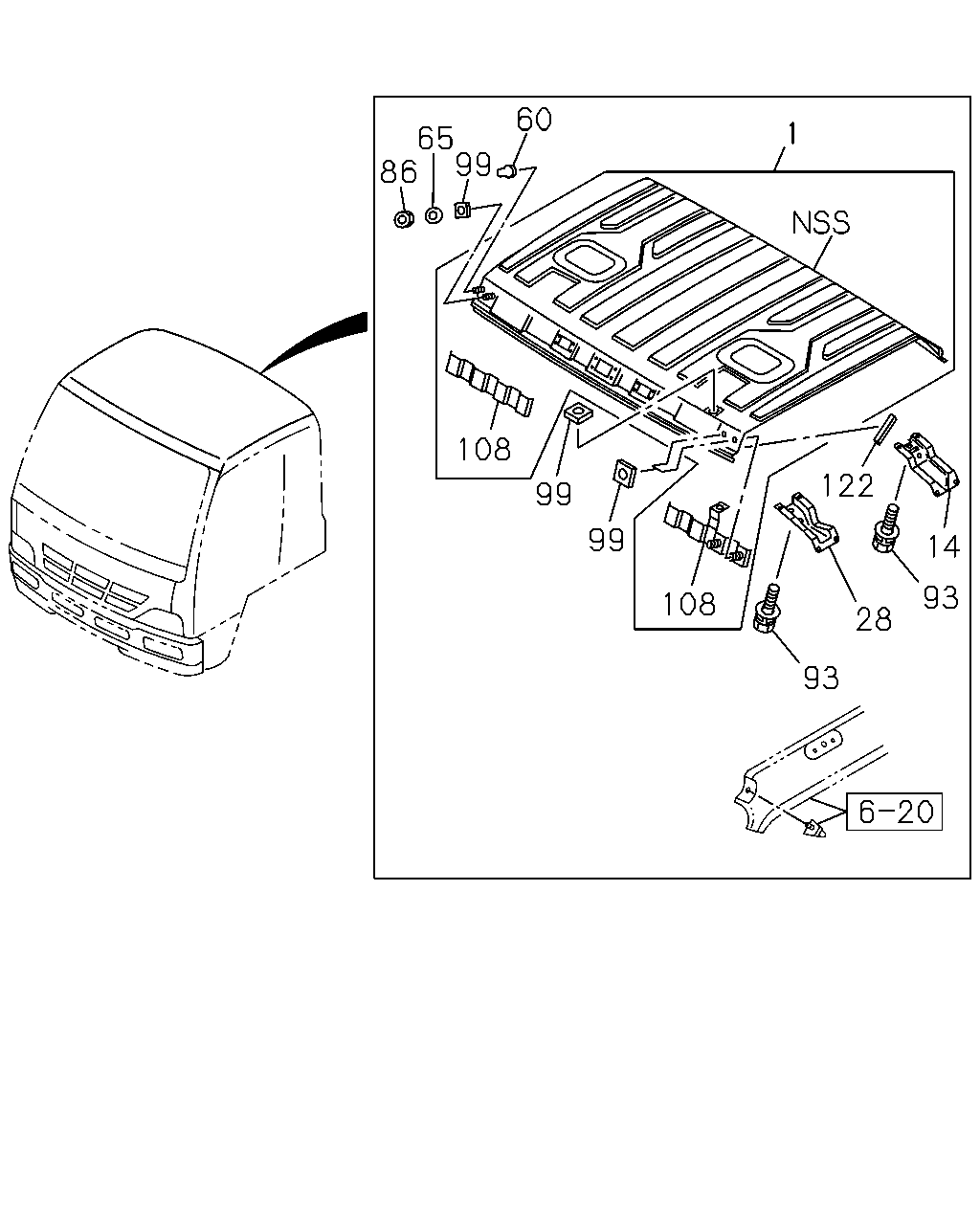

çizim 82925
60 1 65 99 86 108 122 99 99 14 93 108 28 93
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; ROOF 1-61170-848-0 01 1 0308- ● ●
14 SUPPORT; ROOF 1-73318-595-3 02 1 0308- ● ●
28 SUPPORT; ROOF FRT 1-73317-302-1 01 1 0308- ● ●
28 SUPPORT; ROOF FRT 1-73317-301-1 01 1 0308- ● ●
60 COVER; ROOF 1-79998-922-3 02 1 0308-0512 ● ●
60 COVER; ROOF
EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> 		1-79998-922-3 02 1 0601- ● ●
60 COVER; ROOF
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> 		1-79998-922-3 03 1 0308-0512 ● ●
60 COVER; ROOF
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> 		1-79998-922-3 05 1 0601- ● ●
65 WASHER; PL
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> ID=8 T=2.3 		8-94368-403-1 01 1 0308- ● ●
65 WASHER; PL
ID=8 T=2.3 		8-94368-403-1 01 1 0308- ● ●
86 NUT; ROOF
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M8 LOCK NUT 		9-09131-508-0 01 1 0308-0603 ● ●
86 NUT; ROOF
M8 LOCK NUT 		9-09131-508-0 01 1 0308-0603 ● ●
86 NUT; ROOF
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M8 LOCK NUT 		0-91370-008-0 01 1 0604- ● ●
86 NUT; ROOF
M8 LOCK NUT 		0-91370-008-0 01 1 0604- ● ●
93 BOLT; SUPPORT
M6X12 W/LK&PL WASHER 		8-94279-200-0 20 1 0308- ● ●
99 SEAL; BODY,METAL
30X30 ID=20 T=0.7 		1-61281-380-1 04 1 0308- ● ●
99 SEAL; BODY,METAL
30X30 ID=20 T=0.7 		1-61281-380-1 10 1 0308- ● ●
99 SEAL; BODY,METAL
14X14 ID=10 T=0.7 		1-61281-427-0 04 1 0308-0403 ● ●
99 SEAL; BODY,METAL
14X14 ID=10 T=0.7 		1-61281-427-0 04 1 0308-0403 ● ●
99 SEAL; BODY,METAL
14X14 ID=10 T=0.7 		1-61281-427-0 04 1 0404- ● ●
99 SEAL; BODY,METAL
30X30 ID=9 T=0.7 		1-61281-444-0 01 1 0308- ● ●
99 SEAL; BODY,METAL
55X55 ID=42 T=0.7 		1-61281-445-0 02 1 0308- ● ●
99 SEAL; BODY,METAL
14X14 ID=10 T=0.7 		1-61281-427-0 02 1 0308-0403 ● ●
99 SEAL; BODY,METAL
14X14 ID=10 T=0.7 		1-61281-427-0 02 1 0404- ● ●
108 PATCH; MIRROR 1-61170-438-6 01 1 0308- ● ●
108 PATCH; MIRROR 1-61170-857-2 01 1 0308- ● ●
122 SEAL; FRT UPR 1-61270-919-0 02 1 0308- ● ●
