Sayfa 6-47 - Isuzu EPC

6-47 — MUD GUARD AND INSULATOR (#25962) — 262 parça

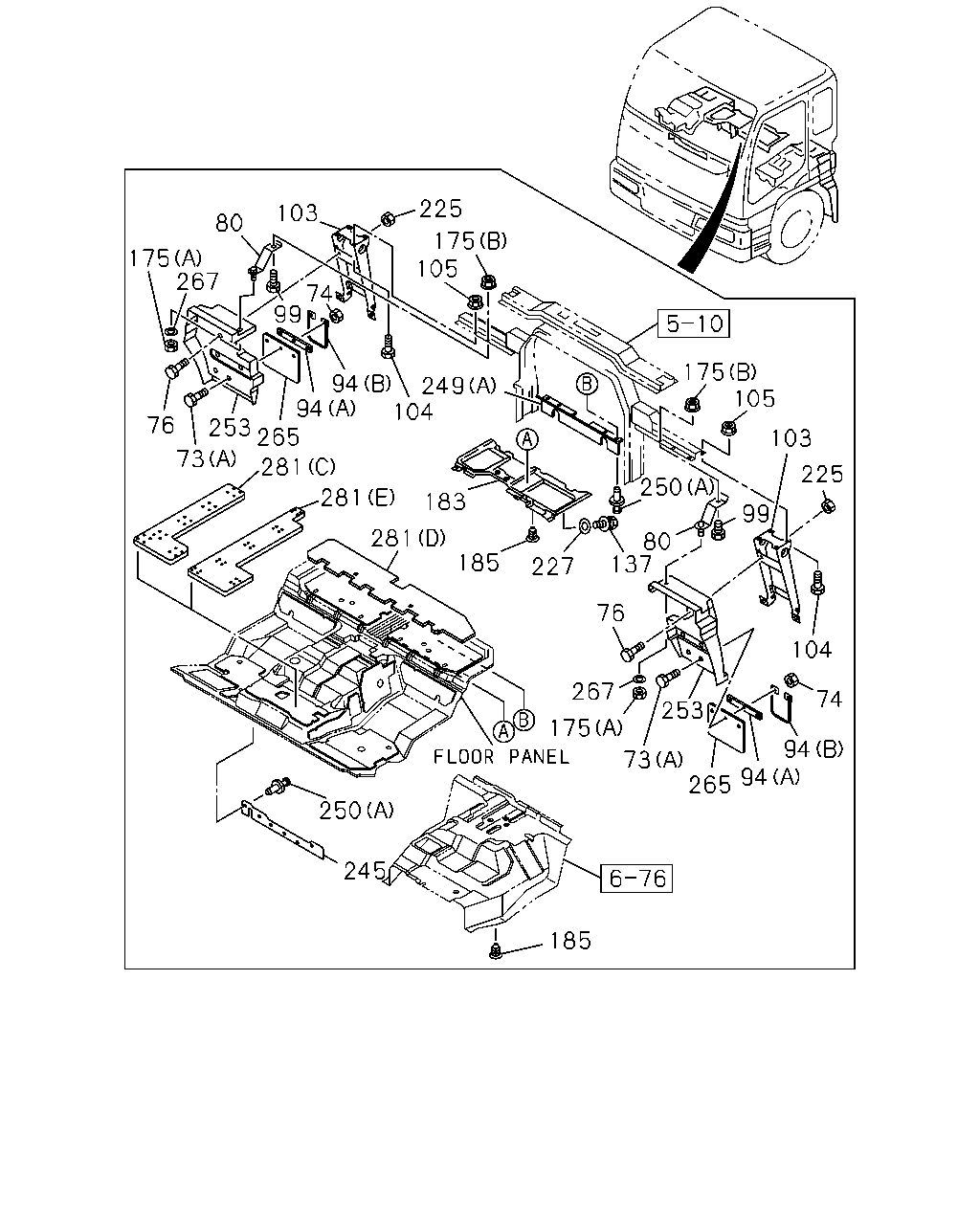

225 103 80 175 105 175 267 74 99 175 105 94 249 94 104 253 265 76 103 73 281 225 250 281 183 99 281 80 137 185 227 76 104 267 74 253 175 94 94 73 265 250 245 185

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
73	BOLT; MUD COVER BRKT (A) M8X25 W/LK&PL WASHER	1-09030-074-0	06	1	0308-	●	●
73	BOLT; MUD COVER BRKT CAB UP +110MM<TGG>,CAB UP +50MM<W60> (B) M8X16 FLANGE	0-28280-816-0	05	1	0308-0512	●	●
73	BOLT; MUD COVER BRKT CAB UP +110MM<TGG>,CAB UP +50MM<W60> (B) M8X16 FLANGE	0-28250-816-0	05	1	0601-	●	●
74	NUT M8 FLANGE	0-91150-108-0	06	1	0308-0602	●	●
74	NUT M8 FLANGE	0-91180-108-0	06	1	0603-	●	●
74	NUT CAB UP +110MM<TGG>,CAB UP +50MM<W60> M8 FLANGE	0-91150-108-0	01	1	0308-0602	●	●
74	NUT CAB UP +110MM<TGG>,CAB UP +50MM<W60> M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
76	BOLT; MUD GUARD M8X25 W/LK&PL WASHER	1-09030-074-0	08	1	0308-	●	●
76	BOLT; MUD GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0308-	●	●
76	BOLT; MUD GUARD M8X30 W/LK&PL WASHER	8-94279-210-0	06	1	0308-	●	●
80	BRACKET; MUD GUARD STAY	1-79931-159-1	02	1	0308-	●	●
94	RETAINER; FLAP RUBBER (A)	1-79931-091-2	02	1	0308-	●	●
94	RETAINER; FLAP RUBBER (B)	1-79931-194-0	02	1	0308-	●	●
99	BOLT; STAY TO MUD GUARD M10X25 FLANGE	0-28681-025-0	02	1	0308-0512	●	●
99	BOLT; STAY TO MUD GUARD M10X25 FLANGE	0-28651-025-0	02	1	0601-	●	●
103	BRACKET ASM; RR MUD FLAP	1-79931-307-1	02	1	0308-	●	●
104	BOLT; BRKT M10X25 FLANGE	0-28681-025-0	08	1	0308-0512	●	●
104	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	08	1	0601-	●	●
105	NUT; BRKT M10 FLANGE	0-91150-210-0	08	1	0308-0602	●	●
105	NUT; BRKT M10 FLANGE	0-91180-210-0	08	1	0603-	●	●
137	BOLT M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0308-	●	●
175	NUT; STAY FIX (A) M8 FLANGE	0-91150-108-0	02	1	0308-0602	●	●
175	NUT; STAY FIX (A) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
175	NUT; STAY FIX (B) M10 FLANGE	0-91150-210-0	02	1	0308-0602	●	●
175	NUT; STAY FIX (B) M10 FLANGE	0-91180-210-0	02	1	0603-	●	●
183	INSULATOR; HEAT,BED PAN	1-71907-526-4	01	1	0308-	●	●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	06	1	0401-	●	●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	06	1	0308-0312	●	●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	06	1	0308-0312	●	●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	05	1	0401-	●	●
185	CLIP; HEAT INSULATOR CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	20	1	0308-0312	●	●
185	CLIP; HEAT INSULATOR CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	29	1	0401-	●	●
185	CLIP; HEAT INSULATOR CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	09	1	0308-0312	●	●
185	CLIP; HEAT INSULATOR EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	12	1	0308-0312	●	●
185	CLIP; HEAT INSULATOR EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	17	1	0401-	●	●
185	CLIP; HEAT INSULATOR EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	05	1	0308-0312	●	●
225	NUT; MUD GUARD M8 FLANGE	0-91150-108-0	08	1	0308-0602	●	●
225	NUT; MUD GUARD M8 FLANGE	0-91180-108-0	08	1	0603-	●	●
227	SEAL; MUD GUARD T=2.0	8-94279-641-0	01	1	0308-	●	●
245	RUBBER; SHUTTER,RAD	1-79937-982-1	01	1	0308-	●	●
249	RUBBER; SHUTTER (A)	1-79937-924-2	01	1	0308-	●	●
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (D)	1-79937-966-2	01	1	0308-	●	●
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (E)	1-79937-967-1	01	1	0308-	●	●
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (C)	1-79937-981-1	01	1	0308-	●	●
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (D)	1-79937-965-1	01	1	0308-	●	●
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (B)	1-79937-979-1	01	1	0308-	●	●
249	RUBBER; SHUTTER EXC. CAB UP +110MM<TGG> (B)	1-79937-902-3	01	1	0308-	●	●
249	RUBBER; SHUTTER EXC. CAB UP +110MM<TGG> (C)	1-79937-975-1	01	1	0308-	●	●
250	FASTENER; SHUTTER (A) D6X16 PUSH RIVET	1-09983-105-0	06	1	0308-	●	●
250	FASTENER; SHUTTER (A) D6X16 PUSH RIVET	1-09983-105-0	07	1	0308-	●	●
250	FASTENER; SHUTTER (C) D8X13.5	1-09987-248-1	01	1	0308-	●	●
250	FASTENER; SHUTTER (B) D8X13.5	1-09987-248-1	05	1	0308-	●	●
250	FASTENER; SHUTTER CAB UP +110MM<TGG> (B) D8X13.5	1-09987-248-1	04	1	0308-	●	●
250	FASTENER; SHUTTER EXC. CAB UP +110MM<TGG> (B) D6X20	8-94361-318-0	04	1	0308-0312	●	●
250	FASTENER; SHUTTER EXC. CAB UP +110MM<TGG> (B) D6X20	8-94361-318-0	04	1	0401-	●	●
253	GUARD; MUD	1-79931-066-7	01	1	0308-	●	●
253	GUARD; MUD	1-79931-064-7	01	1	0308-	●	●
265	RUBBER; FLAP,REAR	1-79930-978-0	02	1	0308-	●	●
267	WASHER; PL,STAY ID=8.4 OD=26	9-09164-808-0	02	1	0308-0605	●	●
267	WASHER; PL,STAY ID=8.4 OD=26	0-91614-808-0	02	1	0606-	●	●
281	INSULATOR; NOISE (A)	1-71907-171-2	01	1	0308-	●	●
281	INSULATOR; NOISE (A)	1-71907-170-1	01	1	0308-	●	●
281	INSULATOR; NOISE CAB UP +110MM<TGG> (B)	1-71907-455-0	01	1	0308-	●	●
281	INSULATOR; NOISE EXC. CAB UP +110MM<TGG> (B)	1-71907-307-0	01	1	0308-	●	●
281	INSULATOR; NOISE EXC. CENTER SEAT DELETE(SP9) (C)	1-73237-541-3	01	1	0308-0408	●	●
281	INSULATOR; NOISE EXC. CENTER SEAT DELETE(SP9) (E)	1-73237-895-2	01	1	0409-	●	●
281	INSULATOR; NOISE MATTRESS SLEEPER CAB<E40> (D)	1-73237-445-4	01	1	0308-	●	●

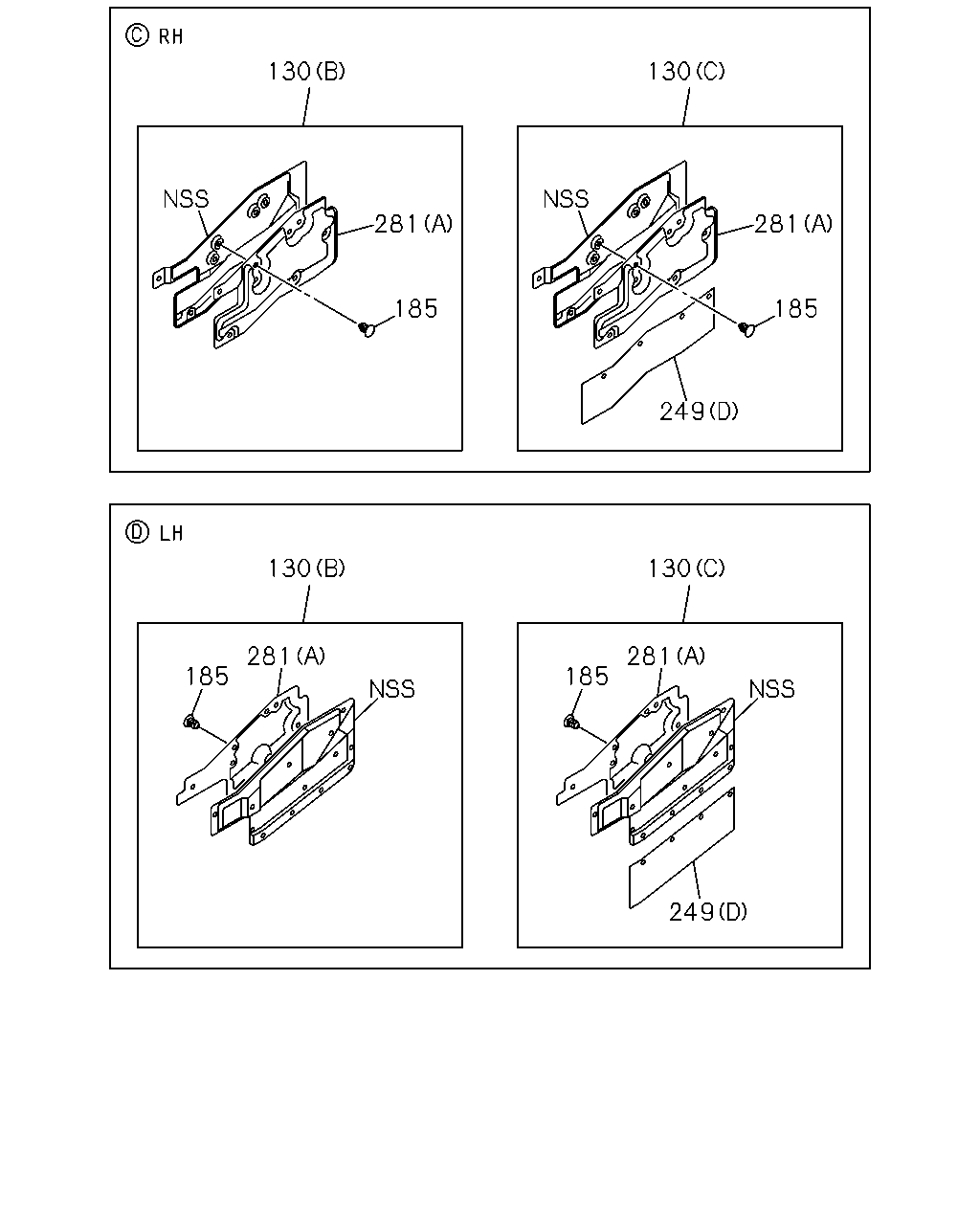

130 130 185 281 185 130 130 281 281 185 185 249

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
130	PANEL; SHUTTER NOISE (D)	1-79937-919-3	01	1	0308-	●	●
130	PANEL; SHUTTER NOISE CAB UP +110MM<TGG> (A)	1-53194-376-0	01	1	0308-	●	●
130	PANEL; SHUTTER NOISE CAB UP +110MM<TGG> (C)	1-79937-960-4	01	1	0308-	●	●
130	PANEL; SHUTTER NOISE CAB UP +110MM<TGG> (F)	1-79937-969-3	01	1	0308-	●	●
130	PANEL; SHUTTER NOISE CAB UP +110MM<TGG> (A)	1-53194-380-2	01	1	0308-	●	●
130	PANEL; SHUTTER NOISE CAB UP +110MM<TGG> (C)	1-79937-959-2	01	1	0308-	●	●
130	PANEL; SHUTTER NOISE EXC. CAB UP +110MM<TGG> (B)	1-79937-916-4	01	1	0308-	●	●
130	PANEL; SHUTTER NOISE EXC. CAB UP +110MM<TGG> (E)	1-79937-928-3	01	1	0308-	●	●
130	PANEL; SHUTTER NOISE EXC. CAB UP +110MM<TGG> (B)	1-79937-915-3	01	1	0308-	●	●
130	PANEL; SHUTTER NOISE CAB UP +50MM<W60> (A)	1-53194-329-0	01	1	0308-	●	●
130	PANEL; SHUTTER NOISE CAB UP +50MM<W60> (A)	1-53194-332-2	01	1	0308-	●	●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	06	1	0401-	●	●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	06	1	0308-0312	●	●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	06	1	0308-0312	●	●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	05	1	0401-	●	●
185	CLIP; HEAT INSULATOR CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	20	1	0308-0312	●	●
185	CLIP; HEAT INSULATOR CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	29	1	0401-	●	●
185	CLIP; HEAT INSULATOR CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	09	1	0308-0312	●	●
185	CLIP; HEAT INSULATOR EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	12	1	0308-0312	●	●
185	CLIP; HEAT INSULATOR EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	17	1	0401-	●	●
185	CLIP; HEAT INSULATOR EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	05	1	0308-0312	●	●
249	RUBBER; SHUTTER (A)	1-79937-924-2	01	1	0308-	●	●
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (D)	1-79937-966-2	01	1	0308-	●	●
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (E)	1-79937-967-1	01	1	0308-	●	●
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (C)	1-79937-981-1	01	1	0308-	●	●
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (D)	1-79937-965-1	01	1	0308-	●	●
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (B)	1-79937-979-1	01	1	0308-	●	●
249	RUBBER; SHUTTER EXC. CAB UP +110MM<TGG> (B)	1-79937-902-3	01	1	0308-	●	●
249	RUBBER; SHUTTER EXC. CAB UP +110MM<TGG> (C)	1-79937-975-1	01	1	0308-	●	●
281	INSULATOR; NOISE (A)	1-71907-171-2	01	1	0308-	●	●
281	INSULATOR; NOISE (A)	1-71907-170-1	01	1	0308-	●	●
281	INSULATOR; NOISE CAB UP +110MM<TGG> (B)	1-71907-455-0	01	1	0308-	●	●
281	INSULATOR; NOISE EXC. CAB UP +110MM<TGG> (B)	1-71907-307-0	01	1	0308-	●	●
281	INSULATOR; NOISE EXC. CENTER SEAT DELETE(SP9) (C)	1-73237-541-3	01	1	0308-0408	●	●
281	INSULATOR; NOISE EXC. CENTER SEAT DELETE(SP9) (E)	1-73237-895-2	01	1	0409-	●	●
281	INSULATOR; NOISE MATTRESS SLEEPER CAB<E40> (D)	1-73237-445-4	01	1	0308-	●	●

130 130 281 281 185 185 249 130 130 281 281 185 185 249

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
130	PANEL; SHUTTER NOISE (D)	1-79937-919-3	01	1	0308-	●	●
130	PANEL; SHUTTER NOISE CAB UP +110MM<TGG> (A)	1-53194-376-0	01	1	0308-	●	●
130	PANEL; SHUTTER NOISE CAB UP +110MM<TGG> (C)	1-79937-960-4	01	1	0308-	●	●
130	PANEL; SHUTTER NOISE CAB UP +110MM<TGG> (F)	1-79937-969-3	01	1	0308-	●	●
130	PANEL; SHUTTER NOISE CAB UP +110MM<TGG> (A)	1-53194-380-2	01	1	0308-	●	●
130	PANEL; SHUTTER NOISE CAB UP +110MM<TGG> (C)	1-79937-959-2	01	1	0308-	●	●
130	PANEL; SHUTTER NOISE EXC. CAB UP +110MM<TGG> (B)	1-79937-916-4	01	1	0308-	●	●
130	PANEL; SHUTTER NOISE EXC. CAB UP +110MM<TGG> (E)	1-79937-928-3	01	1	0308-	●	●
130	PANEL; SHUTTER NOISE EXC. CAB UP +110MM<TGG> (B)	1-79937-915-3	01	1	0308-	●	●
130	PANEL; SHUTTER NOISE CAB UP +50MM<W60> (A)	1-53194-329-0	01	1	0308-	●	●
130	PANEL; SHUTTER NOISE CAB UP +50MM<W60> (A)	1-53194-332-2	01	1	0308-	●	●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	06	1	0401-	●	●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	06	1	0308-0312	●	●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	06	1	0308-0312	●	●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	05	1	0401-	●	●
185	CLIP; HEAT INSULATOR CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	20	1	0308-0312	●	●
185	CLIP; HEAT INSULATOR CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	29	1	0401-	●	●
185	CLIP; HEAT INSULATOR CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	09	1	0308-0312	●	●
185	CLIP; HEAT INSULATOR EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	12	1	0308-0312	●	●
185	CLIP; HEAT INSULATOR EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	17	1	0401-	●	●
185	CLIP; HEAT INSULATOR EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	05	1	0308-0312	●	●
249	RUBBER; SHUTTER (A)	1-79937-924-2	01	1	0308-	●	●
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (D)	1-79937-966-2	01	1	0308-	●	●
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (E)	1-79937-967-1	01	1	0308-	●	●
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (C)	1-79937-981-1	01	1	0308-	●	●
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (D)	1-79937-965-1	01	1	0308-	●	●
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (B)	1-79937-979-1	01	1	0308-	●	●
249	RUBBER; SHUTTER EXC. CAB UP +110MM<TGG> (B)	1-79937-902-3	01	1	0308-	●	●
249	RUBBER; SHUTTER EXC. CAB UP +110MM<TGG> (C)	1-79937-975-1	01	1	0308-	●	●
281	INSULATOR; NOISE (A)	1-71907-171-2	01	1	0308-	●	●
281	INSULATOR; NOISE (A)	1-71907-170-1	01	1	0308-	●	●
281	INSULATOR; NOISE CAB UP +110MM<TGG> (B)	1-71907-455-0	01	1	0308-	●	●
281	INSULATOR; NOISE EXC. CAB UP +110MM<TGG> (B)	1-71907-307-0	01	1	0308-	●	●
281	INSULATOR; NOISE EXC. CENTER SEAT DELETE(SP9) (C)	1-73237-541-3	01	1	0308-0408	●	●
281	INSULATOR; NOISE EXC. CENTER SEAT DELETE(SP9) (E)	1-73237-895-2	01	1	0409-	●	●
281	INSULATOR; NOISE MATTRESS SLEEPER CAB<E40> (D)	1-73237-445-4	01	1	0308-	●	●

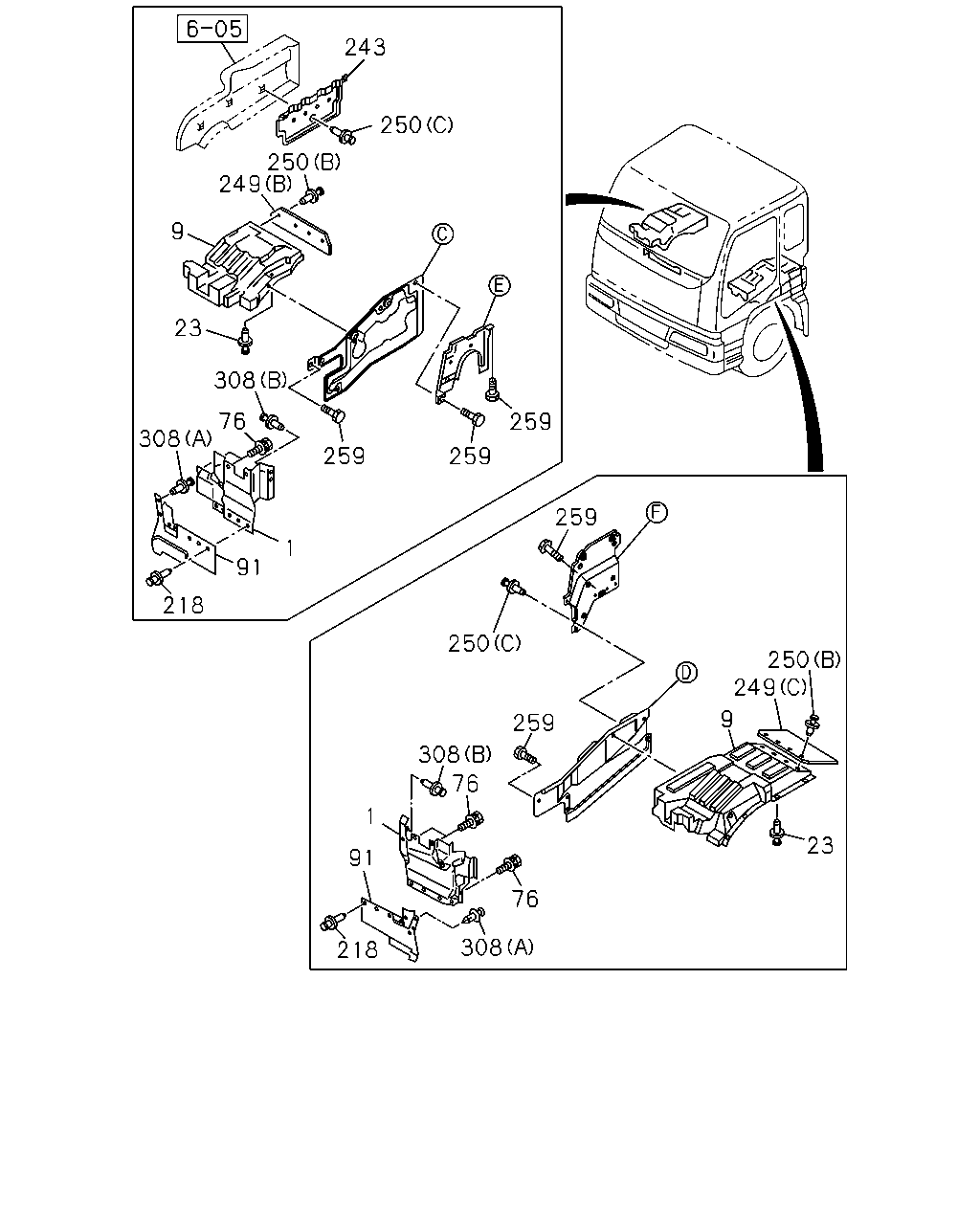

243 250 250 249 9 23 308 76 259 308 259 259 259 1 91 218 250 250 249 9 259 308 76 1 23 91 76 308 218

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GUARD; MUD,FRT	1-79937-894-6	01	1	0308-	●	●
1	GUARD; MUD,FRT	1-79937-895-5	01	1	0308-	●	●
9	GUARD; SPLASH,WHEEL HOUSE	1-79937-908-4	01	1	0308-	●	●
9	GUARD; SPLASH,WHEEL HOUSE	1-79937-907-4	01	1	0308-	●	●
23	FASTENER; MUD COVER D8X13.5	1-09987-248-1	21	1	0308-	●	●
76	BOLT; MUD GUARD M8X25 W/LK&PL WASHER	1-09030-074-0	08	1	0308-	●	●
76	BOLT; MUD GUARD M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0308-	●	●
76	BOLT; MUD GUARD M8X30 W/LK&PL WASHER	8-94279-210-0	06	1	0308-	●	●
91	COVER; MUD,FRT CAB UP +110MM<TGG>	1-79931-204-1	01	1	0308-0312	●	●
91	COVER; MUD,FRT	1-79931-204-1	01	1	0401-0403	●	●
91	COVER; MUD,FRT CAB UP +110MM<TGG>	1-79931-204-1	01	1	0404-	●	●
91	COVER; MUD,FRT CAB UP +110MM<TGG>	1-79931-203-1	01	1	0308-0312	●	●
91	COVER; MUD,FRT	1-79931-203-1	01	1	0401-0403	●	●
91	COVER; MUD,FRT CAB UP +110MM<TGG>	1-79931-203-1	01	1	0404-	●	●
218	FASTENER; RUBBER ID=6X6 OD=8	1-09987-194-0	08	1	0308-0511	●	●
218	FASTENER; RUBBER D8X13.5	1-09987-248-1	08	1	0512-	●	●
243	PROTECTOR; NOISE SHUT PANEL	1-79937-906-2	01	1	0308-	●	●
249	RUBBER; SHUTTER (A)	1-79937-924-2	01	1	0308-	●	●
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (D)	1-79937-966-2	01	1	0308-	●	●
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (E)	1-79937-967-1	01	1	0308-	●	●
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (C)	1-79937-981-1	01	1	0308-	●	●
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (D)	1-79937-965-1	01	1	0308-	●	●
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (B)	1-79937-979-1	01	1	0308-	●	●
249	RUBBER; SHUTTER EXC. CAB UP +110MM<TGG> (B)	1-79937-902-3	01	1	0308-	●	●
249	RUBBER; SHUTTER EXC. CAB UP +110MM<TGG> (C)	1-79937-975-1	01	1	0308-	●	●
250	FASTENER; SHUTTER (A) D6X16 PUSH RIVET	1-09983-105-0	06	1	0308-	●	●
250	FASTENER; SHUTTER (A) D6X16 PUSH RIVET	1-09983-105-0	07	1	0308-	●	●
250	FASTENER; SHUTTER (C) D8X13.5	1-09987-248-1	01	1	0308-	●	●
250	FASTENER; SHUTTER (B) D8X13.5	1-09987-248-1	05	1	0308-	●	●
250	FASTENER; SHUTTER CAB UP +110MM<TGG> (B) D8X13.5	1-09987-248-1	04	1	0308-	●	●
250	FASTENER; SHUTTER EXC. CAB UP +110MM<TGG> (B) D6X20	8-94361-318-0	04	1	0308-0312	●	●
250	FASTENER; SHUTTER EXC. CAB UP +110MM<TGG> (B) D6X20	8-94361-318-0	04	1	0401-	●	●
259	BOLT; NOISE PANEL M8X24.5 W/LK&PL WASHER	8-94279-208-0	12	1	0308-	●	●
308	FASTENER; MUD GUARD (A)	1-09470-007-0	08	1	0308-	●	●
308	FASTENER; MUD GUARD (B) ID=6X6 OD=8	1-09987-194-0	02	1	0308-	●	●

130 251 74 130 73 251 251 122 168 167 122 167 162 160 122 162 160 122

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
73	BOLT; MUD COVER BRKT (A) M8X25 W/LK&PL WASHER	1-09030-074-0	06	1	0308-	●	●
73	BOLT; MUD COVER BRKT CAB UP +110MM<TGG>,CAB UP +50MM<W60> (B) M8X16 FLANGE	0-28280-816-0	05	1	0308-0512	●	●
73	BOLT; MUD COVER BRKT CAB UP +110MM<TGG>,CAB UP +50MM<W60> (B) M8X16 FLANGE	0-28250-816-0	05	1	0601-	●	●
74	NUT M8 FLANGE	0-91150-108-0	06	1	0308-0602	●	●
74	NUT M8 FLANGE	0-91180-108-0	06	1	0603-	●	●
74	NUT CAB UP +110MM<TGG>,CAB UP +50MM<W60> M8 FLANGE	0-91150-108-0	01	1	0308-0602	●	●
74	NUT CAB UP +110MM<TGG>,CAB UP +50MM<W60> M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
122	BOLT (A) M8X20 FLANGE	0-28680-820-0	03	1	0308-0512	●	●
122	BOLT (A) M8X20 FLANGE	0-28650-820-0	03	1	0601-	●	●
122	BOLT (B) M8X30 FLANGE	0-28680-830-0	03	1	0308-0512	●	●
122	BOLT (B) M8X30 FLANGE	0-28650-830-0	03	1	0601-	●	●
122	BOLT HONG KONG EQUIPMENT(PQ1) ANTI NOISE EQUIPMENT<SV9> (C) M8X35 FLANGE	0-28680-835-0	08	1	0308-0512	●	●
122	BOLT HONG KONG EQUIPMENT(PQ1) ANTI NOISE EQUIPMENT<SV9> (C) M8X35 FLANGE	0-28650-835-0	08	1	0601-	●	●
130	PANEL; SHUTTER NOISE (D)	1-79937-919-3	01	1	0308-	●	●
130	PANEL; SHUTTER NOISE CAB UP +110MM<TGG> (A)	1-53194-376-0	01	1	0308-	●	●
130	PANEL; SHUTTER NOISE CAB UP +110MM<TGG> (C)	1-79937-960-4	01	1	0308-	●	●
130	PANEL; SHUTTER NOISE CAB UP +110MM<TGG> (F)	1-79937-969-3	01	1	0308-	●	●
130	PANEL; SHUTTER NOISE CAB UP +110MM<TGG> (A)	1-53194-380-2	01	1	0308-	●	●
130	PANEL; SHUTTER NOISE CAB UP +110MM<TGG> (C)	1-79937-959-2	01	1	0308-	●	●
130	PANEL; SHUTTER NOISE EXC. CAB UP +110MM<TGG> (B)	1-79937-916-4	01	1	0308-	●	●
130	PANEL; SHUTTER NOISE EXC. CAB UP +110MM<TGG> (E)	1-79937-928-3	01	1	0308-	●	●
130	PANEL; SHUTTER NOISE EXC. CAB UP +110MM<TGG> (B)	1-79937-915-3	01	1	0308-	●	●
130	PANEL; SHUTTER NOISE CAB UP +50MM<W60> (A)	1-53194-329-0	01	1	0308-	●	●
130	PANEL; SHUTTER NOISE CAB UP +50MM<W60> (A)	1-53194-332-2	01	1	0308-	●	●
160	COVER ASM; EXH (A)	1-79931-408-4	01	1	0308-	●	●
160	COVER ASM; EXH (B)	1-79931-412-1	01	1	0308-	●	●
162	BRACKET (A)	1-53441-520-0	02	1	0308-	●	●
162	BRACKET (B)	1-53441-521-2	01	1	0308-	●	●
162	BRACKET (C)	1-53441-522-0	01	1	0308-	●	●
167	BOLT; EXH COVER M8X20 FLANGE	0-28680-820-0	05	1	0308-0512	●	●
167	BOLT; EXH COVER M8X20 FLANGE	0-28650-820-0	05	1	0601-	●	●
168	NUT; EXH COVER M8 FLANGE	0-91150-108-0	01	1	0308-0602	●	●
168	NUT; EXH COVER M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
251	CLIP; NOISE INSULATOR CAB UP +110MM<TGG>,CAB UP +50MM<W60> (A)	8-94165-394-0	09	1	0308-	●	●
251	CLIP; NOISE INSULATOR CAB UP +110MM<TGG>,CAB UP +50MM<W60> (B)	8-94279-048-0	05	1	0308-	●	●

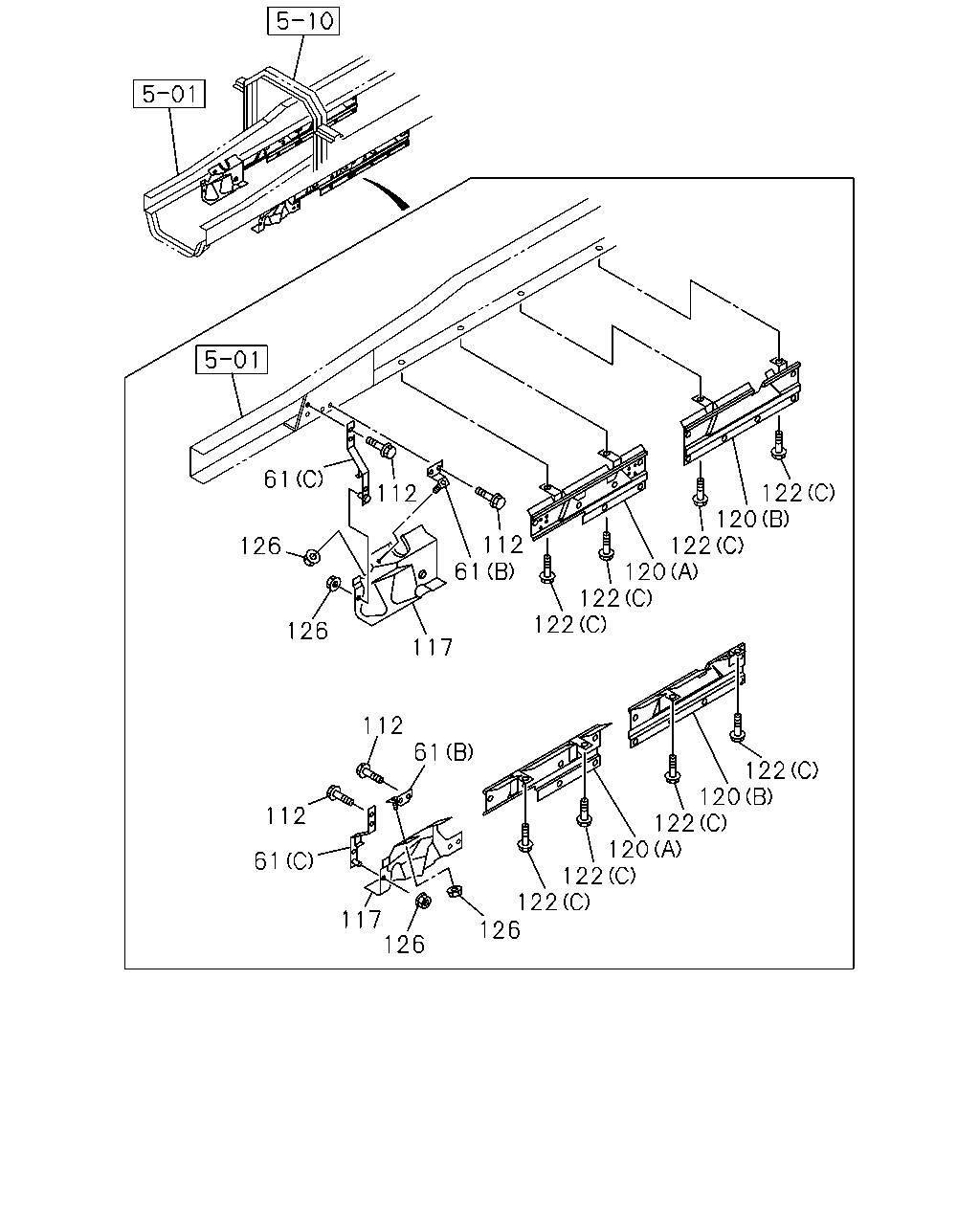

61 122 120 122 120 122 122 112 112 61 126 126 117 112 61 122 120 122 120 122 122 126 112 61 117 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
61	BRACKET; COVER (A)	1-53441-536-1	01	1	0308-	●	●
61	BRACKET; COVER HONG KONG EQUIPMENT(PQ1) ANTI NOISE EQUIPMENT<SV9> (C)	1-53441-610-1	02	1	0308-	●	●
61	BRACKET; COVER HONG KONG EQUIPMENT(PQ1) ANTI NOISE EQUIPMENT<SV9> (B)	1-53441-611-1	02	1	0308-	●	●
112	BOLT; BRKT HONG KONG EQUIPMENT(PQ1) ANTI NOISE EQUIPMENT<SV9> M8X25 FLANGE	0-28680-825-0	08	1	0308-0512	●	●
112	BOLT; BRKT HONG KONG EQUIPMENT(PQ1) ANTI NOISE EQUIPMENT<SV9> M8X25 FLANGE	0-28650-825-0	08	1	0601-	●	●
112	BOLT; BRKT HONG KONG EQUIPMENT(PQ1) ANTI NOISE EQUIPMENT<SV9> M8X30 FLANGE	0-28680-830-0	02	1	0308-0512	●	●
112	BOLT; BRKT HONG KONG EQUIPMENT(PQ1) ANTI NOISE EQUIPMENT<SV9> M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●
117	PANEL; SIDE,B UNDER HONG KONG EQUIPMENT(PQ1) ANTI NOISE EQUIPMENT<SV9>	1-53194-201-2	01	1	0308-	●	●
117	PANEL; SIDE,B UNDER HONG KONG EQUIPMENT(PQ1) ANTI NOISE EQUIPMENT<SV9>	1-53194-200-2	01	1	0308-	●	●
120	PANEL; UNDER HONG KONG EQUIPMENT(PQ1) ANTI NOISE EQUIPMENT<SV9> (B)	1-53194-369-2	01	1	0308-	●
120	PANEL; UNDER HONG KONG EQUIPMENT(PQ1) ANTI NOISE EQUIPMENT<SV9> (B)	1-53194-368-2	01	1	0308-	●
120	PANEL; UNDER HONG KONG EQUIPMENT(PQ1) ANTI NOISE EQUIPMENT<SV9> (A)	1-53194-264-2	01	1	0308-	●	●
120	PANEL; UNDER HONG KONG EQUIPMENT(PQ1) ANTI NOISE EQUIPMENT<SV9> (A)	1-53194-263-2	01	1	0308-	●	●
120	PANEL; UNDER HONG KONG EQUIPMENT(PQ1) ANTI NOISE EQUIPMENT<SV9> (B)	1-53194-272-3	01	1	0308-		●
120	PANEL; UNDER HONG KONG EQUIPMENT(PQ1) ANTI NOISE EQUIPMENT<SV9> (B)	1-53194-271-3	01	1	0308-		●
122	BOLT (A) M8X20 FLANGE	0-28680-820-0	03	1	0308-0512	●	●
122	BOLT (A) M8X20 FLANGE	0-28650-820-0	03	1	0601-	●	●
122	BOLT (B) M8X30 FLANGE	0-28680-830-0	03	1	0308-0512	●	●
122	BOLT (B) M8X30 FLANGE	0-28650-830-0	03	1	0601-	●	●
122	BOLT HONG KONG EQUIPMENT(PQ1) ANTI NOISE EQUIPMENT<SV9> (C) M8X35 FLANGE	0-28680-835-0	08	1	0308-0512	●	●
122	BOLT HONG KONG EQUIPMENT(PQ1) ANTI NOISE EQUIPMENT<SV9> (C) M8X35 FLANGE	0-28650-835-0	08	1	0601-	●	●
126	NUT; PANEL HONG KONG EQUIPMENT(PQ1) ANTI NOISE EQUIPMENT<SV9> M8 FLANGE	1-09464-018-1	04	1	0308-	●	●

167 164 114 61 114 162 163 114 130 163 162 131 135 131 133 133 135 130 114 114 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
61	BRACKET; COVER (A)	1-53441-536-1	01	1	0308-	●	●
61	BRACKET; COVER HONG KONG EQUIPMENT(PQ1) ANTI NOISE EQUIPMENT<SV9> (C)	1-53441-610-1	02	1	0308-	●	●
61	BRACKET; COVER HONG KONG EQUIPMENT(PQ1) ANTI NOISE EQUIPMENT<SV9> (B)	1-53441-611-1	02	1	0308-	●	●
114	BOLT M8X20 FLANGE	0-28680-820-0	02	1	0308-0512	●	●
114	BOLT M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
114	BOLT M8X22 W/LK&PL WASHER	1-09030-042-0	09	1	0308-	●	●
130	PANEL; SHUTTER NOISE (D)	1-79937-919-3	01	1	0308-	●	●
130	PANEL; SHUTTER NOISE CAB UP +110MM<TGG> (A)	1-53194-376-0	01	1	0308-	●	●
130	PANEL; SHUTTER NOISE CAB UP +110MM<TGG> (C)	1-79937-960-4	01	1	0308-	●	●
130	PANEL; SHUTTER NOISE CAB UP +110MM<TGG> (F)	1-79937-969-3	01	1	0308-	●	●
130	PANEL; SHUTTER NOISE CAB UP +110MM<TGG> (A)	1-53194-380-2	01	1	0308-	●	●
130	PANEL; SHUTTER NOISE CAB UP +110MM<TGG> (C)	1-79937-959-2	01	1	0308-	●	●
130	PANEL; SHUTTER NOISE EXC. CAB UP +110MM<TGG> (B)	1-79937-916-4	01	1	0308-	●	●
130	PANEL; SHUTTER NOISE EXC. CAB UP +110MM<TGG> (E)	1-79937-928-3	01	1	0308-	●	●
130	PANEL; SHUTTER NOISE EXC. CAB UP +110MM<TGG> (B)	1-79937-915-3	01	1	0308-	●	●
130	PANEL; SHUTTER NOISE CAB UP +50MM<W60> (A)	1-53194-329-0	01	1	0308-	●	●
130	PANEL; SHUTTER NOISE CAB UP +50MM<W60> (A)	1-53194-332-2	01	1	0308-	●	●
131	BOLT; PANEL M8X25 W/LK&PL WASHER	1-09030-074-0	07	1	0308-	●	●
133	BOLT; FRAME M8X25 FLANGE	0-28680-825-0	04	1	0308-0512	●	●
133	BOLT; FRAME M8X25 FLANGE	0-28650-825-0	04	1	0601-	●	●
135	BRACKET; SIDE PANEL (A)	1-53441-507-0	01	1	0308-	●	●
135	BRACKET; SIDE PANEL (B)	1-53441-598-1	01	1	0308-	●	●
162	BRACKET (A)	1-53441-520-0	02	1	0308-	●	●
162	BRACKET (B)	1-53441-521-2	01	1	0308-	●	●
162	BRACKET (C)	1-53441-522-0	01	1	0308-	●	●
163	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	04	1	0308-0512	●	●
163	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	04	1	0601-	●	●
164	BOLT; FLEX COVER M8X20 FLANGE	0-28680-820-0	02	1	0308-0512	●	●
164	BOLT; FLEX COVER M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
167	BOLT; EXH COVER M8X20 FLANGE	0-28680-820-0	05	1	0308-0512	●	●
167	BOLT; EXH COVER M8X20 FLANGE	0-28650-820-0	05	1	0601-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
