◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10929 - CXZ RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-31 - FRONT DOOR GLASS AND REGULATOR ▶
6-31 — FRONT DOOR GLASS AND REGULATOR (#25957) — 255 parça

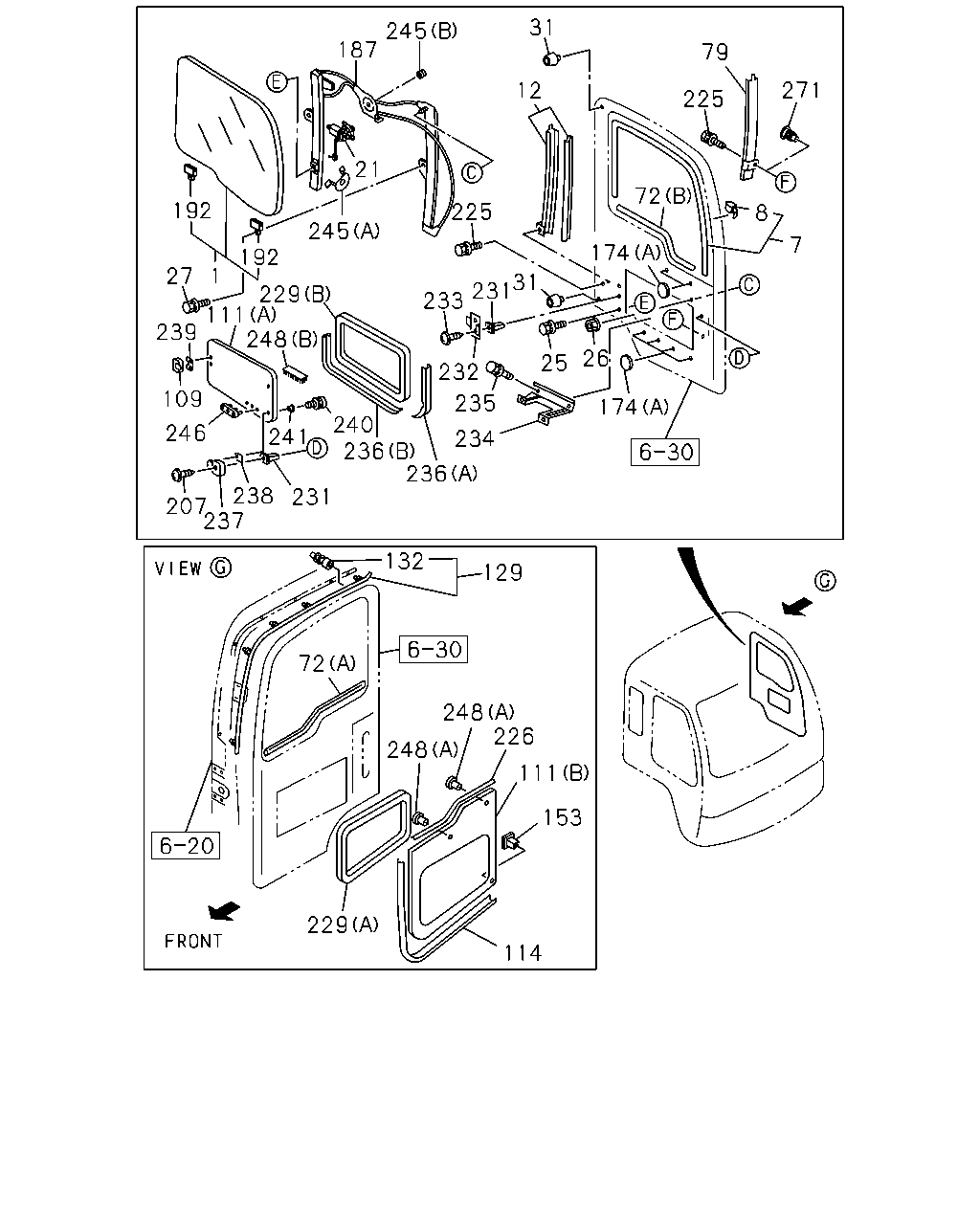

çizim 21682
31 245 187 79 271 12 225 21 72 192 225 8 245 7 174 192 31 231 233 27 1 229 111 248 239 26 25 232 109 235 174 241 240 236 236 246 234 238 207 237 231 132 129 72 248 226 248 111 153 229 114
BalonParca AdiParca NoAdetTipApplied Date A B
1 GLASS; FRT DOOR
AUTO DOOR LOCK<AU4> 		1-76167-177-2 01 1 0308- ● ●
1 GLASS; FRT DOOR
AUTO DOOR LOCK<AU4> DOOR WITH UNDER VIEW WINDOW<YD8> 		1-76167-173-2 01 1 0308- ● ●
1 GLASS; FRT DOOR
AUTO DOOR LOCK<AU4> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-76148-095-2 01 1 0308- ● ●
1 GLASS; FRT DOOR
EXC. AUTO DOOR LOCK<AU4> 		1-76148-094-2 01 1 0308- ● ●
1 GLASS; FRT DOOR
EXC. AUTO DOOR LOCK<AU4> 		1-76167-174-2 01 1 0308- ● ●
7 GLASS RUN; FRT DOOR 1-74318-022-8 01 1 0308- ● ●
7 GLASS RUN; FRT DOOR 1-74318-021-8 01 1 0308- ● ●
8 CLIP; GLASS GUIDE 1-74318-029-1 02 1 0308- ● ●
12 CHANNEL; GLASS RUN,FRT 1-74338-071-3 01 1 0308- ● ●
12 CHANNEL; GLASS RUN,FRT 1-74338-070-3 01 1 0308- ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
AUTO DOOR LOCK<AU4> 		1-74418-176-0 01 1 0308- ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
AUTO DOOR LOCK<AU4> DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74418-162-0 01 1 0308- ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
AUTO DOOR LOCK<AU4> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74418-177-0 01 1 0308- ● ●
25 BOLT; WINDOW REG
AUTO DOOR LOCK<AU4> DOOR WITH UNDER VIEW WINDOW<YD8> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 07 1 0308-0405 ● ●
25 BOLT; WINDOW REG
AUTO DOOR LOCK<AU4> DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 FLANGE 		0-28080-616-0 07 1 0406-0512 ● ●
25 BOLT; WINDOW REG
AUTO DOOR LOCK<AU4> DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 FLANGE 		0-28050-616-0 07 1 0601- ● ●
25 BOLT; WINDOW REG
AUTO DOOR LOCK<AU4> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 10 1 0308-0405 ● ●
25 BOLT; WINDOW REG
AUTO DOOR LOCK<AU4> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 FLANGE 		0-28080-616-0 10 1 0406-0512 ● ●
25 BOLT; WINDOW REG
AUTO DOOR LOCK<AU4> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 FLANGE 		0-28050-616-0 10 1 0601- ● ●
25 BOLT; WINDOW REG
EXC. AUTO DOOR LOCK<AU4> M6X12 W/LK&PL WASHER 		8-94279-200-0 08 1 0308- ● ●
26 NUT; FLANGE,WINDOW REG
AUTO DOOR LOCK<AU4> DOOR WITH UNDER VIEW WINDOW<YD8> M6 FLANGE 		1-09984-141-0 08 1 0308- ● ●
26 NUT; FLANGE,WINDOW REG
AUTO DOOR LOCK<AU4> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6 FLANGE 		1-09984-141-0 06 1 0308- ● ●
27 BOLT; GLASS FIX
M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 0308- ● ●
31 STOPPER; RUBBER,DOOR INNER 1-09983-169-0 04 1 0308- ● ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-089-9 01 1 0308- ● ●
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-092-6 01 1 0308- ● ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-088-9 01 1 0308- ● ●
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-091-6 01 1 0308- ● ●
79 CHANNEL; DOOR GLASS,FRT 1-74338-068-3 01 1 0308- ● ●
79 CHANNEL; DOOR GLASS,FRT
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74338-069-3 01 1 0308- ● ●
109 LOCK ASM; DOOR WINDOW GLASS
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74998-052-0 01 1 0308- ● ●
111 GLASS; FRT DOOR,LWR
DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-76167-155-2 01 1 0308- ● ●
111 GLASS; FRT DOOR,LWR
DOOR WITH UNDER VIEW WINDOW<YD8> (A) 		1-76167-176-0 01 1 0308- ● ●
114 MOLDING; OK WINDOW,LWR
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-71538-038-1 01 1 0308- ● ●
129 SEAL; DOOR,SUB UPR 1-76718-199-0 01 1 0308- ● ●
129 SEAL; DOOR,SUB UPR 1-76718-198-0 01 1 0308- ● ●
132 CLIP; SEAL,DOOR
YELLOW 		1-09987-254-1 06 1 0308- ● ●
132 CLIP; SEAL,DOOR
NATURAL 		1-09987-253-1 06 1 0308- ● ●
153 GROMMET; FRT DOOR
DOOR WITH UNDER VIEW WINDOW<YD8> OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 01 1 0308- ● ●
174 SEAL; LOCATION HOLE
AUTO DOOR LOCK<AU4> DOOR WITH UNDER VIEW WINDOW<YD8> (A) OD=25 BLACK 		1-76798-019-0 13 1 0308- ● ●
174 SEAL; LOCATION HOLE
AUTO DOOR LOCK<AU4> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A) OD=25 BLACK 		1-76798-019-0 16 1 0308- ● ●
174 SEAL; LOCATION HOLE
EXC. AUTO DOOR LOCK<AU4> (A) OD=25 BLACK 		1-76798-019-0 22 1 0308- ● ●
174 SEAL; LOCATION HOLE
EXC. AUTO DOOR LOCK<AU4> (B) OD=52 BLACK 		1-76798-041-0 02 1 0308- ● ●
187 REGULATOR ASM; DOOR
AUTO DOOR LOCK<AU4> 		1-74418-178-3 01 1 0308- ● ●
187 REGULATOR ASM; DOOR
AUTO DOOR LOCK<AU4> DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74418-166-3 01 1 0308- ● ●
187 REGULATOR ASM; DOOR
AUTO DOOR LOCK<AU4> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74418-179-3 01 1 0308- ● ●
192 HOLDER; DOOR GLASS
AUTO DOOR LOCK<AU4> 		1-74427-170-0 02 1 0308- ● ●
192 HOLDER; DOOR GLASS
AUTO DOOR LOCK<AU4> 		1-74427-170-0 02 1 0308- ● ●
192 HOLDER; DOOR GLASS
EXC. AUTO DOOR LOCK<AU4> 		1-74427-170-0 04 1 0308- ● ●
207 SCREW; DOOR GLASS
DOOR WITH UNDER VIEW WINDOW<YD8> M5X16 W/PL WASHER TAPPING 		8-94279-123-0 02 1 0308- ● ●
225 BOLT; FRT CHANNEL
DOOR WITH UNDER VIEW WINDOW<YD8> M6X10 FLANGE 		0-28080-610-0 03 1 0308-0512 ● ●
225 BOLT; FRT CHANNEL
DOOR WITH UNDER VIEW WINDOW<YD8> M6X10 FLANGE 		0-28050-610-0 03 1 0601- ● ●
225 BOLT; FRT CHANNEL
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X10 FLANGE 		0-28080-610-0 04 1 0308-0512 ● ●
225 BOLT; FRT CHANNEL
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X10 FLANGE 		0-28050-610-0 04 1 0601- ● ●
226 FINISHER; OK WINDOW,LWR
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-76738-093-6 01 1 0308- ● ●
229 SEAL; OK WINDOW
DOOR WITH UNDER VIEW WINDOW<YD8> (A) 		1-76738-096-5 01 1 0308- ● ●
229 SEAL; OK WINDOW
DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-76738-097-4 01 1 0308- ● ●
231 GROMMET; SCREW
DOOR WITH UNDER VIEW WINDOW<YD8> D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 04 1 0308- ● ●
232 STRIKER; OK WINDOW
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74998-055-1 01 1 0308- ● ●
233 SCREW; STRIKER
DOOR WITH UNDER VIEW WINDOW<YD8> M5X16 W/PL WASHER TAPPING 		8-94279-123-0 02 1 0308- ● ●
234 BRACKET; OK WINDOW 1-74998-057-4 01 1 0308- ● ●
234 BRACKET; OK WINDOW 1-74998-062-4 01 1 0308- ● ●
235 BOLT; BRKT
EXC. AUTO DOOR LOCK<AU4> M6X16 FLANGE 		0-28080-616-0 08 1 0406-0512 ● ●
235 BOLT; BRKT
EXC. AUTO DOOR LOCK<AU4> M6X16 FLANGE 		0-28050-616-0 08 1 0601- ● ●
235 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0308-0405 ● ●
235 BOLT; BRKT
EXC. AUTO DOOR LOCK<AU4> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0308-0405 ● ●
235 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0406- ● ●
236 COVER; OK WINDOW
DOOR WITH UNDER VIEW WINDOW<YD8> (A) 		1-73338-363-5 01 1 0308- ● ●
236 COVER; OK WINDOW
DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-73338-364-5 01 1 0308- ● ●
237 HINGE; DOOR WINDOW GLASS
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74998-050-1 02 1 0308- ● ●
238 SHEET; HINGE
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74998-051-0 02 1 0308- ● ●
239 SHEET; LOCK
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74998-053-0 01 1 0308- ● ●
240 SCREW; HINGE & LOCK
DOOR WITH UNDER VIEW WINDOW<YD8> M6X12 		8-94279-346-0 04 1 0308- ● ●
241 GASKET; HINGE & LOCK
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74998-054-0 04 1 0308- ● ●
245 DAMPER; WINDOW REGULATOR
AUTO DOOR LOCK<AU4> (B) 		1-74417-074-0 01 1 0308- ● ●
245 DAMPER; WINDOW REGULATOR
AUTO DOOR LOCK<AU4> (B) 		1-74417-074-0 01 1 0308- ● ●
245 DAMPER; WINDOW REGULATOR
AUTO DOOR LOCK<AU4> (A) 		1-74418-180-0 01 1 0308- ● ●
245 DAMPER; WINDOW REGULATOR
AUTO DOOR LOCK<AU4> DOOR WITH UNDER VIEW WINDOW<YD8> (A) 		1-74418-147-1 01 1 0308- ● ●
245 DAMPER; WINDOW REGULATOR
AUTO DOOR LOCK<AU4> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A) 		1-74418-181-0 01 1 0308- ● ●
246 GRILLE; OK WINDOW
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74298-002-1 01 1 0308- ● ●
248 FASTENER
DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-74998-072-1 01 1 0308- ● ●
248 FASTENER
DOOR WITH UNDER VIEW WINDOW<YD8> (A) ID=5.4 OD=6.8 		1-09989-019-0 02 1 0308- ● ●
271 PLUG; HOLE
DOOR WITH UNDER VIEW WINDOW<YD8> OD=16 L=11 		1-76378-155-0 01 1 0308- ● ●

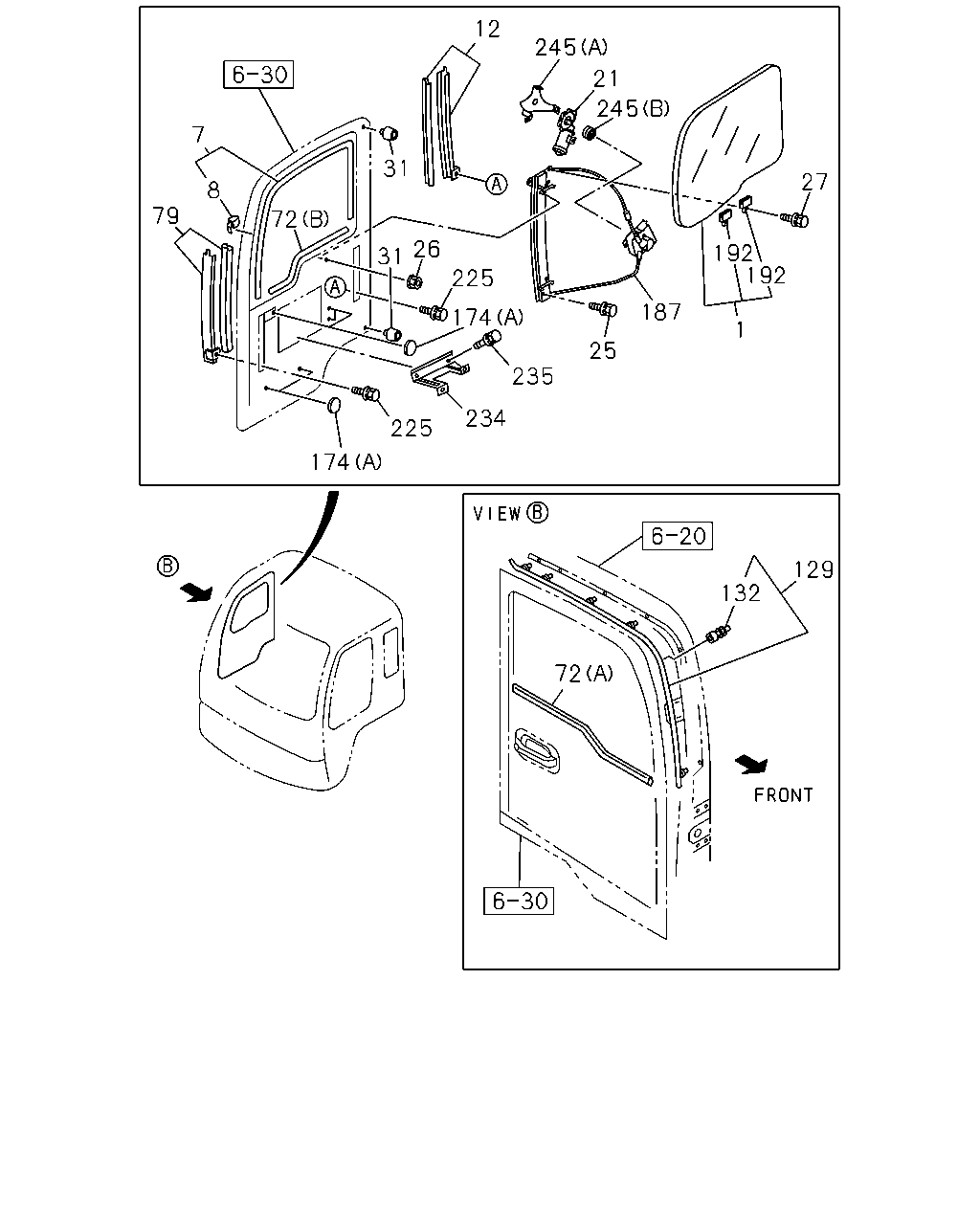

çizim 79651
12 245 21 245 7 31 27 8 79 72 26 192 192 31 225 187 174 1 25 235 234 225 174 129 132 72
BalonParca AdiParca NoAdetTipApplied Date A B
1 GLASS; FRT DOOR
AUTO DOOR LOCK<AU4> 		1-76167-177-2 01 1 0308- ● ●
1 GLASS; FRT DOOR
AUTO DOOR LOCK<AU4> DOOR WITH UNDER VIEW WINDOW<YD8> 		1-76167-173-2 01 1 0308- ● ●
1 GLASS; FRT DOOR
AUTO DOOR LOCK<AU4> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-76148-095-2 01 1 0308- ● ●
1 GLASS; FRT DOOR
EXC. AUTO DOOR LOCK<AU4> 		1-76148-094-2 01 1 0308- ● ●
1 GLASS; FRT DOOR
EXC. AUTO DOOR LOCK<AU4> 		1-76167-174-2 01 1 0308- ● ●
7 GLASS RUN; FRT DOOR 1-74318-022-8 01 1 0308- ● ●
7 GLASS RUN; FRT DOOR 1-74318-021-8 01 1 0308- ● ●
8 CLIP; GLASS GUIDE 1-74318-029-1 02 1 0308- ● ●
12 CHANNEL; GLASS RUN,FRT 1-74338-071-3 01 1 0308- ● ●
12 CHANNEL; GLASS RUN,FRT 1-74338-070-3 01 1 0308- ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
AUTO DOOR LOCK<AU4> 		1-74418-176-0 01 1 0308- ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
AUTO DOOR LOCK<AU4> DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74418-162-0 01 1 0308- ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
AUTO DOOR LOCK<AU4> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74418-177-0 01 1 0308- ● ●
25 BOLT; WINDOW REG
AUTO DOOR LOCK<AU4> DOOR WITH UNDER VIEW WINDOW<YD8> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 07 1 0308-0405 ● ●
25 BOLT; WINDOW REG
AUTO DOOR LOCK<AU4> DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 FLANGE 		0-28080-616-0 07 1 0406-0512 ● ●
25 BOLT; WINDOW REG
AUTO DOOR LOCK<AU4> DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 FLANGE 		0-28050-616-0 07 1 0601- ● ●
25 BOLT; WINDOW REG
AUTO DOOR LOCK<AU4> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 10 1 0308-0405 ● ●
25 BOLT; WINDOW REG
AUTO DOOR LOCK<AU4> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 FLANGE 		0-28080-616-0 10 1 0406-0512 ● ●
25 BOLT; WINDOW REG
AUTO DOOR LOCK<AU4> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 FLANGE 		0-28050-616-0 10 1 0601- ● ●
25 BOLT; WINDOW REG
EXC. AUTO DOOR LOCK<AU4> M6X12 W/LK&PL WASHER 		8-94279-200-0 08 1 0308- ● ●
26 NUT; FLANGE,WINDOW REG
AUTO DOOR LOCK<AU4> DOOR WITH UNDER VIEW WINDOW<YD8> M6 FLANGE 		1-09984-141-0 08 1 0308- ● ●
26 NUT; FLANGE,WINDOW REG
AUTO DOOR LOCK<AU4> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6 FLANGE 		1-09984-141-0 06 1 0308- ● ●
27 BOLT; GLASS FIX
M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 0308- ● ●
31 STOPPER; RUBBER,DOOR INNER 1-09983-169-0 04 1 0308- ● ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-089-9 01 1 0308- ● ●
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-092-6 01 1 0308- ● ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-088-9 01 1 0308- ● ●
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-091-6 01 1 0308- ● ●
79 CHANNEL; DOOR GLASS,FRT 1-74338-068-3 01 1 0308- ● ●
79 CHANNEL; DOOR GLASS,FRT
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74338-069-3 01 1 0308- ● ●
129 SEAL; DOOR,SUB UPR 1-76718-199-0 01 1 0308- ● ●
129 SEAL; DOOR,SUB UPR 1-76718-198-0 01 1 0308- ● ●
132 CLIP; SEAL,DOOR
YELLOW 		1-09987-254-1 06 1 0308- ● ●
132 CLIP; SEAL,DOOR
NATURAL 		1-09987-253-1 06 1 0308- ● ●
174 SEAL; LOCATION HOLE
AUTO DOOR LOCK<AU4> DOOR WITH UNDER VIEW WINDOW<YD8> (A) OD=25 BLACK 		1-76798-019-0 13 1 0308- ● ●
174 SEAL; LOCATION HOLE
AUTO DOOR LOCK<AU4> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A) OD=25 BLACK 		1-76798-019-0 16 1 0308- ● ●
174 SEAL; LOCATION HOLE
EXC. AUTO DOOR LOCK<AU4> (A) OD=25 BLACK 		1-76798-019-0 22 1 0308- ● ●
174 SEAL; LOCATION HOLE
EXC. AUTO DOOR LOCK<AU4> (B) OD=52 BLACK 		1-76798-041-0 02 1 0308- ● ●
187 REGULATOR ASM; DOOR
AUTO DOOR LOCK<AU4> 		1-74418-178-3 01 1 0308- ● ●
187 REGULATOR ASM; DOOR
AUTO DOOR LOCK<AU4> DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74418-166-3 01 1 0308- ● ●
187 REGULATOR ASM; DOOR
AUTO DOOR LOCK<AU4> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74418-179-3 01 1 0308- ● ●
192 HOLDER; DOOR GLASS
AUTO DOOR LOCK<AU4> 		1-74427-170-0 02 1 0308- ● ●
192 HOLDER; DOOR GLASS
AUTO DOOR LOCK<AU4> 		1-74427-170-0 02 1 0308- ● ●
192 HOLDER; DOOR GLASS
EXC. AUTO DOOR LOCK<AU4> 		1-74427-170-0 04 1 0308- ● ●
225 BOLT; FRT CHANNEL
DOOR WITH UNDER VIEW WINDOW<YD8> M6X10 FLANGE 		0-28080-610-0 03 1 0308-0512 ● ●
225 BOLT; FRT CHANNEL
DOOR WITH UNDER VIEW WINDOW<YD8> M6X10 FLANGE 		0-28050-610-0 03 1 0601- ● ●
225 BOLT; FRT CHANNEL
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X10 FLANGE 		0-28080-610-0 04 1 0308-0512 ● ●
225 BOLT; FRT CHANNEL
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X10 FLANGE 		0-28050-610-0 04 1 0601- ● ●
234 BRACKET; OK WINDOW 1-74998-057-4 01 1 0308- ● ●
234 BRACKET; OK WINDOW 1-74998-062-4 01 1 0308- ● ●
235 BOLT; BRKT
EXC. AUTO DOOR LOCK<AU4> M6X16 FLANGE 		0-28080-616-0 08 1 0406-0512 ● ●
235 BOLT; BRKT
EXC. AUTO DOOR LOCK<AU4> M6X16 FLANGE 		0-28050-616-0 08 1 0601- ● ●
235 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0308-0405 ● ●
235 BOLT; BRKT
EXC. AUTO DOOR LOCK<AU4> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0308-0405 ● ●
235 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0406- ● ●
245 DAMPER; WINDOW REGULATOR
AUTO DOOR LOCK<AU4> (B) 		1-74417-074-0 01 1 0308- ● ●
245 DAMPER; WINDOW REGULATOR
AUTO DOOR LOCK<AU4> (B) 		1-74417-074-0 01 1 0308- ● ●
245 DAMPER; WINDOW REGULATOR
AUTO DOOR LOCK<AU4> (A) 		1-74418-180-0 01 1 0308- ● ●
245 DAMPER; WINDOW REGULATOR
AUTO DOOR LOCK<AU4> DOOR WITH UNDER VIEW WINDOW<YD8> (A) 		1-74418-147-1 01 1 0308- ● ●
245 DAMPER; WINDOW REGULATOR
AUTO DOOR LOCK<AU4> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A) 		1-74418-181-0 01 1 0308- ● ●

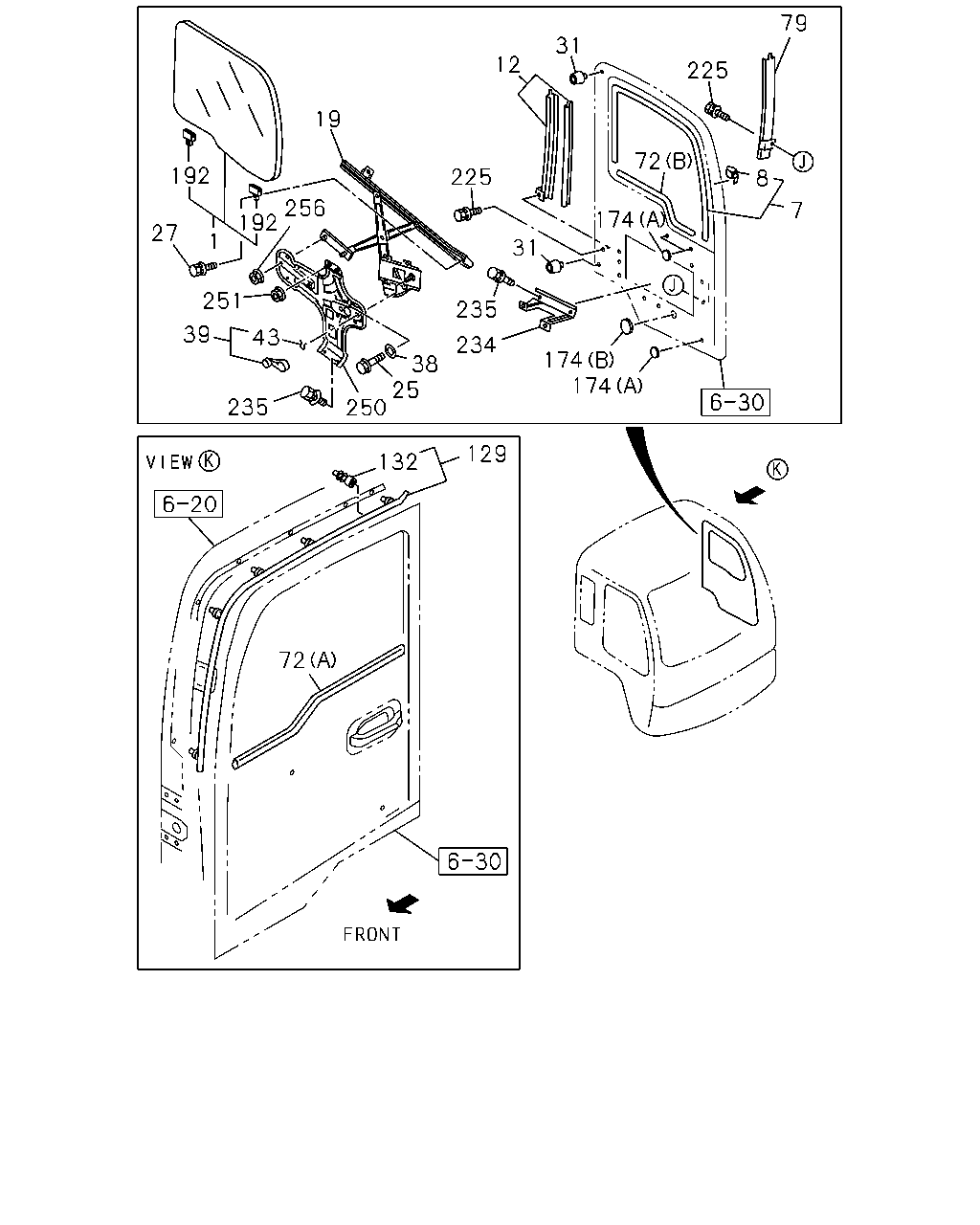

çizim 83487
79 31 12 225 19 72 192 225 8 256 192 7 174 27 31 1 251 235 39 43 234 174 174 38 25 250 235 129 132 72
BalonParca AdiParca NoAdetTipApplied Date A B
1 GLASS; FRT DOOR
AUTO DOOR LOCK<AU4> 		1-76167-177-2 01 1 0308- ● ●
1 GLASS; FRT DOOR
AUTO DOOR LOCK<AU4> DOOR WITH UNDER VIEW WINDOW<YD8> 		1-76167-173-2 01 1 0308- ● ●
1 GLASS; FRT DOOR
AUTO DOOR LOCK<AU4> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-76148-095-2 01 1 0308- ● ●
1 GLASS; FRT DOOR
EXC. AUTO DOOR LOCK<AU4> 		1-76148-094-2 01 1 0308- ● ●
1 GLASS; FRT DOOR
EXC. AUTO DOOR LOCK<AU4> 		1-76167-174-2 01 1 0308- ● ●
7 GLASS RUN; FRT DOOR 1-74318-022-8 01 1 0308- ● ●
7 GLASS RUN; FRT DOOR 1-74318-021-8 01 1 0308- ● ●
8 CLIP; GLASS GUIDE 1-74318-029-1 02 1 0308- ● ●
12 CHANNEL; GLASS RUN,FRT 1-74338-071-3 01 1 0308- ● ●
12 CHANNEL; GLASS RUN,FRT 1-74338-070-3 01 1 0308- ● ●
19 REGULATOR; WINDOW,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> 		1-74418-134-4 01 1 0308- ● ●
19 REGULATOR; WINDOW,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> 		1-74418-144-4 01 1 0308- ● ●
25 BOLT; WINDOW REG
AUTO DOOR LOCK<AU4> DOOR WITH UNDER VIEW WINDOW<YD8> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 07 1 0308-0405 ● ●
25 BOLT; WINDOW REG
AUTO DOOR LOCK<AU4> DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 FLANGE 		0-28080-616-0 07 1 0406-0512 ● ●
25 BOLT; WINDOW REG
AUTO DOOR LOCK<AU4> DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 FLANGE 		0-28050-616-0 07 1 0601- ● ●
25 BOLT; WINDOW REG
AUTO DOOR LOCK<AU4> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 10 1 0308-0405 ● ●
25 BOLT; WINDOW REG
AUTO DOOR LOCK<AU4> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 FLANGE 		0-28080-616-0 10 1 0406-0512 ● ●
25 BOLT; WINDOW REG
AUTO DOOR LOCK<AU4> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 FLANGE 		0-28050-616-0 10 1 0601- ● ●
25 BOLT; WINDOW REG
EXC. AUTO DOOR LOCK<AU4> M6X12 W/LK&PL WASHER 		8-94279-200-0 08 1 0308- ● ●
27 BOLT; GLASS FIX
M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 0308- ● ●
31 STOPPER; RUBBER,DOOR INNER 1-09983-169-0 04 1 0308- ● ●
38 WASHER; PL,WINDOW REG
EXC. AUTO DOOR LOCK<AU4> ID=6.4 OD=14 T=1 		1-09985-187-0 04 1 0308- ● ●
39 HANDLE; WINDOW REG,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> BLACK 		8-94371-427-0 02 1 0308- ● ●
43 CLIP; REG HANDLE,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> 		8-94220-591-0 02 1 0308- ● ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-089-9 01 1 0308- ● ●
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-092-6 01 1 0308- ● ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-088-9 01 1 0308- ● ●
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-091-6 01 1 0308- ● ●
79 CHANNEL; DOOR GLASS,FRT 1-74338-068-3 01 1 0308- ● ●
79 CHANNEL; DOOR GLASS,FRT
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74338-069-3 01 1 0308- ● ●
129 SEAL; DOOR,SUB UPR 1-76718-199-0 01 1 0308- ● ●
129 SEAL; DOOR,SUB UPR 1-76718-198-0 01 1 0308- ● ●
132 CLIP; SEAL,DOOR
YELLOW 		1-09987-254-1 06 1 0308- ● ●
132 CLIP; SEAL,DOOR
NATURAL 		1-09987-253-1 06 1 0308- ● ●
174 SEAL; LOCATION HOLE
AUTO DOOR LOCK<AU4> DOOR WITH UNDER VIEW WINDOW<YD8> (A) OD=25 BLACK 		1-76798-019-0 13 1 0308- ● ●
174 SEAL; LOCATION HOLE
AUTO DOOR LOCK<AU4> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A) OD=25 BLACK 		1-76798-019-0 16 1 0308- ● ●
174 SEAL; LOCATION HOLE
EXC. AUTO DOOR LOCK<AU4> (A) OD=25 BLACK 		1-76798-019-0 22 1 0308- ● ●
174 SEAL; LOCATION HOLE
EXC. AUTO DOOR LOCK<AU4> (B) OD=52 BLACK 		1-76798-041-0 02 1 0308- ● ●
192 HOLDER; DOOR GLASS
AUTO DOOR LOCK<AU4> 		1-74427-170-0 02 1 0308- ● ●
192 HOLDER; DOOR GLASS
AUTO DOOR LOCK<AU4> 		1-74427-170-0 02 1 0308- ● ●
192 HOLDER; DOOR GLASS
EXC. AUTO DOOR LOCK<AU4> 		1-74427-170-0 04 1 0308- ● ●
225 BOLT; FRT CHANNEL
DOOR WITH UNDER VIEW WINDOW<YD8> M6X10 FLANGE 		0-28080-610-0 03 1 0308-0512 ● ●
225 BOLT; FRT CHANNEL
DOOR WITH UNDER VIEW WINDOW<YD8> M6X10 FLANGE 		0-28050-610-0 03 1 0601- ● ●
225 BOLT; FRT CHANNEL
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X10 FLANGE 		0-28080-610-0 04 1 0308-0512 ● ●
225 BOLT; FRT CHANNEL
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X10 FLANGE 		0-28050-610-0 04 1 0601- ● ●
234 BRACKET; OK WINDOW 1-74998-057-4 01 1 0308- ● ●
234 BRACKET; OK WINDOW 1-74998-062-4 01 1 0308- ● ●
235 BOLT; BRKT
EXC. AUTO DOOR LOCK<AU4> M6X16 FLANGE 		0-28080-616-0 08 1 0406-0512 ● ●
235 BOLT; BRKT
EXC. AUTO DOOR LOCK<AU4> M6X16 FLANGE 		0-28050-616-0 08 1 0601- ● ●
235 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0308-0405 ● ●
235 BOLT; BRKT
EXC. AUTO DOOR LOCK<AU4> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0308-0405 ● ●
235 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0406- ● ●
250 BRACKET; REGULATOR
EXC. AUTO DOOR LOCK<AU4> 		1-74418-148-0 01 1 0308- ● ●
250 BRACKET; REGULATOR
EXC. AUTO DOOR LOCK<AU4> 		1-74418-149-0 01 1 0308- ● ●
251 NUT; BRKT
EXC. AUTO DOOR LOCK<AU4> M6 FLANGE 		1-09984-141-0 04 1 0308- ● ●
256 NUT
EXC. AUTO DOOR LOCK<AU4> M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 0308- ● ●

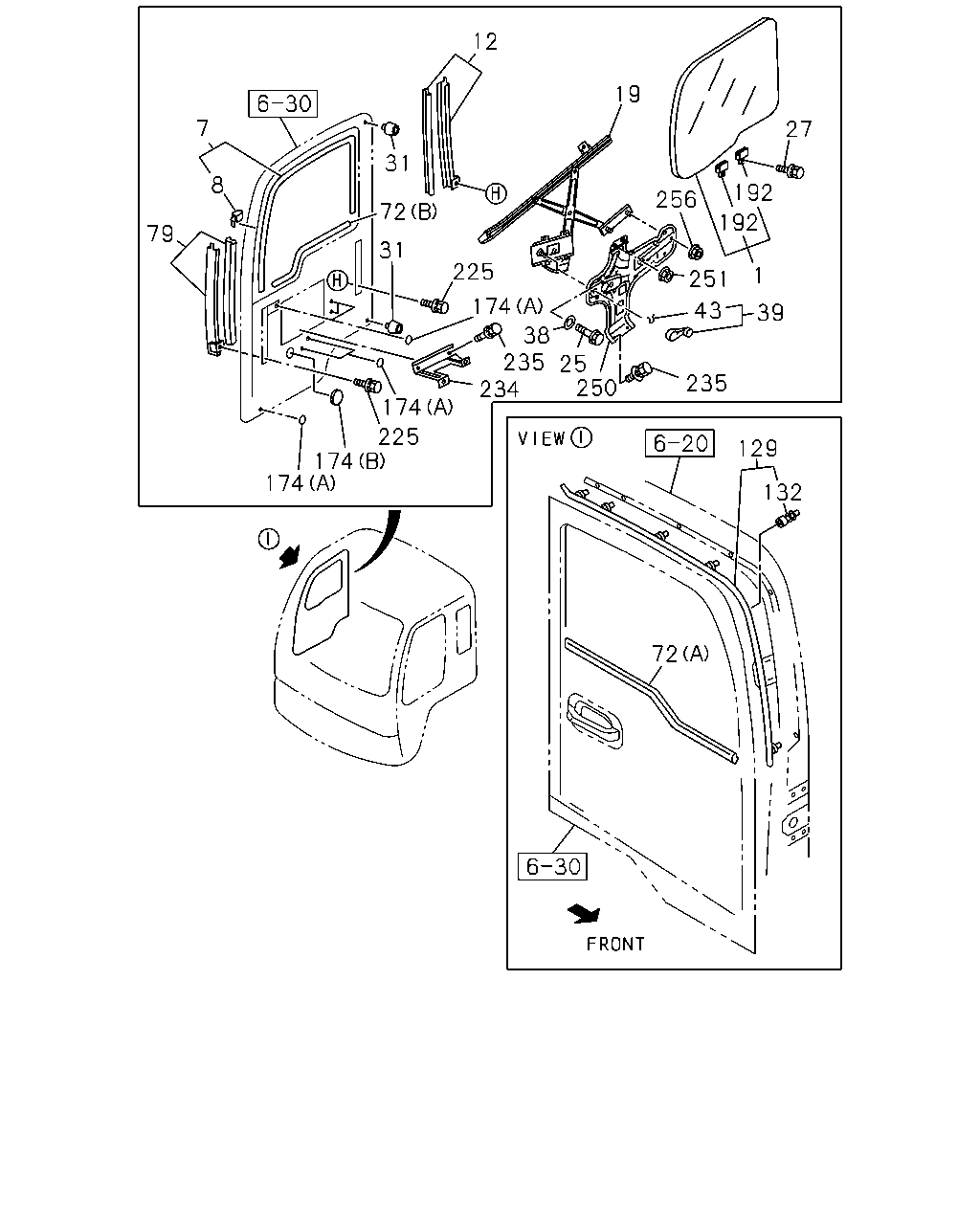

çizim 85076
12 19 7 27 31 8 192 256 72 192 79 31 225 1 251 174 43 39 38 235 234 25 250 235 174 225 174 174 129 132 72
BalonParca AdiParca NoAdetTipApplied Date A B
1 GLASS; FRT DOOR
AUTO DOOR LOCK<AU4> 		1-76167-177-2 01 1 0308- ● ●
1 GLASS; FRT DOOR
AUTO DOOR LOCK<AU4> DOOR WITH UNDER VIEW WINDOW<YD8> 		1-76167-173-2 01 1 0308- ● ●
1 GLASS; FRT DOOR
AUTO DOOR LOCK<AU4> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-76148-095-2 01 1 0308- ● ●
1 GLASS; FRT DOOR
EXC. AUTO DOOR LOCK<AU4> 		1-76148-094-2 01 1 0308- ● ●
1 GLASS; FRT DOOR
EXC. AUTO DOOR LOCK<AU4> 		1-76167-174-2 01 1 0308- ● ●
7 GLASS RUN; FRT DOOR 1-74318-022-8 01 1 0308- ● ●
7 GLASS RUN; FRT DOOR 1-74318-021-8 01 1 0308- ● ●
8 CLIP; GLASS GUIDE 1-74318-029-1 02 1 0308- ● ●
12 CHANNEL; GLASS RUN,FRT 1-74338-071-3 01 1 0308- ● ●
12 CHANNEL; GLASS RUN,FRT 1-74338-070-3 01 1 0308- ● ●
19 REGULATOR; WINDOW,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> 		1-74418-134-4 01 1 0308- ● ●
19 REGULATOR; WINDOW,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> 		1-74418-144-4 01 1 0308- ● ●
25 BOLT; WINDOW REG
AUTO DOOR LOCK<AU4> DOOR WITH UNDER VIEW WINDOW<YD8> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 07 1 0308-0405 ● ●
25 BOLT; WINDOW REG
AUTO DOOR LOCK<AU4> DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 FLANGE 		0-28080-616-0 07 1 0406-0512 ● ●
25 BOLT; WINDOW REG
AUTO DOOR LOCK<AU4> DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 FLANGE 		0-28050-616-0 07 1 0601- ● ●
25 BOLT; WINDOW REG
AUTO DOOR LOCK<AU4> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 10 1 0308-0405 ● ●
25 BOLT; WINDOW REG
AUTO DOOR LOCK<AU4> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 FLANGE 		0-28080-616-0 10 1 0406-0512 ● ●
25 BOLT; WINDOW REG
AUTO DOOR LOCK<AU4> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 FLANGE 		0-28050-616-0 10 1 0601- ● ●
25 BOLT; WINDOW REG
EXC. AUTO DOOR LOCK<AU4> M6X12 W/LK&PL WASHER 		8-94279-200-0 08 1 0308- ● ●
27 BOLT; GLASS FIX
M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 0308- ● ●
31 STOPPER; RUBBER,DOOR INNER 1-09983-169-0 04 1 0308- ● ●
38 WASHER; PL,WINDOW REG
EXC. AUTO DOOR LOCK<AU4> ID=6.4 OD=14 T=1 		1-09985-187-0 04 1 0308- ● ●
39 HANDLE; WINDOW REG,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> BLACK 		8-94371-427-0 02 1 0308- ● ●
43 CLIP; REG HANDLE,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> 		8-94220-591-0 02 1 0308- ● ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-089-9 01 1 0308- ● ●
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-092-6 01 1 0308- ● ●
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-088-9 01 1 0308- ● ●
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-091-6 01 1 0308- ● ●
79 CHANNEL; DOOR GLASS,FRT 1-74338-068-3 01 1 0308- ● ●
79 CHANNEL; DOOR GLASS,FRT
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74338-069-3 01 1 0308- ● ●
129 SEAL; DOOR,SUB UPR 1-76718-199-0 01 1 0308- ● ●
129 SEAL; DOOR,SUB UPR 1-76718-198-0 01 1 0308- ● ●
132 CLIP; SEAL,DOOR
YELLOW 		1-09987-254-1 06 1 0308- ● ●
132 CLIP; SEAL,DOOR
NATURAL 		1-09987-253-1 06 1 0308- ● ●
174 SEAL; LOCATION HOLE
AUTO DOOR LOCK<AU4> DOOR WITH UNDER VIEW WINDOW<YD8> (A) OD=25 BLACK 		1-76798-019-0 13 1 0308- ● ●
174 SEAL; LOCATION HOLE
AUTO DOOR LOCK<AU4> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A) OD=25 BLACK 		1-76798-019-0 16 1 0308- ● ●
174 SEAL; LOCATION HOLE
EXC. AUTO DOOR LOCK<AU4> (A) OD=25 BLACK 		1-76798-019-0 22 1 0308- ● ●
174 SEAL; LOCATION HOLE
EXC. AUTO DOOR LOCK<AU4> (B) OD=52 BLACK 		1-76798-041-0 02 1 0308- ● ●
192 HOLDER; DOOR GLASS
AUTO DOOR LOCK<AU4> 		1-74427-170-0 02 1 0308- ● ●
192 HOLDER; DOOR GLASS
AUTO DOOR LOCK<AU4> 		1-74427-170-0 02 1 0308- ● ●
192 HOLDER; DOOR GLASS
EXC. AUTO DOOR LOCK<AU4> 		1-74427-170-0 04 1 0308- ● ●
225 BOLT; FRT CHANNEL
DOOR WITH UNDER VIEW WINDOW<YD8> M6X10 FLANGE 		0-28080-610-0 03 1 0308-0512 ● ●
225 BOLT; FRT CHANNEL
DOOR WITH UNDER VIEW WINDOW<YD8> M6X10 FLANGE 		0-28050-610-0 03 1 0601- ● ●
225 BOLT; FRT CHANNEL
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X10 FLANGE 		0-28080-610-0 04 1 0308-0512 ● ●
225 BOLT; FRT CHANNEL
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X10 FLANGE 		0-28050-610-0 04 1 0601- ● ●
234 BRACKET; OK WINDOW 1-74998-057-4 01 1 0308- ● ●
234 BRACKET; OK WINDOW 1-74998-062-4 01 1 0308- ● ●
235 BOLT; BRKT
EXC. AUTO DOOR LOCK<AU4> M6X16 FLANGE 		0-28080-616-0 08 1 0406-0512 ● ●
235 BOLT; BRKT
EXC. AUTO DOOR LOCK<AU4> M6X16 FLANGE 		0-28050-616-0 08 1 0601- ● ●
235 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0308-0405 ● ●
235 BOLT; BRKT
EXC. AUTO DOOR LOCK<AU4> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0308-0405 ● ●
235 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0406- ● ●
250 BRACKET; REGULATOR
EXC. AUTO DOOR LOCK<AU4> 		1-74418-148-0 01 1 0308- ● ●
250 BRACKET; REGULATOR
EXC. AUTO DOOR LOCK<AU4> 		1-74418-149-0 01 1 0308- ● ●
251 NUT; BRKT
EXC. AUTO DOOR LOCK<AU4> M6 FLANGE 		1-09984-141-0 04 1 0308- ● ●
256 NUT
EXC. AUTO DOOR LOCK<AU4> M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 0308- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
