6-05 — FRONT PANEL (#25953) — 208 parça

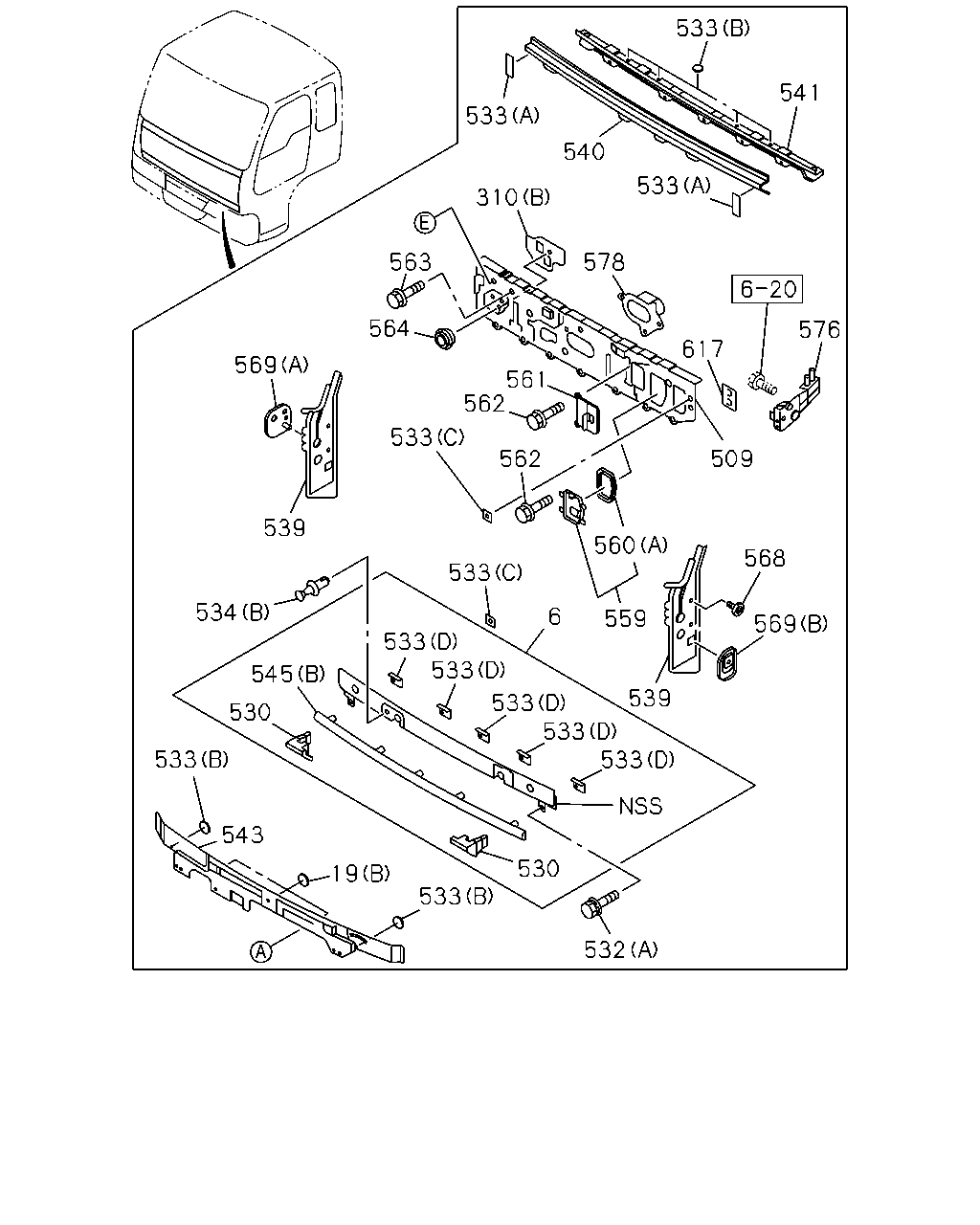

çizim 24277
533 541 533 540 533 310 563 578 564 576 617 569 561 562 533 509 562 539 560 568 533 534 6 559 569 533 533 545 539 533 533 533 530 533 543 530 19 533 532
BalonParca AdiParca NoAdetTipApplied Date A B
6 PANEL; FRONT 1-65472-549-4 01 1 0308- ● ●
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 0308- ● ●
19 SEAL; FRT SIDE PANEL
(C) 		1-71907-411-0 01 1 0308- ● ●
19 SEAL; FRT SIDE PANEL
(C) 		1-71907-410-0 01 1 0308- ● ●
19 SEAL; FRT SIDE PANEL
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911),BODY COLOR FIRE RED(915) EXC. BUMPER W/HEADLAMPS<SLB> (A) 		1-71907-160-5 01 1 0308- ● ●
19 SEAL; FRT SIDE PANEL
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911),BODY COLOR FIRE RED(915) EXC. BUMPER W/HEADLAMPS<SLB> (A) 		1-71907-159-5 01 1 0308- ● ●
19 SEAL; FRT SIDE PANEL
BODY COLOR MARINE BLUE(890) EXC. BUMPER W/HEADLAMPS<SLB> (A) 		1-71907-165-5 01 1 0308- ● ●
19 SEAL; FRT SIDE PANEL
BODY COLOR MARINE BLUE(890) EXC. BUMPER W/HEADLAMPS<SLB> (A) 		1-71907-164-5 01 1 0308- ● ●
19 SEAL; FRT SIDE PANEL
BUMPER W/HEADLAMPS<SLB> (A) 		1-71907-580-1 01 1 0308- ● ●
19 SEAL; FRT SIDE PANEL
BUMPER W/HEADLAMPS<SLB> (A) 		1-71907-579-1 01 1 0308- ● ●
310 SILENCER; FRT PANEL
(A) 		1-72377-007-1 01 1 0308- ● ●
310 SILENCER; FRT PANEL
(B) 		1-72377-008-1 01 1 0308- ● ●
509 PANEL; DASH 1-62270-478-6 01 1 0308- ● ●
530 STOPPER; FRT PANEL,SIDE 1-71907-482-1 01 1 0308- ● ●
530 STOPPER; FRT PANEL,SIDE 1-71907-487-0 01 1 0308- ● ●
532 BOLT; FRT PANEL
(A) M8X20 		1-79198-002-0 02 1 0308- ● ●
532 BOLT; FRT PANEL
(C) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0308- ● ●
532 BOLT; FRT PANEL
BUMPER W/HEADLAMPS<SLB> (B) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 0308- ● ●
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 07 1 0308- ● ●
533 SEAL; FRT PANEL
(A) 20X65 		1-76778-046-2 02 1 0308- ● ●
533 SEAL; FRT PANEL
(B) OD=36 T=0.05 BLACK 		5-76777-035-0 12 1 0308- ● ●
533 SEAL; FRT PANEL
(C) 25X25 		8-94272-533-0 02 1 0308- ● ●
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-021-0 08 1 0308- ● ●
534 FASTENER
(B) D6X12.5 		8-94146-425-0 02 1 0308- ● ●
539 CLOSING; PILLAR 1-61480-673-6 01 1 0308- ● ●
539 CLOSING; PILLAR 1-61480-674-6 01 1 0308- ● ●
540 PANEL; FRONT,OUTER 1-61470-688-2 01 1 0308- ● ●
541 PANEL; FRONT,INNER 1-61470-690-0 01 1 0308- ● ●
543 CLOSING; FRT MTG RAIL 1-61470-716-1 01 1 0308-0505 ● ●
543 CLOSING; FRT MTG RAIL 1-61470-727-0 01 1 0506- ● ●
545 SEAL; FRT LID
(A) 		1-71907-472-0 02 1 0308- ● ●
545 SEAL; FRT LID
(B) L=2038 		1-71907-481-1 01 1 0308- ● ●
545 SEAL; FRT LID
(D) OD=25 BLACK 		1-76798-019-0 01 1 0308- ● ●
545 SEAL; FRT LID
BUMPER W/HEADLAMPS<SLB> (C) 		1-71907-578-0 02 1 0308- ● ●
545 SEAL; FRT LID
EXC. BUMPER W/HEADLAMPS<SLB> (C) L=63 		1-71998-963-2 01 1 0308- ● ●
559 COVER; EVAPOLATOR 1-71996-194-1 01 1 0308- ● ●
560 SEAL; COVER
(A) 		1-71998-827-1 01 1 0308- ● ●
560 SEAL; COVER
(B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0308- ● ●
560 SEAL; COVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0308- ● ●
560 SEAL; COVER
(B) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0308- ● ●
560 SEAL; COVER
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0308- ● ●
561 COVER; HEATER CORE 1-71998-829-1 01 1 0308- ● ●
562 BOLT; COVER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0308- ● ●
563 BOLT; DASH PANEL
M8X20 		1-79198-002-0 16 1 0308- ● ●
563 BOLT; DASH PANEL
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 02 1 0308- ● ●
564 GROMMET; DASH PANEL
OD=23.5 		1-09983-101-0 02 1 0308- ● ●
568 PATCH; INST REINF 1-61480-675-2 02 1 0308- ● ●
569 PATCH; LWR GRIP
(A) 		1-61480-689-2 01 1 0308- ● ●
569 PATCH; LWR GRIP
(B) 		1-61480-736-2 01 1 0308- ● ●
576 FRAME; INST SIDE 1-62280-176-6 01 1 0308- ● ●
576 FRAME; INST SIDE 1-62280-177-7 01 1 0308- ● ●
578 COVER; WIPER MOTOR 1-62280-254-1 01 1 0308- ● ●
617 SEAL; DASH 1-61281-497-0 02 1 0308- ● ●

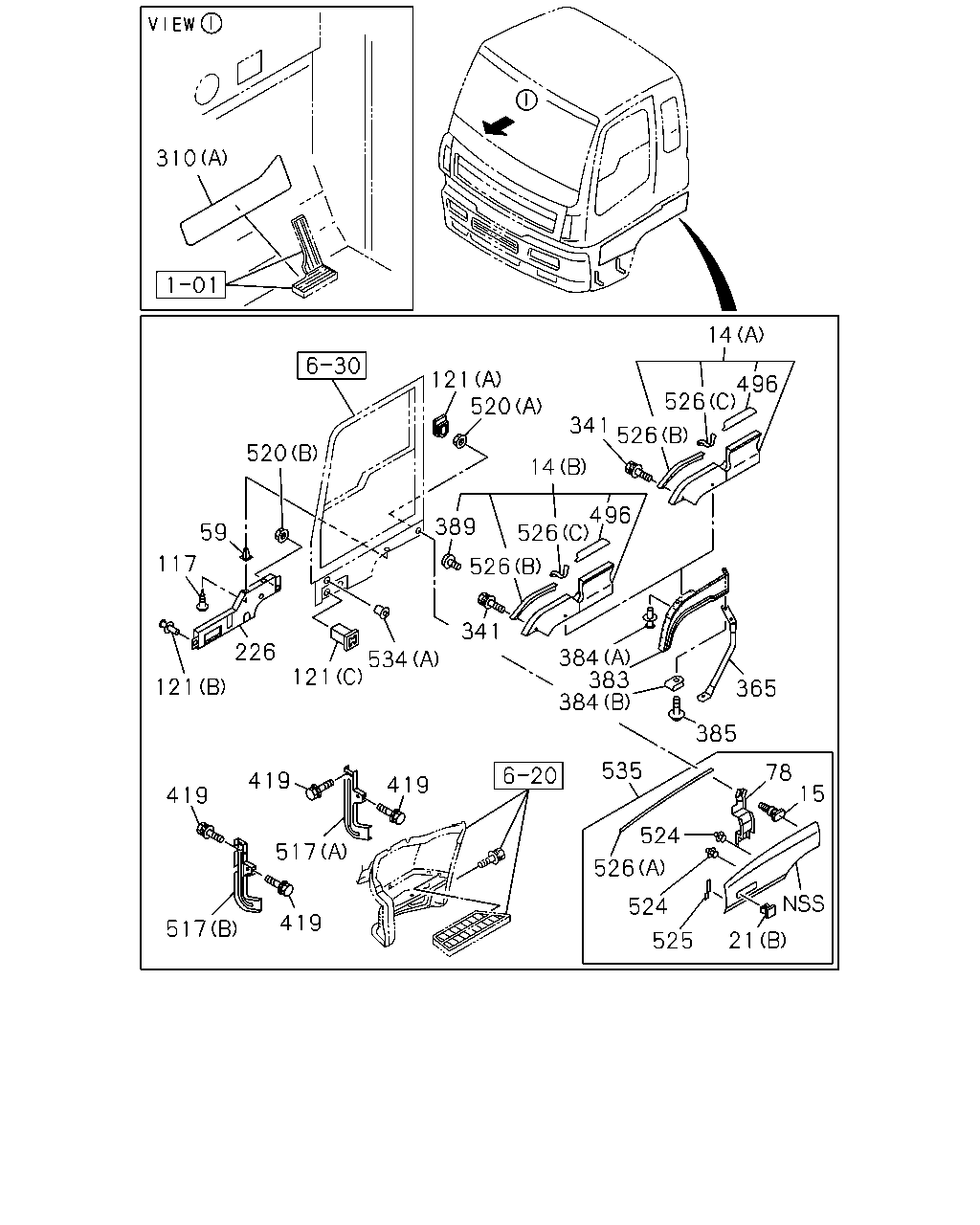

çizim 25420
310 14 121 520 496 526 341 526 520 14 496 526 389 59 117 526 341 226 384 383 384 534 121 121 365 385 535 78 15 419 419 419 524 517 526 524 419 517 21 525
BalonParca AdiParca NoAdetTipApplied Date A B
14 FENDER; FRT
(A) 		1-65472-452-2 01 1 0308-0503 ● ●
14 FENDER; FRT
(A) 		1-65472-453-2 01 1 0308-0503 ● ●
14 FENDER; FRT
(B) 		1-65472-875-8 01 1 0504- ● ●
14 FENDER; FRT
(B) 		1-65472-874-8 01 1 0504- ● ●
15 BOLT; FENDER
M6X7 		1-71268-294-0 04 1 0308- ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0308- ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
BUMPER W/HEADLAMPS<SLB> (A) D=10.5X7 L=10.5 M5 		1-09983-160-3 14 1 0308- ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
EXC. BUMPER W/HEADLAMPS<SLB> (A) D=10.5X7 L=10.5 M5 		1-09983-160-3 12 1 0308- ● ●
59 GROMMET; SCREW
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 10 1 0308- ● ●
78 BRACKET; FENDER 1-71267-215-0 01 1 0308- ● ●
78 BRACKET; FENDER 1-71267-214-0 01 1 0308- ● ●
117 SCREW; COVER
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 10 1 0308- ● ●
121 GROMMET; FENDER
(A) 		1-09983-162-0 02 1 0308- ● ●
121 GROMMET; FENDER
(B) D8X13.5 		1-09987-248-1 08 1 0308- ● ●
121 GROMMET; FENDER
(C) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 0308- ● ●
226 PROTECTOR; FRT 1-71267-269-1 01 1 0308- ● ●
226 PROTECTOR; FRT 1-71267-268-1 01 1 0308- ● ●
310 SILENCER; FRT PANEL
(A) 		1-72377-007-1 01 1 0308- ● ●
310 SILENCER; FRT PANEL
(B) 		1-72377-008-1 01 1 0308- ● ●
341 BOLT; FENDER TO COWL
M6X16 W/LK&PL WASHER 		1-09980-492-0 18 1 0308-0410 ● ●
341 BOLT; FENDER TO COWL
M6X16 W/LK&PL WASHER 		1-09980-492-0 16 1 0411- ● ●
365 SUPPORT; FENDER
CAB UP +110MM<TGG> 		1-71907-418-1 01 1 0308-0512 ● ●
365 SUPPORT; FENDER 1-71907-418-1 01 1 0601- ● ●
365 SUPPORT; FENDER
CAB UP +110MM<TGG> 		1-71907-417-1 01 1 0308-0512 ● ●
365 SUPPORT; FENDER 1-71907-417-1 01 1 0601- ● ●
383 GUARD; MUD,FENDER LWR
CAB UP +110MM<TGG> 		1-71907-456-2 01 1 0308-0512 ● ●
383 GUARD; MUD,FENDER LWR 1-71907-456-2 01 1 0601- ● ●
383 GUARD; MUD,FENDER LWR
CAB UP +110MM<TGG> 		1-71907-457-2 01 1 0308-0512 ● ●
383 GUARD; MUD,FENDER LWR 1-71907-457-2 01 1 0601- ● ●
383 GUARD; MUD,FENDER LWR
EXC. CAB UP +110MM<TGG> 		1-71907-443-2 01 1 0308-0512 ● ●
383 GUARD; MUD,FENDER LWR
EXC. CAB UP +110MM<TGG> 		1-71907-442-2 01 1 0308-0512 ● ●
384 CLIP; FENDER LWR
CAB UP +110MM<TGG> (A) D8X13.5 		1-09987-248-1 09 1 0308-0512 ● ●
384 CLIP; FENDER LWR
(A) D8X13.5 		1-09987-248-1 09 1 0601- ● ●
384 CLIP; FENDER LWR
CAB UP +110MM<TGG> (B) ID=6 		1-09987-266-0 04 1 0308-0512 ● ●
384 CLIP; FENDER LWR
(B) ID=6 		1-09987-266-0 04 1 0601- ● ●
384 CLIP; FENDER LWR
EXC. CAB UP +110MM<TGG> (A) D8X13.5 		1-09987-248-1 11 1 0308-0512 ● ●
385 SCREW; FENDER LWR
CAB UP +110MM<TGG> M6X25 		1-65481-736-0 04 1 0308-0512 ● ●
385 SCREW; FENDER LWR
M6X25 		1-65481-736-0 04 1 0601- ● ●
389 SCREW; STAND,FENDER
M6X22 		1-65481-386-0 06 1 0504- ● ●
419 BOLT; STEP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 10 1 0308- ● ●
496 RUBBER; STEP 1-71998-862-2 01 1 0308- ● ●
496 RUBBER; STEP 1-71998-861-2 01 1 0308- ● ●
517 SUPPORT; STEP PANEL
(A) 		1-65671-531-1 01 1 0308- ● ●
517 SUPPORT; STEP PANEL
(B) 		1-65671-774-0 01 1 0308- ● ●
517 SUPPORT; STEP PANEL
(A) 		1-65671-530-1 01 1 0308- ● ●
517 SUPPORT; STEP PANEL
(B) 		1-65671-766-1 01 1 0308- ● ●
520 NUT; FENDER
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 0308- ● ●
520 NUT; FENDER
(B) M6 		8-94343-366-1 02 1 0308- ● ●
524 CLIP; FENDER COVER
D5.4X8 		1-09983-154-0 08 1 0308- ● ●
525 SEAL; FENDER
10X145 		1-71268-281-1 02 1 0308-0409 ● ●
525 SEAL; FENDER
10X145 		1-71267-342-0 02 1 0410- ● ●
526 FINISHER; FENDER
(A) 		1-71268-275-1 02 1 0308- ● ●
526 FINISHER; FENDER
(B) 		1-71907-641-0 02 1 0308- ● ●
526 FINISHER; FENDER
(C) 		1-71907-643-0 01 1 0308- ● ●
526 FINISHER; FENDER
(C) 		1-71907-642-0 01 1 0308- ● ●
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-021-0 08 1 0308- ● ●
534 FASTENER
(B) D6X12.5 		8-94146-425-0 02 1 0308- ● ●
535 FENDER; BLISTER 1-71267-294-0 01 1 0308- ● ●
535 FENDER; BLISTER 1-71267-293-0 01 1 0308- ● ●

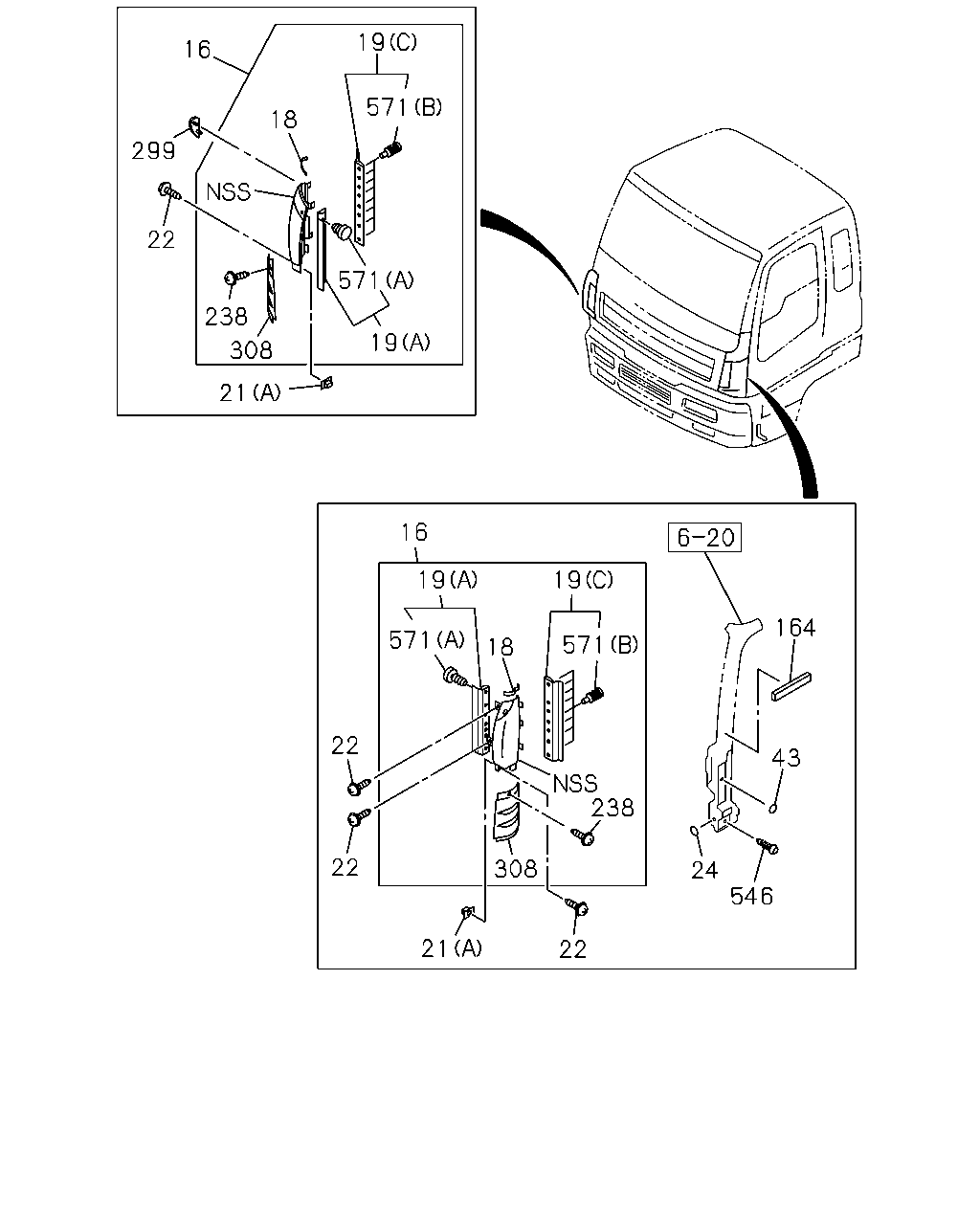

çizim 79819
19 16 571 18 299 22 571 238 19 308 21 16 19 19 164 571 571 18 22 43 238 22 308 24 546 21 22
BalonParca AdiParca NoAdetTipApplied Date A B
16 PANEL; FRONT,SIDE
BUMPER W/HEADLAMPS<SLB> 		1-65472-649-2 01 1 0308- ● ●
16 PANEL; FRONT,SIDE
BUMPER W/HEADLAMPS<SLB> 		1-65472-648-2 01 1 0308- ● ●
16 PANEL; FRONT,SIDE
EXC. BUMPER W/HEADLAMPS<SLB> 		1-65471-897-0 01 1 0308- ● ●
16 PANEL; FRONT,SIDE
EXC. BUMPER W/HEADLAMPS<SLB> 		1-65471-896-0 01 1 0308- ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-899-2 01 1 0308- ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-898-2 01 1 0308- ● ●
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 0308- ● ●
19 SEAL; FRT SIDE PANEL
(C) 		1-71907-411-0 01 1 0308- ● ●
19 SEAL; FRT SIDE PANEL
(C) 		1-71907-410-0 01 1 0308- ● ●
19 SEAL; FRT SIDE PANEL
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911),BODY COLOR FIRE RED(915) EXC. BUMPER W/HEADLAMPS<SLB> (A) 		1-71907-160-5 01 1 0308- ● ●
19 SEAL; FRT SIDE PANEL
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911),BODY COLOR FIRE RED(915) EXC. BUMPER W/HEADLAMPS<SLB> (A) 		1-71907-159-5 01 1 0308- ● ●
19 SEAL; FRT SIDE PANEL
BODY COLOR MARINE BLUE(890) EXC. BUMPER W/HEADLAMPS<SLB> (A) 		1-71907-165-5 01 1 0308- ● ●
19 SEAL; FRT SIDE PANEL
BODY COLOR MARINE BLUE(890) EXC. BUMPER W/HEADLAMPS<SLB> (A) 		1-71907-164-5 01 1 0308- ● ●
19 SEAL; FRT SIDE PANEL
BUMPER W/HEADLAMPS<SLB> (A) 		1-71907-580-1 01 1 0308- ● ●
19 SEAL; FRT SIDE PANEL
BUMPER W/HEADLAMPS<SLB> (A) 		1-71907-579-1 01 1 0308- ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0308- ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
BUMPER W/HEADLAMPS<SLB> (A) D=10.5X7 L=10.5 M5 		1-09983-160-3 14 1 0308- ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
EXC. BUMPER W/HEADLAMPS<SLB> (A) D=10.5X7 L=10.5 M5 		1-09983-160-3 12 1 0308- ● ●
22 SCREW; FRT PANEL SIDE
BUMPER W/HEADLAMPS<SLB> M5X20 W/PL WASHER TAPPING 		8-97893-344-0 14 1 0308- ● ●
22 SCREW; FRT PANEL SIDE
EXC. BUMPER W/HEADLAMPS<SLB> M5X20 W/PL WASHER TAPPING 		8-97893-344-0 12 1 0308- ● ●
24 SEAL; FRT PANEL LWR
AUTO DOOR LOCK<AU4> OD=25 BLACK 		1-76798-019-0 05 1 0308- ● ●
24 SEAL; FRT PANEL LWR
EXC. AUTO DOOR LOCK<AU4> OD=25 BLACK 		1-76798-019-0 09 1 0308- ● ●
43 GROMMET; LOCATION HOLE,A-POST
OD=45 BLACK 		1-76798-017-0 02 1 0308- ● ●
164 SEAL; FRT PILLAR 1-71907-414-0 02 1 0308- ● ●
238 SCREW
BUMPER W/HEADLAMPS<SLB> M5X16 W/PL WASHER TAPPING 		8-94279-123-0 06 1 0308- ● ●
299 COVER; FRT PANEL SIDE 1-71998-995-1 01 1 0308-0602 ● ●
299 COVER; FRT PANEL SIDE 1-71998-995-1 01 1 0603- ● ●
308 PLATE; FRT PANEL
BUMPER W/HEADLAMPS<SLB> 		1-65472-569-1 01 1 0308- ● ●
308 PLATE; FRT PANEL
BUMPER W/HEADLAMPS<SLB> 		1-65472-568-1 01 1 0308- ● ●
546 PLUG; DUMMY HOLE
OD=16 L=11 		1-76378-155-0 02 1 0308- ● ●
571 CLIP; SEAL
(B) PINK 		1-09987-256-0 08 1 0308- ● ●
571 CLIP; SEAL
(B) NATURAL 		1-09987-257-0 08 1 0308- ● ●
571 CLIP; SEAL
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911),BODY COLOR FIRE RED(915) EXC. BUMPER W/HEADLAMPS<SLB> (A) 		1-09987-228-0 14 1 0308- ● ●
571 CLIP; SEAL
BODY COLOR MARINE BLUE(890) (A) 		1-09987-228-0 16 1 0308-0403 ● ●
571 CLIP; SEAL
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911),BODY COLOR FIRE RED(915) BUMPER W/HEADLAMPS<SLB> (A) 		1-09987-228-0 16 1 0308-0403 ● ●
571 CLIP; SEAL
BODY COLOR MARINE BLUE(890) EXC. BUMPER W/HEADLAMPS<SLB> (A) 		1-09987-228-0 16 1 0404-0604 ● ●
571 CLIP; SEAL
BUMPER W/HEADLAMPS<SLB> (A) 		1-09987-228-0 16 1 0404-0604 ● ●
571 CLIP; SEAL
BODY COLOR MARINE BLUE(890) (A) 		1-09987-228-0 16 1 0605- ● ●
571 CLIP; SEAL
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911),BODY COLOR FIRE RED(915) BUMPER W/HEADLAMPS<SLB> (A) 		1-09987-228-0 16 1 0605- ● ●

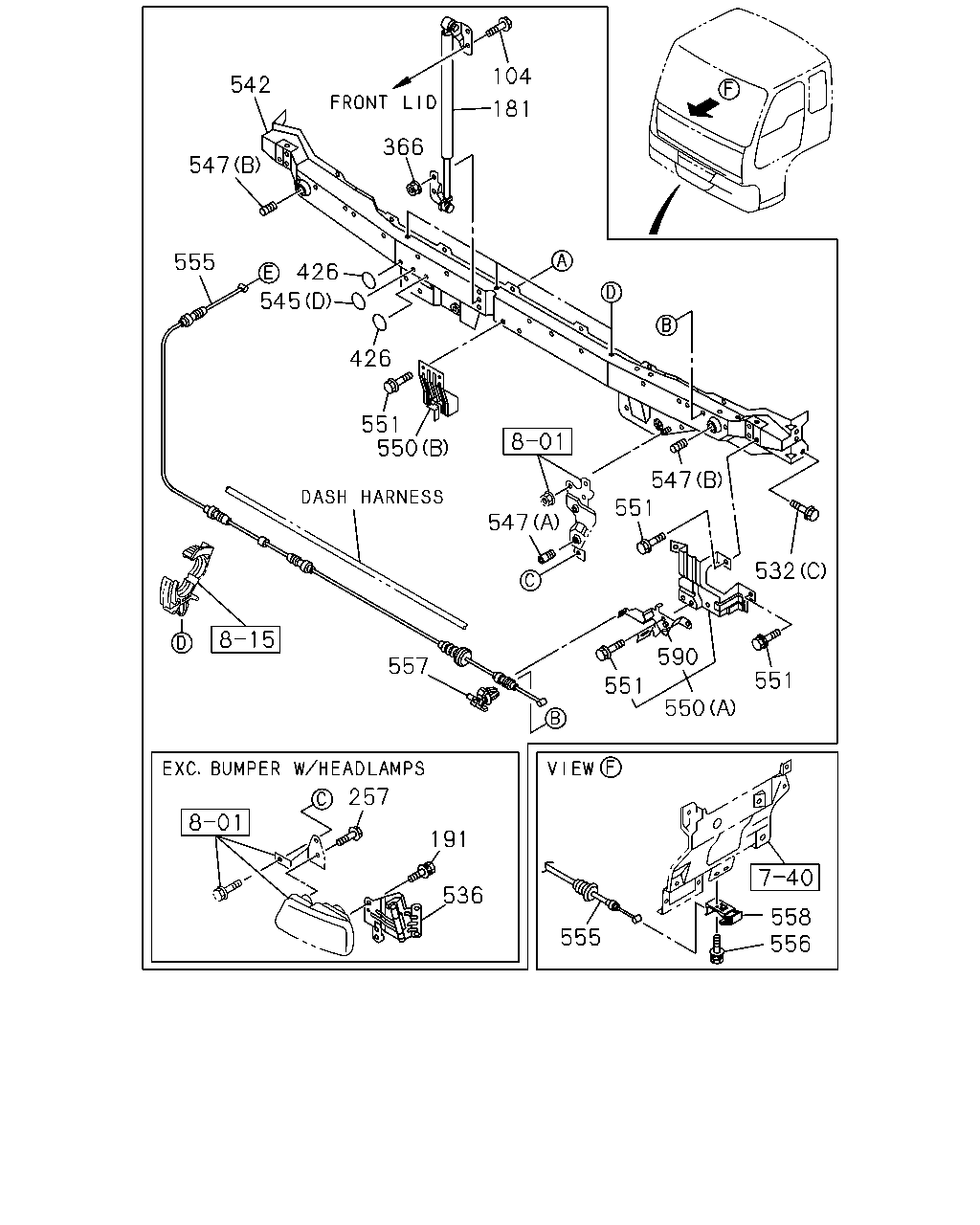

çizim 82984
104 542 181 366 547 555 426 545 426 551 550 547 551 547 532 590 557 551 551 550 257 191 536 558 556 555
BalonParca AdiParca NoAdetTipApplied Date A B
104 BOLT; SUPPORT BAR
M6X20 W/LK&PL WASHER 		8-94279-203-0 02 1 0308- ● ●
181 SUPPORT ASM; DOOR CHECK,FRT 1-71107-261-0 01 1 0308-0412 ● ●
181 SUPPORT ASM; DOOR CHECK,FRT 1-71107-864-0 01 1 0501- ● ●
191 BOLT; HINGE
EXC. BUMPER W/HEADLAMPS<SLB> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0308- ● ●
257 BOLT; BRKT
EXC. BUMPER W/HEADLAMPS<SLB> M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 0308-0308 ● ●
257 BOLT; BRKT
EXC. BUMPER W/HEADLAMPS<SLB> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0309- ● ●
366 NUT; SUPPORT
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 02 1 0308- ● ●
426 GASKET
OD=25 BLACK 		1-76798-019-0 02 1 0308- ● ●
426 GASKET
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 01 1 0308- ● ●
532 BOLT; FRT PANEL
(A) M8X20 		1-79198-002-0 02 1 0308- ● ●
532 BOLT; FRT PANEL
(C) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0308- ● ●
532 BOLT; FRT PANEL
BUMPER W/HEADLAMPS<SLB> (B) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 0308- ● ●
536 HINGE
EXC. BUMPER W/HEADLAMPS<SLB> 		1-86830-032-5 01 1 0308- ● ●
536 HINGE
EXC. BUMPER W/HEADLAMPS<SLB> 		1-86830-031-5 01 1 0308- ● ●
542 RAIL; FRT MOUNTING 1-61470-705-4 01 1 0308-0505 ● ●
542 RAIL; FRT MOUNTING 1-61470-721-1 01 1 0506- ● ●
545 SEAL; FRT LID
(A) 		1-71907-472-0 02 1 0308- ● ●
545 SEAL; FRT LID
(B) L=2038 		1-71907-481-1 01 1 0308- ● ●
545 SEAL; FRT LID
(D) OD=25 BLACK 		1-76798-019-0 01 1 0308- ● ●
545 SEAL; FRT LID
BUMPER W/HEADLAMPS<SLB> (C) 		1-71907-578-0 02 1 0308- ● ●
545 SEAL; FRT LID
EXC. BUMPER W/HEADLAMPS<SLB> (C) L=63 		1-71998-963-2 01 1 0308- ● ●
547 RUBBER; CUSHION
(A) OD=22 L=39 		1-71907-419-0 02 1 0308- ● ●
547 RUBBER; CUSHION
(B) OD=22 L=29 		8-94324-556-2 02 1 0308- ● ●
550 LOCK ASM; FRT LID
BUMPER W/HEADLAMPS<SLB> (B) 		1-79317-013-1 01 1 0308- ● ●
550 LOCK ASM; FRT LID
BUMPER W/HEADLAMPS<SLB> (A) 		1-79317-012-1 01 1 0308- ● ●
550 LOCK ASM; FRT LID
BUMPER W/HEADLAMPS<SLB> (A) 		1-79317-011-1 01 1 0308- ● ●
550 LOCK ASM; FRT LID
EXC. BUMPER W/HEADLAMPS<SLB> (B) 		1-79317-006-2 01 1 0308- ● ●
550 LOCK ASM; FRT LID
EXC. BUMPER W/HEADLAMPS<SLB> (A) 		1-79317-008-1 01 1 0308- ● ●
550 LOCK ASM; FRT LID
EXC. BUMPER W/HEADLAMPS<SLB> (A) 		1-79317-007-2 01 1 0308- ● ●
551 BOLT; LOCK
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 04 1 0308- ● ●
551 BOLT; LOCK
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 06 1 0308- ● ●
551 BOLT; LOCK
EXC. BUMPER W/HEADLAMPS<SLB> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0308- ● ●
555 CABLE; FRT LID
BUMPER W/HEADLAMPS<SLB> L=2512 		1-79347-007-3 01 1 0308- ● ●
555 CABLE; FRT LID
EXC. BUMPER W/HEADLAMPS<SLB> L=2682 		1-79347-005-2 01 1 0308- ● ●
556 BOLT; CABLE
M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0308- ● ●
557 CLIP; CABLE
ID=4.8 		8-94128-483-0 01 1 0308- ● ●
558 LEVER; FRT LID 1-79338-007-0 01 1 0308- ● ●
590 LOCK; FRT LID 1-79318-010-2 01 1 0308- ● ●
590 LOCK; FRT LID 1-79318-009-4 01 1 0308- ● ●

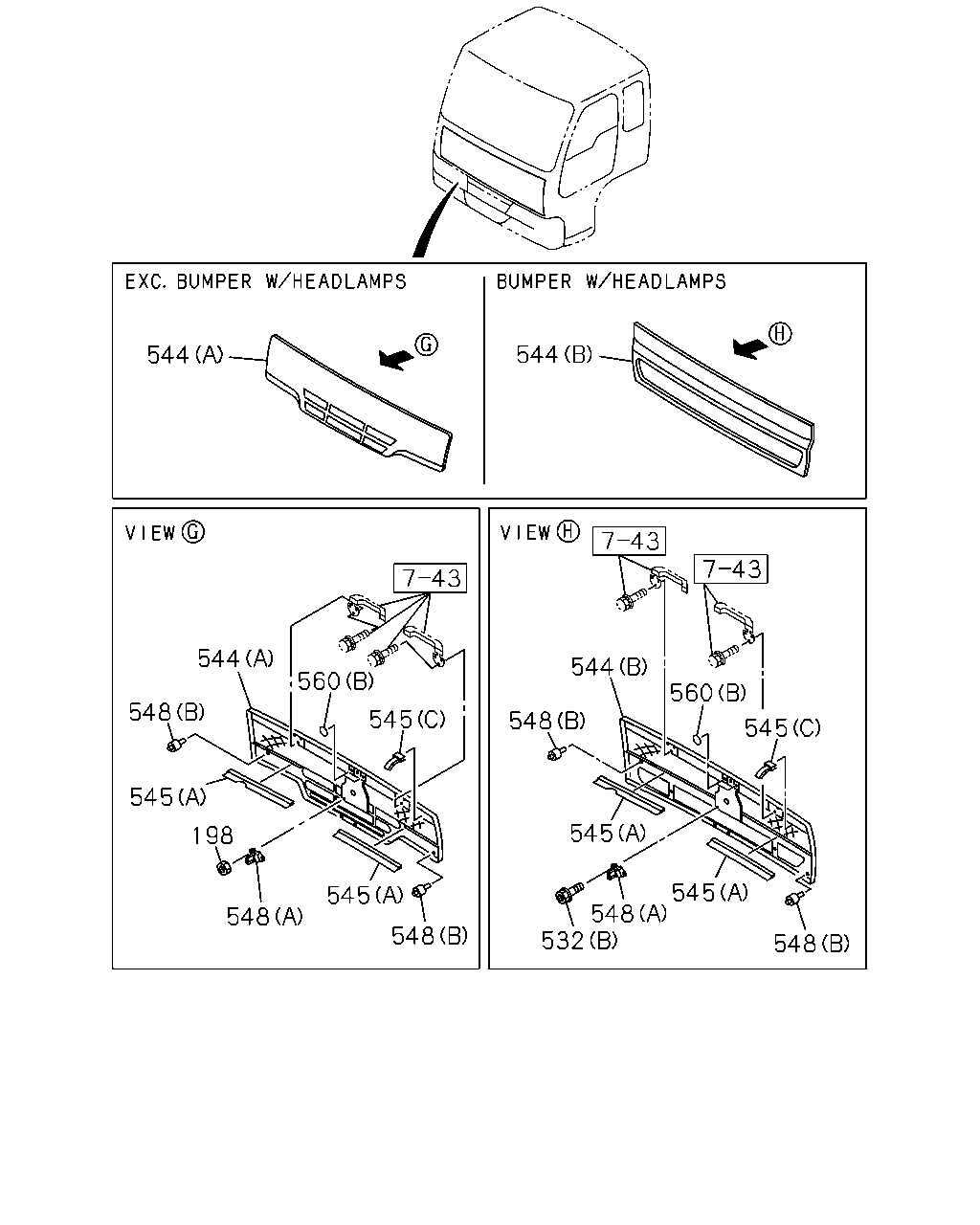

çizim 85261
544 544 544 544 560 560 548 545 548 545 545 545 198 545 545 548 532 548 548 548
BalonParca AdiParca NoAdetTipApplied Date A B
198 NUT; PANEL
EXC. BUMPER W/HEADLAMPS<SLB> M6 FLANGE 		8-94197-199-0 02 1 0308- ● ●
532 BOLT; FRT PANEL
(A) M8X20 		1-79198-002-0 02 1 0308- ● ●
532 BOLT; FRT PANEL
(C) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0308- ● ●
532 BOLT; FRT PANEL
BUMPER W/HEADLAMPS<SLB> (B) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 0308- ● ●
544 LID; FRT
BUMPER W/HEADLAMPS<SLB> (B) 		1-71107-403-0 01 1 0308- ● ●
544 LID; FRT
EXC. BUMPER W/HEADLAMPS<SLB> (A) 		1-71107-293-0 01 1 0308- ● ●
545 SEAL; FRT LID
(A) 		1-71907-472-0 02 1 0308- ● ●
545 SEAL; FRT LID
(B) L=2038 		1-71907-481-1 01 1 0308- ● ●
545 SEAL; FRT LID
(D) OD=25 BLACK 		1-76798-019-0 01 1 0308- ● ●
545 SEAL; FRT LID
BUMPER W/HEADLAMPS<SLB> (C) 		1-71907-578-0 02 1 0308- ● ●
545 SEAL; FRT LID
EXC. BUMPER W/HEADLAMPS<SLB> (C) L=63 		1-71998-963-2 01 1 0308- ● ●
548 STRIKER; FRT LID PANEL
(A) 		1-79317-003-1 01 1 0308- ● ●
548 STRIKER; FRT LID PANEL
(B) 		1-79318-008-1 02 1 0308- ● ●
560 SEAL; COVER
(A) 		1-71998-827-1 01 1 0308- ● ●
560 SEAL; COVER
(B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0308- ● ●
560 SEAL; COVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0308- ● ●
560 SEAL; COVER
(B) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0308- ● ●
560 SEAL; COVER
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0308- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
