6-01 — FRONT BUMPER (#25951) — 92 parça

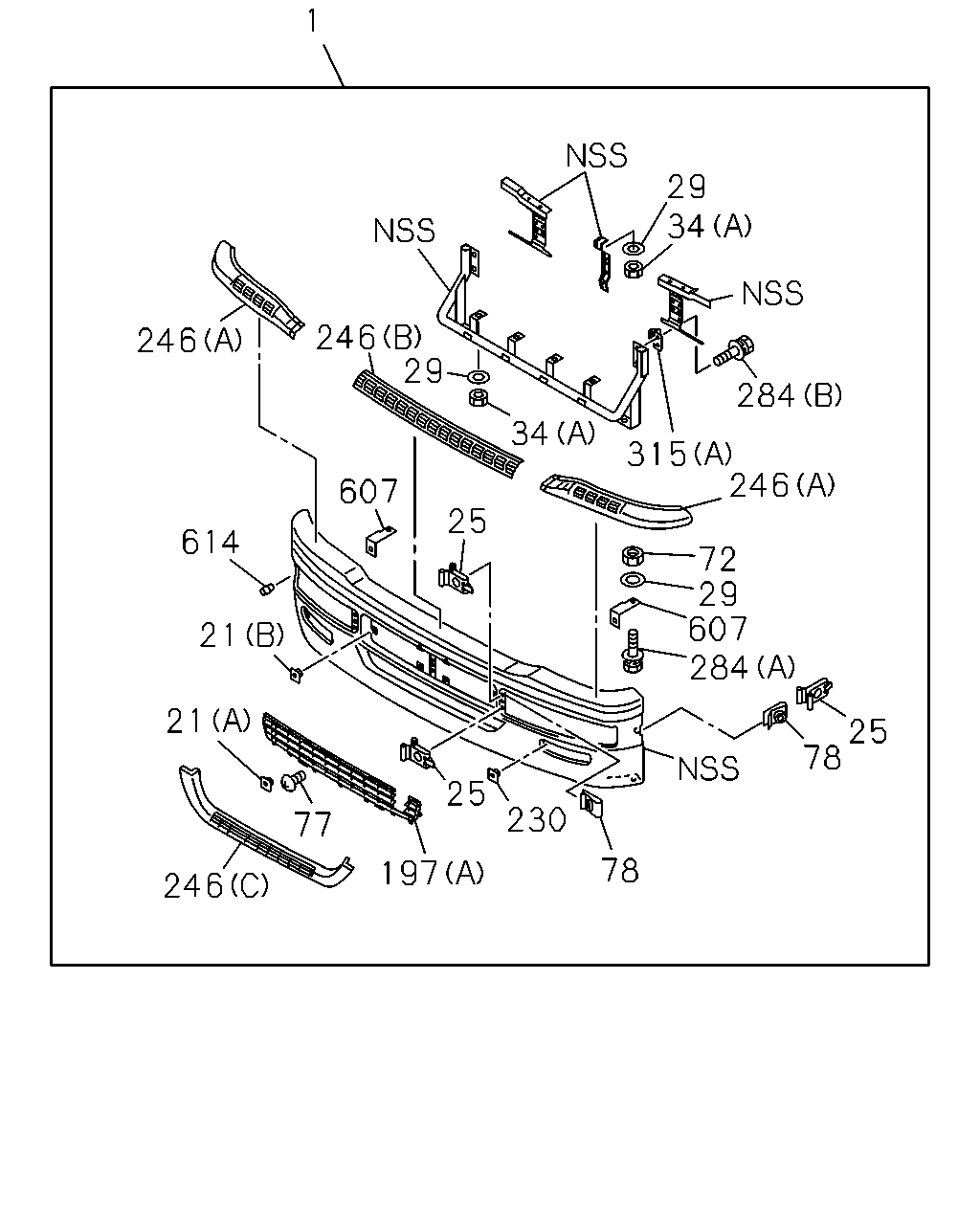

çizim 81989
1 29 34 246 29 34 246 284 315 246 607 25 614 72 29 607 284 21 21 25 78 25 230 77 78 197 246
BalonParca AdiParca NoAdetTipApplied Date A B
1 BUMPER ASM; FRT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> WHITE 		1-71210-746-5 01 1 0308- ● ●
21 GROMMET; SCREW,BUMPER PROTECTOR
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) D=9X9 L=7 M5 		8-94163-979-0 14 1 0308- ● ●
21 GROMMET; SCREW,BUMPER PROTECTOR
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) D=9.7X9.7 L=8 		8-94222-314-0 10 1 0308- ● ●
25 SPACER; PLATFORM
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-71260-162-0 06 1 0308- ● ●
29 WASHER; FRT BUMPER
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ID=8.4 OD=22 		9-09160-708-0 19 1 0308-0605 ● ●
29 WASHER; FRT BUMPER
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ID=8.4 OD=22 		0-91610-708-0 19 1 0606- ● ●
34 NUT; BRKT,BUMPER
(B) M8 FLANGE 		0-91150-108-0 04 1 0308-0602 ● ●
34 NUT; BRKT,BUMPER
(B) M8 FLANGE 		0-91180-108-0 04 1 0603- ● ●
34 NUT; BRKT,BUMPER
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) M8 FLANGE 		0-91150-108-0 17 1 0308-0602 ● ●
34 NUT; BRKT,BUMPER
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) M8 FLANGE 		0-91180-108-0 17 1 0603- ● ●
72 NUT; BRKT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> M8 		9-09110-508-0 02 1 0308-0512 ● ●
72 NUT; BRKT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> M8 		0-91110-508-0 02 1 0601- ● ●
77 SCREW; BRKT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> M5X16 TAPPING 		9-07076-516-0 14 1 0308-0603 ● ●
77 SCREW; BRKT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> M5X16 TAPPING 		0-71240-516-0 14 1 0604- ● ●
78 NUT; SPIRE
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-71260-174-0 06 1 0308- ● ●
197 GRILLE; BUMPER
(B) 		1-71260-157-2 01 1 0308- ● ●
197 GRILLE; BUMPER
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 		1-71260-117-0 01 1 0308- ● ●
230 NUT; BRK,HD LAMP,LWR
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> D=9.7X9.7 L=8 		8-94222-314-0 04 1 0308- ● ●
246 PROTECTOR; BUMPER
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 		1-71260-094-2 01 1 0308- ● ●
246 PROTECTOR; BUMPER
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 		1-71260-095-2 01 1 0308- ● ●
246 PROTECTOR; BUMPER
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 		1-71260-155-1 01 1 0308- ● ●
246 PROTECTOR; BUMPER
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (C) 		1-71260-156-1 01 1 0308- ● ●
284 BOLT; BRKT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) M8X20 W/LK&PL WASHER 		0-50140-820-0 02 1 0308-0512 ● ●
284 BOLT; BRKT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) M8X20 W/LK&PL WASHER 		0-50640-820-0 02 1 0601- ● ●
284 BOLT; BRKT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) M8X25 W/LK&PL WASHER 		0-50140-825-0 04 1 0308-0512 ● ●
284 BOLT; BRKT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) M8X25 W/LK&PL WASHER 		0-50640-825-0 04 1 0601- ● ●
315 STAY; BUMPER
(C) 		1-71230-549-0 02 1 0308- ● ●
315 STAY; BUMPER
CAB UP +110MM<TGG> (B) 		1-71230-566-0 02 1 0308- ● ●
315 STAY; BUMPER
CAB UP +50MM<W60> (B) 		1-71230-553-0 01 1 0308- ● ●
315 STAY; BUMPER
CAB UP +50MM<W60> (B) 		1-71230-554-0 01 1 0308- ● ●
315 STAY; BUMPER
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 		1-71230-346-2 01 1 0308- ● ●
315 STAY; BUMPER
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 		1-71230-347-2 01 1 0308- ● ●
607 BRACKET
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-71230-454-0 02 1 0308- ● ●
614 STOPPER; LID
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-71260-163-0 12 1 0308- ● ●

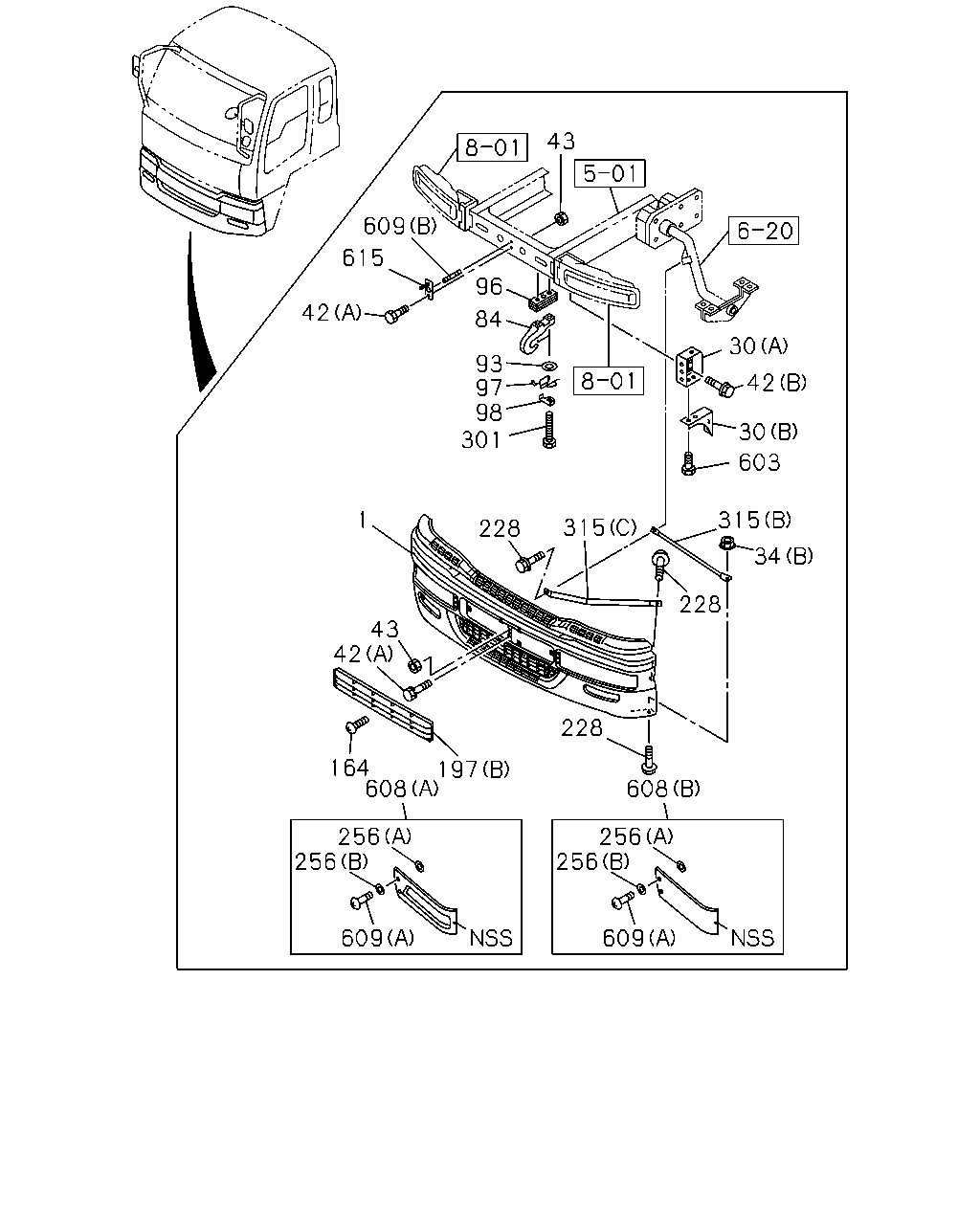

çizim 82956
43 609 615 96 42 84 30 93 97 98 301 42 30 603 315 1 315 228 34 228 43 42 228 164 608 197 608 256 256 256 256 609 609
BalonParca AdiParca NoAdetTipApplied Date A B
1 BUMPER ASM; FRT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> WHITE 		1-71210-746-5 01 1 0308- ● ●
30 BRACKET; FRT BUMPER
(B) 		1-71230-430-0 01 1 0308- ● ●
30 BRACKET; FRT BUMPER
(B) 		1-71230-431-0 01 1 0308- ● ●
30 BRACKET; FRT BUMPER
BUMPER FRONT RESIN VAR1<TCY> (A) 		1-71230-506-0 02 1 0308- ● ●
34 NUT; BRKT,BUMPER
(B) M8 FLANGE 		0-91150-108-0 04 1 0308-0602 ● ●
34 NUT; BRKT,BUMPER
(B) M8 FLANGE 		0-91180-108-0 04 1 0603- ● ●
34 NUT; BRKT,BUMPER
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) M8 FLANGE 		0-91150-108-0 17 1 0308-0602 ● ●
34 NUT; BRKT,BUMPER
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) M8 FLANGE 		0-91180-108-0 17 1 0603- ● ●
42 BOLT; BUMPER
(A) M10X25 FLANGE 		0-28681-025-0 07 1 0308-0512 ● ●
42 BOLT; BUMPER
(A) M10X25 FLANGE 		0-28651-025-0 07 1 0601- ● ●
42 BOLT; BUMPER
BUMPER FRONT RESIN VAR1<TCY> (B) M10X30 FLANGE 		0-28681-030-0 08 1 0308-0512 ● ●
42 BOLT; BUMPER
BUMPER FRONT RESIN VAR1<TCY> (B) M10X30 FLANGE 		0-28651-030-0 08 1 0601- ● ●
43 NUT; BRKT TO BUMPER
M10 FLANGE 		0-91150-210-0 02 1 0308-0602 ● ●
43 NUT; BRKT TO BUMPER
M10 FLANGE 		0-91180-210-0 02 1 0603- ● ●
84 HOOK 1-57181-027-1 01 1 0308- ● ●
93 WASHER; LK,HOOK
ID=16.2 		9-09150-516-0 02 1 0308-0603 ● ●
93 WASHER; LK,HOOK
ID=16.2 		0-91510-516-0 02 1 0604- ● ●
96 PLATE; DIST,HOOK
CAB UP +110MM<TGG> 		1-53497-560-0 01 1 0308- ● ●
96 PLATE; DIST,HOOK
CAB UP +50MM<W60> 		1-53497-594-0 01 1 0308- ● ●
97 SPRING; FRT HOOK 9-53519-003-0 01 1 0308- ● ●
98 STOPPER; SPR,FRT HOOK 9-53519-006-0 01 1 0308- ● ●
164 SCREW; AIR INT GRILLE
M6X20 		1-71260-141-0 06 1 0308- ● ●
197 GRILLE; BUMPER
(B) 		1-71260-157-2 01 1 0308- ● ●
197 GRILLE; BUMPER
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 		1-71260-117-0 01 1 0308- ● ●
228 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 06 1 0308-0512 ● ●
228 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 06 1 0601- ● ●
256 WASHER; PL
BODY COLOR ARC WHITE(729),BODY COLOR FIRE RED(915) EXC. BUMPER W/HEADLAMPS<SLB> (A) 		1-71260-173-0 03 1 0308- ● ●
256 WASHER; PL
BODY COLOR ARC WHITE(729),BODY COLOR FIRE RED(915) EXC. BUMPER W/HEADLAMPS<SLB> (B) ID=6.5 OD=14 T=1.2 NYLON 		5-09985-028-0 03 1 0308- ● ●
256 WASHER; PL
BODY COLOR ARC WHITE(729),BODY COLOR FIRE RED(915) EXC. BUMPER W/HEADLAMPS<SLB> (A) 		1-71260-153-0 03 1 0308- ● ●
256 WASHER; PL
BODY COLOR ARC WHITE(729),BODY COLOR FIRE RED(915) EXC. BUMPER W/HEADLAMPS<SLB> (B) 		1-71260-165-0 03 1 0308- ● ●
256 WASHER; PL
BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911) EXC. BUMPER W/HEADLAMPS<SLB> (A) 		1-71260-173-0 06 1 0308- ● ●
256 WASHER; PL
BUMPER W/HEADLAMPS<SLB> (A) 		1-71260-173-0 06 1 0308- ● ●
256 WASHER; PL
BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911) EXC. BUMPER W/HEADLAMPS<SLB> (B) ID=6.5 OD=14 T=1.2 NYLON 		5-09985-028-0 06 1 0308- ● ●
256 WASHER; PL
BUMPER W/HEADLAMPS<SLB> (B) ID=6.5 OD=14 T=1.2 NYLON 		5-09985-028-0 06 1 0308- ● ●
301 BOLT; HOOK TO FRAME
CAB UP +110MM<TGG> M16X70 		0-10811-670-0 01 1 0308-0512 ● ●
301 BOLT; HOOK TO FRAME
CAB UP +110MM<TGG> M16X70 		0-10861-670-0 01 1 0601- ● ●
301 BOLT; HOOK TO FRAME
CAB UP +110MM<TGG> M16X80 		0-10811-680-0 01 1 0308-0512 ● ●
301 BOLT; HOOK TO FRAME
CAB UP +110MM<TGG> M16X80 		0-10861-680-0 01 1 0601- ● ●
301 BOLT; HOOK TO FRAME
CAB UP +50MM<W60> M16X147 		5-51361-003-3 01 1 0308- ● ●
301 BOLT; HOOK TO FRAME
CAB UP +50MM<W60> M16X140 		9-09801-144-1 01 1 0308- ● ●
315 STAY; BUMPER
(C) 		1-71230-549-0 02 1 0308- ● ●
315 STAY; BUMPER
CAB UP +110MM<TGG> (B) 		1-71230-566-0 02 1 0308- ● ●
315 STAY; BUMPER
CAB UP +50MM<W60> (B) 		1-71230-553-0 01 1 0308- ● ●
315 STAY; BUMPER
CAB UP +50MM<W60> (B) 		1-71230-554-0 01 1 0308- ● ●
315 STAY; BUMPER
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 		1-71230-346-2 01 1 0308- ● ●
315 STAY; BUMPER
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 		1-71230-347-2 01 1 0308- ● ●
603 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 04 1 0308-0512 ● ●
603 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 0601- ● ●
608 LID; BUMPER
BUMPER W/HEADLAMPS<SLB> (A) 		1-71210-753-4 01 1 0308- ● ●
608 LID; BUMPER
BUMPER W/HEADLAMPS<SLB> (A) 		1-71210-752-4 01 1 0308- ● ●
608 LID; BUMPER
EXC. BUMPER W/HEADLAMPS<SLB> (B) 		1-71210-897-0 01 1 0308- ● ●
608 LID; BUMPER
EXC. BUMPER W/HEADLAMPS<SLB> (B) 		1-71210-896-0 01 1 0308- ● ●
609 STUD; BUMPER
(B) M10X28,M10X15 L=50 		5-09300-050-0 01 1 0308- ● ●
609 STUD; BUMPER
BODY COLOR ARC WHITE(729),BODY COLOR FIRE RED(915) EXC. BUMPER W/HEADLAMPS<SLB> (A) 		1-71260-175-0 03 1 0308- ● ●
609 STUD; BUMPER
BODY COLOR ARC WHITE(729),BODY COLOR FIRE RED(915) EXC. BUMPER W/HEADLAMPS<SLB> (A) 		1-71260-164-0 03 1 0308- ● ●
609 STUD; BUMPER
BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911) EXC. BUMPER W/HEADLAMPS<SLB> (A) 		1-71260-175-0 06 1 0308- ● ●
609 STUD; BUMPER
BUMPER W/HEADLAMPS<SLB> (A) 		1-71260-175-0 06 1 0308- ● ●
615 BRACKET; BUMPER CENTER
CAB UP +110MM<TGG> 		1-71230-407-0 01 1 0308- ● ●
