◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10929 - CXZ RHD ▶ 5 - Frame, Cab Mounting ▶ 5-30 - SPARE TIRE CARRIER AND COVER ▶
5-30 — SPARE TIRE CARRIER AND COVER (#25950) — 58 parça

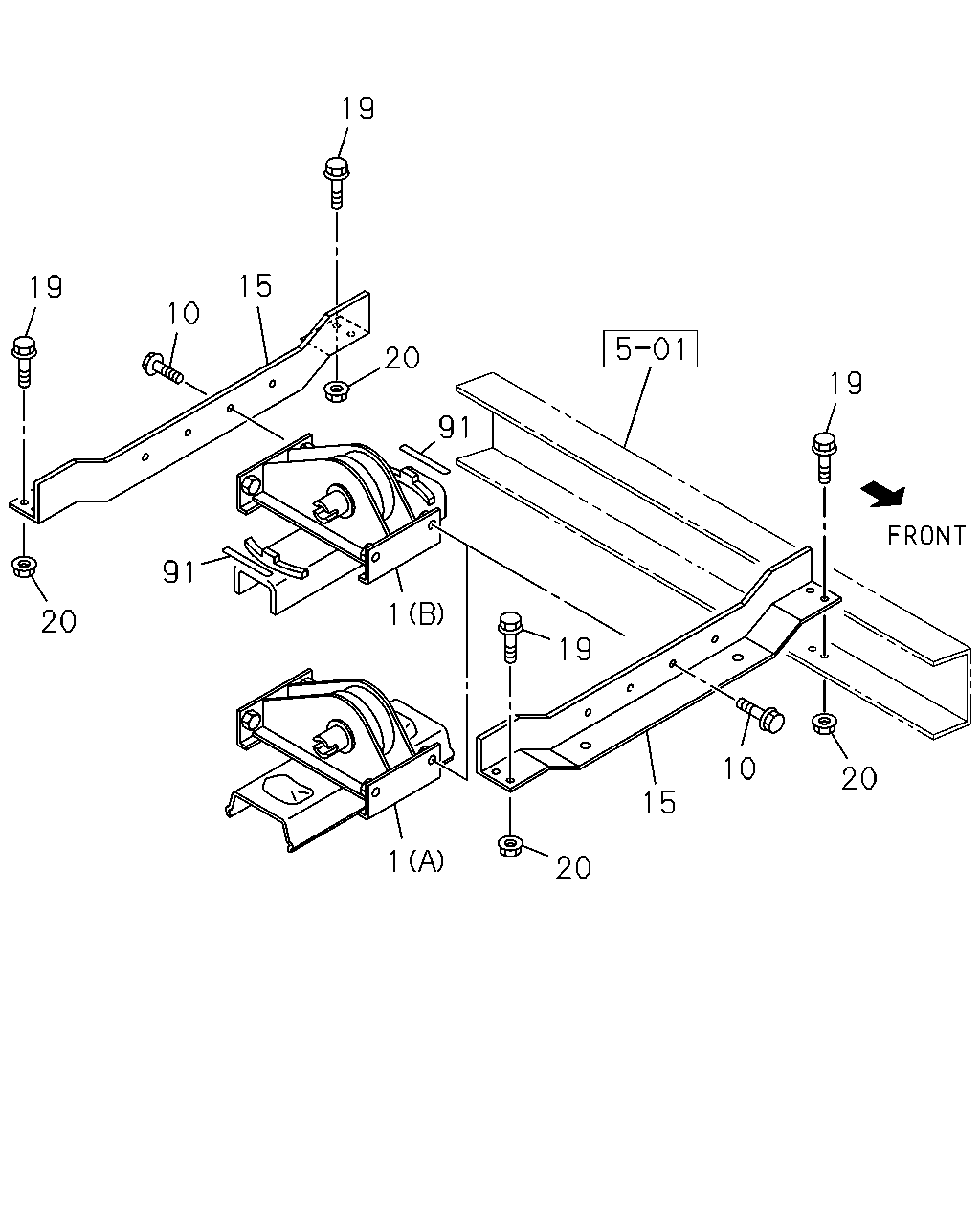

çizim 82954
19 10 15 19 20 91 19 19 1 91 20 1 20 15 10 20
BalonParca AdiParca NoAdetTipApplied Date A B
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. WHEEL 10STUD 9.00X22.5 168-14(NJT),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (B) 		1-53630-210-1 01 1 0308-0404 ● ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. WHEEL 10STUD 9.00X22.5 168-14(NJT),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (B) 		1-53630-210-1 01 1 0405- ● ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (A) 		1-53630-208-1 01 1 0308-0404 ● ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (A) 		1-53630-208-1 01 1 0405- ● ●
1 HANGER ASM; TIRE FT
TIRE FRT 315/80R RR 295/80R RIB(5A2) SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (B) 		1-53630-210-1 02 1 0308-0404 ● ●
1 HANGER ASM; TIRE FT
TIRE FRT 315/80R RR 295/80R RIB(5A2) WHEEL 10STUD 9.00X22.5 168-14(NJT) SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> (B) 		1-53630-210-1 02 1 0405- ● ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10> EXC. WHEEL 10STUD 9.00X22.5 168-14(NJT) M12X40 FLANGE 		0-28681-240-0 04 1 0308-0404 ● ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. WHEEL 10STUD 9.00X22.5 168-14(NJT) M12X30 FLANGE 		0-28681-230-0 04 1 0308-0404 ● ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. WHEEL 10STUD 9.00X22.5 168-14(NJT) M12X30 FLANGE 		0-28681-230-0 04 1 0405-0512 ● ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. WHEEL 10STUD 9.00X22.5 168-14(NJT) M12X30 FLANGE 		0-28651-230-0 04 1 0601- ● ●
10 BOLT; TIRE HANGER
TIRE FRT 315/80R RR 295/80R RIB(5A2) SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE 		0-28681-230-0 08 1 0308-0512 ● ●
10 BOLT; TIRE HANGER
TIRE FRT 315/80R RR 295/80R RIB(5A2) SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE 		0-28651-230-0 08 1 0601- ● ●
15 MEMBER; CROSS,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10> DISC WHEEL AL<SDM> 		1-53631-455-0 02 1 0308- ● ●
15 MEMBER; CROSS,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10> EXC. DISC WHEEL AL<SDM> 		1-53631-395-1 02 1 0308- ● ●
19 BOLT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> M10X30 FLANGE 		0-28081-030-0 08 1 0308-0405 ●
19 BOLT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> M10X30 FLANGE 		0-28081-030-0 08 1 0406-0512 ● ●
19 BOLT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> M10X30 FLANGE 		0-28051-030-0 08 1 0601- ● ●
20 NUT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> M10 FLANGE 		0-91150-210-0 08 1 0308-0602 ● ●
20 NUT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> M10 FLANGE 		0-91180-210-0 08 1 0603- ● ●
91 PAD; TIRE CARRIER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL AL<SDM> 		1-53639-042-0 02 1 0308- ● ●

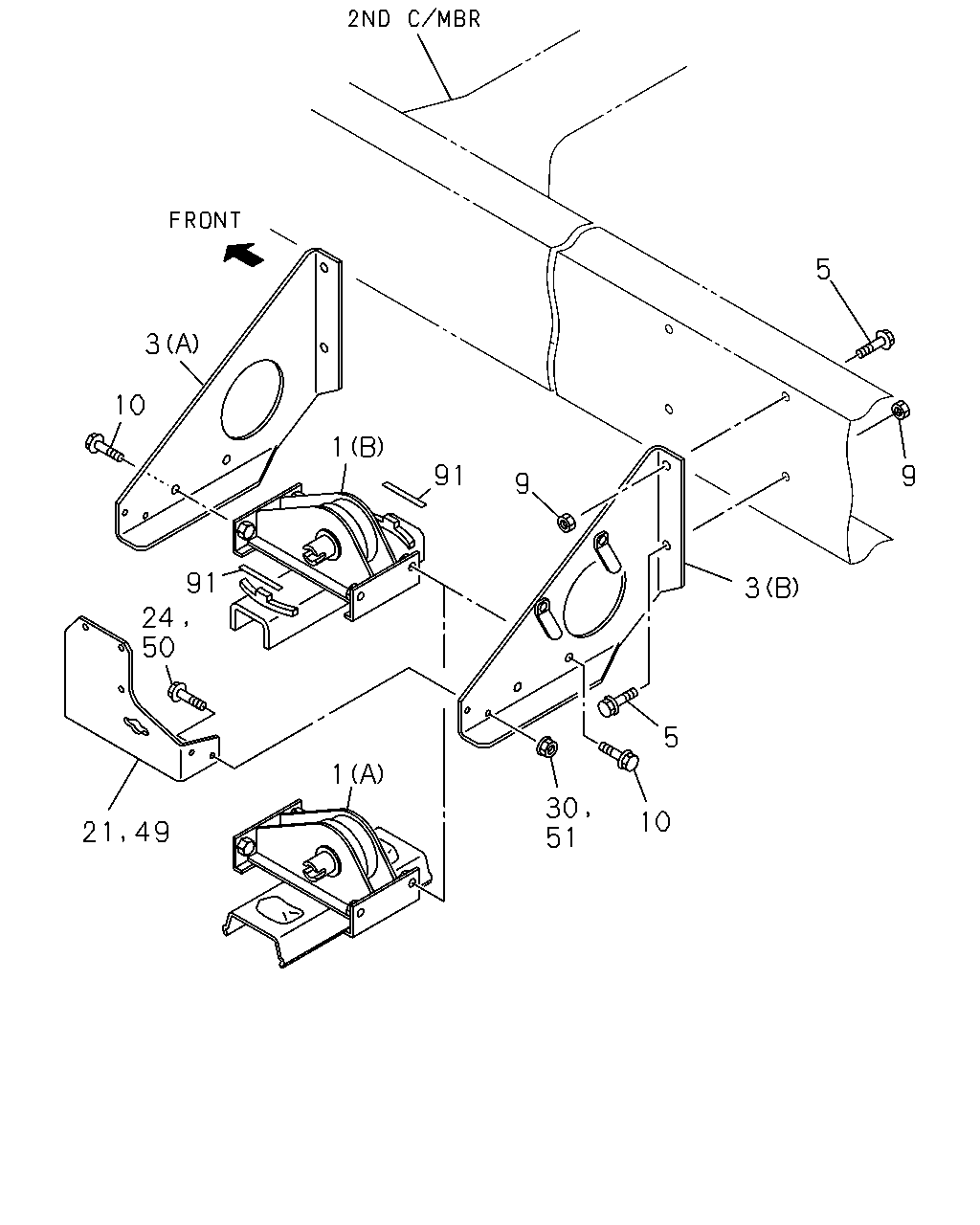

çizim 85263
5 9 3 9 91 1 3 10 91 24 50 21 49 1 30 51 10 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. WHEEL 10STUD 9.00X22.5 168-14(NJT),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (B) 		1-53630-210-1 01 1 0308-0404 ● ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. WHEEL 10STUD 9.00X22.5 168-14(NJT),WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (B) 		1-53630-210-1 01 1 0405- ● ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (A) 		1-53630-208-1 01 1 0308-0404 ● ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (A) 		1-53630-208-1 01 1 0405- ● ●
1 HANGER ASM; TIRE FT
TIRE FRT 315/80R RR 295/80R RIB(5A2) SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (B) 		1-53630-210-1 02 1 0308-0404 ● ●
1 HANGER ASM; TIRE FT
TIRE FRT 315/80R RR 295/80R RIB(5A2) WHEEL 10STUD 9.00X22.5 168-14(NJT) SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> (B) 		1-53630-210-1 02 1 0405- ● ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL AL<SDM> (B) 		1-53631-325-2 01 1 0308- ● ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL AL<SDM> (A) 		1-53631-326-0 01 1 0308- ● ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. WHEEL 10STUD 9.00X22.5 168-14(NJT),DISC WHEELAL<SDM> (B) 		1-53631-323-2 01 1 0308- ● ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. WHEEL 10STUD 9.00X22.5 168-14(NJT),DISC WHEELAL<SDM> (A) 		1-53631-324-0 01 1 0308- ● ●
3 BRACKET; TIRE CARRIER,FRT
TIRE FRT 315/80R RR 295/80R RIB(5A2) SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. DISC WHEEL AL<SDM> (A) 		1-53631-324-0 02 1 0308- ● ●
3 BRACKET; TIRE CARRIER,FRT
TIRE FRT 315/80R RR 295/80R RIB(5A2) SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. DISC WHEEL AL<SDM> (B) 		1-53631-323-2 02 1 0308- ● ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. WHEEL 10STUD 9.00X22.5 168-14(NJT) M12X40 FLANGE 		0-28681-240-0 04 1 0308-0512 ● ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. WHEEL 10STUD 9.00X22.5 168-14(NJT) M12X40 FLANGE 		0-28651-240-0 04 1 0601- ● ●
5 BOLT; BRKT TO FRAME
TIRE FRT 315/80R RR 295/80R RIB(5A2) SPARE WHEEL CARRIER FRAME SIDE<P13> M12X40 FLANGE 		0-28681-240-0 08 1 0308-0512 ● ●
5 BOLT; BRKT TO FRAME
TIRE FRT 315/80R RR 295/80R RIB(5A2) SPARE WHEEL CARRIER FRAME SIDE<P13> M12X40 FLANGE 		0-28651-240-0 08 1 0601- ● ●
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12 		9-99110-512-0 04 1 0308-0404 ● ●
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. WHEEL 10STUD 9.00X22.5 168-14(NJT) M12 		9-99110-512-0 04 1 0405-0512 ● ●
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. WHEEL 10STUD 9.00X22.5 168-14(NJT) M12 		0-91110-512-0 04 1 0601- ● ●
9 NUT; BRKT TO FRAME
TIRE FRT 315/80R RR 295/80R RIB(5A2) SPARE WHEEL CARRIER FRAME SIDE<P13> M12 		9-99110-512-0 08 1 0308-0512 ● ●
9 NUT; BRKT TO FRAME
TIRE FRT 315/80R RR 295/80R RIB(5A2) SPARE WHEEL CARRIER FRAME SIDE<P13> M12 		0-91110-512-0 08 1 0601- ● ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10> EXC. WHEEL 10STUD 9.00X22.5 168-14(NJT) M12X40 FLANGE 		0-28681-240-0 04 1 0308-0404 ● ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. WHEEL 10STUD 9.00X22.5 168-14(NJT) M12X30 FLANGE 		0-28681-230-0 04 1 0308-0404 ● ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. WHEEL 10STUD 9.00X22.5 168-14(NJT) M12X30 FLANGE 		0-28681-230-0 04 1 0405-0512 ● ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. WHEEL 10STUD 9.00X22.5 168-14(NJT) M12X30 FLANGE 		0-28651-230-0 04 1 0601- ● ●
10 BOLT; TIRE HANGER
TIRE FRT 315/80R RR 295/80R RIB(5A2) SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE 		0-28681-230-0 08 1 0308-0512 ● ●
10 BOLT; TIRE HANGER
TIRE FRT 315/80R RR 295/80R RIB(5A2) SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE 		0-28651-230-0 08 1 0601- ● ●
21 BRACKET; SPARE TIRE HANGER
TIRE FRT 315/80R RR 295/80R RIB(5A2) SPARE WHEEL CARRIER FRAME SIDE<P13> 		1-53631-428-0 02 1 0308- ● ●
24 BOLT; SPARE TIRE
TIRE FRT 315/80R RR 295/80R RIB(5A2) SPARE WHEEL CARRIER FRAME SIDE<P13> M8X25 FLANGE 		0-28680-825-0 08 1 0308-0512 ● ●
24 BOLT; SPARE TIRE
TIRE FRT 315/80R RR 295/80R RIB(5A2) SPARE WHEEL CARRIER FRAME SIDE<P13> M8X25 FLANGE 		0-28650-825-0 08 1 0601- ● ●
30 NUT; SPARE TIRE
TIRE FRT 315/80R RR 295/80R RIB(5A2) SPARE WHEEL CARRIER FRAME SIDE<P13> M8 FLANGE 		0-91150-108-0 08 1 0308-0602 ● ●
30 NUT; SPARE TIRE
TIRE FRT 315/80R RR 295/80R RIB(5A2) SPARE WHEEL CARRIER FRAME SIDE<P13> M8 FLANGE 		0-91180-108-0 08 1 0603- ● ●
49 STAY; TIRE CARRIER
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. WHEEL 10STUD 9.00X22.5 168-14(NJT) 		1-53631-428-0 01 1 0308- ● ●
50 BOLT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. WHEEL 10STUD 9.00X22.5 168-14(NJT) M8X25 FLANGE 		0-28680-825-0 04 1 0308-0512 ● ●
50 BOLT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. WHEEL 10STUD 9.00X22.5 168-14(NJT) M8X25 FLANGE 		0-28650-825-0 04 1 0601- ● ●
51 NUT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. WHEEL 10STUD 9.00X22.5 168-14(NJT) M8 FLANGE 		0-91150-108-0 04 1 0308-0602 ● ●
51 NUT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. WHEEL 10STUD 9.00X22.5 168-14(NJT) M8 FLANGE 		0-91180-108-0 04 1 0603- ● ●
91 PAD; TIRE CARRIER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL AL<SDM> 		1-53639-042-0 02 1 0308- ● ●
