Isuzu WW
▶
TRUCKS
▶
CXZ
▶
10929 - CXZ RHD
▶
5 - Frame, Cab Mounting
▶
5-20 - BATTERY CARRIER
▶

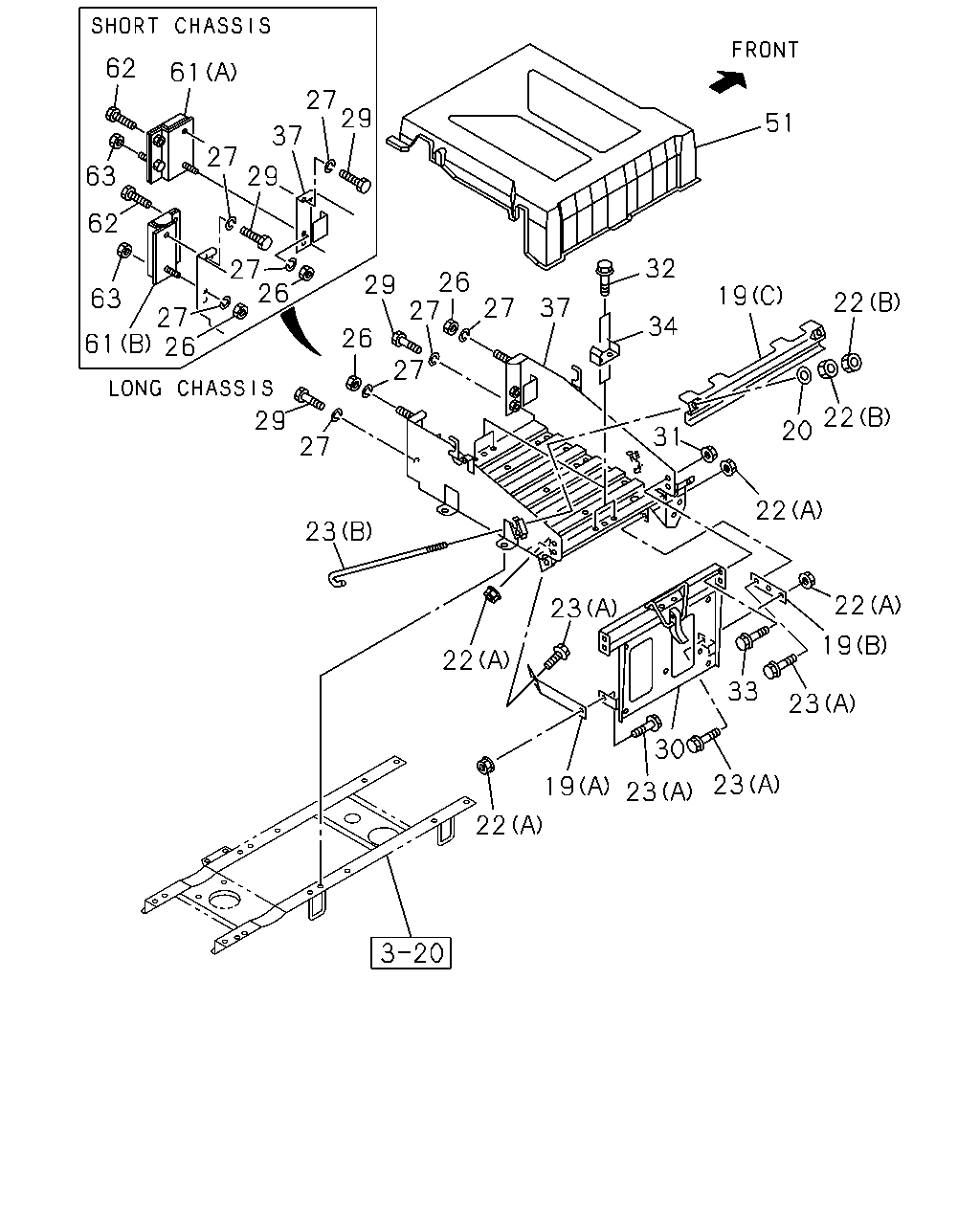

5-20 — BATTERY CARRIER
(#25949) — 41 parça
Tümü
A - CXZ5MC
B - CXZ5MF
62
61
27
29
37
29
27
63
62
63
61
26
27
27
26
23
27
29
27
26
29
27
26
27
37
34
32
51
19
22
22
20
31
22
22
19
23
33
23
23
22
30
23
19
22
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
19
STAY; BATTERY
(B) FRONT
1-47479-118-0
01
1
0308-
●
●
19
STAY; BATTERY
(A) REAR
1-47479-874-0
01
1
0308-
●
●
19
STAY; BATTERY
(C)
1-53618-039-2
01
1
0308-
●
●
20
WASHER; PL,STAY
ID=8.4 OD=22
9-09164-708-0
02
1
0308-0605
●
●
20
WASHER; PL,STAY
ID=8.4 OD=22
0-91614-708-0
02
1
0606-
●
●
22
NUT; STAY
(A) M8 FLANGE
0-91150-108-0
04
1
0308-0602
●
●
22
NUT; STAY
(A) M8 FLANGE
0-91180-108-0
04
1
0603-
●
●
22
NUT; STAY
(B) M8
9-09110-408-0
04
1
0308-0512
●
●
22
NUT; STAY
(B) M8
0-91110-508-0
04
1
0601-
●
●
23
BOLT; STAY
(A) M8X20 FLANGE
0-28680-820-0
04
1
0308-0512
●
●
23
BOLT; STAY
(A) M8X20 FLANGE
0-28650-820-0
04
1
0601-
●
●
23
BOLT; STAY
(B) L=250
1-53616-108-0
02
1
0308-
●
●
26
NUT; BRKT
M14
9-99110-514-0
02
1
0308-0512
●
26
NUT; BRKT
M14
0-91110-514-0
02
1
0601-
●
26
NUT; BRKT
M14
1-09440-072-0
02
1
0308-
●
27
WASHER; LK,BRKT
ID=14.2
9-09150-514-0
08
1
0308-0603
●
27
WASHER; LK,BRKT
ID=14.2
0-91510-514-0
08
1
0604-
●
27
WASHER; LK,BRKT
ID=14.2
9-09150-514-0
04
1
0308-0603
●
●
27
WASHER; LK,BRKT
ID=14.2
0-91510-514-0
04
1
0604-
●
●
29
BOLT; BRKT TO FRAME
M14X30
0-20801-430-0
02
1
0308-0512
●
29
BOLT; BRKT TO FRAME
M14X30
0-20851-430-0
02
1
0601-
●
29
BOLT; BRKT TO FRAME
M14X45
1-09000-764-0
02
1
0308-
●
30
PLATE; BATTERY
1-53619-148-0
01
1
0308-
●
●
31
NUT; PLATE
M8 FLANGE
0-91150-108-0
04
1
0308-0602
●
●
31
NUT; PLATE
M8 FLANGE
0-91180-108-0
04
1
0603-
●
●
32
BOLT; PLATE TO SPACER
BATTERY 115F51 N120<SJ3> M8X16 FLANGE
0-28080-816-0
04
1
0308-0512
●
●
32
BOLT; PLATE TO SPACER
BATTERY 115F51 N120<SJ3> M8X16 FLANGE
0-28050-816-0
04
1
0601-
●
●
33
BOLT; PLATE TO BRKT
M8X25 FLANGE
0-28680-825-0
04
1
0308-0512
●
●
33
BOLT; PLATE TO BRKT
M8X25 FLANGE
0-28650-825-0
04
1
0601-
●
●
34
SPACER; BATTERY BRKT
BATTERY 115F51 N120<SJ3>
1-53619-084-0
02
1
0308-
●
●
37
BRACKET; BATTERY
1-53610-159-2
01
1
0308-
●
37
BRACKET; BATTERY
1-53610-161-2
01
1
0308-
●
51
COVER; BATTERY
1-53612-068-0
01
1
0308-
●
●
61
DISTANCE; BRKT,BATTERY
(A) FRONT
1-53613-472-2
01
1
0308-0309
●
61
DISTANCE; BRKT,BATTERY
(A) FRONT
1-53613-503-0
01
1
0310-
●
61
DISTANCE; BRKT,BATTERY
(B) REAR
1-53613-473-1
01
1
0308-0309
●
61
DISTANCE; BRKT,BATTERY
(B) REAR
1-53613-505-0
01
1
0310-
●
62
BOLT; DIST TO FRAME,BATTERY
M14X60
1-09000-778-0
02
1
0310-
●
●
62
BOLT; DIST TO FRAME,BATTERY
M14X45
1-09000-764-0
04
1
0308-0309
●
●
62
BOLT; DIST TO FRAME,BATTERY
M14X45
1-09000-764-0
02
1
0310-
●
●
63
NUT; DIST TO FRAME
M14
1-09440-072-0
04
1
0308-
●
●
