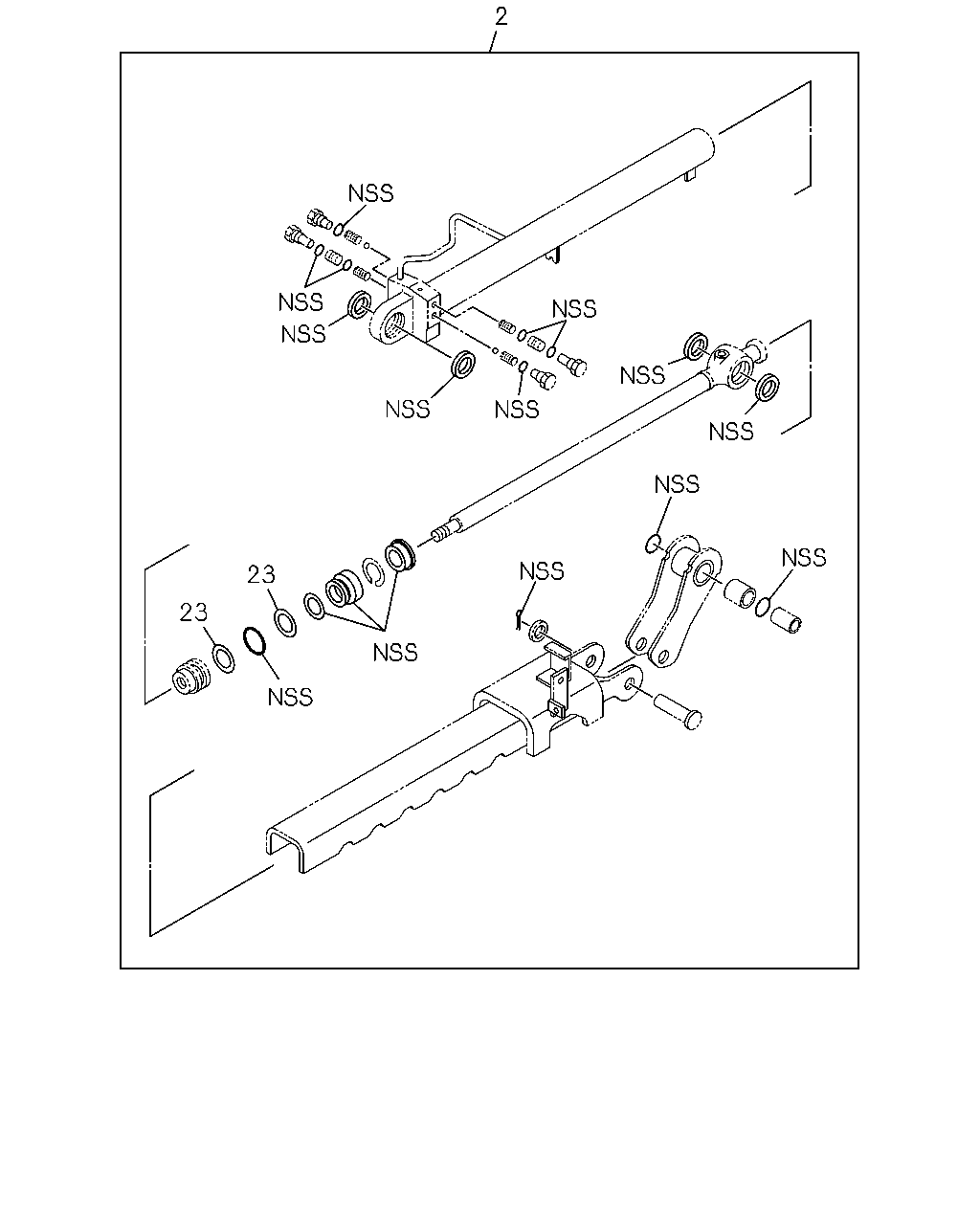

5-17 — CYLINDER; CAB TILT (#25948) — 68 parça

2 23 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	REPAIR KIT; OIL CYL	1-85579-067-0	01	1	0308-	●	●
23	RING; SNAP	1-53458-391-0	02	1	0308-0310	●	●
23	RING; SNAP	1-53457-048-0	02	1	0311-	●	●

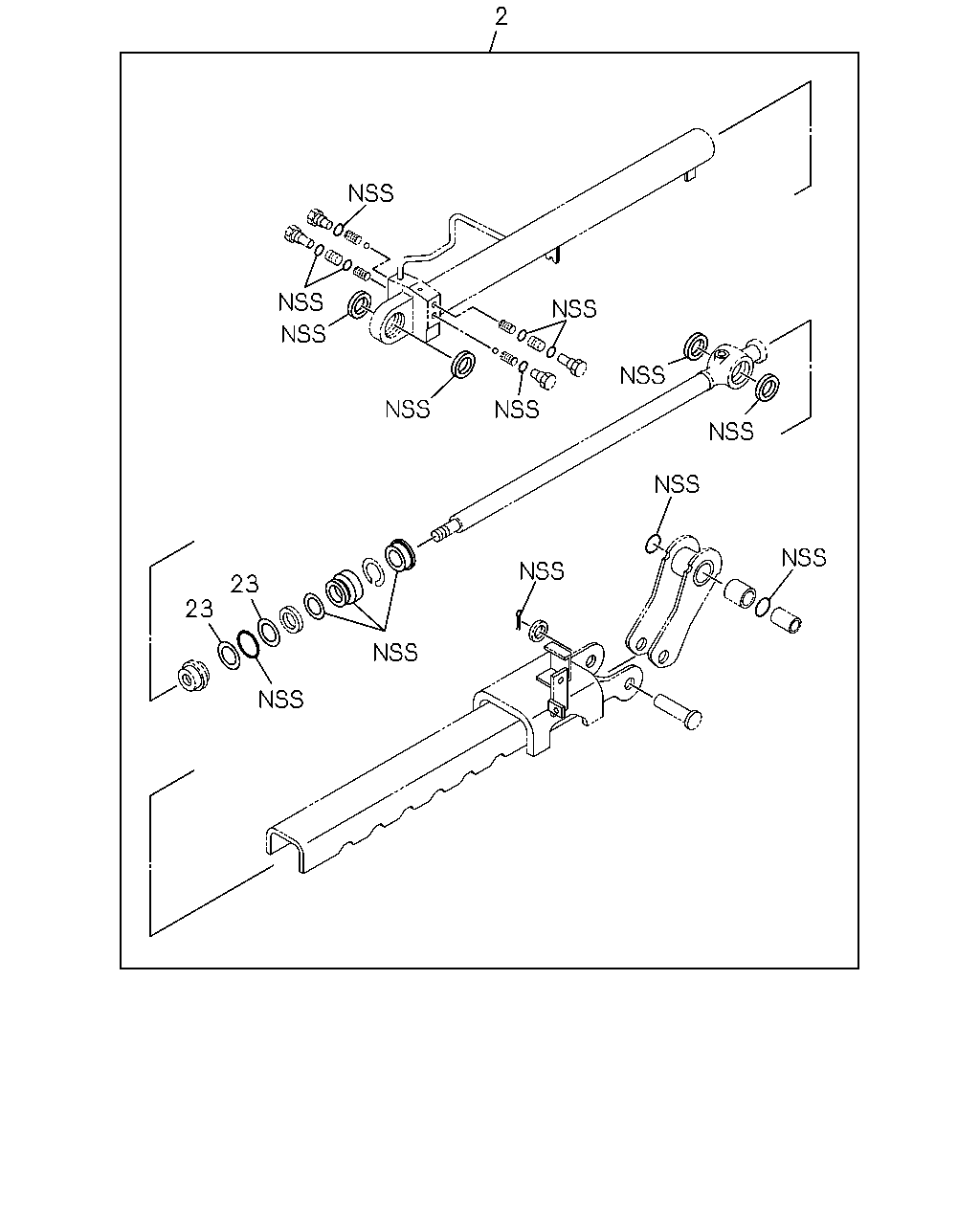

2 23 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	REPAIR KIT; OIL CYL	1-85579-067-0	01	1	0308-	●	●
23	RING; SNAP	1-53458-391-0	02	1	0308-0310	●	●
23	RING; SNAP	1-53457-048-0	02	1	0311-	●	●

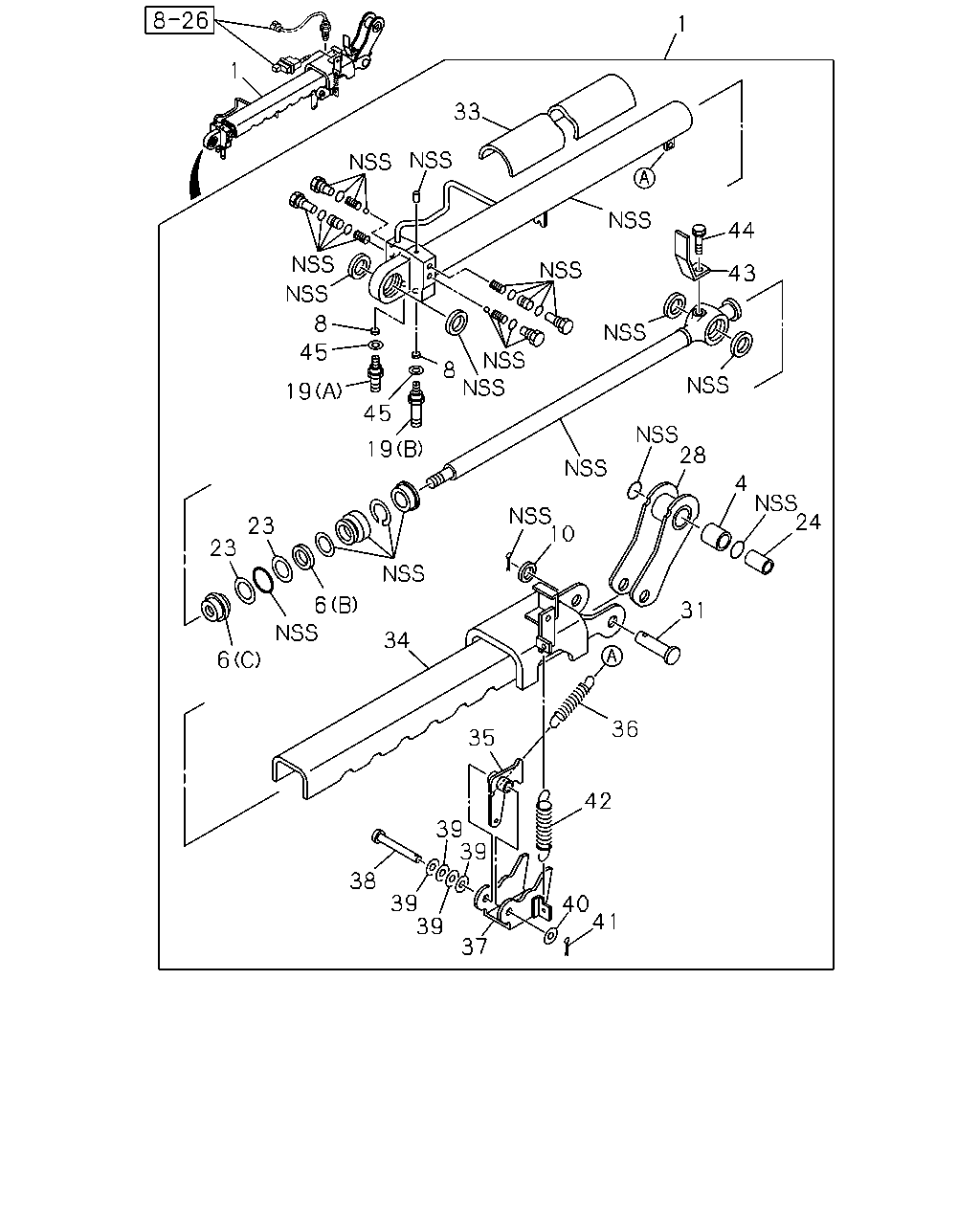

1 1 33 44 43 24 4 28 8 8 45 19 45 19 23 23 6 34 10 31 36 35 42 41 40 39 39 38 39 39 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CYLINDER; OIL,CAB TILT	1-53458-917-0	01	1	0308-0310	●	●
1	CYLINDER; OIL,CAB TILT	1-53457-140-0	01	1	0311-	●	●
4	BUSHING; OIL CYL	1-53458-405-0	01	1	0308-	●	●
6	PISTON; OIL CYL (A)	1-53458-389-0	01	1	0308-0310	●	●
6	PISTON; OIL CYL (C)	8-98134-365-0	01	1	0311-	●	●
6	PISTON; OIL CYL (B)	8-98134-367-0	01	1	0311-	●	●
8	FILTER; OIL CYL	1-53458-102-0	02	1	0308-	●	●
10	WASHER; OIL CYL	1-53458-401-0	01	1	0308-	●	●
19	NIPPLE; OIL CYL (A)	1-53457-044-0	01	1	0308-	●	●
19	NIPPLE; OIL CYL (B)	1-53457-045-0	01	1	0308-	●	●
23	RING; SNAP	1-53458-391-0	02	1	0308-0310	●	●
23	RING; SNAP	1-53457-048-0	02	1	0311-	●	●
24	COLLAR; LEVER	1-53458-398-0	01	1	0308-	●	●
28	LEVER; OIL CYL	1-53458-557-1	01	1	0308-	●	●
31	PIN; OIL CYL	1-53458-554-0	01	1	0308-	●	●
33	COVER; CYL	1-53458-556-0	01	1	0308-	●	●
34	STOPPER; OIL CYL	1-53458-555-0	01	1	0308-	●	●
35	LEVER; WIRE	1-53458-689-0	01	1	0308-	●	●
36	SPRING; WIRE LEVER	1-53458-552-0	01	1	0308-	●	●
37	LEVER; STOPPER	1-53458-551-0	01	1	0308-	●	●
38	PIN; STOPPER	1-53458-550-0	01	1	0308-	●	●
39	SHIM; LEVER T=0.7	1-53458-546-0	AR	1	0308-	●	●
39	SHIM; LEVER T=0.5	1-53458-547-0	AR	1	0308-	●	●
39	SHIM; LEVER T=0.3	1-53458-548-0	AR	1	0308-	●	●
39	SHIM; LEVER T=0.1	1-53458-549-0	AR	1	0308-	●	●
40	WASHER; STOPPER PIN	1-53458-045-0	01	1	0308-	●	●
41	PIN; SPLIT	1-53458-545-0	01	1	0308-	●	●
42	SPRING; LOCK LEVER	1-53458-544-0	01	1	0308-	●	●
43	PLATE; SW	1-53458-543-0	01	1	0308-	●	●
44	BOLT; SW PLATE M6X12	1-53458-542-0	01	1	0308-	●	●
45	GASKET; OIL CYL	1-53458-073-0	02	1	0308-	●	●

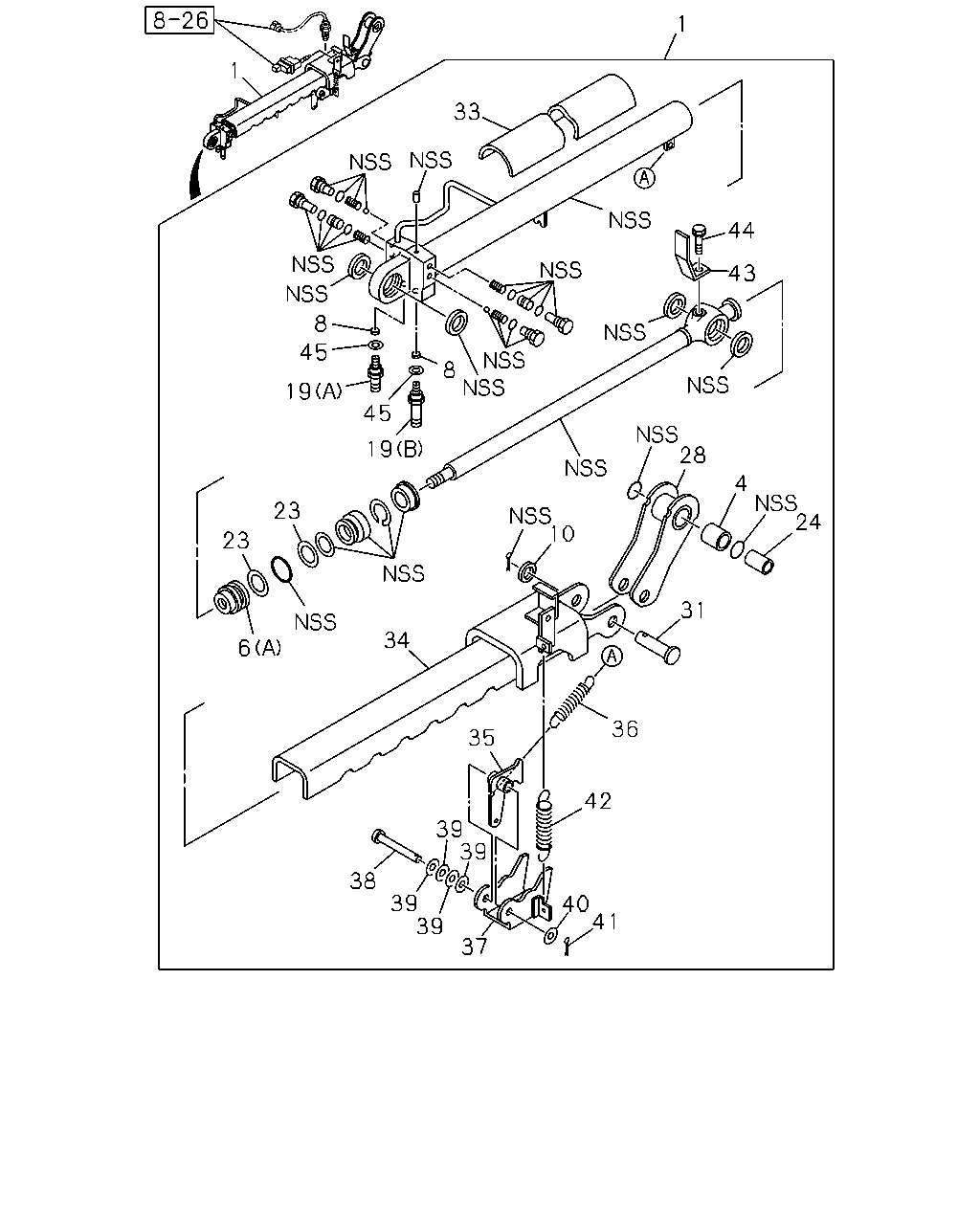

1 33 1 44 43 8 8 45 19 45 19 23 23 6 6 34 10 28 4 24 31 36 42 35 39 39 40 41 37 39 39 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CYLINDER; OIL,CAB TILT	1-53458-917-0	01	1	0308-0310	●	●
1	CYLINDER; OIL,CAB TILT	1-53457-140-0	01	1	0311-	●	●
4	BUSHING; OIL CYL	1-53458-405-0	01	1	0308-	●	●
6	PISTON; OIL CYL (A)	1-53458-389-0	01	1	0308-0310	●	●
6	PISTON; OIL CYL (C)	8-98134-365-0	01	1	0311-	●	●
6	PISTON; OIL CYL (B)	8-98134-367-0	01	1	0311-	●	●
8	FILTER; OIL CYL	1-53458-102-0	02	1	0308-	●	●
10	WASHER; OIL CYL	1-53458-401-0	01	1	0308-	●	●
19	NIPPLE; OIL CYL (A)	1-53457-044-0	01	1	0308-	●	●
19	NIPPLE; OIL CYL (B)	1-53457-045-0	01	1	0308-	●	●
23	RING; SNAP	1-53458-391-0	02	1	0308-0310	●	●
23	RING; SNAP	1-53457-048-0	02	1	0311-	●	●
24	COLLAR; LEVER	1-53458-398-0	01	1	0308-	●	●
28	LEVER; OIL CYL	1-53458-557-1	01	1	0308-	●	●
31	PIN; OIL CYL	1-53458-554-0	01	1	0308-	●	●
33	COVER; CYL	1-53458-556-0	01	1	0308-	●	●
34	STOPPER; OIL CYL	1-53458-555-0	01	1	0308-	●	●
35	LEVER; WIRE	1-53458-689-0	01	1	0308-	●	●
36	SPRING; WIRE LEVER	1-53458-552-0	01	1	0308-	●	●
37	LEVER; STOPPER	1-53458-551-0	01	1	0308-	●	●
38	PIN; STOPPER	1-53458-550-0	01	1	0308-	●	●
39	SHIM; LEVER T=0.7	1-53458-546-0	AR	1	0308-	●	●
39	SHIM; LEVER T=0.5	1-53458-547-0	AR	1	0308-	●	●
39	SHIM; LEVER T=0.3	1-53458-548-0	AR	1	0308-	●	●
39	SHIM; LEVER T=0.1	1-53458-549-0	AR	1	0308-	●	●
40	WASHER; STOPPER PIN	1-53458-045-0	01	1	0308-	●	●
41	PIN; SPLIT	1-53458-545-0	01	1	0308-	●	●
42	SPRING; LOCK LEVER	1-53458-544-0	01	1	0308-	●	●
43	PLATE; SW	1-53458-543-0	01	1	0308-	●	●
44	BOLT; SW PLATE M6X12	1-53458-542-0	01	1	0308-	●	●
45	GASKET; OIL CYL	1-53458-073-0	02	1	0308-	●	●
