Isuzu WW
▶
TRUCKS
▶
CXZ
▶
10929 - CXZ RHD
▶
5 - Frame, Cab Mounting
▶
5-16 - OIL PUMP; CAB TILT
▶
5-16 — OIL PUMP; CAB TILT
(#25947) — 86 parça
Tümü
A - CXZ5MC
B - CXZ5MF
◀

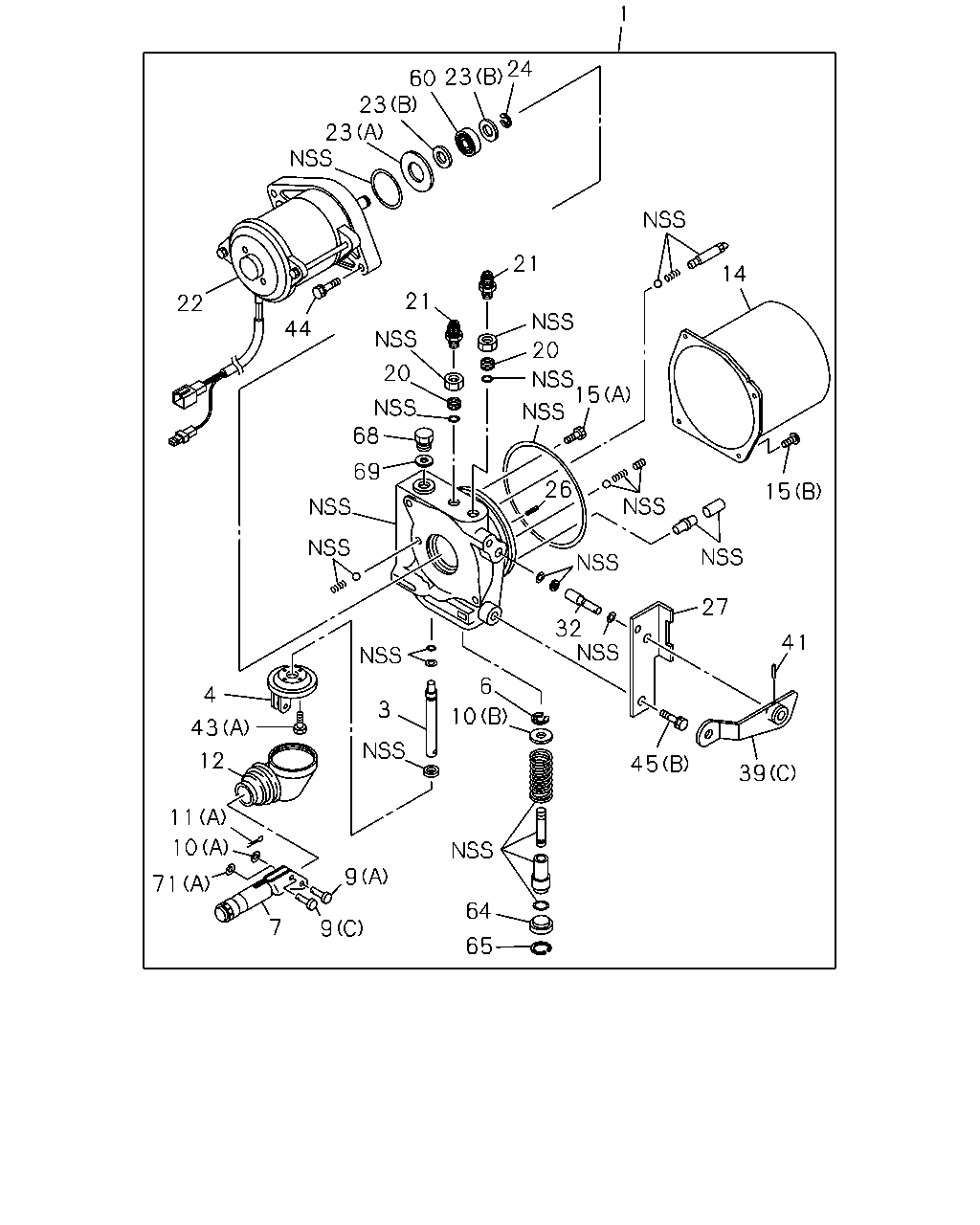

[516A] COMPONENT;OIL PUMP (48 parça)

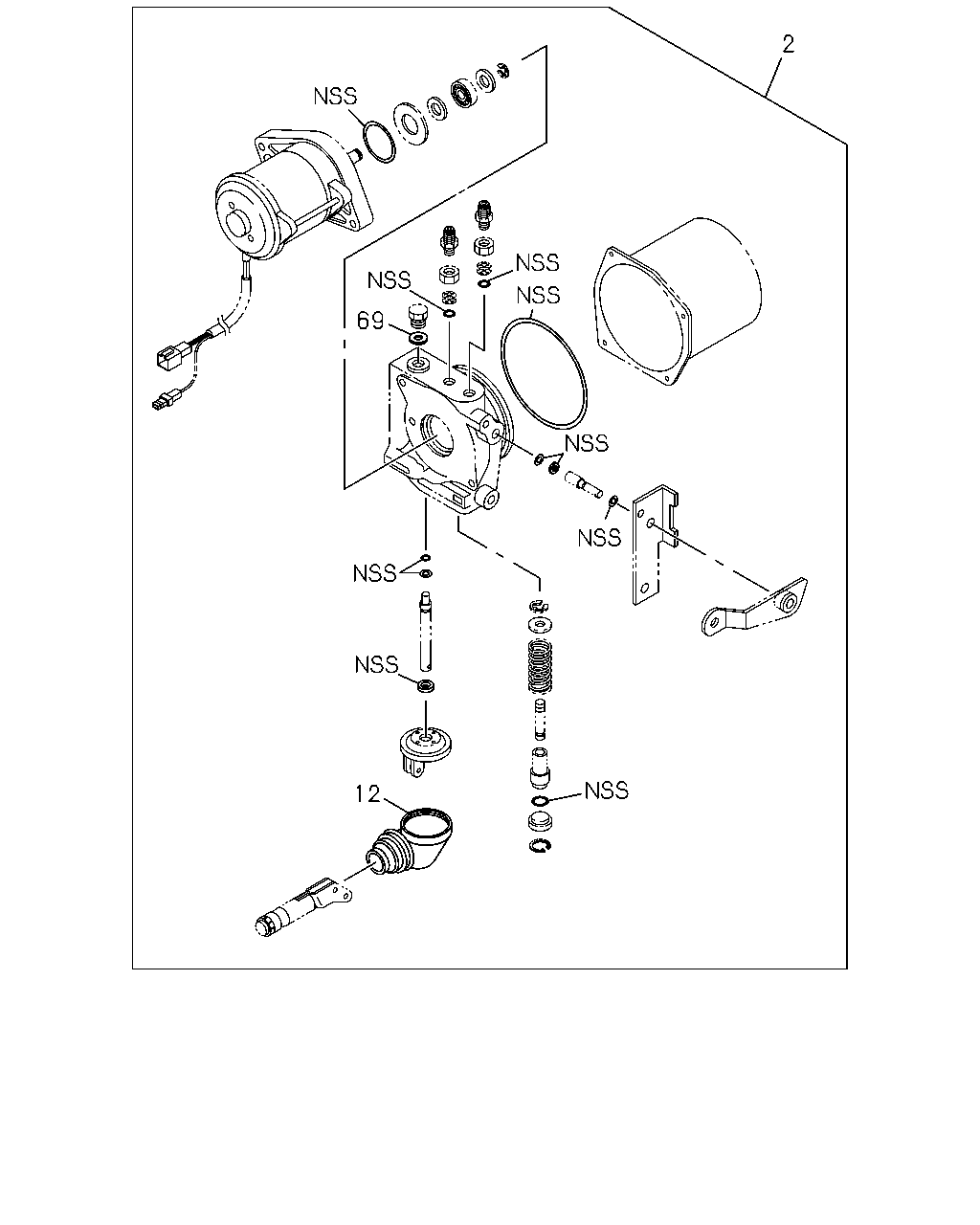

[516A] REPAIR KIT;OIL PUMP (3 parça)

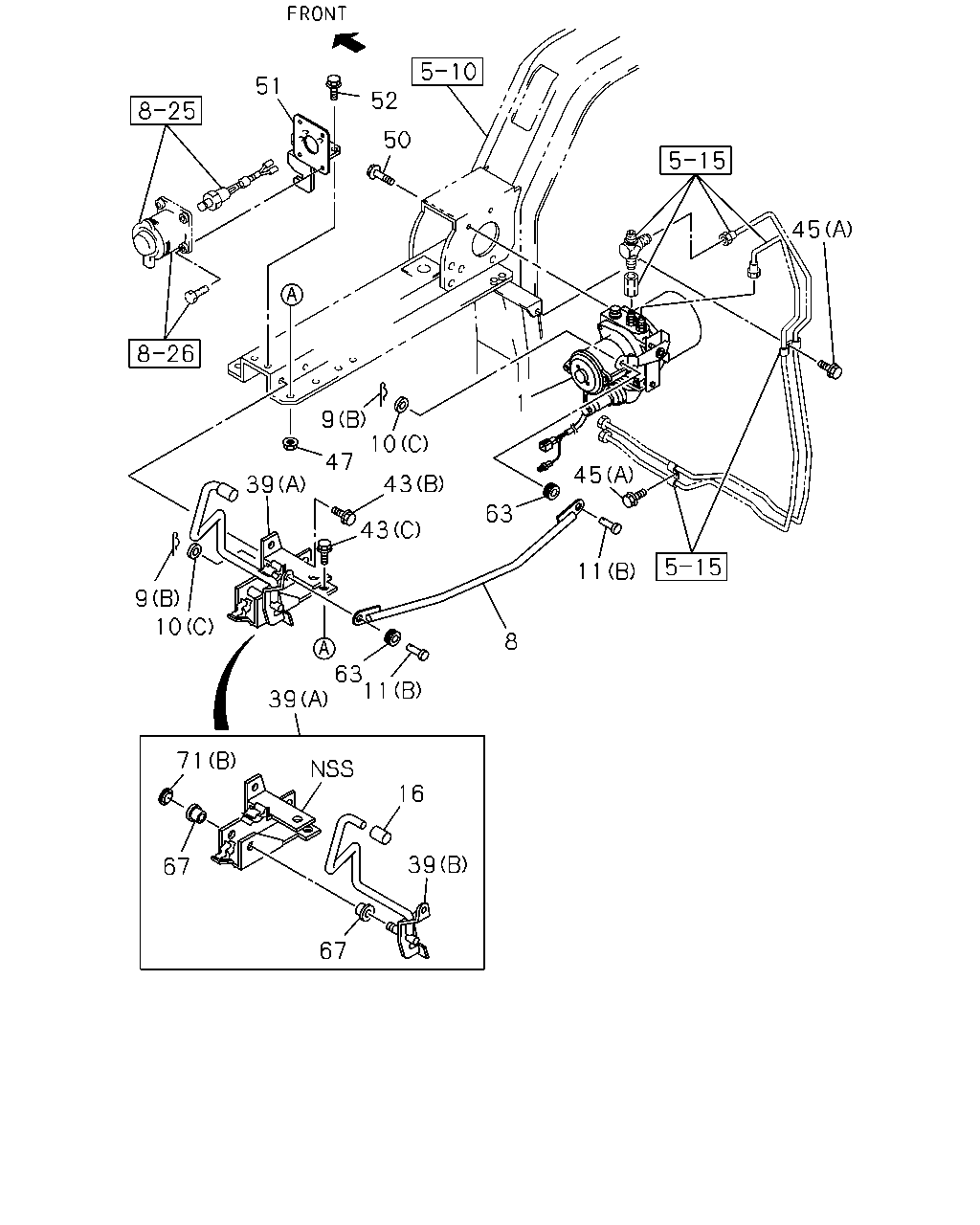

[516A] OIL PUMP AND LEVER FIXING (35 parça)
▶
1
24
23
60
23
23
22
44
21
21
14
20
15
20
68
69
26
15
41
27
32
39
45
6
10
3
4
43
12
11
10
71
7
9
9
64
65
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
PUMP; OIL,CAB TILT
1-53457-064-0
01
1
0308-
●
●
3
PISTON; MANUAL
1-53458-842-0
01
1
0308-
●
●
4
BRACKET; OIL PUMP
1-53458-566-0
01
1
0308-
●
●
6
RING; SNAP
1-53458-411-0
01
1
0308-
●
●
7
SOCKET; OIL PUMP
1-53458-565-1
01
1
0308-
●
●
9
PIN; OIL PUMP
(B) L=27.7
1-09987-141-0
02
1
0308-
●
●
9
PIN; OIL PUMP
(A)
1-53458-060-0
01
1
0308-
●
●
9
PIN; OIL PUMP
(C)
1-53458-844-0
01
1
0308-
●
●
10
WASHER; OIL PUMP
(A)
1-53458-013-0
01
1
0308-
●
●
10
WASHER; OIL PUMP
(B)
1-53458-561-0
01
1
0308-
●
●
10
WASHER; OIL PUMP
(C) ID=8.4 OD=22
9-09160-708-0
02
1
0308-0605
●
●
10
WASHER; OIL PUMP
(C) ID=8.4 OD=22
0-91610-708-0
02
1
0606-
●
●
11
PIN; SPLIT,OIL PUMP
(A)
1-53458-058-0
01
1
0308-
●
●
11
PIN; SPLIT,OIL PUMP
(B) OD=8 L=17
9-08223-817-0
02
1
0308-0606
●
●
11
PIN; SPLIT,OIL PUMP
(B) OD=8 L=17
0-82253-817-0
02
1
0607-
●
●
12
BOOT; OIL PUMP
1-53458-560-0
01
1
0308-
●
●
14
RESERVOIR; OIL PUMP
1-53458-432-0
01
1
0308-
●
●
15
BOLT; RESERVOIR
(B) M5X8
1-53458-005-0
04
1
0308-
●
●
15
BOLT; RESERVOIR
(A) M5X8
1-53458-433-0
02
1
0308-
●
●
20
FILTER; OIL PUMP
1-53457-081-0
02
1
0308-
●
●
21
CONNECTOR; OIL PUMP
M12
1-53458-941-0
02
1
0308-
●
●
22
MOTOR; OIL PUMP
1-53457-080-0
01
1
0308-
●
●
23
WASHER; MOTOR
(A)
1-53458-018-0
01
1
0308-
●
●
23
WASHER; MOTOR
(B)
1-53458-045-0
02
1
0308-
●
●
24
RING; SNAP,MOTOR
1-53458-044-0
01
1
0308-
●
●
26
PIN; SPR,OIL PUMP
1-53458-038-0
01
1
0308-
●
●
27
COVER; OIL PUMP
1-53458-568-0
01
1
0308-
●
●
32
VALVE; OIL PUMP
1-53458-569-0
01
1
0308-
●
●
39
LEVER; OIL PUMP
(C)
1-53458-567-0
01
1
0308-
●
●
39
LEVER; OIL PUMP
(A)
1-53458-775-1
01
1
0308-
●
●
39
LEVER; OIL PUMP
(B)
1-53458-870-0
01
1
0308-
●
●
41
PIN; SPR,LEVER
1-53458-019-0
01
1
0308-
●
●
43
BOLT; LEVER
(B) M8X20 FLANGE
0-28680-820-0
01
1
0308-0512
●
●
43
BOLT; LEVER
(B) M8X20 FLANGE
0-28650-820-0
01
1
0601-
●
●
43
BOLT; LEVER
(C) M10X20 FLANGE
0-28681-020-0
01
1
0308-0512
●
●
43
BOLT; LEVER
(C) M10X20 FLANGE
0-28651-020-0
01
1
0601-
●
●
43
BOLT; LEVER
(A) M5X12
1-53458-420-0
02
1
0308-
●
●
44
BOLT; MOTOR
M6X20
1-53458-007-0
02
1
0308-
●
●
45
BOLT; COVER
(A) M8X20 FLANGE
0-28680-820-0
02
1
0308-0512
●
●
45
BOLT; COVER
(A) M8X20 FLANGE
0-28650-820-0
02
1
0601-
●
●
45
BOLT; COVER
(B) M6X8
1-53458-004-0
02
1
0308-
●
●
60
BEARING; OIL PUMP
1-53458-423-0
01
1
0308-
●
●
64
SLEEVE; OIL PUMP
1-53458-572-0
01
1
0308-
●
●
65
RING; SNAP,SLEEVE
1-53458-570-0
01
1
0308-
●
●
68
PLUG; FILLER
1-53458-428-0
01
1
0308-
●
●
69
GASKET; FILLER PLUG
1-53458-427-0
01
1
0308-
●
●
71
NUT; PUSH
(A) PUSH NUT
1-53458-845-0
01
1
0308-
●
●
71
NUT; PUSH
(B) ID=9.9 PUSH NUT
8-97022-566-0
01
1
0308-
●
●
2
69
12
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
REPAIR KIT; OIL PUMP
1-85579-058-0
01
1
0308-
●
●
12
BOOT; OIL PUMP
1-53458-560-0
01
1
0308-
●
●
69
GASKET; FILLER PLUG
1-53458-427-0
01
1
0308-
●
●
51
52
50
45
1
45
11
63
43
43
10
9
47
39
9
10
39
63
11
8
16
39
67
67
71
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
PUMP; OIL,CAB TILT
1-53457-064-0
01
1
0308-
●
●
8
LINK; OIL PUMP
1-53458-726-0
01
1
0308-
●
●
9
PIN; OIL PUMP
(B) L=27.7
1-09987-141-0
02
1
0308-
●
●
9
PIN; OIL PUMP
(A)
1-53458-060-0
01
1
0308-
●
●
9
PIN; OIL PUMP
(C)
1-53458-844-0
01
1
0308-
●
●
10
WASHER; OIL PUMP
(A)
1-53458-013-0
01
1
0308-
●
●
10
WASHER; OIL PUMP
(B)
1-53458-561-0
01
1
0308-
●
●
10
WASHER; OIL PUMP
(C) ID=8.4 OD=22
9-09160-708-0
02
1
0308-0605
●
●
10
WASHER; OIL PUMP
(C) ID=8.4 OD=22
0-91610-708-0
02
1
0606-
●
●
11
PIN; SPLIT,OIL PUMP
(A)
1-53458-058-0
01
1
0308-
●
●
11
PIN; SPLIT,OIL PUMP
(B) OD=8 L=17
9-08223-817-0
02
1
0308-0606
●
●
11
PIN; SPLIT,OIL PUMP
(B) OD=8 L=17
0-82253-817-0
02
1
0607-
●
●
16
CAP
ID=9.0
8-94207-303-0
01
1
0308-
●
●
39
LEVER; OIL PUMP
(C)
1-53458-567-0
01
1
0308-
●
●
39
LEVER; OIL PUMP
(A)
1-53458-775-1
01
1
0308-
●
●
39
LEVER; OIL PUMP
(B)
1-53458-870-0
01
1
0308-
●
●
43
BOLT; LEVER
(B) M8X20 FLANGE
0-28680-820-0
01
1
0308-0512
●
●
43
BOLT; LEVER
(B) M8X20 FLANGE
0-28650-820-0
01
1
0601-
●
●
43
BOLT; LEVER
(C) M10X20 FLANGE
0-28681-020-0
01
1
0308-0512
●
●
43
BOLT; LEVER
(C) M10X20 FLANGE
0-28651-020-0
01
1
0601-
●
●
43
BOLT; LEVER
(A) M5X12
1-53458-420-0
02
1
0308-
●
●
45
BOLT; COVER
(A) M8X20 FLANGE
0-28680-820-0
02
1
0308-0512
●
●
45
BOLT; COVER
(A) M8X20 FLANGE
0-28650-820-0
02
1
0601-
●
●
45
BOLT; COVER
(B) M6X8
1-53458-004-0
02
1
0308-
●
●
47
NUT; LEVER
M10 FLANGE
0-91150-210-0
01
1
0308-0602
●
●
47
NUT; LEVER
M10 FLANGE
0-91180-210-0
01
1
0603-
●
●
50
BOLT; OIL PUMP
M10X16 FLANGE
0-28081-016-0
02
1
0308-0512
●
●
50
BOLT; OIL PUMP
M10X16 FLANGE
0-28051-016-0
02
1
0601-
●
●
51
BRACKET; OIL PUMP
1-53458-690-0
01
1
0308-
●
●
52
BOLT; BRKT
M8X20 FLANGE
0-28680-820-0
02
1
0308-0512
●
●
52
BOLT; BRKT
M8X20 FLANGE
0-28650-820-0
02
1
0601-
●
●
63
GROMMET
ID=10 OD=23 T=8
1-09983-010-0
02
1
0308-
●
●
67
BUSHING
T=6 OD=17.5
9-33659-249-0
02
1
0308-
●
●
71
NUT; PUSH
(A) PUSH NUT
1-53458-845-0
01
1
0308-
●
●
71
NUT; PUSH
(B) ID=9.9 PUSH NUT
8-97022-566-0
01
1
0308-
●
●
