5-15 — CAB MOUNTING; CAB SIDE (#25946) — 81 parça

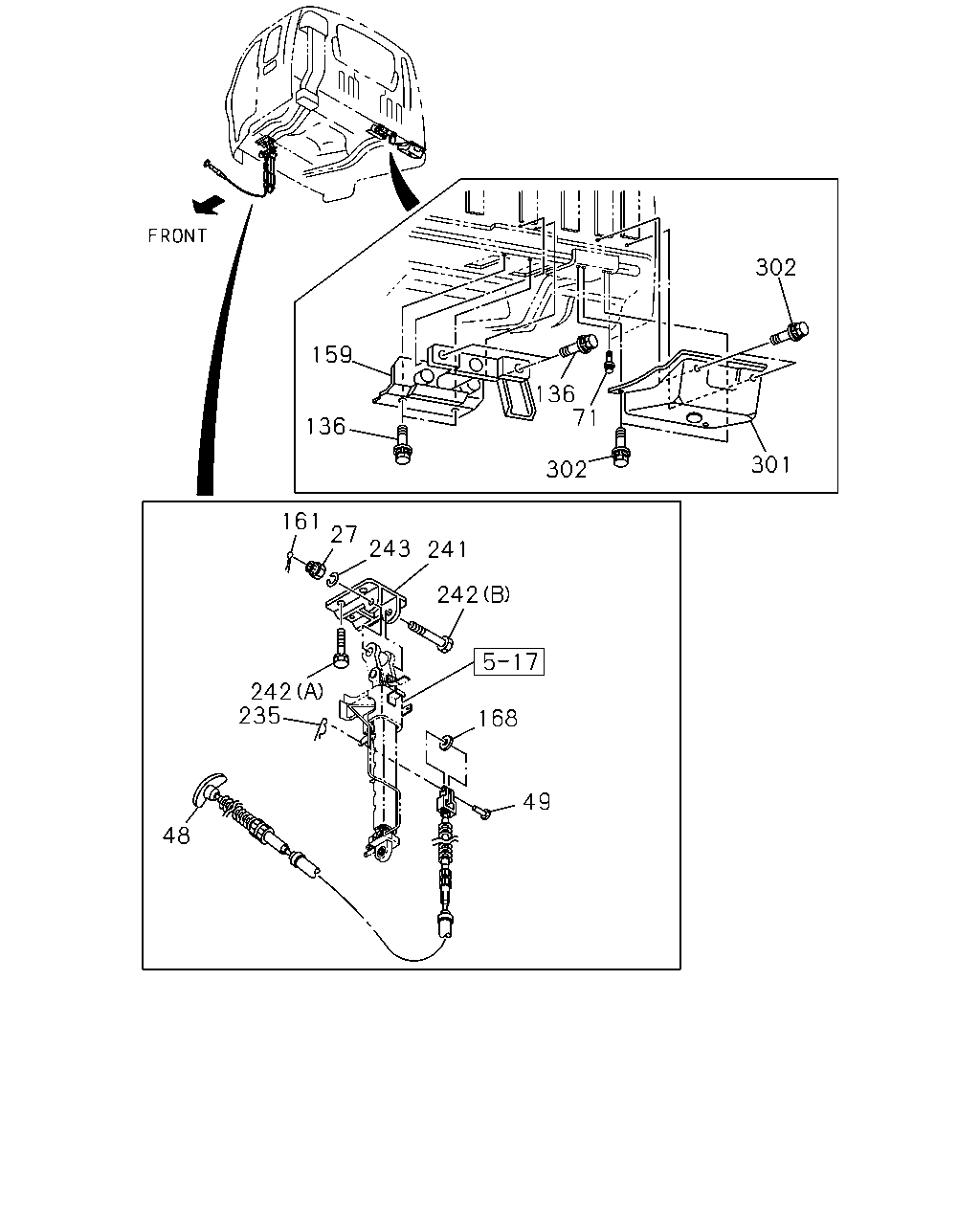

çizim 80656
302 301 302 71 136 159 136 161 27 243 241 242 168 49 242 235 48
BalonParca AdiParca NoAdetTipApplied Date A B
27 NUT; OIL CYL
M14 		9-99116-414-0 01 1 0308-0604 ● ●
27 NUT; OIL CYL
M14 SLOTTED 		0-91116-514-0 01 1 0605- ● ●
48 CABLE ASM; CONT
L=2457 		1-62500-730-0 01 1 0308- ● ●
49 PIN; JAW FIX
OD=6 L=17 		9-08223-617-0 01 1 0308-0606 ● ●
49 PIN; JAW FIX
OD=6 L=17 		0-82253-617-0 01 1 0607- ● ●
71 BOLT
M10X25 W/LK&PL WASHER 		1-09980-488-0 02 1 0308- ● ●
136 BOLT; CAB LK
M8X24.5 W/LK&PL WASHER 		8-94279-217-0 04 1 0308- ● ●
159 PIN 1-79717-627-1 01 1 0308- ● ●
161 PIN; SPLIT
OD=2.8 L=25 		9-08113-025-0 01 1 0308-0606 ● ●
161 PIN; SPLIT
OD=2.8 L=25 		0-81123-025-0 01 1 0607- ● ●
168 WASHER; PL
ID=6.4 		9-09160-506-0 01 1 0308- ● ●
235 PIN; SNAP
L=21.2 		8-94157-840-0 01 1 0308- ● ●
241 BRACKET; POWER CYL UPR,CAB TILT 1-53458-338-1 01 1 0308- ● ●
242 BOLT; POWER CYL BRKT,CAB TILT
(A) M10X30 W/SP WASHER 		1-09980-546-0 05 1 0308- ● ●
242 BOLT; POWER CYL BRKT,CAB TILT
(B) M14X70 		1-53458-633-0 01 1 0308- ● ●
243 WASHER; LK,POWER CYL BRKT
ID=14.2 		9-09150-514-0 01 1 0308-0603 ● ●
243 WASHER; LK,POWER CYL BRKT
ID=14.2 		0-91510-514-0 01 1 0604- ● ●
301 BRACKET; RR MTG,CAB 1-62570-866-1 02 1 0308- ● ●
302 BOLT; BRKT,CAB
M10X25 W/LK&PL WASHER 		1-09980-488-0 08 1 0308- ● ●

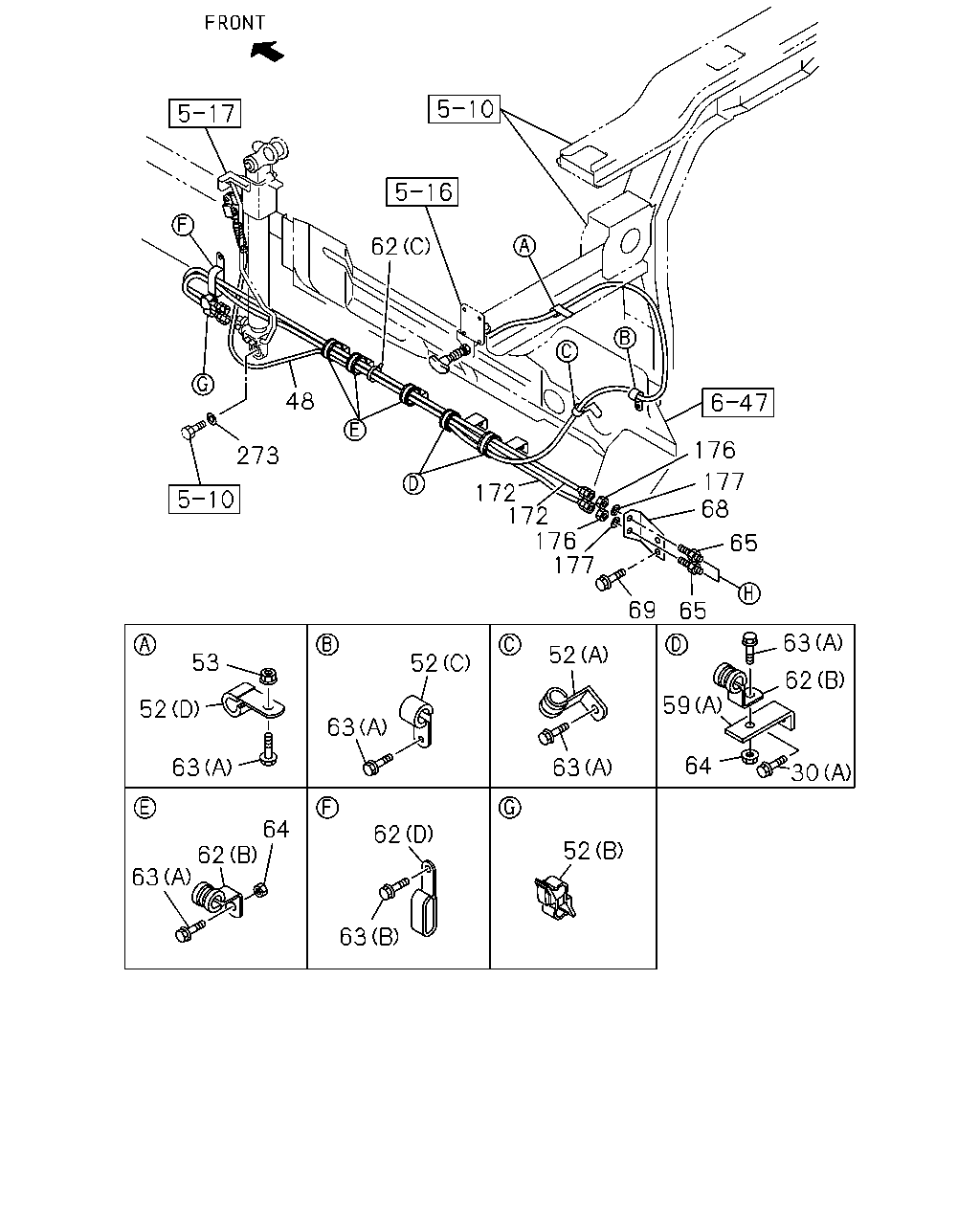

çizim 83682
62 48 273 172 172 176 177 69 65 176 177 68 65 53 62 30 64 59 52 63 52 63 53 52 63 63 62 64 63 62 52
BalonParca AdiParca NoAdetTipApplied Date A B
30 BOLT; BRKT FIX
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0308-0512 ● ●
30 BOLT; BRKT FIX
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
30 BOLT; BRKT FIX
(B) M8X30 FLANGE 		0-28680-830-0 02 1 0308-0512 ● ●
30 BOLT; BRKT FIX
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0601- ● ●
48 CABLE ASM; CONT
L=2457 		1-62500-730-0 01 1 0308- ● ●
52 CLIP; CONT CABLE
(A) ID=6 H=20 L=20 		1-09700-603-0 01 1 0308- ● ●
52 CLIP; CONT CABLE
(B) ID=6-10 & 10-14 		1-09709-201-1 01 1 0308- ● ●
52 CLIP; CONT CABLE
(C) ID=7 L=20 		9-09524-635-0 01 1 0308-0606 ● ●
52 CLIP; CONT CABLE
(C) ID=7 L=20 		0-95234-635-0 01 1 0607- ● ●
52 CLIP; CONT CABLE
(D) ID=7 L=50 		9-09524-685-0 01 1 0308-0606 ● ●
52 CLIP; CONT CABLE
(D) ID=7 L=50 		0-95234-685-0 01 1 0607- ● ●
53 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0308-0602 ● ●
53 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
59 BRACKET; CLIP
(A) L=115 B=25 		1-47476-758-0 02 1 0308- ● ●
59 BRACKET; CLIP
(B) 		1-47477-317-0 01 1 0308- ● ●
62 CLIP; OIL PIPE
(A) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 02 1 0308- ● ●
62 CLIP; OIL PIPE
(B) ID=21 L=30 H=40 		1-09700-991-1 03 1 0308- ● ●
62 CLIP; OIL PIPE
(C) L=140 		5-09707-031-1 01 1 0308- ● ●
62 CLIP; OIL PIPE
(D) ID=9X2 L=16 		9-09534-825-0 01 1 0308-0606 ● ●
62 CLIP; OIL PIPE
(D) ID=9X2 L=16 		0-95324-825-0 01 1 0607- ● ●
63 BOLT; CLIP
(A) M8X20 FLANGE 		0-28680-820-0 03 1 0308-0512 ● ●
63 BOLT; CLIP
(A) M8X20 FLANGE 		0-28680-820-0 03 1 0308-0512 ● ●
63 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 03 1 0601- ● ●
63 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 03 1 0601- ● ●
63 BOLT; CLIP
(B) M8X30 FLANGE 		0-28680-830-0 01 1 0308-0512 ● ●
63 BOLT; CLIP
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0601- ● ●
64 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0308-0602 ● ●
64 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
65 UNION; OIL PIPE
M12 L=66.5 		9-09223-306-1 02 1 0308-0607 ● ●
65 UNION; OIL PIPE
M12 L=66.5 		0-92113-306-0 02 1 0608- ● ●
68 BRACKET; UNION 1-47479-429-0 01 1 0308- ● ●
69 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 02 1 0308-0512 ● ●
69 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0601- ● ●
172 HOSE; FLEX,OIL TILT
L=1600 		1-09365-052-1 02 1 0308- ● ●
176 NUT; UNION
M12 		9-09840-280-0 02 1 0308- ● ●
177 WASHER; LK,UNION
ID=12.2 		9-09150-512-0 02 1 0308-0603 ● ●
177 WASHER; LK,UNION
ID=12.2 		0-91510-512-0 02 1 0604- ● ●
273 WASHER; PL,OIL CYL
ID=10.5 OD=32 		9-09164-810-0 01 1 0308-0605 ● ●
273 WASHER; PL,OIL CYL
ID=10.5 OD=32 		0-91614-810-0 01 1 0606- ● ●

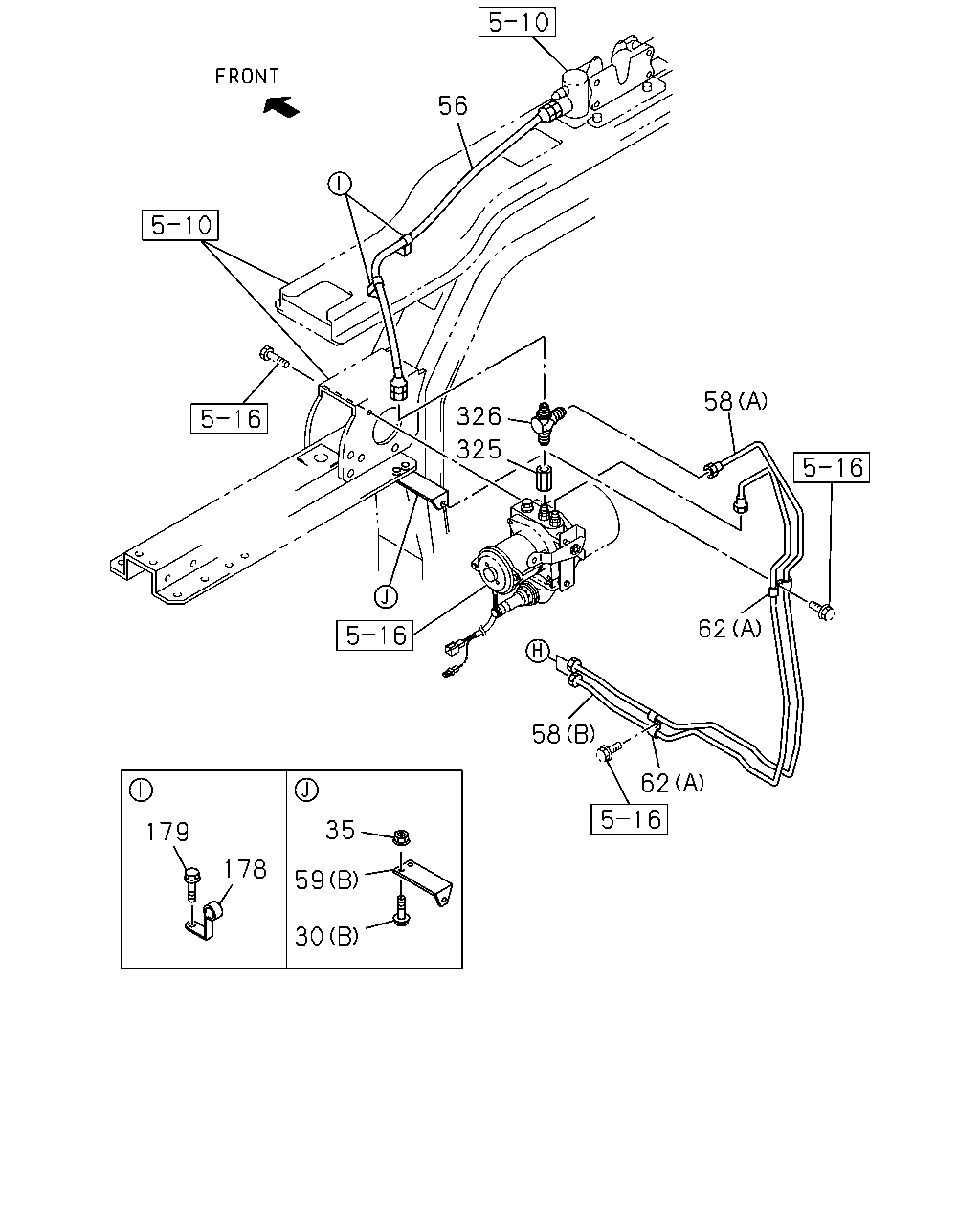

çizim 85341
56 58 326 325 62 62 58 35 59 30 178 179
BalonParca AdiParca NoAdetTipApplied Date A B
30 BOLT; BRKT FIX
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0308-0512 ● ●
30 BOLT; BRKT FIX
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
30 BOLT; BRKT FIX
(B) M8X30 FLANGE 		0-28680-830-0 02 1 0308-0512 ● ●
30 BOLT; BRKT FIX
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0601- ● ●
35 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0308-0602 ● ●
35 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
56 HOSE; FLEX,OIL PIPE
CAB UP +110MM<TGG> L=750 		1-09365-058-0 01 1 0308- ● ●
56 HOSE; FLEX,OIL PIPE
EXC. CAB UP +110MM<TGG> L=650 		1-09365-053-0 01 1 0308- ● ●
58 PIPE; OIL,POWER UNIT
(B) DOWN L=1050 SERVICED BY L=1100 		1-47428-731-0 01 1 0308-0308 ● ●
58 PIPE; OIL,POWER UNIT
(B) DOWN L=1017 SERVICED BY L=1100 		1-47428-731-0 01 1 0309- ● ●
58 PIPE; OIL,POWER UNIT
(A) UP L=989 		1-49166-916-0 01 1 0308- ● ●
59 BRACKET; CLIP
(A) L=115 B=25 		1-47476-758-0 02 1 0308- ● ●
59 BRACKET; CLIP
(B) 		1-47477-317-0 01 1 0308- ● ●
62 CLIP; OIL PIPE
(A) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 02 1 0308- ● ●
62 CLIP; OIL PIPE
(B) ID=21 L=30 H=40 		1-09700-991-1 03 1 0308- ● ●
62 CLIP; OIL PIPE
(C) L=140 		5-09707-031-1 01 1 0308- ● ●
62 CLIP; OIL PIPE
(D) ID=9X2 L=16 		9-09534-825-0 01 1 0308-0606 ● ●
62 CLIP; OIL PIPE
(D) ID=9X2 L=16 		0-95324-825-0 01 1 0607- ● ●
178 CLIP; FLEX HOSE
ID=8 H=20 L=20 		1-09700-604-0 02 1 0308- ● ●
179 BOLT; CLIP,FLEX HOSE
M8X20 FLANGE 		0-28680-820-0 02 1 0308-0512 ● ●
179 BOLT; CLIP,FLEX HOSE
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
325 ADAPTER; PUMP
M12 & RC1/4 STRAIGHT 		1-09660-885-0 01 1 0308- ● ●
326 UNION; PUMP
M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 0308- ● ●
