Sayfa 5-10 - Isuzu EPC

5-10 — CAB MOUNTING; FRAME SIDE (#25945) — 342 parça

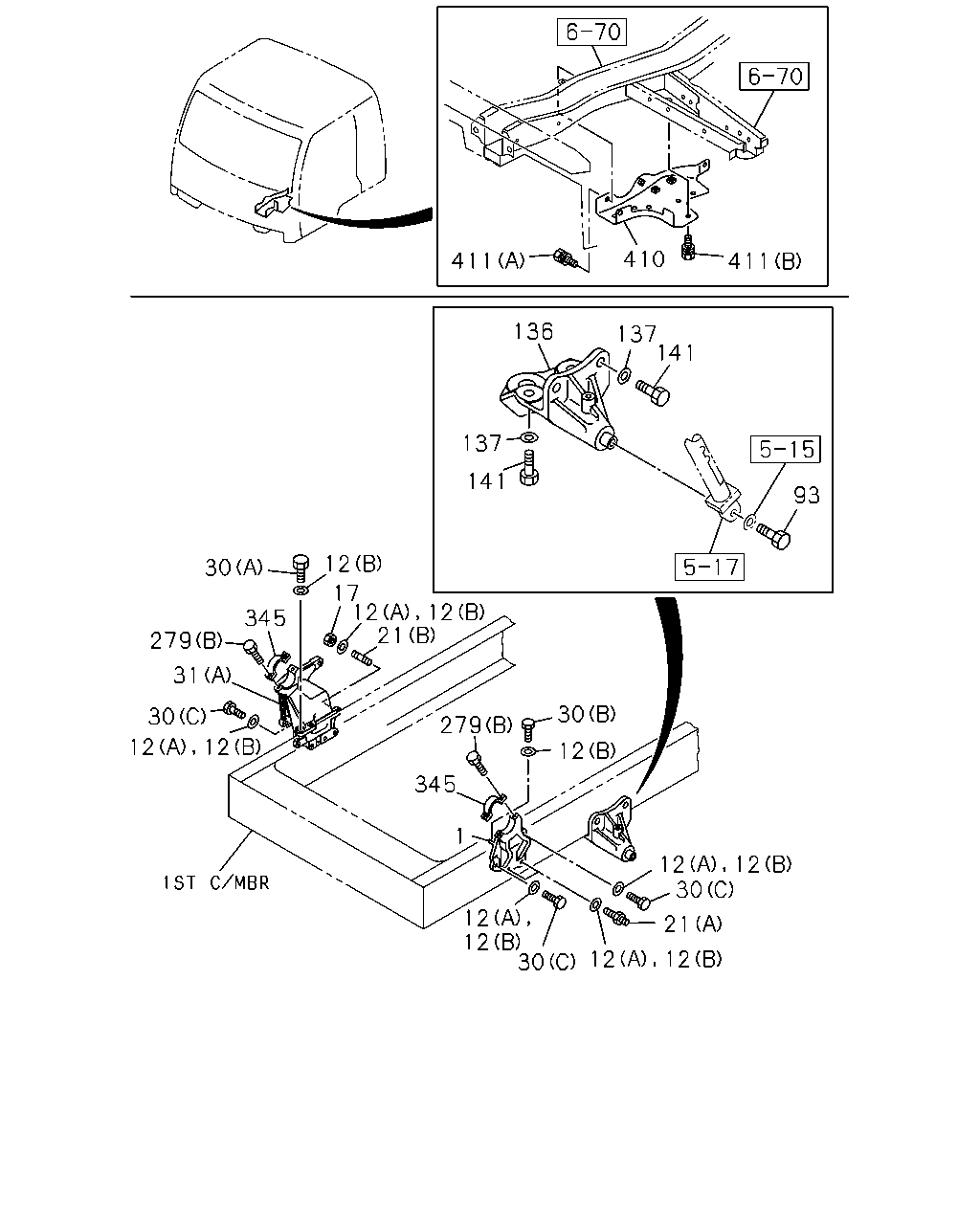

411 410 411 141 137 136 137 141 93 12 21 12 17 12 30 345 279 31 30 12 12 279 30 12 345 1 12 12 30 12 12 21 30 12 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BRACKET; CAB MTG CAB UP +110MM<TGG>	1-53453-312-0	01	1	0308-	●	●
1	BRACKET; CAB MTG CAB UP +50MM<W60>	1-53453-335-0	01	1	0308-	●	●
12	WASHER; LK,BRKT CAB UP +110MM<TGG> (A) ID=16.2	1-09503-223-0	11	1	0308-	●	●
12	WASHER; LK,BRKT CAB UP +110MM<TGG> (B) ID=15	9-09651-069-0	04	1	0308-	●	●
12	WASHER; LK,BRKT CAB UP +50MM<W60> (B) ID=15	9-09651-069-0	15	1	0308-	●	●
17	NUT; BRKT,CAB TILT CAB UP +110MM<TGG> M16	9-99110-516-0	01	1	0308-0512	●	●
17	NUT; BRKT,CAB TILT CAB UP +110MM<TGG> M16	0-91110-516-0	01	1	0601-	●	●
17	NUT; BRKT,CAB TILT CAB UP +50MM<W60> M14	9-99110-514-0	01	1	0308-0512	●	●
17	NUT; BRKT,CAB TILT CAB UP +50MM<W60> M14	0-91110-514-0	01	1	0601-	●	●
21	STUD; BRKT,CAB TILT CAB UP +110MM<TGG> (A) M12X20,M16X45 L=76	1-09029-090-0	02	1	0308-	●	●
21	STUD; BRKT,CAB TILT CAB UP +110MM<TGG> (B) M16X50 L=74	1-09300-117-0	01	1	0308-	●	●
21	STUD; BRKT,CAB TILT CAB UP +50MM<W60> (A) M12X25,M14X45 L=81	1-09029-103-0	02	1	0308-	●	●
21	STUD; BRKT,CAB TILT CAB UP +50MM<W60> (B) M14X48 L=75	1-09300-094-0	01	1	0308-	●	●
30	BOLT; CAB FRT FOOT (A) M14X60	9-92061-460-0	02	1	0308-0512	●	●
30	BOLT; CAB FRT FOOT (A) M14X60	0-20951-460-0	02	1	0601-	●	●
30	BOLT; CAB FRT FOOT CAB UP +110MM<TGG> (B) M14X45	9-92061-445-0	02	1	0308-	●	●
30	BOLT; CAB FRT FOOT CAB UP +110MM<TGG> (C) M16X45	9-92061-645-0	08	1	0308-	●	●
30	BOLT; CAB FRT FOOT CAB UP +50MM<W60> (B) M14X45	9-92061-445-0	10	1	0308-	●	●
31	BRACKET; CAB CAB UP +110MM<TGG> (A)	1-44226-159-0	01	1	0308-	●	●
31	BRACKET; CAB CAB UP +50MM<W60> (A)	1-44226-164-0	01	1	0308-	●	●
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-224-4	01	1	0308-	●	●
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-225-3	01	1	0308-	●	●
31	BRACKET; CAB FULL FLOATING CAB(W16) (B)	1-53458-374-1	01	1	0308-	●	●
31	BRACKET; CAB FULL FLOATING CAB(W16) (C)	1-81549-016-0	01	1	0308-	●	●
31	BRACKET; CAB EXC. FULL FLOATING CAB(W16) (D)	1-53453-273-1	01	1	0308-	●	●
31	BRACKET; CAB EXC. FULL FLOATING CAB(W16) (D)	1-53453-274-1	01	1	0308-	●	●
93	BOLT; PIN CAB UP +110MM<TGG> M10X30	1-09000-283-0	01	1	0308-	●	●
93	BOLT; PIN CAB UP +50MM<W60> M10X20 FLANGE	0-28681-020-0	01	1	0308-0512	●	●
93	BOLT; PIN CAB UP +50MM<W60> M10X20 FLANGE	0-28651-020-0	01	1	0601-	●	●
136	BRACKET; OIL CYL	1-53458-829-0	01	1	0308-	●	●
137	WASHER; PL,BRKT ID=15	9-09651-069-0	04	1	0308-	●	●
141	BOLT; BRKT M14X50	9-92061-450-0	04	1	0308-0512	●	●
141	BOLT; BRKT M14X50	0-20951-450-0	04	1	0601-	●	●
279	BOLT (B) M12X40 FLANGE	0-28091-240-0	04	1	0308-0512	●	●
279	BOLT (B) M12X40 FLANGE	0-28061-240-0	04	1	0601-	●	●
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28080-816-0	04	1	0308-0512	●	●
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28050-816-0	04	1	0601-	●	●
279	BOLT FULL FLOATING CAB(W16) (E) M8X60 FLANGE	0-28080-860-0	02	1	0308-0512	●	●
279	BOLT FULL FLOATING CAB(W16) (E) M8X60 FLANGE	0-28050-860-0	02	1	0601-	●	●
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28680-820-0	01	1	0308-0512	●	●
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28650-820-0	01	1	0601-	●	●
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28680-820-0	04	1	0308-0512	●	●
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28650-820-0	04	1	0601-	●	●
279	BOLT FULL FLOATING CAB(W16) (A) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	0308-	●	●
345	CAP; CAB	1-53458-336-3	02	1	0308-	●	●
410	REINFORCEMENT; CAB TILT	1-62570-864-0	01	1	0308-	●	●
411	BOLT; REINFORCEMENT (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	0308-	●	●
411	BOLT; REINFORCEMENT (B) M10X20 W/LK&PL WASHER	8-94279-211-0	01	1	0308-	●	●

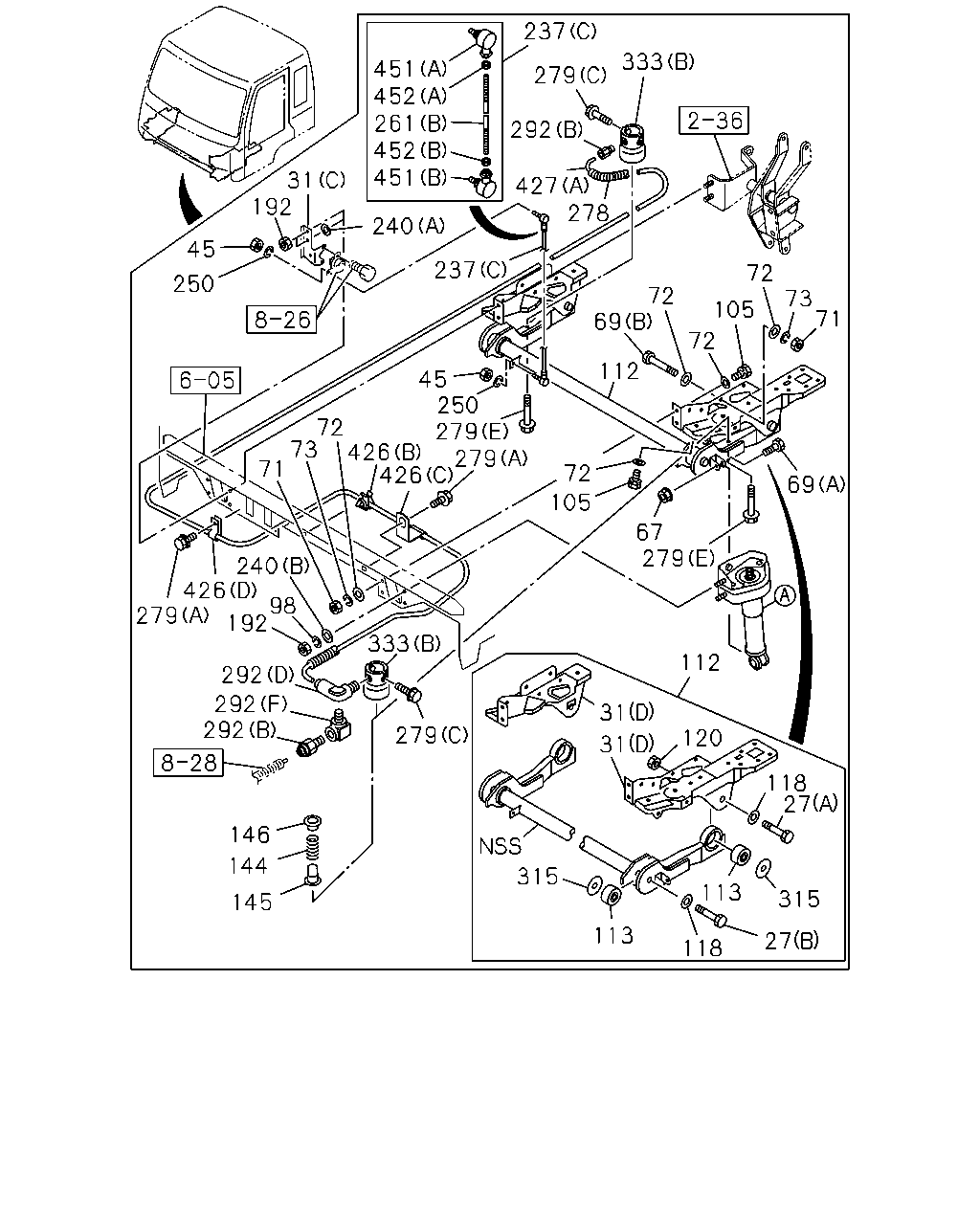

237 333 279 292 427 278 237 240 451 452 261 452 451 31 192 45 250 71 73 72 426 426 279 279 250 45 112 69 72 72 71 73 105 72 72 105 67 279 69 112 31 31 120 118 27 315 113 27 118 113 315 145 144 146 279 292 292 292 333 192 98 240 426 279

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
27	BOLT; BUSHING (B) M18X120	1-09000-442-1	02	1	0308-	●	●
27	BOLT; BUSHING (A) M18X90	9-91066-890-0	02	1	0308-	●	●
31	BRACKET; CAB CAB UP +110MM<TGG> (A)	1-44226-159-0	01	1	0308-	●	●
31	BRACKET; CAB CAB UP +50MM<W60> (A)	1-44226-164-0	01	1	0308-	●	●
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-224-4	01	1	0308-	●	●
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-225-3	01	1	0308-	●	●
31	BRACKET; CAB FULL FLOATING CAB(W16) (B)	1-53458-374-1	01	1	0308-	●	●
31	BRACKET; CAB FULL FLOATING CAB(W16) (C)	1-81549-016-0	01	1	0308-	●	●
31	BRACKET; CAB EXC. FULL FLOATING CAB(W16) (D)	1-53453-273-1	01	1	0308-	●	●
31	BRACKET; CAB EXC. FULL FLOATING CAB(W16) (D)	1-53453-274-1	01	1	0308-	●	●
45	NUT FULL FLOATING CAB(W16) M5	9-99110-405-0	02	1	0308-0512	●	●
45	NUT FULL FLOATING CAB(W16) M5	9-99110-405-0	02	1	0308-0512	●	●
45	NUT FULL FLOATING CAB(W16) M5	0-91110-505-0	02	1	0601-	●	●
45	NUT FULL FLOATING CAB(W16) M5	0-91110-505-0	02	1	0601-	●	●
67	NUT; S/ABS,CAB FRT SUSPENSION M12 FLANGE	0-91150-212-0	02	1	0308-0602	●	●
67	NUT; S/ABS,CAB FRT SUSPENSION M12 FLANGE	0-91180-212-0	02	1	0603-	●	●
69	BOLT; S/ABS,CAB FRT SUSPENSION (A) M12X60	0-20801-260-0	02	1	0308-	●	●
69	BOLT; S/ABS,CAB FRT SUSPENSION (B) M10X105	1-79198-008-1	08	1	0308-	●	●
71	NUT; BRKT TO CAB FRAME M10	1-09984-142-0	06	1	0308-	●	●
72	WASHER; PL,BRKT TO FRAME ID=10.5 OD=26 T=2.6	1-09985-184-0	24	1	0308-0403	●	●
72	WASHER; PL,BRKT TO FRAME ID=10.5 OD=26 T=2.6	1-09985-184-0	23	1	0404-	●	●
73	WASHER; LK,BRKT TO CAB FRAME ID=10	1-09985-185-0	12	1	0308-	●	●
98	WASHER; LK,BRKT ID=10	1-09985-185-0	04	1	0308-	●	●
105	BOLT; BRKT TO CAB FRAME M10X30 W/SP WASHER	1-09980-546-0	08	1	0308-	●	●
112	ARM ASM; LINK,CAB FRT SUSP FULL FLOATING CAB(W16)	1-53450-647-2	01	1	0308-	●	●
112	ARM ASM; LINK,CAB FRT SUSP EXC. FULL FLOATING CAB(W16)	1-53450-653-0	01	1	0308-	●	●
113	BUSHING; RUBBER,FLOATING LINK ARM,W/PI	1-53458-714-0	04	1	0308-	●	●
118	WASHER; PL,STOPPER RUBBER,LINK ARM ID=19 OD=30	1-09503-279-0	04	1	0308-	●	●
120	NUT; STOPPER RUBBER,LINK ARM M18	9-99110-518-0	02	1	0308-0512	●	●
120	NUT; STOPPER RUBBER,LINK ARM M18	0-91110-518-0	02	1	0601-	●	●
144	SPRING; COIL,CAB FRT SUSPENSION EXC. FULL FLOATING CAB(W16)	1-09580-537-0	02	1	0308-	●	●
145	RUBBER; CUSHION,CAB FRT SUSPENSION EXC. FULL FLOATING CAB(W16)	1-53366-139-0	02	1	0308-	●	●
146	SEAT; SPRING,CAB FRT SUSPENSION EXC. FULL FLOATING CAB(W16)	1-53366-138-0	02	1	0308-	●	●
192	NUT; BRKT FIX M10	1-09984-142-0	04	1	0308-	●	●
192	NUT; BRKT FIX FULL FLOATING CAB(W16) M10	1-09984-142-0	02	1	0308-	●	●
237	ROD ASM; LATERAL (B)	1-53458-343-0	01	1	0308-	●	●
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (A)	1-33670-407-0	01	1	0308-	●	●
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (C)	1-33670-773-0	01	1	0308-	●	●
240	WASHER; PL,BRKT (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0308-	●	●
240	WASHER; PL,BRKT (C) ID=12.5	9-09160-512-0	02	1	0308-0605	●	●
240	WASHER; PL,BRKT (C) ID=12.5 OD=22	0-91610-512-0	02	1	0606-	●	●
240	WASHER; PL,BRKT FULL FLOATING CAB(W16) (A) ID=10.5 OD=18	1-09985-173-0	01	1	0308-	●	●
250	WASHER; LK FULL FLOATING CAB(W16) ID=5.1	9-09150-505-0	02	1	0308-0603	●	●
250	WASHER; LK FULL FLOATING CAB(W16) ID=5.1	9-09150-505-0	02	1	0308-0603	●	●
250	WASHER; LK FULL FLOATING CAB(W16) ID=5.1	0-91510-505-0	02	1	0604-	●	●
250	WASHER; LK FULL FLOATING CAB(W16) ID=5.1	0-91510-505-0	02	1	0604-	●	●
261	ROD; LINK FULL FLOATING CAB(W16) (B)	9-08410-507-0	01	1	0308-	●	●
261	ROD; LINK FULL FLOATING CAB(W16) (A)	9-08410-514-0	01	1	0308-	●	●
278	COVER FULL FLOATING CAB(W16) L=1200 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0308-	●	●
279	BOLT (B) M12X40 FLANGE	0-28091-240-0	04	1	0308-0512	●	●
279	BOLT (B) M12X40 FLANGE	0-28061-240-0	04	1	0601-	●	●
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28080-816-0	04	1	0308-0512	●	●
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28050-816-0	04	1	0601-	●	●
279	BOLT FULL FLOATING CAB(W16) (E) M8X60 FLANGE	0-28080-860-0	02	1	0308-0512	●	●
279	BOLT FULL FLOATING CAB(W16) (E) M8X60 FLANGE	0-28050-860-0	02	1	0601-	●	●
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28680-820-0	01	1	0308-0512	●	●
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28650-820-0	01	1	0601-	●	●
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28680-820-0	04	1	0308-0512	●	●
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28650-820-0	04	1	0601-	●	●
279	BOLT FULL FLOATING CAB(W16) (A) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	0308-	●	●
292	CONNECTOR; CAB SUSPENSION (E) M12	1-53458-941-0	01	1	0308-	●	●
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0308-	●	●
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (B) DIN6 R1/8 STRAIGHT	1-09660-759-1	02	1	0308-	●	●
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (C) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0308-	●	●
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (D)	1-09661-577-0	01	1	0308-	●	●
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (F) PT1/8 ELBOW	8-94338-418-1	01	1	0308-	●	●
315	WASHER; CAB MTG ID=34.5	1-53458-281-1	04	1	0308-	●	●
333	SPRING FULL FLOATING CAB(W16) (B)	1-52110-142-2	02	1	0308-	●	●
333	SPRING FULL FLOATING CAB(W16) (A)	1-52110-143-2	02	1	0308-	●	●
426	CLIP FULL FLOATING CAB(W16) (A) ID=6 H=20 L=20	1-09700-603-0	02	1	0308-	●	●
426	CLIP FULL FLOATING CAB(W16) (C) ID=11 H=20 L=20	5-09700-351-0	01	1	0308-	●	●
426	CLIP FULL FLOATING CAB(W16) (B) ID=9.5	5-09709-020-0	01	1	0308-	●	●
426	CLIP FULL FLOATING CAB(W16) (E) ID=7 L=32	9-09524-665-0	01	1	0308-0606	●	●
426	CLIP FULL FLOATING CAB(W16) (E) ID=7 L=32	0-95234-665-0	01	1	0607-	●	●
426	CLIP FULL FLOATING CAB(W16) (D) ID=11 L=16	9-09525-025-0	01	1	0308-0606	●	●
426	CLIP FULL FLOATING CAB(W16) (D) ID=11 L=16	0-95235-025-0	01	1	0607-	●	●
427	TUBE FULL FLOATING CAB(W16) (B) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0308-	●	●
427	TUBE FULL FLOATING CAB(W16) (A) L=1300 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0308-	●	●
451	JOINT; BALL FULL FLOATING CAB(W16) (B)	1-09760-103-2	01	1	0308-	●	●
451	JOINT; BALL FULL FLOATING CAB(W16) (B)	1-09760-103-2	01	1	0308-	●	●
451	JOINT; BALL FULL FLOATING CAB(W16) (A)	1-09760-104-2	01	1	0308-	●	●
451	JOINT; BALL FULL FLOATING CAB(W16) (A)	1-09760-104-2	01	1	0308-	●	●
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (B) M5 LH THREAD	9-09840-277-0	01	1	0308-	●	●
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (B) M5 LH THREAD	9-09840-277-0	01	1	0308-	●	●
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (A) M5	9-99110-405-0	01	1	0308-0512	●	●
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (A) M5	9-99110-405-0	01	1	0308-0512	●	●
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (A) M5	0-91110-505-0	01	1	0601-	●	●
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (A) M5	0-91110-505-0	01	1	0601-	●	●

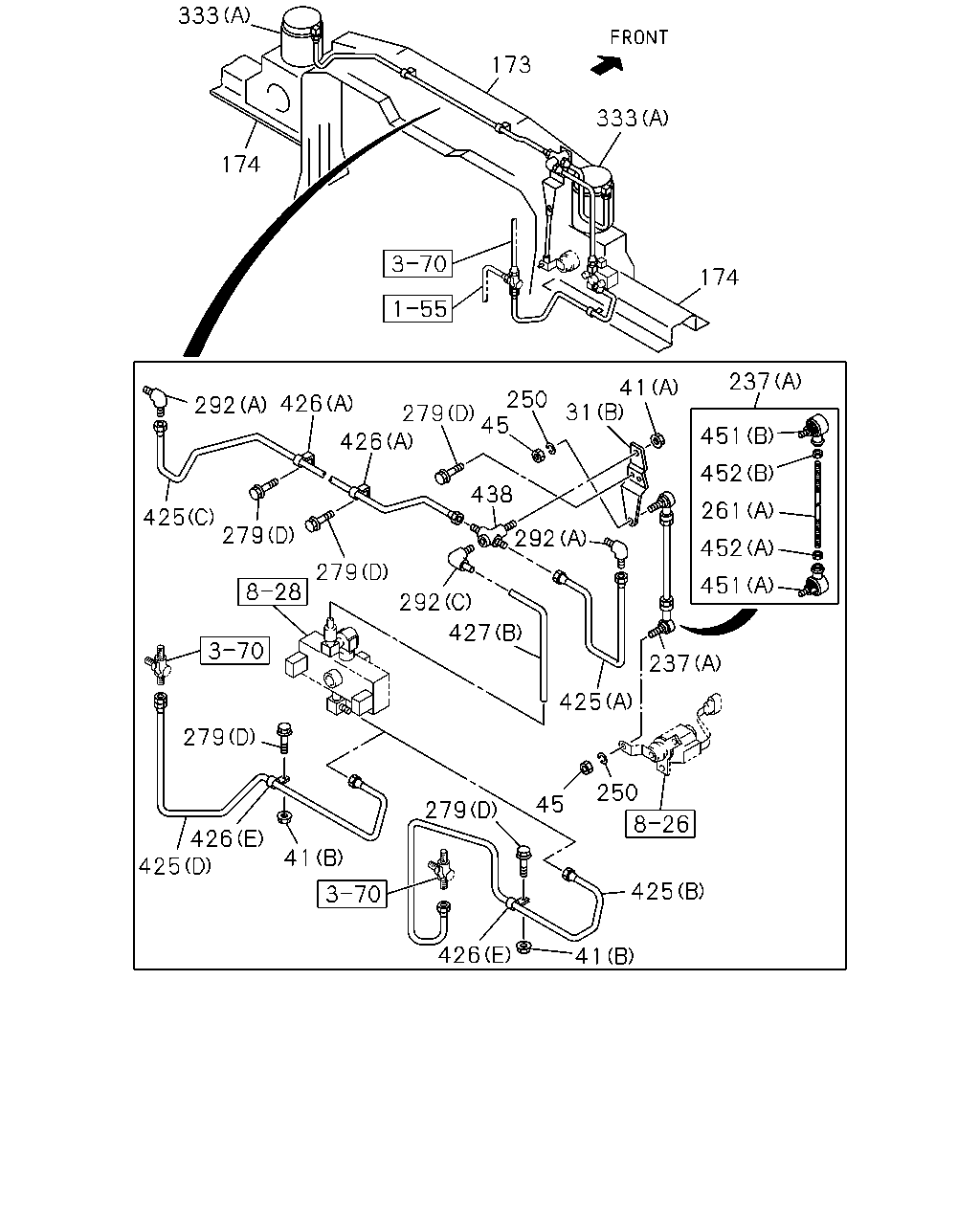

333 174 173 333 174 237 451 452 261 452 451 41 31 250 45 279 426 426 292 425 279 279 292 427 438 292 237 425 250 45 279 425 41 426 41 426 425 279

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	BRACKET; CAB CAB UP +110MM<TGG> (A)	1-44226-159-0	01	1	0308-	●	●
31	BRACKET; CAB CAB UP +50MM<W60> (A)	1-44226-164-0	01	1	0308-	●	●
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-224-4	01	1	0308-	●	●
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-225-3	01	1	0308-	●	●
31	BRACKET; CAB FULL FLOATING CAB(W16) (B)	1-53458-374-1	01	1	0308-	●	●
31	BRACKET; CAB FULL FLOATING CAB(W16) (C)	1-81549-016-0	01	1	0308-	●	●
31	BRACKET; CAB EXC. FULL FLOATING CAB(W16) (D)	1-53453-273-1	01	1	0308-	●	●
31	BRACKET; CAB EXC. FULL FLOATING CAB(W16) (D)	1-53453-274-1	01	1	0308-	●	●
41	NUT FULL FLOATING CAB(W16) (B) M8 FLANGE	0-91150-108-0	01	1	0308-0602	●	●
41	NUT FULL FLOATING CAB(W16) (B) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
41	NUT FULL FLOATING CAB(W16) (A) M12 FLANGE	0-91150-212-0	01	1	0308-0602	●	●
41	NUT FULL FLOATING CAB(W16) (A) M12 FLANGE	0-91180-212-0	01	1	0603-	●	●
45	NUT FULL FLOATING CAB(W16) M5	9-99110-405-0	02	1	0308-0512	●	●
45	NUT FULL FLOATING CAB(W16) M5	9-99110-405-0	02	1	0308-0512	●	●
45	NUT FULL FLOATING CAB(W16) M5	0-91110-505-0	02	1	0601-	●	●
45	NUT FULL FLOATING CAB(W16) M5	0-91110-505-0	02	1	0601-	●	●
173	MEMBER; CAB MTG RR CAB UP +110MM<TGG> FULL FLOATING CAB(W16)	1-53450-649-1	01	1	0308-0406	●	●
173	MEMBER; CAB MTG RR CAB UP +110MM<TGG> FULL FLOATING CAB(W16)	1-53450-670-1	01	1	0407-	●	●
173	MEMBER; CAB MTG RR CAB UP +110MM<TGG> EXC. FULL FLOATING CAB(W16)	1-53450-660-0	01	1	0308-0406	●	●
173	MEMBER; CAB MTG RR CAB UP +110MM<TGG> EXC. FULL FLOATING CAB(W16)	1-53450-674-1	01	1	0407-	●	●
173	MEMBER; CAB MTG RR FULL FLOATING CAB(W16) CAB UP +50MM<W60>	1-53450-587-2	01	1	0308-0406	●	●
173	MEMBER; CAB MTG RR FULL FLOATING CAB(W16) CAB UP +50MM<W60>	1-53450-664-0	01	1	0407-	●	●
174	OUTRIGGER	1-53456-277-3	01	1	0308-	●	●
174	OUTRIGGER	1-53456-278-3	01	1	0308-	●	●
237	ROD ASM; LATERAL (B)	1-53458-343-0	01	1	0308-	●	●
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (A)	1-33670-407-0	01	1	0308-	●	●
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (C)	1-33670-773-0	01	1	0308-	●	●
250	WASHER; LK FULL FLOATING CAB(W16) ID=5.1	9-09150-505-0	02	1	0308-0603	●	●
250	WASHER; LK FULL FLOATING CAB(W16) ID=5.1	9-09150-505-0	02	1	0308-0603	●	●
250	WASHER; LK FULL FLOATING CAB(W16) ID=5.1	0-91510-505-0	02	1	0604-	●	●
250	WASHER; LK FULL FLOATING CAB(W16) ID=5.1	0-91510-505-0	02	1	0604-	●	●
261	ROD; LINK FULL FLOATING CAB(W16) (B)	9-08410-507-0	01	1	0308-	●	●
261	ROD; LINK FULL FLOATING CAB(W16) (A)	9-08410-514-0	01	1	0308-	●	●
279	BOLT (B) M12X40 FLANGE	0-28091-240-0	04	1	0308-0512	●	●
279	BOLT (B) M12X40 FLANGE	0-28061-240-0	04	1	0601-	●	●
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28080-816-0	04	1	0308-0512	●	●
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28050-816-0	04	1	0601-	●	●
279	BOLT FULL FLOATING CAB(W16) (E) M8X60 FLANGE	0-28080-860-0	02	1	0308-0512	●	●
279	BOLT FULL FLOATING CAB(W16) (E) M8X60 FLANGE	0-28050-860-0	02	1	0601-	●	●
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28680-820-0	01	1	0308-0512	●	●
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28650-820-0	01	1	0601-	●	●
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28680-820-0	04	1	0308-0512	●	●
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28650-820-0	04	1	0601-	●	●
279	BOLT FULL FLOATING CAB(W16) (A) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	0308-	●	●
292	CONNECTOR; CAB SUSPENSION (E) M12	1-53458-941-0	01	1	0308-	●	●
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0308-	●	●
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (B) DIN6 R1/8 STRAIGHT	1-09660-759-1	02	1	0308-	●	●
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (C) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0308-	●	●
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (D)	1-09661-577-0	01	1	0308-	●	●
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (F) PT1/8 ELBOW	8-94338-418-1	01	1	0308-	●	●
333	SPRING FULL FLOATING CAB(W16) (B)	1-52110-142-2	02	1	0308-	●	●
333	SPRING FULL FLOATING CAB(W16) (A)	1-52110-143-2	02	1	0308-	●	●
425	PIPE ASM; AIR CAB UP +110MM<TGG> FULL FLOATING CAB(W16) (B)	1-49122-659-0	01	1	0308-	●	●
425	PIPE ASM; AIR FULL FLOATING CAB(W16) (C) L=1149 SERVICED BY L=1200	1-47428-816-0	01	1	0308-	●	●
425	PIPE ASM; AIR FULL FLOATING CAB(W16) (A) L=298	1-47494-961-1	01	1	0308-	●	●
425	PIPE ASM; AIR FULL FLOATING CAB(W16) CAB UP +50MM<W60> (D) L=510	1-49122-367-0	01	1	0308-	●	●
426	CLIP FULL FLOATING CAB(W16) (A) ID=6 H=20 L=20	1-09700-603-0	02	1	0308-	●	●
426	CLIP FULL FLOATING CAB(W16) (C) ID=11 H=20 L=20	5-09700-351-0	01	1	0308-	●	●
426	CLIP FULL FLOATING CAB(W16) (B) ID=9.5	5-09709-020-0	01	1	0308-	●	●
426	CLIP FULL FLOATING CAB(W16) (E) ID=7 L=32	9-09524-665-0	01	1	0308-0606	●	●
426	CLIP FULL FLOATING CAB(W16) (E) ID=7 L=32	0-95234-665-0	01	1	0607-	●	●
426	CLIP FULL FLOATING CAB(W16) (D) ID=11 L=16	9-09525-025-0	01	1	0308-0606	●	●
426	CLIP FULL FLOATING CAB(W16) (D) ID=11 L=16	0-95235-025-0	01	1	0607-	●	●
427	TUBE FULL FLOATING CAB(W16) (B) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0308-	●	●
427	TUBE FULL FLOATING CAB(W16) (A) L=1300 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0308-	●	●
438	UNION FULL FLOATING CAB(W16) M12X2 & PT1/8 3WAY	1-09656-655-0	01	1	0308-	●	●
451	JOINT; BALL FULL FLOATING CAB(W16) (B)	1-09760-103-2	01	1	0308-	●	●
451	JOINT; BALL FULL FLOATING CAB(W16) (B)	1-09760-103-2	01	1	0308-	●	●
451	JOINT; BALL FULL FLOATING CAB(W16) (A)	1-09760-104-2	01	1	0308-	●	●
451	JOINT; BALL FULL FLOATING CAB(W16) (A)	1-09760-104-2	01	1	0308-	●	●
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (B) M5 LH THREAD	9-09840-277-0	01	1	0308-	●	●
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (B) M5 LH THREAD	9-09840-277-0	01	1	0308-	●	●
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (A) M5	9-99110-405-0	01	1	0308-0512	●	●
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (A) M5	9-99110-405-0	01	1	0308-0512	●	●
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (A) M5	0-91110-505-0	01	1	0601-	●	●
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (A) M5	0-91110-505-0	01	1	0601-	●	●

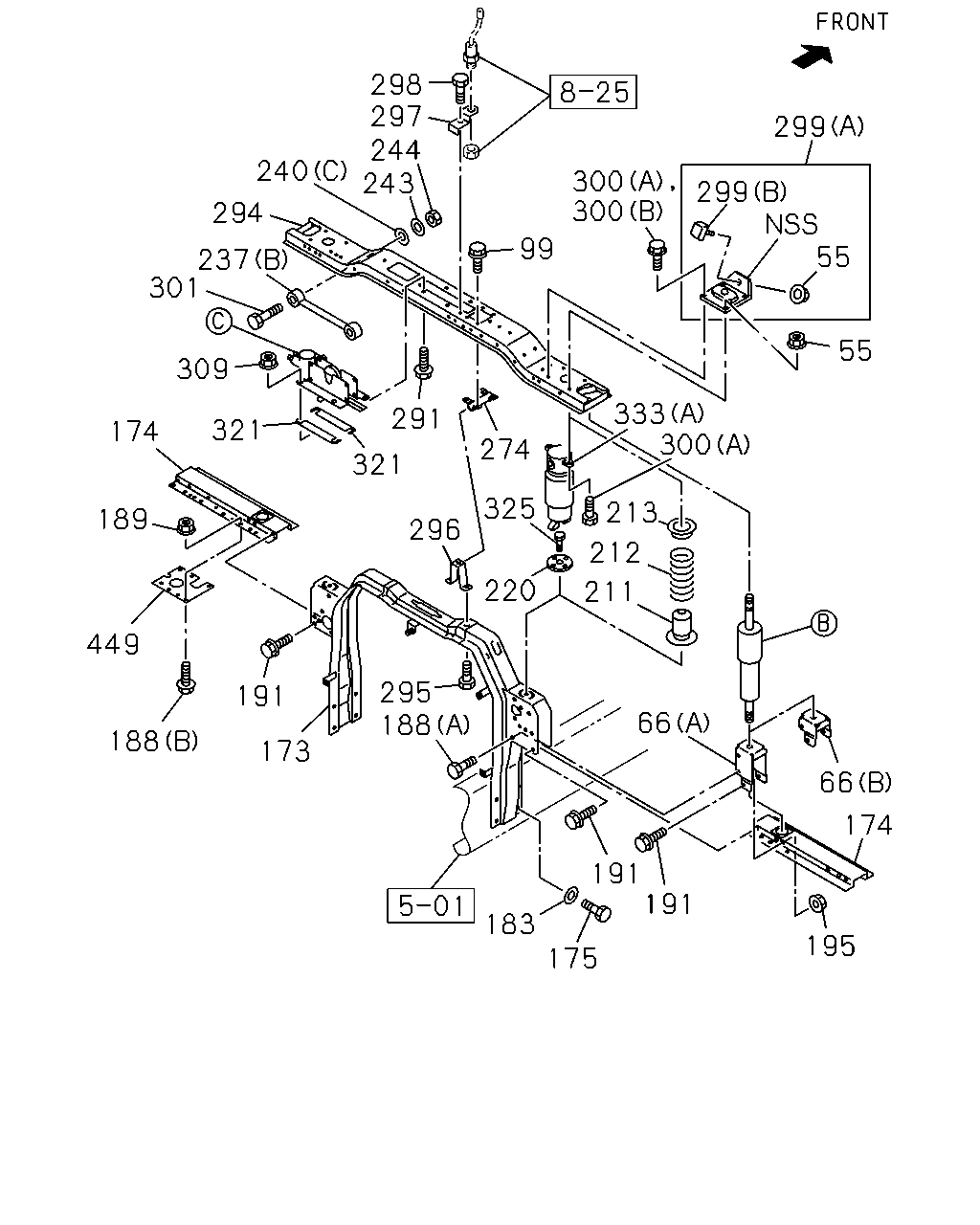

299 55 55 299 300 300 99 243 244 297 298 240 294 237 301 309 174 321 321 291 296 220 325 274 333 300 213 212 211 66 66 174 195 191 191 175 183 188 295 173 191 188 449 189

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
55	NUT; RUBBER M8 FLANGE	0-91150-108-0	06	1	0308-0602	●	●
55	NUT; RUBBER M8 FLANGE	0-91180-108-0	06	1	0603-	●	●
66	BRACKET; S/ABS CAB UP +110MM<TGG> (A)	1-53458-755-1	01	1	0308-	●	●
66	BRACKET; S/ABS CAB UP +110MM<TGG> (A)	1-53458-786-0	01	1	0308-	●	●
66	BRACKET; S/ABS CAB UP +50MM<W60> (B)	1-53458-753-0	01	1	0308-	●	●
66	BRACKET; S/ABS CAB UP +50MM<W60> (B)	1-53458-754-0	01	1	0308-	●	●
99	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	04	1	0308-0512	●	●
99	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	04	1	0601-	●	●
173	MEMBER; CAB MTG RR CAB UP +110MM<TGG> FULL FLOATING CAB(W16)	1-53450-649-1	01	1	0308-0406	●	●
173	MEMBER; CAB MTG RR CAB UP +110MM<TGG> FULL FLOATING CAB(W16)	1-53450-670-1	01	1	0407-	●	●
173	MEMBER; CAB MTG RR CAB UP +110MM<TGG> EXC. FULL FLOATING CAB(W16)	1-53450-660-0	01	1	0308-0406	●	●
173	MEMBER; CAB MTG RR CAB UP +110MM<TGG> EXC. FULL FLOATING CAB(W16)	1-53450-674-1	01	1	0407-	●	●
173	MEMBER; CAB MTG RR FULL FLOATING CAB(W16) CAB UP +50MM<W60>	1-53450-587-2	01	1	0308-0406	●	●
173	MEMBER; CAB MTG RR FULL FLOATING CAB(W16) CAB UP +50MM<W60>	1-53450-664-0	01	1	0407-	●	●
174	OUTRIGGER	1-53456-277-3	01	1	0308-	●	●
174	OUTRIGGER	1-53456-278-3	01	1	0308-	●	●
175	BOLT; MEMBER TO FRAME M14X40	9-92061-440-0	08	1	0308-0512	●	●
175	BOLT; MEMBER TO FRAME M14X40	0-20951-440-0	08	1	0601-	●	●
183	WASHER; PL,MEMBER ID=15	9-09651-069-0	08	1	0308-	●	●
188	BOLT; OUTRIGGER (A) M10X25 FLANGE	0-28681-025-0	08	1	0308-0512	●	●
188	BOLT; OUTRIGGER (A) M10X25 FLANGE	0-28651-025-0	08	1	0601-	●	●
188	BOLT; OUTRIGGER CAB UP +110MM<TGG> (B) M10X20 FLANGE	0-28681-020-0	04	1	0308-0512	●	●
188	BOLT; OUTRIGGER CAB UP +110MM<TGG> (B) M10X20 FLANGE	0-28651-020-0	04	1	0601-	●	●
189	NUT; OUTRIGGER CAB UP +110MM<TGG> M10 FLANGE	0-91150-210-0	04	1	0308-0602	●	●
189	NUT; OUTRIGGER CAB UP +110MM<TGG> M10 FLANGE	0-91180-210-0	04	1	0603-	●	●
191	BOLT; BRKT FIX M10X25 FLANGE	0-28681-025-0	07	1	0308-0512	●	●
191	BOLT; BRKT FIX M10X25 FLANGE	0-28651-025-0	07	1	0601-	●	●
195	NUT; BRKT FIX M10 FLANGE	0-91150-210-0	04	1	0308-0602	●	●
195	NUT; BRKT FIX M10 FLANGE	0-91180-210-0	04	1	0603-	●	●
211	RUBBER; CUSHION,S/ABS EXC. FULL FLOATING CAB(W16)	1-53366-128-0	02	1	0308-	●	●
212	SPRING; COIL EXC. FULL FLOATING CAB(W16)	1-09580-515-0	02	1	0308-	●	●
213	SEAT; SPR,S/ABS EXC. FULL FLOATING CAB(W16)	1-53366-132-1	02	1	0308-	●	●
220	GUIDE; SPR	1-53458-648-1	02	1	0308-	●	●
237	ROD ASM; LATERAL (B)	1-53458-343-0	01	1	0308-	●	●
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (A)	1-33670-407-0	01	1	0308-	●	●
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (C)	1-33670-773-0	01	1	0308-	●	●
240	WASHER; PL,BRKT (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0308-	●	●
240	WASHER; PL,BRKT (C) ID=12.5	9-09160-512-0	02	1	0308-0605	●	●
240	WASHER; PL,BRKT (C) ID=12.5 OD=22	0-91610-512-0	02	1	0606-	●	●
240	WASHER; PL,BRKT FULL FLOATING CAB(W16) (A) ID=10.5 OD=18	1-09985-173-0	01	1	0308-	●	●
243	WASHER; LK,LATERAL ROD ID=12.2	9-09150-512-0	02	1	0308-0603	●	●
243	WASHER; LK,LATERAL ROD ID=12.2	0-91510-512-0	02	1	0604-	●	●
244	NUT; LATERAL ROD M12	9-99110-512-0	02	1	0308-0512	●	●
244	NUT; LATERAL ROD M12	0-91110-512-0	02	1	0601-	●	●
274	PIN	1-53458-996-0	01	1	0308-	●	●
291	BOLT; RATCH M10X25 FLANGE	0-28681-025-0	04	1	0308-0512	●	●
291	BOLT; RATCH M10X25 FLANGE	0-28651-025-0	04	1	0601-	●	●
294	MEMBER; FLOATING FULL FLOATING CAB(W16)	1-53454-918-1	01	1	0308-0311	●	●
294	MEMBER; FLOATING FULL FLOATING CAB(W16)	1-53454-949-2	01	1	0312-	●	●
294	MEMBER; FLOATING EXC. FULL FLOATING CAB(W16)	1-53454-919-1	01	1	0308-0311	●	●
294	MEMBER; FLOATING EXC. FULL FLOATING CAB(W16)	1-53454-950-3	01	1	0312-	●	●
295	BOLT; STOPPER,UPR M10X20 FLANGE	0-28681-020-0	02	1	0308-0512	●	●
295	BOLT; STOPPER,UPR M10X20 FLANGE	0-28651-020-0	02	1	0601-	●	●
296	STOPPER; UPR	1-53458-973-0	01	1	0308-	●	●
297	BRACKET; LIMIT SW	1-53458-782-0	01	1	0308-	●	●
298	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	01	1	0308-0512	●	●
298	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	01	1	0601-	●	●
299	RUBBER; MTG (B)	1-53366-155-0	02	1	0308-	●	●
299	RUBBER; MTG (A)	1-53366-156-0	02	1	0308-	●	●
300	BOLT; MTG RUBBER FULL FLOATING CAB(W16) (B) M8X16 FLANGE	0-28080-816-0	04	1	0308-0512	●	●
300	BOLT; MTG RUBBER FULL FLOATING CAB(W16) (B) M8X16 FLANGE	0-28050-816-0	04	1	0601-	●	●
300	BOLT; MTG RUBBER FULL FLOATING CAB(W16) (A) M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	0308-	●	●
300	BOLT; MTG RUBBER EXC. FULL FLOATING CAB(W16) (A) M8X25 W/LK&PL WASHER	1-09030-027-0	08	1	0308-	●	●
301	PIN; LATERAL ROD M12X57.5	1-53459-498-1	02	1	0308-	●	●
309	NUT M10 FLANGE	0-91150-210-0	04	1	0308-0602	●	●
309	NUT M10 FLANGE	0-91180-210-0	04	1	0603-	●	●
321	SHIM; FRT CAB MTG	1-53458-629-1	04	1	0308-	●	●
325	BOLT; GUIDE NUT M8X20 FLANGE	0-28680-820-0	02	1	0308-0512	●	●
325	BOLT; GUIDE NUT M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
333	SPRING FULL FLOATING CAB(W16) (B)	1-52110-142-2	02	1	0308-	●	●
333	SPRING FULL FLOATING CAB(W16) (A)	1-52110-143-2	02	1	0308-	●	●
449	BRACKET; OUTRIGGER CAB UP +110MM<TGG>	1-53456-279-0	01	1	0308-	●	●

69 72 202 202 203 204 205 65 204 203 70

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
65	ABSORBER; SHOCK,CAB FRT SUSPENSION	1-51630-603-0	02	1	0308-	●	●
69	BOLT; S/ABS,CAB FRT SUSPENSION (A) M12X60	0-20801-260-0	02	1	0308-	●	●
69	BOLT; S/ABS,CAB FRT SUSPENSION (B) M10X105	1-79198-008-1	08	1	0308-	●	●
70	BRACKET; S/ABS,CAB FRT SUSP	1-53458-492-1	01	1	0308-	●	●
70	BRACKET; S/ABS,CAB FRT SUSP	1-53458-493-1	01	1	0308-	●	●
72	WASHER; PL,BRKT TO FRAME ID=10.5 OD=26 T=2.6	1-09985-184-0	24	1	0308-0403	●	●
72	WASHER; PL,BRKT TO FRAME ID=10.5 OD=26 T=2.6	1-09985-184-0	23	1	0404-	●	●
202	NUT; S/ABS (C) M10 FLANGE	0-91150-110-0	02	1	0308-	●	●
202	NUT; S/ABS (A) M10	9-09110-410-0	04	1	0308-	●	●
202	NUT; S/ABS (B) M10	9-09111-410-0	02	1	0308-	●	●
202	NUT; S/ABS (B) M10	9-09111-410-0	04	1	0308-	●	●
203	WASHER; RUBBER,SHOCK (A) ID=10.8 OD=38 T=6	1-51631-005-0	02	1	0308-	●	●
203	WASHER; RUBBER,SHOCK (A) ID=10.8 OD=38 T=6	1-51631-005-0	08	1	0308-	●	●
203	WASHER; RUBBER,SHOCK (B) ID=10 OD=38 T=5	1-51631-104-0	02	1	0308-	●	●
204	RUBBER; CUSHION,SHOCK	1-51631-004-0	04	1	0308-	●	●
204	RUBBER; CUSHION,SHOCK	1-51631-004-0	08	1	0308-	●	●
205	WASHER; RUBBER,SHOCK	1-51631-079-0	02	1	0308-	●	●
205	WASHER; RUBBER,SHOCK	1-51631-079-0	06	1	0308-	●	●

294 202 202 203 204 205 204 203 201 173 203 204 205 174 205 204 203 202 202

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
173	MEMBER; CAB MTG RR CAB UP +110MM<TGG> FULL FLOATING CAB(W16)	1-53450-649-1	01	1	0308-0406	●	●
173	MEMBER; CAB MTG RR CAB UP +110MM<TGG> FULL FLOATING CAB(W16)	1-53450-670-1	01	1	0407-	●	●
173	MEMBER; CAB MTG RR CAB UP +110MM<TGG> EXC. FULL FLOATING CAB(W16)	1-53450-660-0	01	1	0308-0406	●	●
173	MEMBER; CAB MTG RR CAB UP +110MM<TGG> EXC. FULL FLOATING CAB(W16)	1-53450-674-1	01	1	0407-	●	●
173	MEMBER; CAB MTG RR FULL FLOATING CAB(W16) CAB UP +50MM<W60>	1-53450-587-2	01	1	0308-0406	●	●
173	MEMBER; CAB MTG RR FULL FLOATING CAB(W16) CAB UP +50MM<W60>	1-53450-664-0	01	1	0407-	●	●
174	OUTRIGGER	1-53456-277-3	01	1	0308-	●	●
174	OUTRIGGER	1-53456-278-3	01	1	0308-	●	●
201	ABSORBER ASM; SHOCK,RR MTG	1-51630-728-0	02	1	0308-	●	●
202	NUT; S/ABS (C) M10 FLANGE	0-91150-110-0	02	1	0308-	●	●
202	NUT; S/ABS (A) M10	9-09110-410-0	04	1	0308-	●	●
202	NUT; S/ABS (B) M10	9-09111-410-0	02	1	0308-	●	●
202	NUT; S/ABS (B) M10	9-09111-410-0	04	1	0308-	●	●
203	WASHER; RUBBER,SHOCK (A) ID=10.8 OD=38 T=6	1-51631-005-0	02	1	0308-	●	●
203	WASHER; RUBBER,SHOCK (A) ID=10.8 OD=38 T=6	1-51631-005-0	08	1	0308-	●	●
203	WASHER; RUBBER,SHOCK (B) ID=10 OD=38 T=5	1-51631-104-0	02	1	0308-	●	●
204	RUBBER; CUSHION,SHOCK	1-51631-004-0	04	1	0308-	●	●
204	RUBBER; CUSHION,SHOCK	1-51631-004-0	08	1	0308-	●	●
205	WASHER; RUBBER,SHOCK	1-51631-079-0	02	1	0308-	●	●
205	WASHER; RUBBER,SHOCK	1-51631-079-0	06	1	0308-	●	●
294	MEMBER; FLOATING FULL FLOATING CAB(W16)	1-53454-918-1	01	1	0308-0311	●	●
294	MEMBER; FLOATING FULL FLOATING CAB(W16)	1-53454-949-2	01	1	0312-	●	●
294	MEMBER; FLOATING EXC. FULL FLOATING CAB(W16)	1-53454-919-1	01	1	0308-0311	●	●
294	MEMBER; FLOATING EXC. FULL FLOATING CAB(W16)	1-53454-950-3	01	1	0312-	●	●

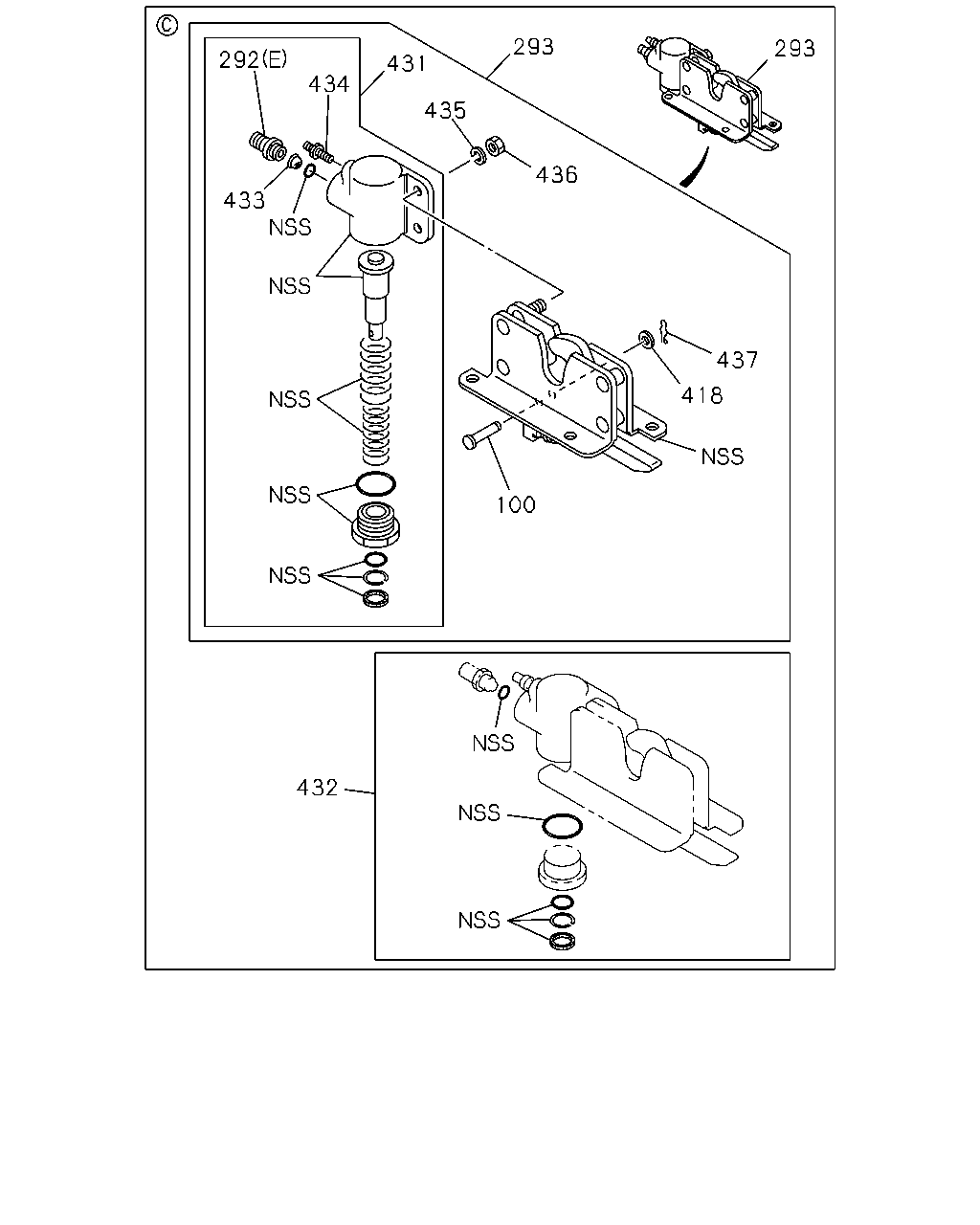

293 436 293 435 431 434 292 433 437 418 100 432

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
100	PIN; JOINT	1-53458-831-0	01	1	0308-	●	●
292	CONNECTOR; CAB SUSPENSION (E) M12	1-53458-941-0	01	1	0308-	●	●
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0308-	●	●
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (B) DIN6 R1/8 STRAIGHT	1-09660-759-1	02	1	0308-	●	●
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (C) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0308-	●	●
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (D)	1-09661-577-0	01	1	0308-	●	●
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (F) PT1/8 ELBOW	8-94338-418-1	01	1	0308-	●	●
293	RATCH; CAB SUSP,RR	1-53458-918-0	01	1	0308-	●	●
418	WASHER; PL,PIN	1-53458-059-0	01	1	0308-	●	●
431	CYLINDER; AIR,RATCH	1-53457-013-0	01	1	0308-	●	●
432	REPAIR KIT; AIR CYL	1-85579-052-0	01	1	0308-	●	●
433	FILTER; AIR CYL	1-53458-048-0	01	1	0308-	●	●
434	SCREW; AIR BLEEDER	1-53458-529-0	01	1	0308-	●	●
435	WASHER; LK,AIR CYL ID=10.2	9-09150-510-0	02	1	0308-	●	●
436	NUT; AIR CYL	1-53458-528-0	02	1	0308-	●	●
437	PIN; SNAP	1-53458-526-0	01	1	0308-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
