4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#25935) — 114 parça

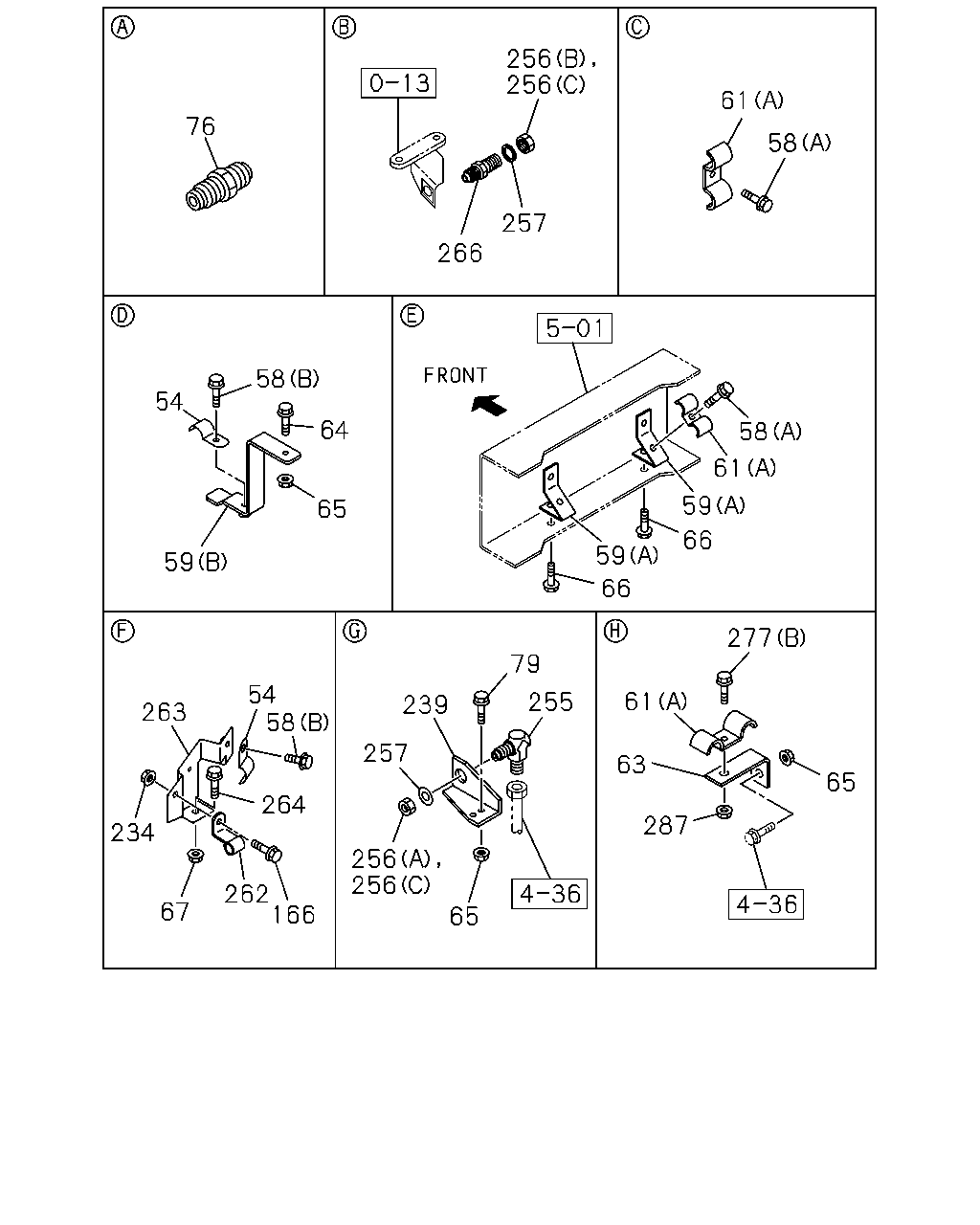

256 256 61 76 58 257 266 58 54 64 58 61 59 65 66 59 59 66 277 79 54 58 61 255 239 263 257 63 65 264 287 234 256 256 262 166 67 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
54	CLIP; OIL PIPE ID=23.6 L=35	1-09700-634-0	02	1	0308-	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	05	1	0308-0512	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	05	1	0601-	●	●
58	BOLT; CLIP (B) M10X20 FLANGE	0-28681-020-0	02	1	0308-0512	●	●
58	BOLT; CLIP (B) M10X20 FLANGE	0-28651-020-0	02	1	0601-	●	●
59	BRACKET; CLIP,OIL PIPE (B)	1-47477-145-0	01	1	0308-	●	●
59	BRACKET; CLIP,OIL PIPE (A)	1-47479-521-0	02	1	0308-	●	●
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	05	1	0308-	●	●
61	CLIP; OIL PIPE (B) ID=16X2 L=20	9-09535-535-0	01	1	0308-0606	●	●
61	CLIP; OIL PIPE (B) ID=16X2 L=20	0-95325-535-0	01	1	0607-	●	●
63	BRACKET; CLIP,P/S L=115 B=25	1-47476-758-0	01	1	0308-	●	●
64	BOLT; CLIP BRKT M8X20 FLANGE	0-28680-820-0	01	1	0308-0512	●	●
64	BOLT; CLIP BRKT M8X20 FLANGE	0-28650-820-0	01	1	0601-	●	●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	03	1	0308-0602	●	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	0603-	●	●
66	BOLT; BRKT,OIL PIPE M8X20 FLANGE	0-28680-820-0	02	1	0308-0512	●	●
66	BOLT; BRKT,OIL PIPE M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
67	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0308-0602	●	●
67	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
76	UNION; OIL PIPE M22	9-09233-015-1	02	1	0308-0607	●	●
76	UNION; OIL PIPE M22 L=51	0-92123-015-0	02	1	0608-	●	●
79	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	0308-0512	●	●
79	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	0601-	●	●
166	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	0308-0512	●	●
166	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0601-	●	●
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91150-108-0	01	1	0308-0602	●	●
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
239	BRACKET; FLEX HOSE	1-47479-664-0	01	1	0308-	●	●
255	UNION; FLEX HOSE M22 & M22 ELBOW	1-09650-375-1	01	1	0308-	●	●
256	NUT; UNION (B) M22	9-09111-422-0	01	1	0308-0512	●	●
256	NUT; UNION (A) M22	9-09111-522-0	01	1	0308-0512	●	●
256	NUT; UNION (C) M22	0-91111-522-0	01	1	0601-	●	●
256	NUT; UNION (C) M22	0-91111-522-0	01	1	0601-	●	●
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	0308-0603	●	●
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	0308-0603	●	●
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	0604-	●	●
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	0604-	●	●
262	CLIP; P/S PIPE ID=15 H=24 L=20	1-09700-606-0	01	1	0308-	●	●
263	BRACKET; P/S PIPE	1-47476-483-2	01	1	0308-	●	●
264	BOLT; PIPE BRKT M8X30 FLANGE	0-28680-830-0	01	1	0308-0512	●	●
264	BOLT; PIPE BRKT M8X30 FLANGE	0-28650-830-0	01	1	0601-	●	●
266	UNION; OIL PIPE,P/S M20 & M22 STRAIGHT	1-09654-167-1	01	1	0308-	●	●
277	BOLT; HOSE CLIP (A) M8X20 FLANGE	0-28680-820-0	01	1	0308-0401	●	●
277	BOLT; HOSE CLIP (A) M10X25 FLANGE	0-28681-025-0	01	1	0402-0512	●	●
277	BOLT; HOSE CLIP (A) M10X25 FLANGE	0-28651-025-0	01	1	0601-	●	●
277	BOLT; HOSE CLIP (B) M8X25 FLANGE	0-28680-825-0	03	1	0308-0512	●	●
277	BOLT; HOSE CLIP (B) M8X25 FLANGE	0-28650-825-0	03	1	0601-	●	●
287	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	0308-0602	●	●
287	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0603-	●	●

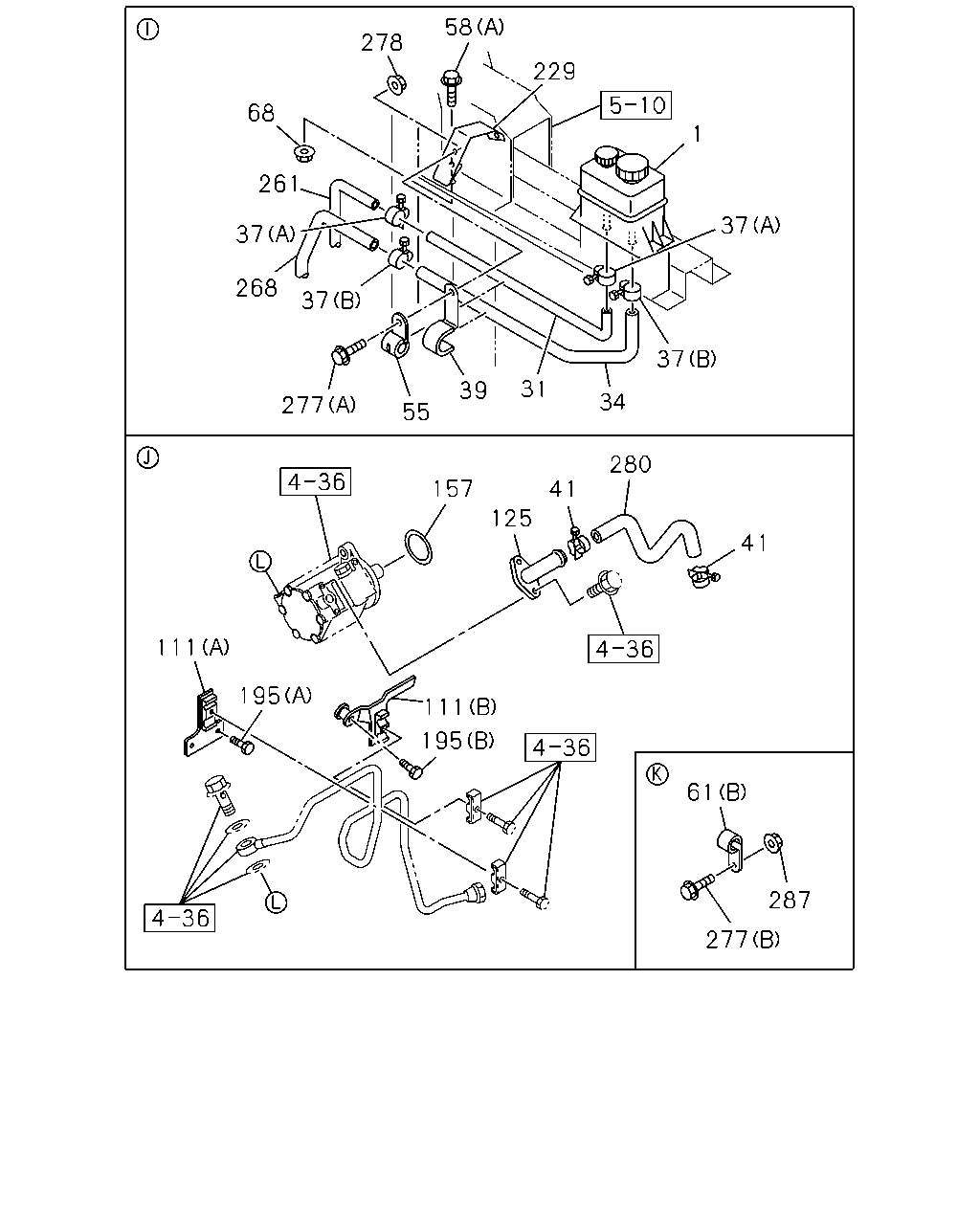

58 278 229 68 1 261 37 37 268 37 37 31 39 34 277 55 280 157 41 125 41 111 195 111 195 61 287 277

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	1-21210-195-2	01	1	0308-0508	●	●
1	TANK ASM; OIL,P/S	1-21210-235-1	01	1	0509-	●	●
31	HOSE; P/S OIL TANK,INL	1-21114-284-0	01	1	0308-	●	●
34	HOSE; P/S OIL TANK,OUTLET	1-21114-283-0	01	1	0308-	●	●
37	CLIP; HOSE,P/S (B) ID=38	9-09915-041-1	02	1	0308-	●	●
37	CLIP; HOSE,P/S (A) ID=28	9-09915-672-1	02	1	0308-	●	●
39	CLIP; FLEX HOSE ID=32 L=75	1-09700-702-0	01	1	0308-	●	●
41	CLIP; HOSE,P/S ID=38	9-09915-041-1	02	1	0308-	●	●
55	CLIP; P/S RUBBER HOSE ID=28 L=30	1-09700-607-1	01	1	0308-	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	05	1	0308-0512	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	05	1	0601-	●	●
58	BOLT; CLIP (B) M10X20 FLANGE	0-28681-020-0	02	1	0308-0512	●	●
58	BOLT; CLIP (B) M10X20 FLANGE	0-28651-020-0	02	1	0601-	●	●
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	05	1	0308-	●	●
61	CLIP; OIL PIPE (B) ID=16X2 L=20	9-09535-535-0	01	1	0308-0606	●	●
61	CLIP; OIL PIPE (B) ID=16X2 L=20	0-95325-535-0	01	1	0607-	●	●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	01	1	0308-0602	●	●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
111	BRACKET; OIL PIPE (A)	1-13345-186-0	01	1	0308-	●	●
111	BRACKET; OIL PIPE (B)	1-13345-187-0	01	1	0308-	●	●
125	CONNECTOR; P/S PUMP	1-13313-532-0	01	1	0308-	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=79.6	1-09623-421-0	01	1	0308-	●	●
195	BOLT; BRKT (A) M8X12 FLANGE	0-28080-812-0	02	1	0308-0512	●	●
195	BOLT; BRKT (A) M8X12 FLANGE	0-28050-812-0	02	1	0601-	●	●
195	BOLT; BRKT (B) M10X35 FLANGE	0-28181-035-0	01	1	0308-0512	●	●
195	BOLT; BRKT (B) M10X35 FLANGE	0-28151-035-0	01	1	0601-	●	●
229	BRACKET; HOSE,POWER STRG	1-21464-407-1	01	1	0308-	●	●
261	PIPE; OIL,UNION TO HOSE L=2500	1-21117-369-1	01	1	0308-	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE L=1287	1-21116-852-0	01	1	0308-	●	●
277	BOLT; HOSE CLIP (A) M8X20 FLANGE	0-28680-820-0	01	1	0308-0401	●	●
277	BOLT; HOSE CLIP (A) M10X25 FLANGE	0-28681-025-0	01	1	0402-0512	●	●
277	BOLT; HOSE CLIP (A) M10X25 FLANGE	0-28651-025-0	01	1	0601-	●	●
277	BOLT; HOSE CLIP (B) M8X25 FLANGE	0-28680-825-0	03	1	0308-0512	●	●
277	BOLT; HOSE CLIP (B) M8X25 FLANGE	0-28650-825-0	03	1	0601-	●	●
278	NUT; HOSE CLIP M8 FLANGE	0-91150-108-0	01	1	0308-0401	●	●
278	NUT; HOSE CLIP M10 FLANGE	0-91150-210-0	01	1	0402-0602	●	●
278	NUT; HOSE CLIP M10 FLANGE	0-91180-210-0	01	1	0603-	●	●
280	HOSE; P/S OIL PUMP,INL	1-21117-301-0	01	1	0308-	●	●
287	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	0308-0602	●	●
287	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0603-	●	●

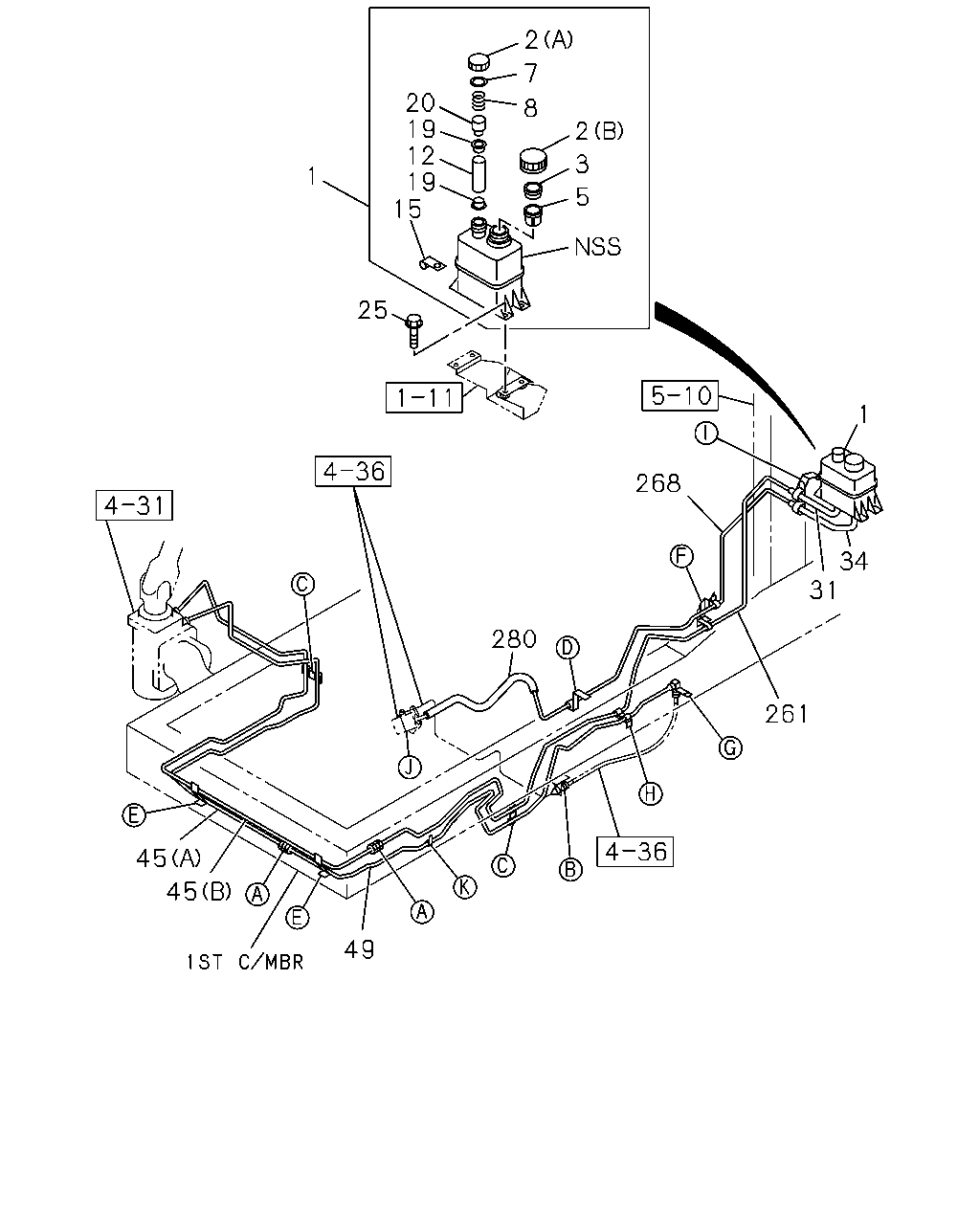

2 7 20 19 12 19 15 8 2 3 1 5 25 1 268 34 31 280 261 45 45 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	1-21210-195-2	01	1	0308-0508	●	●
1	TANK ASM; OIL,P/S	1-21210-235-1	01	1	0509-	●	●
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-6	01	1	0308-	●	●
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-4	01	1	0308-	●	●
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	0308-	●	●
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	0308-	●	●
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	0308-	●	●
8	SPRING; OIL TANK,P/S	1-09580-319-1	01	1	0308-0508	●	●
8	SPRING; OIL TANK,P/S	1-09580-599-0	01	1	0509-	●	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	0308-	●	●
15	PLATE; FILTER,OIL TANK	1-21249-007-1	04	1	0308-0508	●	●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	04	1	0509-	●	●
19	SEAT; OIL TANK	1-21262-001-0	02	1	0308-	●	●
20	HOLDER; FILTER,OIL TANK,P/S	1-21239-001-2	01	1	0308-	●	●
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28680-820-0	04	1	0308-0512	●	●
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28650-820-0	04	1	0601-	●	●
31	HOSE; P/S OIL TANK,INL	1-21114-284-0	01	1	0308-	●	●
34	HOSE; P/S OIL TANK,OUTLET	1-21114-283-0	01	1	0308-	●	●
45	PIPE; OIL,P/S UNIT TO UNION (A) L=1555	1-21117-306-0	01	1	0308-0505	●	●
45	PIPE; OIL,P/S UNIT TO UNION (A) L=1555	1-21117-776-0	01	1	0506-	●	●
45	PIPE; OIL,P/S UNIT TO UNION (B) L=2201	1-21117-307-0	01	1	0308-	●	●
49	PIPE; OIL,FLEX HOSE TO UNION L=2050	1-21117-367-0	01	1	0308-	●	●
261	PIPE; OIL,UNION TO HOSE L=2500	1-21117-369-1	01	1	0308-	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE L=1287	1-21116-852-0	01	1	0308-	●	●
280	HOSE; P/S OIL PUMP,INL	1-21117-301-0	01	1	0308-	●	●
