4-20 — REAR AXLE CASE AND SHAFT (#25930) — 93 parça

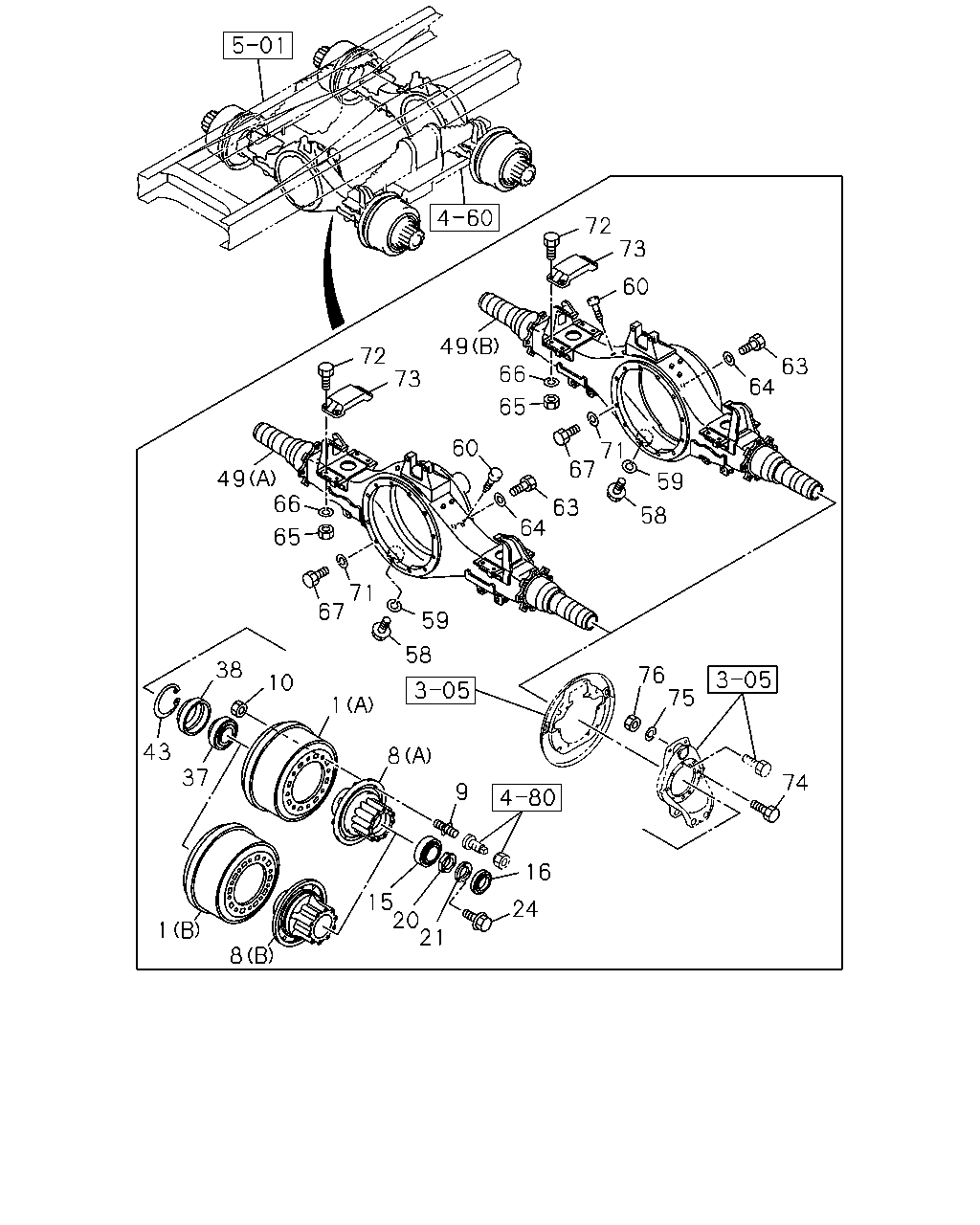

çizim 25117
72 73 60 49 66 72 73 63 64 65 71 67 60 49 66 59 63 64 58 65 71 67 59 58 38 76 75 10 1 43 8 37 74 9 16 15 20 21 24 1 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 DRUM; BRK,RR
INTERNATIONAL STANDARD ISO 10STUD<B3V> (B) 		1-42315-383-0 02 1 0308- ● ●
1 DRUM; BRK,RR
INTERNATIONAL STANDARD ISO 10STUD<B3V> (B) 		1-42315-383-0 02 1 0308- ● ●
1 DRUM; BRK,RR
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (A) 		1-42315-357-0 02 1 0308- ● ●
1 DRUM; BRK,RR
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (A) 		1-42315-357-0 02 1 0308- ● ●
8 HUB; RR AXLE
INTERNATIONAL STANDARD ISO 10STUD<B3V> (B) 		1-42311-085-0 02 1 0308- ● ●
8 HUB; RR AXLE
INTERNATIONAL STANDARD ISO 10STUD<B3V> (B) 		1-42311-085-0 02 1 0308- ● ●
8 HUB; RR AXLE
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (A) 		1-42311-104-0 02 1 0308- ● ●
8 HUB; RR AXLE
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (A) 		1-42311-104-0 02 1 0308- ● ●
9 PIN; WHEEL,RR AXLE
INTERNATIONAL STANDARD ISO 10STUD<B3V> M22X59.8,M22X53.5 RH THREAD 		1-42337-069-1 20 1 0308- ● ●
9 PIN; WHEEL,RR AXLE
INTERNATIONAL STANDARD ISO 10STUD<B3V> M22X59.8,M22X53.5 RH THREAD 		1-42337-069-1 20 1 0308- ● ●
9 PIN; WHEEL,RR AXLE
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M20X34.5,M22X51.5 RH THREAD 		1-42331-110-2 08 1 0308- ● ●
9 PIN; WHEEL,RR AXLE
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M20X34.5,M22X51.5 RH THREAD 		1-42331-110-2 08 1 0308- ● ●
9 PIN; WHEEL,RR AXLE
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M20X34.5 LH THREAD,M22X51.5 RH THREAD 		1-42332-110-2 08 1 0308- ● ●
9 PIN; WHEEL,RR AXLE
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M20X34.5 LH THREAD,M22X51.5 RH THREAD 		1-42332-110-2 08 1 0308- ● ●
10 NUT; WHEEL PIN,RR AXLE
INTERNATIONAL STANDARD ISO 10STUD<B3V> M22 		1-09400-071-0 20 1 0308- ● ●
10 NUT; WHEEL PIN,RR AXLE
INTERNATIONAL STANDARD ISO 10STUD<B3V> M22 		1-09400-071-0 20 1 0308- ● ●
10 NUT; WHEEL PIN,RR AXLE
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M22 FLANGE 		1-09440-065-0 16 1 0308- ● ●
10 NUT; WHEEL PIN,RR AXLE
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M22 FLANGE 		1-09440-065-0 16 1 0308- ● ●
15 BEARING; HUB OUTER,RR AXLE
JTEKT 		1-09812-232-0 02 1 0308- ● ●
15 BEARING; HUB OUTER,RR AXLE
JTEKT 		1-09812-232-0 02 1 0308- ● ●
16 SEAL; OIL,RR HUB,OUTER
TKK 		1-09625-444-0 02 1 0308- ● ●
16 SEAL; OIL,RR HUB,OUTER
TKK 		1-09625-444-0 02 1 0308- ● ●
20 NUT; BRG,RR HUB
M88 		9-09843-062-2 02 1 0308- ● ●
20 NUT; BRG,RR HUB
M88 		9-09843-062-2 02 1 0308- ● ●
21 WASHER; LK,BRG NUT
ID=88 		9-09854-112-0 02 1 0308- ● ●
21 WASHER; LK,BRG NUT
ID=88 		9-09854-112-0 02 1 0308- ● ●
24 BOLT; LK WASHER
M6X16 FLANGE 		0-28680-616-0 06 1 0308-0512 ● ●
24 BOLT; LK WASHER
M6X16 FLANGE 		0-28680-616-0 06 1 0308-0512 ● ●
24 BOLT; LK WASHER
M6X16 FLANGE 		0-28650-616-0 06 1 0601- ● ●
24 BOLT; LK WASHER
M6X16 FLANGE 		0-28650-616-0 06 1 0601- ● ●
37 BEARING; HUB INNER,RR AXLE
JTEKT 		1-09812-233-0 02 1 0308- ● ●
37 BEARING; HUB INNER,RR AXLE
JTEKT 		1-09812-233-0 02 1 0308- ● ●
38 SEAL; OIL,RR HUB,INNER
NOK 		1-09625-265-0 02 1 0308- ● ●
38 SEAL; OIL,RR HUB,INNER
NOK 		1-09625-265-0 02 1 0308- ● ●
38 SEAL; OIL,RR HUB,INNER
TKK 		1-09625-350-0 02 1 0308- ● ●
38 SEAL; OIL,RR HUB,INNER
TKK 		1-09625-350-0 02 1 0308- ● ●
43 RING; SNAP,HUB SEAL,RR AXLE
OD=179 		1-09587-057-0 02 1 0308- ● ●
43 RING; SNAP,HUB SEAL,RR AXLE
OD=179 		1-09587-057-0 02 1 0308- ● ●
49 CASE; RR AXLE
(A) FORWARD 		1-42190-442-0 01 1 0308- ● ●
49 CASE; RR AXLE
(B) REARWARD 		1-42190-444-0 01 1 0308- ● ●
58 PLUG; DRAIN,AXLE CASE
M24X17 FLANGE 		1-09604-023-0 01 1 0308- ● ●
58 PLUG; DRAIN,AXLE CASE
M24X17 FLANGE 		1-09604-023-0 01 1 0308- ● ●
59 GASKET; DRAIN PLUG
ID=26.8 		9-09920-605-0 01 1 0308- ● ●
59 GASKET; DRAIN PLUG
ID=26.8 		9-09920-605-0 01 1 0308- ● ●
60 BREATHER; RR AXLE CASE 1-09893-011-1 02 1 0308- ● ●
63 PLUG; OIL FILLER,AXLE CASE
M24X17 FLANGE 		1-09604-022-0 01 1 0308- ● ●
63 PLUG; OIL FILLER,AXLE CASE
M24X17 FLANGE 		1-09604-022-0 01 1 0308- ● ●
64 GASKET; OIL FILLER,AXLE CASE
ID=26.8 		9-09920-605-0 01 1 0308- ● ●
64 GASKET; OIL FILLER,AXLE CASE
ID=26.8 		9-09920-605-0 01 1 0308- ● ●
65 NUT
M14 		9-99110-514-0 08 1 0308-0512 ● ●
65 NUT
M14 		9-99110-514-0 08 1 0308-0512 ● ●
65 NUT
M14 		0-91110-514-0 08 1 0601- ● ●
65 NUT
M14 		0-91110-514-0 08 1 0601- ● ●
66 WASHER; LK
ID=14.2 		9-09150-814-0 08 1 0308-0603 ● ●
66 WASHER; LK
ID=14.2 		9-09150-814-0 08 1 0308-0603 ● ●
66 WASHER; LK
ID=14.2 		0-91510-814-0 08 1 0604- ● ●
66 WASHER; LK
ID=14.2 		0-91510-814-0 08 1 0604- ● ●
67 BOLT; FINAL DRIVE SETTING
M16X70 		9-91066-670-0 04 1 0308-0512 ● ●
67 BOLT; FINAL DRIVE SETTING
M16X70 		9-91066-670-0 04 1 0308-0512 ● ●
67 BOLT; FINAL DRIVE SETTING
M16X70 		0-10956-670-0 04 1 0601- ● ●
67 BOLT; FINAL DRIVE SETTING
M16X70 		0-10956-670-0 04 1 0601- ● ●
67 BOLT; FINAL DRIVE SETTING
M16X40 		9-92061-640-0 07 1 0308-0512 ● ●
67 BOLT; FINAL DRIVE SETTING
M16X40 		0-20951-640-0 07 1 0601- ● ●
67 BOLT; FINAL DRIVE SETTING
M16X40 		9-92061-640-0 08 1 0308-0512 ● ●
67 BOLT; FINAL DRIVE SETTING
M16X40 		0-20951-640-0 08 1 0601- ● ●
71 WASHER; LK,FINAL DRIVE SETTING
ID=16.2 		9-09150-816-0 12 1 0308-0603 ● ●
71 WASHER; LK,FINAL DRIVE SETTING
ID=16.2 		9-09150-816-0 12 1 0308-0603 ● ●
71 WASHER; LK,FINAL DRIVE SETTING
ID=16.2 		0-91510-816-0 12 1 0604- ● ●
71 WASHER; LK,FINAL DRIVE SETTING
ID=16.2 		0-91510-816-0 12 1 0604- ● ●
72 BOLT; PAD FIX
M14X45 		9-92061-445-0 08 1 0308- ● ●
72 BOLT; PAD FIX
M14X45 		9-92061-445-0 08 1 0308- ● ●
73 PAD; RR SPR CONTACT 1-42124-101-0 02 1 0308- ● ●
73 PAD; RR SPR CONTACT 1-42124-101-0 02 1 0308- ● ●
74 BOLT; RR BRK ASM SETTING
M14X50 		1-09040-066-0 14 1 0308- ● ●
74 BOLT; RR BRK ASM SETTING
M14X50 		1-09040-066-0 14 1 0308- ● ●
75 WASHER; LK,RR BRK ASM SETTING
ID=14.2 		9-09150-814-0 16 1 0308-0603 ● ●
75 WASHER; LK,RR BRK ASM SETTING
ID=14.2 		9-09150-814-0 16 1 0308-0603 ● ●
75 WASHER; LK,RR BRK ASM SETTING
ID=14.2 		0-91510-814-0 16 1 0604- ● ●
75 WASHER; LK,RR BRK ASM SETTING
ID=14.2 		0-91510-814-0 16 1 0604- ● ●
76 NUT; RR BRK ASM SETTING
M14 		9-99110-514-0 16 1 0308-0512 ● ●
76 NUT; RR BRK ASM SETTING
M14 		9-99110-514-0 16 1 0308-0512 ● ●
76 NUT; RR BRK ASM SETTING
M14 		0-91110-514-0 16 1 0601- ● ●
76 NUT; RR BRK ASM SETTING
M14 		0-91110-514-0 16 1 0601- ● ●

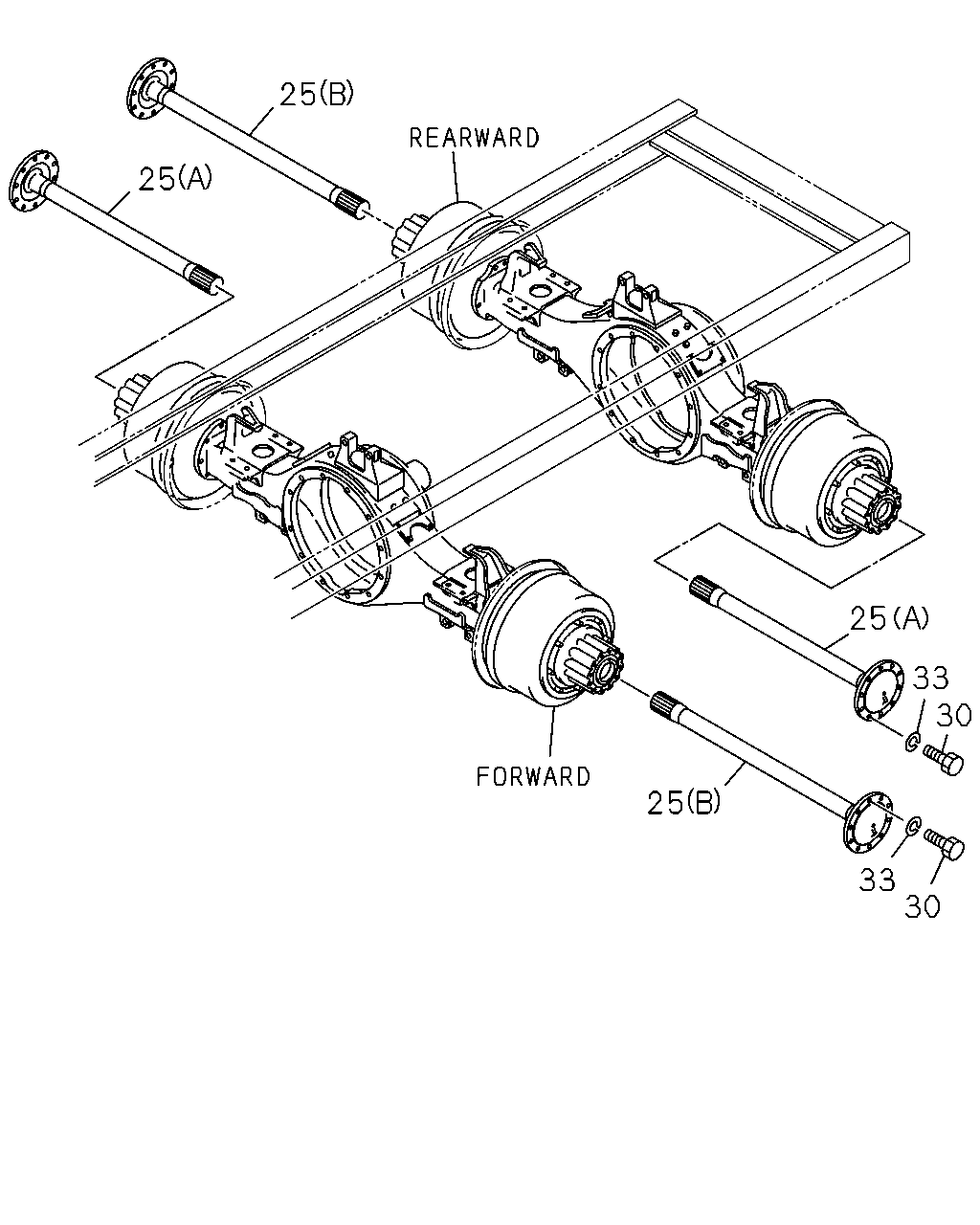

çizim 25191
25 25 25 33 30 25 33 30
BalonParca AdiParca NoAdetTipApplied Date A B
25 SHAFT; AXLE,RR
(A) L=976 		1-42171-356-0 01 1 0308- ● ●
25 SHAFT; AXLE,RR
(A) L=976 		1-42171-356-0 01 1 0308- ● ●
25 SHAFT; AXLE,RR
(B) L=1106 		1-42171-357-0 01 1 0308- ● ●
25 SHAFT; AXLE,RR
(B) L=1106 		1-42171-357-0 01 1 0308- ● ●
30 BOLT; HUB TO AXLE SHAFT
M14X58 		1-09000-582-0 20 1 0308- ● ●
30 BOLT; HUB TO AXLE SHAFT
M14X58 		1-09000-582-0 20 1 0308- ● ●
33 WASHER; AXLE SHAFT
ID=14.2 		9-09150-814-0 20 1 0308-0603 ● ●
33 WASHER; AXLE SHAFT
ID=14.2 		9-09150-814-0 20 1 0308-0603 ● ●
33 WASHER; AXLE SHAFT
ID=14.2 		0-91510-814-0 20 1 0604- ● ●
33 WASHER; AXLE SHAFT
ID=14.2 		0-91510-814-0 20 1 0604- ● ●
