4-10 — FRONT AXLE (#25928) — 60 parça

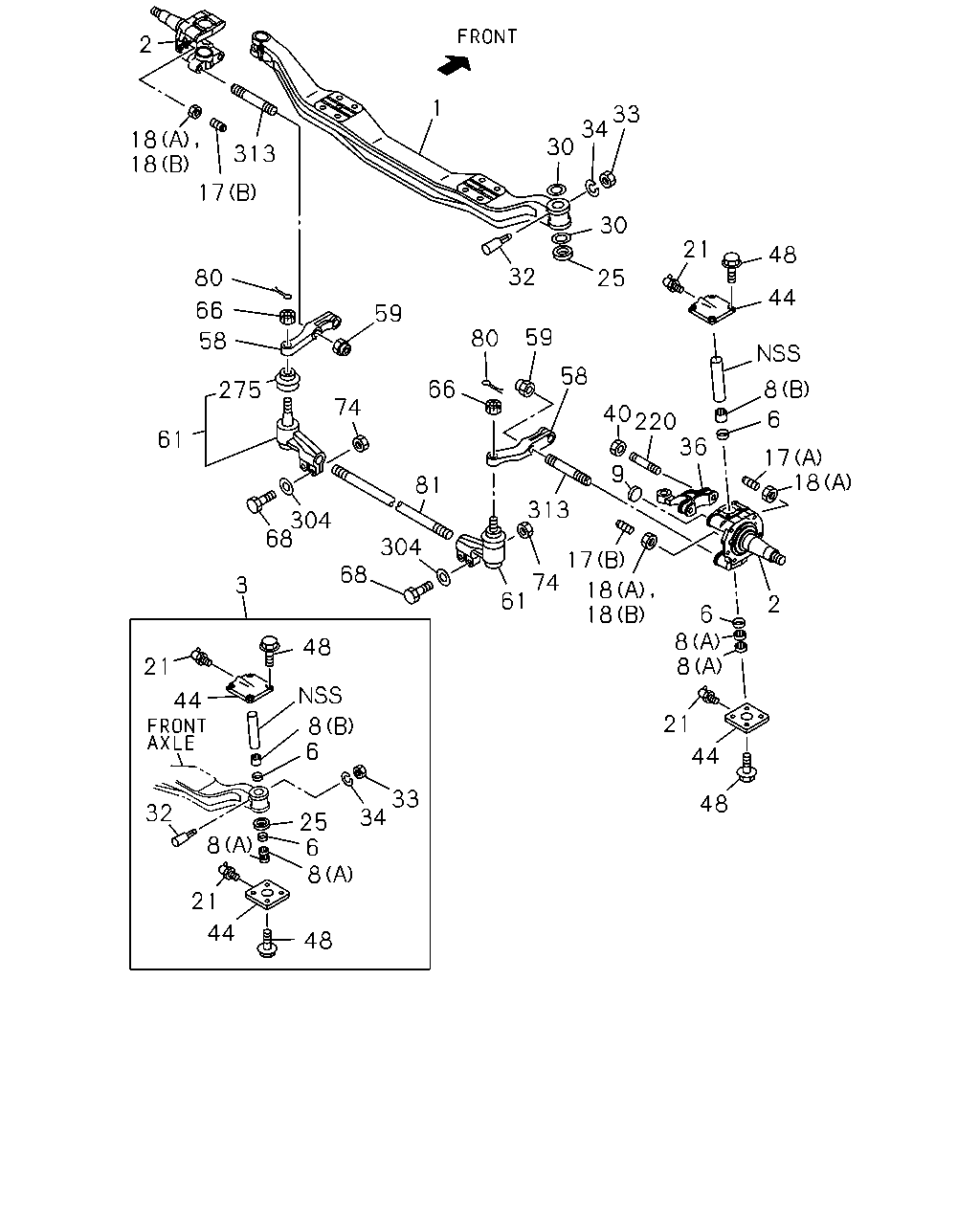

çizim 23348
2 1 33 34 30 18 18 313 17 30 21 48 32 80 25 44 66 59 59 80 58 58 66 8 275 74 40 220 36 6 61 9 17 18 81 313 304 68 304 17 74 61 68 3 18 18 2 6 8 8 48 21 44 21 8 6 44 33 34 48 32 25 6 8 8 21 44 48
BalonParca AdiParca NoAdetTipApplied Date A B
1 AXLE; FRT 1-43111-107-5 01 1 0308- ● ●
2 KNUCKLE; FRT AXLE 1-43131-118-0 01 1 0308- ● ●
2 KNUCKLE; FRT AXLE 1-43132-101-0 01 1 0308- ● ●
3 KING PIN SET 1-87831-111-7 02 1 0308- ● ●
6 SEAL; KING PIN 9-09926-024-0 04 1 0308- ● ●
8 BEARING; NEEDLE,KING PIN
(A) NTN 		9-00096-242-0 04 1 0308- ● ●
8 BEARING; NEEDLE,KING PIN
(B) NTN 		9-00096-243-0 02 1 0308- ● ●
9 PLUG; KNUCKLE
OD=22 		1-09600-011-2 02 1 0308- ● ●
17 BOLT; STOPPER KNUCKLE
INTERNATIONAL STANDARD ISO 10STUD<B3V> (B) M18X43 		1-09009-065-0 02 1 0602- ● ●
17 BOLT; STOPPER KNUCKLE
(A) M18X53 		1-09009-066-0 01 1 0308- ● ●
17 BOLT; STOPPER KNUCKLE
(B) M18X38 		1-09009-164-0 02 1 0308-0601 ● ●
17 BOLT; STOPPER KNUCKLE
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (B) M18X38 		1-09009-164-0 02 1 0602- ● ●
18 NUT; STOPPER BOLT,KNUCKLE
(B) M18 		9-99110-518-0 02 1 0407-0512 ● ●
18 NUT; STOPPER BOLT,KNUCKLE
(B) M18 		0-91110-518-0 02 1 0601- ● ●
18 NUT; STOPPER BOLT,KNUCKLE
(A) OCTAGON M18 		1-09469-011-0 03 1 0308-0406 ● ●
18 NUT; STOPPER BOLT,KNUCKLE
(A) OCTAGON M18 		1-09469-011-1 01 1 0407- ● ●
21 NIPPLE; GREASE,KING PIN
PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 04 1 0308-0512 ● ●
21 NIPPLE; GREASE,KING PIN
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 04 1 0601- ● ●
25 BEARING; THRUST,KING PIN
NSK 		1-09829-043-2 02 1 0308- ● ●
30 WASHER; THRUST,KING PIN
T=4.875 -4.900 		1-43171-185-0 AR 1 0308- ● ●
30 WASHER; THRUST,KING PIN
T=4.900 -4.925 		1-43171-186-0 AR 1 0308- ● ●
30 WASHER; THRUST,KING PIN
T=4.925 -4.950 		1-43171-187-0 AR 1 0308- ● ●
30 WASHER; THRUST,KING PIN
T=4.950 -4.975 		1-43171-188-0 AR 1 0308- ● ●
30 WASHER; THRUST,KING PIN
T=4.975 -5.000 		1-43171-189-0 AR 1 0308- ● ●
30 WASHER; THRUST,KING PIN
T=5.000 -5.025 		1-43171-190-0 AR 1 0308- ● ●
30 WASHER; THRUST,KING PIN
T=5.025 -5.050 		1-43171-191-0 AR 1 0308- ● ●
30 WASHER; THRUST,KING PIN
T=5.050 -5.075 		1-43171-192-0 AR 1 0308- ● ●
30 WASHER; THRUST,KING PIN
T=5.075 -5.100 		1-43171-193-0 AR 1 0308- ● ●
30 WASHER; THRUST,KING PIN
T=5.100 -5.125 		1-43171-194-0 AR 1 0308- ● ●
30 WASHER; THRUST,KING PIN
T=5.125 -5.150 		1-43171-195-0 AR 1 0308- ● ●
30 WASHER; THRUST,KING PIN
T=5.150 -5.175 		1-43171-196-0 AR 1 0308- ● ●
30 WASHER; THRUST,KING PIN
T=5.175 -5.200 		1-43171-197-0 AR 1 0308- ● ●
30 WASHER; THRUST,KING PIN
T=5.200 -5.225 		1-43171-198-0 AR 1 0308- ● ●
30 WASHER; THRUST,KING PIN
T=5.225 -5.250 		1-43171-199-0 AR 1 0308- ● ●
32 BOLT; KEY,KING PIN 1-43116-002-1 02 1 0308- ● ●
33 NUT; KEY BOLT
M10 		9-09110-410-0 02 1 0308-0512 ● ●
33 NUT; KEY BOLT
M10 		0-91110-510-0 02 1 0601- ● ●
34 WASHER; LK,KEY BOLT
ID=10.2 		9-09150-510-0 02 1 0308-0603 ● ●
34 WASHER; LK,KEY BOLT
ID=10.2 		0-91510-510-0 02 1 0604- ● ●
36 ARM; KNUCKLE 1-43133-083-3 01 1 0308- ● ●
40 NUT; KNUCKLE ARM
M22 		9-09844-670-1 02 1 0308- ● ●
44 COVER; KING PIN 1-43175-025-0 04 1 0308- ● ●
48 BOLT; COVER
M10X25 FLANGE 		0-28781-025-0 16 1 0308-0512 ● ●
48 BOLT; COVER
M10X25 FLANGE 		0-28751-025-0 16 1 0601- ● ●
58 ARM; TIE ROD 1-43135-049-4 01 1 0308- ● ●
58 ARM; TIE ROD 1-43134-049-3 01 1 0308- ● ●
59 NUT; TIE ROD ARM
M22 		9-09844-670-1 04 1 0308- ● ●
61 ROD END; TIE ROD 1-43150-856-0 01 1 0308- ● ●
61 ROD END; TIE ROD 1-43150-857-0 01 1 0308- ● ●
66 NUT; TIE ROD END
M24 SLOTTED 		1-09442-020-0 02 1 0308- ● ●
68 BOLT; TIE ROD END
M12X65 		9-91061-265-0 04 1 0308- ● ●
74 NUT; TIE ROD END
M12 		9-99110-512-0 04 1 0308-0512 ● ●
74 NUT; TIE ROD END
M12 		0-91110-512-0 04 1 0601- ● ●
80 PIN; SPLIT,ROD END
OD=4.6 L=35 		9-08115-035-0 02 1 0308-0606 ● ●
80 PIN; SPLIT,ROD END
OD=4.6 L=35 		0-81125-035-0 02 1 0607- ● ●
81 ROD; TIE 1-43151-154-0 01 1 0308- ● ●
220 STUD; KNUCKLE ARM 1-09300-119-2 02 1 0308- ● ●
275 BOOT; ROD END,TIE 1-43159-107-0 02 1 0308- ● ●
304 WASHER; PL
ID=12.5 		9-09164-512-0 04 1 0308- ● ●
313 STUD; TIE ROD ARM 1-09300-119-2 04 1 0308- ● ●
