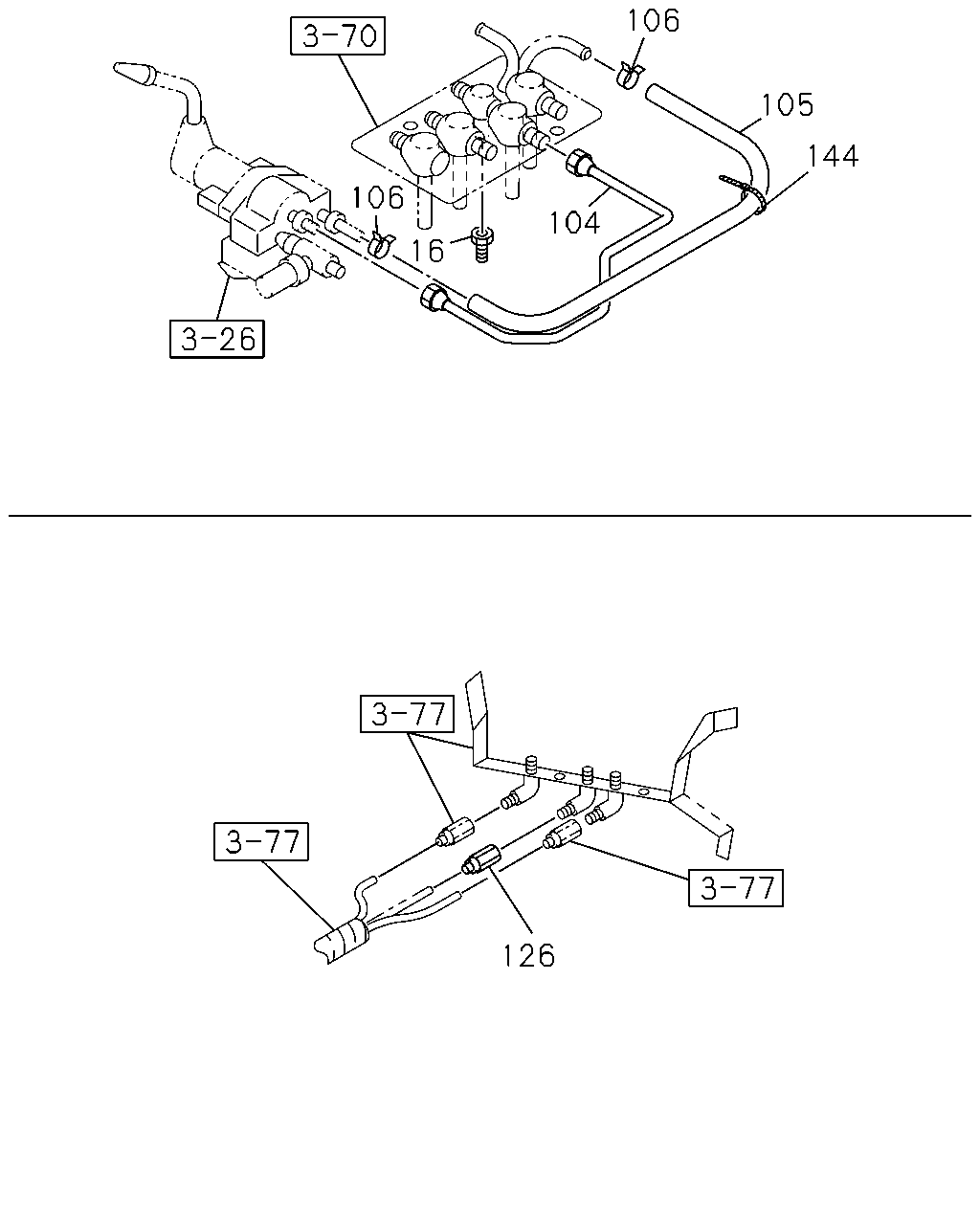

3-80 — BRAKE PIPING; TRAILER (#25926) — 6 parça

106 105 144 106 104 16 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	UNION; AIR PIPE FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48>	1-09654-258-2	01	1	0308-	●	●
104	PIPE; AIR,JOINT TO PARKING BRK VLV FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48>	1-49114-295-0	01	1	0308-	●	●
105	PIPE; VINYL,EXH,PARKING BRK VLV FULL TRACTOR TRUCK<RD6> L=400 SERVICED BY L=10000	9-09914-701-0	01	1	0308-	●	●
106	CLIP; PIPE FULL TRACTOR TRUCK<RD6> ID=14	8-94238-572-0	02	1	0308-	●	●
126	CONNECTOR; NYLON TUBE FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0308-	●	●
144	CLIP; BAND FULL TRACTOR TRUCK<RD6> L=140	5-09707-031-1	01	1	0308-	●	●
