3-78 — FIXING PARTS; AIR PIPING (#25925) — 556 parça

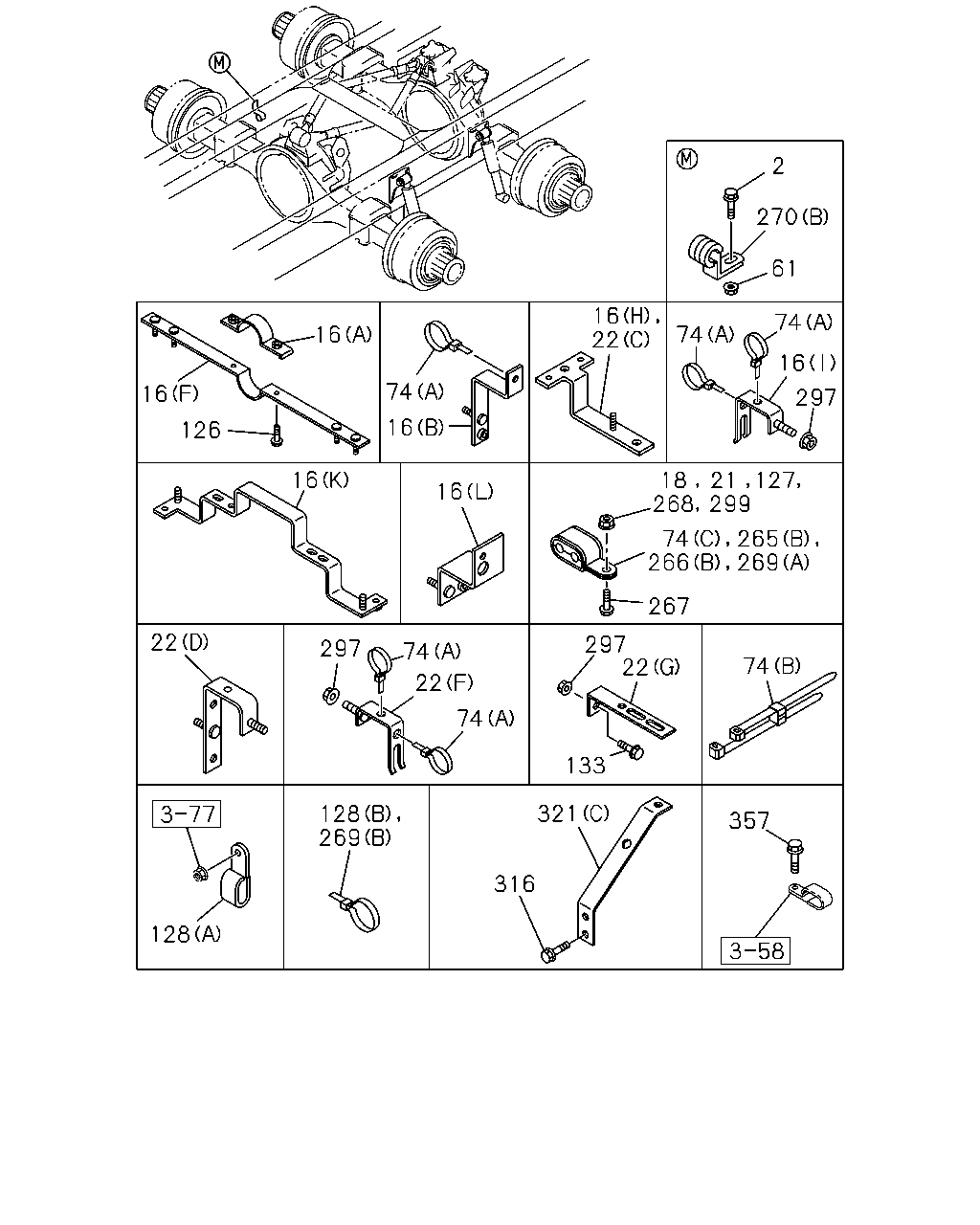

çizim 21786
2 270 61 16 22 74 16 74 16 74 16 297 16 126 16 127 16 267 22 297 22 297 74 74 22 74 133 321 128 269 357 316 128 18 21 268 299 74 266 265 269
BalonParca AdiParca NoAdetTipApplied Date A B
2 BOLT; CLIP FIX
M8X20 FLANGE 		0-28680-820-0 03 1 0308-0309 ● ●
2 BOLT; CLIP FIX
M8X20 FLANGE 		0-28680-820-0 04 1 0310-0512 ● ●
2 BOLT; CLIP FIX
M8X20 FLANGE 		0-28650-820-0 04 1 0601- ● ●
16 BRACKET; PIPE CLIP
(L) 		1-47479-722-1 01 1 0311- ● ●
16 BRACKET; PIPE CLIP
(H) 		1-47479-719-0 01 1 0308-0308 ● ●
16 BRACKET; PIPE CLIP
(H) 		1-47479-719-0 01 1 0308-0308 ● ●
16 BRACKET; PIPE CLIP
(K) 		1-47479-898-0 02 1 0309-0403 ● ●
16 BRACKET; PIPE CLIP
(K) 		1-47479-898-0 01 1 0404- ● ●
16 BRACKET; PIPE CLIP
(K) 		1-47479-898-0 01 1 0404- ● ●
16 BRACKET; PIPE CLIP
(I) 		1-47479-381-2 05 1 0308-0311 ●
16 BRACKET; PIPE CLIP
WHEEL BASE 4500MM(45W) (I) 		1-47479-381-2 06 1 0312- ●
16 BRACKET; PIPE CLIP
(D) L=30 		1-47479-481-0 01 1 0308- ●
16 BRACKET; PIPE CLIP
(E) 		1-47479-329-0 02 1 0308-0311 ● ●
16 BRACKET; PIPE CLIP
(E) 		1-47479-329-0 01 1 0312- ● ●
16 BRACKET; PIPE CLIP
(A) 		1-47479-546-0 02 1 0308- ● ●
16 BRACKET; PIPE CLIP
(C) 		1-47479-554-0 01 1 0308- ● ●
16 BRACKET; PIPE CLIP
(F) 		1-47479-720-0 01 1 0308- ● ●
16 BRACKET; PIPE CLIP
(F) 		1-47479-720-0 01 1 0308- ● ●
16 BRACKET; PIPE CLIP
(B) 		1-47479-721-0 01 1 0308- ● ●
16 BRACKET; PIPE CLIP
(D) L=30 		1-47479-481-0 02 1 0308- ●
16 BRACKET; PIPE CLIP
(J) 		1-47479-800-0 01 1 0308- ●
16 BRACKET; PIPE CLIP
WHEEL BASE 5900MM(59W) (I) 		1-47479-381-2 13 1 0308-0311 ●
16 BRACKET; PIPE CLIP
WHEEL BASE 4900MM(49W) (I) 		1-47479-381-2 05 1 0312- ●
16 BRACKET; PIPE CLIP
WHEEL BASE 5900MM(59W),WHEEL BASE 6100MM(61W) (G) 		1-47479-693-0 01 1 0308-0311 ●
16 BRACKET; PIPE CLIP
WHEEL BASE 4900MM(49W) (G) 		1-47479-693-0 01 1 0312- ●
16 BRACKET; PIPE CLIP
WHEEL BASE 5900MM(59W) (G) 		1-47479-693-0 01 1 0312- ●
16 BRACKET; PIPE CLIP
WHEEL BASE 6100MM(61W) (I) 		1-47479-381-2 15 1 0308-0311 ●
16 BRACKET; PIPE CLIP
WHEEL BASE 6100MM(61W) (I) 		1-47479-381-2 08 1 0312- ●
16 BRACKET; PIPE CLIP
WHEEL BASE 6300MM(63W) (I) 		1-47479-381-2 19 1 0308-0311 ●
16 BRACKET; PIPE CLIP
WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) (I) 		1-47479-381-2 09 1 0312- ●
16 BRACKET; PIPE CLIP
WHEEL BASE 6300MM(63W) (G) 		1-47479-693-0 02 1 0308-0311 ●
16 BRACKET; PIPE CLIP
WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) (G) 		1-47479-693-0 02 1 0312- ●
18 NUT; CLIP
M8 FLANGE 		0-91150-108-0 03 1 0308-0602 ● ●
18 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 0603- ● ●
21 NUT; CLIP
M6 FLANGE 		0-91150-106-0 03 1 0311-0602 ● ●
21 NUT; CLIP
M6 FLANGE 		0-91180-106-0 03 1 0603- ● ●
21 NUT; CLIP
M8 FLANGE 		0-91150-108-0 05 1 0308-0310 ● ●
21 NUT; CLIP
M8 FLANGE 		0-91150-108-0 06 1 0311-0602 ● ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 06 1 0603- ● ●
21 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0308-0602 ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603- ●
22 BRACKET; CLIP
WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) (E) 		1-47479-693-0 02 1 0311- ●
22 BRACKET; CLIP
(F) 		1-47479-381-2 04 1 0308-0310 ●
22 BRACKET; CLIP
(F) 		1-47479-381-2 09 1 0311-0311 ●
22 BRACKET; CLIP
(F) 		1-47479-381-2 07 1 0312- ●
22 BRACKET; CLIP
(C) 		1-47479-719-0 01 1 0308-0308 ● ●
22 BRACKET; CLIP
WHEEL BASE 5900MM(59W) (F) 		1-47479-381-2 07 1 0308-0310 ●
22 BRACKET; CLIP
WHEEL BASE 5900MM(59W) (F) 		1-47479-381-2 16 1 0311-0311 ●
22 BRACKET; CLIP
(F) 		1-47479-381-2 10 1 0312- ●
22 BRACKET; CLIP
WHEEL BASE 6100MM(61W) (F) 		1-47479-381-2 09 1 0308-0310 ●
22 BRACKET; CLIP
WHEEL BASE 6100MM(61W) (F) 		1-47479-381-2 18 1 0311-0311 ●
22 BRACKET; CLIP
WHEEL BASE 6300MM(63W) (F) 		1-47479-381-2 12 1 0308-0310 ●
22 BRACKET; CLIP
WHEEL BASE 6300MM(63W) (F) 		1-47479-381-2 21 1 0311-0311 ●
22 BRACKET; CLIP
(D) 		1-47479-797-0 02 1 0308-0310 ●
22 BRACKET; CLIP
(H) 		1-47479-554-0 01 1 0311- ● ●
22 BRACKET; CLIP
(G) L=100 H=30 		1-47477-645-2 01 1 0308-0311 ● ●
22 BRACKET; CLIP
WHEEL BASE 4500MM(45W) (G) L=100 H=30 		1-47477-645-2 01 1 0312- ●
22 BRACKET; CLIP
WHEEL BASE 5900MM(59W),WHEEL BASE 6100MM(61W), WHEEL BASE 6300MM(63W) (G) L=100 H=30 		1-47477-645-2 01 1 0312- ●
22 BRACKET; CLIP
(A) 		1-47479-329-0 01 1 0308-0310 ● ●
22 BRACKET; CLIP
(A) 		1-47479-329-0 02 1 0311-0311 ● ●
22 BRACKET; CLIP
(A) 		1-47479-329-0 01 1 0312- ● ●
22 BRACKET; CLIP
(B) 		1-47479-800-0 01 1 0308- ●
22 BRACKET; CLIP
WHEEL BASE 5900MM(59W),WHEEL BASE 6100MM(61W), WHEEL BASE 6300MM(63W) (E) 		1-47479-693-0 01 1 0308-0310 ●
22 BRACKET; CLIP
WHEEL BASE 5900MM(59W) (E) 		1-47479-693-0 01 1 0311-0311 ●
22 BRACKET; CLIP
WHEEL BASE 4900MM(49W) (E) 		1-47479-693-0 01 1 0312- ●
22 BRACKET; CLIP
WHEEL BASE 5900MM(59W) (E) 		1-47479-693-0 01 1 0312- ●
61 NUT; CLIP FIX
M8 FLANGE 		0-91150-108-0 02 1 0308-0602 ● ●
61 NUT; CLIP FIX
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
74 CLIP; NYLON TUBE
(C) ID=11X2 L=42 		1-09701-306-0 03 1 0311- ● ●
74 CLIP; NYLON TUBE
WHEEL BASE 6100MM(61W) (A) L=350 		1-09707-183-0 21 1 0311-0311 ●
74 CLIP; NYLON TUBE
WHEEL BASE 6100MM(61W) (A) L=350 		1-09707-183-0 23 1 0312- ●
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 06 1 0308-0310 ●
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 12 1 0311-0311 ●
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 14 1 0312- ●
74 CLIP; NYLON TUBE
WHEEL BASE 6300MM(63W) (A) L=350 		1-09707-183-0 16 1 0308-0310 ●
74 CLIP; NYLON TUBE
WHEEL BASE 6300MM(63W) (A) L=350 		1-09707-183-0 26 1 0311-0311 ●
74 CLIP; NYLON TUBE
WHEEL BASE 6300MM(63W) (A) L=350 		1-09707-183-0 28 1 0312- ●
74 CLIP; NYLON TUBE
WHEEL BASE 5900MM(59W),WHEEL BASE 6100MM(61W) (A) L=350 		1-09707-183-0 11 1 0308-0310 ●
74 CLIP; NYLON TUBE
WHEEL BASE 5900MM(59W) (A) L=350 		1-09707-183-0 20 1 0311-0311 ●
74 CLIP; NYLON TUBE
WHEEL BASE 5900MM(59W) (A) L=350 		1-09707-183-0 22 1 0312- ●
74 CLIP; NYLON TUBE
(B) L=256 		1-09707-189-0 02 1 0308- ●
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28080-825-0 01 1 0311-0512 ● ●
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28050-825-0 01 1 0601- ● ●
126 BOLT; CLIP BRKT
M8X35 FLANGE 		0-28680-835-0 01 1 0311-0512 ●
126 BOLT; CLIP BRKT
M8X35 FLANGE 		0-28650-835-0 01 1 0601- ●
126 BOLT; CLIP BRKT
WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) M8X25 FLANGE 		0-28680-825-0 04 1 0312-0512 ●
126 BOLT; CLIP BRKT
WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) M8X25 FLANGE 		0-28650-825-0 04 1 0601- ●
126 BOLT; CLIP BRKT
M8X12 FLANGE 		0-28080-812-0 02 1 0308-0308 ● ●
126 BOLT; CLIP BRKT
M8X12 FLANGE 		0-28080-812-0 04 1 0309-0512 ● ●
126 BOLT; CLIP BRKT
M8X12 FLANGE 		0-28050-812-0 04 1 0601- ● ●
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28680-825-0 05 1 0308-0310 ● ●
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28680-825-0 03 1 0311-0311 ● ●
126 BOLT; CLIP BRKT
WHEEL BASE 4500MM(45W) M8X25 FLANGE 		0-28680-825-0 01 1 0312-0512 ●
126 BOLT; CLIP BRKT
WHEEL BASE 4500MM(45W) M8X25 FLANGE 		0-28650-825-0 01 1 0601- ●
126 BOLT; CLIP BRKT
M8X35 FLANGE 		0-28680-835-0 01 1 0308-0310 ● ●
126 BOLT; CLIP BRKT
M8X35 FLANGE 		0-28680-835-0 02 1 0311-0512 ● ●
126 BOLT; CLIP BRKT
M8X35 FLANGE 		0-28650-835-0 02 1 0601- ● ●
126 BOLT; CLIP BRKT
WHEEL BASE 5900MM(59W),WHEEL BASE 6100MM(61W) M8X25 FLANGE 		0-28680-825-0 01 1 0308-0311 ●
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0312-0512 ● ●
126 BOLT; CLIP BRKT
WHEEL BASE 4900MM(49W) M8X25 FLANGE 		0-28680-825-0 02 1 0312-0512 ●
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ●
126 BOLT; CLIP BRKT
WHEEL BASE 4900MM(49W) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
126 BOLT; CLIP BRKT
WHEEL BASE 6300MM(63W) M8X25 FLANGE 		0-28680-825-0 02 1 0308-0311 ●
126 BOLT; CLIP BRKT
WHEEL BASE 5900MM(59W) M8X25 FLANGE 		0-28680-825-0 03 1 0312-0512 ●
126 BOLT; CLIP BRKT
WHEEL BASE 5900MM(59W) M8X25 FLANGE 		0-28650-825-0 03 1 0601- ●
127 NUT; CLIP BRKT
M8 FLANGE 		0-91150-108-0 09 1 0308-0602 ●
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 09 1 0603- ●
127 NUT; CLIP BRKT
M8 FLANGE 		0-91150-108-0 01 1 0308-0311 ● ●
127 NUT; CLIP BRKT
M8 FLANGE 		0-91150-108-0 01 1 0308-0311 ● ●
127 NUT; CLIP BRKT
WHEEL BASE 5900MM(59W),WHEEL BASE 6100MM(61W) M8 FLANGE 		0-91150-108-0 01 1 0308-0311 ●
127 NUT; CLIP BRKT
M8 FLANGE 		0-91150-108-0 01 1 0312-0602 ● ●
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
127 NUT; CLIP BRKT
M8 FLANGE 		0-91150-108-0 02 1 0308-0311 ●
127 NUT; CLIP BRKT
WHEEL BASE 5900MM(59W) M8 FLANGE 		0-91150-108-0 16 1 0308-0311 ●
127 NUT; CLIP BRKT
WHEEL BASE 5900MM(59W),WHEEL BASE 6100MM(61W) M8 FLANGE 		0-91150-108-0 15 1 0312-0602 ●
127 NUT; CLIP BRKT
WHEEL BASE 5900MM(59W),WHEEL BASE 6100MM(61W) M8 FLANGE 		0-91180-108-0 15 1 0603- ●
127 NUT; CLIP BRKT
WHEEL BASE 6100MM(61W) M8 FLANGE 		0-91150-108-0 18 1 0308-0311 ●
127 NUT; CLIP BRKT
WHEEL BASE 6300MM(63W) M8 FLANGE 		0-91150-108-0 22 1 0308-0311 ●
127 NUT; CLIP BRKT
WHEEL BASE 6300MM(63W) M8 FLANGE 		0-91150-108-0 16 1 0312-0602 ●
127 NUT; CLIP BRKT
WHEEL BASE 6300MM(63W) M8 FLANGE 		0-91180-108-0 16 1 0603- ●
128 CLIP; NYLON TUBE
(B) L=350 		1-09707-183-0 09 1 0308- ●
128 CLIP; NYLON TUBE
(A) ID=18 L=28 		1-09701-067-0 01 1 0308- ● ●
128 CLIP; NYLON TUBE
WHEEL BASE 5900MM(59W) (B) L=350 		1-09707-183-0 18 1 0308- ●
128 CLIP; NYLON TUBE
WHEEL BASE 6100MM(61W) (B) L=350 		1-09707-183-0 20 1 0308- ●
128 CLIP; NYLON TUBE
WHEEL BASE 6300MM(63W) (B) L=350 		1-09707-183-0 25 1 0308- ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 01 1 0312-0512 ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0601- ●
133 BOLT; BRKT
WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) M8X25 FLANGE 		0-28680-825-0 03 1 0312-0512 ●
133 BOLT; BRKT
WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) M8X25 FLANGE 		0-28650-825-0 03 1 0601- ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 10 1 0308-0311 ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 04 1 0312-0512 ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 0601- ● ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 03 1 0308-0512 ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 03 1 0601- ●
133 BOLT; BRKT
M6X10 FLANGE 		0-28080-610-0 01 1 0308-0512 ● ●
133 BOLT; BRKT
M6X10 FLANGE 		0-28050-610-0 01 1 0601- ● ●
133 BOLT; BRKT
M8X12 FLANGE 		0-28080-812-0 01 1 0308-0308 ● ●
133 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 01 1 0308-0512 ● ●
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 01 1 0601- ● ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 04 1 0308-0311 ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 08 1 0312-0512 ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 08 1 0601- ● ●
133 BOLT; BRKT
WHEEL BASE 5900MM(59W),WHEEL BASE 6100MM(61W), WHEEL BASE 6300MM(63W) M8X25 FLANGE 		0-28680-825-0 01 1 0308-0310 ●
133 BOLT; BRKT
WHEEL BASE 5900MM(59W) M8X25 FLANGE 		0-28680-825-0 01 1 0311-0311 ●
133 BOLT; BRKT
WHEEL BASE 5900MM(59W) M8X25 FLANGE 		0-28680-825-0 02 1 0312-0512 ●
133 BOLT; BRKT
WHEEL BASE 5900MM(59W) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
265 CLIP; NYLON TUBE
(B) ID=11X2 L=42 		1-09701-306-0 03 1 0308-0310 ● ●
265 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 01 1 0308-0310 ● ●
266 CLIP; NYLON TUBE
(C) ID=35 L=33 		1-09700-945-0 01 1 0403-0410 ●
266 CLIP; NYLON TUBE
(C) ID=35 L=33 		1-09700-945-0 02 1 0411- ●
266 CLIP; NYLON TUBE
(B) ID=11X2 L=42 		1-09701-306-0 03 1 0308-0310 ● ●
266 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 01 1 0308-0310 ● ●
267 BOLT; CLIP BRKT
M8X12 FLANGE 		0-28080-812-0 01 1 0308-0308 ● ●
267 BOLT; CLIP BRKT
M8X35 FLANGE 		0-28680-835-0 01 1 0308-0310 ● ●
268 NUT; CLIP BRKT
M8 FLANGE 		0-91150-108-0 01 1 0308-0310 ● ●
269 CLIP; BAND,NYLON TUBE
(A) ID=11X2 L=42 		1-09701-306-0 06 1 0308- ● ●
269 CLIP; BAND,NYLON TUBE
(B) L=350 		1-09707-183-0 02 1 0308-0310 ● ●
269 CLIP; BAND,NYLON TUBE
(A) ID=11X2 L=42 		1-09701-306-0 03 1 0311- ● ●
270 CLIP; NYLON TUBE
PARKING BRAKE VALVE LEVER TYPE<W48> EXC. FULL TRACTOR TRUCK<RD6> (A) ID=28 L=40 		1-09700-995-1 01 1 0308- ● ●
270 CLIP; NYLON TUBE
PARKING BRAKE VALVE LEVER TYPE<W48> EXC. FULL TRACTOR TRUCK<RD6> (A) ID=28 L=32 		1-09701-107-1 01 1 0308-0308 ● ●
270 CLIP; NYLON TUBE
PARKING BRAKE VALVE LEVER TYPE<W48> EXC. FULL TRACTOR TRUCK<RD6> (C) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0309- ● ●
270 CLIP; NYLON TUBE
(B) ID=16 H=25 L=25 		1-09701-162-0 03 1 0308- ● ●
297 NUT; BRKT
M8 FLANGE 		0-91150-108-0 07 1 0308-0310 ●
297 NUT; BRKT
WHEEL BASE 5900MM(59W) M8 FLANGE 		0-91150-108-0 09 1 0311-0311 ●
297 NUT; BRKT
WHEEL BASE 5900MM(59W) M8 FLANGE 		0-91150-108-0 15 1 0312-0602 ●
297 NUT; BRKT
WHEEL BASE 5900MM(59W) M8 FLANGE 		0-91180-108-0 15 1 0603- ●
297 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0308-0310 ● ●
297 NUT; BRKT
M8 FLANGE 		0-91150-108-0 18 1 0311-0311 ● ●
297 NUT; BRKT
M8 FLANGE 		0-91150-108-0 03 1 0312-0602 ● ●
297 NUT; BRKT
M8 FLANGE 		0-91150-108-0 03 1 0312-0602 ● ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 0603- ● ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 0603- ● ●
297 NUT; BRKT
WHEEL BASE 5900MM(59W),WHEEL BASE 6100MM(61W) M8 FLANGE 		0-91150-108-0 11 1 0308-0310 ●
297 NUT; BRKT
WHEEL BASE 6100MM(61W) M8 FLANGE 		0-91150-108-0 12 1 0311-0311 ●
297 NUT; BRKT
WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) M8 FLANGE 		0-91150-108-0 16 1 0312-0602 ●
297 NUT; BRKT
WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) M8 FLANGE 		0-91180-108-0 16 1 0603- ●
297 NUT; BRKT
WHEEL BASE 6300MM(63W) M8 FLANGE 		0-91150-108-0 17 1 0308-0310 ●
297 NUT; BRKT
WHEEL BASE 6300MM(63W) M8 FLANGE 		0-91150-108-0 15 1 0311-0311 ●
297 NUT; BRKT
M8 FLANGE 		0-91150-108-0 03 1 0308-0311 ● ●
297 NUT; BRKT
M8 FLANGE 		0-91150-108-0 10 1 0312-0402 ●
297 NUT; BRKT
M8 FLANGE 		0-91150-108-0 13 1 0403-0410 ●
297 NUT; BRKT
M8 FLANGE 		0-91150-108-0 14 1 0411-0602 ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 14 1 0603- ●
299 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0308-0402 ●
299 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0403-0602 ●
299 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603- ●
316 BOLT; CLIP
M8X30 FLANGE 		0-28680-830-0 04 1 0310-0512 ● ●
316 BOLT; CLIP
M8X30 FLANGE 		0-28650-830-0 04 1 0601- ● ●
321 BRACKET; CLIP
(C) 		1-47479-430-0 02 1 0310- ● ●
321 BRACKET; CLIP
(A) 		1-47477-337-1 01 1 0308- ● ●
321 BRACKET; CLIP
(B) L=75 		1-47478-328-0 01 1 0308- ● ●
357 BOLT; CLIP FIX
M8X10 FLANGE 		0-28080-810-0 02 1 0308-0512 ● ●
357 BOLT; CLIP FIX
M8X10 FLANGE 		0-28050-810-0 02 1 0601- ● ●

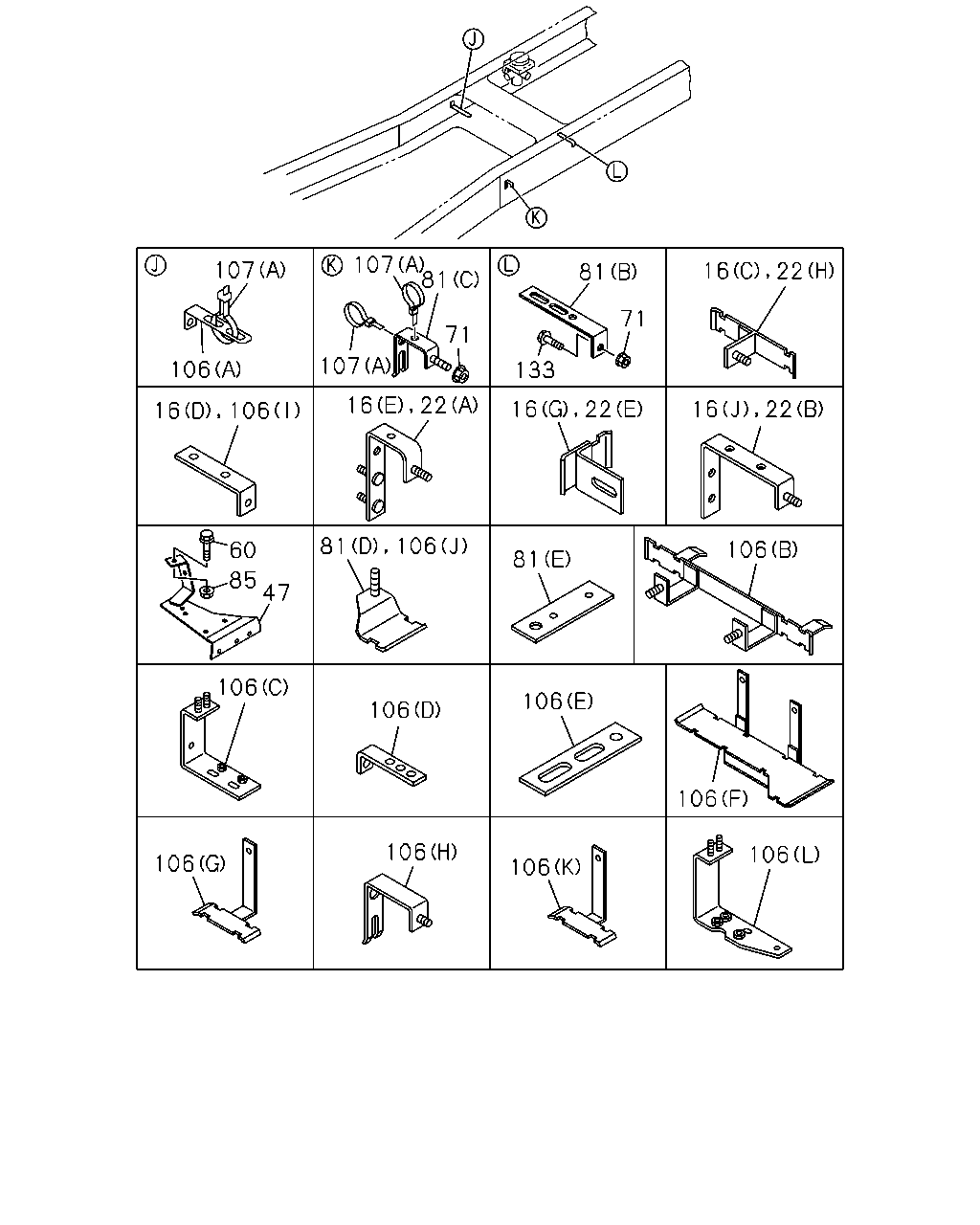

çizim 24752
107 81 107 81 71 71 107 106 133 16 22 16 106 81 106 106 60 81 85 47 106 106 106 106 106 106 106 106 16 22 16 22 22 16
BalonParca AdiParca NoAdetTipApplied Date A B
16 BRACKET; PIPE CLIP
(L) 		1-47479-722-1 01 1 0311- ● ●
16 BRACKET; PIPE CLIP
(H) 		1-47479-719-0 01 1 0308-0308 ● ●
16 BRACKET; PIPE CLIP
(H) 		1-47479-719-0 01 1 0308-0308 ● ●
16 BRACKET; PIPE CLIP
(K) 		1-47479-898-0 02 1 0309-0403 ● ●
16 BRACKET; PIPE CLIP
(K) 		1-47479-898-0 01 1 0404- ● ●
16 BRACKET; PIPE CLIP
(K) 		1-47479-898-0 01 1 0404- ● ●
16 BRACKET; PIPE CLIP
(I) 		1-47479-381-2 05 1 0308-0311 ●
16 BRACKET; PIPE CLIP
WHEEL BASE 4500MM(45W) (I) 		1-47479-381-2 06 1 0312- ●
16 BRACKET; PIPE CLIP
(D) L=30 		1-47479-481-0 01 1 0308- ●
16 BRACKET; PIPE CLIP
(E) 		1-47479-329-0 02 1 0308-0311 ● ●
16 BRACKET; PIPE CLIP
(E) 		1-47479-329-0 01 1 0312- ● ●
16 BRACKET; PIPE CLIP
(A) 		1-47479-546-0 02 1 0308- ● ●
16 BRACKET; PIPE CLIP
(C) 		1-47479-554-0 01 1 0308- ● ●
16 BRACKET; PIPE CLIP
(F) 		1-47479-720-0 01 1 0308- ● ●
16 BRACKET; PIPE CLIP
(F) 		1-47479-720-0 01 1 0308- ● ●
16 BRACKET; PIPE CLIP
(B) 		1-47479-721-0 01 1 0308- ● ●
16 BRACKET; PIPE CLIP
(D) L=30 		1-47479-481-0 02 1 0308- ●
16 BRACKET; PIPE CLIP
(J) 		1-47479-800-0 01 1 0308- ●
16 BRACKET; PIPE CLIP
WHEEL BASE 5900MM(59W) (I) 		1-47479-381-2 13 1 0308-0311 ●
16 BRACKET; PIPE CLIP
WHEEL BASE 4900MM(49W) (I) 		1-47479-381-2 05 1 0312- ●
16 BRACKET; PIPE CLIP
WHEEL BASE 5900MM(59W),WHEEL BASE 6100MM(61W) (G) 		1-47479-693-0 01 1 0308-0311 ●
16 BRACKET; PIPE CLIP
WHEEL BASE 4900MM(49W) (G) 		1-47479-693-0 01 1 0312- ●
16 BRACKET; PIPE CLIP
WHEEL BASE 5900MM(59W) (G) 		1-47479-693-0 01 1 0312- ●
16 BRACKET; PIPE CLIP
WHEEL BASE 6100MM(61W) (I) 		1-47479-381-2 15 1 0308-0311 ●
16 BRACKET; PIPE CLIP
WHEEL BASE 6100MM(61W) (I) 		1-47479-381-2 08 1 0312- ●
16 BRACKET; PIPE CLIP
WHEEL BASE 6300MM(63W) (I) 		1-47479-381-2 19 1 0308-0311 ●
16 BRACKET; PIPE CLIP
WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) (I) 		1-47479-381-2 09 1 0312- ●
16 BRACKET; PIPE CLIP
WHEEL BASE 6300MM(63W) (G) 		1-47479-693-0 02 1 0308-0311 ●
16 BRACKET; PIPE CLIP
WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) (G) 		1-47479-693-0 02 1 0312- ●
22 BRACKET; CLIP
WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) (E) 		1-47479-693-0 02 1 0311- ●
22 BRACKET; CLIP
(F) 		1-47479-381-2 04 1 0308-0310 ●
22 BRACKET; CLIP
(F) 		1-47479-381-2 09 1 0311-0311 ●
22 BRACKET; CLIP
(F) 		1-47479-381-2 07 1 0312- ●
22 BRACKET; CLIP
(C) 		1-47479-719-0 01 1 0308-0308 ● ●
22 BRACKET; CLIP
WHEEL BASE 5900MM(59W) (F) 		1-47479-381-2 07 1 0308-0310 ●
22 BRACKET; CLIP
WHEEL BASE 5900MM(59W) (F) 		1-47479-381-2 16 1 0311-0311 ●
22 BRACKET; CLIP
(F) 		1-47479-381-2 10 1 0312- ●
22 BRACKET; CLIP
WHEEL BASE 6100MM(61W) (F) 		1-47479-381-2 09 1 0308-0310 ●
22 BRACKET; CLIP
WHEEL BASE 6100MM(61W) (F) 		1-47479-381-2 18 1 0311-0311 ●
22 BRACKET; CLIP
WHEEL BASE 6300MM(63W) (F) 		1-47479-381-2 12 1 0308-0310 ●
22 BRACKET; CLIP
WHEEL BASE 6300MM(63W) (F) 		1-47479-381-2 21 1 0311-0311 ●
22 BRACKET; CLIP
(D) 		1-47479-797-0 02 1 0308-0310 ●
22 BRACKET; CLIP
(H) 		1-47479-554-0 01 1 0311- ● ●
22 BRACKET; CLIP
(G) L=100 H=30 		1-47477-645-2 01 1 0308-0311 ● ●
22 BRACKET; CLIP
WHEEL BASE 4500MM(45W) (G) L=100 H=30 		1-47477-645-2 01 1 0312- ●
22 BRACKET; CLIP
WHEEL BASE 5900MM(59W),WHEEL BASE 6100MM(61W), WHEEL BASE 6300MM(63W) (G) L=100 H=30 		1-47477-645-2 01 1 0312- ●
22 BRACKET; CLIP
(A) 		1-47479-329-0 01 1 0308-0310 ● ●
22 BRACKET; CLIP
(A) 		1-47479-329-0 02 1 0311-0311 ● ●
22 BRACKET; CLIP
(A) 		1-47479-329-0 01 1 0312- ● ●
22 BRACKET; CLIP
(B) 		1-47479-800-0 01 1 0308- ●
22 BRACKET; CLIP
WHEEL BASE 5900MM(59W),WHEEL BASE 6100MM(61W), WHEEL BASE 6300MM(63W) (E) 		1-47479-693-0 01 1 0308-0310 ●
22 BRACKET; CLIP
WHEEL BASE 5900MM(59W) (E) 		1-47479-693-0 01 1 0311-0311 ●
22 BRACKET; CLIP
WHEEL BASE 4900MM(49W) (E) 		1-47479-693-0 01 1 0312- ●
22 BRACKET; CLIP
WHEEL BASE 5900MM(59W) (E) 		1-47479-693-0 01 1 0312- ●
47 BRACKET; PIPE CLIP 1-47479-325-0 01 1 0308- ● ●
60 BOLT; CLIP FIX
M8X30 FLANGE 		0-28680-830-0 02 1 0308-0512 ● ●
60 BOLT; CLIP FIX
M8X30 FLANGE 		0-28650-830-0 02 1 0601- ● ●
71 NUT; BRKT
M8 FLANGE 		0-91150-108-0 13 1 0308-0311 ● ●
71 NUT; BRKT
M8 FLANGE 		0-91150-108-0 11 1 0312-0602 ● ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 11 1 0603- ● ●
81 BRACKET; CLIP
(F) 		1-47471-010-0 01 1 0403- ●
81 BRACKET; CLIP
(B) L=100 H=30 		1-47477-645-2 04 1 0308-0311 ● ●
81 BRACKET; CLIP
(B) L=100 H=30 		1-47477-645-2 03 1 0312- ● ●
81 BRACKET; CLIP
(A) 		1-47477-483-0 01 1 0308- ● ●
81 BRACKET; CLIP
(C) 		1-47479-381-2 04 1 0308- ● ●
81 BRACKET; CLIP
(D) 		1-47479-562-0 02 1 0308-0410 ● ●
81 BRACKET; CLIP
(D) W/STUD M8X20 		1-47471-209-0 02 1 0411- ● ●
81 BRACKET; CLIP
(E) L=130 		1-47479-575-0 02 1 0308-0311 ●
81 BRACKET; CLIP
(E) L=130 		1-47479-575-0 02 1 0312- ● ●
85 NUT; CLIP BRKT
M8 FLANGE 		0-91150-108-0 02 1 0308-0602 ● ●
85 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
106 BRACKET; TUBE CLIP
(L) 		1-47471-009-0 01 1 0403- ●
106 BRACKET; TUBE CLIP
(E) 		1-47477-514-3 01 1 0308- ● ●
106 BRACKET; TUBE CLIP
(A) L=100 H=30 		1-47477-645-2 03 1 0308- ● ●
106 BRACKET; TUBE CLIP
(H) 		1-47479-381-2 03 1 0308- ● ●
106 BRACKET; TUBE CLIP
(B) 		1-47479-553-0 01 1 0308- ● ●
106 BRACKET; TUBE CLIP
(C) 		1-47479-754-0 01 1 0308-0402 ● ●
106 BRACKET; TUBE CLIP
(C) 		1-47479-754-0 01 1 0403- ●
106 BRACKET; TUBE CLIP
(I) 		1-82698-395-0 01 1 0308-0310 ● ●
106 BRACKET; TUBE CLIP
(K) 		1-47479-870-0 01 1 0311-0311 ● ●
106 BRACKET; TUBE CLIP
(J) 		1-47479-562-0 02 1 0312-0410 ● ●
106 BRACKET; TUBE CLIP
(J) W/STUD M8X20 		1-47471-209-0 02 1 0411- ● ●
106 BRACKET; TUBE CLIP
(D) L=120 H=35 		1-82699-970-0 01 1 0308- ● ●
106 BRACKET; TUBE CLIP
(F) 		1-47479-695-0 01 1 0308-0309 ●
106 BRACKET; TUBE CLIP
(F) 		1-47479-695-0 01 1 0310- ●
106 BRACKET; TUBE CLIP
(G) 		1-47479-696-0 01 1 0308-0311 ●
106 BRACKET; TUBE CLIP
(K) 		1-47479-870-0 01 1 0312- ●
107 CLIP; NYLON TUBE
(B) ID=24 L=27 		1-09700-809-0 01 1 0308-0310 ● ●
107 CLIP; NYLON TUBE
(C) ID=25 H=30 L=35 		1-09700-875-0 02 1 0311- ● ●
107 CLIP; NYLON TUBE
(B) ID=25 L=50 		1-09701-019-0 01 1 0308-0310 ● ●
107 CLIP; NYLON TUBE
(C) ID=31 H=30 L=35 		1-09700-994-0 01 1 0311- ● ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 13 1 0308- ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 01 1 0312-0512 ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0601- ●
133 BOLT; BRKT
WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) M8X25 FLANGE 		0-28680-825-0 03 1 0312-0512 ●
133 BOLT; BRKT
WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) M8X25 FLANGE 		0-28650-825-0 03 1 0601- ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 10 1 0308-0311 ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 04 1 0312-0512 ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 0601- ● ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 03 1 0308-0512 ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 03 1 0601- ●
133 BOLT; BRKT
M6X10 FLANGE 		0-28080-610-0 01 1 0308-0512 ● ●
133 BOLT; BRKT
M6X10 FLANGE 		0-28050-610-0 01 1 0601- ● ●
133 BOLT; BRKT
M8X12 FLANGE 		0-28080-812-0 01 1 0308-0308 ● ●
133 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 01 1 0308-0512 ● ●
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 01 1 0601- ● ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 04 1 0308-0311 ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 08 1 0312-0512 ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 08 1 0601- ● ●
133 BOLT; BRKT
WHEEL BASE 5900MM(59W),WHEEL BASE 6100MM(61W), WHEEL BASE 6300MM(63W) M8X25 FLANGE 		0-28680-825-0 01 1 0308-0310 ●
133 BOLT; BRKT
WHEEL BASE 5900MM(59W) M8X25 FLANGE 		0-28680-825-0 01 1 0311-0311 ●
133 BOLT; BRKT
WHEEL BASE 5900MM(59W) M8X25 FLANGE 		0-28680-825-0 02 1 0312-0512 ●
133 BOLT; BRKT
WHEEL BASE 5900MM(59W) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●

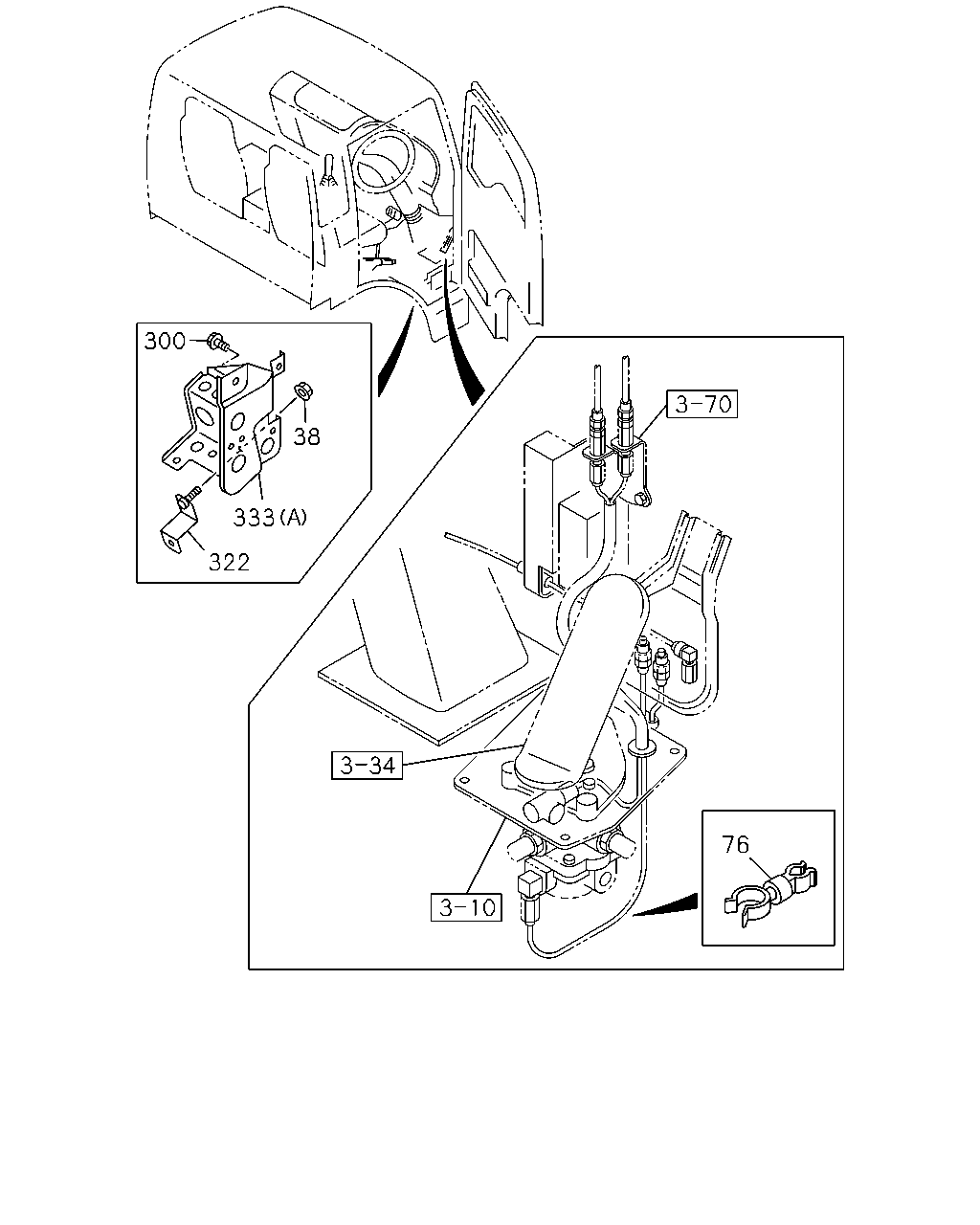

çizim 25585
300 38 333 322 76
BalonParca AdiParca NoAdetTipApplied Date A B
38 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0308-0602 ● ●
38 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
76 CLIP; NYLON TUBE
ID=6 & 8.3 		8-94167-742-0 02 1 0308- ● ●
300 BOLT; TUBE CLIP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0308- ● ●
322 BRACKET; CLIP 1-79996-360-0 01 1 0308-0601 ● ●
322 BRACKET; CLIP 1-79996-659-1 01 1 0602- ● ●
333 BRACKET; BRK AIR PIPE
(B) 		1-47477-045-0 01 1 0308- ● ●
333 BRACKET; BRK AIR PIPE
(A) 		1-79997-360-6 01 1 0308- ● ●

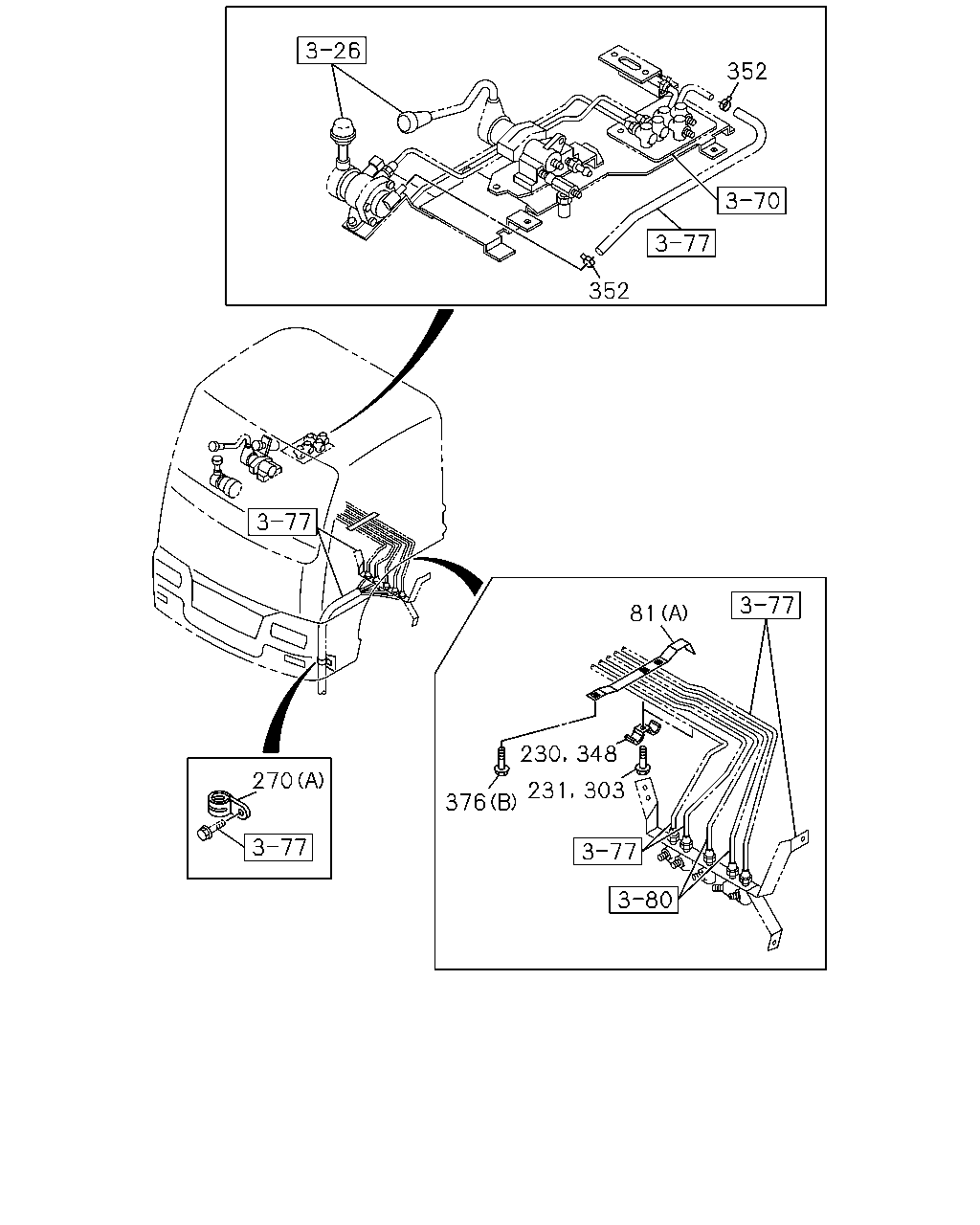

çizim 82538
352 352 81 270 376 230 348 231 303
BalonParca AdiParca NoAdetTipApplied Date A B
81 BRACKET; CLIP
(F) 		1-47471-010-0 01 1 0403- ●
81 BRACKET; CLIP
(B) L=100 H=30 		1-47477-645-2 04 1 0308-0311 ● ●
81 BRACKET; CLIP
(B) L=100 H=30 		1-47477-645-2 03 1 0312- ● ●
81 BRACKET; CLIP
(A) 		1-47477-483-0 01 1 0308- ● ●
81 BRACKET; CLIP
(C) 		1-47479-381-2 04 1 0308- ● ●
81 BRACKET; CLIP
(D) 		1-47479-562-0 02 1 0308-0410 ● ●
81 BRACKET; CLIP
(D) W/STUD M8X20 		1-47471-209-0 02 1 0411- ● ●
81 BRACKET; CLIP
(E) L=130 		1-47479-575-0 02 1 0308-0311 ●
81 BRACKET; CLIP
(E) L=130 		1-47479-575-0 02 1 0312- ● ●
230 CLIP; PIPE,AIR
ID=11 & 9 L=15 & 15 		1-09700-062-0 02 1 0308- ● ●
231 BOLT; CLIP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0308- ● ●
270 CLIP; NYLON TUBE
PARKING BRAKE VALVE LEVER TYPE<W48> EXC. FULL TRACTOR TRUCK<RD6> (A) ID=28 L=40 		1-09700-995-1 01 1 0308- ● ●
270 CLIP; NYLON TUBE
PARKING BRAKE VALVE LEVER TYPE<W48> EXC. FULL TRACTOR TRUCK<RD6> (A) ID=28 L=32 		1-09701-107-1 01 1 0308-0308 ● ●
270 CLIP; NYLON TUBE
PARKING BRAKE VALVE LEVER TYPE<W48> EXC. FULL TRACTOR TRUCK<RD6> (C) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0309- ● ●
270 CLIP; NYLON TUBE
(B) ID=16 H=25 L=25 		1-09701-162-0 03 1 0308- ● ●
303 BOLT; PIPE CLIP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0308- ● ●
348 CLIP; AIR PIPE
ID=9 & 9 L=15 & 15 		1-09700-061-0 02 1 0308- ● ●
352 CLIP; EXH HOSE
ID=14 		8-94238-572-0 02 1 0308- ● ●
376 BOLT; BRKT
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0308-0512 ● ●
376 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
376 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0308- ● ●
376 BOLT; BRKT
FULL TRACTOR TRUCK<RD6> (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0308- ● ●

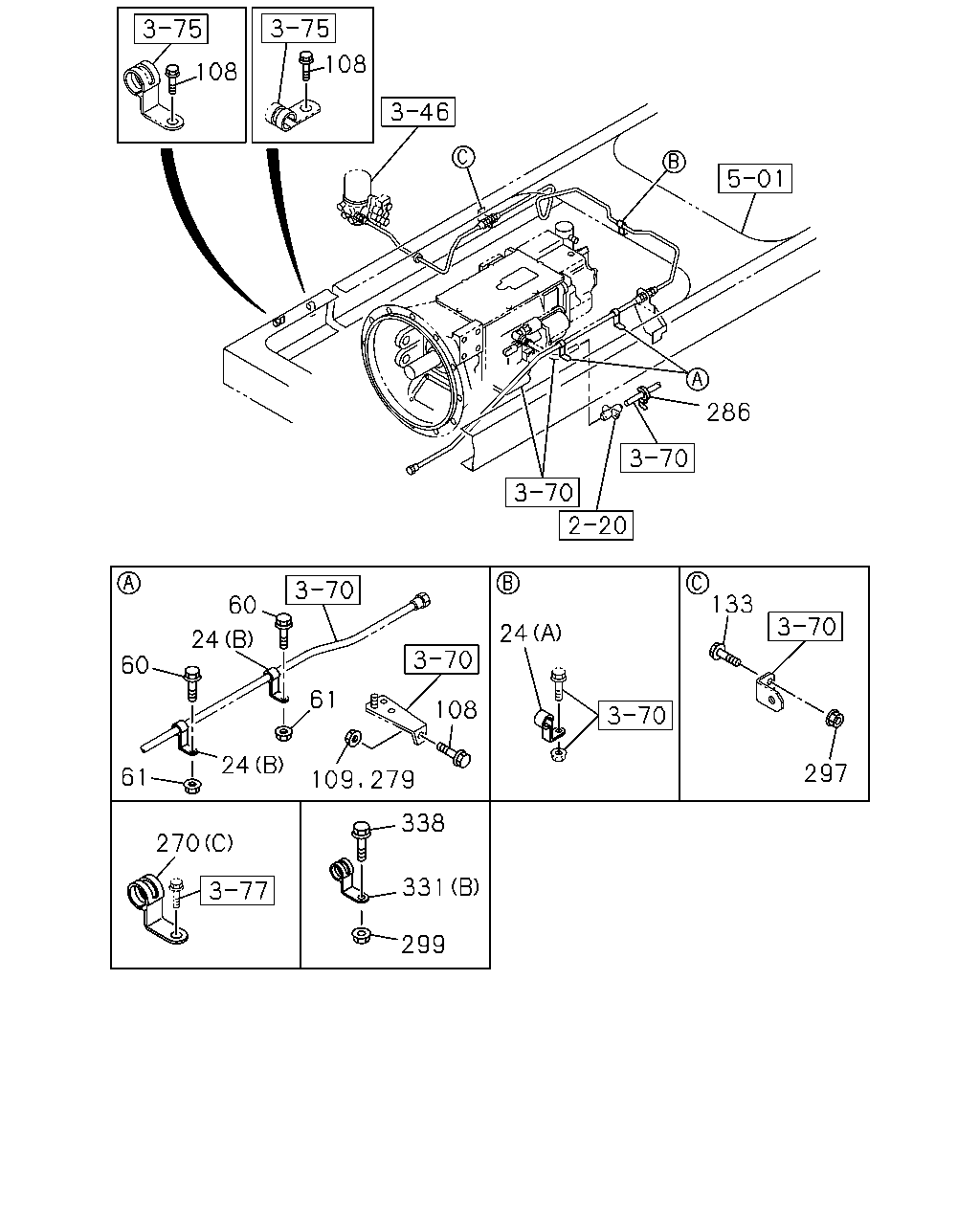

çizim 84708
108 108 286 133 60 24 24 60 61 108 24 297 61 338 270 331 299 109 279
BalonParca AdiParca NoAdetTipApplied Date A B
24 CLIP; PIPE
(A) ID=15 H=24 L=20 		1-09700-606-0 01 1 0308- ● ●
24 CLIP; PIPE
(B) ID=25 H=30 L=35 		1-09700-875-0 02 1 0308- ● ●
60 BOLT; CLIP FIX
M8X30 FLANGE 		0-28680-830-0 02 1 0308-0512 ● ●
60 BOLT; CLIP FIX
M8X30 FLANGE 		0-28650-830-0 02 1 0601- ● ●
61 NUT; CLIP FIX
M8 FLANGE 		0-91150-108-0 02 1 0308-0602 ● ●
61 NUT; CLIP FIX
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 0312-0512 ● ●
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0601- ● ●
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 0308-0310 ● ●
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28680-825-0 10 1 0308-0311 ● ●
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28680-825-0 09 1 0312-0512 ● ●
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 09 1 0601- ● ●
109 NUT; TUBE CLIP
M8 FLANGE 		0-91150-108-0 03 1 0308-0311 ● ●
109 NUT; TUBE CLIP
M8 FLANGE 		0-91150-108-0 04 1 0312-0602 ● ●
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 04 1 0603- ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 01 1 0312-0512 ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0601- ●
133 BOLT; BRKT
WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) M8X25 FLANGE 		0-28680-825-0 03 1 0312-0512 ●
133 BOLT; BRKT
WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) M8X25 FLANGE 		0-28650-825-0 03 1 0601- ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 10 1 0308-0311 ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 04 1 0312-0512 ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 0601- ● ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 03 1 0308-0512 ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 03 1 0601- ●
133 BOLT; BRKT
M6X10 FLANGE 		0-28080-610-0 01 1 0308-0512 ● ●
133 BOLT; BRKT
M6X10 FLANGE 		0-28050-610-0 01 1 0601- ● ●
133 BOLT; BRKT
M8X12 FLANGE 		0-28080-812-0 01 1 0308-0308 ● ●
133 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 01 1 0308-0512 ● ●
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 01 1 0601- ● ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 04 1 0308-0311 ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 08 1 0312-0512 ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 08 1 0601- ● ●
133 BOLT; BRKT
WHEEL BASE 5900MM(59W),WHEEL BASE 6100MM(61W), WHEEL BASE 6300MM(63W) M8X25 FLANGE 		0-28680-825-0 01 1 0308-0310 ●
133 BOLT; BRKT
WHEEL BASE 5900MM(59W) M8X25 FLANGE 		0-28680-825-0 01 1 0311-0311 ●
133 BOLT; BRKT
WHEEL BASE 5900MM(59W) M8X25 FLANGE 		0-28680-825-0 02 1 0312-0512 ●
133 BOLT; BRKT
WHEEL BASE 5900MM(59W) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
270 CLIP; NYLON TUBE
PARKING BRAKE VALVE LEVER TYPE<W48> EXC. FULL TRACTOR TRUCK<RD6> (A) ID=28 L=40 		1-09700-995-1 01 1 0308- ● ●
270 CLIP; NYLON TUBE
PARKING BRAKE VALVE LEVER TYPE<W48> EXC. FULL TRACTOR TRUCK<RD6> (A) ID=28 L=32 		1-09701-107-1 01 1 0308-0308 ● ●
270 CLIP; NYLON TUBE
PARKING BRAKE VALVE LEVER TYPE<W48> EXC. FULL TRACTOR TRUCK<RD6> (C) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0309- ● ●
270 CLIP; NYLON TUBE
(B) ID=16 H=25 L=25 		1-09701-162-0 03 1 0308- ● ●
279 NUT; BRKT
M8 FLANGE 		0-91150-108-0 03 1 0308-0311 ●
279 NUT; BRKT
M8 FLANGE 		0-91150-108-0 20 1 0312-0602 ●
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 20 1 0603- ●
279 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0308-0311 ● ●
279 NUT; BRKT
POWER CHAMBER BRAKE FRT WEDGE,RR WEDGE MAXI<BHD> M8 FLANGE 		0-91150-108-0 13 1 0308-0311 ● ●
279 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0312-0602 ● ●
279 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0312-0602 ●
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
279 NUT; BRKT
M8 FLANGE 		0-91150-108-0 05 1 0308-0311 ●
279 NUT; BRKT
M8 FLANGE 		0-91150-108-0 14 1 0312-0602 ●
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 14 1 0603- ●
286 CLIP; NYLON TUBE
ID=15 & 7 		1-09709-311-0 01 1 0308- ● ●
297 NUT; BRKT
M8 FLANGE 		0-91150-108-0 07 1 0308-0310 ●
297 NUT; BRKT
WHEEL BASE 5900MM(59W) M8 FLANGE 		0-91150-108-0 09 1 0311-0311 ●
297 NUT; BRKT
WHEEL BASE 5900MM(59W) M8 FLANGE 		0-91150-108-0 15 1 0312-0602 ●
297 NUT; BRKT
WHEEL BASE 5900MM(59W) M8 FLANGE 		0-91180-108-0 15 1 0603- ●
297 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0308-0310 ● ●
297 NUT; BRKT
M8 FLANGE 		0-91150-108-0 18 1 0311-0311 ● ●
297 NUT; BRKT
M8 FLANGE 		0-91150-108-0 03 1 0312-0602 ● ●
297 NUT; BRKT
M8 FLANGE 		0-91150-108-0 03 1 0312-0602 ● ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 0603- ● ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 0603- ● ●
297 NUT; BRKT
WHEEL BASE 5900MM(59W),WHEEL BASE 6100MM(61W) M8 FLANGE 		0-91150-108-0 11 1 0308-0310 ●
297 NUT; BRKT
WHEEL BASE 6100MM(61W) M8 FLANGE 		0-91150-108-0 12 1 0311-0311 ●
297 NUT; BRKT
WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) M8 FLANGE 		0-91150-108-0 16 1 0312-0602 ●
297 NUT; BRKT
WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) M8 FLANGE 		0-91180-108-0 16 1 0603- ●
297 NUT; BRKT
WHEEL BASE 6300MM(63W) M8 FLANGE 		0-91150-108-0 17 1 0308-0310 ●
297 NUT; BRKT
WHEEL BASE 6300MM(63W) M8 FLANGE 		0-91150-108-0 15 1 0311-0311 ●
297 NUT; BRKT
M8 FLANGE 		0-91150-108-0 03 1 0308-0311 ● ●
297 NUT; BRKT
M8 FLANGE 		0-91150-108-0 10 1 0312-0402 ●
297 NUT; BRKT
M8 FLANGE 		0-91150-108-0 13 1 0403-0410 ●
297 NUT; BRKT
M8 FLANGE 		0-91150-108-0 14 1 0411-0602 ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 14 1 0603- ●
299 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0308-0402 ●
299 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0403-0602 ●
299 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603- ●
331 CLIP; NYLON TUBE
(B) ID=13 H=75 L=25 		1-09700-601-0 02 1 0311-0402 ●
331 CLIP; NYLON TUBE
(B) ID=13 H=75 L=25 		1-09700-601-0 01 1 0403- ●
331 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 02 1 0308- ● ●
338 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28680-830-0 02 1 0311-0402 ●
338 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28680-830-0 01 1 0403-0512 ●
338 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28650-830-0 01 1 0601- ●

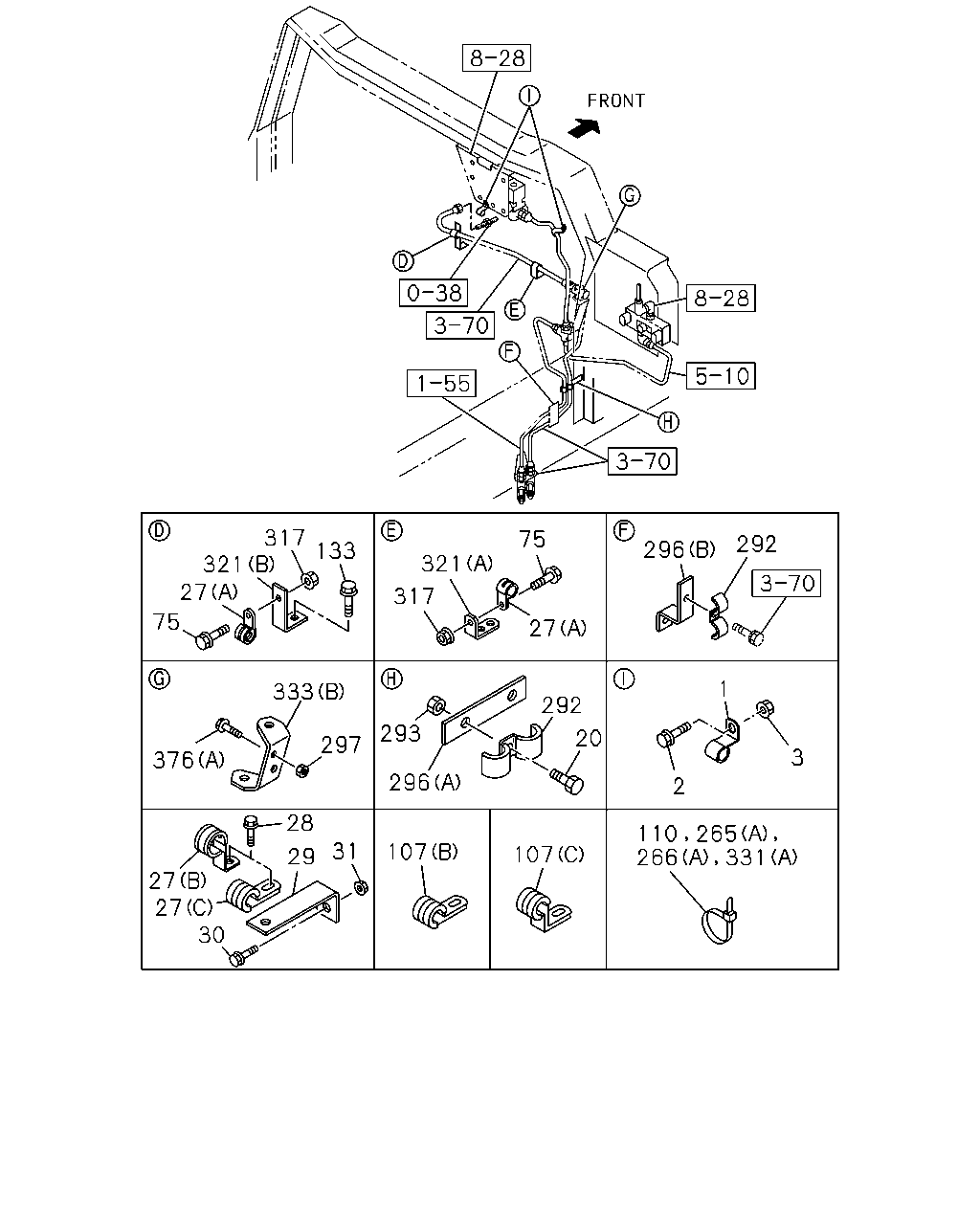

çizim 85256
317 321 27 75 292 296 133 321 317 75 27 1 333 292 293 20 297 3 376 296 2 28 31 107 107 29 27 27 30 110 265 331 266
BalonParca AdiParca NoAdetTipApplied Date A B
1 CLIP; AIR PIPE
ID=6 H=20 L=20 		1-09700-603-0 01 1 0310- ● ●
2 BOLT; CLIP FIX
M8X20 FLANGE 		0-28680-820-0 03 1 0308-0309 ● ●
2 BOLT; CLIP FIX
M8X20 FLANGE 		0-28680-820-0 04 1 0310-0512 ● ●
2 BOLT; CLIP FIX
M8X20 FLANGE 		0-28650-820-0 04 1 0601- ● ●
3 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91150-108-0 01 1 0310-0602 ● ●
3 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
20 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 02 1 0403-0512 ●
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
20 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 0308-0402 ● ●
20 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 0403-0512 ●
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
27 CLIP; FLEX HOSE
(B) ID=25 H=30 L=35 		1-09700-875-0 02 1 0308- ●
27 CLIP; FLEX HOSE
(A) ID=15 L=28 		1-09701-216-0 02 1 0308- ● ●
27 CLIP; FLEX HOSE
(C) ID=26 L=27 		1-09701-006-0 01 1 0308- ●
28 BOLT; CLIP,FLEX HOSE
M8X20 FLANGE 		0-28680-820-0 02 1 0308-0512 ●
28 BOLT; CLIP,FLEX HOSE
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
28 BOLT; CLIP,FLEX HOSE
M8X20 FLANGE 		0-28680-820-0 01 1 0308-0512 ●
28 BOLT; CLIP,FLEX HOSE
M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
29 BRACKET; CLIP,AIR PIPE
L=95 		1-82699-085-0 01 1 0308- ●
30 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28680-830-0 01 1 0308-0512 ●
30 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0601- ●
31 NUT; CLIP BRKT
M8 FLANGE 		0-91150-108-0 01 1 0308-0602 ●
31 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 01 1 0603- ●
75 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 02 1 0308-0512 ● ●
75 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
107 CLIP; NYLON TUBE
(B) ID=24 L=27 		1-09700-809-0 01 1 0308-0310 ● ●
107 CLIP; NYLON TUBE
(C) ID=25 H=30 L=35 		1-09700-875-0 02 1 0311- ● ●
107 CLIP; NYLON TUBE
(B) ID=25 L=50 		1-09701-019-0 01 1 0308-0310 ● ●
107 CLIP; NYLON TUBE
(C) ID=31 H=30 L=35 		1-09700-994-0 01 1 0311- ● ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 13 1 0308- ● ●
110 CLIP; BAND,NYLON TUBE
L=350 		1-09707-183-0 01 1 0403- ●
110 CLIP; BAND,NYLON TUBE
L=350 		1-09707-183-0 02 1 0310- ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 01 1 0312-0512 ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0601- ●
133 BOLT; BRKT
WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) M8X25 FLANGE 		0-28680-825-0 03 1 0312-0512 ●
133 BOLT; BRKT
WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) M8X25 FLANGE 		0-28650-825-0 03 1 0601- ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 10 1 0308-0311 ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 04 1 0312-0512 ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 0601- ● ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 03 1 0308-0512 ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 03 1 0601- ●
133 BOLT; BRKT
M6X10 FLANGE 		0-28080-610-0 01 1 0308-0512 ● ●
133 BOLT; BRKT
M6X10 FLANGE 		0-28050-610-0 01 1 0601- ● ●
133 BOLT; BRKT
M8X12 FLANGE 		0-28080-812-0 01 1 0308-0308 ● ●
133 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 01 1 0308-0512 ● ●
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 01 1 0601- ● ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 04 1 0308-0311 ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 08 1 0312-0512 ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 08 1 0601- ● ●
133 BOLT; BRKT
WHEEL BASE 5900MM(59W),WHEEL BASE 6100MM(61W), WHEEL BASE 6300MM(63W) M8X25 FLANGE 		0-28680-825-0 01 1 0308-0310 ●
133 BOLT; BRKT
WHEEL BASE 5900MM(59W) M8X25 FLANGE 		0-28680-825-0 01 1 0311-0311 ●
133 BOLT; BRKT
WHEEL BASE 5900MM(59W) M8X25 FLANGE 		0-28680-825-0 02 1 0312-0512 ●
133 BOLT; BRKT
WHEEL BASE 5900MM(59W) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
265 CLIP; NYLON TUBE
(B) ID=11X2 L=42 		1-09701-306-0 03 1 0308-0310 ● ●
265 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 01 1 0308-0310 ● ●
266 CLIP; NYLON TUBE
(C) ID=35 L=33 		1-09700-945-0 01 1 0403-0410 ●
266 CLIP; NYLON TUBE
(C) ID=35 L=33 		1-09700-945-0 02 1 0411- ●
266 CLIP; NYLON TUBE
(B) ID=11X2 L=42 		1-09701-306-0 03 1 0308-0310 ● ●
266 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 01 1 0308-0310 ● ●
292 CLIP; AIR PIPE
ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 02 1 0403- ●
292 CLIP; AIR PIPE
ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 01 1 0308-0402 ● ●
292 CLIP; AIR PIPE
ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 01 1 0403- ●
293 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0308-0602 ● ●
293 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
296 BRACKET; CLIP
(B) L=85 H=40 		1-47476-676-0 01 1 0403- ●
296 BRACKET; CLIP
(A) 		1-47475-648-0 01 1 0308- ● ●
297 NUT; BRKT
M8 FLANGE 		0-91150-108-0 07 1 0308-0310 ●
297 NUT; BRKT
WHEEL BASE 5900MM(59W) M8 FLANGE 		0-91150-108-0 09 1 0311-0311 ●
297 NUT; BRKT
WHEEL BASE 5900MM(59W) M8 FLANGE 		0-91150-108-0 15 1 0312-0602 ●
297 NUT; BRKT
WHEEL BASE 5900MM(59W) M8 FLANGE 		0-91180-108-0 15 1 0603- ●
297 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0308-0310 ● ●
297 NUT; BRKT
M8 FLANGE 		0-91150-108-0 18 1 0311-0311 ● ●
297 NUT; BRKT
M8 FLANGE 		0-91150-108-0 03 1 0312-0602 ● ●
297 NUT; BRKT
M8 FLANGE 		0-91150-108-0 03 1 0312-0602 ● ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 0603- ● ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 0603- ● ●
297 NUT; BRKT
WHEEL BASE 5900MM(59W),WHEEL BASE 6100MM(61W) M8 FLANGE 		0-91150-108-0 11 1 0308-0310 ●
297 NUT; BRKT
WHEEL BASE 6100MM(61W) M8 FLANGE 		0-91150-108-0 12 1 0311-0311 ●
297 NUT; BRKT
WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) M8 FLANGE 		0-91150-108-0 16 1 0312-0602 ●
297 NUT; BRKT
WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) M8 FLANGE 		0-91180-108-0 16 1 0603- ●
297 NUT; BRKT
WHEEL BASE 6300MM(63W) M8 FLANGE 		0-91150-108-0 17 1 0308-0310 ●
297 NUT; BRKT
WHEEL BASE 6300MM(63W) M8 FLANGE 		0-91150-108-0 15 1 0311-0311 ●
297 NUT; BRKT
M8 FLANGE 		0-91150-108-0 03 1 0308-0311 ● ●
297 NUT; BRKT
M8 FLANGE 		0-91150-108-0 10 1 0312-0402 ●
297 NUT; BRKT
M8 FLANGE 		0-91150-108-0 13 1 0403-0410 ●
297 NUT; BRKT
M8 FLANGE 		0-91150-108-0 14 1 0411-0602 ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 14 1 0603- ●
317 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0308-0602 ● ●
317 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
321 BRACKET; CLIP
(C) 		1-47479-430-0 02 1 0310- ● ●
321 BRACKET; CLIP
(A) 		1-47477-337-1 01 1 0308- ● ●
321 BRACKET; CLIP
(B) L=75 		1-47478-328-0 01 1 0308- ● ●
331 CLIP; NYLON TUBE
(B) ID=13 H=75 L=25 		1-09700-601-0 02 1 0311-0402 ●
331 CLIP; NYLON TUBE
(B) ID=13 H=75 L=25 		1-09700-601-0 01 1 0403- ●
331 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 02 1 0308- ● ●
333 BRACKET; BRK AIR PIPE
(B) 		1-47477-045-0 01 1 0308- ● ●
333 BRACKET; BRK AIR PIPE
(A) 		1-79997-360-6 01 1 0308- ● ●
376 BOLT; BRKT
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0308-0512 ● ●
376 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
376 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0308- ● ●
376 BOLT; BRKT
FULL TRACTOR TRUCK<RD6> (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0308- ● ●

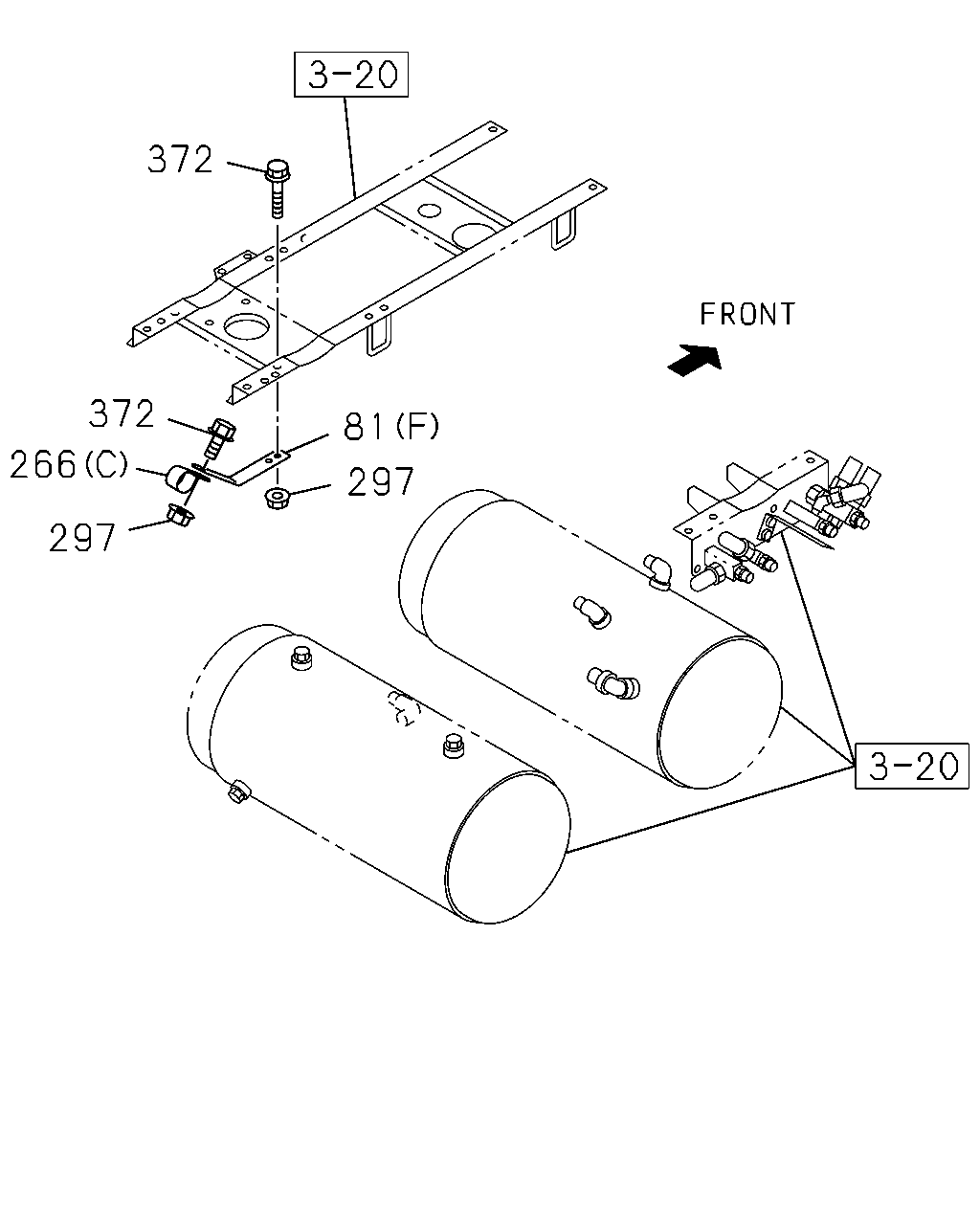

çizim 85277
372 372 81 266 297 297
BalonParca AdiParca NoAdetTipApplied Date A B
81 BRACKET; CLIP
(F) 		1-47471-010-0 01 1 0403- ●
81 BRACKET; CLIP
(B) L=100 H=30 		1-47477-645-2 04 1 0308-0311 ● ●
81 BRACKET; CLIP
(B) L=100 H=30 		1-47477-645-2 03 1 0312- ● ●
81 BRACKET; CLIP
(A) 		1-47477-483-0 01 1 0308- ● ●
81 BRACKET; CLIP
(C) 		1-47479-381-2 04 1 0308- ● ●
81 BRACKET; CLIP
(D) 		1-47479-562-0 02 1 0308-0410 ● ●
81 BRACKET; CLIP
(D) W/STUD M8X20 		1-47471-209-0 02 1 0411- ● ●
81 BRACKET; CLIP
(E) L=130 		1-47479-575-0 02 1 0308-0311 ●
81 BRACKET; CLIP
(E) L=130 		1-47479-575-0 02 1 0312- ● ●
266 CLIP; NYLON TUBE
(C) ID=35 L=33 		1-09700-945-0 01 1 0403-0410 ●
266 CLIP; NYLON TUBE
(C) ID=35 L=33 		1-09700-945-0 02 1 0411- ●
266 CLIP; NYLON TUBE
(B) ID=11X2 L=42 		1-09701-306-0 03 1 0308-0310 ● ●
266 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 01 1 0308-0310 ● ●
297 NUT; BRKT
M8 FLANGE 		0-91150-108-0 07 1 0308-0310 ●
297 NUT; BRKT
WHEEL BASE 5900MM(59W) M8 FLANGE 		0-91150-108-0 09 1 0311-0311 ●
297 NUT; BRKT
WHEEL BASE 5900MM(59W) M8 FLANGE 		0-91150-108-0 15 1 0312-0602 ●
297 NUT; BRKT
WHEEL BASE 5900MM(59W) M8 FLANGE 		0-91180-108-0 15 1 0603- ●
297 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0308-0310 ● ●
297 NUT; BRKT
M8 FLANGE 		0-91150-108-0 18 1 0311-0311 ● ●
297 NUT; BRKT
M8 FLANGE 		0-91150-108-0 03 1 0312-0602 ● ●
297 NUT; BRKT
M8 FLANGE 		0-91150-108-0 03 1 0312-0602 ● ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 0603- ● ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 0603- ● ●
297 NUT; BRKT
WHEEL BASE 5900MM(59W),WHEEL BASE 6100MM(61W) M8 FLANGE 		0-91150-108-0 11 1 0308-0310 ●
297 NUT; BRKT
WHEEL BASE 6100MM(61W) M8 FLANGE 		0-91150-108-0 12 1 0311-0311 ●
297 NUT; BRKT
WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) M8 FLANGE 		0-91150-108-0 16 1 0312-0602 ●
297 NUT; BRKT
WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) M8 FLANGE 		0-91180-108-0 16 1 0603- ●
297 NUT; BRKT
WHEEL BASE 6300MM(63W) M8 FLANGE 		0-91150-108-0 17 1 0308-0310 ●
297 NUT; BRKT
WHEEL BASE 6300MM(63W) M8 FLANGE 		0-91150-108-0 15 1 0311-0311 ●
297 NUT; BRKT
M8 FLANGE 		0-91150-108-0 03 1 0308-0311 ● ●
297 NUT; BRKT
M8 FLANGE 		0-91150-108-0 10 1 0312-0402 ●
297 NUT; BRKT
M8 FLANGE 		0-91150-108-0 13 1 0403-0410 ●
297 NUT; BRKT
M8 FLANGE 		0-91150-108-0 14 1 0411-0602 ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 14 1 0603- ●
372 BOLT; CLIP BRKT
M8X20 FLANGE 		0-28680-820-0 03 1 0403-0512 ●
372 BOLT; CLIP BRKT
M8X20 FLANGE 		0-28650-820-0 03 1 0601- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
