3-77 — BRAKE PIPING; AIR,REAR (#25924) — 273 parça

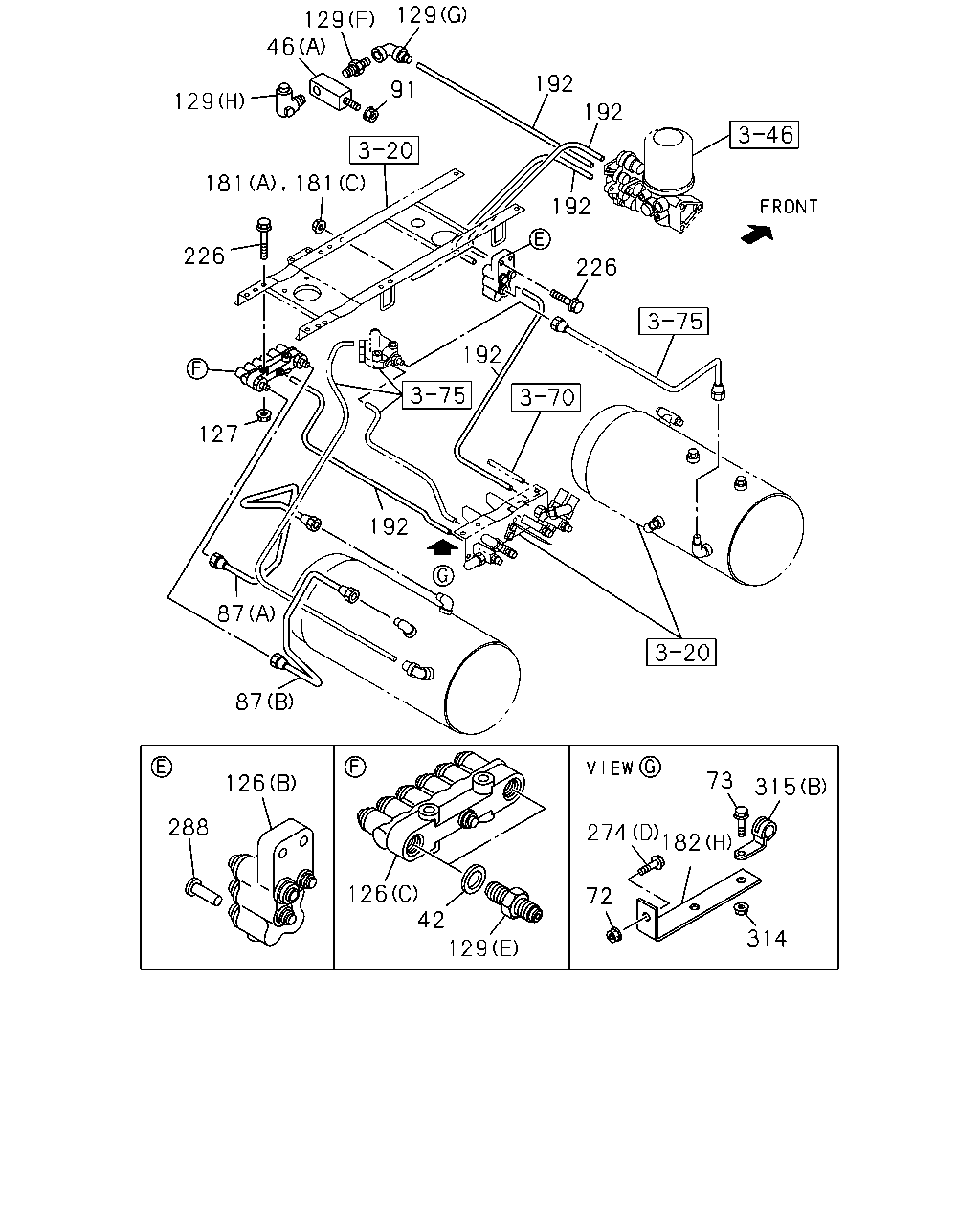

129 129 46 192 91 129 192 181 181 192 226 226 192 127 192 87 87 73 126 315 288 274 182 126 42 72 314 129

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
42	GASKET; CONNECTOR	9-09572-022-0	02	1	0308-	●	●
46	NIPPLE; AIR PIPE (B) DIN12X2 & R3/8 3WAY	1-09661-131-0	02	1	0308-	●	●
46	NIPPLE; AIR PIPE (A) M10	1-09664-168-1	01	1	0308-	●	●
72	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0403-0602	●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-	●
72	NUT; BRKT WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) M8 FLANGE	0-91150-108-0	06	1	0308-0309	●
72	NUT; BRKT WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) M8 FLANGE	0-91150-108-0	08	1	0310-0310	●
72	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0308-0309	●	●
72	NUT; BRKT M12 FLANGE	0-91150-212-0	02	1	0310-0310	●	●
72	NUT; BRKT WHEEL BASE 5900MM(59W) M8 FLANGE	0-91150-108-0	09	1	0308-0309		●
72	NUT; BRKT WHEEL BASE 5900MM(59W) M8 FLANGE	0-91150-108-0	11	1	0310-0310		●
72	NUT; BRKT WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) M8 FLANGE	0-91150-108-0	10	1	0308-0309		●
72	NUT; BRKT WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) M8 FLANGE	0-91150-108-0	12	1	0310-0310		●
73	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	0403-0512	●
73	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0601-	●
73	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	02	1	0308-0310	●	●
87	PIPE; AIR,AIR TANK TO UNION (A) L=667	1-49123-982-0	01	1	0308-	●
87	PIPE; AIR,AIR TANK TO UNION (B) L=620	1-49123-985-0	01	1	0308-	●
87	PIPE; AIR,AIR TANK TO UNION (A) L=688	1-49123-981-0	01	1	0308-		●
87	PIPE; AIR,AIR TANK TO UNION (B) L=643	1-49123-984-0	01	1	0308-		●
91	NUT; PIPE UNION M10 FLANGE	0-91150-210-0	01	1	0308-0602	●	●
91	NUT; PIPE UNION M10 FLANGE	0-91180-210-0	01	1	0603-	●	●
126	UNION; NYLON TUBE (A) DIN8X2 & M8 2WAY	1-09661-133-0	03	1	0308-0310	●	●
126	UNION; NYLON TUBE (A) DIN8X2 & M8 2WAY	1-09661-133-0	01	1	0311-	●	●
126	UNION; NYLON TUBE (B)	1-09661-610-1	01	1	0308-	●	●
126	UNION; NYLON TUBE (C)	1-09661-612-1	01	1	0308-	●	●
127	NUT; UNION M8 FLANGE	0-91150-208-0	02	1	0308-0308	●	●
127	NUT; UNION M8 FLANGE	0-91150-108-0	02	1	0309-0602	●	●
127	NUT; UNION M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
129	CONNECTOR; NYLON TUBE (E)	1-09654-416-1	02	1	0308-	●	●
129	CONNECTOR; NYLON TUBE (A) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0308-	●	●
129	CONNECTOR; NYLON TUBE (A) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0308-	●	●
129	CONNECTOR; NYLON TUBE (G) DIN8 ELBOW	1-09660-924-1	01	1	0308-	●	●
129	CONNECTOR; NYLON TUBE (H) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0308-	●	●
129	CONNECTOR; NYLON TUBE (C) DIN12 ID=15.4 ELBOW	1-09661-079-1	01	1	0308-	●	●
129	CONNECTOR; NYLON TUBE (B)	1-09661-083-0	01	1	0308-	●	●
129	CONNECTOR; NYLON TUBE (F)	1-09661-090-0	01	1	0308-	●	●
129	CONNECTOR; NYLON TUBE FULL TRACTOR TRUCK<RD6> (D) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0308-	●	●
129	CONNECTOR; NYLON TUBE FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (A) DIN8 & M14 STRAIGHT	1-09660-874-0	03	1	0308-	●	●
129	CONNECTOR; NYLON TUBE EXC. FULL TRACTOR TRUCK<RD6> (D) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0308-	●	●
181	NUT; TUBE UNION (B) M8 FLANGE	0-91150-108-0	02	1	0308-0308	●	●
181	NUT; TUBE UNION (C) M8 FLANGE	0-91150-108-0	02	1	0309-0602	●	●
181	NUT; TUBE UNION (C) M8 FLANGE	0-91150-108-0	02	1	0309-0602	●	●
181	NUT; TUBE UNION (C) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
181	NUT; TUBE UNION (C) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
181	NUT; TUBE UNION (A) M8 FLANGE	0-91150-208-0	02	1	0308-0308	●	●
182	BRACKET; TUBE CLIP (H) L=75	1-47478-323-0	01	1	0403-	●
182	BRACKET; TUBE CLIP (G)	1-47479-562-0	02	1	0310-0310	●	●
182	BRACKET; TUBE CLIP WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) (A)	1-47479-381-2	05	1	0308-0310	●
182	BRACKET; TUBE CLIP (B)	1-47479-329-0	01	1	0308-0310	●	●
182	BRACKET; TUBE CLIP (C)	1-47479-554-0	01	1	0308-0310	●	●
182	BRACKET; TUBE CLIP (D)	1-47479-719-0	01	1	0308-0308	●	●
182	BRACKET; TUBE CLIP (E)	1-47479-722-1	01	1	0308-0310	●	●
182	BRACKET; TUBE CLIP WHEEL BASE 5900MM(59W),WHEEL BASE 6100MM(61W), WHEEL BASE 6300MM(63W) (A)	1-47479-381-2	07	1	0308-0310		●
182	BRACKET; TUBE CLIP WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) (F)	1-47479-693-0	01	1	0308-0310		●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0308-	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0308-	●	●
192	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0308-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0308-	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0308-	●	●
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0308-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	0308-	●	●
192	TUBE; NYLON SERVICED BY L=6000 OD=6	1-87411-003-0	AR	1	0308-	●	●
226	BOLT; UNION M8X16 FLANGE	0-28080-816-0	03	1	0308-0310	●	●
226	BOLT; UNION M8X16 FLANGE	0-28080-816-0	01	1	0311-0512	●	●
226	BOLT; UNION M8X16 FLANGE	0-28050-816-0	01	1	0601-	●	●
226	BOLT; UNION M8X25 FLANGE	0-28080-825-0	02	1	0308-0309	●	●
226	BOLT; UNION M8X35 FLANGE	0-28080-835-0	02	1	0310-0512	●	●
226	BOLT; UNION M8X35 FLANGE	0-28050-835-0	02	1	0601-	●	●
226	BOLT; UNION M8X45 FLANGE	0-28080-845-0	04	1	0308-0512	●	●
226	BOLT; UNION M8X45 FLANGE	0-28050-845-0	04	1	0601-	●	●
226	BOLT; UNION M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	0308-	●	●
274	BOLT; BRKT (D) M8X20 FLANGE	0-28680-820-0	01	1	0403-0512	●
274	BOLT; BRKT (D) M8X20 FLANGE	0-28650-820-0	01	1	0601-	●
274	BOLT; BRKT WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) (C) M8X25 FLANGE	0-28680-825-0	02	1	0308-0310		●
274	BOLT; BRKT (B) M8X16 FLANGE	0-28080-816-0	01	1	0308-0512	●	●
274	BOLT; BRKT (B) M8X16 FLANGE	0-28050-816-0	01	1	0601-	●	●
274	BOLT; BRKT (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0308-	●	●
288	PLUG OD=12	1-09661-617-0	03	1	0308-	●	●
314	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0403-0602	●
314	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0603-	●
315	CLIP (B) ID=24 L=27	1-09700-809-0	01	1	0403-	●
315	CLIP WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) (A) L=350	1-09707-183-0	06	1	0308-0310	●
315	CLIP WHEEL BASE 5900MM(59W) (A) L=350	1-09707-183-0	09	1	0308-0310		●
315	CLIP WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) (A) L=350	1-09707-183-0	10	1	0308-0310		●

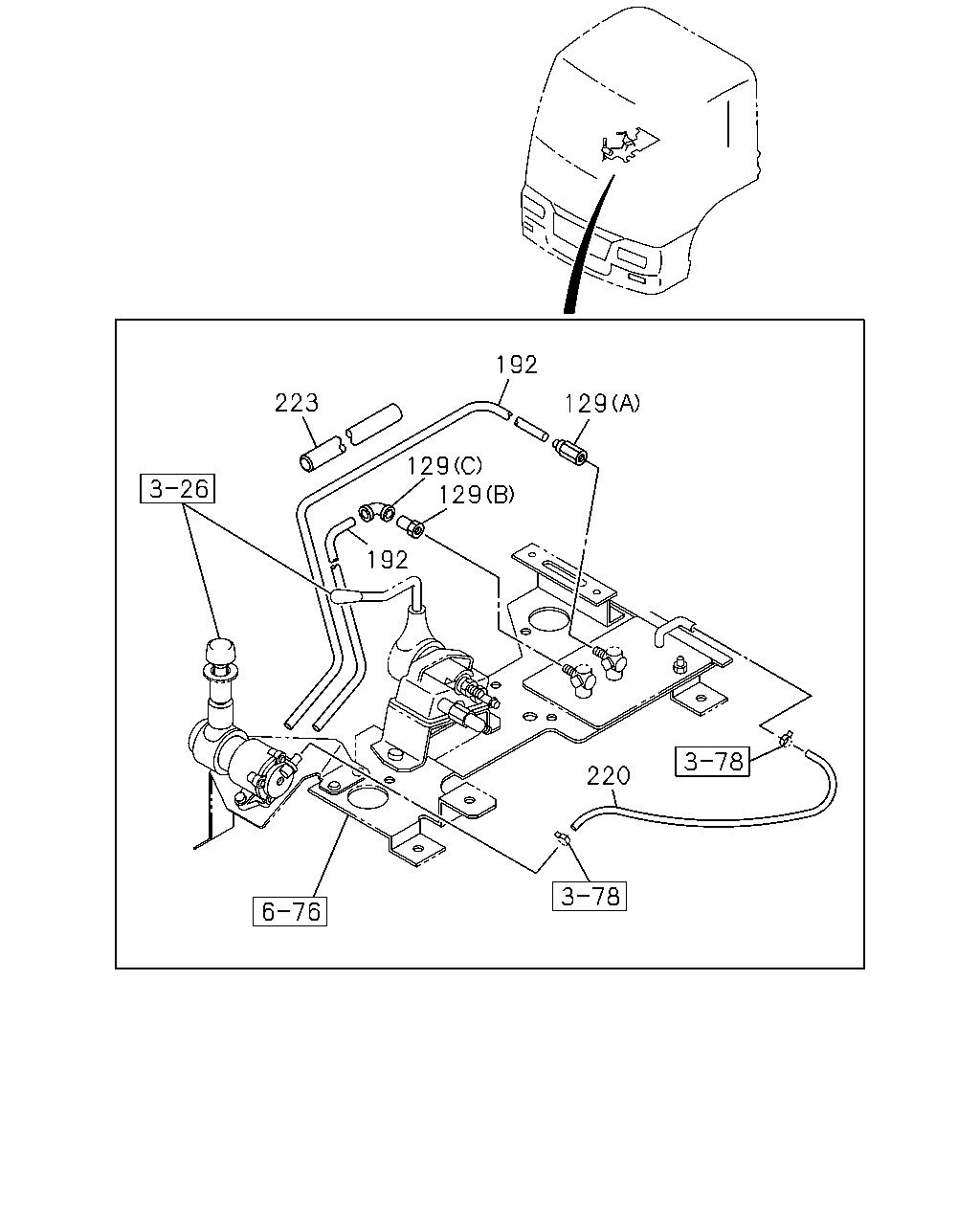

192 223 129 129 129 192 220

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
129	CONNECTOR; NYLON TUBE (E)	1-09654-416-1	02	1	0308-	●	●
129	CONNECTOR; NYLON TUBE (A) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0308-	●	●
129	CONNECTOR; NYLON TUBE (A) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0308-	●	●
129	CONNECTOR; NYLON TUBE (G) DIN8 ELBOW	1-09660-924-1	01	1	0308-	●	●
129	CONNECTOR; NYLON TUBE (H) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0308-	●	●
129	CONNECTOR; NYLON TUBE (C) DIN12 ID=15.4 ELBOW	1-09661-079-1	01	1	0308-	●	●
129	CONNECTOR; NYLON TUBE (B)	1-09661-083-0	01	1	0308-	●	●
129	CONNECTOR; NYLON TUBE (F)	1-09661-090-0	01	1	0308-	●	●
129	CONNECTOR; NYLON TUBE FULL TRACTOR TRUCK<RD6> (D) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0308-	●	●
129	CONNECTOR; NYLON TUBE FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (A) DIN8 & M14 STRAIGHT	1-09660-874-0	03	1	0308-	●	●
129	CONNECTOR; NYLON TUBE EXC. FULL TRACTOR TRUCK<RD6> (D) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0308-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0308-	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0308-	●	●
192	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0308-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0308-	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0308-	●	●
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0308-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	0308-	●	●
192	TUBE; NYLON SERVICED BY L=6000 OD=6	1-87411-003-0	AR	1	0308-	●	●
220	HOSE; VINYL,EXH,PARKING BRK VLV L=650 SERVICED BY L=10000	9-09914-701-0	01	1	0308-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87411-016-0	AR	1	0308-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0308-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	0308-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87411-025-0	AR	1	0308-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87411-029-0	AR	1	0308-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87411-027-0	AR	1	0308-	●	●

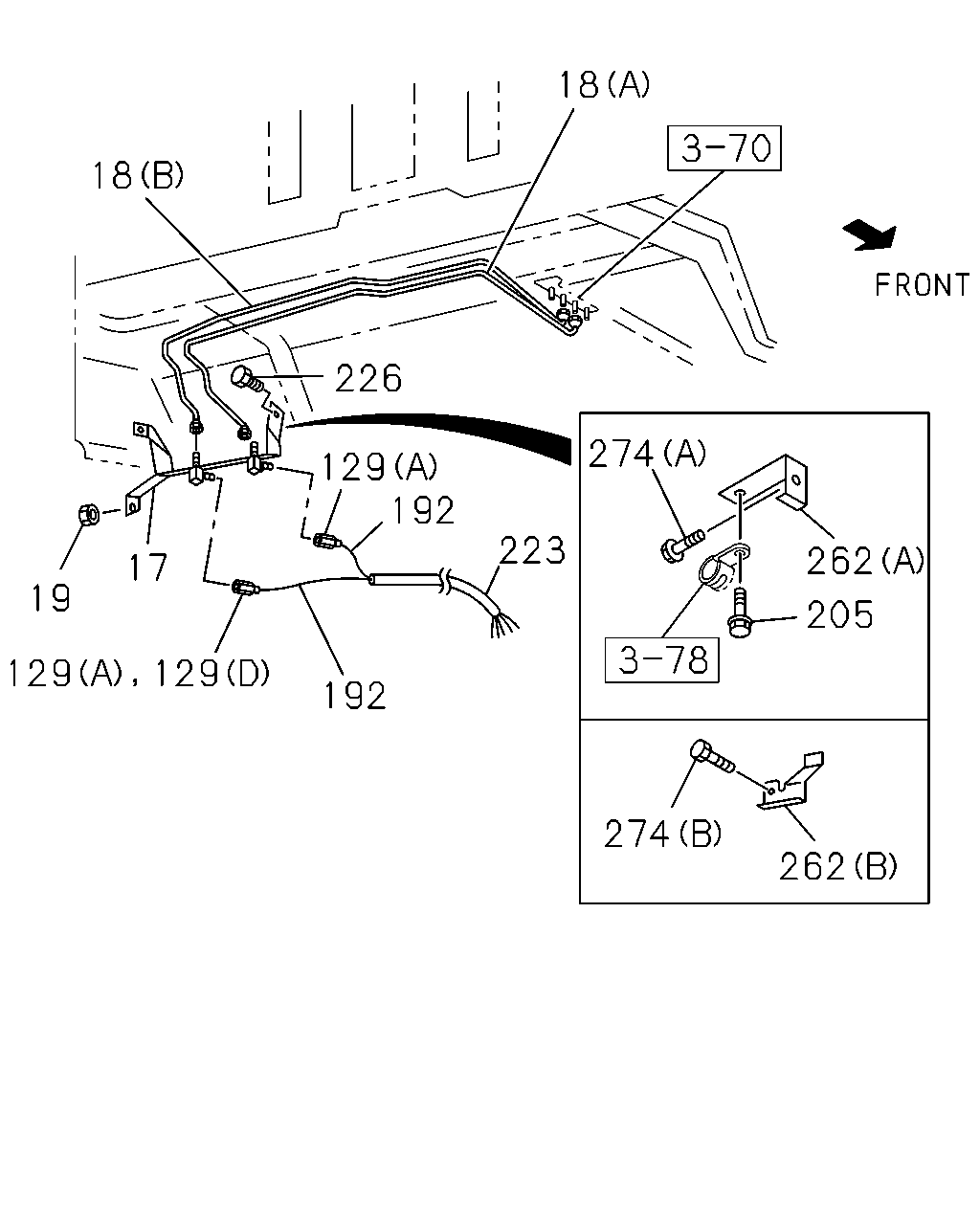

18 18 226 274 129 192 223 262 17 19 205 129 129 192 274 262

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
17	UNION; AIR PIPE	1-47470-456-2	01	1	0308-	●	●
18	PIPE; AIR,UNION TO UNION (A) L=1800	1-49121-052-0	01	1	0308-	●	●
18	PIPE; AIR,UNION TO UNION (B) L=1942	1-49121-057-0	01	1	0308-	●	●
19	NUT; PIPE UNION M8	9-09110-408-0	01	1	0308-0512	●	●
19	NUT; PIPE UNION M8	0-91110-508-0	01	1	0601-	●	●
129	CONNECTOR; NYLON TUBE (E)	1-09654-416-1	02	1	0308-	●	●
129	CONNECTOR; NYLON TUBE (A) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0308-	●	●
129	CONNECTOR; NYLON TUBE (A) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0308-	●	●
129	CONNECTOR; NYLON TUBE (G) DIN8 ELBOW	1-09660-924-1	01	1	0308-	●	●
129	CONNECTOR; NYLON TUBE (H) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0308-	●	●
129	CONNECTOR; NYLON TUBE (C) DIN12 ID=15.4 ELBOW	1-09661-079-1	01	1	0308-	●	●
129	CONNECTOR; NYLON TUBE (B)	1-09661-083-0	01	1	0308-	●	●
129	CONNECTOR; NYLON TUBE (F)	1-09661-090-0	01	1	0308-	●	●
129	CONNECTOR; NYLON TUBE FULL TRACTOR TRUCK<RD6> (D) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0308-	●	●
129	CONNECTOR; NYLON TUBE FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (A) DIN8 & M14 STRAIGHT	1-09660-874-0	03	1	0308-	●	●
129	CONNECTOR; NYLON TUBE EXC. FULL TRACTOR TRUCK<RD6> (D) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0308-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0308-	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0308-	●	●
192	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0308-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0308-	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0308-	●	●
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0308-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	0308-	●	●
192	TUBE; NYLON SERVICED BY L=6000 OD=6	1-87411-003-0	AR	1	0308-	●	●
205	BOLT; TUBE CLIP M8X16 FLANGE	0-28080-816-0	02	1	0308-0512	●	●
205	BOLT; TUBE CLIP M8X16 FLANGE	0-28050-816-0	02	1	0601-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87411-016-0	AR	1	0308-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0308-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	0308-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87411-025-0	AR	1	0308-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87411-029-0	AR	1	0308-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87411-027-0	AR	1	0308-	●	●
226	BOLT; UNION M8X16 FLANGE	0-28080-816-0	03	1	0308-0310	●	●
226	BOLT; UNION M8X16 FLANGE	0-28080-816-0	01	1	0311-0512	●	●
226	BOLT; UNION M8X16 FLANGE	0-28050-816-0	01	1	0601-	●	●
226	BOLT; UNION M8X25 FLANGE	0-28080-825-0	02	1	0308-0309	●	●
226	BOLT; UNION M8X35 FLANGE	0-28080-835-0	02	1	0310-0512	●	●
226	BOLT; UNION M8X35 FLANGE	0-28050-835-0	02	1	0601-	●	●
226	BOLT; UNION M8X45 FLANGE	0-28080-845-0	04	1	0308-0512	●	●
226	BOLT; UNION M8X45 FLANGE	0-28050-845-0	04	1	0601-	●	●
226	BOLT; UNION M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	0308-	●	●
262	BRACKET (A)	1-79996-143-0	01	1	0308-	●	●
262	BRACKET (B)	1-79996-144-0	01	1	0308-	●	●
274	BOLT; BRKT (D) M8X20 FLANGE	0-28680-820-0	01	1	0403-0512	●
274	BOLT; BRKT (D) M8X20 FLANGE	0-28650-820-0	01	1	0601-	●
274	BOLT; BRKT WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) (C) M8X25 FLANGE	0-28680-825-0	02	1	0308-0310		●
274	BOLT; BRKT (B) M8X16 FLANGE	0-28080-816-0	01	1	0308-0512	●	●
274	BOLT; BRKT (B) M8X16 FLANGE	0-28050-816-0	01	1	0601-	●	●
274	BOLT; BRKT (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0308-	●	●

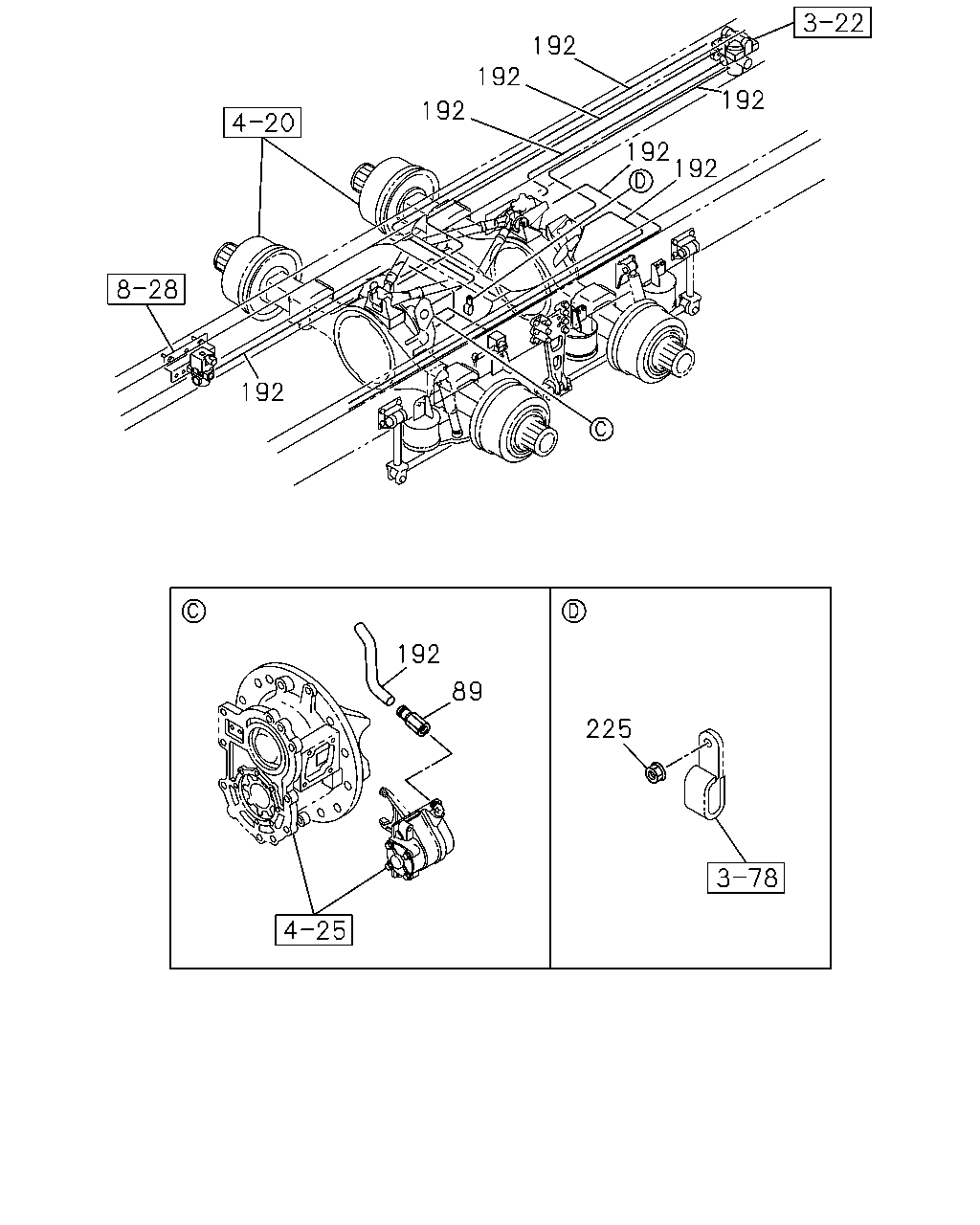

192 192 192 192 192 192 192 192 89 225

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
89	CONNECTOR; NYLON TUBE DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0308-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0308-	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0308-	●	●
192	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0308-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0308-	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0308-	●	●
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0308-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	0308-	●	●
192	TUBE; NYLON SERVICED BY L=6000 OD=6	1-87411-003-0	AR	1	0308-	●	●
225	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	04	1	0308-0310	●	●
225	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	01	1	0311-0602	●	●
225	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	01	1	0603-	●	●

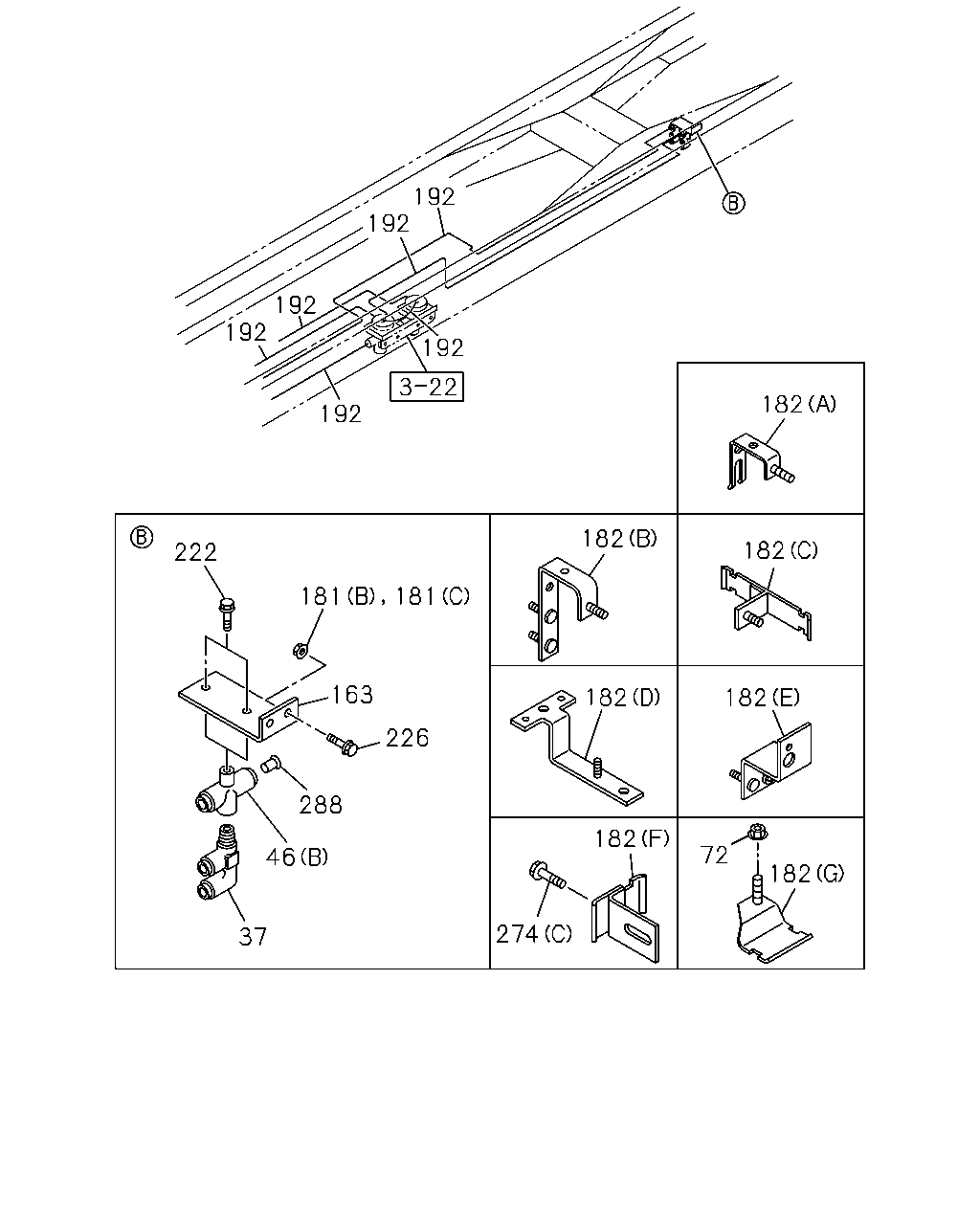

192 192 192 192 192 182 192 182 182 222 181 181 163 182 182 226 288 182 72 46 182 274 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
37	UNION; AIR PIPE DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	02	1	0308-	●	●
46	NIPPLE; AIR PIPE (B) DIN12X2 & R3/8 3WAY	1-09661-131-0	02	1	0308-	●	●
46	NIPPLE; AIR PIPE (A) M10	1-09664-168-1	01	1	0308-	●	●
72	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0403-0602	●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-	●
72	NUT; BRKT WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) M8 FLANGE	0-91150-108-0	06	1	0308-0309	●
72	NUT; BRKT WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) M8 FLANGE	0-91150-108-0	08	1	0310-0310	●
72	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0308-0309	●	●
72	NUT; BRKT M12 FLANGE	0-91150-212-0	02	1	0310-0310	●	●
72	NUT; BRKT WHEEL BASE 5900MM(59W) M8 FLANGE	0-91150-108-0	09	1	0308-0309		●
72	NUT; BRKT WHEEL BASE 5900MM(59W) M8 FLANGE	0-91150-108-0	11	1	0310-0310		●
72	NUT; BRKT WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) M8 FLANGE	0-91150-108-0	10	1	0308-0309		●
72	NUT; BRKT WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) M8 FLANGE	0-91150-108-0	12	1	0310-0310		●
163	BRACKET; FLEX HOSE	1-47479-767-0	01	1	0308-	●	●
181	NUT; TUBE UNION (B) M8 FLANGE	0-91150-108-0	02	1	0308-0308	●	●
181	NUT; TUBE UNION (C) M8 FLANGE	0-91150-108-0	02	1	0309-0602	●	●
181	NUT; TUBE UNION (C) M8 FLANGE	0-91150-108-0	02	1	0309-0602	●	●
181	NUT; TUBE UNION (C) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
181	NUT; TUBE UNION (C) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
181	NUT; TUBE UNION (A) M8 FLANGE	0-91150-208-0	02	1	0308-0308	●	●
182	BRACKET; TUBE CLIP (H) L=75	1-47478-323-0	01	1	0403-	●
182	BRACKET; TUBE CLIP (G)	1-47479-562-0	02	1	0310-0310	●	●
182	BRACKET; TUBE CLIP WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) (A)	1-47479-381-2	05	1	0308-0310	●
182	BRACKET; TUBE CLIP (B)	1-47479-329-0	01	1	0308-0310	●	●
182	BRACKET; TUBE CLIP (C)	1-47479-554-0	01	1	0308-0310	●	●
182	BRACKET; TUBE CLIP (D)	1-47479-719-0	01	1	0308-0308	●	●
182	BRACKET; TUBE CLIP (E)	1-47479-722-1	01	1	0308-0310	●	●
182	BRACKET; TUBE CLIP WHEEL BASE 5900MM(59W),WHEEL BASE 6100MM(61W), WHEEL BASE 6300MM(63W) (A)	1-47479-381-2	07	1	0308-0310		●
182	BRACKET; TUBE CLIP WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) (F)	1-47479-693-0	01	1	0308-0310		●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0308-	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0308-	●	●
192	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0308-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0308-	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0308-	●	●
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0308-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	0308-	●	●
192	TUBE; NYLON SERVICED BY L=6000 OD=6	1-87411-003-0	AR	1	0308-	●	●
222	BOLT; CONNECTOR M8X12 FLANGE	0-28080-812-0	02	1	0308-0401	●	●
222	BOLT; CONNECTOR M8X14 FLANGE	0-28080-814-0	02	1	0402-	●	●
226	BOLT; UNION M8X16 FLANGE	0-28080-816-0	03	1	0308-0310	●	●
226	BOLT; UNION M8X16 FLANGE	0-28080-816-0	01	1	0311-0512	●	●
226	BOLT; UNION M8X16 FLANGE	0-28050-816-0	01	1	0601-	●	●
226	BOLT; UNION M8X25 FLANGE	0-28080-825-0	02	1	0308-0309	●	●
226	BOLT; UNION M8X35 FLANGE	0-28080-835-0	02	1	0310-0512	●	●
226	BOLT; UNION M8X35 FLANGE	0-28050-835-0	02	1	0601-	●	●
226	BOLT; UNION M8X45 FLANGE	0-28080-845-0	04	1	0308-0512	●	●
226	BOLT; UNION M8X45 FLANGE	0-28050-845-0	04	1	0601-	●	●
226	BOLT; UNION M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	0308-	●	●
274	BOLT; BRKT (D) M8X20 FLANGE	0-28680-820-0	01	1	0403-0512	●
274	BOLT; BRKT (D) M8X20 FLANGE	0-28650-820-0	01	1	0601-	●
274	BOLT; BRKT WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) (C) M8X25 FLANGE	0-28680-825-0	02	1	0308-0310		●
274	BOLT; BRKT (B) M8X16 FLANGE	0-28080-816-0	01	1	0308-0512	●	●
274	BOLT; BRKT (B) M8X16 FLANGE	0-28050-816-0	01	1	0601-	●	●
274	BOLT; BRKT (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0308-	●	●
288	PLUG OD=12	1-09661-617-0	03	1	0308-	●	●

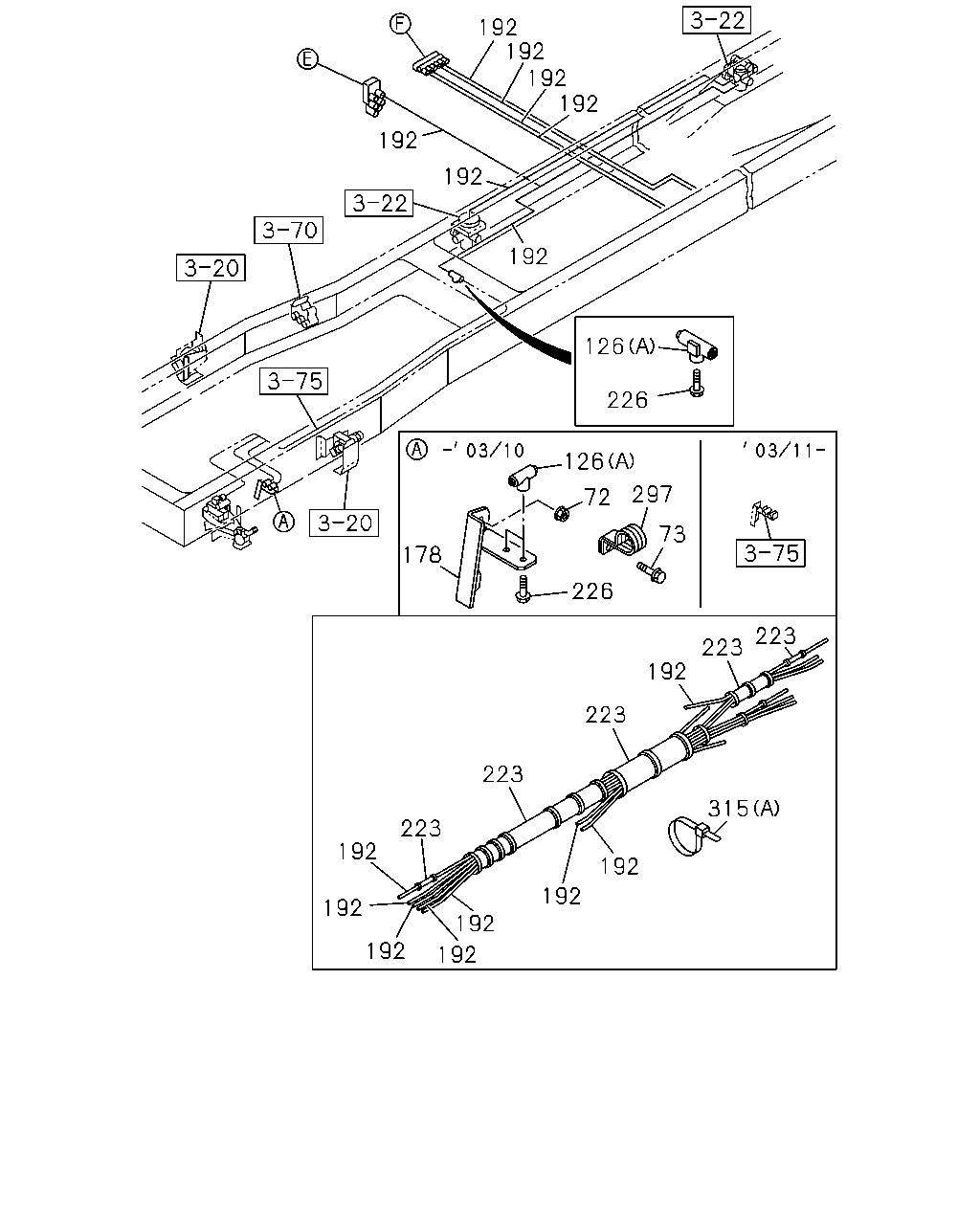

192 192 192 192 192 192 192 126 226 126 297 72 73 178 226 223 223 192 223 223 315 223 192 192 192 192 192 192 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
72	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0403-0602	●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-	●
72	NUT; BRKT WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) M8 FLANGE	0-91150-108-0	06	1	0308-0309	●
72	NUT; BRKT WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) M8 FLANGE	0-91150-108-0	08	1	0310-0310	●
72	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0308-0309	●	●
72	NUT; BRKT M12 FLANGE	0-91150-212-0	02	1	0310-0310	●	●
72	NUT; BRKT WHEEL BASE 5900MM(59W) M8 FLANGE	0-91150-108-0	09	1	0308-0309		●
72	NUT; BRKT WHEEL BASE 5900MM(59W) M8 FLANGE	0-91150-108-0	11	1	0310-0310		●
72	NUT; BRKT WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) M8 FLANGE	0-91150-108-0	10	1	0308-0309		●
72	NUT; BRKT WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) M8 FLANGE	0-91150-108-0	12	1	0310-0310		●
73	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	0403-0512	●
73	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0601-	●
73	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	02	1	0308-0310	●	●
126	UNION; NYLON TUBE (A) DIN8X2 & M8 2WAY	1-09661-133-0	03	1	0308-0310	●	●
126	UNION; NYLON TUBE (A) DIN8X2 & M8 2WAY	1-09661-133-0	01	1	0311-	●	●
126	UNION; NYLON TUBE (B)	1-09661-610-1	01	1	0308-	●	●
126	UNION; NYLON TUBE (C)	1-09661-612-1	01	1	0308-	●	●
178	BRACKET; UNION	1-47478-381-0	01	1	0308-0310	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0308-	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0308-	●	●
192	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0308-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0308-	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0308-	●	●
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0308-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	0308-	●	●
192	TUBE; NYLON SERVICED BY L=6000 OD=6	1-87411-003-0	AR	1	0308-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87411-016-0	AR	1	0308-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0308-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	0308-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87411-025-0	AR	1	0308-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87411-029-0	AR	1	0308-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87411-027-0	AR	1	0308-	●	●
226	BOLT; UNION M8X16 FLANGE	0-28080-816-0	03	1	0308-0310	●	●
226	BOLT; UNION M8X16 FLANGE	0-28080-816-0	01	1	0311-0512	●	●
226	BOLT; UNION M8X16 FLANGE	0-28050-816-0	01	1	0601-	●	●
226	BOLT; UNION M8X25 FLANGE	0-28080-825-0	02	1	0308-0309	●	●
226	BOLT; UNION M8X35 FLANGE	0-28080-835-0	02	1	0310-0512	●	●
226	BOLT; UNION M8X35 FLANGE	0-28050-835-0	02	1	0601-	●	●
226	BOLT; UNION M8X45 FLANGE	0-28080-845-0	04	1	0308-0512	●	●
226	BOLT; UNION M8X45 FLANGE	0-28050-845-0	04	1	0601-	●	●
226	BOLT; UNION M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	0308-	●	●
297	CLIP; BAND ID=25 H=30 L=35	1-09700-875-0	02	1	0308-0310	●	●
315	CLIP (B) ID=24 L=27	1-09700-809-0	01	1	0403-	●
315	CLIP WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) (A) L=350	1-09707-183-0	06	1	0308-0310	●
315	CLIP WHEEL BASE 5900MM(59W) (A) L=350	1-09707-183-0	09	1	0308-0310		●
315	CLIP WHEEL BASE 6100MM(61W),WHEEL BASE 6300MM(63W) (A) L=350	1-09707-183-0	10	1	0308-0310		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
