3-70 — BRAKE PIPING; AIR,AIR MASTER (#25922) — 274 parça

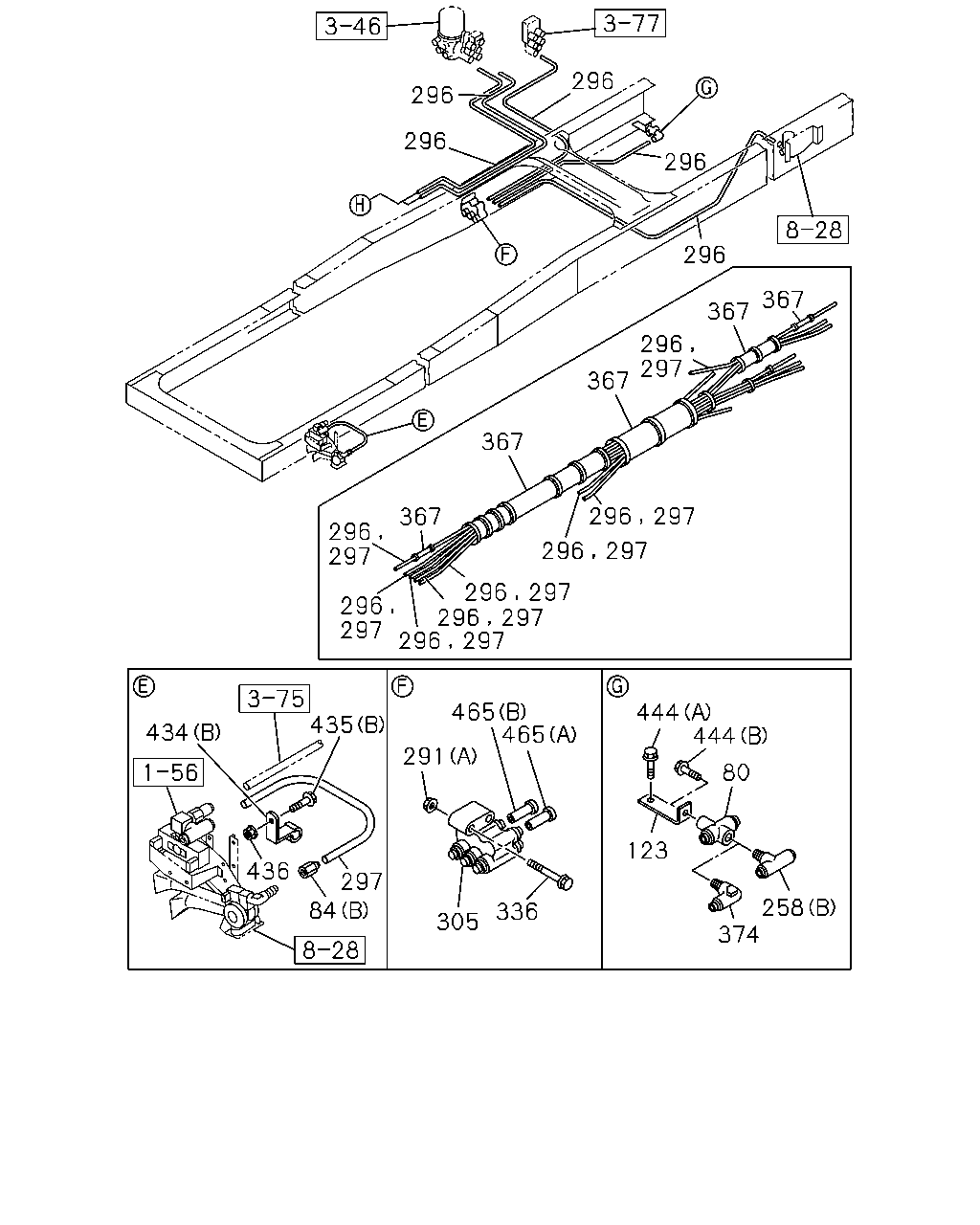

çizim 25418
296 296 296 296 296 367 367 296 297 367 367 367 296 297 296 297 435 465 465 444 444 434 291 80 123 436 297 84 258 374 336 305 296 297 296 297 296 297 296 297 296 297
BalonParca AdiParca NoAdetTipApplied Date A B
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0308-0402 ● ●
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0403- ●
84 UNION; NYLON TUBE
(E) PT1/4 2WAY 		1-09660-693-0 01 1 0512- ● ●
84 UNION; NYLON TUBE
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0403- ●
84 UNION; NYLON TUBE
(C) DIN12X2 & R3/8 3WAY 		1-09661-131-0 01 1 0403- ●
84 UNION; NYLON TUBE
(A) 		1-09661-092-0 01 1 0308- ● ●
84 UNION; NYLON TUBE
(B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0308- ● ●
123 BRACKET; UNION
L=50 		1-47475-663-1 01 1 0308-0402 ● ●
123 BRACKET; UNION
L=50 		1-47475-663-1 01 1 0403- ●
258 CONNECTOR; NYLON TUBE
(D) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0308- ● ●
258 CONNECTOR; NYLON TUBE
(E) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0308- ● ●
258 CONNECTOR; NYLON TUBE
(C) PT3/8 & PT3/8 		1-09661-303-0 01 1 0308- ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM HSA<SLD> (B) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0308-0402 ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM HSA<SLD> (B) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0403- ●
258 CONNECTOR; NYLON TUBE
DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0308- ● ●
291 NUT; UNION
(A) M8 FLANGE 		0-91150-108-0 02 1 0308-0602 ● ●
291 NUT; UNION
(A) M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
291 NUT; UNION
(B) M12 		9-09840-280-0 02 1 0308- ● ●
296 TUBE; NYLON
DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) L=1200 OD=6 		1-09366-256-1 01 1 0308- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0308- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0308- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0308- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0308- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0308- ● ●
297 TUBE; NYLON
SERVICED BY L=6000 OD=6 		1-87411-003-0 AR 1 0308- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0308- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0308- ● ●
305 UNION ASM; NYLON TUBE 1-09661-613-1 01 1 0308- ● ●
336 BOLT; PIPE UNION
M8X70 FLANGE 		0-28080-870-0 02 1 0308-0512 ● ●
336 BOLT; PIPE UNION
M8X70 FLANGE 		0-28050-870-0 02 1 0601- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 0308- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0308- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0308- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 		1-87411-025-0 AR 1 0308- ● ●
374 CONNECTOR
EXC. BRAKE SYSTEM HSA<SLD> DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0308-0402 ● ●
374 CONNECTOR
EXC. BRAKE SYSTEM HSA<SLD> DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0403- ●
434 CLIP
(C) ID=21 L=30 H=40 		1-09700-991-1 01 1 0403- ●
434 CLIP
(B) ID=6 H=20 L=20 		1-09700-603-0 01 1 0308- ● ●
434 CLIP
(A) ID=17 		8-94449-734-1 01 1 0308- ● ●
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28680-820-0 01 1 0308-0402 ● ●
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28680-820-0 01 1 0308-0402 ● ●
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28680-820-0 01 1 0403-0512 ● ●
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28680-820-0 01 1 0403-0512 ● ●
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28680-820-0 01 1 0403-0512 ●
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ● ●
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ● ●
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
435 BOLT; CLIP
(A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0308- ● ●
436 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0308-0402 ● ●
436 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0308-0402 ● ●
436 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0403-0602 ● ●
436 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0403-0602 ● ●
436 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0403-0602 ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603- ●
444 BOLT; UNION
(C) M8X16 FLANGE 		0-28080-816-0 01 1 0403-0512 ●
444 BOLT; UNION
(C) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ●
444 BOLT; UNION
(B) M8X12 FLANGE 		0-28080-812-0 01 1 0308-0402 ● ●
444 BOLT; UNION
(B) M8X12 FLANGE 		0-28080-812-0 01 1 0403-0512 ●
444 BOLT; UNION
(B) M8X12 FLANGE 		0-28050-812-0 01 1 0601- ●
444 BOLT; UNION
(A) M8X25 FLANGE 		0-28680-825-0 01 1 0308-0402 ● ●
444 BOLT; UNION
(A) M8X25 FLANGE 		0-28680-825-0 01 1 0403-0512 ●
444 BOLT; UNION
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0601- ●
465 PLUG
(A) OD=6 L=27 		1-09661-615-0 01 1 0308- ● ●
465 PLUG
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) OD=6 L=27 		1-09661-615-0 01 1 0308- ● ●
465 PLUG
(B) OD=8 		1-09661-616-0 02 1 0308- ● ●

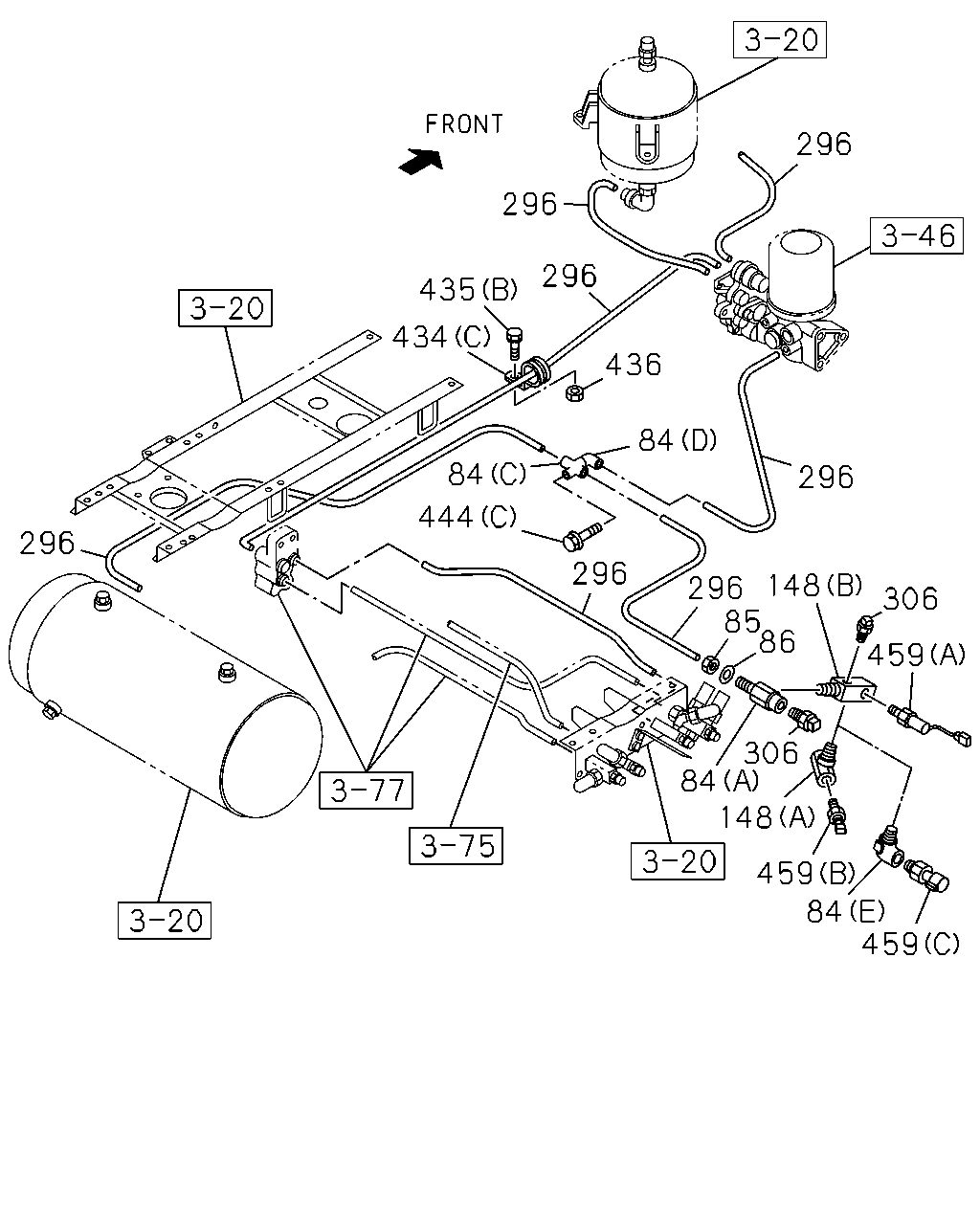

çizim 79987
296 296 296 435 434 436 84 84 296 444 296 296 85 86 306 459 306 84 148 459 84 459 296 148
BalonParca AdiParca NoAdetTipApplied Date A B
84 UNION; NYLON TUBE
(E) PT1/4 2WAY 		1-09660-693-0 01 1 0512- ● ●
84 UNION; NYLON TUBE
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0403- ●
84 UNION; NYLON TUBE
(C) DIN12X2 & R3/8 3WAY 		1-09661-131-0 01 1 0403- ●
84 UNION; NYLON TUBE
(A) 		1-09661-092-0 01 1 0308- ● ●
84 UNION; NYLON TUBE
(B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0308- ● ●
85 NUT; UNION
M18 		9-99110-518-0 01 1 0308-0512 ● ●
85 NUT; UNION
M18 		0-91110-518-0 01 1 0601- ● ●
86 WASHER; LK,TUBE UNION
ID=18.2 		9-09150-518-0 01 1 0308-0603 ● ●
86 WASHER; LK,TUBE UNION
ID=18.2 		0-91510-518-0 01 1 0604- ● ●
148 CONNECTOR; UNION
(A) 		1-09660-012-0 01 1 0308-0511 ● ●
148 CONNECTOR; UNION
(B) PT1/4 4WAY 		1-09660-358-0 01 1 0308- ● ●
296 TUBE; NYLON
DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) L=1200 OD=6 		1-09366-256-1 01 1 0308- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0308- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0308- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0308- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0308- ● ●
306 PLUG; NYLON TUBE
PT1/4 		9-99204-513-0 02 1 0308- ● ●
434 CLIP
(C) ID=21 L=30 H=40 		1-09700-991-1 01 1 0403- ●
434 CLIP
(B) ID=6 H=20 L=20 		1-09700-603-0 01 1 0308- ● ●
434 CLIP
(A) ID=17 		8-94449-734-1 01 1 0308- ● ●
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28680-820-0 01 1 0308-0402 ● ●
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28680-820-0 01 1 0308-0402 ● ●
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28680-820-0 01 1 0403-0512 ● ●
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28680-820-0 01 1 0403-0512 ● ●
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28680-820-0 01 1 0403-0512 ●
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ● ●
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ● ●
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
435 BOLT; CLIP
(A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0308- ● ●
436 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0308-0402 ● ●
436 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0308-0402 ● ●
436 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0403-0602 ● ●
436 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0403-0602 ● ●
436 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0403-0602 ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603- ●
444 BOLT; UNION
(C) M8X16 FLANGE 		0-28080-816-0 01 1 0403-0512 ●
444 BOLT; UNION
(C) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ●
444 BOLT; UNION
(B) M8X12 FLANGE 		0-28080-812-0 01 1 0308-0402 ● ●
444 BOLT; UNION
(B) M8X12 FLANGE 		0-28080-812-0 01 1 0403-0512 ●
444 BOLT; UNION
(B) M8X12 FLANGE 		0-28050-812-0 01 1 0601- ●
444 BOLT; UNION
(A) M8X25 FLANGE 		0-28680-825-0 01 1 0308-0402 ● ●
444 BOLT; UNION
(A) M8X25 FLANGE 		0-28680-825-0 01 1 0403-0512 ●
444 BOLT; UNION
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0601- ●
459 SWITCH; PRESS
(A) 		1-48340-066-0 01 1 0308- ● ●
459 SWITCH; PRESS
(B) 		1-80220-015-0 01 1 0308-0511 ● ●
459 SWITCH; PRESS
(C) THREAD R1/4 		1-80220-023-1 01 1 0512- ● ●

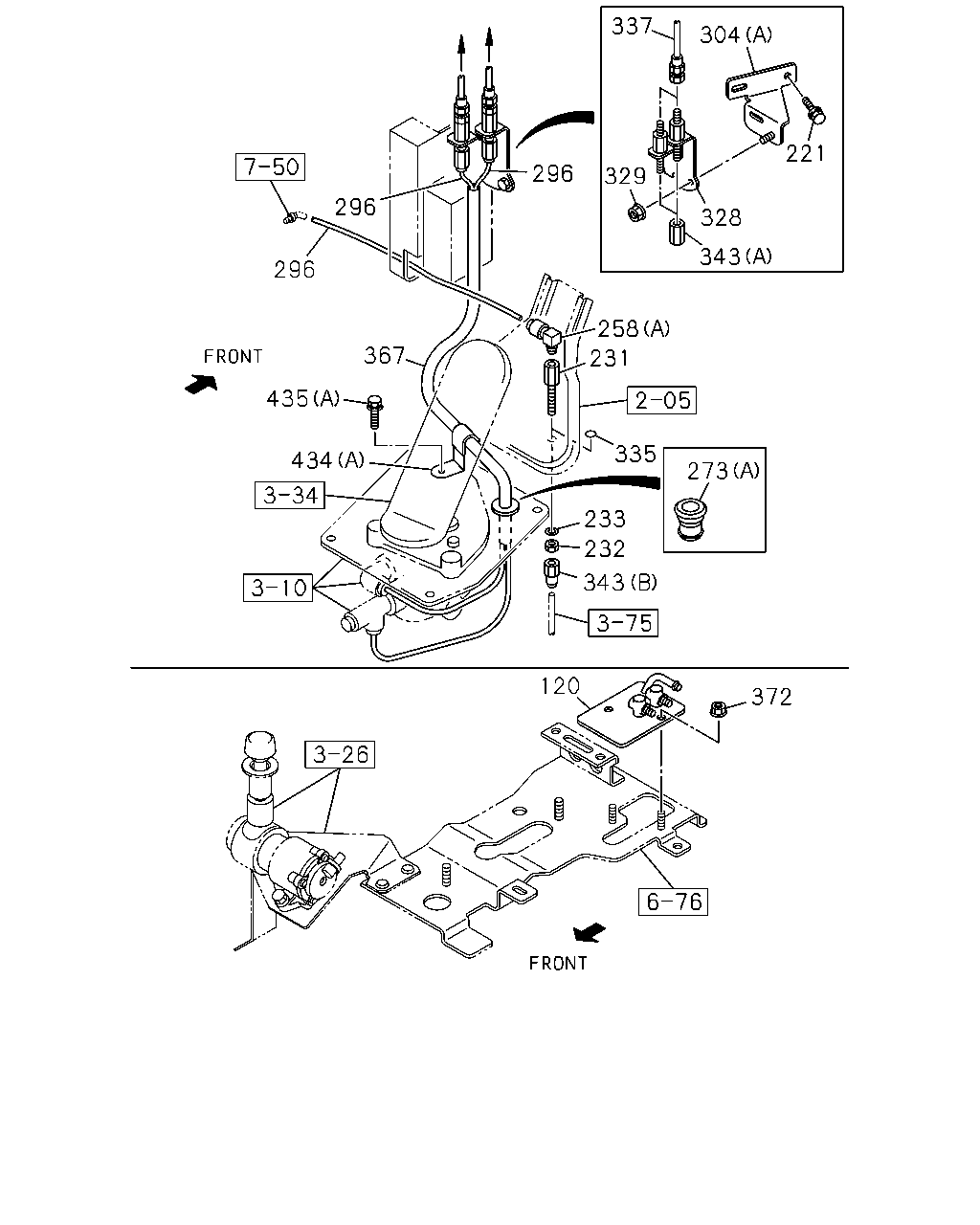

çizim 80107
337 304 221 296 329 296 328 343 296 258 367 231 435 335 434 273 233 232 343 120 372
BalonParca AdiParca NoAdetTipApplied Date A B
120 CONNECTOR; AIR PIPE 1-47470-492-1 01 1 0308- ● ●
221 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0308- ● ●
231 UNION; AIR PIPE
DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09656-713-2 01 1 0308- ● ●
232 NUT; UNION,AIR PIPE
DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10 H=8 		1-09400-029-0 01 1 0308- ● ●
233 WASHER; LK,UNION,AIR PIPE
DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2 		9-09150-510-0 01 1 0308-0603 ● ●
233 WASHER; LK,UNION,AIR PIPE
DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2 		0-91510-510-0 01 1 0604- ● ●
258 CONNECTOR; NYLON TUBE
(D) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0308- ● ●
258 CONNECTOR; NYLON TUBE
(E) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0308- ● ●
258 CONNECTOR; NYLON TUBE
(C) PT3/8 & PT3/8 		1-09661-303-0 01 1 0308- ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM HSA<SLD> (B) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0308-0402 ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM HSA<SLD> (B) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0403- ●
258 CONNECTOR; NYLON TUBE
DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0308- ● ●
273 GROMMET
(A) 		1-09332-135-0 01 1 0308- ● ●
273 GROMMET
(B) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0308- ● ●
296 TUBE; NYLON
DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) L=1200 OD=6 		1-09366-256-1 01 1 0308- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0308- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0308- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0308- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0308- ● ●
304 BRACKET; UNION
(C) 		1-47478-359-0 01 1 0308- ● ●
304 BRACKET; UNION
(B) 		1-47479-636-1 01 1 0308-0507 ● ●
304 BRACKET; UNION
(D) 		8-97610-319-1 01 1 0508- ● ●
304 BRACKET; UNION
(A) 		1-71117-211-0 01 1 0308- ● ●
328 UNION; AIR PIPE 1-47470-442-0 01 1 0308- ● ●
329 NUT; UNION,AIR PIPE
M6 FLANGE 		0-91150-106-0 01 1 0308-0602 ● ●
329 NUT; UNION,AIR PIPE
M6 FLANGE 		0-91180-106-0 01 1 0603- ● ●
335 SEAL; UNION
EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVERLEVEL AUTOMATIC W/ARM REST(SLL) OD=30 BLACK 		1-76798-035-0 01 1 0308- ● ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=520 		0-07210-520-0 02 1 0308-0605 ● ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=520 		0-57210-520-0 02 1 0606- ● ●
343 UNION; NYLON TUBE
DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-09661-382-0 01 1 0308-0308 ●
343 UNION; NYLON TUBE
DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-09661-382-0 01 1 0309- ● ●
343 UNION; NYLON TUBE
(A) 		1-09660-796-1 02 1 0308- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 0308- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0308- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0308- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 		1-87411-025-0 AR 1 0308- ● ●
372 NUT
M8 FLANGE 		0-91150-108-0 02 1 0308-0602 ● ●
372 NUT
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
434 CLIP
(C) ID=21 L=30 H=40 		1-09700-991-1 01 1 0403- ●
434 CLIP
(B) ID=6 H=20 L=20 		1-09700-603-0 01 1 0308- ● ●
434 CLIP
(A) ID=17 		8-94449-734-1 01 1 0308- ● ●
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28680-820-0 01 1 0308-0402 ● ●
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28680-820-0 01 1 0308-0402 ● ●
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28680-820-0 01 1 0403-0512 ● ●
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28680-820-0 01 1 0403-0512 ● ●
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28680-820-0 01 1 0403-0512 ●
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ● ●
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ● ●
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
435 BOLT; CLIP
(A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0308- ● ●

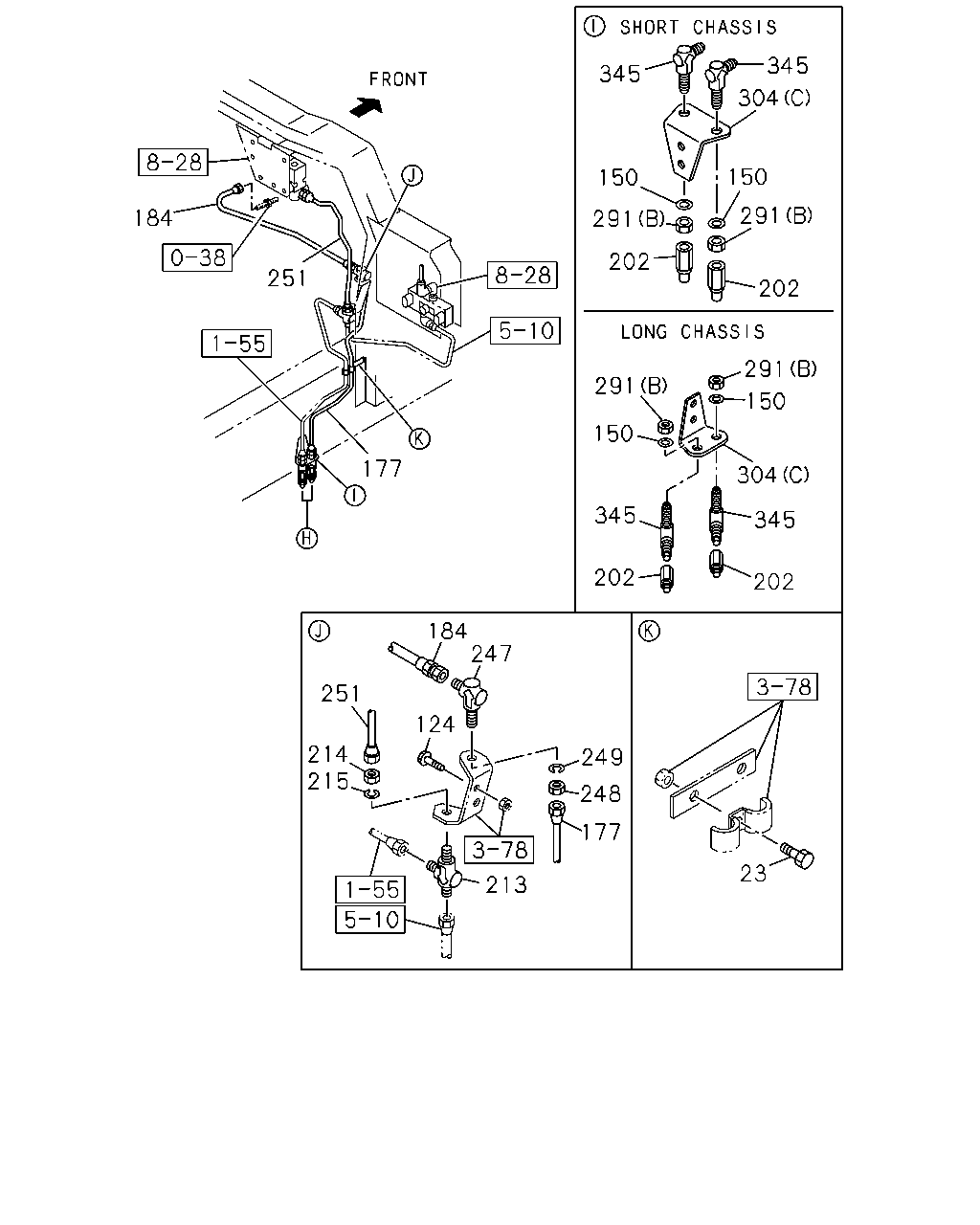

çizim 82067
345 345 304 150 150 291 184 291 202 251 202 291 291 150 150 304 177 345 345 202 202 184 247 251 124 214 215 249 248 177 23 213
BalonParca AdiParca NoAdetTipApplied Date A B
23 BOLT; BRKT,AIR PIPE
M8X25 FLANGE 		0-28680-825-0 01 1 0403-0512 ●
23 BOLT; BRKT,AIR PIPE
M8X25 FLANGE 		0-28650-825-0 01 1 0601- ●
23 BOLT; BRKT,AIR PIPE
M8X20 FLANGE 		0-28680-820-0 01 1 0308-0512 ● ●
23 BOLT; BRKT,AIR PIPE
M8X20 FLANGE 		0-28650-820-0 01 1 0601- ● ●
124 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 03 1 0308-0512 ●
124 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 03 1 0601- ●
124 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 02 1 0308-0512 ●
124 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0601- ●
150 WASHER; LK,UNION
ID=12.2 		9-09150-512-0 02 1 0308-0603 ● ●
150 WASHER; LK,UNION
ID=12.2 		0-91510-512-0 02 1 0604- ● ●
177 PIPE; AIR,UNION TO UNION
L=664 SERVICED BY L=700 		1-47428-811-0 01 1 0308- ●
177 PIPE; AIR,UNION TO UNION
L=722 SERVICED BY L=800 		1-47428-812-0 01 1 0308-0402 ●
177 PIPE; AIR,UNION TO UNION
L=811 SERVICED BY L=900 		1-47428-813-0 01 1 0403- ●
184 HOSE; FLEX,AIR GOV
L=780 		1-09363-620-0 01 1 0308- ● ●
202 ADAPTER
DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 0308- ● ●
213 UNION; AIR PIPE
M12 3WAY 		9-09228-906-1 01 1 0308-0607 ● ●
213 UNION; AIR PIPE
M12 3WAY 		0-92138-906-0 01 1 0608- ● ●
214 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 0308- ● ●
215 WASHER; LK,UNION,AIR PIPE
ID=12.2 		9-09150-512-0 01 1 0308-0603 ● ●
215 WASHER; LK,UNION,AIR PIPE
ID=12.2 		0-91510-512-0 01 1 0604- ● ●
247 UNION; AIR PIPE
M12 ELBOW 		9-09225-206-1 01 1 0308-0607 ● ●
247 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 01 1 0608- ● ●
248 NUT; PIPE UNION
M12 		9-09840-280-0 01 1 0308- ● ●
249 WASHER; LK,PIPE UNION
ID=12.2 		9-09150-512-0 01 1 0308-0603 ● ●
249 WASHER; LK,PIPE UNION
ID=12.2 		0-91510-512-0 01 1 0604- ● ●
251 PIPE; AIR,UNION TO MAG VLV 1-49121-779-0 01 1 0308- ● ●
291 NUT; UNION
(A) M8 FLANGE 		0-91150-108-0 02 1 0308-0602 ● ●
291 NUT; UNION
(A) M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
291 NUT; UNION
(B) M12 		9-09840-280-0 02 1 0308- ● ●
304 BRACKET; UNION
(C) 		1-47478-359-0 01 1 0308- ● ●
304 BRACKET; UNION
(B) 		1-47479-636-1 01 1 0308-0507 ● ●
304 BRACKET; UNION
(D) 		8-97610-319-1 01 1 0508- ● ●
304 BRACKET; UNION
(A) 		1-71117-211-0 01 1 0308- ● ●
345 UNION; AIR PIPE
M12 ELBOW 		9-09225-206-1 02 1 0308-0607 ● ●
345 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 02 1 0608- ● ●

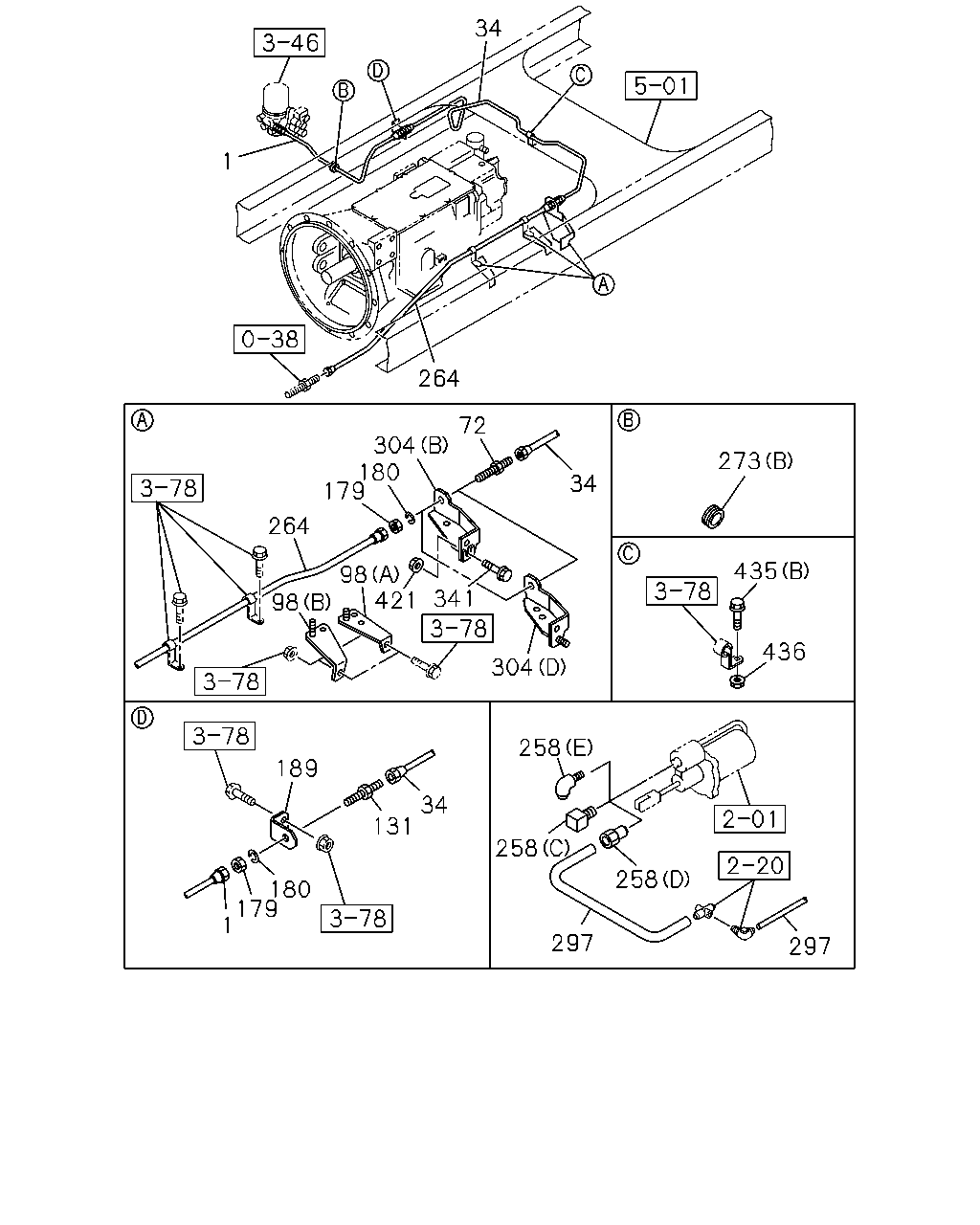

çizim 84583
34 1 264 72 304 180 179 273 34 264 435 98 98 421 341 436 304 258 189 34 131 258 258 180 179 1 297 297
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK 1-09363-915-0 01 1 0308-0407 ●
1 HOSE; FLEX,AIR TANK
L=1350 		1-09363-925-0 01 1 0408- ●
1 HOSE; FLEX,AIR TANK
L=660 		1-09363-766-0 01 1 0308- ●
34 PIPE; AIR
L=1138 		1-49123-913-0 01 1 0308- ● ●
72 UNION; AIR PIPE 1-48320-042-1 01 1 0308-0410 ● ●
72 UNION; AIR PIPE 1-48320-057-0 01 1 0411- ● ●
98 BRACKET; AIR PIPE
(B) 		1-47479-639-0 01 1 0308- ● ●
98 BRACKET; AIR PIPE
(A) 		1-47479-723-0 01 1 0308- ● ●
131 UNION; AIR PIPE
M22 		9-09233-315-1 01 1 0308-0607 ● ●
131 UNION; AIR PIPE
M22 		0-92123-315-0 01 1 0608- ● ●
179 NUT; UNION
M22 		9-09111-422-0 02 1 0308-0512 ● ●
179 NUT; UNION
M22 		0-91111-522-0 02 1 0601- ● ●
180 WASHER; LK,UNION
ID=22.5 		9-09150-522-0 02 1 0308-0603 ● ●
180 WASHER; LK,UNION
ID=22.5 		0-91510-522-0 02 1 0604- ● ●
189 BRACKET; FLEX HOSE 1-47479-473-0 01 1 0308- ● ●
258 CONNECTOR; NYLON TUBE
(D) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0308- ● ●
258 CONNECTOR; NYLON TUBE
(E) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0308- ● ●
258 CONNECTOR; NYLON TUBE
(C) PT3/8 & PT3/8 		1-09661-303-0 01 1 0308- ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM HSA<SLD> (B) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0308-0402 ● ●
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM HSA<SLD> (B) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0403- ●
258 CONNECTOR; NYLON TUBE
DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0308- ● ●
264 HOSE; FLEX
L=1000 		1-09363-794-0 01 1 0308- ● ●
273 GROMMET
(A) 		1-09332-135-0 01 1 0308- ● ●
273 GROMMET
(B) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0308- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0308- ● ●
297 TUBE; NYLON
SERVICED BY L=6000 OD=6 		1-87411-003-0 AR 1 0308- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0308- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0308- ● ●
304 BRACKET; UNION
(C) 		1-47478-359-0 01 1 0308- ● ●
304 BRACKET; UNION
(B) 		1-47479-636-1 01 1 0308-0507 ● ●
304 BRACKET; UNION
(D) 		8-97610-319-1 01 1 0508- ● ●
304 BRACKET; UNION
(A) 		1-71117-211-0 01 1 0308- ● ●
341 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0308-0507 ● ●
341 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 01 1 0508-0512 ● ●
341 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ●
421 NUT; BRKT
M10 FLANGE 		0-91150-110-0 02 1 0308-0602 ● ●
421 NUT; BRKT
M10 FLANGE 		0-91180-110-0 02 1 0603- ● ●
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28680-820-0 01 1 0308-0402 ● ●
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28680-820-0 01 1 0308-0402 ● ●
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28680-820-0 01 1 0403-0512 ● ●
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28680-820-0 01 1 0403-0512 ● ●
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28680-820-0 01 1 0403-0512 ●
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ● ●
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ● ●
435 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
435 BOLT; CLIP
(A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0308- ● ●
436 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0308-0402 ● ●
436 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0308-0402 ● ●
436 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0403-0602 ● ●
436 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0403-0602 ● ●
436 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0403-0602 ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603- ●

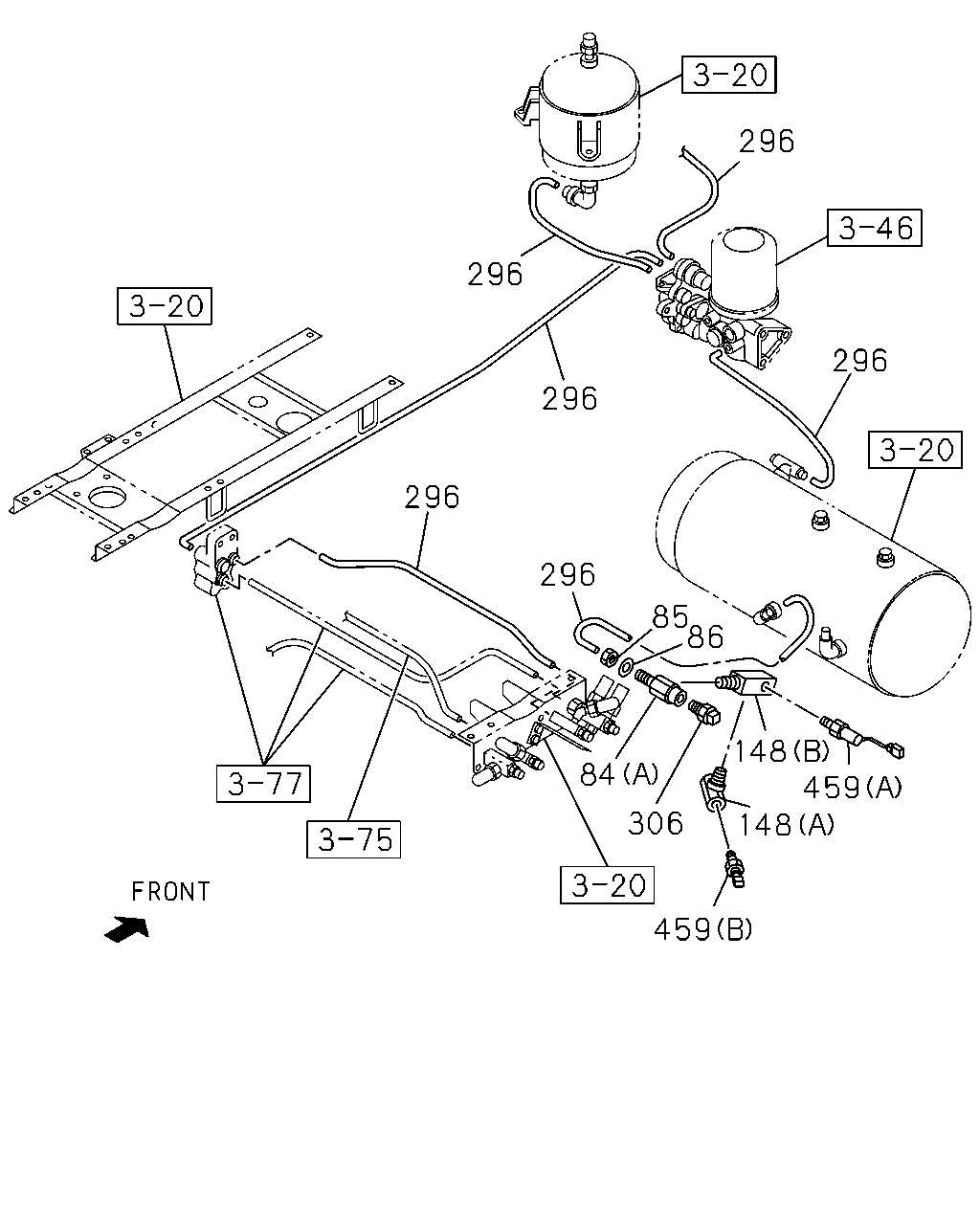

çizim 84794
296 296 296 296 296 296 85 86 148 459 148 84 306 459
BalonParca AdiParca NoAdetTipApplied Date A B
84 UNION; NYLON TUBE
(E) PT1/4 2WAY 		1-09660-693-0 01 1 0512- ● ●
84 UNION; NYLON TUBE
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0403- ●
84 UNION; NYLON TUBE
(C) DIN12X2 & R3/8 3WAY 		1-09661-131-0 01 1 0403- ●
84 UNION; NYLON TUBE
(A) 		1-09661-092-0 01 1 0308- ● ●
84 UNION; NYLON TUBE
(B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0308- ● ●
85 NUT; UNION
M18 		9-99110-518-0 01 1 0308-0512 ● ●
85 NUT; UNION
M18 		0-91110-518-0 01 1 0601- ● ●
86 WASHER; LK,TUBE UNION
ID=18.2 		9-09150-518-0 01 1 0308-0603 ● ●
86 WASHER; LK,TUBE UNION
ID=18.2 		0-91510-518-0 01 1 0604- ● ●
148 CONNECTOR; UNION
(A) 		1-09660-012-0 01 1 0308-0511 ● ●
148 CONNECTOR; UNION
(B) PT1/4 4WAY 		1-09660-358-0 01 1 0308- ● ●
296 TUBE; NYLON
DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) L=1200 OD=6 		1-09366-256-1 01 1 0308- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0308- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0308- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0308- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0308- ● ●
306 PLUG; NYLON TUBE
PT1/4 		9-99204-513-0 02 1 0308- ● ●
459 SWITCH; PRESS
(A) 		1-48340-066-0 01 1 0308- ● ●
459 SWITCH; PRESS
(B) 		1-80220-015-0 01 1 0308-0511 ● ●
459 SWITCH; PRESS
(C) THREAD R1/4 		1-80220-023-1 01 1 0512- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
