0-25A — INLET MANIFOLD (#2592) — 158 parça

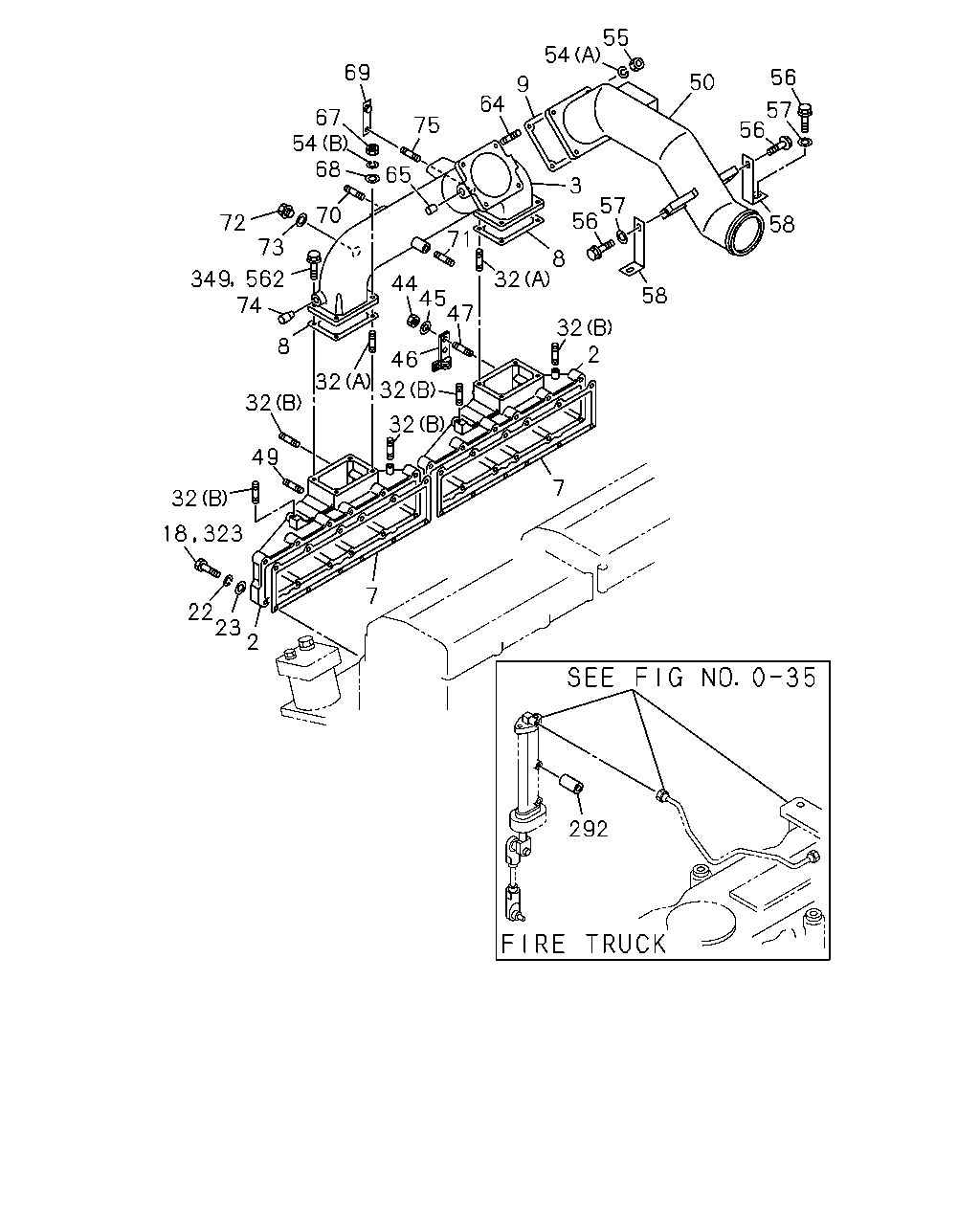

56 57 56 58 50 55 54 9 64 3 57 56 58 8 32 32 2 75 69 67 54 68 65 70 72 73 349 562 74 8 71 44 45 47 46 32 32 32 7 32 49 32 18 323 22 23 2 7 292

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	COVER; INL REAR	1-14110-225-0	01	1	9002-	●	●	●
2	COVER; INL FRONT	1-14110-303-0	01	1	9002-		●	●
2	COVER; INL AIR COMPRESSOR HEAVY DUTY(E1Q) FRONT	1-14110-303-0	01	1	9002-	●
2	COVER; INL EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) FRONT	1-14110-225-0	01	1	9002-	●
3	DUCT; INT	1-14114-583-3	01	1	9002-		●	●
3	DUCT; INT SHORT CHASSIS(CXZ5MC)	1-14114-672-2	01	1	9002-	●
3	DUCT; INT LONG CHASSIS(CXZ5MF) EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>	1-14114-672-2	01	1	9002-	●
3	DUCT; INT LONG CHASSIS(CXZ5MF) ENGINE OIL TEMPERATURE GAUGE<UG3>	1-14114-677-2	01	1	9002-	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14115-031-0	02	1	9002-9602	●	●	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14115-082-0	02	1	9603-	●		●
8	GASKET; INT DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14117-041-0	02	1	9002-	●	●	●
9	GASKET; DUCT ALSO INCLUDED IN GASKET SET(ENGINE).	1-14317-031-0	01	1	9002-	●	●	●
18	SCREW; PLATE,INL CVR M8X50	9-01065-850-0	12	1	9002-9306	●	●	●
18	SCREW; PLATE,INL CVR M8X102 L=116	9-09801-273-0	04	1	9002-9306	●	●	●
18	SCREW; PLATE,INL CVR M8X140	9-09801-276-0	08	1	9002-9306	●	●	●
22	WASHER; LK,INL MANIF ID=8.2	9-09150-508-0	24	1	9002-	●	●	●
23	WASHER; PL,INL MANIF ID=8.4 OD=18	9-09164-608-0	22	1	9002-	●	●	●
32	STUD; INL PIPE (A) M8X71 L=83	9-09830-212-0	02	1	9002-		●	●
32	STUD; INL PIPE (B) M5X25 L=35	9-94010-525-0	04	1	9002-		●	●
32	STUD; INL PIPE (A) M8X30 L=41	9-04110-830-0	02	1	9002-	●
32	STUD; INL PIPE (A) M8X30 L=41	9-04110-830-0	04	1	9002-	●
32	STUD; INL PIPE (B) M5X25 L=35	9-94010-525-0	02	1	9002-	●
44	NUT; PIPE BRKT M10	9-09110-410-0	02	1	9002-	●	●	●
45	WASHER; LK,PIPE BRKT ID=10.2	9-09150-510-0	02	1	9002-	●	●	●
46	BRACKET; P/S PIPE	1-11369-119-0	01	1	9002-	●	●	●
47	STUD; BRKT,POWER STEERING M10X18 L=33	9-04411-018-0	02	1	9002-	●	●	●
49	STUD; CABLE M10X22 L=37	9-04411-022-0	04	1	9002-		●	●
49	STUD; CABLE AIR COMPRESSOR HEAVY DUTY(E1Q) M10X22 L=37	9-04411-022-0	04	1	9002-	●
49	STUD; CABLE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M10X16 L=31	9-04411-016-0	06	1	9002-	●
50	PIPE; INL	1-14112-044-1	01	1	9002-9101		●
50	PIPE; INL	1-14112-044-1	01	1	9102-9106		●	●
50	PIPE; INL	1-14112-044-1	01	1	9107-9306		●
50	PIPE; INL	1-14111-938-2	01	1	9002-	●
50	PIPE; INL	1-14112-200-0	01	1	9002-9101			●
50	PIPE; INL	1-14112-200-0	01	1	9107-			●
54	WASHER; LK,INL PIPE (A) ID=10.2	9-09150-510-0	04	1	9004-9306	●	●
54	WASHER; LK,INL PIPE (A) ID=10.2	9-09150-510-0	06	1	9002-9003		●	●
54	WASHER; LK,INL PIPE (A) ID=10.2	9-09150-510-0	05	1	9004-9306		●	●
54	WASHER; LK,INL PIPE (B) ID=8.2	9-09150-508-0	06	1	9002-	●
54	WASHER; LK,INL PIPE (A) ID=10.2	9-09150-510-0	04	1	9002-	●
54	WASHER; LK,INL PIPE (A) ID=10.2	9-09150-510-0	01	1	9004-9306			●
54	WASHER; LK,INL PIPE (A) ID=10.2	9-09150-510-0	06	1	9307-			●
55	NUT; INL PIPE M10	9-09110-410-0	04	1	9002-	●	●	●
56	BOLT; STAY AIR DUCT M10X20 W/LK WASHER	9-01911-020-0	04	1	9002-9002	●
56	BOLT; STAY AIR DUCT M10X20 W/LK WASHER	0-50041-020-0	04	1	9003-	●
57	WASHER; PL ID=10.5 OD=26	9-09160-710-0	04	1	9002-	●
58	STAY; INL MANIF	1-14119-200-0	02	1	9002-	●
64	STUD; INL PIPE M10X20 L=35	9-04411-020-0	04	1	9002-		●	●
64	STUD; INL PIPE M10X25 L=40	9-04411-025-0	04	1	9002-	●
65	BUSHING; SHAFT	1-14319-096-0	02	1	9002-		●	●
65	BUSHING; SHAFT SHORT CHASSIS(CXZ5MC)	1-14319-065-0	02	1	9002-	●
65	BUSHING; SHAFT LONG CHASSIS(CXZ5MF) EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>	1-14319-065-0	02	1	9002-	●
67	NUT; INL DUCT M8	9-09110-408-0	06	1	9002-	●
68	WASHER; PL,INL DUCT ID=8.4	9-09160-508-0	06	1	9002-	●
68	WASHER; PL,INL DUCT ID=10.5 OD=18	9-09160-510-0	01	1	9002-			●
69	BRACKET; AIR PIPE	1-19199-074-0	01	1	9002-	●		●
70	STUD; WATER PIPE M10X16 L=31	9-04411-016-0	04	1	9002-	●
71	STUD; FUEL PIPE M6X16 L=25	9-04110-616-0	02	1	9002-	●	●	●
72	PLUG; HTR BOSS M22X12	1-09604-035-0	02	1	9002-9306	●	●	●
72	PLUG; HTR BOSS EXC. INTAKE HEATER<SL2> M22X12	1-09604-035-0	02	1	9307-	●		●
73	GASKET; PLUG,AIR DUCT ID=22.5	9-09571-422-0	02	1	9002-	●	●	●
74	PIPE; AIR SUCTION	9-14119-228-1	01	1	9002-	●
75	STUD; BRKT,AIR PIPE M6X25 L=34	9-04110-625-0	01	1	9002-	●	●	●
292	SPACER; CONT CYL LONG CHASSIS(CXZ5MF) ENGINE OIL TEMPERATURE GAUGE<UG3>	1-23339-006-0	02	1	9002-	●
323	BOLT; DUCT M8X50	9-01065-850-0	12	1	9307-	●		●
323	BOLT; DUCT M8X102 L=116	9-09801-273-0	04	1	9307-	●		●
323	BOLT; DUCT M8X140	9-09801-276-0	08	1	9307-	●		●
349	BOLT; BRKT,INL PIPE (A) M8X85	9-01055-885-0	02	1	9002-9005		●	●
349	BOLT; BRKT,INL PIPE (A) M8X85	0-10805-885-0	02	1	9006-		●	●
349	BOLT; BRKT,INL PIPE (B) M8X180	9-09801-272-0	04	1	9002-		●	●
349	BOLT; BRKT,INL PIPE M8X35 W/LK WASHER	9-01910-835-0	02	1	9002-9005	●
349	BOLT; BRKT,INL PIPE M8X35 W/LK WASHER	0-50040-835-0	02	1	9006-	●
562	BOLT; INL DUCT M8X35 W/LK WASHER	0-50040-835-0	02	1	9405-	●

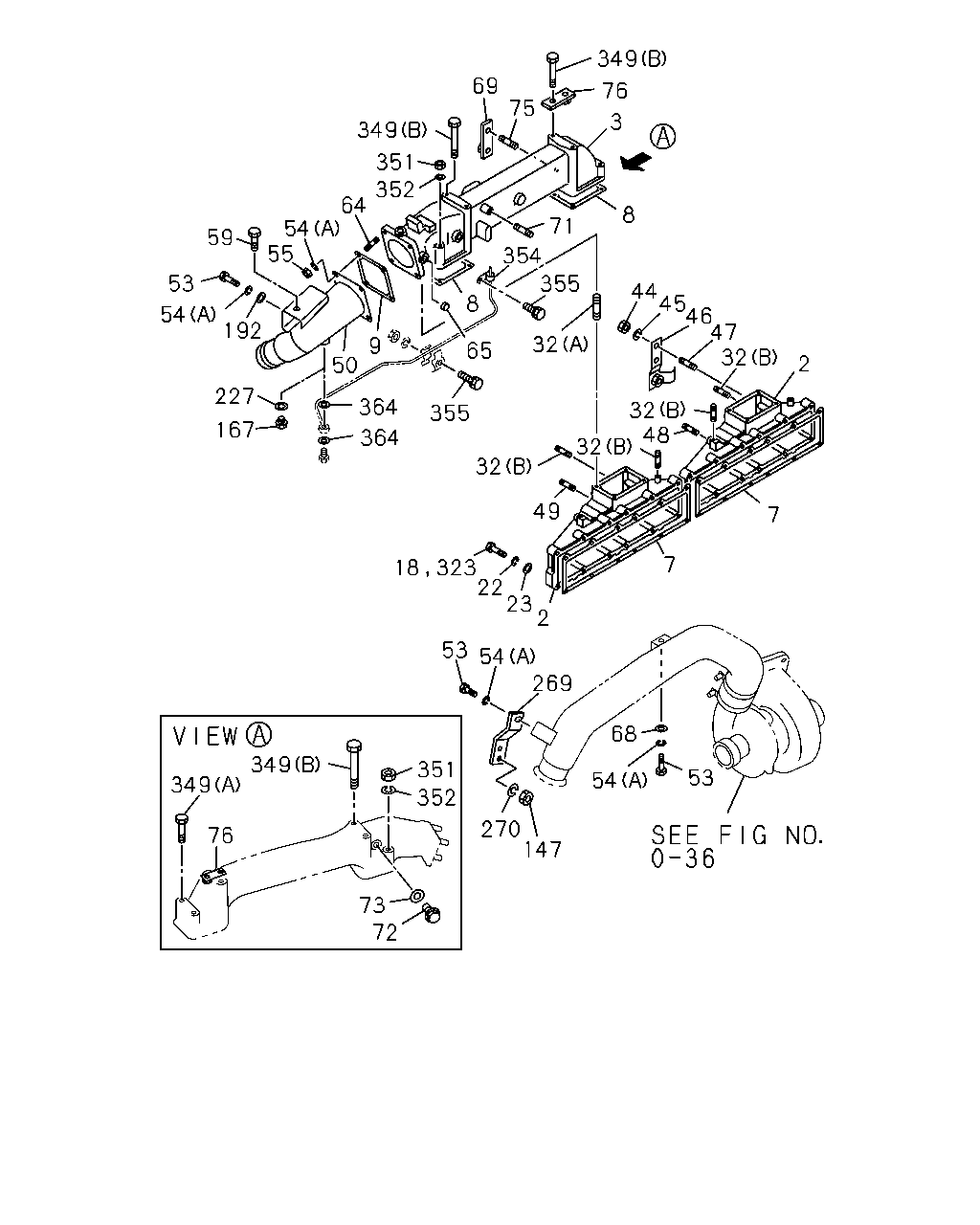

349 76 3 8 75 69 349 351 352 71 354 355 64 54 55 59 53 54 192 227 167 50 9 364 364 355 8 65 32 44 45 46 47 32 2 32 48 32 32 49 7 7 2 23 22 18 32 53 54 269 68 54 53 270 147 351 352 349 349 76 73 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	COVER; INL REAR	1-14110-225-0	01	1	9002-	●	●	●
2	COVER; INL FRONT	1-14110-303-0	01	1	9002-		●	●
2	COVER; INL AIR COMPRESSOR HEAVY DUTY(E1Q) FRONT	1-14110-303-0	01	1	9002-	●
2	COVER; INL EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) FRONT	1-14110-225-0	01	1	9002-	●
3	DUCT; INT	1-14114-583-3	01	1	9002-		●	●
3	DUCT; INT SHORT CHASSIS(CXZ5MC)	1-14114-672-2	01	1	9002-	●
3	DUCT; INT LONG CHASSIS(CXZ5MF) EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>	1-14114-672-2	01	1	9002-	●
3	DUCT; INT LONG CHASSIS(CXZ5MF) ENGINE OIL TEMPERATURE GAUGE<UG3>	1-14114-677-2	01	1	9002-	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14115-031-0	02	1	9002-9602	●	●	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14115-082-0	02	1	9603-	●		●
8	GASKET; INT DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14117-041-0	02	1	9002-	●	●	●
9	GASKET; DUCT ALSO INCLUDED IN GASKET SET(ENGINE).	1-14317-031-0	01	1	9002-	●	●	●
18	SCREW; PLATE,INL CVR M8X50	9-01065-850-0	12	1	9002-9306	●	●	●
18	SCREW; PLATE,INL CVR M8X102 L=116	9-09801-273-0	04	1	9002-9306	●	●	●
18	SCREW; PLATE,INL CVR M8X140	9-09801-276-0	08	1	9002-9306	●	●	●
22	WASHER; LK,INL MANIF ID=8.2	9-09150-508-0	24	1	9002-	●	●	●
23	WASHER; PL,INL MANIF ID=8.4 OD=18	9-09164-608-0	22	1	9002-	●	●	●
32	STUD; INL PIPE (A) M8X71 L=83	9-09830-212-0	02	1	9002-		●	●
32	STUD; INL PIPE (B) M5X25 L=35	9-94010-525-0	04	1	9002-		●	●
32	STUD; INL PIPE (A) M8X30 L=41	9-04110-830-0	02	1	9002-	●
32	STUD; INL PIPE (A) M8X30 L=41	9-04110-830-0	04	1	9002-	●
32	STUD; INL PIPE (B) M5X25 L=35	9-94010-525-0	02	1	9002-	●
44	NUT; PIPE BRKT M10	9-09110-410-0	02	1	9002-	●	●	●
45	WASHER; LK,PIPE BRKT ID=10.2	9-09150-510-0	02	1	9002-	●	●	●
46	BRACKET; P/S PIPE	1-11369-119-0	01	1	9002-	●	●	●
47	STUD; BRKT,POWER STEERING M10X18 L=33	9-04411-018-0	02	1	9002-	●	●	●
48	STUD; BRKT,GOV HARNESS M10X16 L=31	9-04411-016-0	01	1	9002-		●	●
49	STUD; CABLE M10X22 L=37	9-04411-022-0	04	1	9002-		●	●
49	STUD; CABLE AIR COMPRESSOR HEAVY DUTY(E1Q) M10X22 L=37	9-04411-022-0	04	1	9002-	●
49	STUD; CABLE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M10X16 L=31	9-04411-016-0	06	1	9002-	●
50	PIPE; INL	1-14112-044-1	01	1	9002-9101		●
50	PIPE; INL	1-14112-044-1	01	1	9102-9106		●	●
50	PIPE; INL	1-14112-044-1	01	1	9107-9306		●
50	PIPE; INL	1-14111-938-2	01	1	9002-	●
50	PIPE; INL	1-14112-200-0	01	1	9002-9101			●
50	PIPE; INL	1-14112-200-0	01	1	9107-			●
53	BOLT; INL PIPE M10X75	9-01056-075-0	01	1	9002-9004		●	●
53	BOLT; INL PIPE M10X75	0-10806-075-0	01	1	9005-		●	●
53	BOLT; INL PIPE M10X25	9-01971-025-0	01	1	9002-9002		●	●
53	BOLT; INL PIPE M10X25 W/LK&PL WASHER	0-50141-025-0	01	1	9003-		●	●
54	WASHER; LK,INL PIPE (A) ID=10.2	9-09150-510-0	04	1	9004-9306	●	●
54	WASHER; LK,INL PIPE (A) ID=10.2	9-09150-510-0	06	1	9002-9003		●	●
54	WASHER; LK,INL PIPE (A) ID=10.2	9-09150-510-0	05	1	9004-9306		●	●
54	WASHER; LK,INL PIPE (B) ID=8.2	9-09150-508-0	06	1	9002-	●
54	WASHER; LK,INL PIPE (A) ID=10.2	9-09150-510-0	04	1	9002-	●
54	WASHER; LK,INL PIPE (A) ID=10.2	9-09150-510-0	01	1	9004-9306			●
54	WASHER; LK,INL PIPE (A) ID=10.2	9-09150-510-0	06	1	9307-			●
55	NUT; INL PIPE M10	9-09110-410-0	04	1	9002-	●	●	●
59	BOLT; INL PIPE TO MANIF M10X25	9-01971-025-0	01	1	9002-9002			●
59	BOLT; INL PIPE TO MANIF M10X25 W/LK&PL WASHER	0-50141-025-0	01	1	9003-			●
64	STUD; INL PIPE M10X20 L=35	9-04411-020-0	04	1	9002-		●	●
64	STUD; INL PIPE M10X25 L=40	9-04411-025-0	04	1	9002-	●
65	BUSHING; SHAFT	1-14319-096-0	02	1	9002-		●	●
65	BUSHING; SHAFT SHORT CHASSIS(CXZ5MC)	1-14319-065-0	02	1	9002-	●
65	BUSHING; SHAFT LONG CHASSIS(CXZ5MF) EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>	1-14319-065-0	02	1	9002-	●
68	WASHER; PL,INL DUCT ID=8.4	9-09160-508-0	06	1	9002-	●
68	WASHER; PL,INL DUCT ID=10.5 OD=18	9-09160-510-0	01	1	9002-			●
69	BRACKET; AIR PIPE	1-19199-074-0	01	1	9002-	●		●
71	STUD; FUEL PIPE M6X16 L=25	9-04110-616-0	02	1	9002-	●	●	●
72	PLUG; HTR BOSS M22X12	1-09604-035-0	02	1	9002-9306	●	●	●
72	PLUG; HTR BOSS EXC. INTAKE HEATER<SL2> M22X12	1-09604-035-0	02	1	9307-	●		●
73	GASKET; PLUG,AIR DUCT ID=22.5	9-09571-422-0	02	1	9002-	●	●	●
75	STUD; BRKT,AIR PIPE M6X25 L=34	9-04110-625-0	01	1	9002-	●	●	●
76	BRACKET; ENG HARNESS	1-47465-484-0	01	1	9002-		●	●
147	NUT; BRKT M10	9-09110-510-0	02	1	9002-		●	●
167	PLUG; INL MANIF M10X7	9-09202-310-0	01	1	9002-9306		●	●
192	WASHER; PL,INL PIPE ID=10.5 OD=18	9-09160-510-0	01	1	9002-		●	●
227	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	9002-9306		●	●
269	BRACKET; INJ PIPE TO HSG	1-14119-229-0	01	1	9002-		●	●
270	WASHER; LK,BRKT ID=10.2	9-09150-510-0	02	1	9002-		●	●
349	BOLT; BRKT,INL PIPE (A) M8X85	9-01055-885-0	02	1	9002-9005		●	●
349	BOLT; BRKT,INL PIPE (A) M8X85	0-10805-885-0	02	1	9006-		●	●
349	BOLT; BRKT,INL PIPE (B) M8X180	9-09801-272-0	04	1	9002-		●	●
349	BOLT; BRKT,INL PIPE M8X35 W/LK WASHER	9-01910-835-0	02	1	9002-9005	●
349	BOLT; BRKT,INL PIPE M8X35 W/LK WASHER	0-50040-835-0	02	1	9006-	●
351	NUT; BRKT,INL PIPE M8	9-09110-408-0	02	1	9002-		●	●
352	WASHER; LK,BRKT,INL PIPE ID=8.2	9-09150-508-0	01	1	9002-		●	●
354	CLIP; AIR PIPE	1-09700-146-0	02	1	9002-			●
355	BOLT; CLIP,AIR PIPE M6X14	9-01910-614-0	05	1	9002-9005		●
355	BOLT; CLIP,AIR PIPE M6X14 W/LK WASHER	0-50040-614-0	05	1	9006-9306		●
355	BOLT; CLIP,AIR PIPE M6X14	9-01910-614-0	03	1	9002-9005			●
355	BOLT; CLIP,AIR PIPE M6X14 W/LK WASHER	0-50040-614-0	03	1	9006-			●
355	BOLT; CLIP,AIR PIPE M10X20 W/LK WASHER	9-01911-020-0	01	1	9002-9002			●
355	BOLT; CLIP,AIR PIPE M10X20 W/LK WASHER	0-50041-020-0	01	1	9003-			●
364	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	02	1	9002-9306		●
