3-41 — REAR BRAKE POWER CHAMBER (#25918) — 84 parça

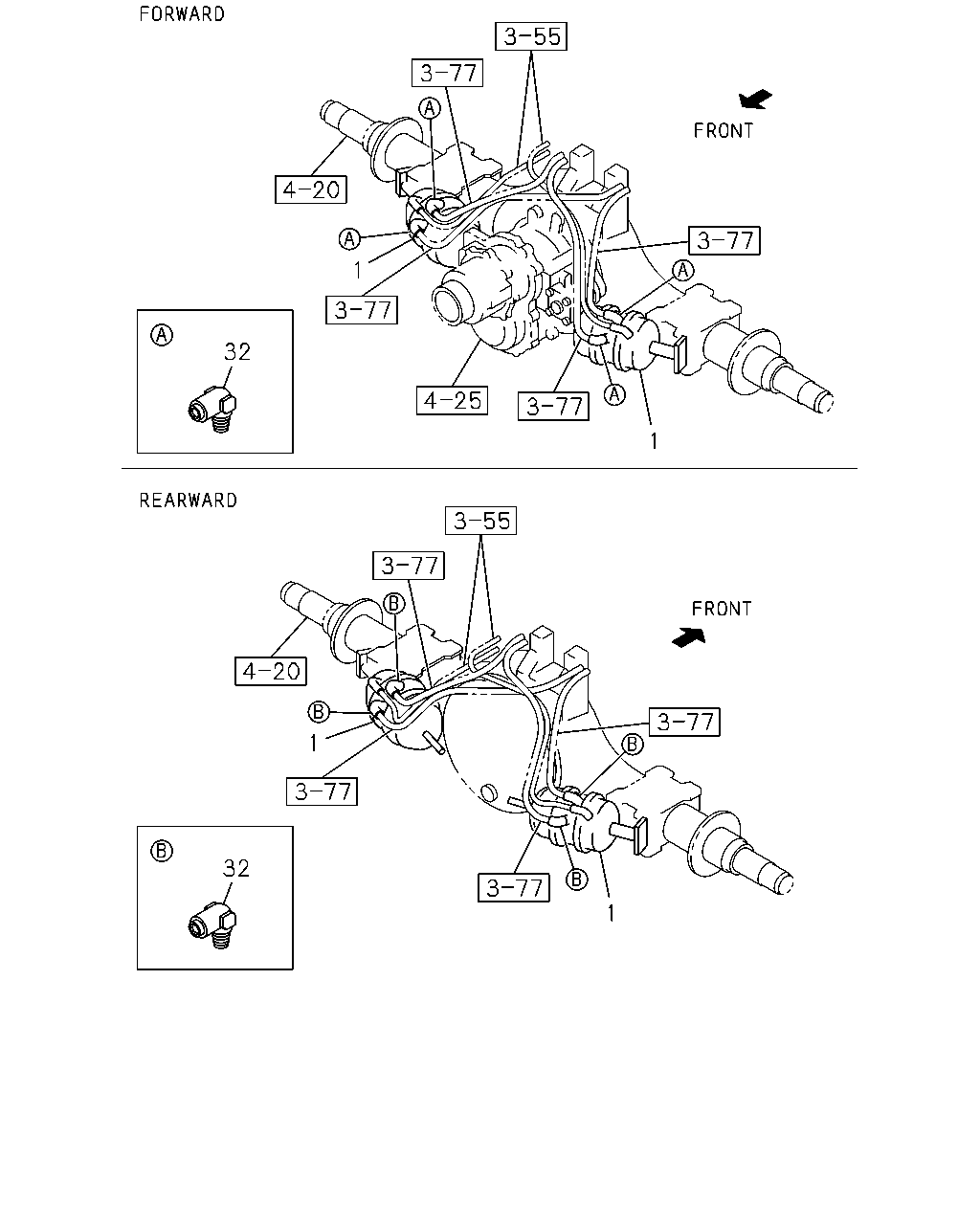

1 32 1 1 32 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CHAMBER ASM; SPRING RR BRK AIR D410 WEDGE-180-24/30<B9Q> FORWARD RH,REARWARD LH	1-48250-816-2	01	1	0403-	●	●
1	CHAMBER ASM; SPRING RR BRK AIR D410 WEDGE-180-24/30<B9Q> FORWARD RH,REARWARD LH	1-48250-816-2	01	1	0403-	●	●
1	CHAMBER ASM; SPRING RR BRK AIR D410 WEDGE-180-24/30<B9Q> FORWARD LH,REARWARD RH	1-48250-817-2	01	1	0403-	●	●
1	CHAMBER ASM; SPRING RR BRK AIR D410 WEDGE-180-24/30<B9Q> FORWARD LH,REARWARD RH	1-48250-817-2	01	1	0403-	●	●
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-48250-812-0	01	1	0308-0402	●	●
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-48250-812-0	01	1	0308-0402	●	●
1	CHAMBER ASM; SPRING RR BRK AIR D410 WEDGE-180W-24/24<B9Z> FORWARD RH,REARWARD LH	1-48250-812-1	01	1	0403-0511	●	●
1	CHAMBER ASM; SPRING RR BRK AIR D410 WEDGE-180W-24/24<B9Z> FORWARD RH,REARWARD LH	1-48250-812-1	01	1	0403-0511	●	●
1	CHAMBER ASM; SPRING RR BRK AIR D410 WEDGE-180W-24/24<B9Z> FORWARD RH,REARWARD LH	1-48250-906-2	01	1	0512-	●	●
1	CHAMBER ASM; SPRING RR BRK AIR D410 WEDGE-180W-24/24<B9Z> FORWARD RH,REARWARD LH	1-48250-906-2	01	1	0512-	●	●
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-48250-813-0	01	1	0308-0402	●	●
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-48250-813-0	01	1	0308-0402	●	●
1	CHAMBER ASM; SPRING RR BRK AIR D410 WEDGE-180W-24/24<B9Z> FORWARD LH,REARWARD RH	1-48250-813-1	01	1	0403-0511	●	●
1	CHAMBER ASM; SPRING RR BRK AIR D410 WEDGE-180W-24/24<B9Z> FORWARD LH,REARWARD RH	1-48250-813-1	01	1	0403-0511	●	●
1	CHAMBER ASM; SPRING RR BRK AIR D410 WEDGE-180W-24/24<B9Z> FORWARD LH,REARWARD RH	1-48250-907-2	01	1	0512-	●	●
1	CHAMBER ASM; SPRING RR BRK AIR D410 WEDGE-180W-24/24<B9Z> FORWARD LH,REARWARD RH	1-48250-907-2	01	1	0512-	●	●
32	CONNECTOR; SPR CHAMBER DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0308-	●	●
32	CONNECTOR; SPR CHAMBER DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0308-	●	●

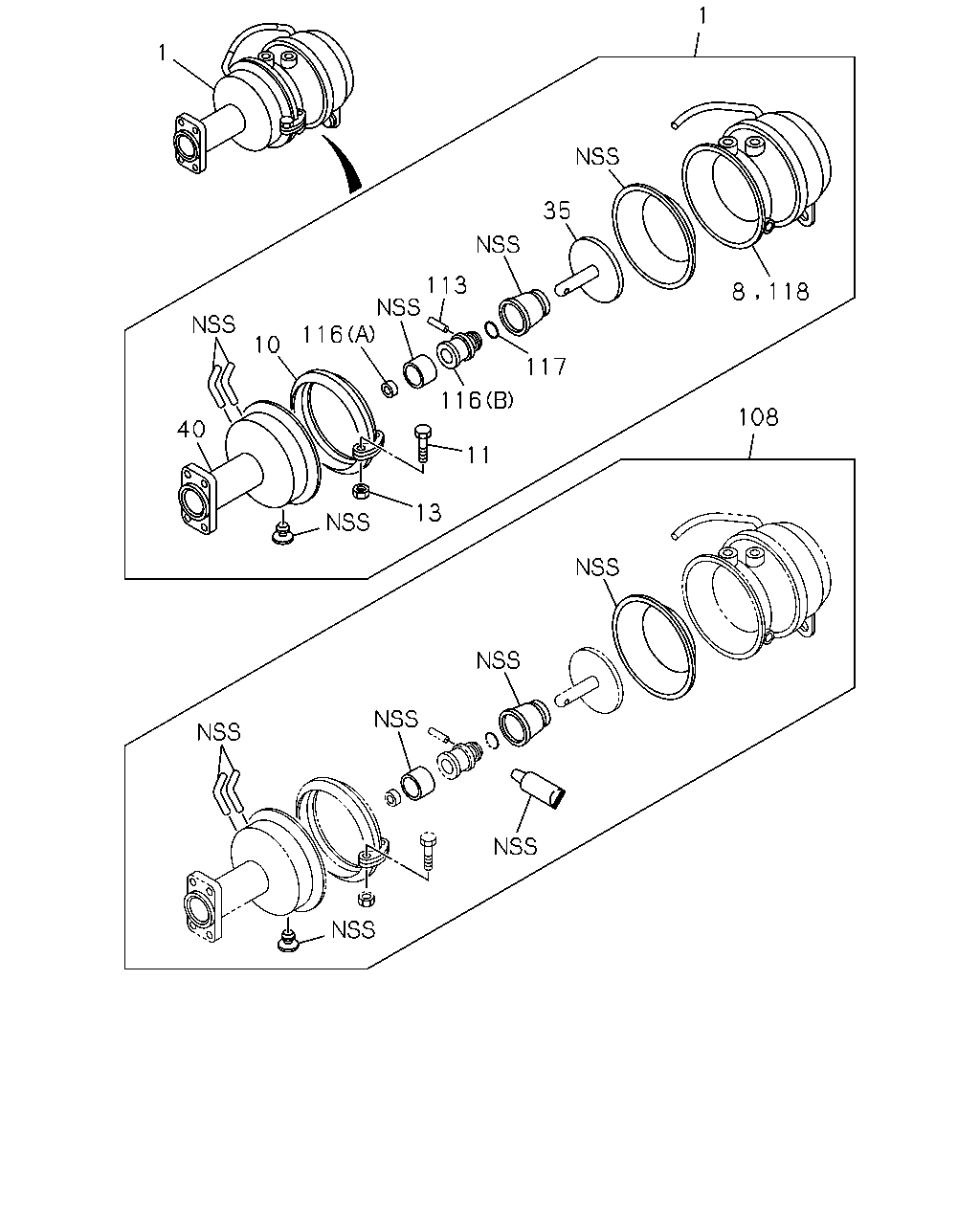

1 1 35 113 8 118 116 10 117 116 108 40 11 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CHAMBER ASM; SPRING RR BRK AIR D410 WEDGE-180-24/30<B9Q> FORWARD RH,REARWARD LH	1-48250-816-2	01	1	0403-	●	●
1	CHAMBER ASM; SPRING RR BRK AIR D410 WEDGE-180-24/30<B9Q> FORWARD RH,REARWARD LH	1-48250-816-2	01	1	0403-	●	●
1	CHAMBER ASM; SPRING RR BRK AIR D410 WEDGE-180-24/30<B9Q> FORWARD LH,REARWARD RH	1-48250-817-2	01	1	0403-	●	●
1	CHAMBER ASM; SPRING RR BRK AIR D410 WEDGE-180-24/30<B9Q> FORWARD LH,REARWARD RH	1-48250-817-2	01	1	0403-	●	●
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-48250-812-0	01	1	0308-0402	●	●
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-48250-812-0	01	1	0308-0402	●	●
1	CHAMBER ASM; SPRING RR BRK AIR D410 WEDGE-180W-24/24<B9Z> FORWARD RH,REARWARD LH	1-48250-812-1	01	1	0403-0511	●	●
1	CHAMBER ASM; SPRING RR BRK AIR D410 WEDGE-180W-24/24<B9Z> FORWARD RH,REARWARD LH	1-48250-812-1	01	1	0403-0511	●	●
1	CHAMBER ASM; SPRING RR BRK AIR D410 WEDGE-180W-24/24<B9Z> FORWARD RH,REARWARD LH	1-48250-906-2	01	1	0512-	●	●
1	CHAMBER ASM; SPRING RR BRK AIR D410 WEDGE-180W-24/24<B9Z> FORWARD RH,REARWARD LH	1-48250-906-2	01	1	0512-	●	●
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-48250-813-0	01	1	0308-0402	●	●
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-48250-813-0	01	1	0308-0402	●	●
1	CHAMBER ASM; SPRING RR BRK AIR D410 WEDGE-180W-24/24<B9Z> FORWARD LH,REARWARD RH	1-48250-813-1	01	1	0403-0511	●	●
1	CHAMBER ASM; SPRING RR BRK AIR D410 WEDGE-180W-24/24<B9Z> FORWARD LH,REARWARD RH	1-48250-813-1	01	1	0403-0511	●	●
1	CHAMBER ASM; SPRING RR BRK AIR D410 WEDGE-180W-24/24<B9Z> FORWARD LH,REARWARD RH	1-48250-907-2	01	1	0512-	●	●
1	CHAMBER ASM; SPRING RR BRK AIR D410 WEDGE-180W-24/24<B9Z> FORWARD LH,REARWARD RH	1-48250-907-2	01	1	0512-	●	●
8	SHELL; CYL,SPR CHAMBER RR BRK AIR D410 WEDGE-180-24/30<B9Q> FORWARD LH,REARWARD RH	1-48251-095-2	01	1	0403-	●	●
8	SHELL; CYL,SPR CHAMBER RR BRK AIR D410 WEDGE-180-24/30<B9Q> FORWARD LH,REARWARD RH	1-48251-095-2	01	1	0403-	●	●
8	SHELL; CYL,SPR CHAMBER RR BRK AIR D410 WEDGE-180-24/30<B9Q> FORWARD RH,REARWARD LH	1-48251-097-2	01	1	0403-	●	●
8	SHELL; CYL,SPR CHAMBER RR BRK AIR D410 WEDGE-180-24/30<B9Q> FORWARD RH,REARWARD LH	1-48251-097-2	01	1	0403-	●	●
10	RING; CLAMP,SPR CHAMBER	1-48269-149-0	02	1	0308-	●	●
10	RING; CLAMP,SPR CHAMBER	1-48269-149-0	02	1	0308-	●	●
11	BOLT; CLAMP RING	1-48269-146-0	04	1	0308-	●	●
11	BOLT; CLAMP RING	1-48269-146-0	04	1	0308-	●	●
13	NUT; CLAMP RING	1-48269-147-0	04	1	0308-	●	●
13	NUT; CLAMP RING	1-48269-147-0	04	1	0308-	●	●
35	PLATE; ROD END,SPR CHAMBER RR BRK AIR D410 WEDGE-180-24/30<B9Q>	1-48263-022-0	02	1	0403-	●	●
35	PLATE; ROD END,SPR CHAMBER RR BRK AIR D410 WEDGE-180-24/30<B9Q>	1-48263-022-0	02	1	0403-	●	●
35	PLATE; ROD END,SPR CHAMBER	1-48263-021-0	02	1	0308-0402	●	●
35	PLATE; ROD END,SPR CHAMBER	1-48263-021-0	02	1	0308-0402	●	●
35	PLATE; ROD END,SPR CHAMBER RR BRK AIR D410 WEDGE-180W-24/24<B9Z>	1-48263-021-0	02	1	0403-	●	●
35	PLATE; ROD END,SPR CHAMBER RR BRK AIR D410 WEDGE-180W-24/24<B9Z>	1-48263-021-0	02	1	0403-	●	●
40	COVER ASM; LWR,SPR CHAMBER RR BRK AIR D410 WEDGE-180-24/30<B9Q> FORWARD RH,REARWARD LH	1-48251-140-1	01	1	0403-	●	●
40	COVER ASM; LWR,SPR CHAMBER RR BRK AIR D410 WEDGE-180-24/30<B9Q> FORWARD RH,REARWARD LH	1-48251-140-1	01	1	0403-	●	●
40	COVER ASM; LWR,SPR CHAMBER RR BRK AIR D410 WEDGE-180-24/30<B9Q> FORWARD LH,REARWARD RH	1-48251-141-1	01	1	0403-	●	●
40	COVER ASM; LWR,SPR CHAMBER RR BRK AIR D410 WEDGE-180-24/30<B9Q> FORWARD LH,REARWARD RH	1-48251-141-1	01	1	0403-	●	●
40	COVER ASM; LWR,SPR CHAMBER FORWARD RH,REARWARD LH	1-48251-134-0	01	1	0308-0402	●	●
40	COVER ASM; LWR,SPR CHAMBER FORWARD RH,REARWARD LH	1-48251-134-0	01	1	0308-0402	●	●
40	COVER ASM; LWR,SPR CHAMBER RR BRK AIR D410 WEDGE-180W-24/24<B9Z> FORWARD RH,REARWARD LH	1-48251-134-1	01	1	0403-	●	●
40	COVER ASM; LWR,SPR CHAMBER RR BRK AIR D410 WEDGE-180W-24/24<B9Z> FORWARD RH,REARWARD LH	1-48251-134-1	01	1	0403-	●	●
40	COVER ASM; LWR,SPR CHAMBER FORWARD LH,REARWARD RH	1-48251-135-0	01	1	0308-0402	●	●
40	COVER ASM; LWR,SPR CHAMBER FORWARD LH,REARWARD RH	1-48251-135-0	01	1	0308-0402	●	●
40	COVER ASM; LWR,SPR CHAMBER RR BRK AIR D410 WEDGE-180W-24/24<B9Z> FORWARD LH,REARWARD RH	1-48251-135-1	01	1	0403-	●	●
40	COVER ASM; LWR,SPR CHAMBER RR BRK AIR D410 WEDGE-180W-24/24<B9Z> FORWARD LH,REARWARD RH	1-48251-135-1	01	1	0403-	●	●
108	REPAIR KIT; SPR CHAMBER	1-85576-320-0	02	1	0308-	●	●
108	REPAIR KIT; SPR CHAMBER	1-85576-320-0	02	1	0308-	●	●
113	PIN; SPR CHAMBER	1-48269-153-0	02	1	0308-	●	●
113	PIN; SPR CHAMBER	1-48269-153-0	02	1	0308-	●	●
116	GUIDE; SPR CHAMBER (A)	1-48269-152-0	02	1	0308-	●	●
116	GUIDE; SPR CHAMBER (A)	1-48269-152-0	02	1	0308-	●	●
116	GUIDE; SPR CHAMBER (B)	1-48269-154-0	02	1	0308-	●	●
116	GUIDE; SPR CHAMBER (B)	1-48269-154-0	02	1	0308-	●	●
117	RING; SPR CHAMBER	1-48269-155-0	02	1	0308-	●	●
117	RING; SPR CHAMBER	1-48269-155-0	02	1	0308-	●	●
118	CHAMBER; PIGGY BACK FORWARD RH,REARWARD LH	1-48251-092-0	01	1	0308-0402	●	●
118	CHAMBER; PIGGY BACK FORWARD RH,REARWARD LH	1-48251-092-0	01	1	0308-0402	●	●
118	CHAMBER; PIGGY BACK RR BRK AIR D410 WEDGE-180W-24/24<B9Z> FORWARD RH,REARWARD LH	1-48251-092-1	01	1	0403-0511	●	●
118	CHAMBER; PIGGY BACK RR BRK AIR D410 WEDGE-180W-24/24<B9Z> FORWARD RH,REARWARD LH	1-48251-092-1	01	1	0403-0511	●	●
118	CHAMBER; PIGGY BACK RR BRK AIR D410 WEDGE-180W-24/24<B9Z> FORWARD RH,REARWARD LH	1-48251-183-1	01	1	0512-	●	●
118	CHAMBER; PIGGY BACK RR BRK AIR D410 WEDGE-180W-24/24<B9Z> FORWARD RH,REARWARD LH	1-48251-183-1	01	1	0512-	●	●
118	CHAMBER; PIGGY BACK FORWARD LH,REARWARD RH	1-48251-093-0	01	1	0308-0402	●	●
118	CHAMBER; PIGGY BACK FORWARD LH,REARWARD RH	1-48251-093-0	01	1	0308-0402	●	●
118	CHAMBER; PIGGY BACK RR BRK AIR D410 WEDGE-180W-24/24<B9Z> FORWARD LH,REARWARD RH	1-48251-093-1	01	1	0403-0511	●	●
118	CHAMBER; PIGGY BACK RR BRK AIR D410 WEDGE-180W-24/24<B9Z> FORWARD LH,REARWARD RH	1-48251-093-1	01	1	0403-0511	●	●
118	CHAMBER; PIGGY BACK RR BRK AIR D410 WEDGE-180W-24/24<B9Z> FORWARD LH,REARWARD RH	1-48251-184-1	01	1	0512-	●	●
118	CHAMBER; PIGGY BACK RR BRK AIR D410 WEDGE-180W-24/24<B9Z> FORWARD LH,REARWARD RH	1-48251-184-1	01	1	0512-	●	●
