3-26 — TRAILER CONTROL (#25915) — 78 parça

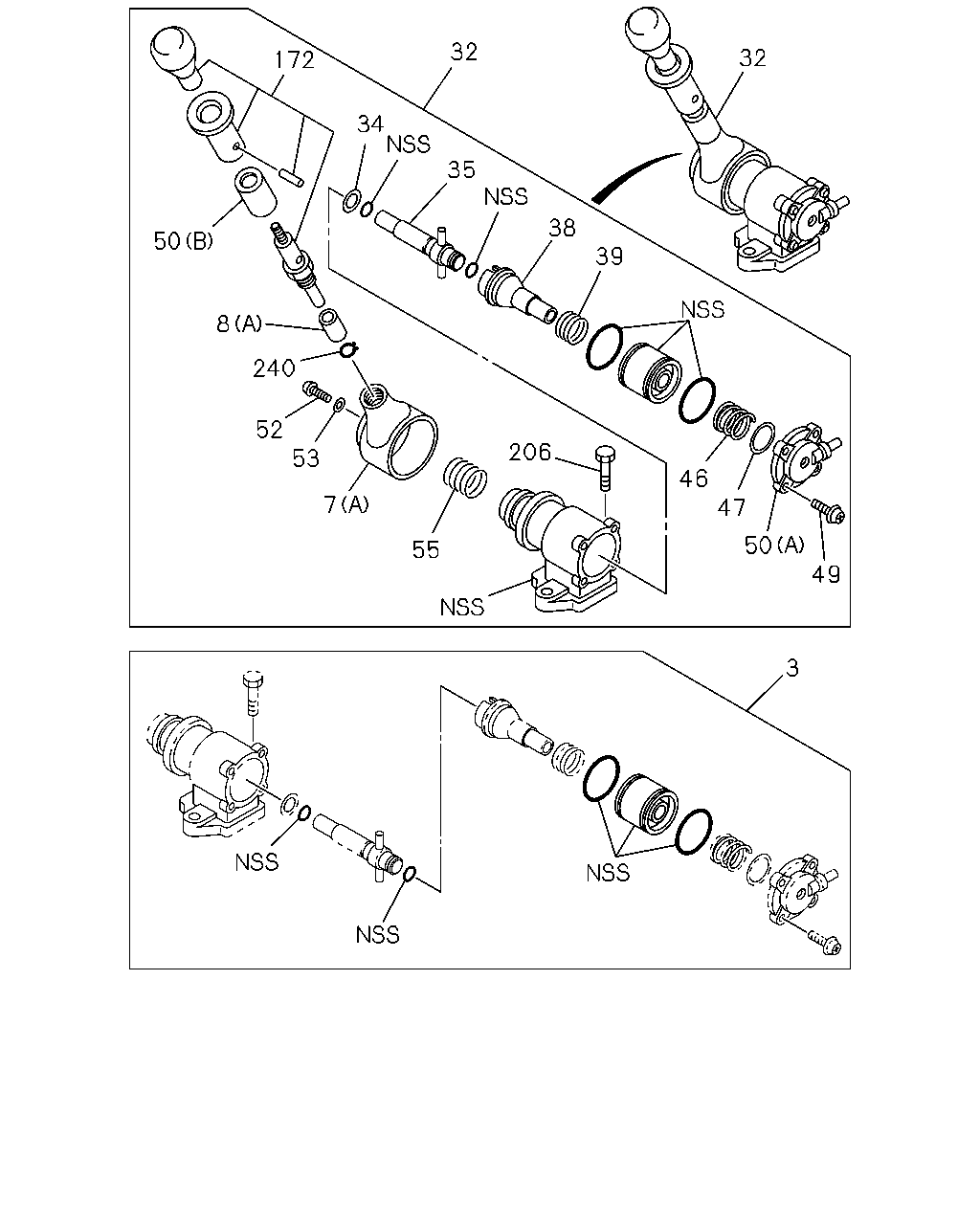

32 32 172 34 35 38 50 39 8 240 52 53 206 46 47 7 50 49 55 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	REPAIR KIT; HAND BRK VLV	1-85576-375-0	01	1	0308-	●	●
7	HEAD; BRK VLV (A)	1-48469-195-0	01	1	0308-	●	●
7	HEAD; BRK VLV FULL TRACTOR TRUCK<RD6> (B)	1-48119-577-0	01	1	0308-	●	●
8	STOPPER; BRK VLV (A)	1-48469-194-0	01	1	0308-	●	●
8	STOPPER; BRK VLV FULL TRACTOR TRUCK<RD6> (B)	1-48119-327-0	01	1	0308-	●	●
32	VALVE; BRK,HAND CONT	1-48460-340-1	01	1	0308-	●	●
34	SHIM; CAM HOLDER	1-48469-055-0	AR	1	0308-	●	●
35	HOLDER; CAM	1-48469-148-0	01	1	0308-	●	●
38	SEAT; EXH VLV	1-48469-149-0	01	1	0308-	●	●
39	SPRING; RETURN,CAM RING	1-48469-150-0	01	1	0308-	●	●
46	SPRING; MAIN,PISTON	1-48469-152-0	01	1	0308-	●	●
47	SHIM; MAIN SPRING	1-48469-072-0	AR	1	0308-	●	●
49	SCREW; COVER	1-48469-169-0	04	1	0308-	●	●
50	COVER; HAND BRK VLV (A)	1-48469-153-0	01	1	0308-	●	●
50	COVER; HAND BRK VLV (B)	1-48469-196-0	01	1	0308-	●	●
52	SCREW; HANDLE	1-48469-062-0	01	1	0308-	●	●
53	WASHER; HANDLE	1-48469-061-0	01	1	0308-	●	●
55	SPRING; RETURN,HANDLE	1-48469-155-0	01	1	0308-	●	●
172	KNOB; VALVE	1-48469-204-0	01	1	0308-	●	●
206	BOLT; HAND BRK VALVE	1-48469-160-0	01	1	0308-	●	●
240	RING; STOPPER	1-48469-193-0	01	1	0308-	●	●

2 5 13 14 15 21 18 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	REPAIR KIT; HAND BRK VLV FULL TRACTOR TRUCK<RD6>	1-85576-305-0	01	1	0308-	●	●
5	GASKET; HANDLE FULL TRACTOR TRUCK<RD6>	1-48119-128-0	01	1	0308-	●	●
13	GASKET; BODY TO COVER FULL TRACTOR TRUCK<RD6>	1-48119-120-0	01	1	0308-	●	●
14	FOLLOWER; CAM FULL TRACTOR TRUCK<RD6>	1-48129-135-0	01	1	0308-	●	●
15	CAM; FOLLOWER FULL TRACTOR TRUCK<RD6>	1-48129-134-0	01	1	0308-	●	●
18	GASKET; BODY FULL TRACTOR TRUCK<RD6>	1-48129-096-0	01	1	0308-	●	●
21	VALVE; IN & EXH FULL TRACTOR TRUCK<RD6>	1-48121-017-0	01	1	0308-	●	●
28	STEM ASM; BRK VLV FULL TRACTOR TRUCK<RD6>	1-48129-089-0	01	1	0308-	●	●

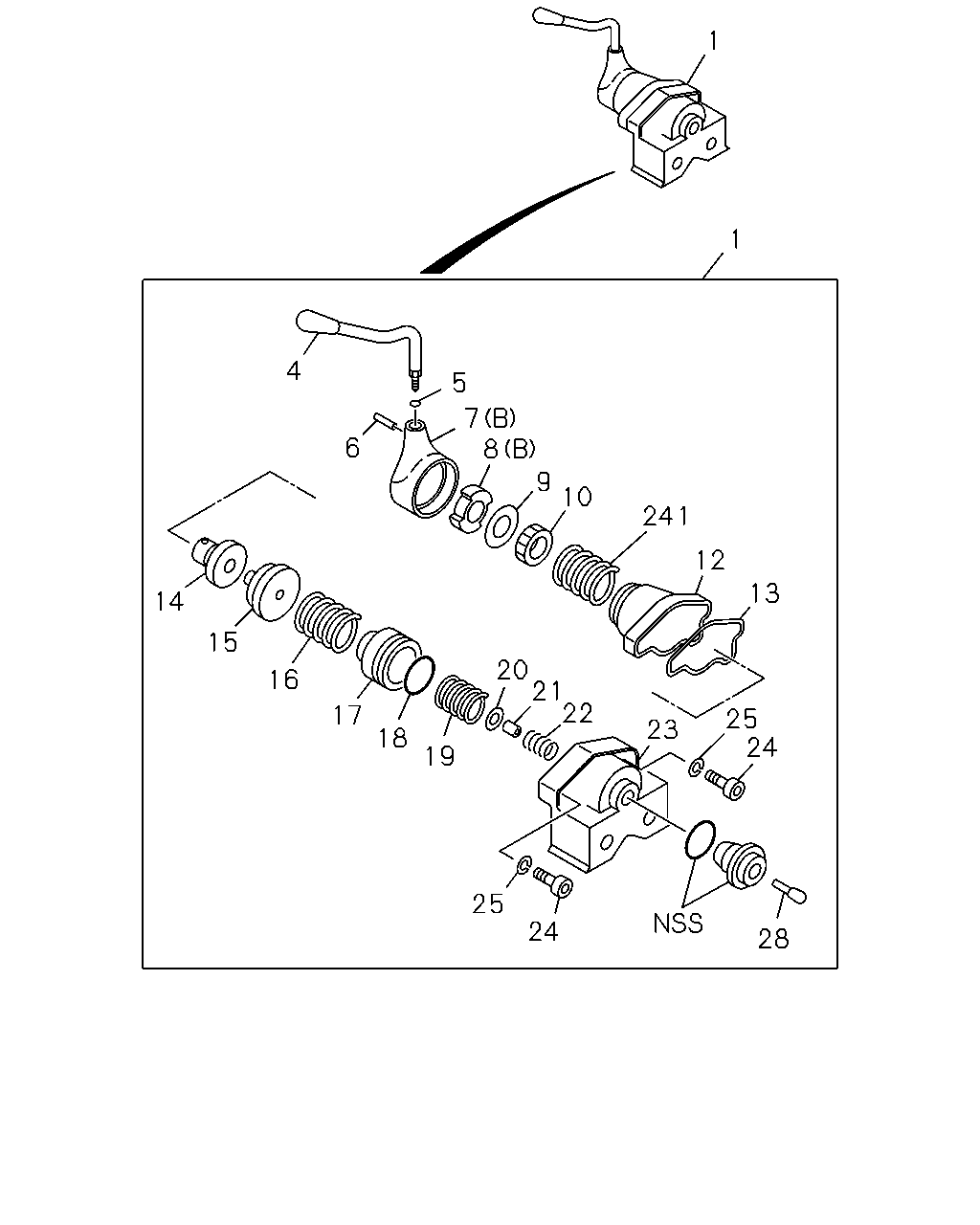

1 1 4 5 7 8 9 6 10 241 12 13 14 15 20 21 22 16 25 24 23 17 18 19 25 24 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	VALVE ASM; HAND BRK FULL TRACTOR TRUCK<RD6>	1-48100-859-0	01	1	0308-	●	●
4	HANDLE ASM; BRK VLV FULL TRACTOR TRUCK<RD6>	1-48119-580-0	01	1	0308-	●	●
5	GASKET; HANDLE FULL TRACTOR TRUCK<RD6>	1-48119-128-0	01	1	0308-	●	●
6	PIN; SPR FULL TRACTOR TRUCK<RD6>	1-48119-143-0	01	1	0308-	●	●
7	HEAD; BRK VLV (A)	1-48469-195-0	01	1	0308-	●	●
7	HEAD; BRK VLV FULL TRACTOR TRUCK<RD6> (B)	1-48119-577-0	01	1	0308-	●	●
8	STOPPER; BRK VLV (A)	1-48469-194-0	01	1	0308-	●	●
8	STOPPER; BRK VLV FULL TRACTOR TRUCK<RD6> (B)	1-48119-327-0	01	1	0308-	●	●
9	WASHER; LK,ADJ FULL TRACTOR TRUCK<RD6>	1-48119-123-0	01	1	0308-	●	●
10	RING; ADJ FULL TRACTOR TRUCK<RD6>	1-48119-122-0	01	1	0308-	●	●
12	COVER; BRK VLV FULL TRACTOR TRUCK<RD6>	1-48129-319-0	01	1	0308-	●	●
13	GASKET; BODY TO COVER FULL TRACTOR TRUCK<RD6>	1-48119-120-0	01	1	0308-	●	●
14	FOLLOWER; CAM FULL TRACTOR TRUCK<RD6>	1-48129-135-0	01	1	0308-	●	●
15	CAM; FOLLOWER FULL TRACTOR TRUCK<RD6>	1-48129-134-0	01	1	0308-	●	●
16	SPRING; GRUDUATING FULL TRACTOR TRUCK<RD6>	1-48129-101-0	01	1	0308-	●	●
17	PISTON; SPR FULL TRACTOR TRUCK<RD6>	1-48129-095-0	01	1	0308-	●	●
18	GASKET; BODY FULL TRACTOR TRUCK<RD6>	1-48129-096-0	01	1	0308-	●	●
19	SPRING; PISTON FULL TRACTOR TRUCK<RD6>	1-48129-094-0	01	1	0308-	●	●
20	GUIDE; VLV FULL TRACTOR TRUCK<RD6>	1-48129-090-0	01	1	0308-	●	●
21	VALVE; IN & EXH FULL TRACTOR TRUCK<RD6>	1-48121-017-0	01	1	0308-	●	●
22	SPRING; VLV FULL TRACTOR TRUCK<RD6>	1-48123-024-0	01	1	0308-	●	●
23	BODY; BRK VLV FULL TRACTOR TRUCK<RD6>	1-48111-060-0	01	1	0308-	●	●
24	BOLT; EXH VLV FULL TRACTOR TRUCK<RD6>	1-48129-092-0	02	1	0308-	●	●
25	WASHER; LK,EXH VLV FULL TRACTOR TRUCK<RD6>	1-48129-093-0	02	1	0308-	●	●
28	STEM ASM; BRK VLV FULL TRACTOR TRUCK<RD6>	1-48129-089-0	01	1	0308-	●	●
241	SPRING; RETURN FULL TRACTOR TRUCK<RD6>	1-48119-576-0	01	1	0308-	●	●

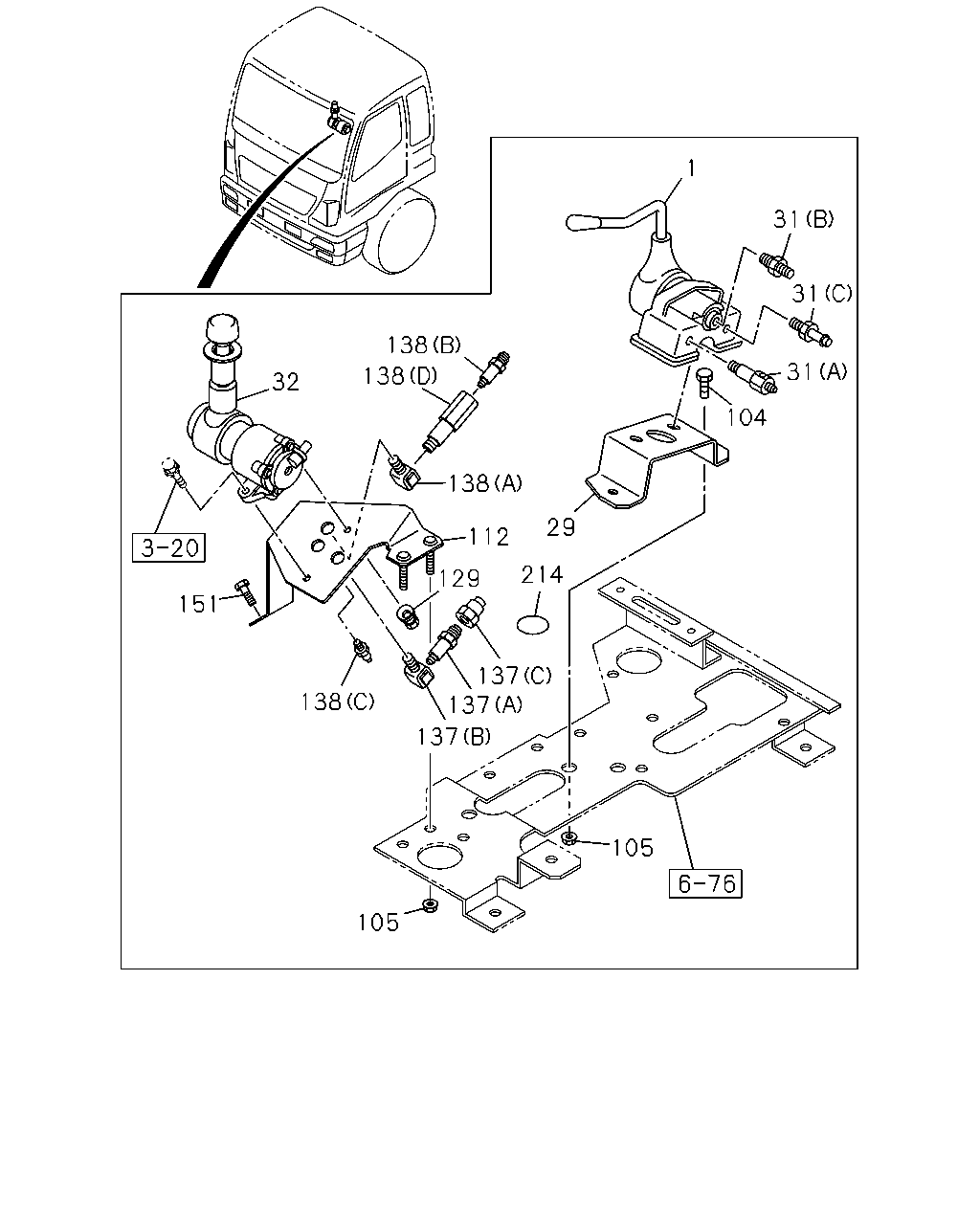

1 31 31 138 31 138 32 104 138 29 112 214 129 151 137 137 138 137 105 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	VALVE ASM; HAND BRK FULL TRACTOR TRUCK<RD6>	1-48100-859-0	01	1	0308-	●	●
29	BRACKET; HAND BRK FULL TRACTOR TRUCK<RD6>	1-79997-357-1	01	1	0308-	●	●
31	CONNECTOR; HAND BRK VLV FULL TRACTOR TRUCK<RD6> (A) M14	1-09656-391-2	01	1	0308-	●	●
31	CONNECTOR; HAND BRK VLV FULL TRACTOR TRUCK<RD6> (C) L=45	8-94338-874-0	01	1	0308-	●	●
31	CONNECTOR; HAND BRK VLV FULL TRACTOR TRUCK<RD6> (B) M16 & PT1/4 STRAIGHT	9-09231-810-1	01	1	0308-0607	●	●
31	CONNECTOR; HAND BRK VLV FULL TRACTOR TRUCK<RD6> (B) M16 & PT1/4 STRAIGHT	0-92121-810-0	01	1	0608-	●	●
32	VALVE; BRK,HAND CONT	1-48460-340-1	01	1	0308-	●	●
104	BOLT; BRKT FULL TRACTOR TRUCK<RD6> M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0308-	●	●
105	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0308-0602	●	●
105	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
112	BRACKET; CONT VLV PARKING BRAKE VALVE LEVER TYPE<W48> EXC. FULL TRACTOR TRUCK<RD6>	1-79996-387-0	01	1	0308-	●	●
129	NUT; VLV M8 FLANGE	0-91150-108-0	01	1	0308-0602	●	●
129	NUT; VLV M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
137	CONNECTOR; SUPPLY (A)	1-09650-352-1	01	1	0308-	●	●
137	CONNECTOR; SUPPLY (B) PT1/4 2WAY	1-09660-693-0	01	1	0308-	●	●
137	CONNECTOR; SUPPLY (C) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0308-	●	●
138	CONNECTOR; DELIVERY (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0308-	●	●
138	CONNECTOR; DELIVERY FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (B) M14	1-09656-391-2	01	1	0308-	●	●
138	CONNECTOR; DELIVERY FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (A) PT1/4 2WAY	1-09660-693-0	01	1	0308-	●	●
138	CONNECTOR; DELIVERY FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (D) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0308-	●	●
151	BOLT; VLV BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	0410-	●	●
151	BOLT; VLV BRKT FULL TRACTOR TRUCK<RD6> M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0308-0409	●	●
214	SEAL; COVER,HAND BRK FULL TRACTOR TRUCK<RD6> OD=25 BLACK	1-76798-019-0	01	1	0308-	●	●
