3-22 — AIR CONTROL PARTS (#25914) — 207 parça

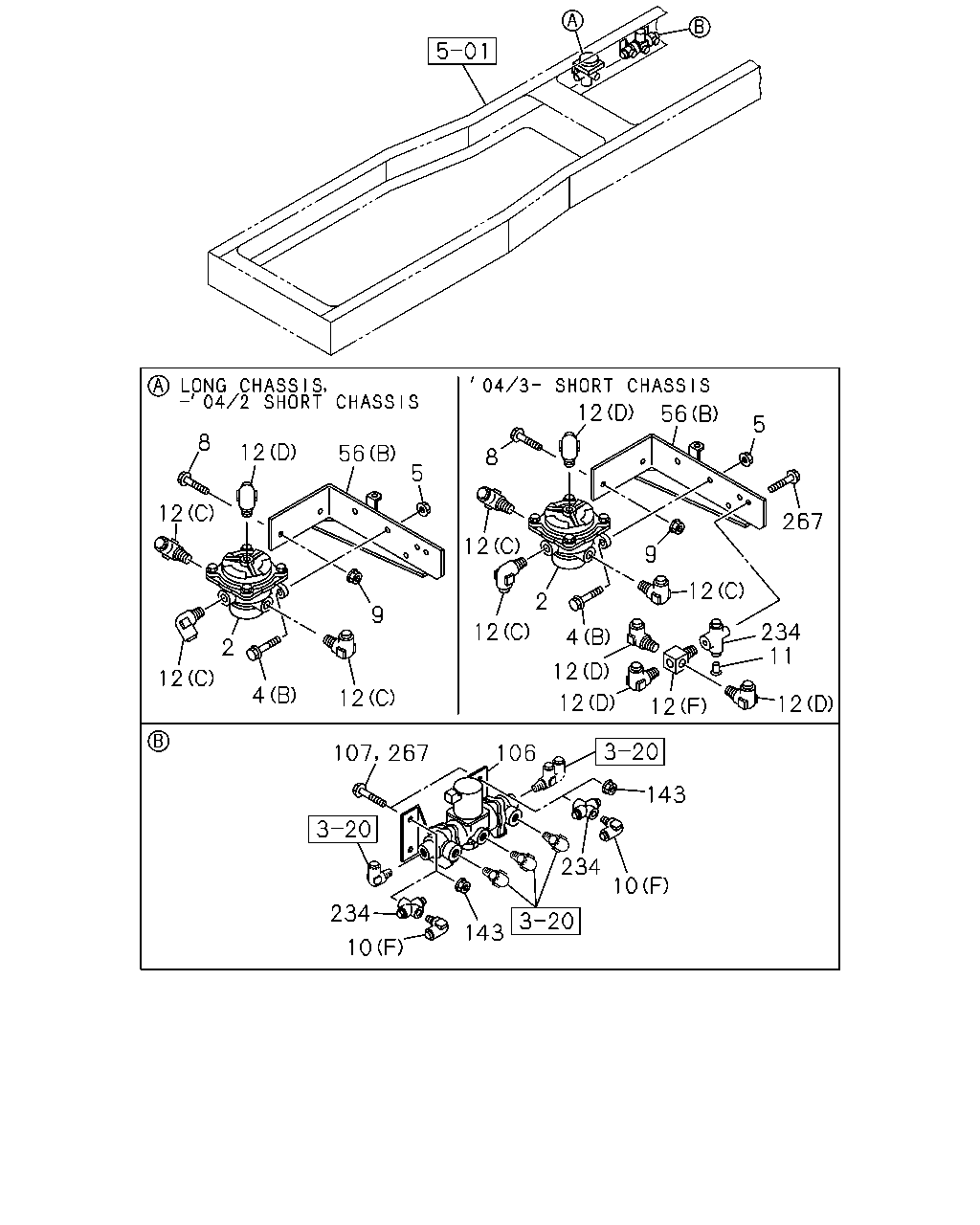

12 56 5 8 12 56 8 5 12 267 12 9 12 2 9 12 234 11 4 2 12 12 4 12 12 12 12 106 143 234 10 234 143 10 107 267

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	VALVE; RELAY	1-48210-875-0	03	1	0403-	●
2	VALVE; RELAY	1-48210-875-0	01	1	0308-0402	●	●
2	VALVE; RELAY	1-48210-875-0	01	1	0403-		●
2	VALVE; RELAY	1-48210-875-0	02	1	0308-0402	●	●
2	VALVE; RELAY	1-48210-875-0	02	1	0403-		●
4	BOLT; RELAY VLV TO BRKT (B) M10X35 FLANGE	0-28681-035-0	06	1	0403-0512	●
4	BOLT; RELAY VLV TO BRKT (B) M10X35 FLANGE	0-28651-035-0	06	1	0601-	●
4	BOLT; RELAY VLV TO BRKT (A) M8X25 FLANGE	0-28680-825-0	04	1	0308-0512	●	●
4	BOLT; RELAY VLV TO BRKT (A) M8X25 FLANGE	0-28650-825-0	04	1	0601-	●	●
4	BOLT; RELAY VLV TO BRKT (B) M10X35 FLANGE	0-28681-035-0	02	1	0308-0402	●	●
4	BOLT; RELAY VLV TO BRKT (B) M10X35 FLANGE	0-28681-035-0	02	1	0403-0512		●
4	BOLT; RELAY VLV TO BRKT (B) M10X35 FLANGE	0-28651-035-0	02	1	0601-		●
4	BOLT; RELAY VLV TO BRKT (B) M10X35 FLANGE	0-28681-035-0	04	1	0308-0402	●	●
4	BOLT; RELAY VLV TO BRKT (B) M10X35 FLANGE	0-28681-035-0	04	1	0403-0512		●
4	BOLT; RELAY VLV TO BRKT (B) M10X35 FLANGE	0-28651-035-0	04	1	0601-		●
5	NUT M10 FLANGE	0-91150-210-0	06	1	0403-0602	●
5	NUT M10 FLANGE	0-91180-210-0	06	1	0603-	●
5	NUT M10 FLANGE	0-91150-210-0	02	1	0308-0402	●	●
5	NUT M10 FLANGE	0-91150-210-0	02	1	0403-0602		●
5	NUT M10 FLANGE	0-91180-210-0	02	1	0603-		●
5	NUT M10 FLANGE	0-91150-210-0	04	1	0308-0402	●	●
5	NUT M10 FLANGE	0-91150-210-0	04	1	0403-0602		●
5	NUT M10 FLANGE	0-91180-210-0	04	1	0603-		●
8	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0308-0512	●	●
8	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
9	NUT M8 FLANGE	0-91150-108-0	02	1	0308-0602	●	●
9	NUT M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
10	CONNECTOR (D) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0308-	●	●
10	CONNECTOR (E) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0308-	●	●
10	CONNECTOR (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0308-	●	●
10	CONNECTOR (B) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	0308-	●	●
10	CONNECTOR (C)	1-09661-537-0	01	1	0308-	●	●
10	CONNECTOR EXC. BRAKE SYSTEM HSA<SLD> (F) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0308-	●	●
11	PLUG OD=8	1-09661-616-0	01	1	0403-		●
12	CONNECTOR; RELAY VLV BRAKE SYSTEM HSA<SLD> (F) PT3/8 4WAY	1-09661-489-0	01	1	0403-		●
12	CONNECTOR; RELAY VLV (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0403-		●
12	CONNECTOR; RELAY VLV EXC. BRAKE SYSTEM HSA<SLD> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	03	1	0403-		●
12	CONNECTOR; RELAY VLV EXC. BRAKE SYSTEM HSA<SLD> (F) PT3/8 3WAY	1-09661-300-0	01	1	0403-		●
12	CONNECTOR; RELAY VLV (D) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0403-	●
12	CONNECTOR; RELAY VLV (C) DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	0403-	●
12	CONNECTOR; RELAY VLV (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0308-	●	●
12	CONNECTOR; RELAY VLV (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0308-0402	●	●
12	CONNECTOR; RELAY VLV (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0308-0402	●	●
12	CONNECTOR; RELAY VLV BRAKE SYSTEM HSA<SLD> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	04	1	0403-		●
12	CONNECTOR; RELAY VLV (C) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0308-0402	●	●
12	CONNECTOR; RELAY VLV (C) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0403-		●
12	CONNECTOR; RELAY VLV (C) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	0308-0402	●	●
12	CONNECTOR; RELAY VLV (C) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	0403-		●
12	CONNECTOR; RELAY VLV (E) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	02	1	0308-	●	●
12	CONNECTOR; RELAY VLV (B)	1-09661-537-0	01	1	0308-	●	●
56	BRACKET; RELAY VLV (B)	1-47479-893-1	01	1	0308-	●	●
56	BRACKET; RELAY VLV (A)	1-47479-447-0	01	1	0308-0310	●	●
56	BRACKET; RELAY VLV (A)	1-47479-937-0	01	1	0311-	●	●
106	VALVE; HSA BRAKE SYSTEM HSA<SLD>	1-46362-118-1	01	1	0308-	●	●
107	BOLT; VLV BRAKE SYSTEM HSA<SLD> M8X25 FLANGE	0-28680-825-0	04	1	0308-0308	●	●
107	BOLT; VLV BRAKE SYSTEM HSA<SLD> M8X30 FLANGE	0-28680-830-0	04	1	0309-0512	●	●
107	BOLT; VLV BRAKE SYSTEM HSA<SLD> M8X30 FLANGE	0-28650-830-0	04	1	0601-	●	●
143	NUT; VLV BRAKE SYSTEM HSA<SLD> M8 FLANGE	0-91150-108-0	04	1	0308-0602	●	●
143	NUT; VLV BRAKE SYSTEM HSA<SLD> M8 FLANGE	0-91180-108-0	04	1	0603-	●	●
234	UNION DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0403-		●
234	UNION EXC. BRAKE SYSTEM HSA<SLD> DIN8 & RC3/8 3WAY	1-09661-129-0	02	1	0308-	●	●
267	BOLT; UNION M8X16 FLANGE	0-28080-816-0	01	1	0403-0512		●
267	BOLT; UNION M8X16 FLANGE	0-28050-816-0	01	1	0601-		●
267	BOLT; UNION EXC. BRAKE SYSTEM HSA<SLD> M8X20 FLANGE	0-28680-820-0	02	1	0308-0512	●	●
267	BOLT; UNION EXC. BRAKE SYSTEM HSA<SLD> M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●

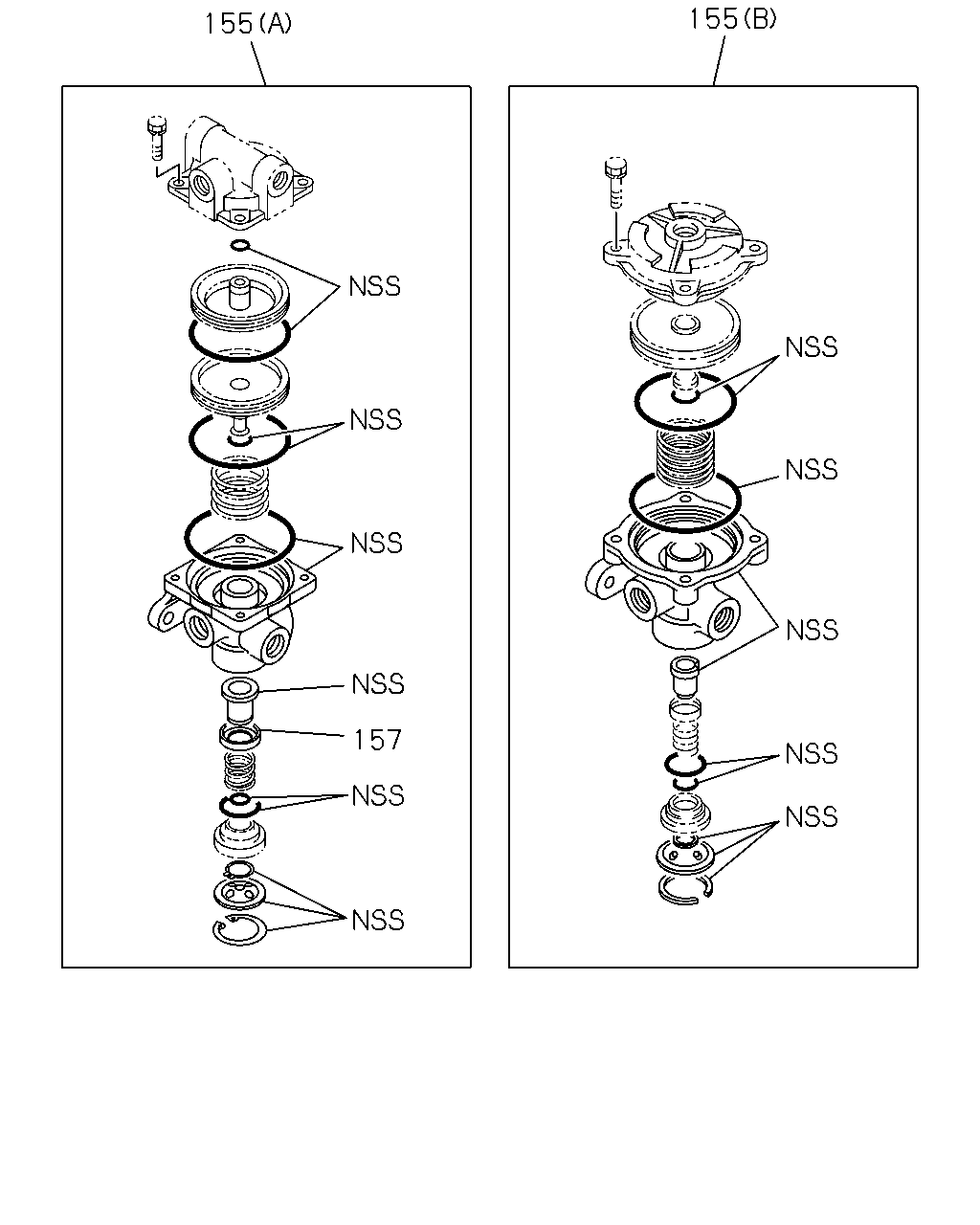

155 155 157

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
155	REPAIR KIT; RELAY VALVE (B)	1-85576-033-0	03	1	0403-	●
155	REPAIR KIT; RELAY VALVE (B)	1-85576-033-0	01	1	0308-0402	●	●
155	REPAIR KIT; RELAY VALVE (B)	1-85576-033-0	01	1	0403-		●
155	REPAIR KIT; RELAY VALVE (B)	1-85576-033-0	02	1	0308-0402	●	●
155	REPAIR KIT; RELAY VALVE (B)	1-85576-033-0	02	1	0403-		●
155	REPAIR KIT; RELAY VALVE (A)	1-85576-035-0	01	1	0308-	●	●
157	RETAINER; VALVE	1-48213-002-0	01	1	0403-	●	●
157	RETAINER; VALVE	1-48213-002-0	03	1	0403-	●
157	RETAINER; VALVE	1-48213-002-0	02	1	0308-0402	●	●
157	RETAINER; VALVE	1-48213-002-0	02	1	0308-0402	●	●
157	RETAINER; VALVE	1-48213-002-0	02	1	0403-		●

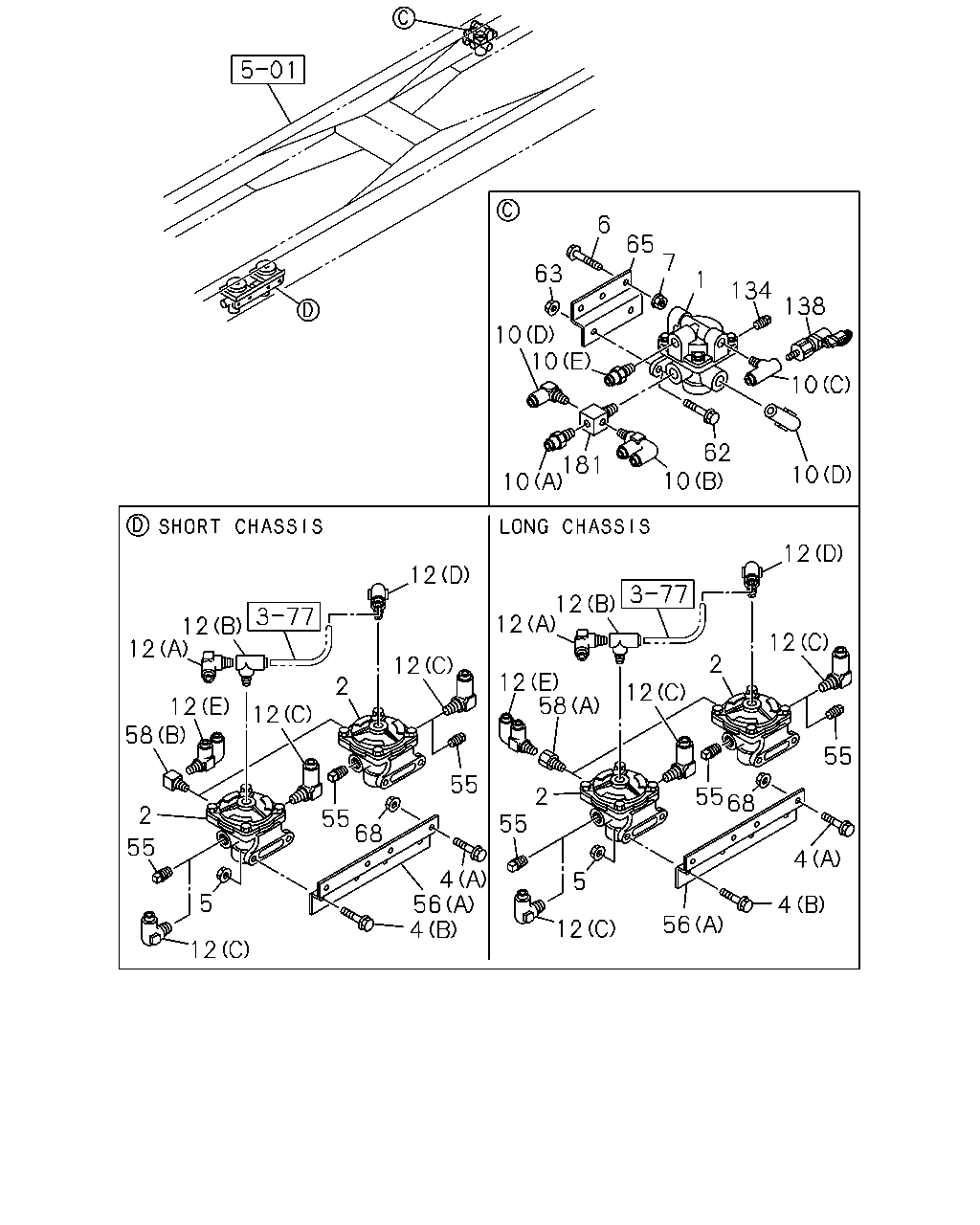

6 65 7 63 1 134 138 10 10 10 62 10 181 10 10 12 12 12 12 12 12 12 2 12 12 58 2 12 12 58 12 55 55 55 68 2 55 2 55 68 55 4 4 56 4 5 5 4 56 12 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	VALVE; RELAY RWD RR	1-48240-041-1	01	1	0308-	●	●
2	VALVE; RELAY	1-48210-875-0	03	1	0403-	●
2	VALVE; RELAY	1-48210-875-0	01	1	0308-0402	●	●
2	VALVE; RELAY	1-48210-875-0	01	1	0403-		●
2	VALVE; RELAY	1-48210-875-0	02	1	0308-0402	●	●
2	VALVE; RELAY	1-48210-875-0	02	1	0403-		●
4	BOLT; RELAY VLV TO BRKT (B) M10X35 FLANGE	0-28681-035-0	06	1	0403-0512	●
4	BOLT; RELAY VLV TO BRKT (B) M10X35 FLANGE	0-28651-035-0	06	1	0601-	●
4	BOLT; RELAY VLV TO BRKT (A) M8X25 FLANGE	0-28680-825-0	04	1	0308-0512	●	●
4	BOLT; RELAY VLV TO BRKT (A) M8X25 FLANGE	0-28650-825-0	04	1	0601-	●	●
4	BOLT; RELAY VLV TO BRKT (B) M10X35 FLANGE	0-28681-035-0	02	1	0308-0402	●	●
4	BOLT; RELAY VLV TO BRKT (B) M10X35 FLANGE	0-28681-035-0	02	1	0403-0512		●
4	BOLT; RELAY VLV TO BRKT (B) M10X35 FLANGE	0-28651-035-0	02	1	0601-		●
4	BOLT; RELAY VLV TO BRKT (B) M10X35 FLANGE	0-28681-035-0	04	1	0308-0402	●	●
4	BOLT; RELAY VLV TO BRKT (B) M10X35 FLANGE	0-28681-035-0	04	1	0403-0512		●
4	BOLT; RELAY VLV TO BRKT (B) M10X35 FLANGE	0-28651-035-0	04	1	0601-		●
5	NUT M10 FLANGE	0-91150-210-0	06	1	0403-0602	●
5	NUT M10 FLANGE	0-91180-210-0	06	1	0603-	●
5	NUT M10 FLANGE	0-91150-210-0	02	1	0308-0402	●	●
5	NUT M10 FLANGE	0-91150-210-0	02	1	0403-0602		●
5	NUT M10 FLANGE	0-91180-210-0	02	1	0603-		●
5	NUT M10 FLANGE	0-91150-210-0	04	1	0308-0402	●	●
5	NUT M10 FLANGE	0-91150-210-0	04	1	0403-0602		●
5	NUT M10 FLANGE	0-91180-210-0	04	1	0603-		●
6	BOLT; VLV M8X25 FLANGE	0-28680-825-0	02	1	0308-0512	●	●
6	BOLT; VLV M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
7	NUT; RELAY VLV M8 FLANGE	0-91150-108-0	02	1	0308-0602	●	●
7	NUT; RELAY VLV M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
10	CONNECTOR (D) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0308-	●	●
10	CONNECTOR (E) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0308-	●	●
10	CONNECTOR (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0308-	●	●
10	CONNECTOR (B) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	0308-	●	●
10	CONNECTOR (C)	1-09661-537-0	01	1	0308-	●	●
10	CONNECTOR EXC. BRAKE SYSTEM HSA<SLD> (F) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0308-	●	●
12	CONNECTOR; RELAY VLV BRAKE SYSTEM HSA<SLD> (F) PT3/8 4WAY	1-09661-489-0	01	1	0403-		●
12	CONNECTOR; RELAY VLV (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0403-		●
12	CONNECTOR; RELAY VLV EXC. BRAKE SYSTEM HSA<SLD> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	03	1	0403-		●
12	CONNECTOR; RELAY VLV EXC. BRAKE SYSTEM HSA<SLD> (F) PT3/8 3WAY	1-09661-300-0	01	1	0403-		●
12	CONNECTOR; RELAY VLV (D) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0403-	●
12	CONNECTOR; RELAY VLV (C) DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	0403-	●
12	CONNECTOR; RELAY VLV (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0308-	●	●
12	CONNECTOR; RELAY VLV (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0308-0402	●	●
12	CONNECTOR; RELAY VLV (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0308-0402	●	●
12	CONNECTOR; RELAY VLV BRAKE SYSTEM HSA<SLD> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	04	1	0403-		●
12	CONNECTOR; RELAY VLV (C) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0308-0402	●	●
12	CONNECTOR; RELAY VLV (C) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0403-		●
12	CONNECTOR; RELAY VLV (C) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	0308-0402	●	●
12	CONNECTOR; RELAY VLV (C) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	0403-		●
12	CONNECTOR; RELAY VLV (E) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	02	1	0308-	●	●
12	CONNECTOR; RELAY VLV (B)	1-09661-537-0	01	1	0308-	●	●
55	PLUG; SUPPLY PT3/8	9-09204-517-0	02	1	0308-	●	●
56	BRACKET; RELAY VLV (B)	1-47479-893-1	01	1	0308-	●	●
56	BRACKET; RELAY VLV (A)	1-47479-447-0	01	1	0308-0310	●	●
56	BRACKET; RELAY VLV (A)	1-47479-937-0	01	1	0311-	●	●
58	ADAPTER (B) PT3/8 ELBOW	1-09660-696-0	02	1	0308-		●
58	ADAPTER (A) PT3/8	1-09664-210-0	02	1	0308-	●
62	BOLT; BRKT FIX M10X30 FLANGE	0-28681-030-0	02	1	0308-0512	●	●
62	BOLT; BRKT FIX M10X30 FLANGE	0-28651-030-0	02	1	0601-	●	●
63	NUT; BRKT FIX M10 FLANGE	0-91150-210-0	02	1	0308-0602	●	●
63	NUT; BRKT FIX M10 FLANGE	0-91180-210-0	02	1	0603-	●	●
65	BRACKET; RELAY VLV RR	1-47479-328-0	01	1	0308-	●	●
68	NUT; RELAY VLV TO BRKT M8 FLANGE	0-91150-108-0	04	1	0308-0602	●	●
68	NUT; RELAY VLV TO BRKT M8 FLANGE	0-91180-108-0	04	1	0603-	●	●
134	PLUG; RELAY VALVE PT3/8	9-09204-517-0	01	1	0308-	●	●
138	SWITCH; RELAY VALVE	1-48340-064-1	01	1	0308-0312	●	●
138	SWITCH; RELAY VALVE	1-48340-067-0	01	1	0401-	●	●
181	ADAPTER; PRESSURE SW PT3/8 4WAY	1-09661-489-0	01	1	0308-	●	●

188 204

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	188	REPAIR KIT; HSA VLV BRAKE SYSTEM HSA<SLD>	1-85576-304-1	01	1	0308-	●	●
	204	PIPE ASM; HSA VLV BRAKE SYSTEM HSA<SLD>	1-46366-194-0	01	1	0308-	●	●

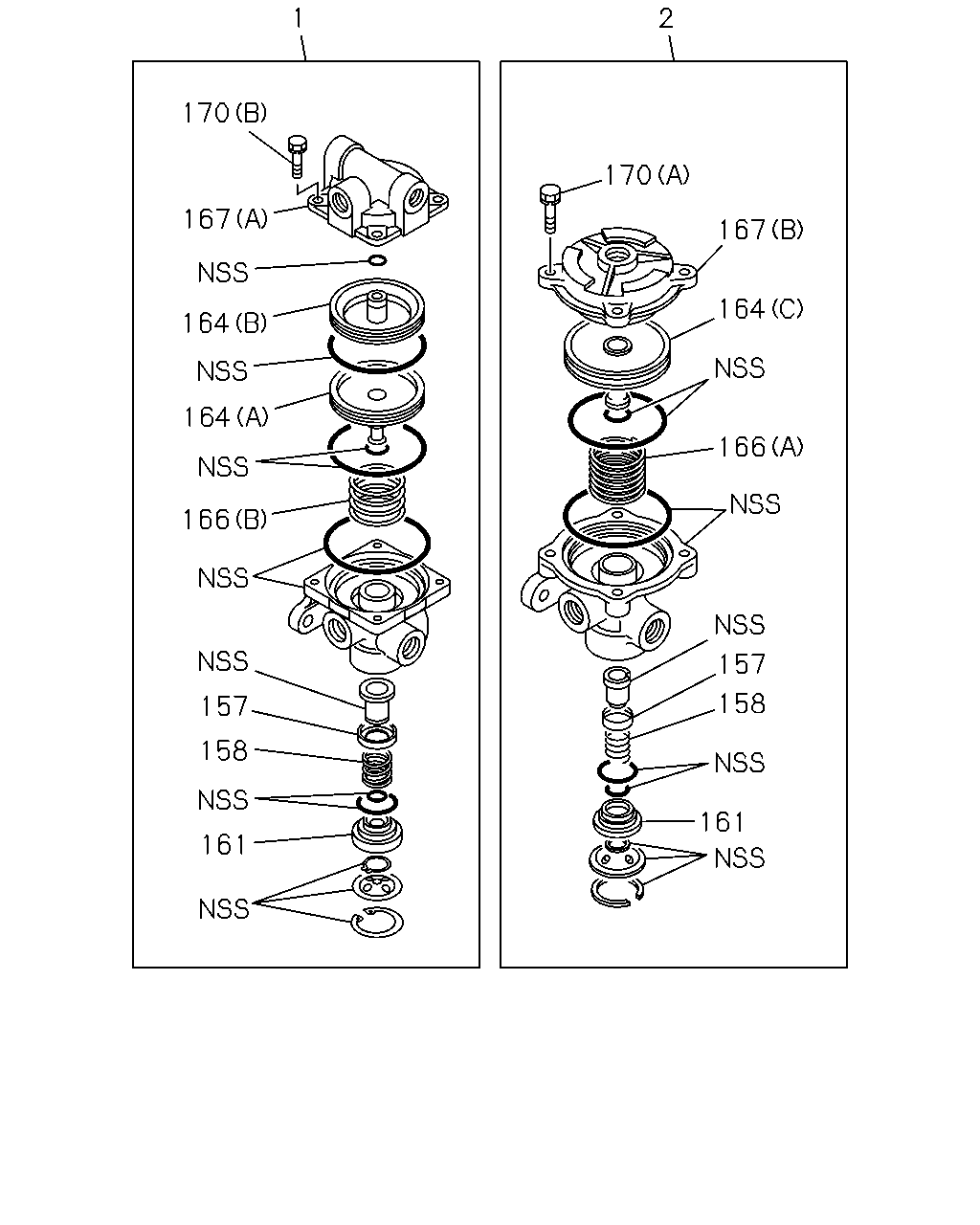

2 1 170 170 167 167 164 164 164 166 166 157 158 157 158 161 161

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	VALVE; RELAY RWD RR	1-48240-041-1	01	1	0308-	●	●
2	VALVE; RELAY	1-48210-875-0	03	1	0403-	●
2	VALVE; RELAY	1-48210-875-0	01	1	0308-0402	●	●
2	VALVE; RELAY	1-48210-875-0	01	1	0403-		●
2	VALVE; RELAY	1-48210-875-0	02	1	0308-0402	●	●
2	VALVE; RELAY	1-48210-875-0	02	1	0403-		●
157	RETAINER; VALVE	1-48213-002-0	01	1	0403-	●	●
157	RETAINER; VALVE	1-48213-002-0	03	1	0403-	●
157	RETAINER; VALVE	1-48213-002-0	02	1	0308-0402	●	●
157	RETAINER; VALVE	1-48213-002-0	02	1	0308-0402	●	●
157	RETAINER; VALVE	1-48213-002-0	02	1	0403-		●
158	SPRING; VALVE	1-47819-089-0	01	1	0403-	●	●
158	SPRING; VALVE	1-47819-089-0	03	1	0403-	●
158	SPRING; VALVE	1-47819-089-0	02	1	0308-0402	●	●
158	SPRING; VALVE	1-47819-089-0	02	1	0308-0402	●	●
158	SPRING; VALVE	1-47819-089-0	02	1	0403-		●
161	GUIDE; VALVE	1-48129-014-0	01	1	0403-	●	●
161	GUIDE; VALVE	1-48129-014-0	03	1	0403-	●
161	GUIDE; VALVE	1-48129-014-0	02	1	0308-0402	●	●
161	GUIDE; VALVE	1-48129-014-0	02	1	0308-0402	●	●
161	GUIDE; VALVE	1-48129-014-0	02	1	0403-		●
164	PISTON; RELAY VALVE (C)	1-48219-071-0	03	1	0403-	●
164	PISTON; RELAY VALVE (A)	1-48219-032-0	01	1	0308-	●	●
164	PISTON; RELAY VALVE (B)	1-48219-047-0	01	1	0308-	●	●
164	PISTON; RELAY VALVE (C)	1-48219-071-0	01	1	0308-0402	●	●
164	PISTON; RELAY VALVE (C)	1-48219-071-0	01	1	0403-		●
164	PISTON; RELAY VALVE (C)	1-48219-071-0	02	1	0308-0402	●	●
164	PISTON; RELAY VALVE (C)	1-48219-071-0	02	1	0403-		●
166	SPRING; PISTON (A)	1-47819-090-0	03	1	0403-	●
166	SPRING; PISTON (A)	1-47819-090-0	01	1	0308-0402	●	●
166	SPRING; PISTON (A)	1-47819-090-0	01	1	0403-		●
166	SPRING; PISTON (A)	1-47819-090-0	02	1	0308-0402	●	●
166	SPRING; PISTON (A)	1-47819-090-0	02	1	0403-		●
166	SPRING; PISTON (B)	1-48219-048-0	01	1	0308-	●	●
167	COVER; VALVE (B)	1-48219-070-0	03	1	0403-	●
167	COVER; VALVE (A)	1-48219-050-1	01	1	0308-	●	●
167	COVER; VALVE (B)	1-48219-070-0	01	1	0308-0402	●	●
167	COVER; VALVE (B)	1-48219-070-0	01	1	0403-		●
167	COVER; VALVE (B)	1-48219-070-0	02	1	0308-0402	●	●
167	COVER; VALVE (B)	1-48219-070-0	02	1	0403-		●
170	SCREW; COVER TO BODY (A)	1-48219-039-0	12	1	0403-	●
170	SCREW; COVER TO BODY (A)	1-48219-039-0	04	1	0308-0402	●	●
170	SCREW; COVER TO BODY (A)	1-48219-039-0	04	1	0403-		●
170	SCREW; COVER TO BODY (A)	1-48219-039-0	08	1	0308-0402	●	●
170	SCREW; COVER TO BODY (A)	1-48219-039-0	08	1	0403-		●
170	SCREW; COVER TO BODY (B)	1-48219-041-0	04	1	0308-	●	●

201 106 195 189 192 204 202 190 198 205 196 199 200 203 198 197 201 203 199 205 196 201 197 200

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
106	VALVE; HSA BRAKE SYSTEM HSA<SLD>	1-46362-118-1	01	1	0308-	●	●
189	VALVE ASM; SOLENOID,HSA VLV BRAKE SYSTEM HSA<SLD>	1-46366-242-0	01	1	0308-	●	●
190	BODY; SOLENOID VLV,HSA VLV BRAKE SYSTEM HSA<SLD>	1-46366-234-0	01	1	0308-	●	●
192	SPRING; SOLENOID VLV,HSA VLV BRAKE SYSTEM HSA<SLD>	1-46366-181-0	01	1	0308-	●	●
195	SCREW; SOLENOID VLV,HSA VLV BRAKE SYSTEM HSA<SLD>	1-46366-191-0	04	1	0308-	●	●
196	PISTON; HSA VLV BRAKE SYSTEM HSA<SLD>	1-46366-232-0	02	1	0308-	●	●
197	SPRING; INNER,HSA VLV BRAKE SYSTEM HSA<SLD>	1-46366-161-0	02	1	0308-	●	●
198	PIN; STRAIGHT,HSA VLV BRAKE SYSTEM HSA<SLD>	1-46366-122-0	02	1	0308-	●	●
199	RETAINER; HSA VLV BRAKE SYSTEM HSA<SLD>	1-46366-121-0	02	1	0308-	●	●
200	SPRING; OUTER,HSA VLV BRAKE SYSTEM HSA<SLD>	1-46366-120-0	02	1	0308-	●	●
201	COVER; HSA VLV BRAKE SYSTEM HSA<SLD> (A)	1-46366-118-1	02	1	0308-	●	●
201	COVER; HSA VLV BRAKE SYSTEM HSA<SLD> (B)	1-46366-241-0	01	1	0308-	●	●
202	FILTER; HSA VLV BRAKE SYSTEM HSA<SLD>	1-46366-117-1	02	1	0308-	●	●
203	SCREW; HSA VLV BRAKE SYSTEM HSA<SLD>	1-46366-116-1	06	1	0308-	●	●
204	PIPE ASM; HSA VLV BRAKE SYSTEM HSA<SLD>	1-46366-194-0	01	1	0308-	●	●
205	BRACKET; HSA VLV BRAKE SYSTEM HSA<SLD>	1-46366-243-0	02	1	0308-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
