4-70 — AIR SUSPENSION VALVE AND CONTROL (#25912) — 81 parça

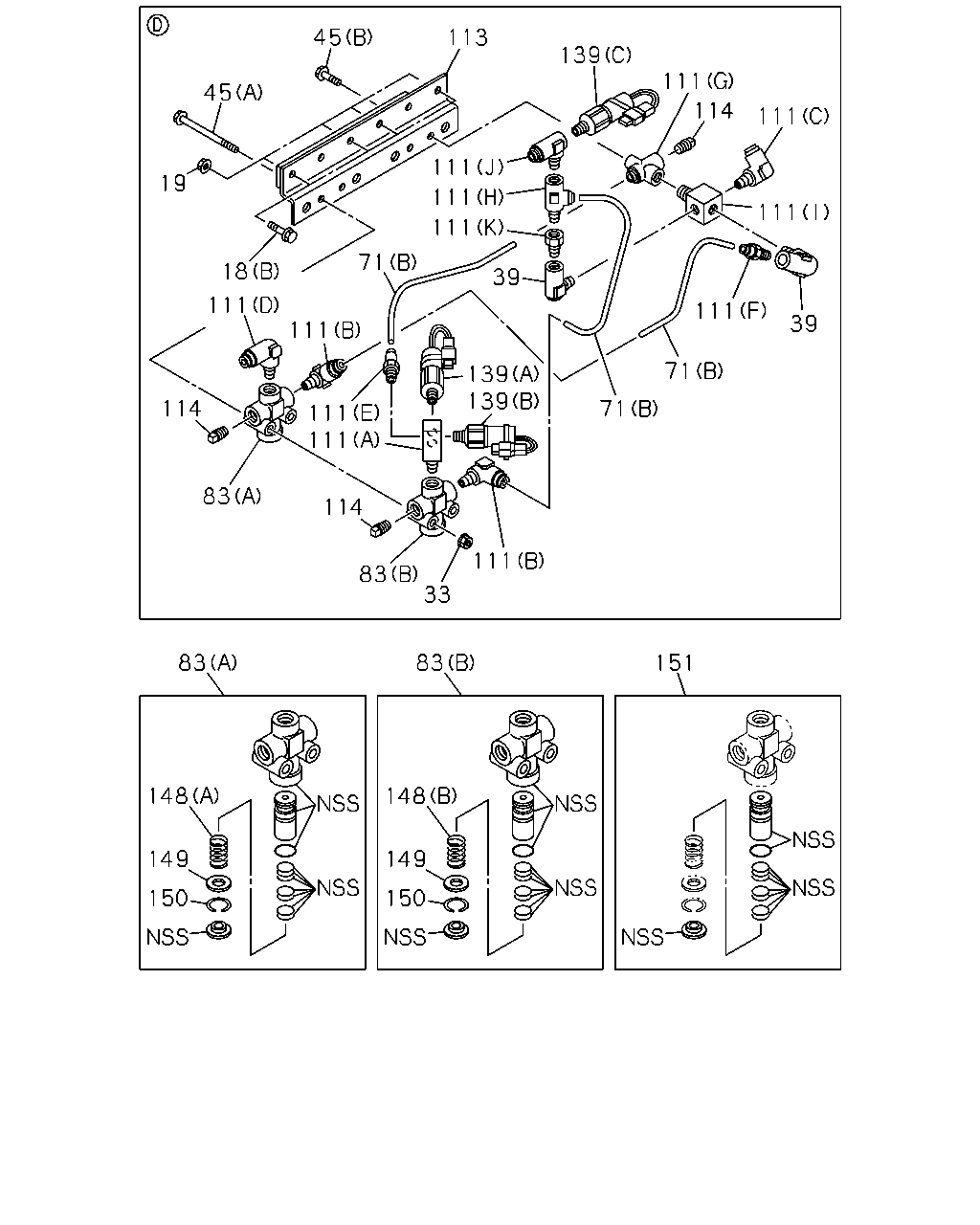

çizim 25438
45 113 139 111 45 114 111 111 19 111 111 111 71 18 39 111 111 39 111 71 139 139 71 114 111 111 83 114 111 83 33 83 83 151 148 148 149 149 150 150
BalonParca AdiParca NoAdetTipApplied Date
18 BOLT; AIR VLV
(A) M8X70 		0-10805-870-0 04 1 0302-
18 BOLT; AIR VLV
(B) M8X25 FLANGE 		0-28680-825-0 04 1 0302-
19 NUT; AIR VLV
M8 FLANGE 		0-91150-108-0 08 1 0302-
33 NUT
M8 FLANGE 		0-91150-108-0 02 1 0302-
39 VALVE; CHECK 1-48320-031-1 02 1 0302-
45 BOLT
(A) M8X100 FLANGE 		0-28080-800-0 02 1 0302-
45 BOLT
(B) M8X16 FLANGE 		0-28080-816-0 01 1 0302-
71 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 03 1 0302-
71 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 0302-
83 VALVE; PROTECTION
(A) 		1-48110-209-0 01 1 0302-
83 VALVE; PROTECTION
(B) 		1-48110-222-0 01 1 0302-
111 CONNECTOR
(A) PT1/4 4WAY 		1-09660-358-0 01 1 0302-
111 CONNECTOR
(B) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0302-
111 CONNECTOR
(C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0302-
111 CONNECTOR
(D) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 0302-
111 CONNECTOR
(E) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0302-
111 CONNECTOR
(F) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0302-
111 CONNECTOR
(G) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0302-
111 CONNECTOR
(H) 		1-09661-271-0 01 1 0302-
111 CONNECTOR
(I) PT3/8 4WAY 		1-09661-489-0 01 1 0302-
111 CONNECTOR
(J) 		1-09661-537-0 01 1 0302-
111 CONNECTOR
(K) PT3/8 		1-09664-210-0 01 1 0302-
113 BRACKET 1-47479-447-0 01 1 0302-0310
113 BRACKET 1-47479-937-0 01 1 0311-
114 PLUG
PT1/4 		9-99204-513-0 03 1 0302-
139 SWITCH; LOW PRESSURE
(A) 		1-48340-065-0 01 1 0302-
139 SWITCH; LOW PRESSURE
(B) 		1-48340-066-0 01 1 0302-
139 SWITCH; LOW PRESSURE
(C) 		1-82410-163-1 01 1 0302-
148 SPRING; PROTECTION VALVE
(A) 		1-48123-093-0 01 1 0302-
148 SPRING; PROTECTION VALVE
(B) 		1-48123-094-0 01 1 0302-
149 SEAL; DUST,PROTECTION VALVE 1-48119-447-0 02 1 0302-
150 RING; SNAP,PROTECTION VALVE 1-48119-448-0 02 1 0302-
151 REPAIR KIT; PROTECTION VALVE 1-85576-319-0 02 1 0302-

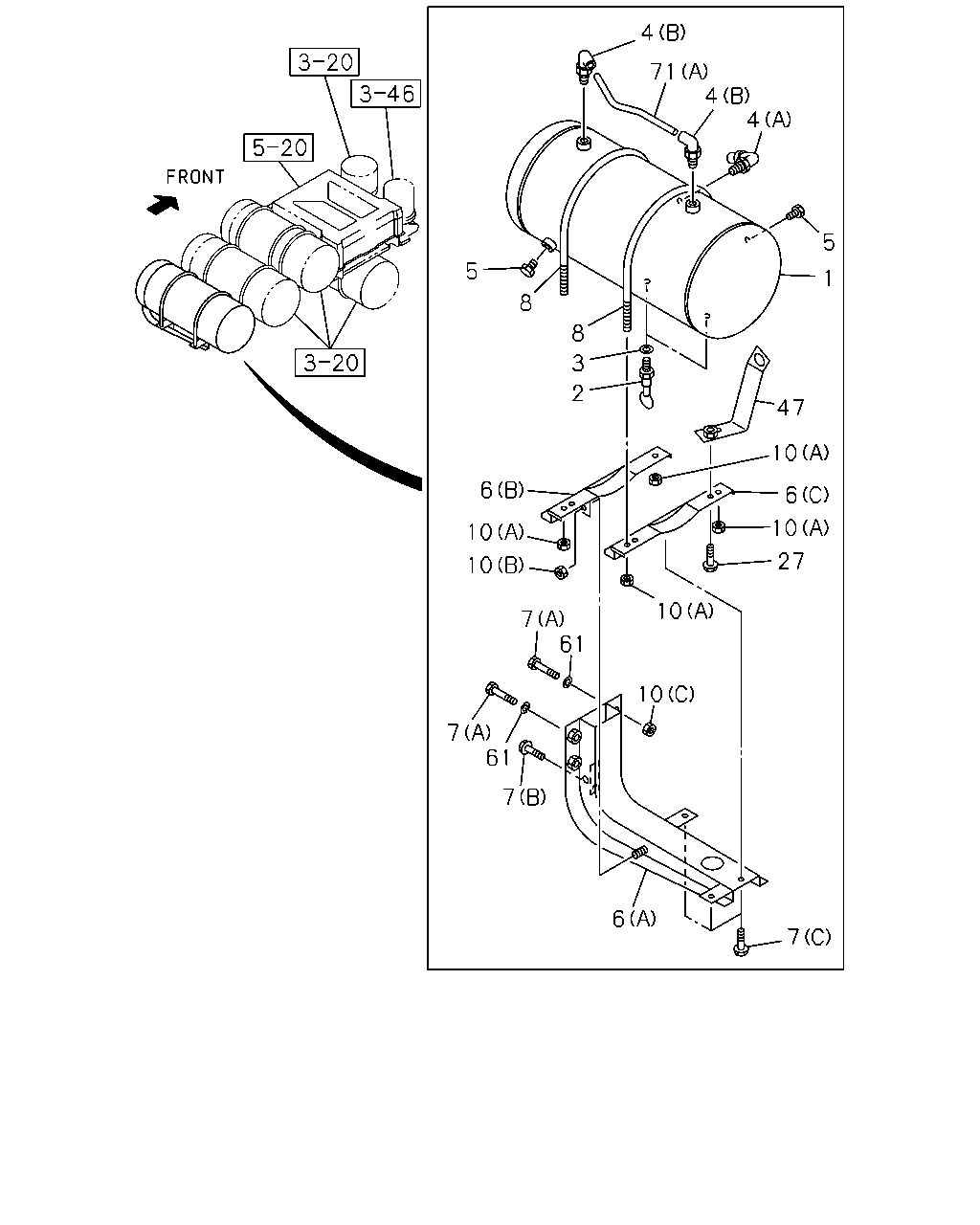

çizim 79878
4 71 4 4 5 5 1 8 8 3 2 47 10 6 6 10 10 27 10 10 7 61 10 7 61 7 6 7
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; AIR 1-48371-226-3 01 1 0302-
2 COCK ASM; DRAIN
W/COVER 		1-48312-004-2 02 1 0302-
3 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 0302-
4 CONNECTOR; AIR TANK
(A) DIN8 & M22 ELBOW 		1-09661-495-0 01 1 0302-
4 CONNECTOR; AIR TANK
(B) 		1-09661-570-0 02 1 0302-
5 PLUG; AIR TANK 1-09661-502-0 02 1 0302-
6 BRACKET; AIR TANK
(A) 		1-48316-024-3 01 1 0302-
6 BRACKET; AIR TANK
(B) 		1-48316-026-0 01 1 0302-
6 BRACKET; AIR TANK
(C) 		1-48317-994-2 01 1 0302-
7 BOLT; BRKT,AIR TANK
(A) M14X40 		0-20801-440-0 04 1 0302-0309
7 BOLT; BRKT,AIR TANK
(A) M14X50 		0-20801-450-0 04 1 0310-
7 BOLT; BRKT,AIR TANK
(B) M8X25 FLANGE 		0-28680-825-0 01 1 0302-
7 BOLT; BRKT,AIR TANK
(C) M12X25 FLANGE 		0-28681-225-0 03 1 0302-0302
7 BOLT; BRKT,AIR TANK
(C) M12X25 FLANGE 		0-28681-225-0 04 1 0303-
8 U-BOLT; AIR TANK
L=303 		1-48317-087-2 02 1 0302-
10 NUT; U-BOLT
(B) M12 FLANGE 		0-91150-212-0 01 1 0302-
10 NUT; U-BOLT
(A) M8 		9-09110-408-0 08 1 0302-
10 NUT; U-BOLT
(C) M14 		9-99110-514-0 02 1 0302-
27 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 01 1 0302-
47 BRACKET; STOPPER 1-48316-014-0 01 1 0302-
61 WASHER; LK,AIR TANK
ID=14.2 		9-09150-514-0 04 1 0302-
71 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 03 1 0302-
71 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 0302-

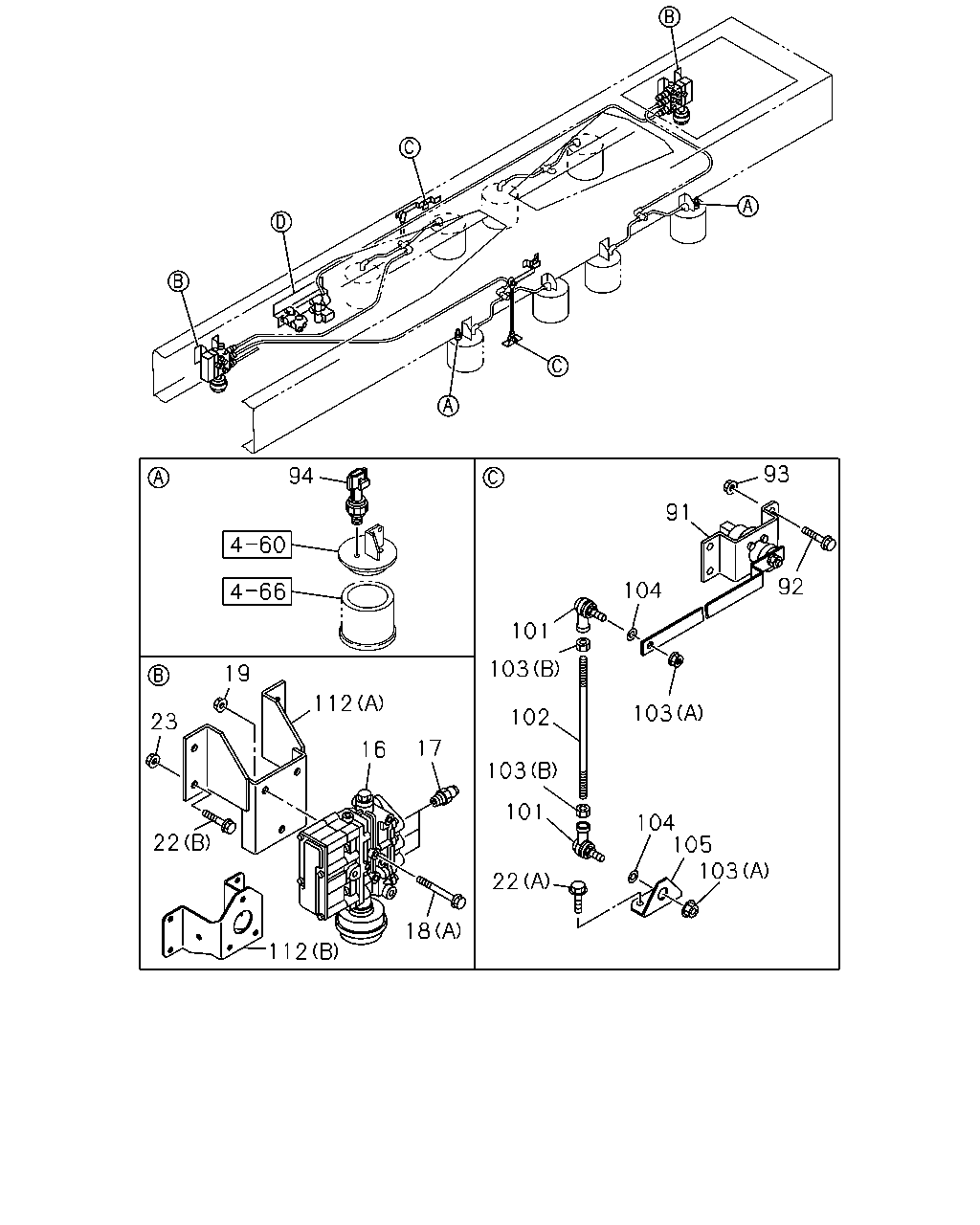

çizim 83056
93 94 91 92 104 101 103 19 112 103 102 23 17 16 103 101 104 105 103 22 22 18 112
BalonParca AdiParca NoAdetTipApplied Date
16 VALVE; AIR 1-82563-713-0 02 1 0302-
17 CONNECTOR; AIR VLV
DIN8 & M22 STRAIGHT 		1-09661-091-0 06 1 0302-
18 BOLT; AIR VLV
(A) M8X70 		0-10805-870-0 04 1 0302-
18 BOLT; AIR VLV
(B) M8X25 FLANGE 		0-28680-825-0 04 1 0302-
19 NUT; AIR VLV
M8 FLANGE 		0-91150-108-0 08 1 0302-
22 BOLT; BRKT
(A) M8X10 FLANGE 		0-28080-810-0 04 1 0302-
22 BOLT; BRKT
(B) M8X30 FLANGE 		0-28680-830-0 08 1 0302-
23 NUT; BRKT
M8 FLANGE 		0-91150-108-0 08 1 0302-
91 SENSOR ASM; ELEC,HIGHT CONT 1-81549-106-1 01 1 0302-0302
91 SENSOR ASM; ELEC,HIGHT CONT 1-81549-113-0 01 1 0303-
91 SENSOR ASM; ELEC,HIGHT CONT 1-81549-105-1 01 1 0302-0302
91 SENSOR ASM; ELEC,HIGHT CONT 1-81549-112-0 01 1 0303-
92 BOLT; SENSOR
M8X25 FLANGE 		0-28680-825-0 04 1 0302-
93 NUT; SENSOR
M8 FLANGE 		0-91150-108-0 04 1 0302-
94 SENSOR ASM; PRESSURE,AIR 1-80220-022-0 04 1 0302-
101 JOINT ASM; BALL
L=48 		1-09760-038-1 04 1 0302-0310
101 JOINT ASM; BALL
L=45.5 		1-09760-118-1 04 1 0311-
102 ROD; LINK
L=210 		9-08400-821-0 02 1 0302-
103 NUT; LINK ROD
(A) M8 FLANGE 		0-91150-108-0 04 1 0302-
103 NUT; LINK ROD
(B) M8 		9-09111-408-0 04 1 0302-
104 WASHER; LINK ROD
ID=8.2 		8-94312-733-0 04 1 0302-
105 BRACKET; AXLE LINK ROD 1-42129-238-0 02 1 0302-
112 BRACKET; MAG VLV
(A) 		1-47479-592-0 02 1 0302-0302
112 BRACKET; MAG VLV
(A) 		1-47479-772-0 02 1 0303-0311
112 BRACKET; MAG VLV
(B) 		1-47479-960-0 02 1 0312-
