4-50 — FRONT SUSPENSION (#25907) — 81 parça

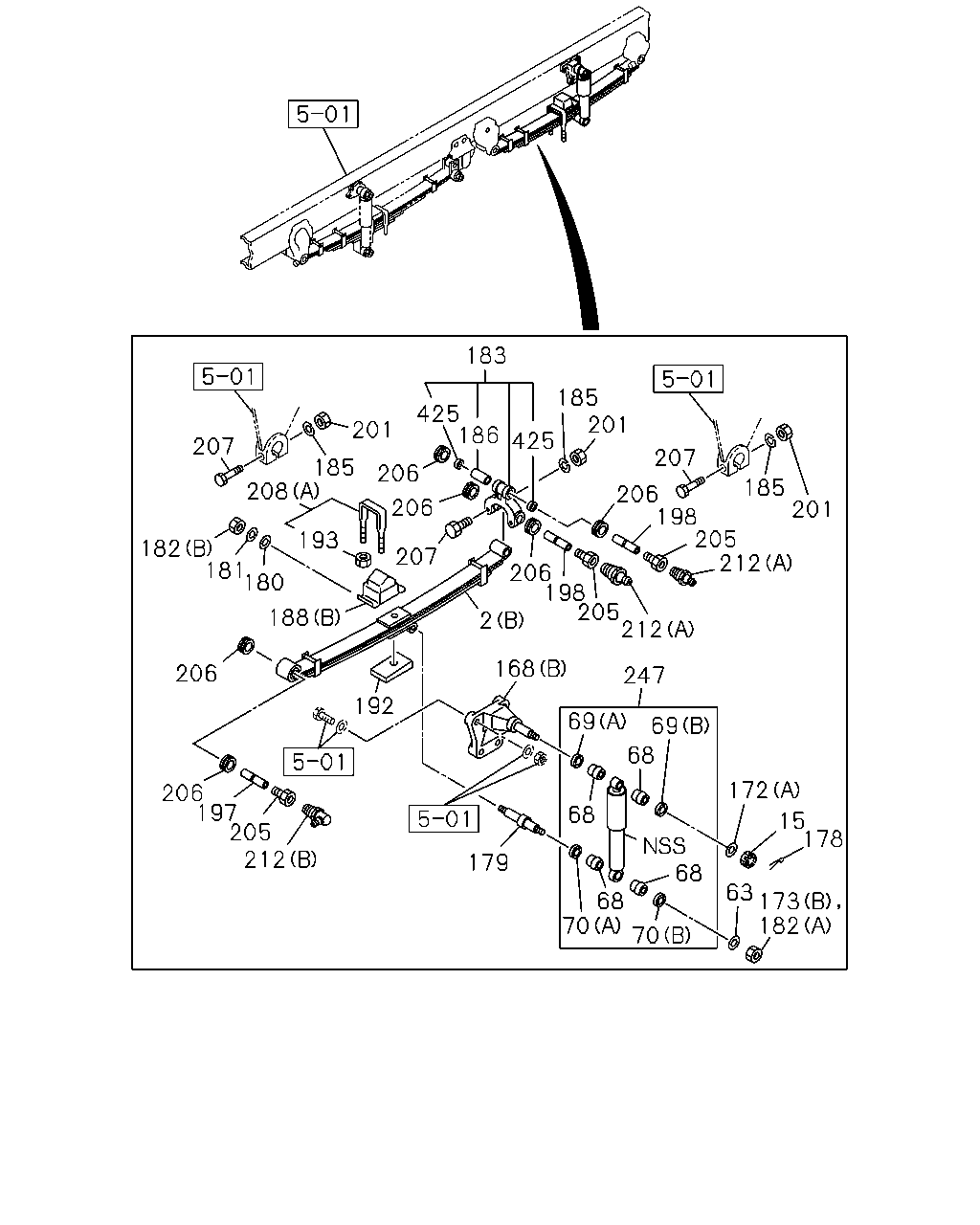

çizim 24702
183 185 201 425 186 201 425 207 207 185 206 185 201 208 206 198 205 212 206 193 182 181 180 207 206 198 205 212 188 2 168 206 247 192 69 69 68 172 206 197 205 212 68 15 178 68 179 63 173 182 68 70 70
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. (A) FORWARD 3-LEAF 		1-51130-924-0 02 1 0302-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. (B) REARWARD 3-LEAF 		1-51130-925-0 02 1 0302-
15 NUT; S/ABS,UPR
M20 SLOTTED 		9-99116-420-0 04 1 0302-
63 WASHER; PL,S/ABS,LWR
ID=21 		9-09160-520-0 04 1 0302-
68 BUSHING; S/ABS 9-51631-026-0 16 1 0302-
69 WASHER; UPR,S/ABS
(A) ID=27 		9-51631-027-0 02 1 0302-
69 WASHER; UPR,S/ABS
(B) ID=21 		9-51631-028-0 02 1 0302-
70 WASHER; LWR,S/ABS
(A) ID=27 		9-51631-027-0 02 1 0302-
70 WASHER; LWR,S/ABS
(B) ID=21 		9-51631-028-0 02 1 0302-
168 BRACKET; S/ABS,FRT SUSP
(A) 		1-51681-745-0 02 1 0302-
168 BRACKET; S/ABS,FRT SUSP
(B) 		1-51681-746-0 02 1 0302-
172 WASHER; PL,S/ABS BRKT
(A) ID=21 		9-09160-520-0 04 1 0302-
172 WASHER; PL,S/ABS BRKT
(B) ID=15 		9-09651-069-0 08 1 0302-
173 NUT; S/ABS
(A) M14 		9-99110-514-0 08 1 0302-
173 NUT; S/ABS
(B) M20 		9-99110-520-0 02 1 0302-
178 PIN; SPLIT,S/ABS
OD=3.7 L=35 		9-08114-035-0 04 1 0302-
179 PIN 1-51682-094-1 02 1 0302-
180 WASHER; PL,PIN 1-09503-169-0 02 1 0302-
181 WASHER; LK,PIN
ID=24.5 		9-09150-524-0 02 1 0302-
182 NUT; S/ABS LWR
(B) M24 		9-99110-524-0 02 1 0302-
182 NUT; S/ABS LWR
(A) M20 		9-99110-520-0 01 1 0302-
183 SHACKLE; FRT SUSP 1-51162-071-0 04 1 0302-
185 WASHER; LK,PIN
ID=12.2 		9-09150-612-0 24 1 0302-
186 BUSHING; SHACKLE
OD=42 		1-51351-044-0 04 1 0302-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(A) FORWARD 		1-51172-081-0 02 1 0302-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(B) REARWARD 		1-51172-096-1 02 1 0302-
192 PIECE; DIST 1-51177-281-0 02 1 0302-
193 NUT; U BOLT
M22 		9-09112-822-0 16 1 0302-
197 PIN; FRT SPR,FRT 1-51161-031-0 04 1 0302-
198 PIN; FRT SPR & SHACKLE,FWD FRT 1-51161-031-0 08 1 0302-
201 NUT; PIN LK
M12 		9-99110-512-0 24 1 0302-
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 12 1 0302-
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 24 1 0302-
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 24 1 0302-
208 U-BOLT SET; FRT SPRING
(A) REARWARD L=230 		1-87870-269-1 04 1 0302-0303
208 U-BOLT SET; FRT SPRING
(A),(B) L=230 		1-87870-269-2 08 1 0304-
208 U-BOLT SET; FRT SPRING
(B) FORWARD L=240 		1-87870-376-0 04 1 0302-0303
212 NIPPLE; GREASE,ELBOW
(A) PT1/8 STRAIGHT 		9-09031-010-0 07 1 0302-
212 NIPPLE; GREASE,ELBOW
(B) PT1/8 ELBOW 		9-09031-210-0 05 1 0302-
247 ABSORBER ASM; SHOCK,RWD FRT 1-51630-443-0 02 1 0302-
425 SEAL; DUST 1-51177-321-0 08 1 0302-

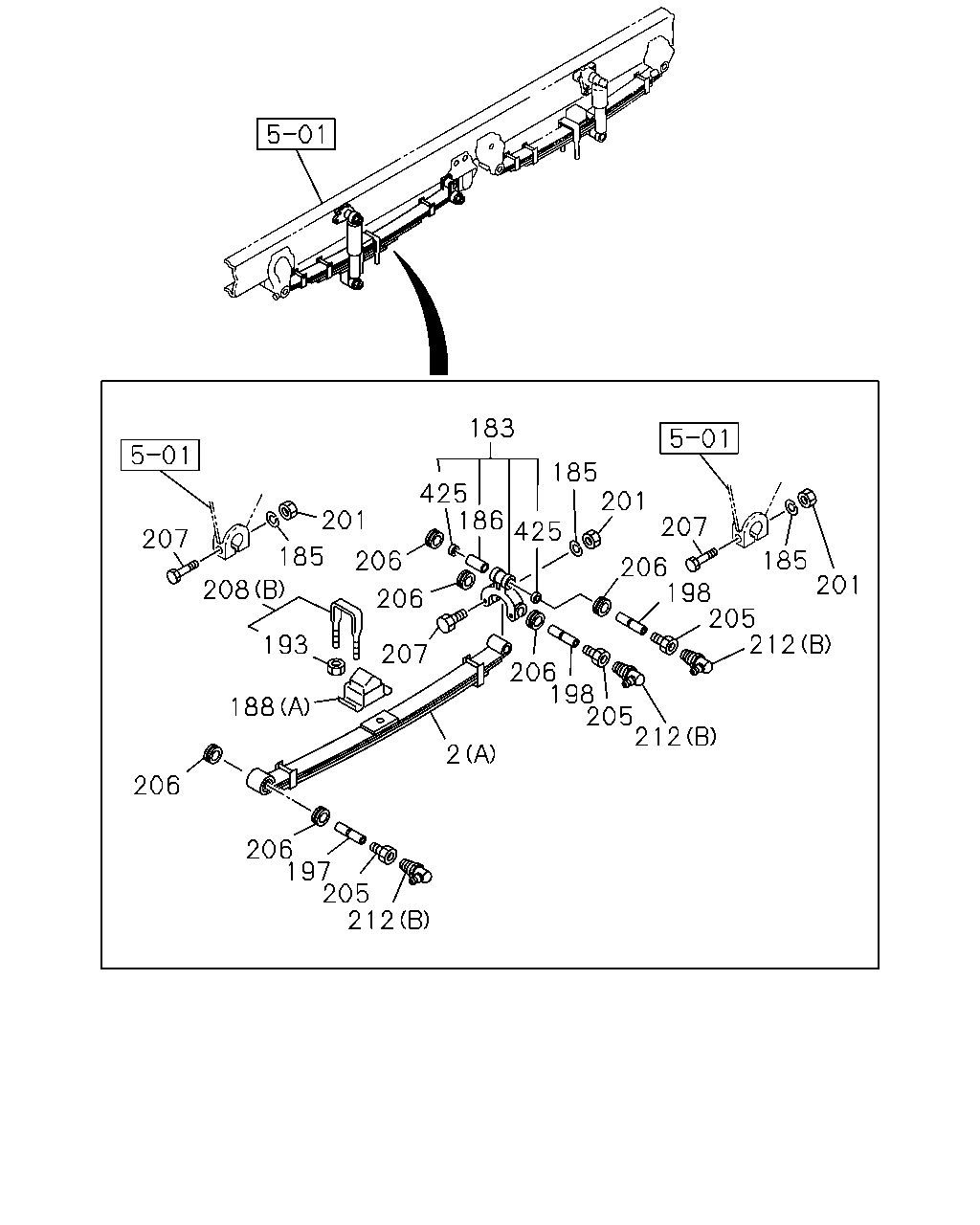

çizim 81739
183 185 201 425 186 425 201 207 207 185 185 201 206 206 198 205 212 208 206 193 207 206 198 205 212 188 2 206 206 197 205 212
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. (A) FORWARD 3-LEAF 		1-51130-924-0 02 1 0302-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. (B) REARWARD 3-LEAF 		1-51130-925-0 02 1 0302-
183 SHACKLE; FRT SUSP 1-51162-071-0 04 1 0302-
185 WASHER; LK,PIN
ID=12.2 		9-09150-612-0 24 1 0302-
186 BUSHING; SHACKLE
OD=42 		1-51351-044-0 04 1 0302-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(A) FORWARD 		1-51172-081-0 02 1 0302-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(B) REARWARD 		1-51172-096-1 02 1 0302-
193 NUT; U BOLT
M22 		9-09112-822-0 16 1 0302-
197 PIN; FRT SPR,FRT 1-51161-031-0 04 1 0302-
198 PIN; FRT SPR & SHACKLE,FWD FRT 1-51161-031-0 08 1 0302-
201 NUT; PIN LK
M12 		9-99110-512-0 24 1 0302-
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 12 1 0302-
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 24 1 0302-
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 24 1 0302-
208 U-BOLT SET; FRT SPRING
(A) REARWARD L=230 		1-87870-269-1 04 1 0302-0303
208 U-BOLT SET; FRT SPRING
(A),(B) L=230 		1-87870-269-2 08 1 0304-
208 U-BOLT SET; FRT SPRING
(B) FORWARD L=240 		1-87870-376-0 04 1 0302-0303
212 NIPPLE; GREASE,ELBOW
(A) PT1/8 STRAIGHT 		9-09031-010-0 07 1 0302-
212 NIPPLE; GREASE,ELBOW
(B) PT1/8 ELBOW 		9-09031-210-0 05 1 0302-
425 SEAL; DUST 1-51177-321-0 08 1 0302-

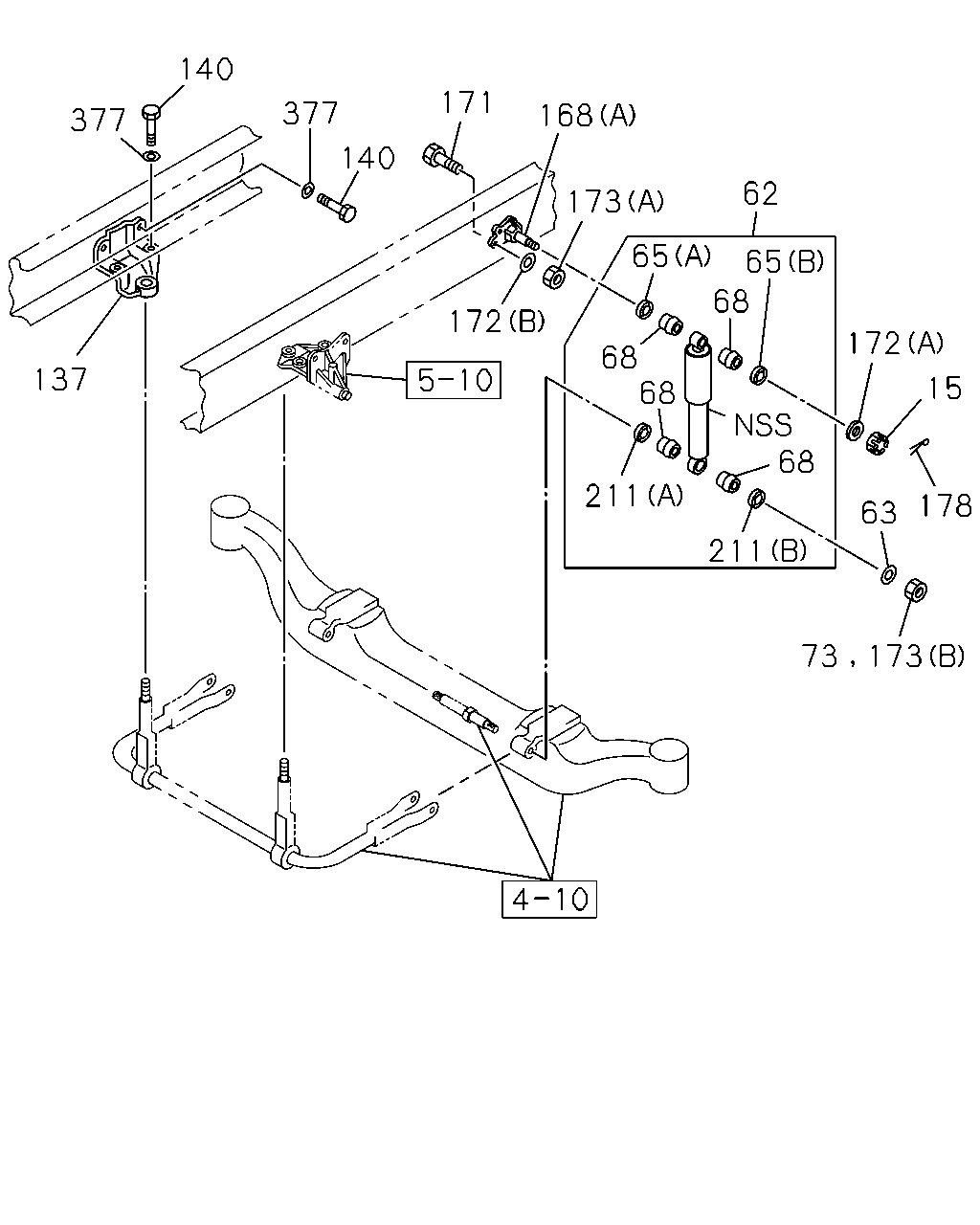

çizim 82012
140 171 377 168 377 140 62 173 65 65 68 172 172 68 68 137 15 68 211 178 63 211 73 173
BalonParca AdiParca NoAdetTipApplied Date
15 NUT; S/ABS,UPR
M20 SLOTTED 		9-99116-420-0 04 1 0302-
62 ABSORBER ASM; SHOCK,FRT 1-51630-429-0 02 1 0302-
63 WASHER; PL,S/ABS,LWR
ID=21 		9-09160-520-0 04 1 0302-
65 WASHER; S/ABS
(A) ID=27 		9-51631-027-0 02 1 0302-
65 WASHER; S/ABS
(B) ID=21 		9-51631-028-0 02 1 0302-
68 BUSHING; S/ABS 9-51631-026-0 16 1 0302-
73 NUT; BRKT,SHOCK
M20 		9-99110-520-0 01 1 0302-
137 BRACKET; STAB BAR TO FRAME 1-51781-111-0 01 1 0302-
140 BOLT; BRKT
M14X50 		9-92061-450-0 04 1 0302-
168 BRACKET; S/ABS,FRT SUSP
(A) 		1-51681-745-0 02 1 0302-
168 BRACKET; S/ABS,FRT SUSP
(B) 		1-51681-746-0 02 1 0302-
171 BOLT; S/ABS BRKT
M14X40 		9-92061-440-0 08 1 0302-
172 WASHER; PL,S/ABS BRKT
(A) ID=21 		9-09160-520-0 04 1 0302-
172 WASHER; PL,S/ABS BRKT
(B) ID=15 		9-09651-069-0 08 1 0302-
173 NUT; S/ABS
(A) M14 		9-99110-514-0 08 1 0302-
173 NUT; S/ABS
(B) M20 		9-99110-520-0 02 1 0302-
178 PIN; SPLIT,S/ABS
OD=3.7 L=35 		9-08114-035-0 04 1 0302-
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 0302-
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 0302-
377 WASHER; LK,BRKT
ID=15 		9-09651-069-0 04 1 0302-
