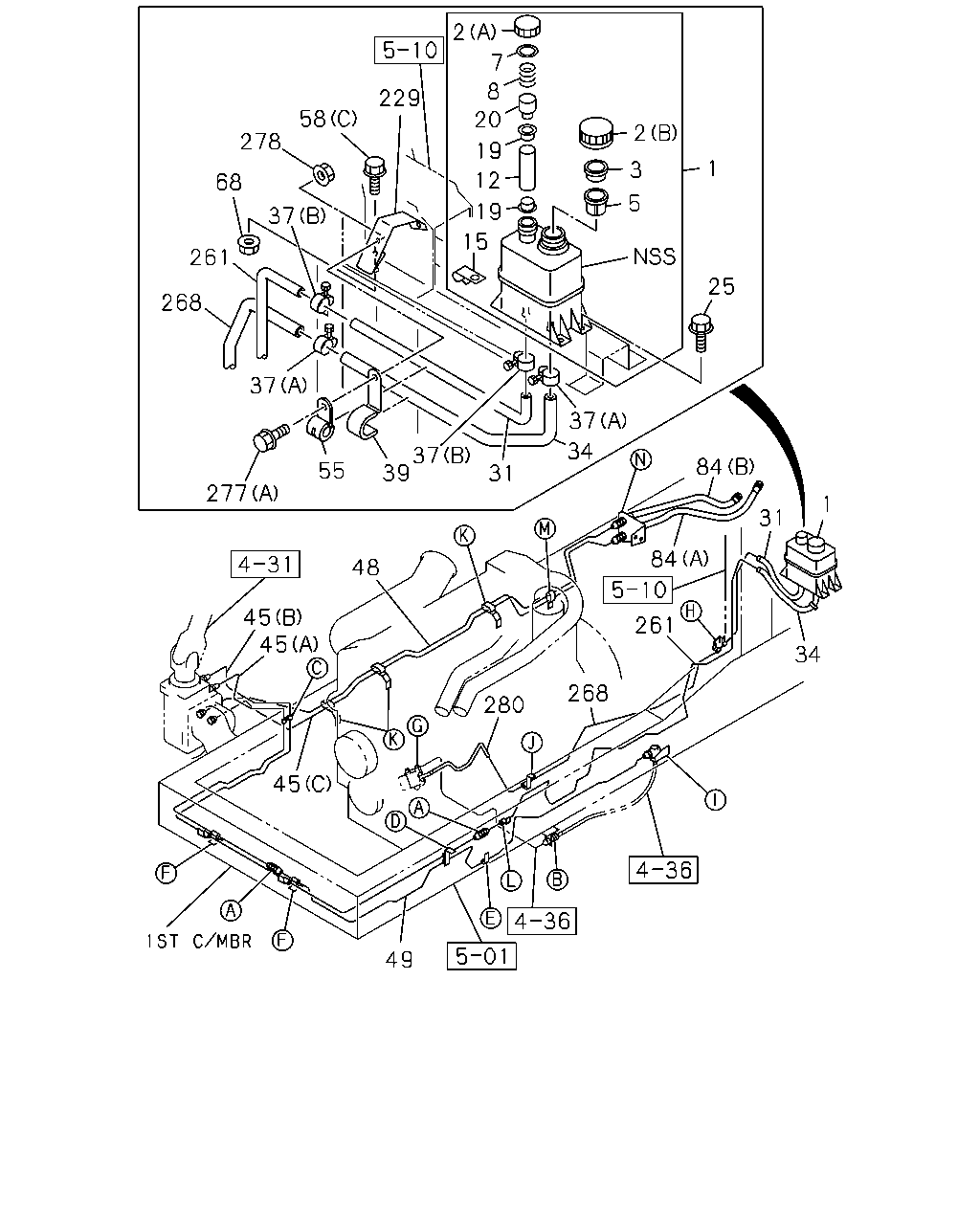

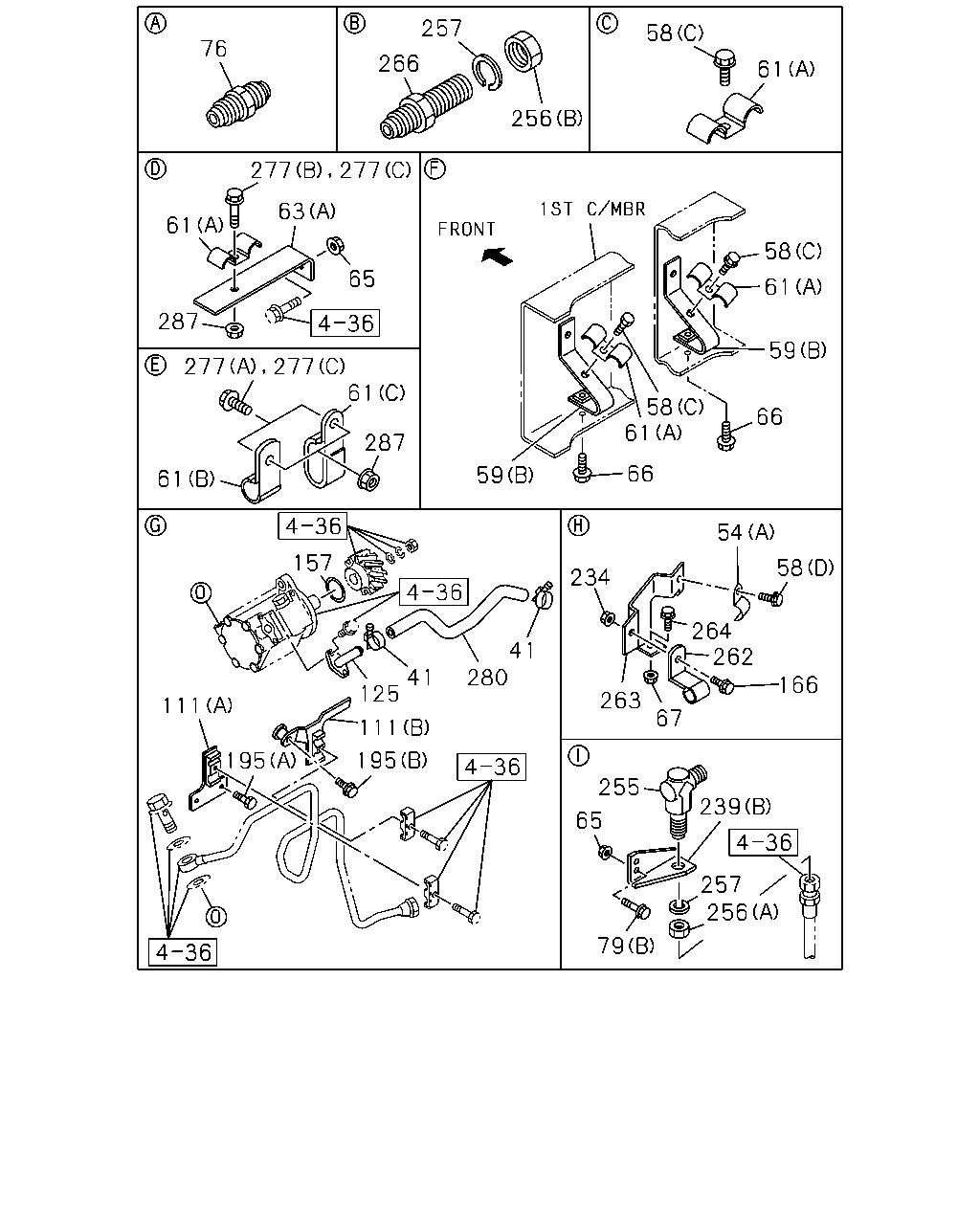

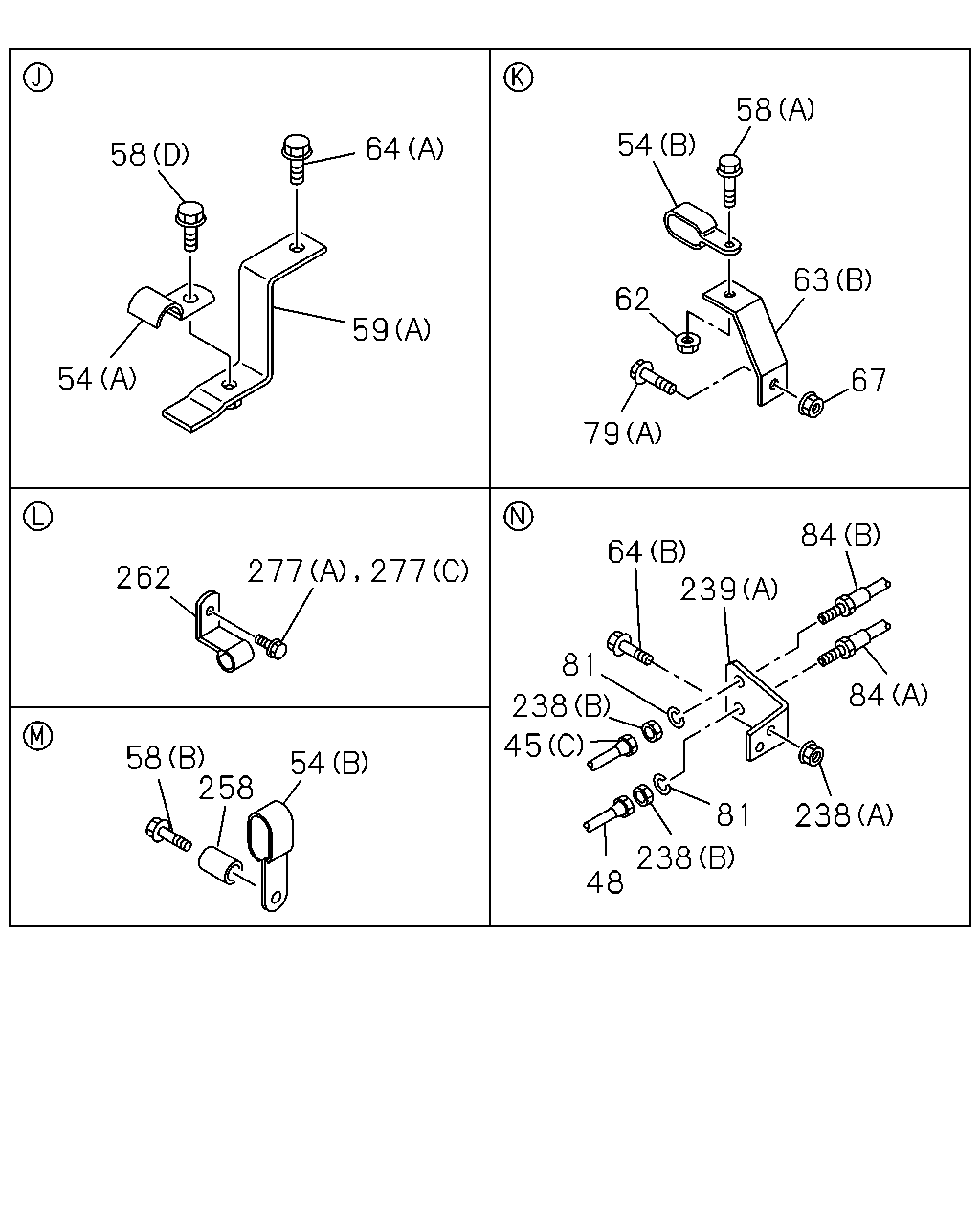

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#25902) — 143 parça

2 7 8 20 229 58 2 278 19 1 3 12 68 5 19 37 15 261 25 268 37 37 34 37 39 84 55 31 277 1 31 84 48 45 45 261 34 268 280 45 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-195-2	01	1	0302-0508
1	TANK ASM; OIL,P/S	1-21210-235-1	01	1	0509-
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-6	01	1	0302-
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-4	01	1	0302-
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	0302-
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	0302-
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	0302-
8	SPRING; OIL TANK,P/S	1-09580-319-1	01	1	0302-0508
8	SPRING; OIL TANK,P/S	1-09580-599-0	01	1	0509-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	0302-
15	PLATE; FILTER,OIL TANK	1-21249-007-1	04	1	0302-0508
15	PLATE; FILTER,OIL TANK	1-21249-016-0	04	1	0509-
19	SEAT; OIL TANK	1-21262-001-0	02	1	0302-
20	HOLDER; FILTER,OIL TANK,P/S	1-21239-001-2	01	1	0302-
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28680-820-0	04	1	0302-
31	HOSE; P/S OIL TANK,INL	1-21114-284-0	01	1	0302-
34	HOSE; P/S OIL TANK,OUTLET	1-21114-283-0	01	1	0302-
37	CLIP; HOSE,P/S (A) ID=38	9-09915-041-1	02	1	0302-
37	CLIP; HOSE,P/S (B) ID=28	9-09915-672-1	02	1	0302-
39	CLIP; FLEX HOSE ID=32 L=75	1-09700-702-0	01	1	0302-
45	PIPE; OIL,P/S UNIT TO UNION (A) L=1555	1-21117-306-0	01	1	0302-0505
45	PIPE; OIL,P/S UNIT TO UNION (A) L=1555	1-21117-776-0	01	1	0506-
45	PIPE; OIL,P/S UNIT TO UNION (B) L=2201	1-21117-307-0	01	1	0302-
45	PIPE; OIL,P/S UNIT TO UNION (C) L=2566	1-21117-323-0	01	1	0302-0401
45	PIPE; OIL,P/S UNIT TO UNION (C) L=2562	1-21117-435-0	01	1	0402-0408
45	PIPE; OIL,P/S UNIT TO UNION (C) L=2559	1-21117-601-0	01	1	0409-0410
45	PIPE; OIL,P/S UNIT TO UNION (C) L=2562	1-21117-435-0	01	1	0411-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	1-21117-322-0	01	1	0302-0305
48	PIPE; OIL,FLEX HOSE TO STRG UNIT L=2555	1-21117-396-0	01	1	0306-0309
48	PIPE; OIL,FLEX HOSE TO STRG UNIT L=2556	1-21117-433-0	01	1	0310-
49	PIPE; OIL,FLEX HOSE TO UNION	1-21117-352-0	01	1	0302-
55	CLIP; P/S RUBBER HOSE ID=28 L=30	1-09700-607-1	01	1	0302-
58	BOLT; CLIP (A) M8X16 FLANGE	0-28080-816-0	03	1	0302-
58	BOLT; CLIP (B) M8X50 FLANGE	0-28080-850-0	01	1	0302-
58	BOLT; CLIP (C) M8X20 FLANGE	0-28680-820-0	02	1	0302-
58	BOLT; CLIP (C) M8X20 FLANGE	0-28680-820-0	03	1	0302-
58	BOLT; CLIP (D) M10X20 FLANGE	0-28681-020-0	02	1	0302-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	01	1	0302-
84	HOSE; FLEX,P/S (A) L=430	0-09538-430-0	01	1	0302-
84	HOSE; FLEX,P/S (B) L=320	1-09365-039-0	01	1	0302-
229	BRACKET; HOSE,POWER STRG	1-21464-407-1	01	1	0302-
261	PIPE; OIL,UNION TO HOSE	1-21117-355-0	01	1	0302-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE L=1287	1-21116-852-0	01	1	0302-
277	BOLT; HOSE CLIP (A) M8X20 FLANGE	0-28680-820-0	01	1	0302-0401
277	BOLT; HOSE CLIP (A) M10X25 FLANGE	0-28681-025-0	01	1	0402-
277	BOLT; HOSE CLIP (A) M8X20 FLANGE	0-28680-820-0	02	1	0302-0305
277	BOLT; HOSE CLIP (B) M8X25 FLANGE	0-28680-825-0	01	1	0302-0305
277	BOLT; HOSE CLIP (C) M8X25 FLANGE	0-28680-825-0	03	1	0306-
278	NUT; HOSE CLIP M8 FLANGE	0-91150-108-0	01	1	0302-0401
278	NUT; HOSE CLIP M10 FLANGE	0-91150-210-0	01	1	0402-
280	HOSE; P/S OIL PUMP,INL	1-21117-301-0	01	1	0302-

257 58 76 266 61 256 63 61 58 65 61 287 59 277 61 58 61 66 287 66 59 61 54 157 58 234 264 262 41 280 41 125 166 263 111 67 111 195 195 255 239 65 257 256 79 277 277 277

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
41	CLIP; HOSE,P/S ID=38	9-09915-041-1	02	1	0302-
54	CLIP; OIL PIPE (A) ID=23.6 L=35	1-09700-634-0	02	1	0302-
54	CLIP; OIL PIPE (B) ID=13X2 L=20	9-09535-236-0	04	1	0302-
58	BOLT; CLIP (A) M8X16 FLANGE	0-28080-816-0	03	1	0302-
58	BOLT; CLIP (B) M8X50 FLANGE	0-28080-850-0	01	1	0302-
58	BOLT; CLIP (C) M8X20 FLANGE	0-28680-820-0	02	1	0302-
58	BOLT; CLIP (C) M8X20 FLANGE	0-28680-820-0	03	1	0302-
58	BOLT; CLIP (D) M10X20 FLANGE	0-28681-020-0	02	1	0302-
59	BRACKET; CLIP,OIL PIPE (A)	1-47477-145-0	01	1	0302-
59	BRACKET; CLIP,OIL PIPE (B)	1-47479-521-0	02	1	0302-
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	04	1	0302-0401
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	05	1	0402-
61	CLIP; OIL PIPE (B) ID=16 L=20	9-09525-535-0	01	1	0302-0302
61	CLIP; OIL PIPE (C) ID=16X2 L=20	9-09535-535-0	01	1	0303-
63	BRACKET; CLIP,P/S (A) L=115 B=25	1-47476-758-0	01	1	0302-
63	BRACKET; CLIP,P/S (B)	1-47478-371-0	03	1	0302-
65	NUT; BRKT M8 FLANGE	0-91150-108-0	03	1	0302-
66	BOLT; BRKT,OIL PIPE M8X20 FLANGE	0-28680-820-0	02	1	0302-
67	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0302-
67	NUT; BRKT M8 FLANGE	0-91150-108-0	03	1	0302-
76	UNION; OIL PIPE M22	9-09233-015-1	01	1	0302-
76	UNION; OIL PIPE M22	9-09233-015-1	01	1	0302-
79	BOLT; BRKT (A) M8X30 FLANGE	0-28680-830-0	03	1	0302-
79	BOLT; BRKT (B) M8X35 FLANGE	0-28680-835-0	02	1	0302-
111	BRACKET; OIL PIPE (A)	1-13345-186-0	01	1	0302-
111	BRACKET; OIL PIPE (B)	1-13345-187-0	01	1	0302-
125	CONNECTOR; P/S PUMP	1-13313-532-0	01	1	0302-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=79.6	1-09623-421-0	01	1	0302-
166	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	0302-
195	BOLT; BRKT (A) M8X12 FLANGE	0-28080-812-0	02	1	0302-
195	BOLT; BRKT (B) M10X35 FLANGE	0-28181-035-0	01	1	0302-
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91150-108-0	01	1	0302-
239	BRACKET; FLEX HOSE (A)	1-47479-146-0	01	1	0302-
239	BRACKET; FLEX HOSE (B)	1-47479-664-0	01	1	0302-
255	UNION; FLEX HOSE M22 & M22 ELBOW	1-09650-375-1	01	1	0302-
256	NUT; UNION (A) M22	9-09111-422-0	01	1	0302-
256	NUT; UNION (B) M22	9-09111-522-0	01	1	0302-
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	0302-
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	0302-
262	CLIP; P/S PIPE ID=15 H=24 L=20	1-09700-606-0	02	1	0302-
263	BRACKET; P/S PIPE	1-47476-483-2	01	1	0302-
264	BOLT; PIPE BRKT M8X30 FLANGE	0-28680-830-0	01	1	0302-
266	UNION; OIL PIPE,P/S M20 & M22 STRAIGHT	1-09654-167-1	01	1	0302-
277	BOLT; HOSE CLIP (A) M8X20 FLANGE	0-28680-820-0	01	1	0302-0401
277	BOLT; HOSE CLIP (A) M10X25 FLANGE	0-28681-025-0	01	1	0402-
277	BOLT; HOSE CLIP (A) M8X20 FLANGE	0-28680-820-0	02	1	0302-0305
277	BOLT; HOSE CLIP (B) M8X25 FLANGE	0-28680-825-0	01	1	0302-0305
277	BOLT; HOSE CLIP (C) M8X25 FLANGE	0-28680-825-0	03	1	0306-
280	HOSE; P/S OIL PUMP,INL	1-21117-301-0	01	1	0302-
287	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	0302-

58 54 64 58 63 62 59 54 67 79 84 64 239 277 262 81 84 238 45 58 258 54 81 238 238 48 277

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
45	PIPE; OIL,P/S UNIT TO UNION (A) L=1555	1-21117-306-0	01	1	0302-0505
45	PIPE; OIL,P/S UNIT TO UNION (A) L=1555	1-21117-776-0	01	1	0506-
45	PIPE; OIL,P/S UNIT TO UNION (B) L=2201	1-21117-307-0	01	1	0302-
45	PIPE; OIL,P/S UNIT TO UNION (C) L=2566	1-21117-323-0	01	1	0302-0401
45	PIPE; OIL,P/S UNIT TO UNION (C) L=2562	1-21117-435-0	01	1	0402-0408
45	PIPE; OIL,P/S UNIT TO UNION (C) L=2559	1-21117-601-0	01	1	0409-0410
45	PIPE; OIL,P/S UNIT TO UNION (C) L=2562	1-21117-435-0	01	1	0411-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	1-21117-322-0	01	1	0302-0305
48	PIPE; OIL,FLEX HOSE TO STRG UNIT L=2555	1-21117-396-0	01	1	0306-0309
48	PIPE; OIL,FLEX HOSE TO STRG UNIT L=2556	1-21117-433-0	01	1	0310-
54	CLIP; OIL PIPE (A) ID=23.6 L=35	1-09700-634-0	02	1	0302-
54	CLIP; OIL PIPE (B) ID=13X2 L=20	9-09535-236-0	04	1	0302-
58	BOLT; CLIP (A) M8X16 FLANGE	0-28080-816-0	03	1	0302-
58	BOLT; CLIP (B) M8X50 FLANGE	0-28080-850-0	01	1	0302-
58	BOLT; CLIP (C) M8X20 FLANGE	0-28680-820-0	02	1	0302-
58	BOLT; CLIP (C) M8X20 FLANGE	0-28680-820-0	03	1	0302-
58	BOLT; CLIP (D) M10X20 FLANGE	0-28681-020-0	02	1	0302-
59	BRACKET; CLIP,OIL PIPE (A)	1-47477-145-0	01	1	0302-
59	BRACKET; CLIP,OIL PIPE (B)	1-47479-521-0	02	1	0302-
62	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	03	1	0302-
63	BRACKET; CLIP,P/S (A) L=115 B=25	1-47476-758-0	01	1	0302-
63	BRACKET; CLIP,P/S (B)	1-47478-371-0	03	1	0302-
64	BOLT; CLIP BRKT (A) M8X20 FLANGE	0-28680-820-0	01	1	0302-
64	BOLT; CLIP BRKT (B) M8X30 FLANGE	0-28680-830-0	02	1	0302-
67	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0302-
67	NUT; BRKT M8 FLANGE	0-91150-108-0	03	1	0302-
79	BOLT; BRKT (A) M8X30 FLANGE	0-28680-830-0	03	1	0302-
79	BOLT; BRKT (B) M8X35 FLANGE	0-28680-835-0	02	1	0302-
81	WASHER; LK,FLEX HOSE ID=20.2	9-09150-520-0	02	1	0302-
84	HOSE; FLEX,P/S (A) L=430	0-09538-430-0	01	1	0302-
84	HOSE; FLEX,P/S (B) L=320	1-09365-039-0	01	1	0302-
238	NUT; FLEX HOSE (A) M8 FLANGE	0-91150-108-0	02	1	0302-
238	NUT; FLEX HOSE (B) M20	9-99111-420-0	02	1	0302-
239	BRACKET; FLEX HOSE (A)	1-47479-146-0	01	1	0302-
239	BRACKET; FLEX HOSE (B)	1-47479-664-0	01	1	0302-
258	TUBE; DISTANCE,BRKT L=22	9-22159-024-0	01	1	0302-
262	CLIP; P/S PIPE ID=15 H=24 L=20	1-09700-606-0	02	1	0302-
277	BOLT; HOSE CLIP (A) M8X20 FLANGE	0-28680-820-0	01	1	0302-0401
277	BOLT; HOSE CLIP (A) M10X25 FLANGE	0-28681-025-0	01	1	0402-
277	BOLT; HOSE CLIP (A) M8X20 FLANGE	0-28680-820-0	02	1	0302-0305
277	BOLT; HOSE CLIP (B) M8X25 FLANGE	0-28680-825-0	01	1	0302-0305
277	BOLT; HOSE CLIP (C) M8X25 FLANGE	0-28680-825-0	03	1	0306-
