◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXJ ▶ 10910 - CXJ RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-31 - STEERING COLUMN AND SHAFT ▶
4-31 — STEERING COLUMN AND SHAFT (#25900) — 33 parça

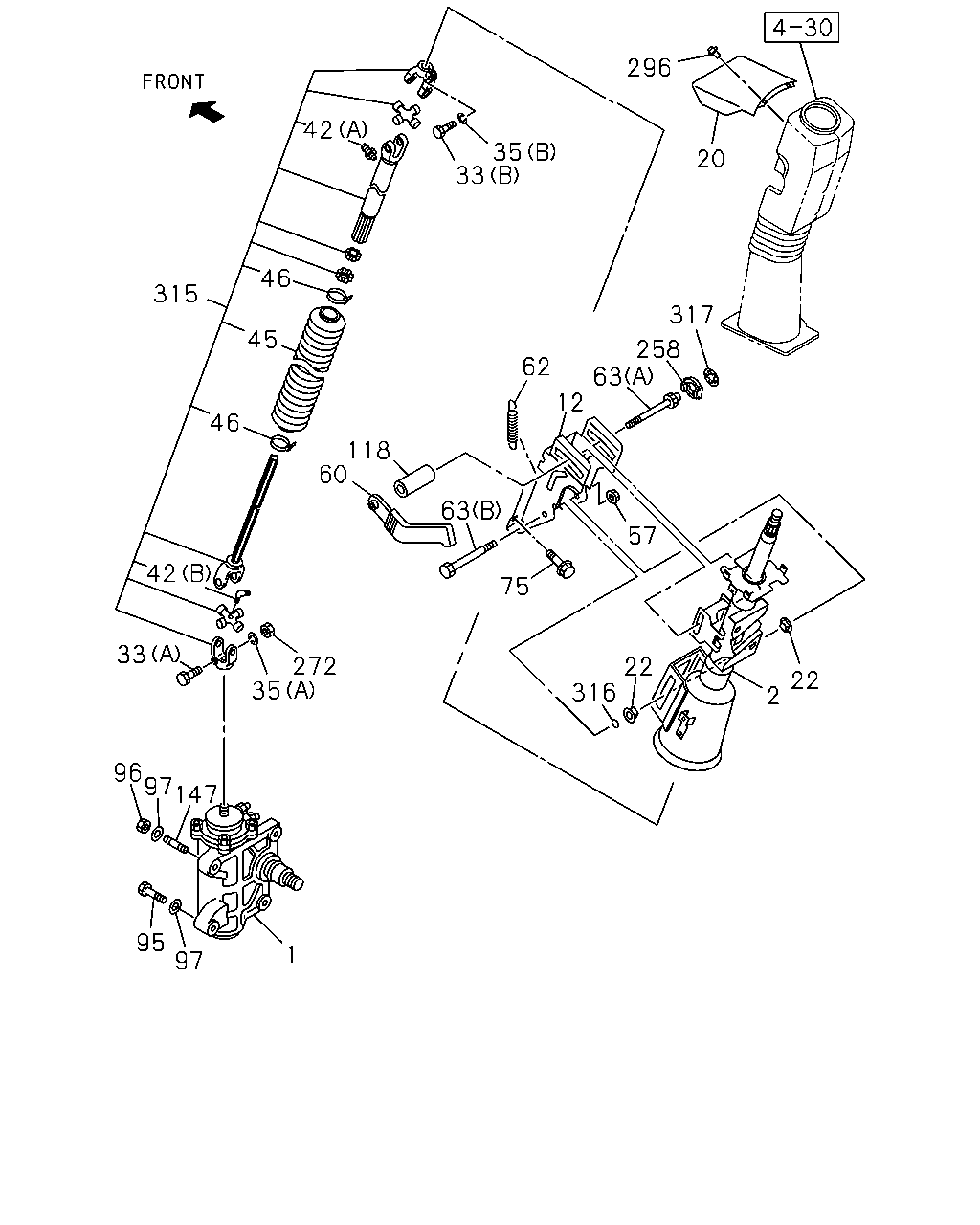

çizim 82122
296 42 35 33 20 46 315 317 45 258 63 12 62 46 118 60 63 57 42 75 33 272 35 22 316 22 2 96 97 147 95 1 97
BalonParca AdiParca NoAdetTipApplied Date
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		1-44000-862-1 01 1 0302-0401
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		1-44000-910-0 01 1 0402-
2 SHAFT ASM; STRG 1-44130-694-0 01 1 0302-
12 BRACKET; LWR,STRG COLUMN 1-44227-143-0 01 1 0302-
20 COVER; STRG SHAFT 1-72438-121-3 01 1 0302-
22 BUSHING; STRG COLUMN 1-44227-150-0 02 1 0302-
33 BOLT; STRG SHAFT TO UNIT
(A) M10X50 		1-09000-489-0 01 1 0302-
33 BOLT; STRG SHAFT TO UNIT
(B) 		1-44139-153-0 01 1 0302-
35 WASHER; LK,STRG SHAFT
(B) 		1-44139-154-0 01 1 0302-
35 WASHER; LK,STRG SHAFT
(A) ID=10.2 		9-09150-810-0 01 1 0302-
42 NIPPLE; GREASE,SLEEVE YOKE
(A) STRAIGHT 		1-44135-375-0 01 1 0302-
42 NIPPLE; GREASE,SLEEVE YOKE
(B) ELBOW 		1-44135-376-0 01 1 0302-
45 BOOT; STRG SHAFT 1-44139-155-0 01 1 0302-
46 CLIP; BOOT 1-44139-156-0 02 1 0302-
57 NUT; ADJ BOLT 1-44227-151-0 01 1 0302-
60 LEVER; ADJ,STRG COLUMN 1-44227-144-0 01 1 0302-
62 SPRING; LK,LEVER 1-44227-153-0 01 1 0302-
63 BOLT; ADJ LEVER,TILT STRG
(A) 		1-44227-145-0 01 1 0302-
63 BOLT; ADJ LEVER,TILT STRG
(B) 		1-44227-149-0 01 1 0302-
75 BOLT; STRG COLUMN
M8X20 FLANGE 		0-28680-820-0 04 1 0302-
95 BOLT; STRG UNIT
M18X65 		1-09000-583-0 03 1 0302-0409
95 BOLT; STRG UNIT
M18X60 		9-91066-860-0 03 1 0410-
96 NUT; STRG UNIT
M18 		9-99110-518-0 01 1 0302-
97 WASHER; PL,STRG UNIT
ID=18 		9-09851-862-0 04 1 0302-
118 NUT; LEVER,TILT BOLT 1-44227-146-0 01 1 0302-0506
118 NUT; LEVER,TILT BOLT 1-44227-163-0 01 1 0507-
147 STUD; STRG UNIT
M18X49 L=76 		1-09300-107-0 01 1 0302-
258 STOPPER; STRG COLUMN,TILT & TELESCOPIC 1-44227-147-0 01 1 0302-
272 NUT; SHAFT TO YOKE
M10 		9-09110-510-0 01 1 0302-
296 CLIP; COVER
D6X12.5 		8-94146-425-0 02 1 0302-
315 JOINT; SPLINE 1-44135-344-1 01 1 0302-
316 RING 1-44227-152-0 01 1 0302-
317 NUT; PUSH 1-44227-148-0 01 1 0302-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
